Трехфазный динамический активный гармонический фильтр с бтиз и монитором с коррекцией компенсации реактивной мощности
- Category: Power Distribution Equipment >>>
- Supplier: Yiyen Electric Technology Co. Ltd.
Share on (1600699128344):
Product Overview
Description
Three-Phase Rack-Mounted Dynamic Active Harmonic Filter with IGBT and Monitor Reactive Power Compensation Correction
Product Description

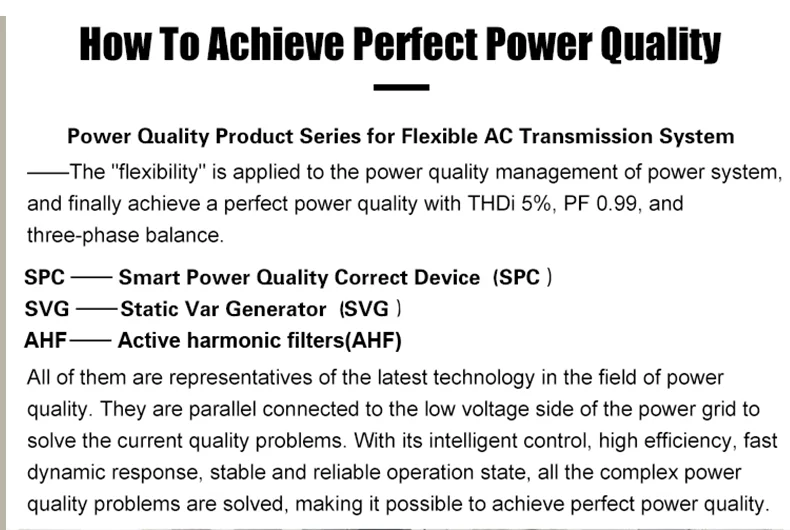

Static var generators (SVG), also known as active power factor compensators (APFC) or
instantaneous stepless reactive power compensators, are the ultimate answer to power quality
problems caused by low power factor and reactive power demand for a wide range of segments
and applications. They are a high performance, compact, flexible, modular and cost- effective
type of active power filters (APF) that provide an instantaneous and effective response to power
quality problems in low or high voltage electric power systems. They enable longer equipment
lifetime, higher process reliability,improved power system capacity and stability, and reduced
energy losses, complying with most demanding power quality standards and grid codes.

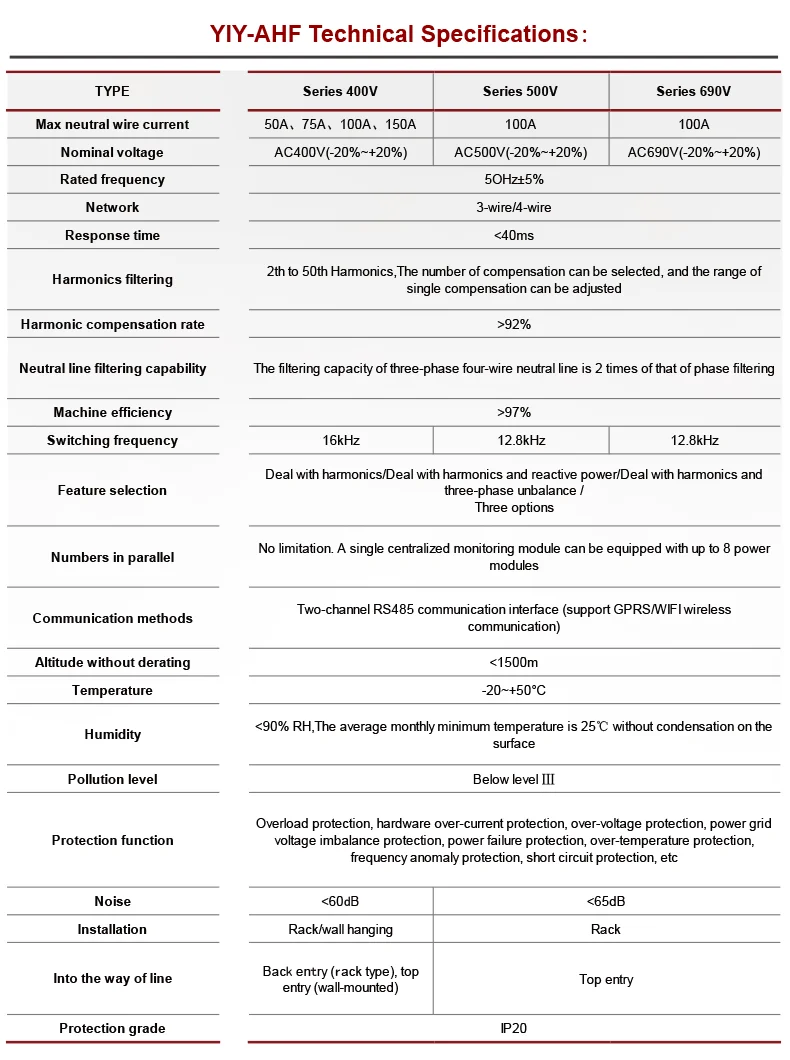

Specification
item | value |
Place of Origin | Zhejiang，China |
Brand Name | YIY |
Model Number | 150A |
Max neutral wire current | 150A |
Nominal voltage | AC400V(-20%~+20%) |
Rated frequency | 50Hz±5% |
Network | Three-phase three-wire/three-phase four-wire |
Response time | <10ms |
Reactive power compensation rate | >95% |
Machine efficiency | >97% |
Numbers in parallel | No limitation. A single centralized monitoring module can be equipped with up to 8 power modules |
Communication methods | Two-channel RS485 communication interface (support GPRS/WIFI wireless communication) |
Altitude without derating | <2000m |
Temperature | -20~+50°C |
Warranty | 1 Year |
Protection grade | IP20 |
Company Profile
Integrating research & development, production and marketing, Zhejiang Yiyuan Electric Co., Ltd. is an enterprise specializing in manufacturing power supplies and bearings. Our company has a workshop covering more than 4000 square meters. We have more than 200 employees, including more than 20 experienced technicians. At the same time, we have introduced advanced technology from home and abroad positively, improved and refined our products continuously. Years of specialized production has made our products salable in the world market, like Russia, Southeast Asia, Europe, America, the Middle East and Africa. With extensive usage of information and micro-electronic technology, higher quality requirements of current supply have been put forward by a large quantity of electricity-consuming equipments. In view of this situation, we have explored series of power supply products to meet the requirements of all kinds of special electricity-consuming equipment. Our main products are voltage stabilizers, voltage regulators, inverters, silicon rectifying chargers, low voltage apparatus, reactors, current transformers, voltage transformers and circuit breakers.
Shipping&Delivery
FAQ
Q 1. what's the payment term?
A. We accept TT,50% deposit and 50% balance before shipment .
Q 2. how's the delivery time ?
A. usually it will take about 25-35 days for production.For sample usually in 1 week.
Q 3. Tell me the standard of package?
A. For the small capacity stabilizer, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.
Q 4. What kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your
requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer
price.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this
certificate.
Q 6.Would you accept to use our logo ?
A.Our brand is YIY .It's absolute no problem to do OEM ,but need MOQ.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity
near 2000pcs.
Q 8.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern
Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and
make mutural benifit from our cooperation.
Q 9. What kind of certificate you have ?
A. Our company already obtained ISO9001, SONCAP, CE, PCT, design and technical patents certificates.
