US PRF380 Smartphone Controlled NFC Plastic Seal Security RFID Tag One Time Use
- Category: >>>
- Supplier: Hangzhou Jizhen Technology Co. Ltd.Hangzhou Ltd.
Share on (1600700717063):
Product Overview
Description
Product Description
Specification
item | value |

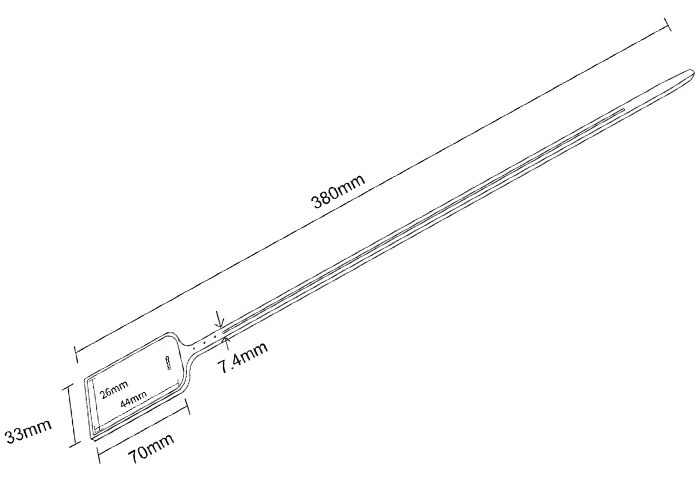

Size | 380*33*4.5 mm |
Place of Origin | China |
Zhejiang | |
Brand Name | ULTRA-GENUINE |
Model Number | US-PRF380 |
Material | PP,Stainless Steel,Ntag213 |
Tensile Strength | >340 N (34.69 KG) |
Overall Length | 380 mm |
Working Length | 270 mm |
Average Weight | 9.54 g / pc |
Marking Area | L 58*W 32 mm |
NFC Chip | NTAG 213 |
Working Frequency | 13.56 MHz,ISO14443A protocol |
Read&Write Capactiy | 144Bytes |
Print | Laser |

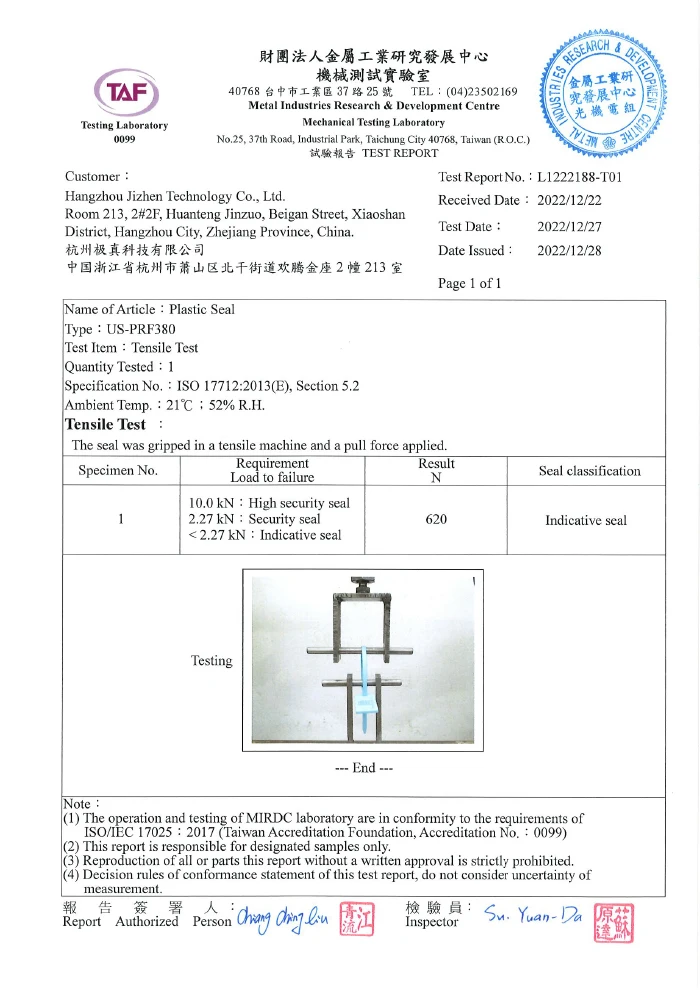

Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: What is RFID ?
A: RFID is short for Radio Frequency Identification,it is a non-contact data communication
between the Reader & Writer device and tag.
Q: What is NFC ?
A: NFC is short for Near Field Communication,it's development technology is later than RFID.
Q: What are the differences between RFID and NFC ?
Answer:
1. Working Frequency
NFC is 13.56 MHz,while RFID covers low frequency,high frequency and ultra frequency.
2. Working Distance
Theoretically, NFC works within 0-20 cm, yet virtually on product, a special power controlling
technology made its working distance 0-10cm so as to better ensure safety operations.
RFID working distance varies as it has different frequencies.
3. Working Mode
NFC support read and write, card mode; RFID, reader and non-contact card are two independent
entity,can not be switched.
4. Communication Mode
NFC support P2P, RFID does not.
5. Protocols
The underlying communication protocol of NFC is compatible with the underlying communication standard
of high-frequency RFID, that is ISO14443/ISO15693 standard.
6. Application
Low Frequency
High Frequency ------ NFC (Non-contact IC card)
RFID
Ultra Frequency
Micro Wave
A: RFID is short for Radio Frequency Identification,it is a non-contact data communication
between the Reader & Writer device and tag.
Q: What is NFC ?
A: NFC is short for Near Field Communication,it's development technology is later than RFID.
Q: What are the differences between RFID and NFC ?
Answer:
1. Working Frequency
NFC is 13.56 MHz,while RFID covers low frequency,high frequency and ultra frequency.
2. Working Distance
Theoretically, NFC works within 0-20 cm, yet virtually on product, a special power controlling
technology made its working distance 0-10cm so as to better ensure safety operations.
RFID working distance varies as it has different frequencies.
3. Working Mode
NFC support read and write, card mode; RFID, reader and non-contact card are two independent
entity,can not be switched.
4. Communication Mode
NFC support P2P, RFID does not.
5. Protocols
The underlying communication protocol of NFC is compatible with the underlying communication standard
of high-frequency RFID, that is ISO14443/ISO15693 standard.
6. Application
Low Frequency
High Frequency ------ NFC (Non-contact IC card)
RFID
Ultra Frequency
Micro Wave
Company Profile
Hangzhou Jizhen Technology CO.,LTD. is established in 2021,located at Xiaoshan district,Hangzhou City in China. The company particularly provides various disposable security sealing protection items like container seals,plastic seals,meter seals,void stickers,nylon cable tie,bottle handles and other accessories,which apply to logistics,shipping containers,airway cargo,bank, oil and gas transportation, garments,and packaging industries. Jizhen implies utmost sincerity, ultragenuine, this is what we embark on our client service !
