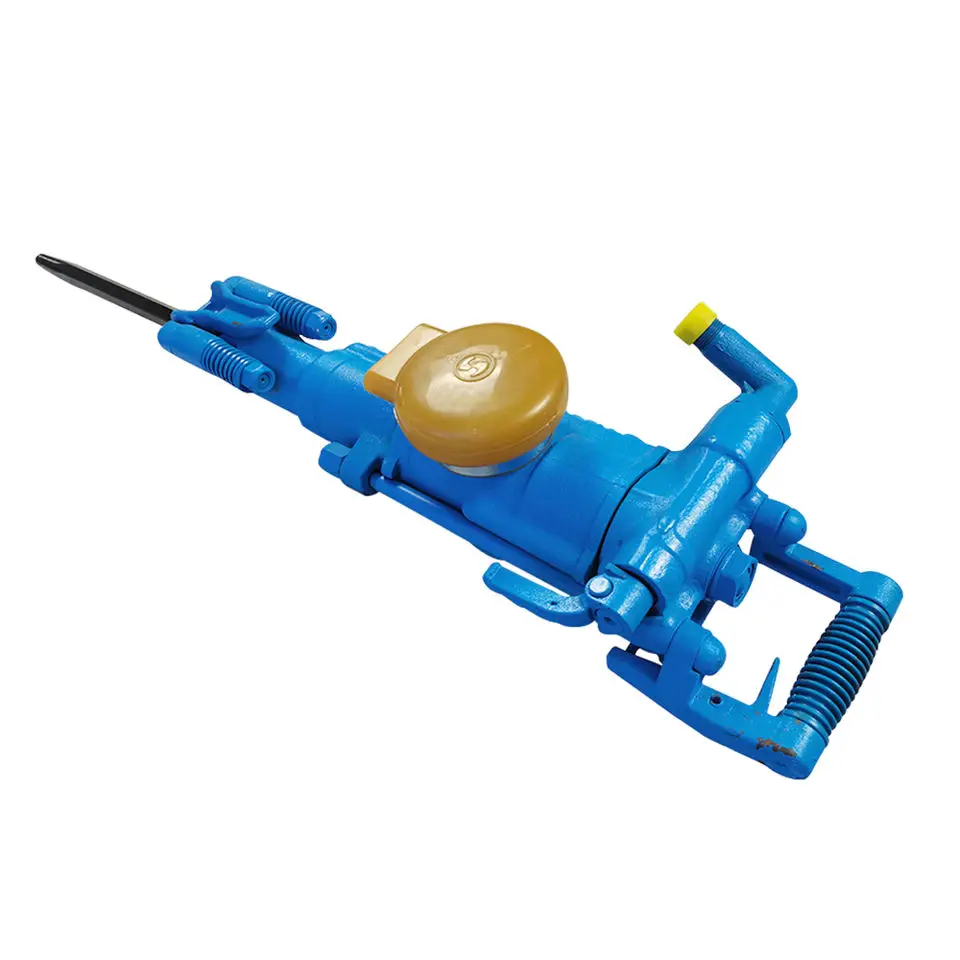

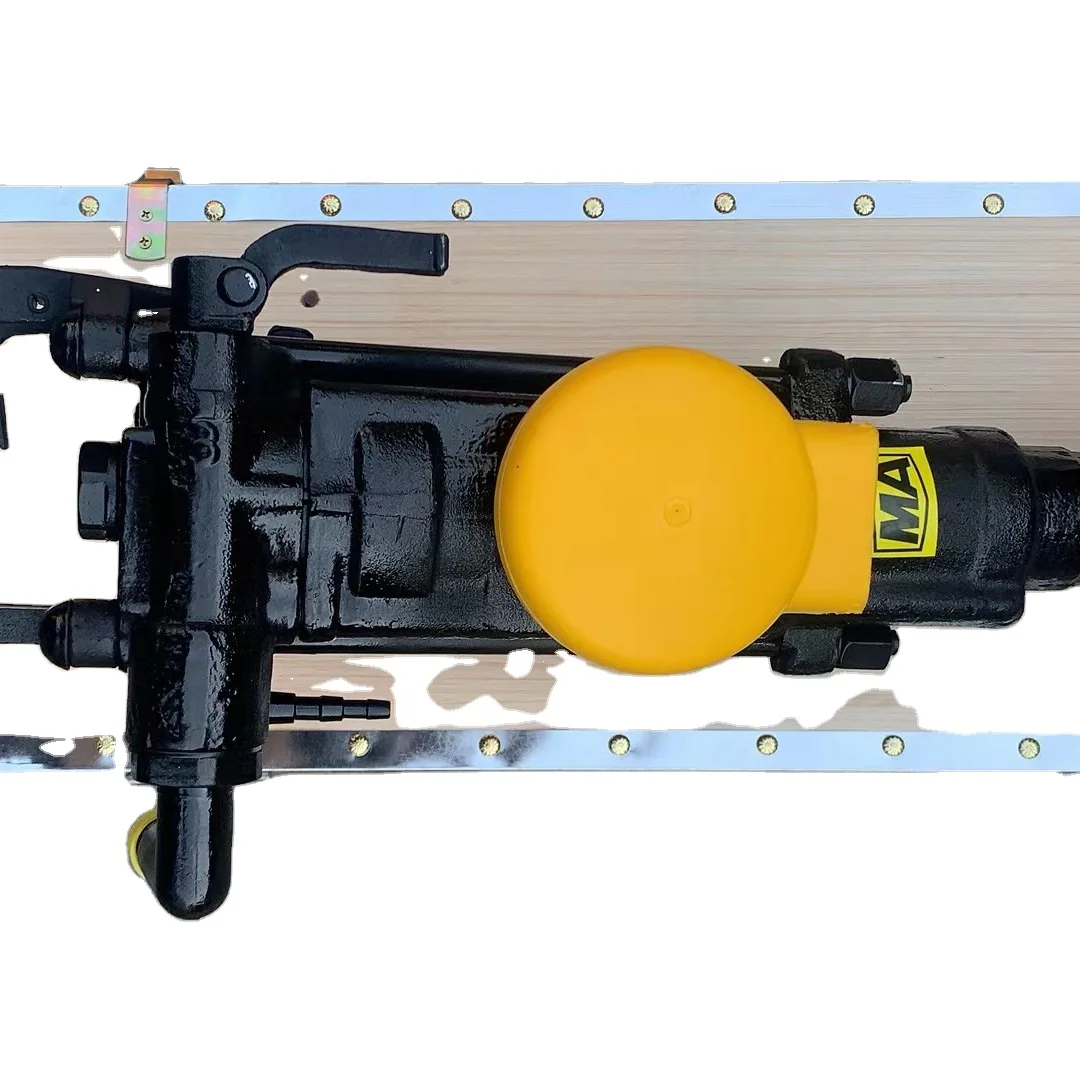

Epirc Air Rock Drill Hammer Pneumatic rock drill YO18 Y24 YT27 YT28 YT29A with FT160A air leg
- Category: >>>
- Supplier: Yanggu Litong Rock Drilling Tools Co. Ltd.
Share on (1600701780360):
Product Overview
Description
Products Description
Pneumatic Machinery has a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.

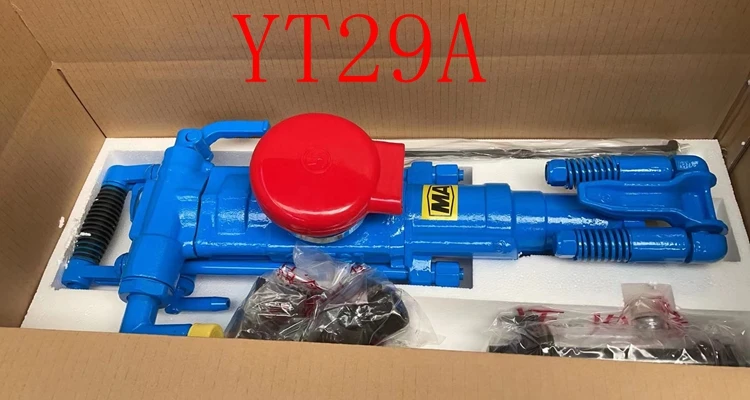

The YT29A rock drill is the most rugged, powerful and highly efficient rock drill in the range .It gives improved productivity and drill steel economy and can be used on all rock formation and in all kinds of applications.
1) Fit for wet drilling in medium-hard or hard rock.
2) Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy
to maintain and repair.
3)Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
2) Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy
to maintain and repair.
3)Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
Model | Weight | Length | Impact frequency | Air consumption | Cylinder* stroke | Shank dimension | Drilling depth | Bit dia. |
TA19 | 18kgs | 604mm | >37HZ | 28 | 60mmx60mm | 22x108mm | 3m | 34-42mm |
YT28 | 26kgs | 661mm | >37HZ | <81L/s | 80mmx60mm | 22(25)x108mm | 5m | 34-42mm |
YT27 | 27kgs | 668mm | >39HZ | <57L/s | 80mmx60mm | 22x108mm | 5m | 34-45mm |
YT29A | 26.5kgs | 659mm | >39HZ | <62L/s | 82mmx60mm | 22(25)x108mm | 5m | 34-45mm |
YT24C | 24kgs | 628mm | >37HZ | <80L/s | 76mmx60mm | 22x108mm | 5m | 34-42mm |
TY24 | 24kgs | 678mm | >31HZ | <52L/s | 70mmx70mm | 22(25)x108mm | 5m | 34-42mm |

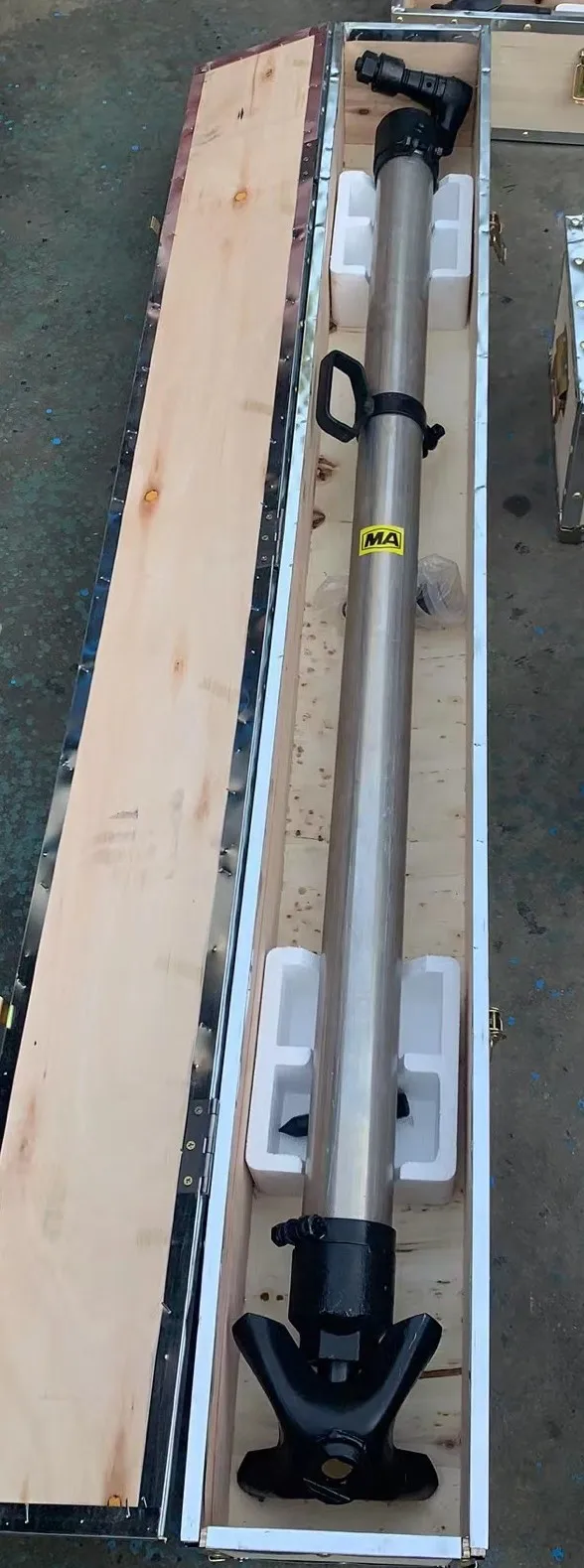

Air leg | FT160A | FT160B | FT160C |
Weight | 17 kg | 16 kg | 18 kg |
Length | 1668 mm | 1428 mm | 1820 mm |
Propulsion Stroke | 1338 mm | 1098 mm | 1490 mm |
Cylinder Inner Diameter | 65 mm | 65 mm | 65 mm |

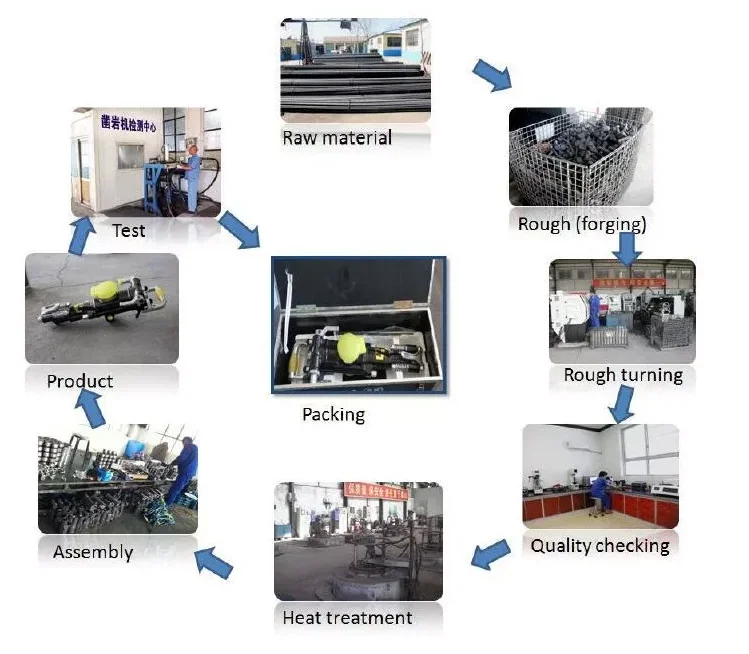

Manufacturing Technique

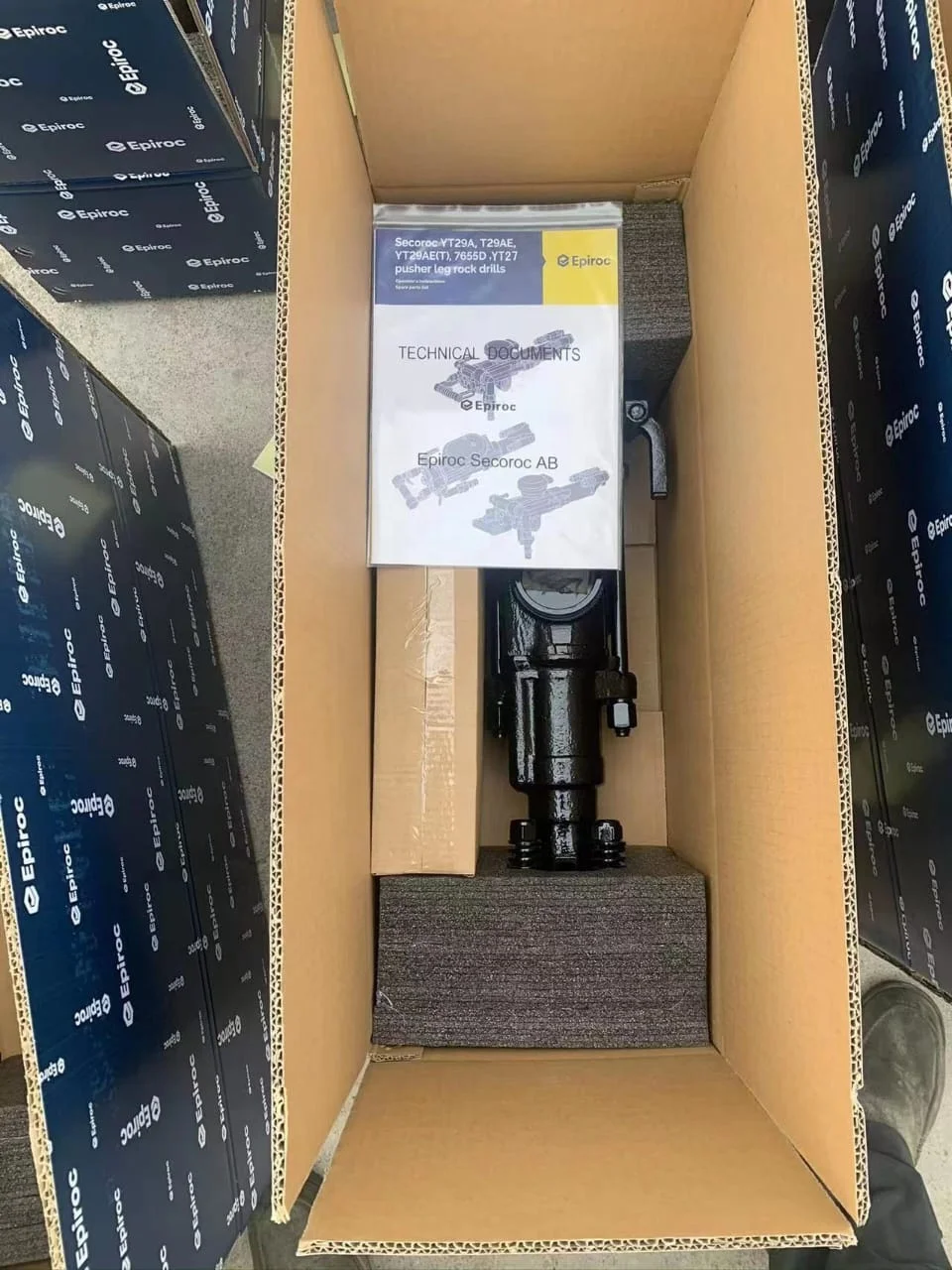

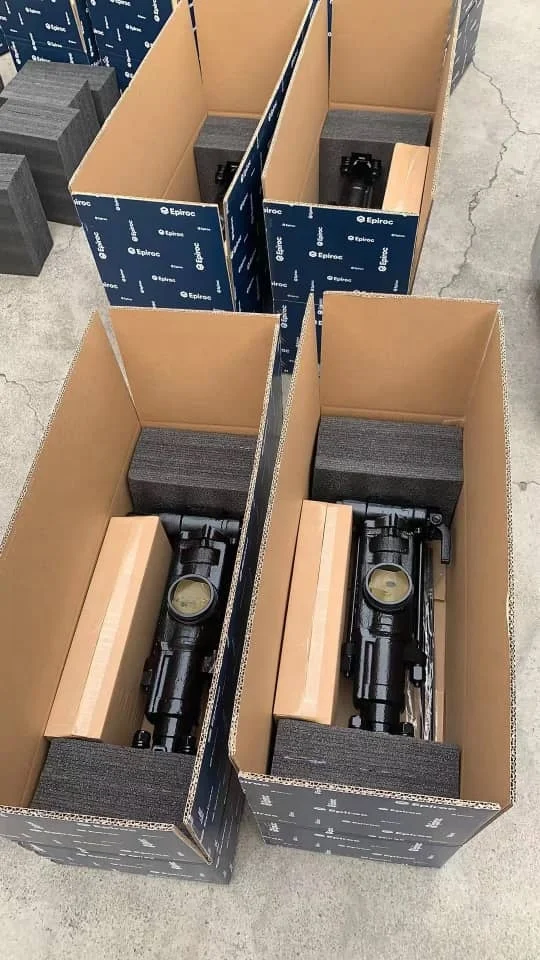

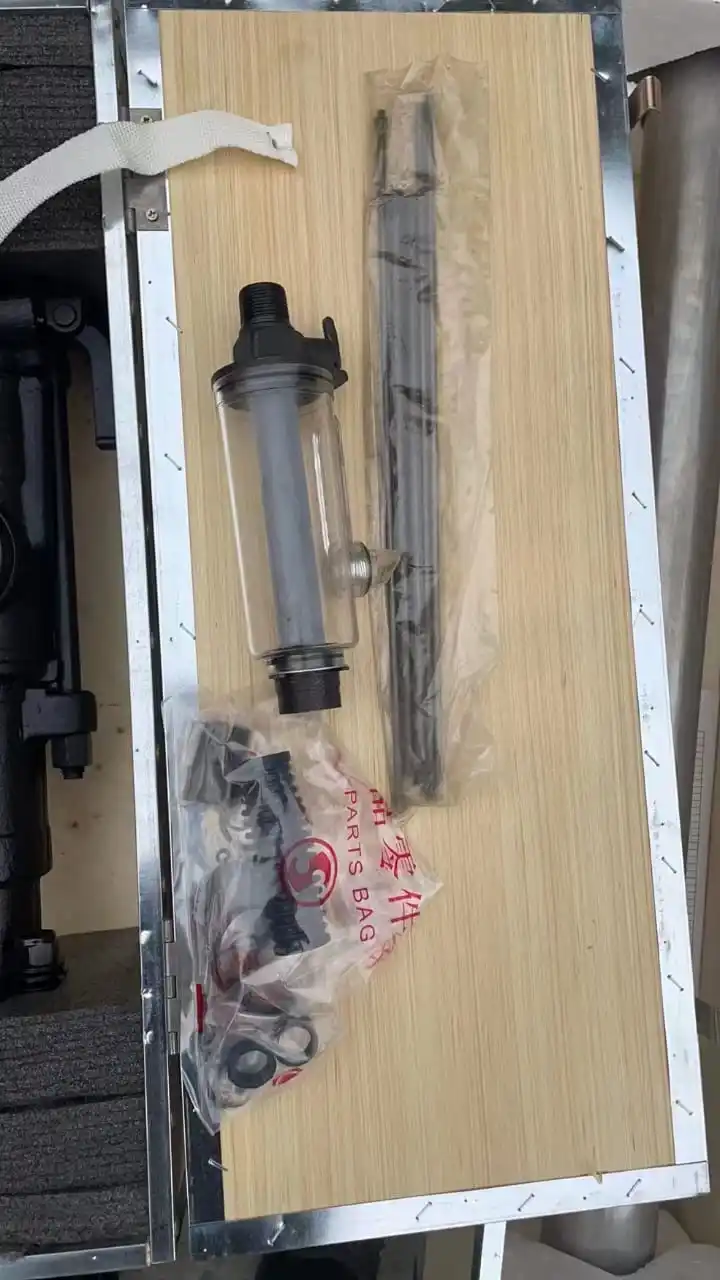

Product packaging
Company Profile
Yanggu Litong Rock Drilling Tools Co.,Ltd
Yanggu Litong drilling tools Co., Ltd. is a famous manufacturer of rock drilling tools in China,
the factory has been engaged in the research and production of rock drilling tools for more than 20 years.
At present, Litong's rock drilling tools have been sold to more than 30 countries around the world.
The goal of LITONG is to provide first class products to meet the requirements of our clients and to help them to increase their productivity and profitability. Cleaner, more efficient and More cost-effective products are our guidelines in production.
Why Choose Us
01
We are a experienced manufacturer
The founder of Litong drilling tools is the developer of the first batch of rock drilling tools in China. At present, the factory has a number of national patents and strong technical force.
02
Strict quality management
Litongdrilling tools has a strict quality inspection process, and every step will be recorded from the beginning of raw materials to the delivery of finished products
03
Better 24-hour service
In order to better serve customers, Litong has 24-hour employees on duty in Alibaba.
In subsequent services, salesmen and technicians are also ready to serve you at any time.
04
Flexible payment and delivery
Support a variety of payment methods, including TT, LC, Western Union, Alipay, etc.
In some countries, we support DDP delivery.
Sea and air transportation, express delivery and land transportation and train transportation are available.
Global exhibition
FAQ
1. Q：Are you manufacturery or trade company?
A:We are a professional manufacturer of rock drilling tools .Products including Top Hammer Drill rod、 Drill bit、Taper button bit and taper rod、DTH Bit and DTH rod、 etc.
2.Q: How can i get the after sale services?
A: Free replacement will provide once the problems casued by our product quality.
3、Q: How is your quality control?
A: We have our own experienced QC.There will be strict inspection for every order before shipping out.
4.Q: How long is your delivery time?
A: Within five days for the products in stock； regular order delivery in 20 days.
5.Q: Do you provide samples ? is it free or extra ?
A: Not all are free, some can be free.Please consult the salesman for details.
6. Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. Please consult the salesman for details.
A:We are a professional manufacturer of rock drilling tools .Products including Top Hammer Drill rod、 Drill bit、Taper button bit and taper rod、DTH Bit and DTH rod、 etc.
2.Q: How can i get the after sale services?
A: Free replacement will provide once the problems casued by our product quality.
3、Q: How is your quality control?
A: We have our own experienced QC.There will be strict inspection for every order before shipping out.
4.Q: How long is your delivery time?
A: Within five days for the products in stock； regular order delivery in 20 days.
5.Q: Do you provide samples ? is it free or extra ?
A: Not all are free, some can be free.Please consult the salesman for details.
6. Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. Please consult the salesman for details.
