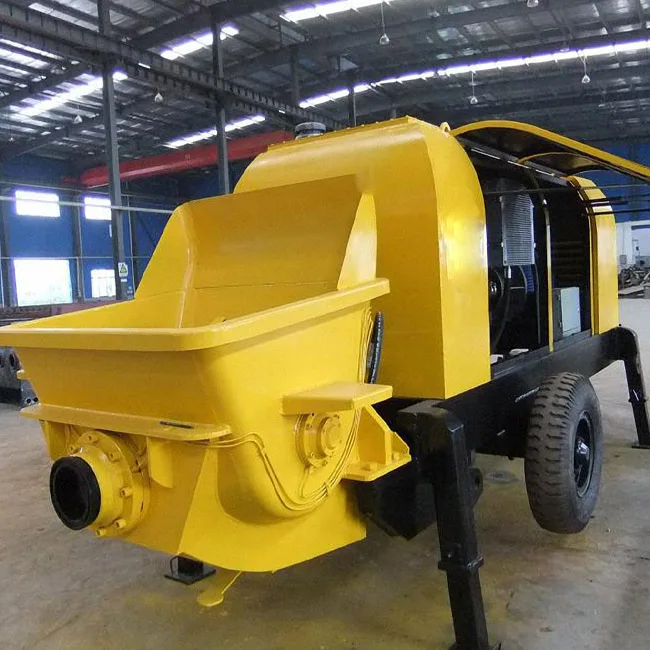

Cheap Never Used Concrete Hose Pump in Germany Europe

Product Overview

Description



Introduction

The concrete line pump is a kind of pumping equipment that uses horizontal or vertical pipes to continuously transport concrete to the pouring point. Concrete pump is suitable for occasions with large amount of concrete, long operation period and large pumping distance and height. It is one of the important equipment for high-rise building construction.

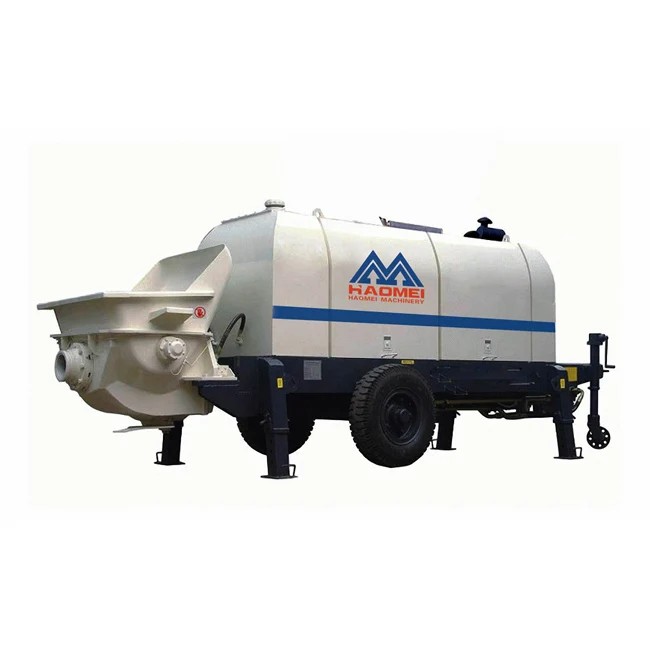

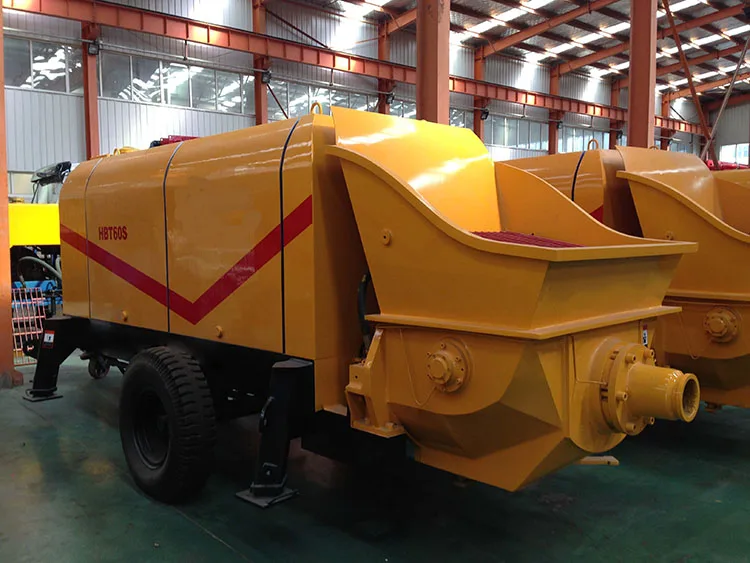

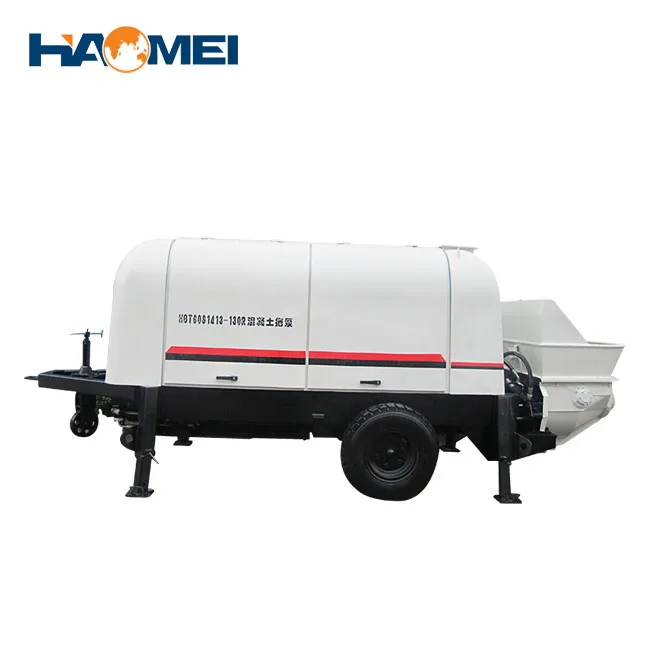

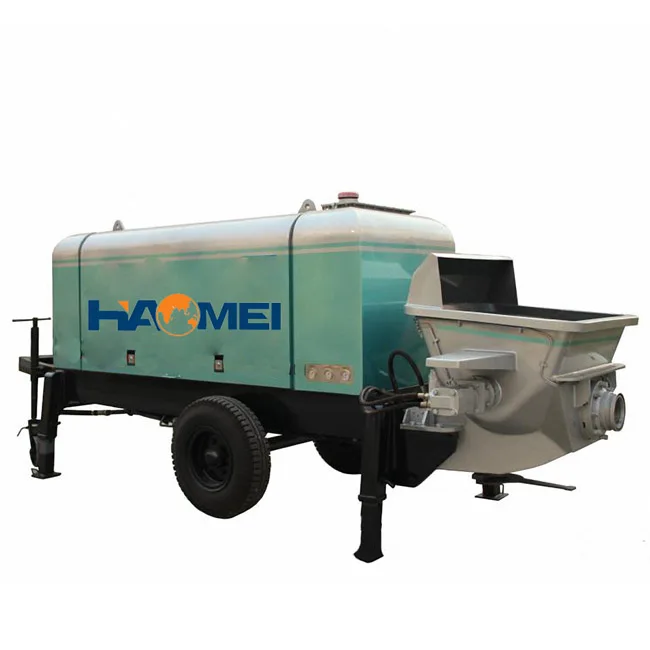

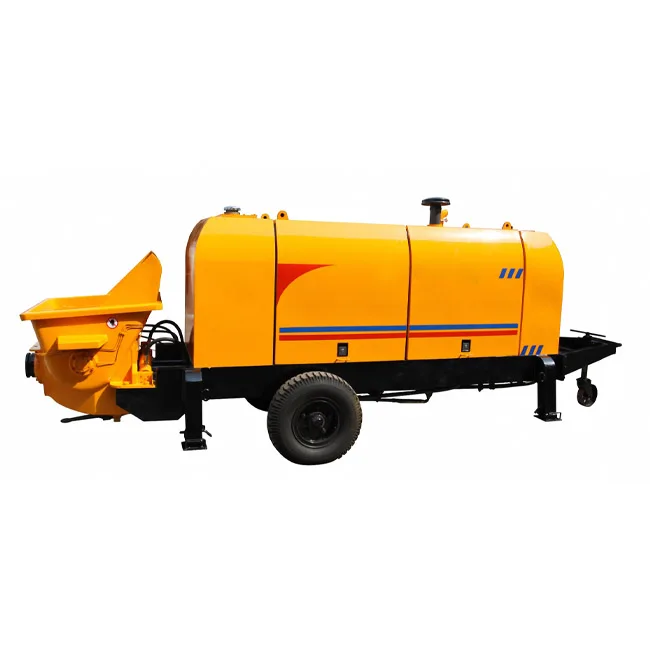

Haomei trailer concrete pump is of rich models from 20-60 m3/h. It is very popular among dozens of countries like Philippines, Uzbekistan, Ethiopia, Vietnam, Indonesia, Kenya, Brazil, Egypt, Fiji, Nigeria,etc.

Parameters

Item	Unit	HBTS40-12-82R	HBTS50-2-75	HBTS601413-112R	HBTS801818-110
Theory Concrete Output (Low / High Pressure)	m3/h	40/33	62/27	60	60
Concrete Pressure (Low / high pressure)	Mpa	12/7.6	12/7.2	13/7.4	16/95
Hydraulic system pressure	Mpa	31.5	31.5	32	32
Rotation speed	r/min	2100	1480	1480	1480
High / low pressure switch	/	yes	yes	yes	yes
Distribution valve	/	S valve	S valve	S valve	S valve
Pumping cylinder diameter/ Stroke	mm	180×1200	180×1300	195/1500	195/1500
Diesel engine	kw	82(Deutz)	75	112	110
Hydraulic tank volume	L	370	370	400	400
Height of adding material	mm	1100	1420	1355	1355
Total mass	kg	4500	4500	5800	5800
Aclinic Delivery distance	mm	1200	1200		1200
Theory vertical pumping height	m	3225+1350	3225+1350		3225+1350
Dimension: L*W*H	mm	5000*1850*1700	5200*2000*2260		6240*2110*2550



 Details

1. Free switch of high and low voltage, meeting different construction requirements.

2. The hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

3. Simplest electric control system with fewest element quantities, bringing the highest reliability.

4. The key parts are all from famous brands like Italy Manuli, France Schnider brand,Parker brand,etc.

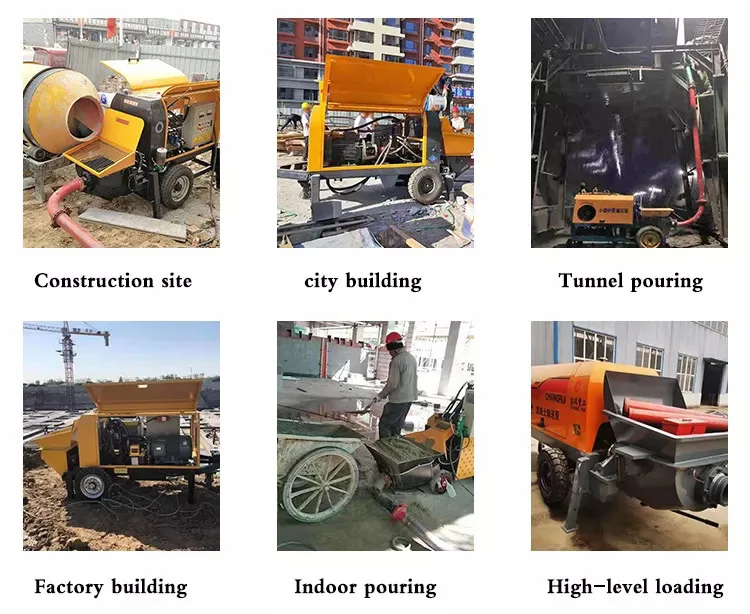

Application

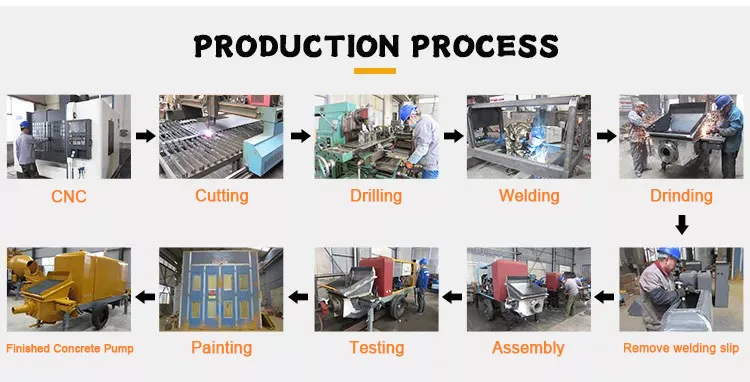

 Manufacturing Process

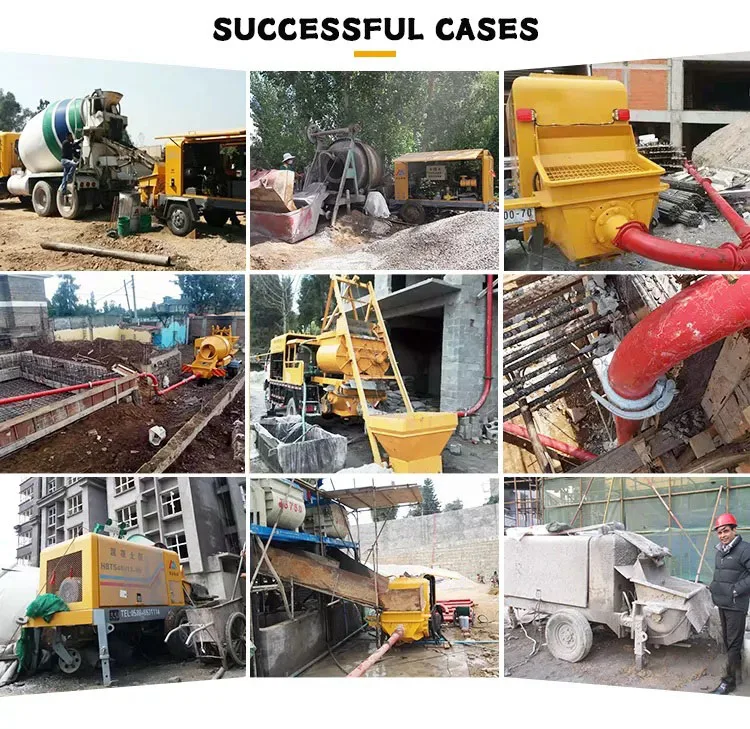

Cases

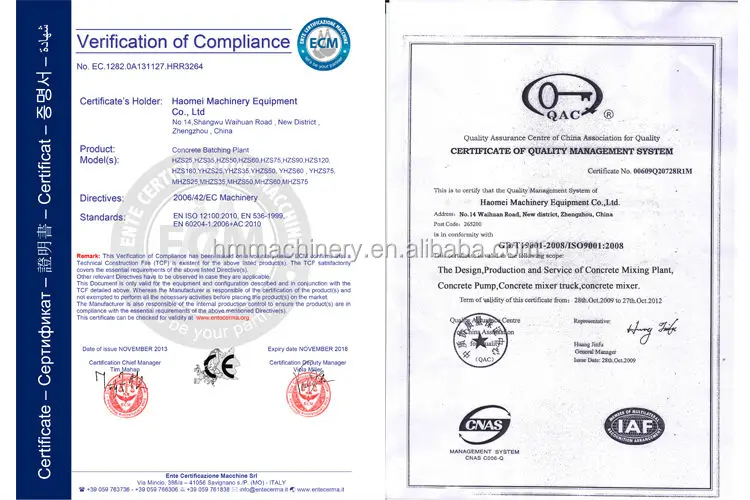

Certification of this product
