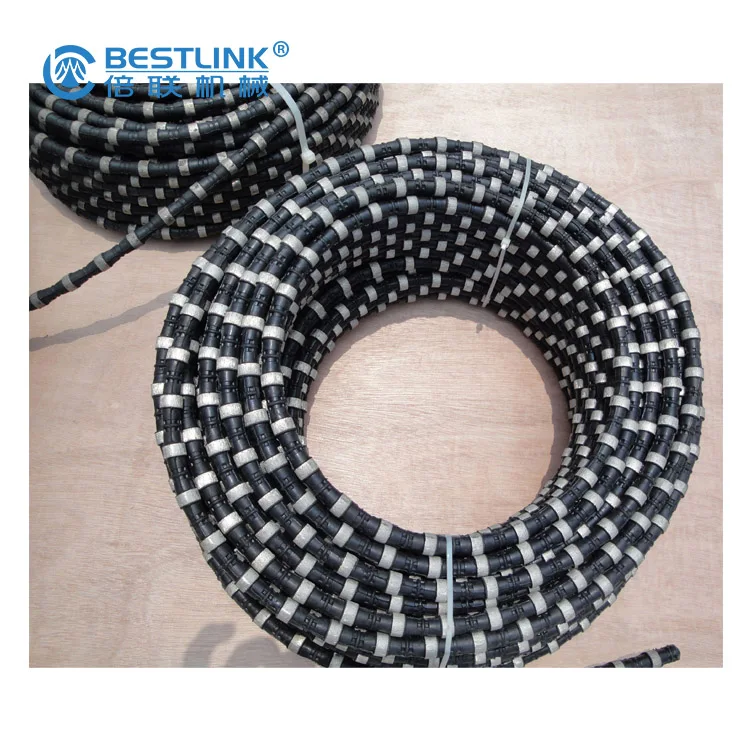

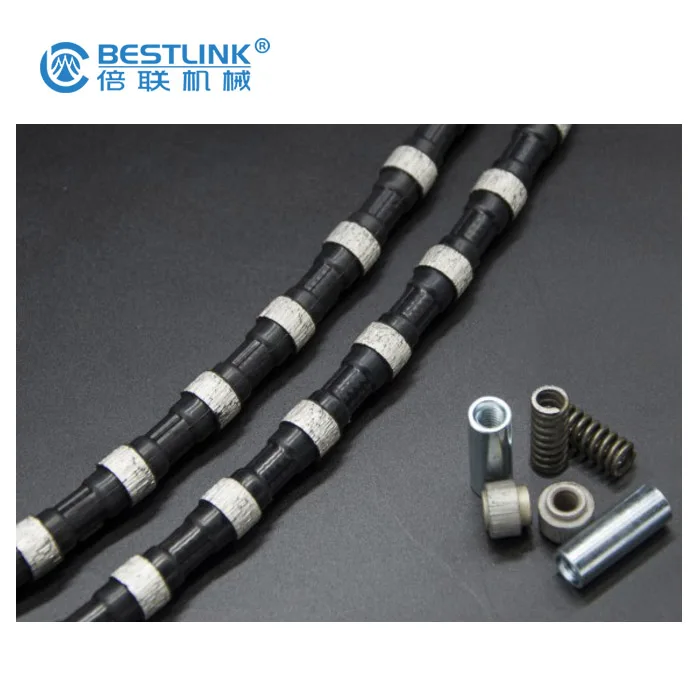

Professional black 7.2mm cutter diamond wire saw bead with CE certificate

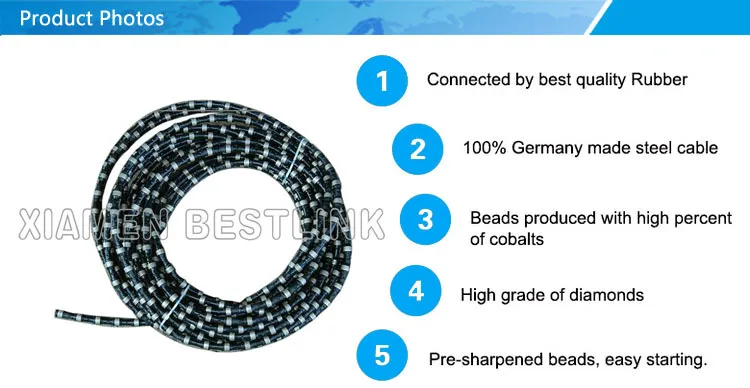

The spring coating diamond rope saw are mainly used for soft stone material in stone quarry,  such as marble, limestone, travertine etc.

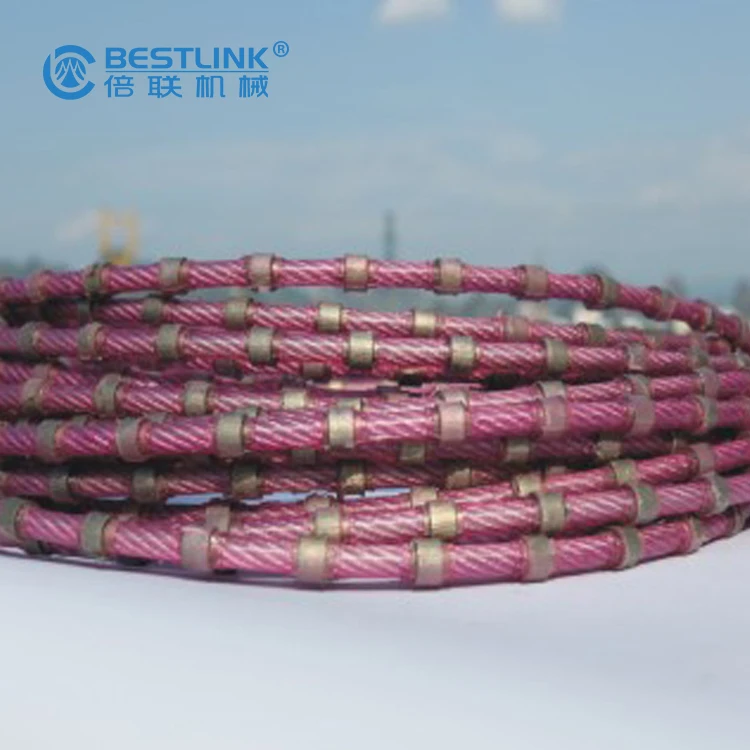

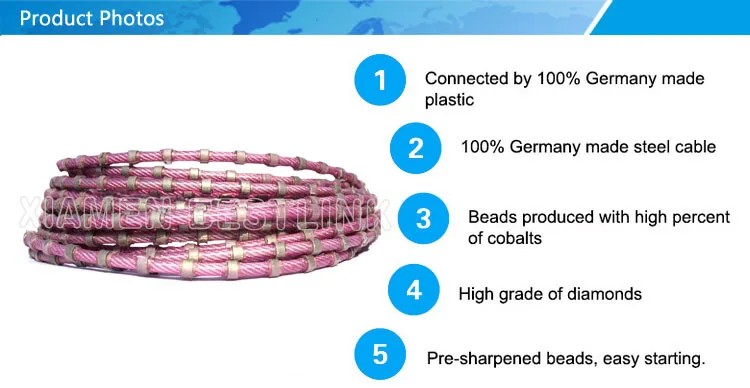

The plastic coating diamond rope saw are mainly used for all kinds of stone block squaring, trimming, profiling in static machinery at factory.



Wire for granite quarry

Diameter (mm)	Model No.	Fixing Type	Beads/m	Material Type	Sawing speed (m2/h)	Lifetime (m2/m)	Line speed (m/s)
D=11.4	GQR11.4A	Rubber	40	Class1	4-6	15-25	25-30
	GQR11.4B	Rubber	40	Class3-4	2-5	8-15	22-26
	GQR11.4C	Rubber	40	Class4-5	1-2.5	4-9	18-23



Wire for marble quarry
Diamond wire used for marble quarry which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.

Diameter (mm)	Model No.	Fixing Type	Beads/m	Material type	Sawing speed (m2/h)	Lifetime (m2/m)	Linear speed (m/s)	remark
D=11	MQS11A MQR11A	Spring Rubber	28/30/32 32	Class   A Macro-crystalline Soft Marble & Travertine	10-20	30-55	35-40	Sintered
	MQS11B MQR11B	Spring Rubber	28/30/32 32	Class  B Half-hardy Marble	8-16	15-35	33-38	Sintered
	MQS11C MQR11C	Spring Rubber	28/30/32 32	Class  C-D Hard Marble	5-8	10-25	30-35	Sintered
D=11	DMQS	Spring	28/30/32 32	A---D	15-25	10-30	30-35	Sintered



Granite squaring

Wire for squaring and cutting
1.The wire allows significantly greater sawing heights than large discs.
2.Thinner cutting width, and more precise.
3.By virtue of its reliability, adjust the cutting techniques according to different stone material.
4.Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques.
Squaring and cutting of granite

Diameter (mm)	Model No.	Fixing Type	Beads/m	Material type	Sawing speed (mm/min)	Lifetime (m2/m)	Linear speed (m/s)
D=11	GCP11	Plastic	37	Class 1-2   Class 3-4   Class 5	10-15   5-10   3-6	12-20   8-13   4-8	26-30   24-28   20-24
	GCR11	Rubber	40
D=10.5	GCP10.5	Plastic	37
	GCR10.5	Rubber	40
D=10	GCP10	Plastic	37



Wire for Marble profiling cutting

Diameter (mm)	Model No.	Fixing Type	Beads/m	Material Type	Sawing speed (m2/h)	Lifetime (m2/h)	Line speed (m/s)
D=8.8	MPP8.8	Plastic	32	Class A Class B Class C-D	20-35 15-25 10-20	30-50 25-40 20-30	30-40 28-35 28-30
D=8.2	MPP8.2





Multi-wire for slab cutting

MDW (multi diamond wire) sawing of hard stone such as granite, an alternative to the traditional granite gang saw is a relatively new concept which is still being developed.
MDW machine is fast cutting speed; easy operation and high flexibility;
Low maintenance costs;
Small installation area, simple and inexpensive machine foundations.

Diameter (mm)	Code.	Fixing	Beads/m	Material Type	Sawing speed (m2/h)	Lifetime (m2/h)	Line speed (m/s)
D=8.8	GMP8.8	Plastic	37	Mixed granite	5-8	8-12	22-24
D=8.2	GMP8.2
D=7.2	GMP7.2

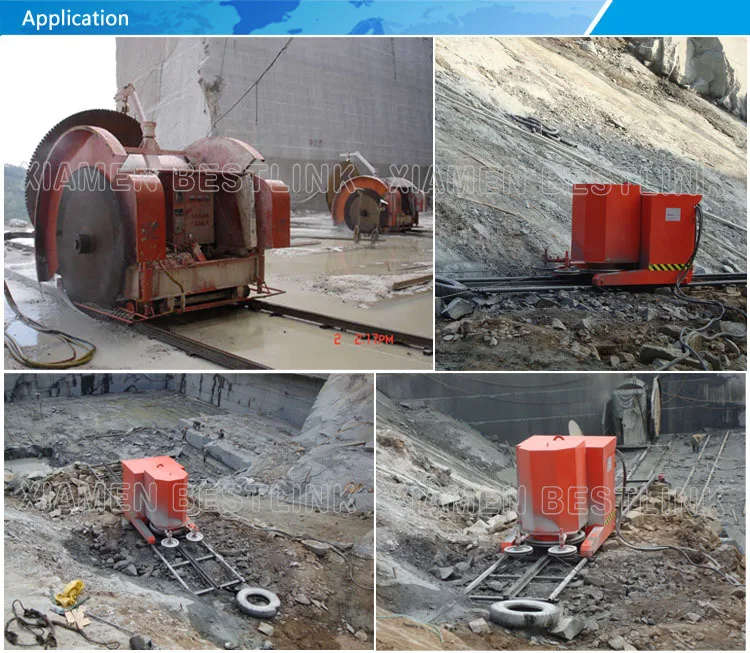

Application:

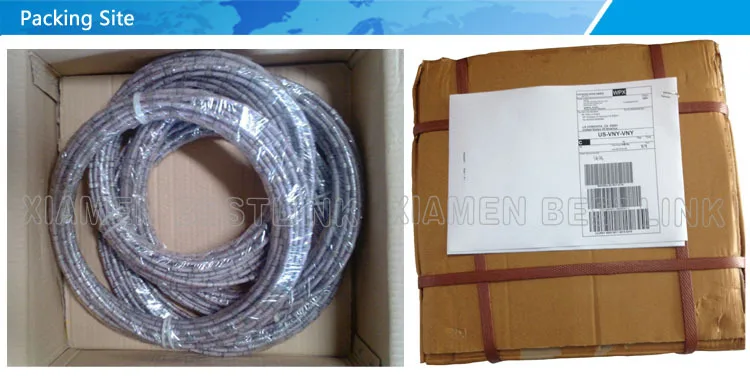

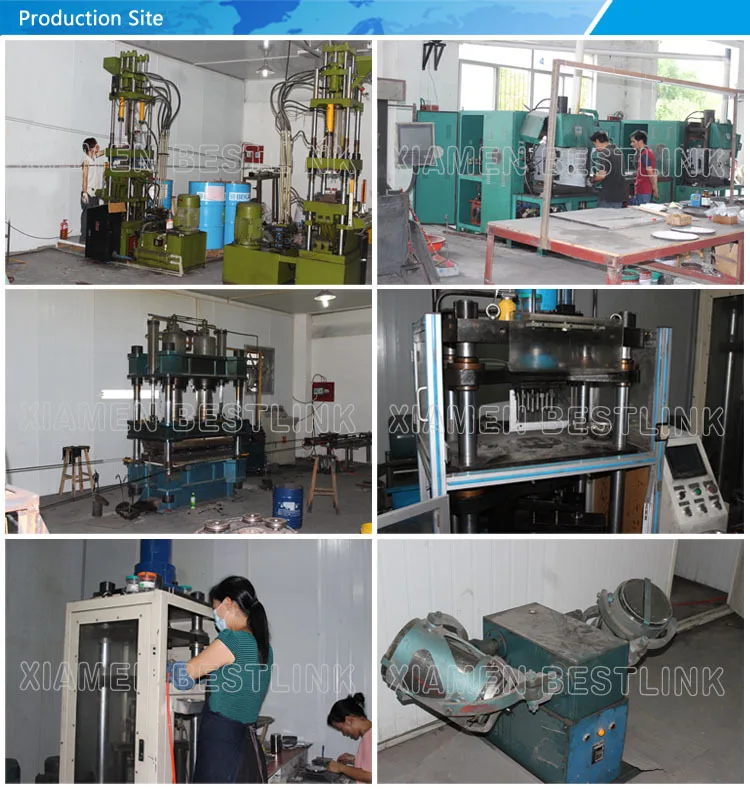

 Production:
