Промышленный рентгеновский аппарат для металлоискателя посторонних продуктов и рентгеновский аппарат для продуктов питания
- Category: Testing Equipment >>>
- Supplier: Dongguan Juzheng Electronic Technology Co. Ltd.
Share on (1600713422579):
Product Overview
Description
Product Overview
Juzheng Industrial X Ray Machine For Food Foreign Matter Metal Detector and X-ray Food Machine
Introduction:
Juzheng X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.
- Safety in design
- Easy-of-use
- Simple maintenance
- Low cost & Fast dispatch
- Professional and timely after-sales service
XR-100D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include
ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in

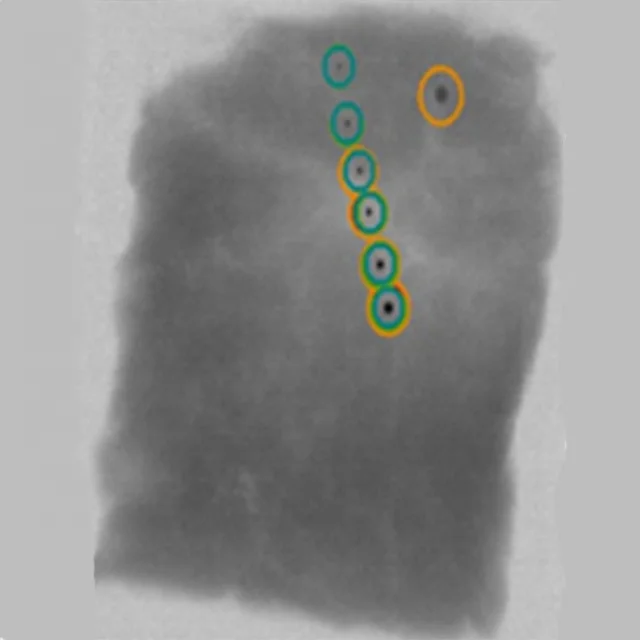

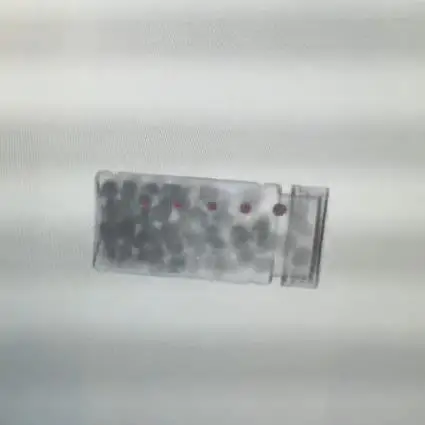

aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the
easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
Juzheng X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.
- Safety in design
- Easy-of-use
- Simple maintenance
- Low cost & Fast dispatch
- Professional and timely after-sales service
XR-100D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include
ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in
aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the
easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
PRODUCT SPECIFICATIONS
Model | XR-100D-2412 | XR-100D-2417 | XR-100D-4011 | XR-100D-4017 | XR-100D-5026 | ||||
X-ray source | 150W 100KV | 150W 100KV | 210W 100KV | 210W 100KV | 350W 100KV | ||||
Tunnel size(W*H) | 240*120mm | 240*170mm | 400*110mm | 400*170mm | 500*260mm | ||||
Max.Accuracy | Stainless steel ballΦ0.3mm, Stainless steel CeramicsΦ1.0mm,GlassΦ1.0mm | ||||||||
Conveying speed | 10-70m/min | ||||||||
Screen | 17'' Full touchable screen | ||||||||
Interface for data | LAN port,USB port | ||||||||
Working environment | Temperature:-10-40℃(Cooling:industrial air condition),Humidity:30%-90%,No frost(humidity control:dehumidifier) | ||||||||
X-ray leakage | <1µSv/hour | ||||||||

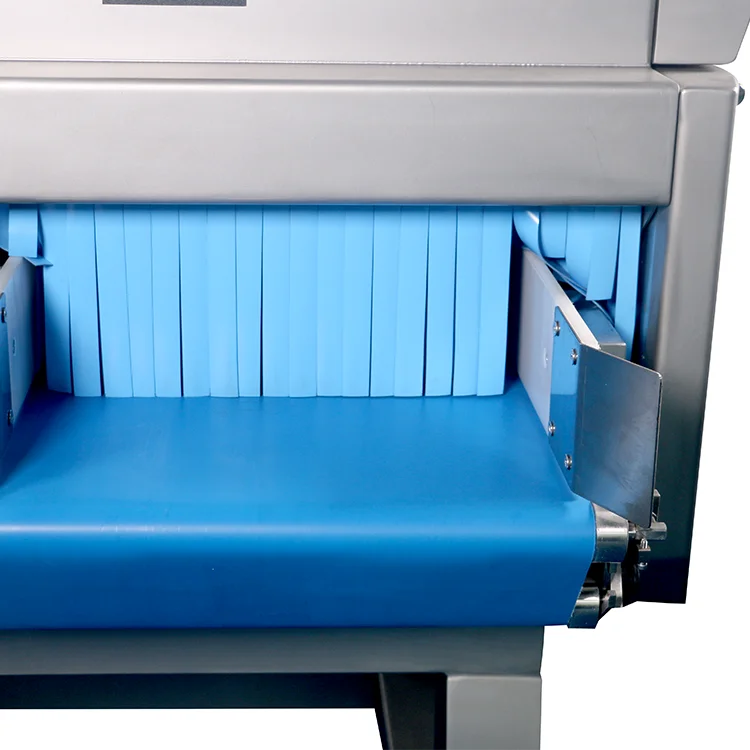

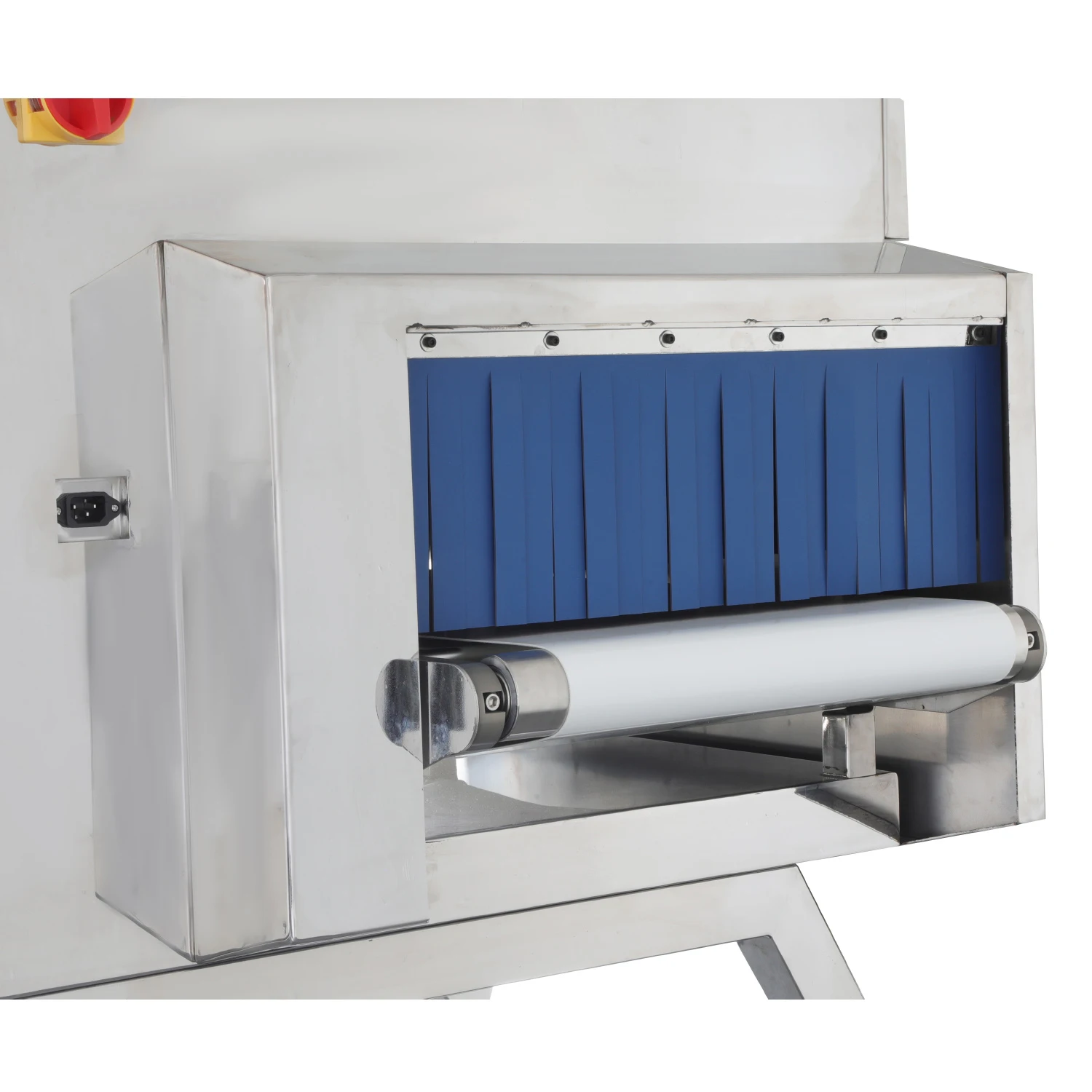

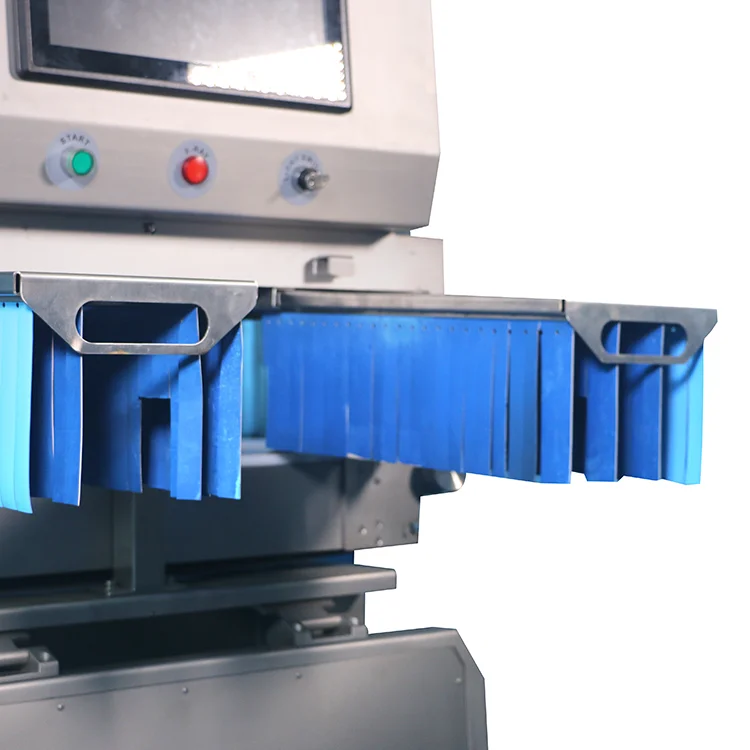

Protective mode | Protective soft curtain(removable) | ||||||||
Alarm | Sound and light alarm,stop | ||||||||
Power supply | AC220V ±10% 50/60Hz,1.5kVA Max | ||||||||
Material | sus304 | ||||||||
Conveyor load | Standard:Max 5kg | ||||||||
User-friendly interface

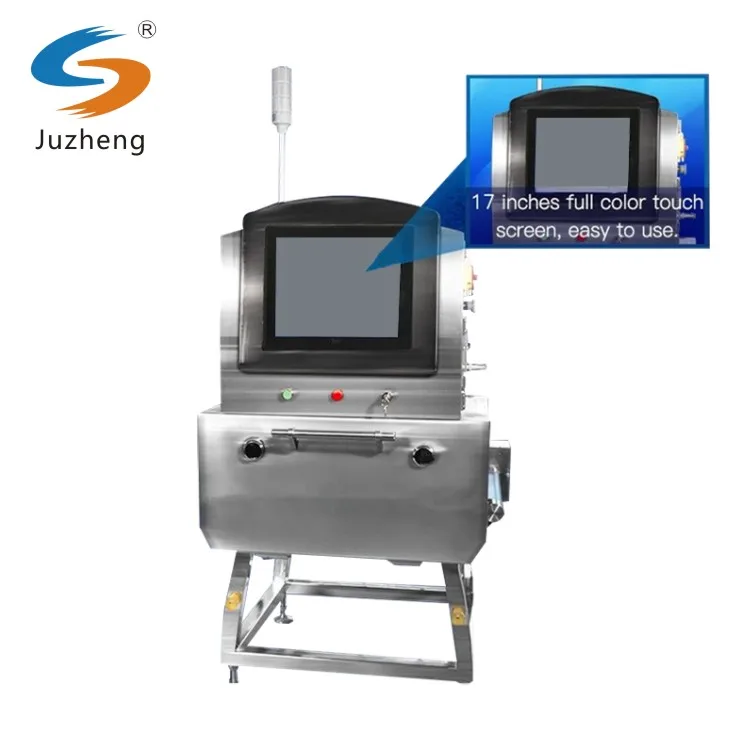

1.17 inch full touchable color screen,easy to operate;
2. Automatic setting of detection parameters, no need manual setting, greatly simplifies the operation procedures;
3. Automatically save pictures for product quality tracking and control.
Strong environmental adaptability

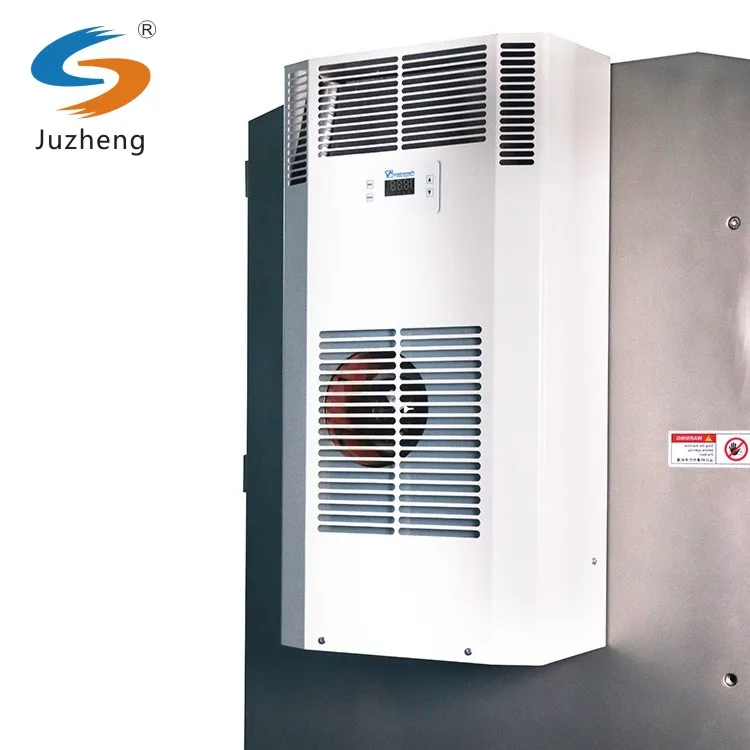

1.Equipped with German industrial air conditioning, the ambient temperature reach 10-40 ℃, which can withstand long-term high or low temperature production environment of food industry;
2.Sealed machine case,can be effectively waterproof and dust proof;
3.Adopted with high performance dehumidifiers,the machine can bear humidity of 90%.
3.Adopted with high performance dehumidifiers,the machine can bear humidity of 90%.
Easy to maintain and clean, safe and reliable
1.Easy to disassemble and clean;
2.X-ray leakage is less than 1µSv/hour,meet to CE standard;
3.The amount of radiation produced on food is far less than 1Gy, which is totally safe.
Our Service Process
Pre-sales Services:
1. Collecting customer’s product information and requirement.
2. Providing solution and offer for customer’s review 12 Hours after information colletion.
3. Hundreds of service cases and videos will help our customer to understand our machine better.
Kindly reminder:
Please provide below information when you send inquiry, so that we can quickily provide the precise feedback and the suitable solution for you.
* Product details (Product Name, Min./Max. Dimension & Weight )
* Package details (Packaging Material, Dimension, Shape)
* Capacity and inspection accuracy requirement
* Other special requirements
In-sales service:
4. Sending the machine drawings for customer’s approval before mass production.
5. Following up each production process to make sure on-time delivery.
6. Sending the machine inspection video for customer’s approval before delivery.
7.Working with forwarder for the shipping and keep the customer updated on ETD & ETA.
After-sales service:
8. Manules / Videos of machine installation, adjusting, setting, maintenance are available for our customers.
Online after-sales service:
9. We will give response in 4 hours in case of machine failure, solutions will be offered in 24 hours via whatsapp,wechat and facebook. What’s more, our engineer team can speak English, which can communicate more effective.
1. Collecting customer’s product information and requirement.
2. Providing solution and offer for customer’s review 12 Hours after information colletion.
3. Hundreds of service cases and videos will help our customer to understand our machine better.
Kindly reminder:
Please provide below information when you send inquiry, so that we can quickily provide the precise feedback and the suitable solution for you.
* Product details (Product Name, Min./Max. Dimension & Weight )
* Package details (Packaging Material, Dimension, Shape)
* Capacity and inspection accuracy requirement
* Other special requirements
In-sales service:
4. Sending the machine drawings for customer’s approval before mass production.
5. Following up each production process to make sure on-time delivery.
6. Sending the machine inspection video for customer’s approval before delivery.
7.Working with forwarder for the shipping and keep the customer updated on ETD & ETA.
After-sales service:
8. Manules / Videos of machine installation, adjusting, setting, maintenance are available for our customers.
Online after-sales service:
9. We will give response in 4 hours in case of machine failure, solutions will be offered in 24 hours via whatsapp,wechat and facebook. What’s more, our engineer team can speak English, which can communicate more effective.
Onsite after-sales service:
10.If there is a need,we can arrange our engineer to your place for technical support.
10.If there is a need,we can arrange our engineer to your place for technical support.
Main spares replacement :
11.We store main spare parts at our warehouse,if need to change the accessories, you can receive it easily around 5-7 days by courier.
11.We store main spare parts at our warehouse,if need to change the accessories, you can receive it easily around 5-7 days by courier.
