Professional Paint Spray Gun for Cars Hand Manual Sprayer Pneumatic Tools
- Category: >>>
- Supplier: Jingjiang Yanfeng Technology Co. Ltd.
Share on (1600716699828):
Product Overview
Description

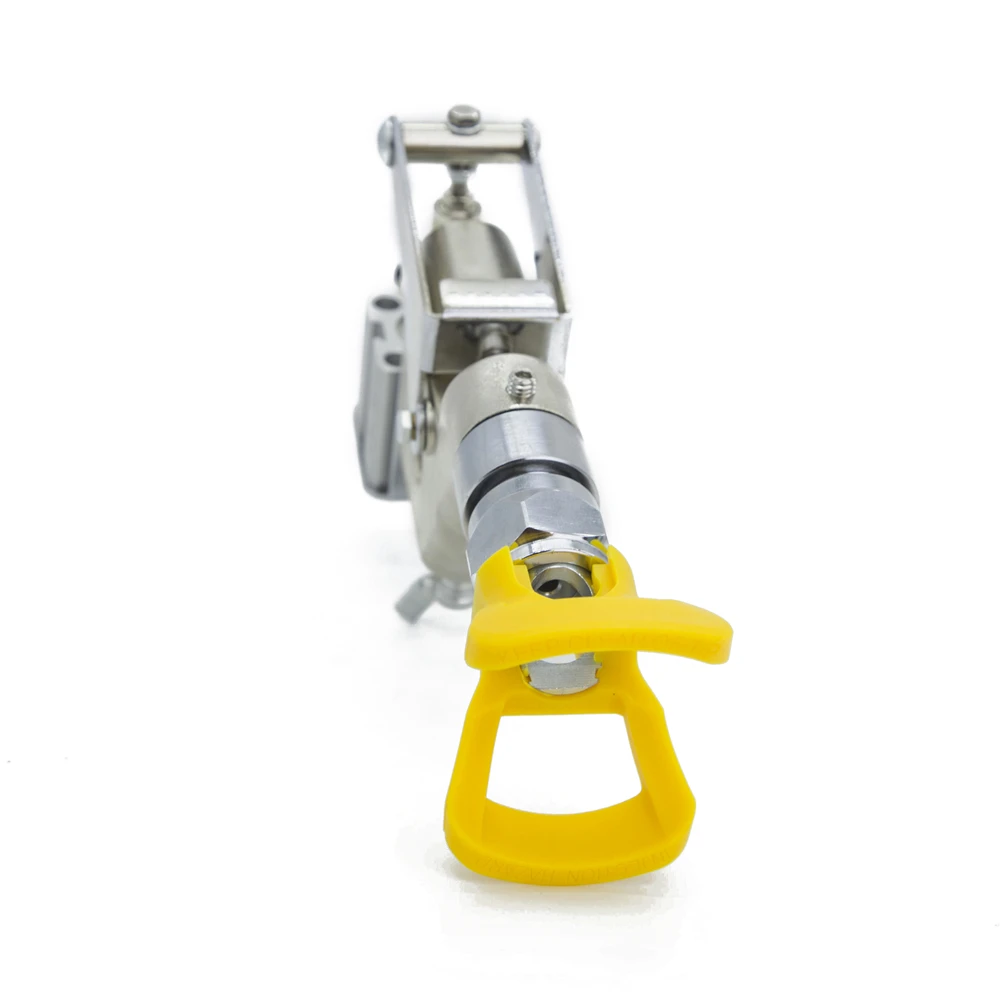

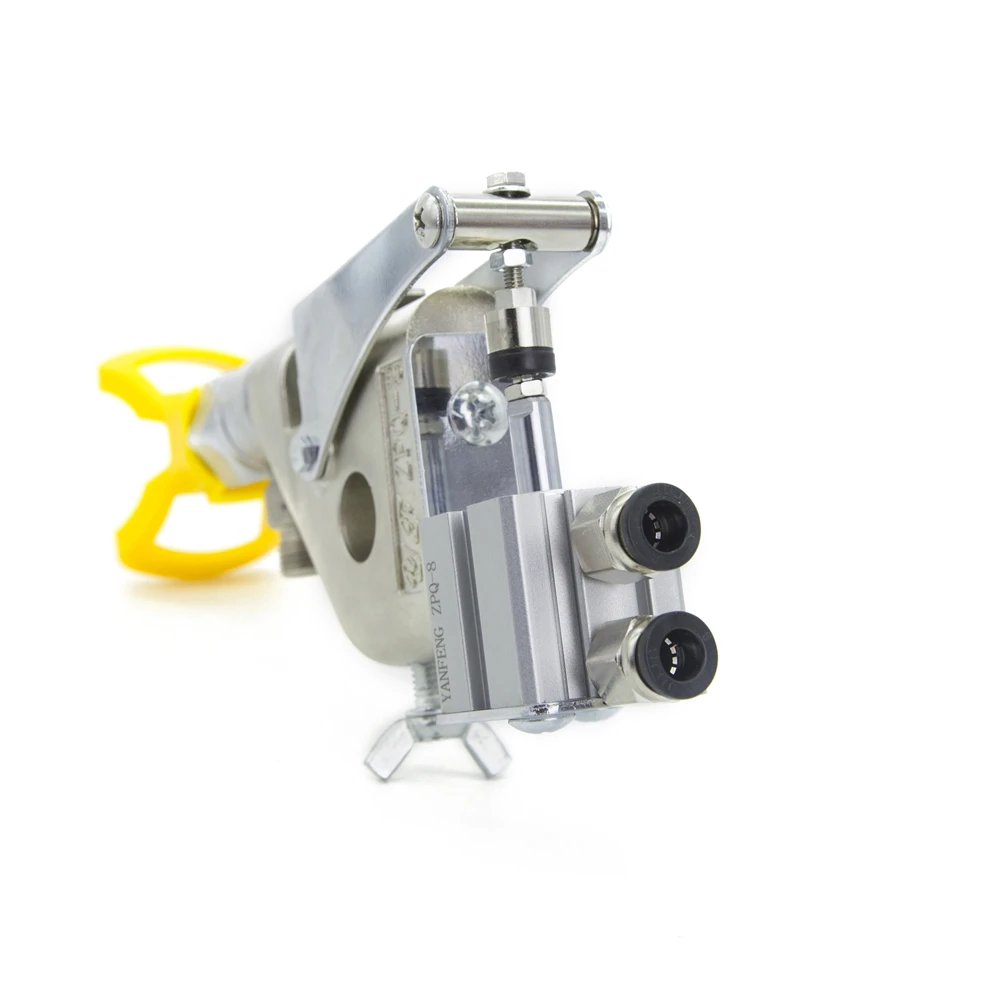

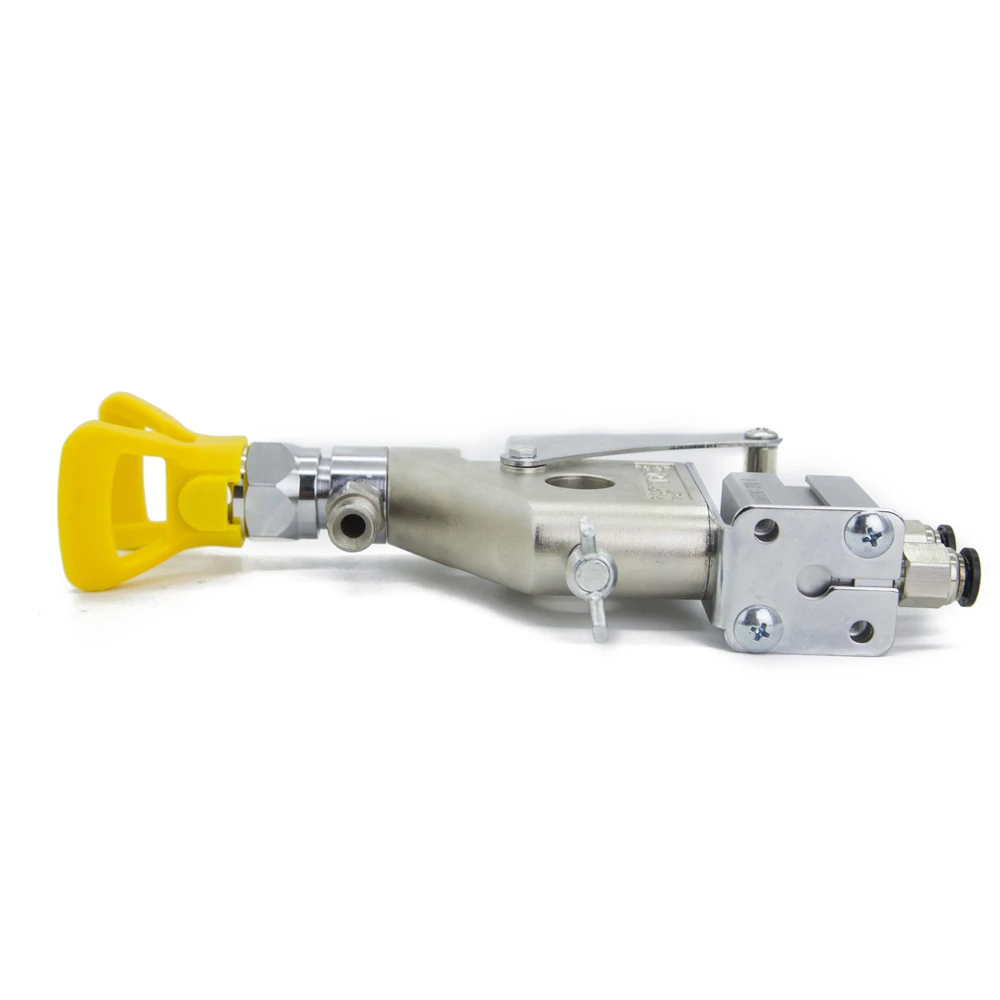

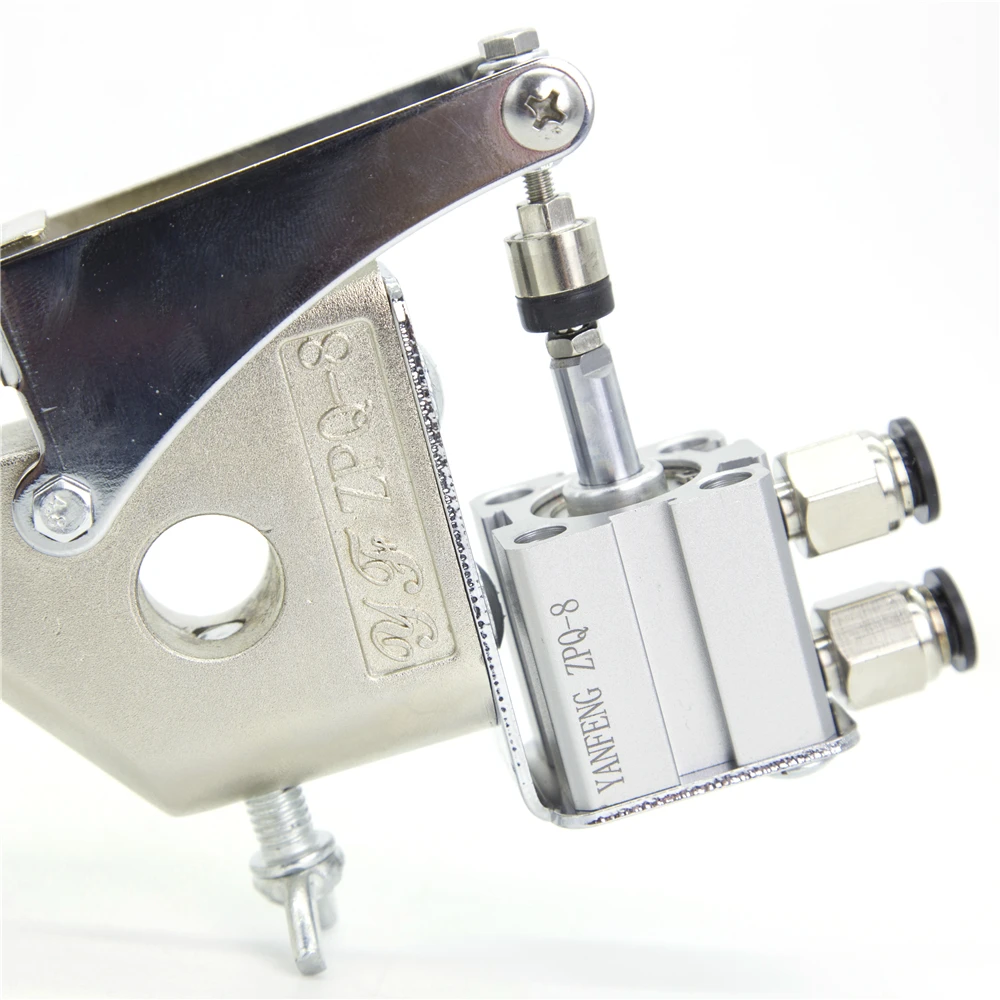

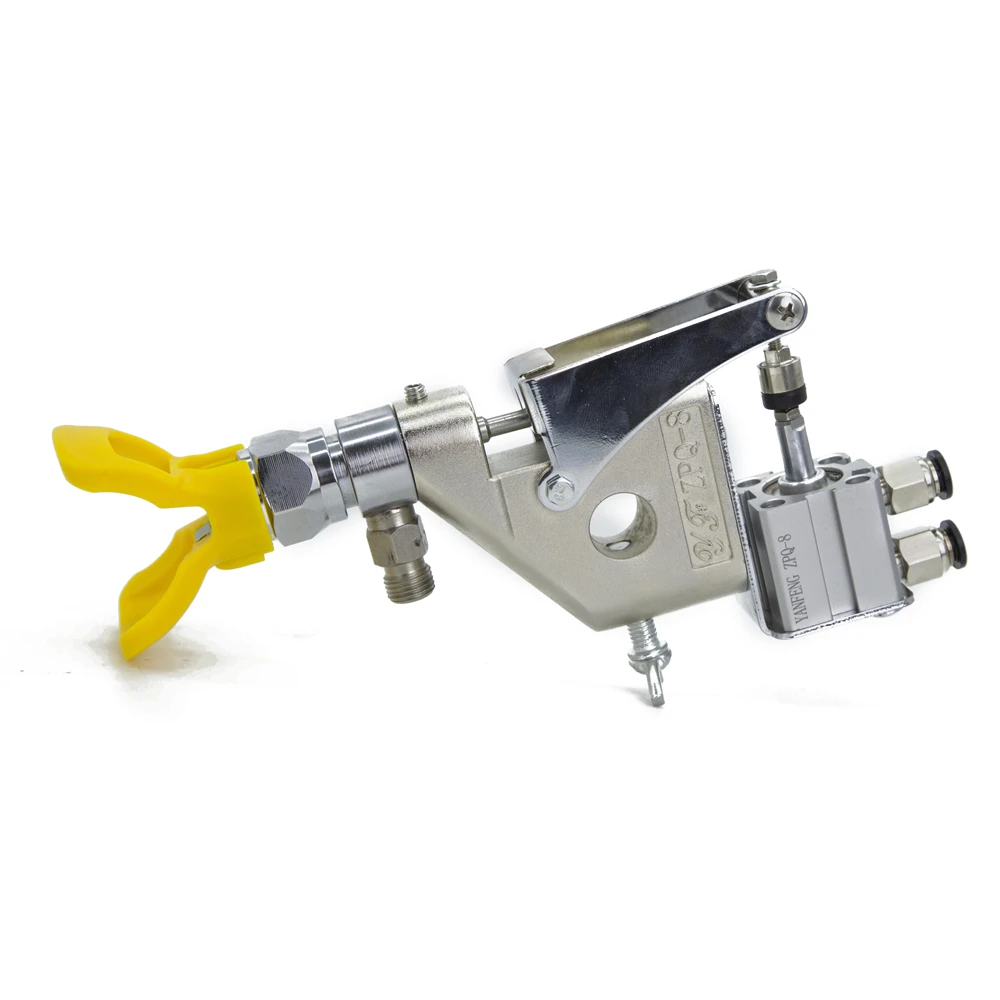

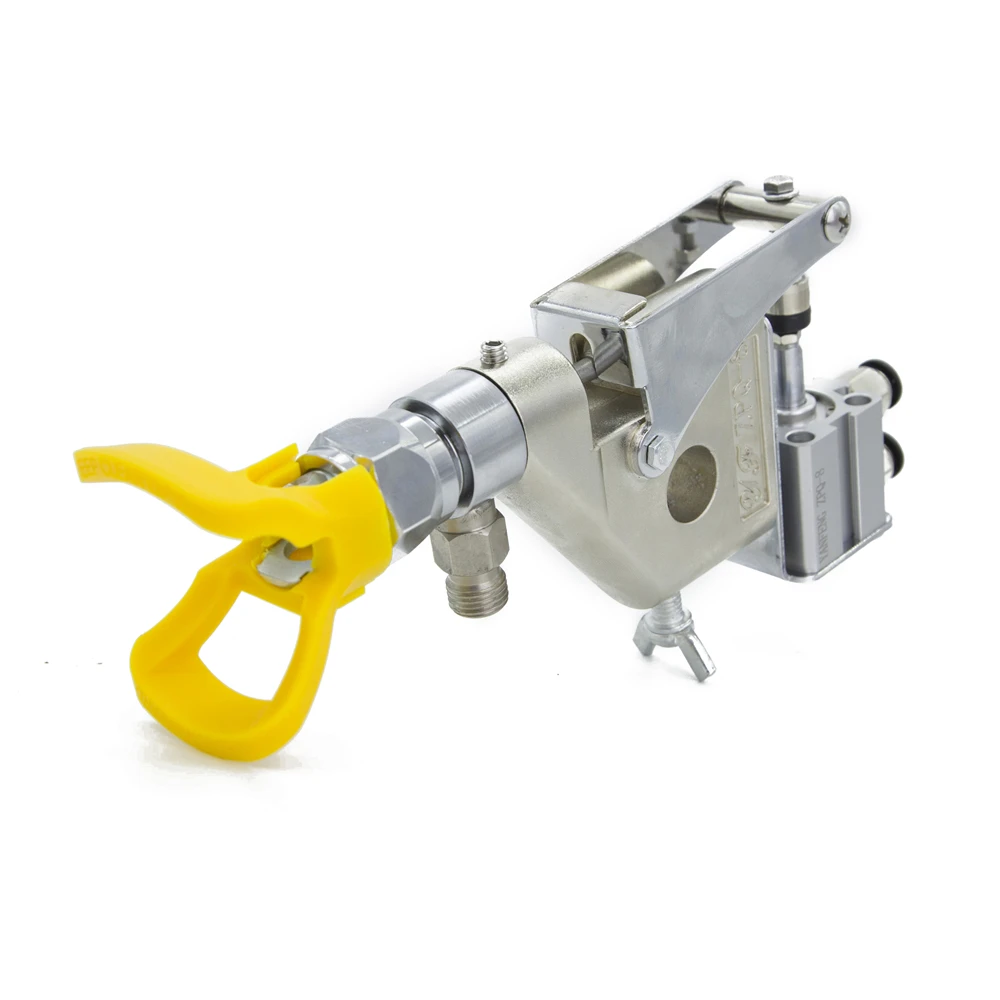

Line Marking Automatic Airless Spray Gun
Products Description
Trigger | Single Acting |
Tip Guard Thread | 7/8" 'G' Thread |
Paint Hose Connection | 1/4" NPT |
Pressure Rating | 5000psi |
Min. Air Pressure | 50 psi |
Max. Air Pressure | 200 psi |
Mounting holes | 16mm |
Working Temp | 49˚ C |
Installation aperture | 13mm |
Applications:
Applications：Pavement / Parking lots / Roads / Warehouse floors / Crosswalks / Athletic fields / turf
Materials:Heavy Water Base traffic paints/Solvent based line marking paintApplications：
Interior and Exterior/Residential
/Construction/Repainting/Light/Commercial/Property/Maintenance
Materials：Lacquers/Stains/Enamels/Latex/Acrylics
Materials：Lacquers/Stains/Enamels/Latex/Acrylics
Applications：WaterBased Gloss/Lacquers/Varnishes/Urethanes
Materials：Woodworking/Internal External Doors Architraves/Skirting Boards/Metal/Other Fine Finish Surfaces
Materials：Woodworking/Internal External Doors Architraves/Skirting Boards/Metal/Other Fine Finish Surfaces
Applications：Residential/Commercial/Interiors/Exteriors/Industrial
Materials：Latex/Oil Based Paint/Enamels/Varnish/High Solid Coatings
Materials：Latex/Oil Based Paint/Enamels/Varnish/High Solid Coatings
The reversible spray tip is proper for industrial enamel paint, varnish, pigment paint, water-based paint, water-based primer, solvent-based paint, epoxy resin, elastic materials, internal and external wall latex paint, flame retardant paint, polyurethane, fluorocarbon paint, etc.
Stable and practical:
Reversible airless nozzle adopts 304 stainless steel handle and tungsten carbide hole to ensure better work performance and a longer service life. It can be compatible with most airless ejectors or spray machines, and is suitable for paint, furniture, fence, home decoration and more.
Spraying width:
Series 2: 100-150 mm/ 4-6 inch (type 211)
Series 3: 150-200 mm/ 6-8 inch (type 313)
Series 4: 200-250 mm/ 8-10 inch (type 415)
Series 5: 250-300 mm/ 10-12 inch (type 517)
Series 6: 300-350 mm/ 12-14 inch (type 623)
Related Products
PT-70E
Voltage：220V-240V
Motor Size：3.8HP Brushless
Max Pressure：3300psi
Max Flow：4.0 LPM
Compatible Material：
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
Motor Size：3.8HP Brushless
Max Pressure：3300psi
Max Flow：4.0 LPM
Compatible Material：
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
PT-80G
Voltage:110V-240V
Motor Size:4.5HP Brushless
Max Pressure:3300psi
Max Flow:4.5 LPM
Compatible Material:
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
Motor Size:4.5HP Brushless
Max Pressure:3300psi
Max Flow:4.5 LPM
Compatible Material:
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
PT-410
Voltage：110V-240V
Motor Size：0.8HP Brushless
Max Pressure：3000psi
Max Flow：1.8 LPM
Compatible Material：
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
Motor Size：0.8HP Brushless
Max Pressure：3000psi
Max Flow：1.8 LPM
Compatible Material：
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
PT-395
Voltage:110V-240V
Motor Size:1.0HP Brushless
Max Pressure:3300psi
Max Flow:2.0LPM
Compatible Material:
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
Motor Size:1.0HP Brushless
Max Pressure:3300psi
Max Flow:2.0LPM
Compatible Material:
Separating agents, oils, greases, glazes, stains, impregnants, primers, primers, fillers, synthetic resin paints, acrylic paints, dispersions and latex paints
PT-795
Voltage：220V-240V
Motor Size：3.8HP Brushless
Max Pressure：3300psi
Max Flow：3.6 LPM
Compatible Material：
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler
Motor Size：3.8HP Brushless
Max Pressure：3300psi
Max Flow：3.6 LPM
Compatible Material：
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler
PT-1095HD
Voltage:110V-240V
Motor Size:4.5HP Brushless
Max Pressure:3300psi
Max Flow:5.1LPM
Compatible Material:
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics
Motor Size:4.5HP Brushless
Max Pressure:3300psi
Max Flow:5.1LPM
Compatible Material:
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics
GH-200
Voltage：220V-240V
Motor Size：4000W
Max Pressure：3300psi
Max Flow：10 LPM
Compatible Material：
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
Motor Size：4000W
Max Pressure：3300psi
Max Flow：10 LPM
Compatible Material：
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
Y5
Voltage:220V-240V
Motor Size:4000W
Max Pressure:3300psi
Max Flow:12LPM
Compatible Material:
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
Motor Size:4000W
Max Pressure:3300psi
Max Flow:12LPM
Compatible Material:
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
Y7
Motor Size；Honda GX270
Engine power:9.0HP
Max Pressure:3300psi
Max Flow:13 LPM
Compatible Material:
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
Engine power:9.0HP
Max Pressure:3300psi
Max Flow:13 LPM
Compatible Material:
Latex paints, latex paints, flame retardant and thick layer materials, zinc dust and micaceous iron paints, airless spray putty, sprayable adhesives, corrosion protection, thick layer materials and bitumen-like coating materials
305580
Blade Material:Stainless Steel
Handle Material:aluminum
Extension rod range:87-203cm
Blade size:30cm/55cm/80cm
Handle Material:aluminum
Extension rod range:87-203cm
Blade size:30cm/55cm/80cm
