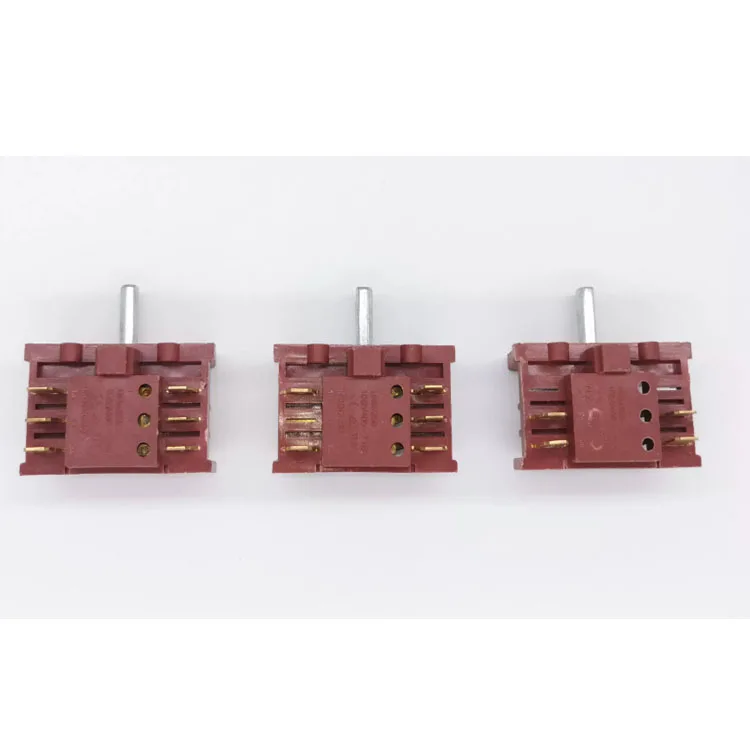

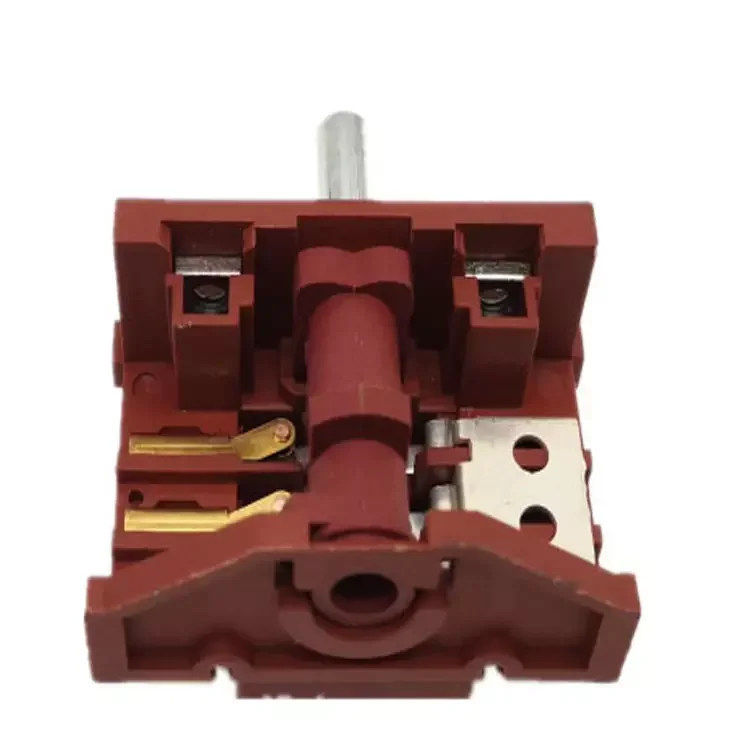

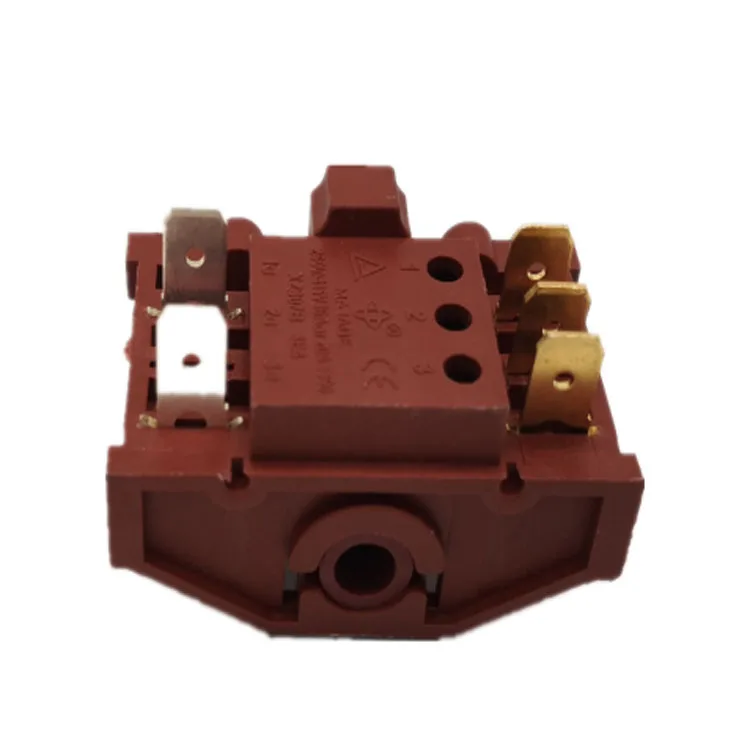

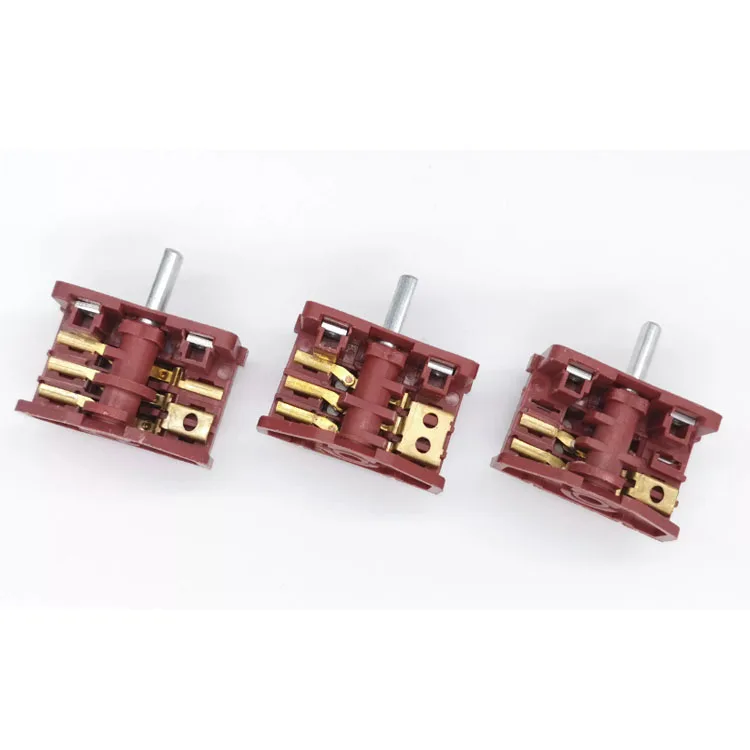

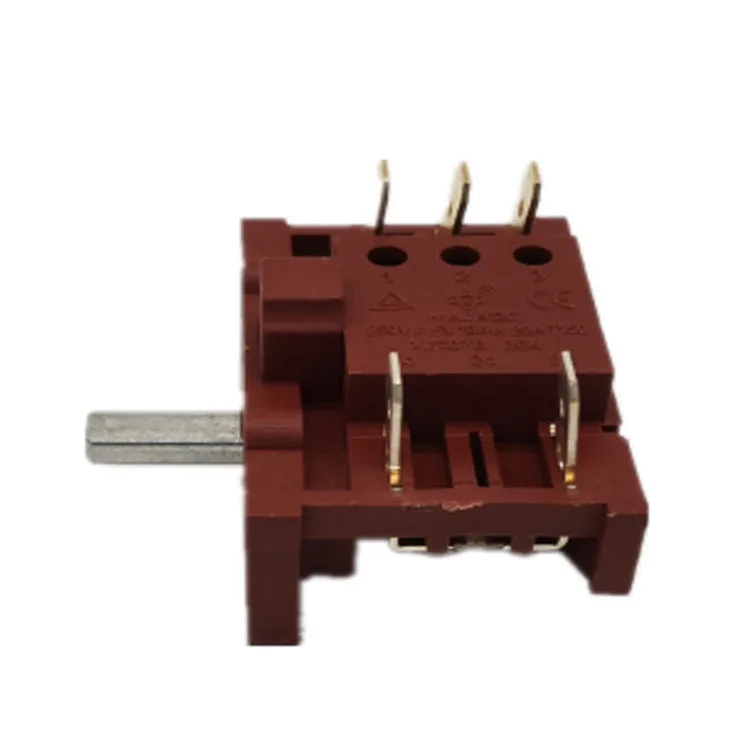

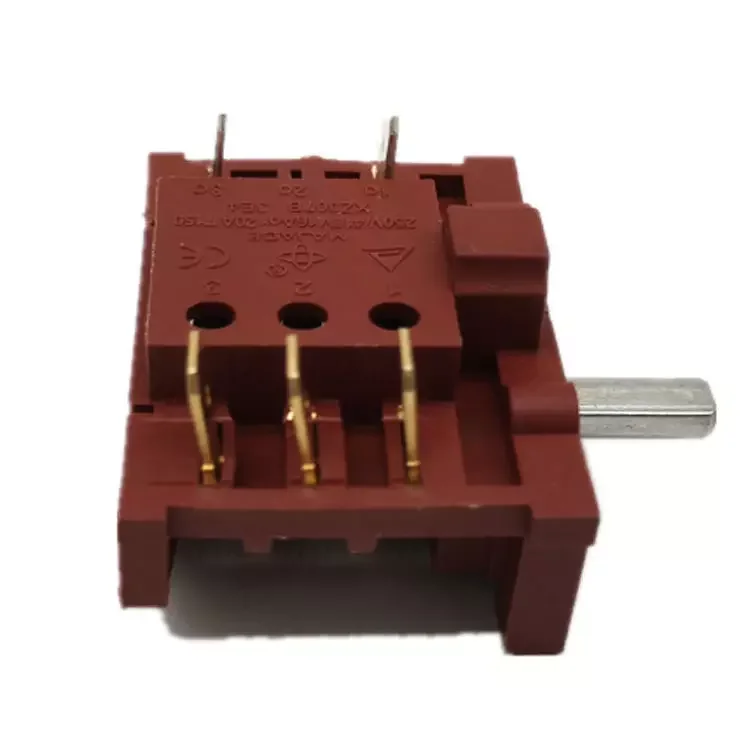

AC 250V 16A t125 Oven Rotary limit Switch 3 4 5 positions for oven
- Category: Switches >>>
- Supplier: Wuhan Zhenguan Industry And Trade Co. Ltd.
Share on (1600716962997):
Product Overview
Description
Product Description
AC 250V 16A t125 Oven Rotary limit Switch 3 4 5 positions for oven
Specification
| Product Name | Oven rotary switch |
Model Number | XZ307B-134(401B) |
| Rated voltage | 250V AC |
Rated current | 16A |
Housing Material | PA66 |
Contacts Material | Copper with compound silver |
Insulation resistance | ≥100MΩ(500VDC) |
Contact resistance | ≤50mΩ(initial value) |
Mechanical Life | ≥ 10000 cycles |
| certificates | CE TUV CQC CCC |

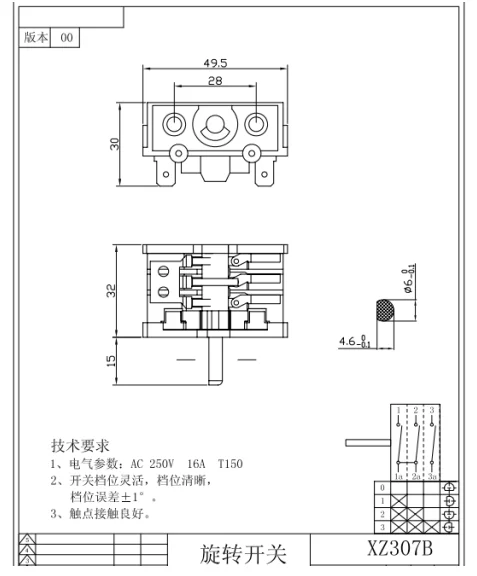

Drawing(in mm):
Product Details
