China High quality manufacturer palm oil extraction decanter centrifuge

Product Overview

Description

Product Description                                                              Introduction:

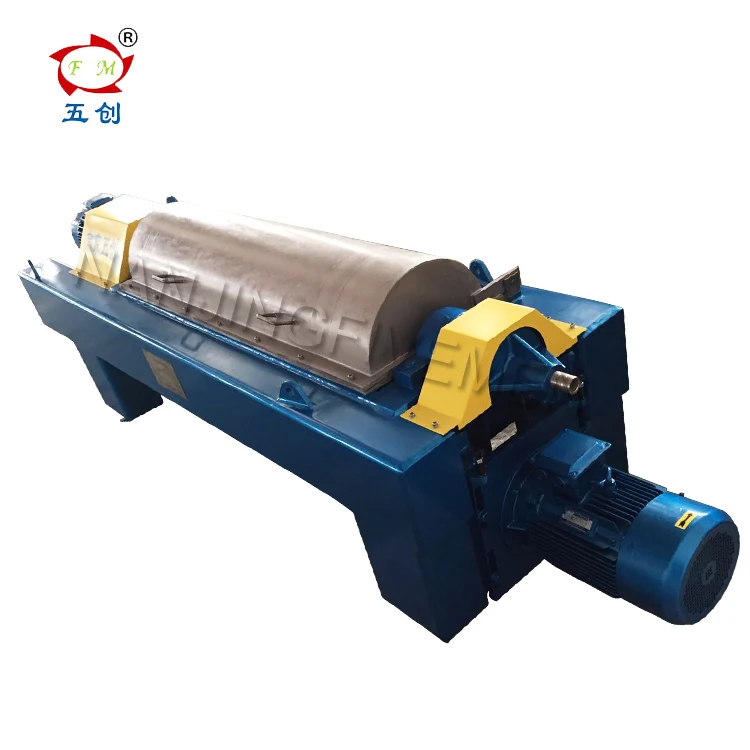

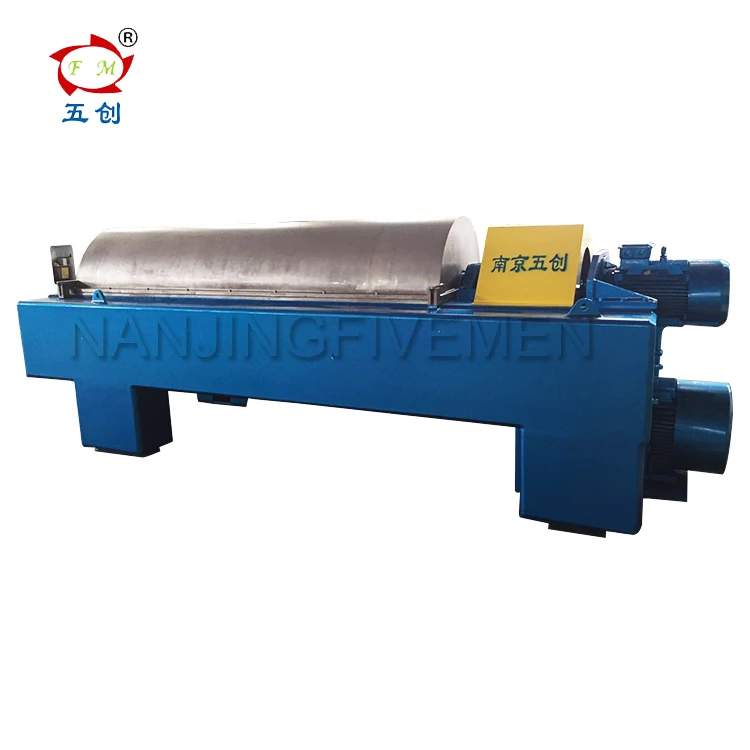

LW series Horizontal Separation Decanter Centrifuge are main composed by high speed bowl, discharge spiral, differential mechanism, shell, bearing room, base motor and other parts

When the motor drives, the materials to be separated fed into the bowl at high speed. Under the action of the strong centrifugal force, the materials form the annular flow and the solid phase stay on the wall of the bowl, and the solid phase becomes solid cakes, as the speed of the bowl is different from that of the spiral, that means relative movement, by the movement the solid cakes go into the drying section and continuously dewater , then move out the machine ( centrifuge), at the same time, the clear liquid phase move out from other place.

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed	Main Power(Kw)
			(r/min)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	1-30
LW420	420	3-4.1	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4.0	3200	22-55
LW580	580	2-4.0	2800	30-55
LW620	620	2-4.0	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.

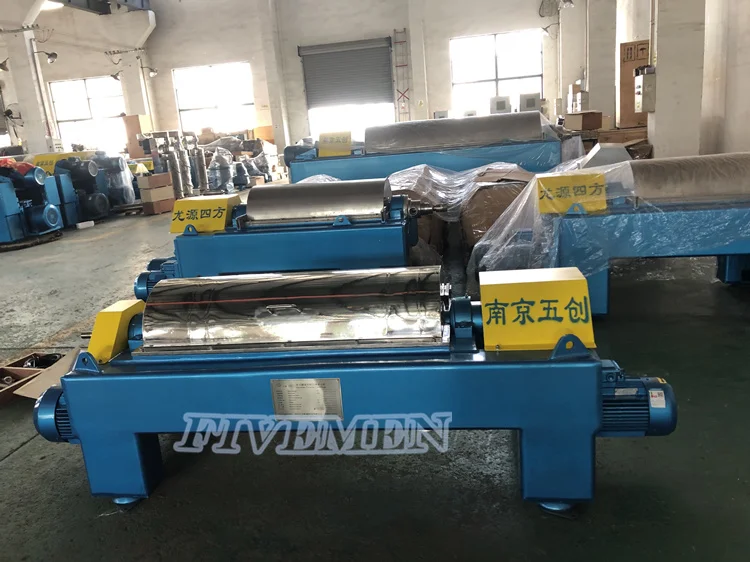

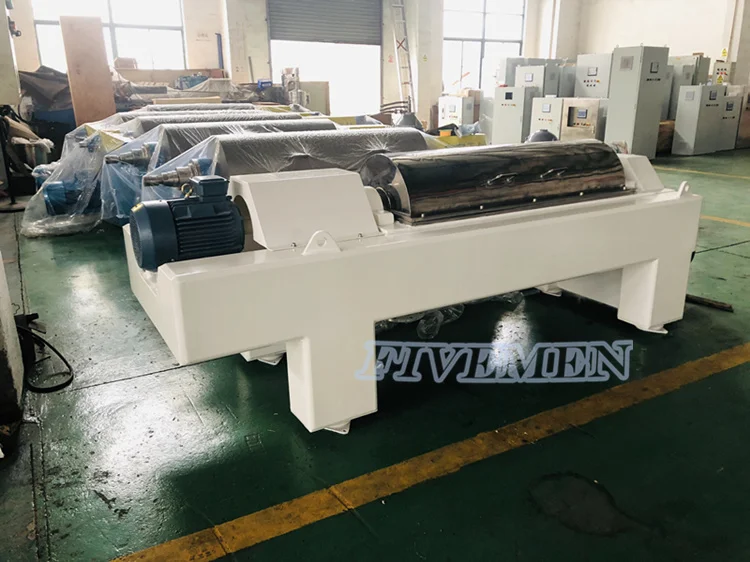

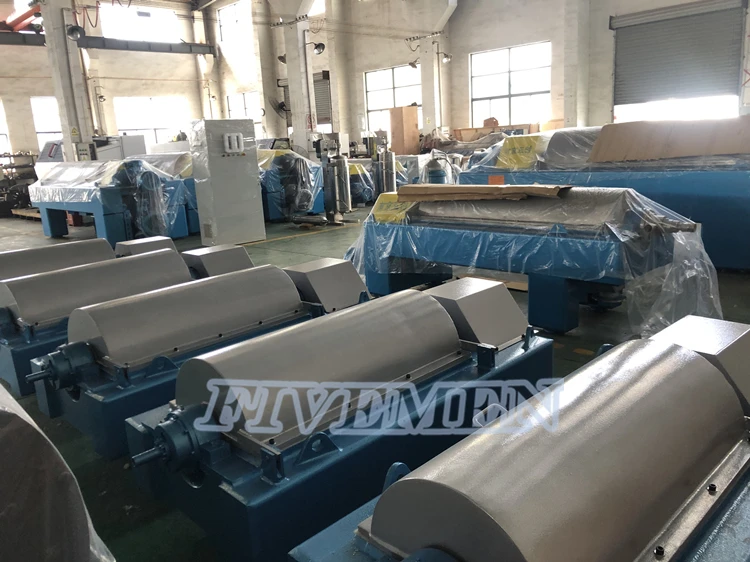

Detailed Images

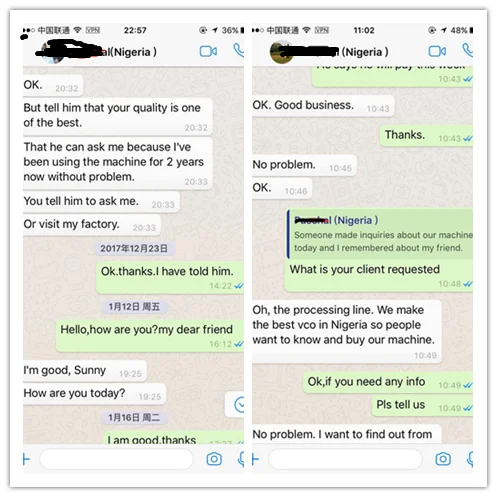

Feedback



Our Company

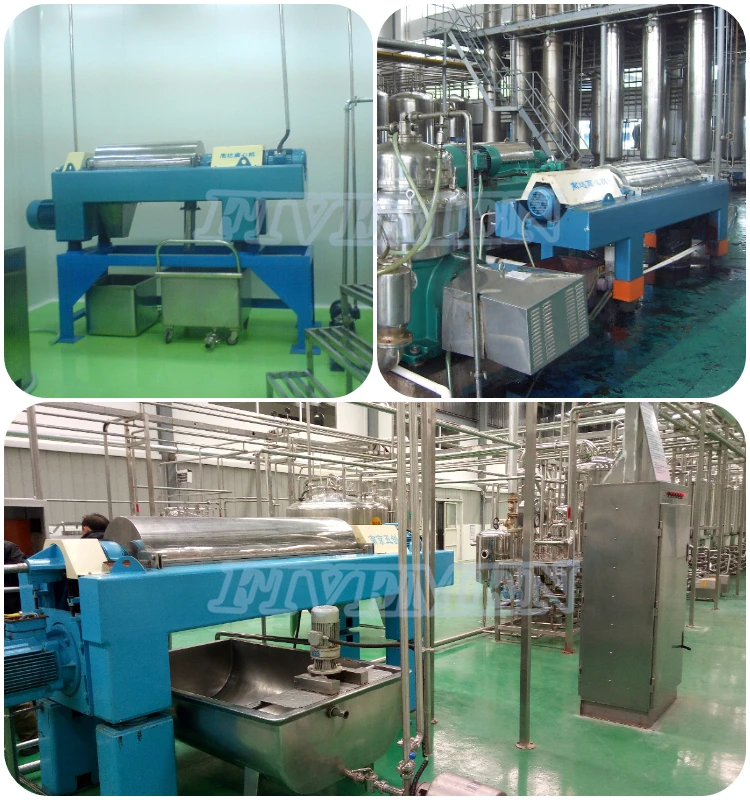

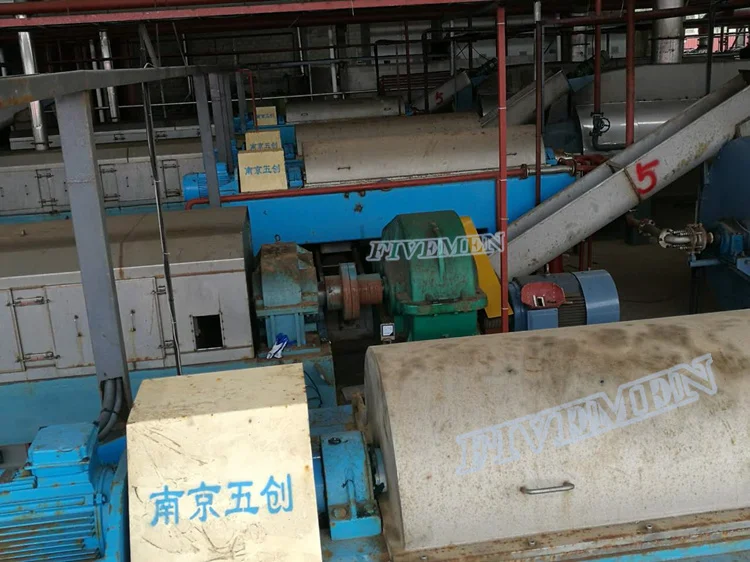

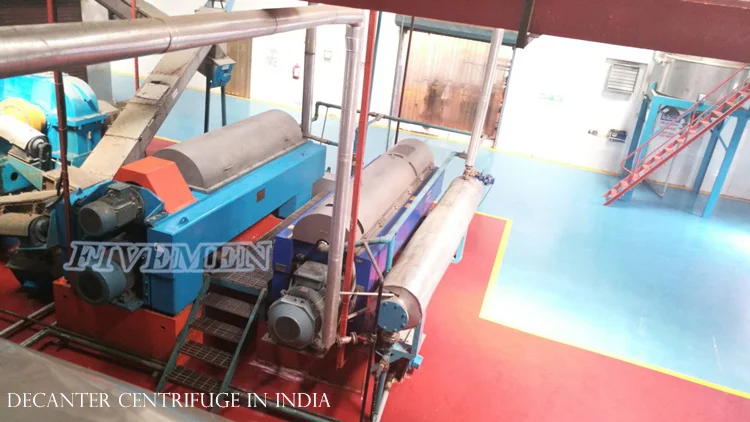

Over the years, our products have beensuccessfully applied in the mineral oils, dairies, fruit and vegetable juices,pigments, animal and plant oils, starches, bio-pharmacy, fermentation broth,additives, foods, oil extraction, fish oil feeds, grading of non-metallicminerals, petroleum chemistry, sewage treatment and other industries. Ourcustomers spread through the whole nation except Tibet, and our products aresuccessfully exported to Japan, North Korea, South Korea, Taiwan, Thailand,Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin Americancountries.

We have passed ISO9000 quality system certificationawarded by China Classification Society; our mineral oil separators used ininland rivers, offshore and ocean shipping have achieved CCS approvalcertificate, and the products used in fishing boats also passed the fisheryinspection. In the past years, we have been awarded a number of honors such as "High-qualityProducts in Jiangsu Province", "Grade AAA Demonstration Unitin Quality, Service and Credit of Jiangsu Province", "StarEnterprise in Jiangsu Province", "Grade AAA Brand Enterprisein Quality and Integrity of Jiangsu Province" and so on.
