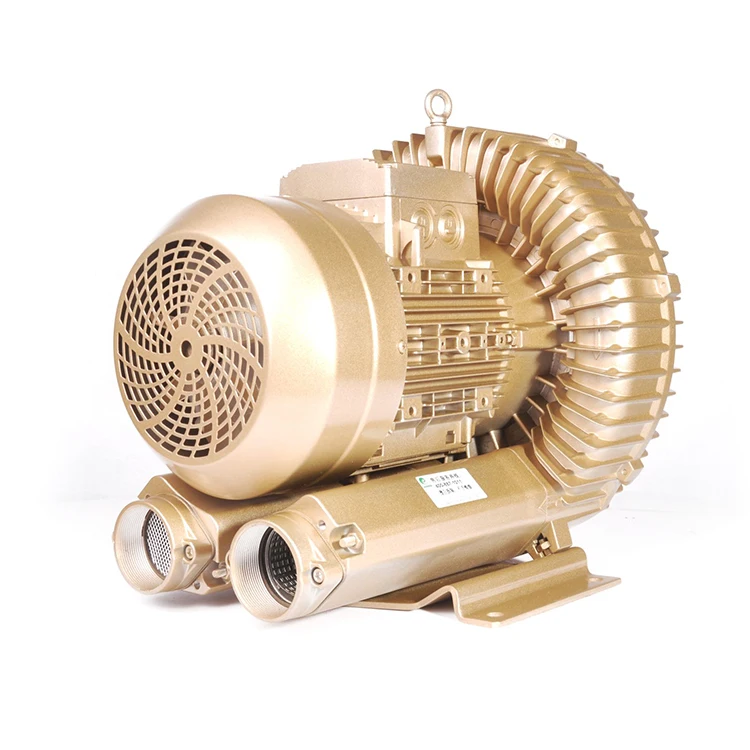

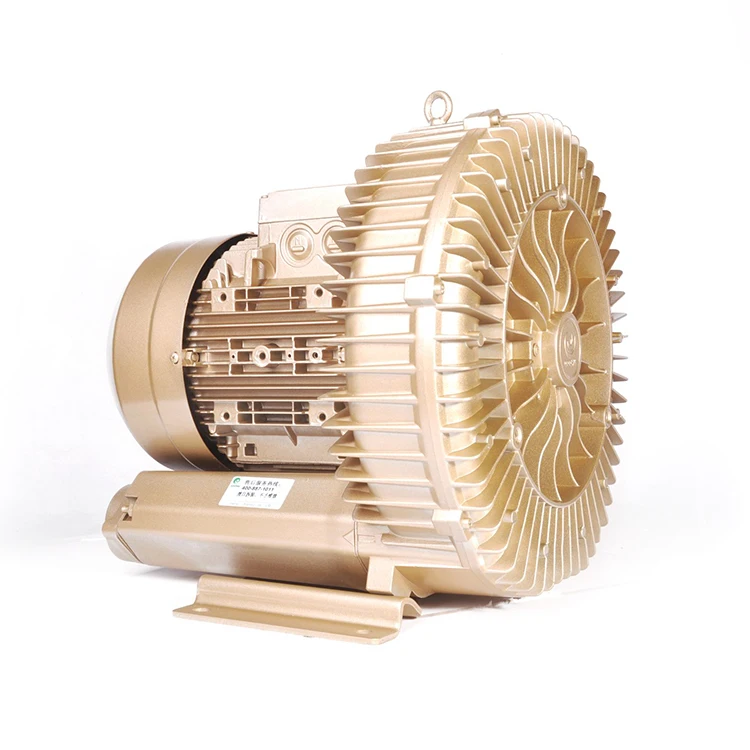

Регенеративная воздуходувка высокого давления 5,5 кВт 7,5 л.с., вакуумный воздушный насос с кольцом, 12CFM, воздуходувки с боковым каналом
- Category: Blowers >>>
- Supplier: Dongguan Foersheng Intelligent M&E Co. Ltd.
Share on (1600720227445):
Product Overview
Description
Technical Paramater
Product style | single stage three phase side channel blower | ||||||
Model number | GHBH 7D5 36 1R8 | Weight | 63kg | ||||
Level of protection | IP55 | Insulation class | F | ||||
Certificate | CE Certificate、RoHS Certificate、ISO Certificate、TUV Certificate | ||||||
Frequency | 50Hz | 60Hz | |||||
Rated power | 5.5kw | 6.3kw | |||||
Rated voltage | 345-415△/600-690Y(V) | 380-480△/660-720Y(V) | |||||
Rated current | 13.3△/7.7Y(A) | 13.3△/7.7Y(A) | |||||
Max airflow | 530m³/h | 620m³/h | |||||
Max vacuum | -300mbar | -300mbar | |||||
Max pressure | 300mbar | 280mbar | |||||
Sound level | 70db(A) | 74db(A) | |||||
Product Features
GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings ·Contactless rotating impellers
·Fan-cooled motors
·Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation ·Low energy requirement ·Low noise emission
GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
Our advantages:
·A large selection of sizes ·Extensive accessoires
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery

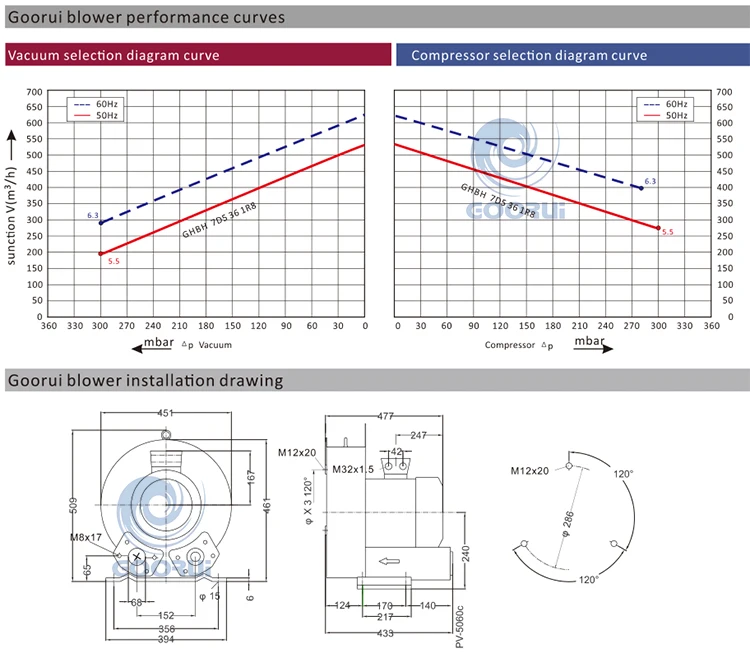

Performance Curves & Dimensions

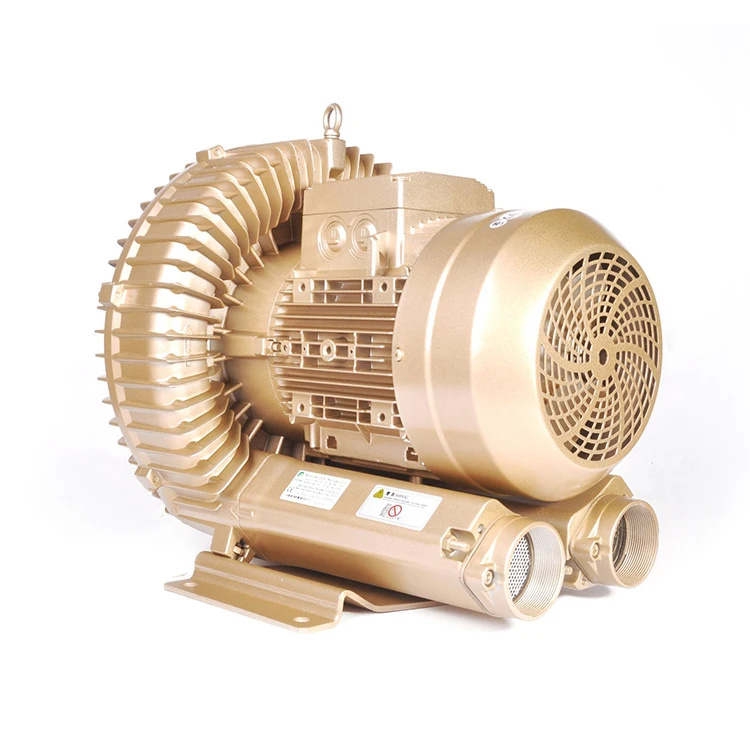

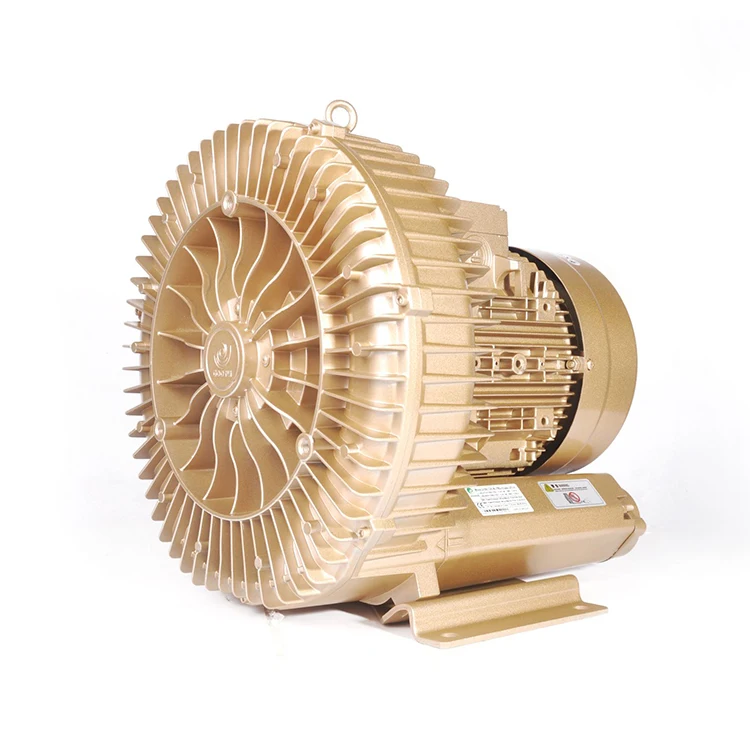

Details Images

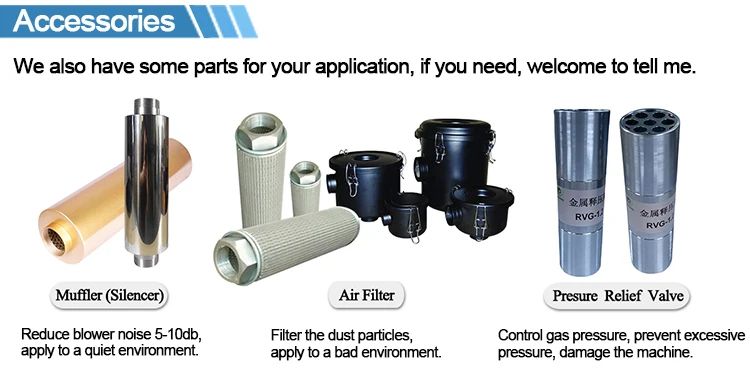

Accessories

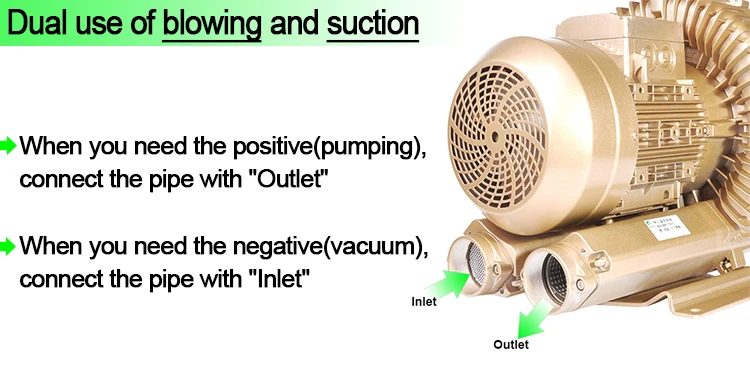

Application
Packaging & Shipping
Side Channel Blower Package
- To be packed with carton box
- To be packed with wooden case
- To be packed with wooden case
If you have any special requirement about package,please let me know in advance.
Shipping methods
- By express, such as DHL, UPS, TNT etc
- By air cargo port to port
- By sea port to port
Also can choose the most suitable way as per your request.
- By air cargo port to port
- By sea port to port
Also can choose the most suitable way as per your request.
Company Profile
Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people.
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
