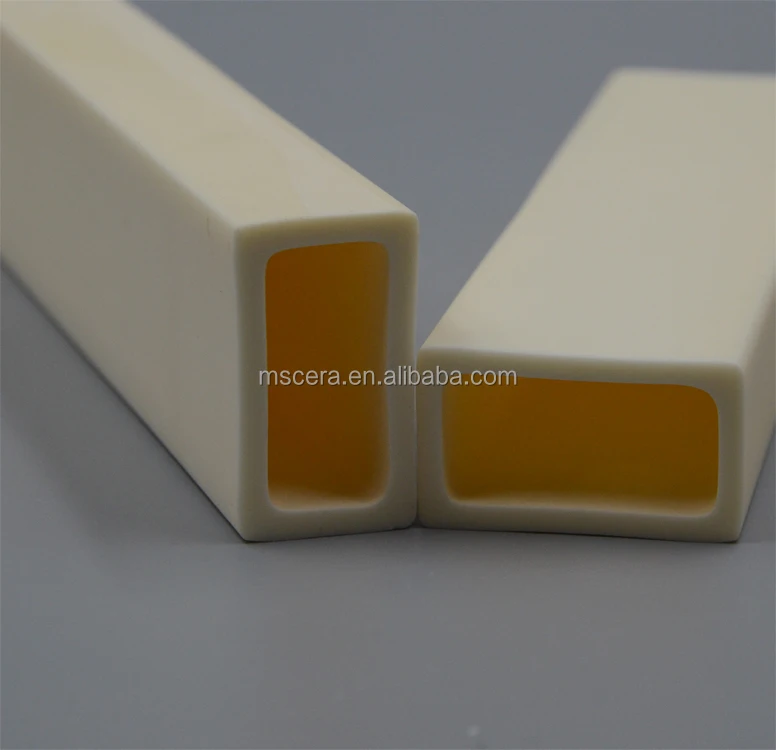

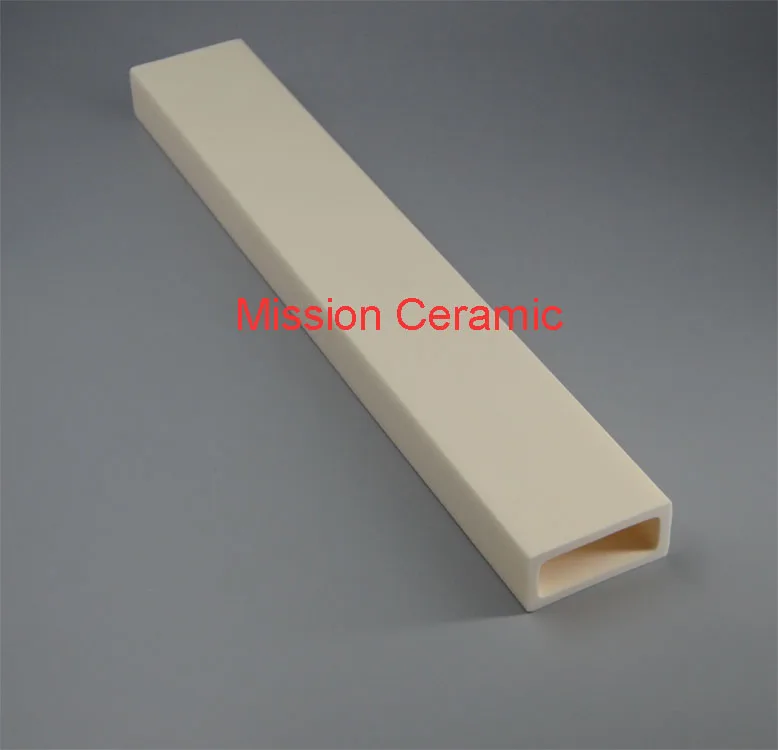

99.7% High Purity Alumina Ceramic Square Tubes

Product Overview

Description

99.7% High Purity Alumina Ceramic Square Tubes

Alumina Ceramic  Plates are our main products.

Mission Ceramic is making high quality ceramic products.



99.7% High Purity Alumina Ceramic Square Tubes Advantage:

1.High purity: 99.7% alumina purity make sure high working temperature.

2. We can make very tight tolerance by machnning, surface polishing and glazing are available.

3.Very small and very big sized ones can be made.

4. Inspection: each single plate will be checked before shipping.

5.Low transportation cost: We have long time cooperated shipping agency, which can provide very low prices.

99.7% High Purity Alumina Ceramic Square Tubes Sizes:

Thickness : 1-50mm,

Width : 20-500mm,

Length : 20-500mm.

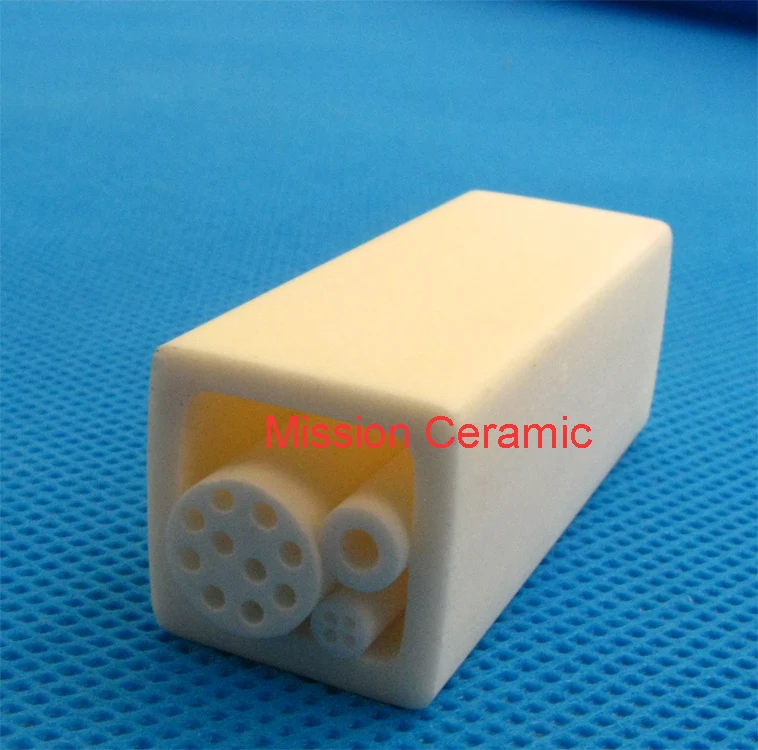

If you need the Customize Alumina Ceramic Tube With Holes,please contact with us.



Technical Data

Al2O3 Purity (%)	Density (g/cm3)	Bending Strength (Mpa)	Expansion (X10-6/℃) (25-800℃)	Thermal Conductivity (W/(m.R))	Dielectric Strength (kv/mm)	Max Working Temperature (℃)	Water Absorption (%)
95	3.60	364	7.6	20	11	1500	<0.2
99.7	3.90	450	8.0	35	12	1800	<0.1



Tolerance: ±0.5%-0.7%

Thickness:0.38mm, 0.5mm, 0.635mm

Property:Good thermal shock resistance,good insulation



About Our Company

Zhengzhou Mission Ceramic Products Co.,Ltd is located in Zhengzhou Advanced Al2O3 Wear Resistant Ceramic RodCity,Henan Provance. We have been focused on high quality ceramic products since 2013. We are providing the following materials.

1.Alumina mainly 95% to 99.7% purity.

2.Zirconia,including FSZ and PSZ, Y2O2-ZrO2,CaO-ZrO2,MgO-ZrO2 available.

3.Silicon Carbide, including SiSIC,ReSiC,NSiC,SSiC.

4.Boron Nitride(BN)

5.Ceramic Fiber products,including board,blanket,and bulk fiber.

6.Heaters,mainly Molybdenum Disilicide(MoSi2) and Silicon Carbide(SiC) heaters.



For different ceramic part,we have different processing method,including Casting,Extruding,Tape Casting,Dry pressing and ISO pressing.

If you are interest in any of our products,please let us know.I believe you will like our products and service.

Zhengzhou Mission Ceramic Products Co., Ltd
No.11 Zhengshang Road, Zhengzhou, Henan, China
Mob:86-152-8681-8691
Fax: 86-371-67103091
