LB22C/LB25C Metal High Current Button Switch Self locking Reset 2NO Ring ring power supply standard light
- Category: Push Button Switches >>>
- Supplier: Guangdong LANBOO Button Manufacturing Co. LTD. Yueqing branch
Share on (1600725568167):
Product Overview
Description
| Mounting Aperture | 22/25mm |
| Serial Number | Type C Oxidized Black Metal Push Button Switch |
| Head shape | Flat head / High head (customized) |
| Switch combination | Self-locking / Self-recovering |
| Action form | 2NO-2 Normally Open Contacts, Slow Action Double Contacts |
| Waterproof level | Customized IP67, anti-collision IK10 (refer to GB/T 20138) |
| Heating current | Ith: 20A, 250VAC |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load | AC-15: 110V/220V/250V: 15A, DC-13: 12V/24V: 15A |
| Inductive load | AC-15: 110V/220V/250V: 4A, DC-13: 110V: 4A |

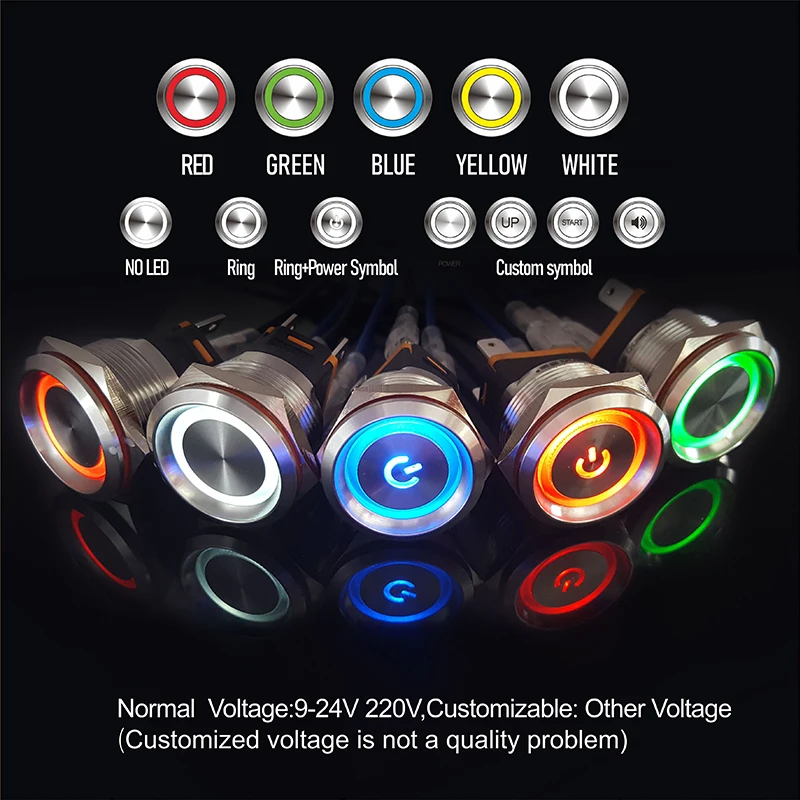

| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
