Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Automatic CNC mechanical steel wire Bar Straightening and Cutting Machine wire rod straightener and cutter
- Category: Metal Straightening Machinery >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (1600726357337):
Product Overview
Description
Product Description

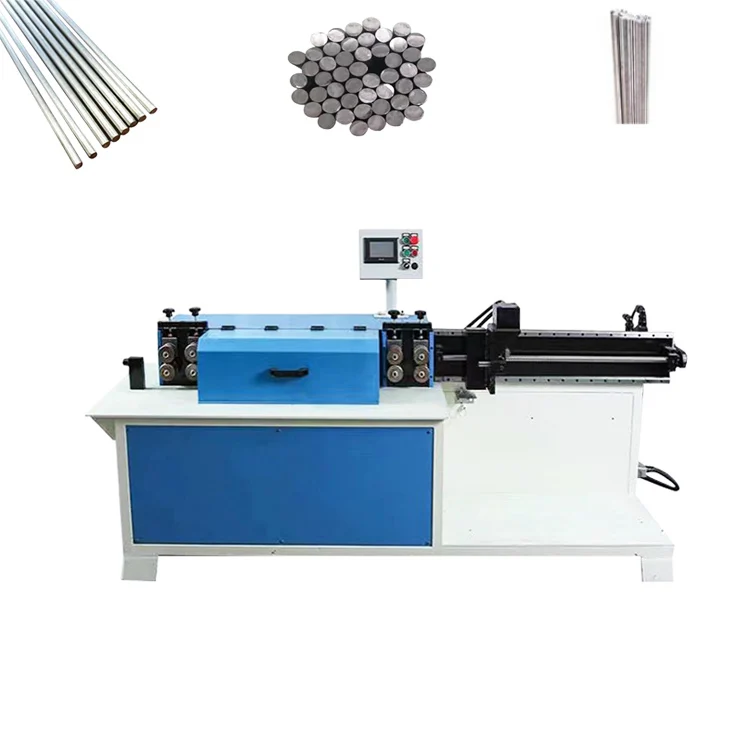

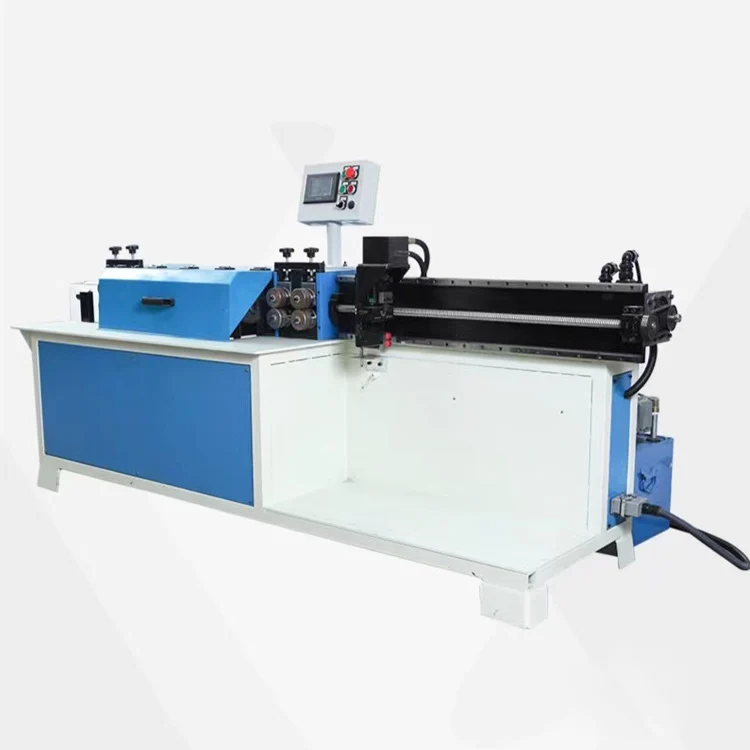

Automatic CNC mechanical steel wire Bar Straightening and Cutting Machine wire rod straightener and cutter

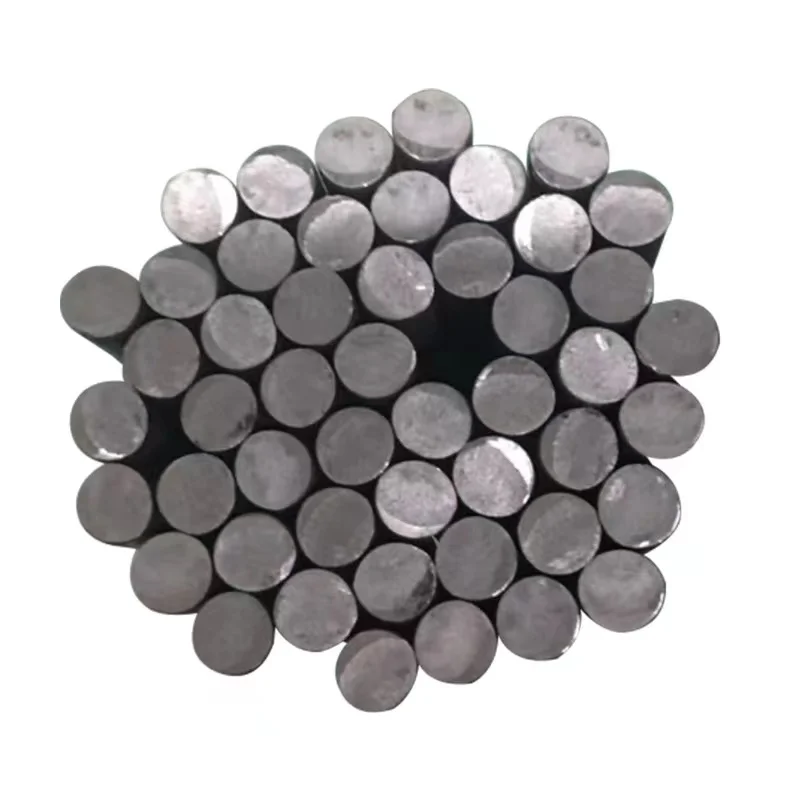

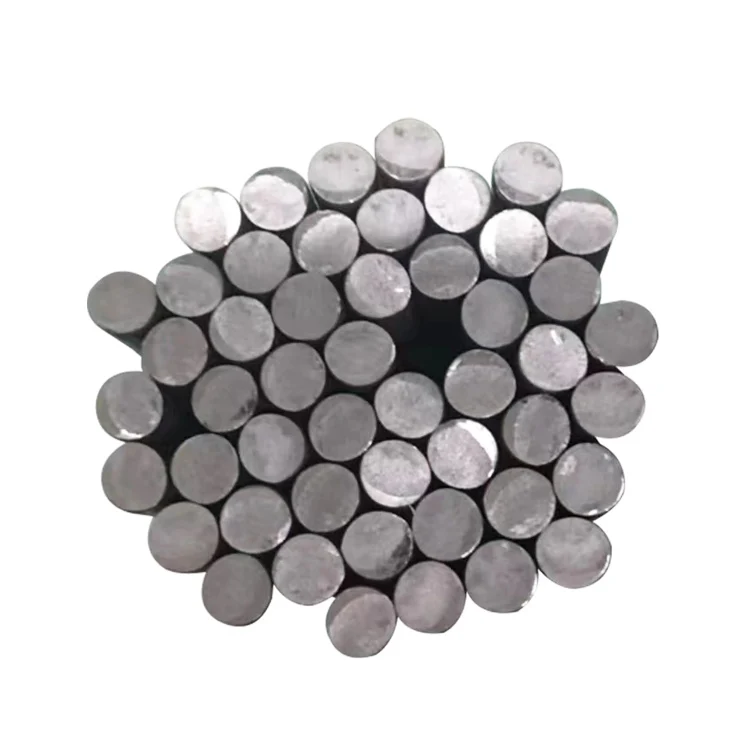

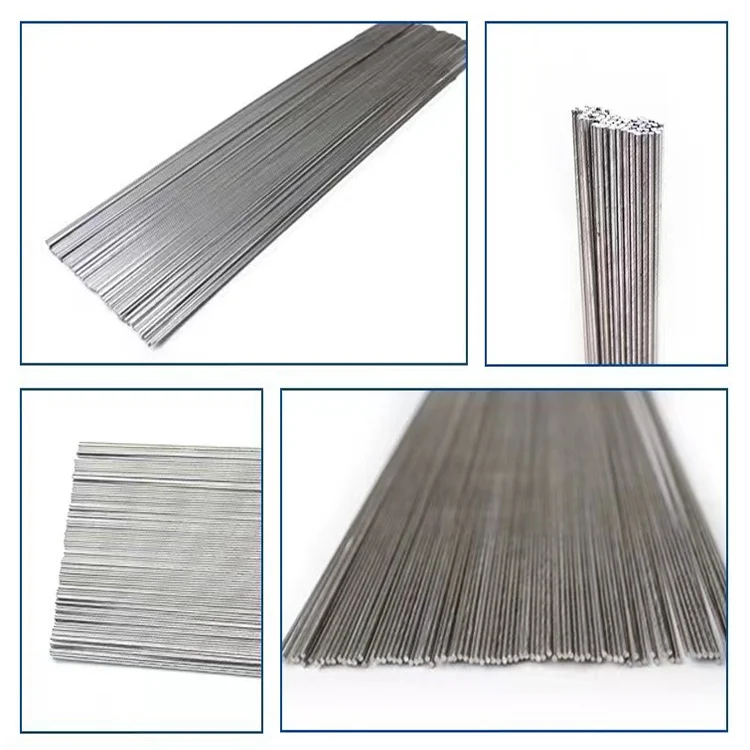

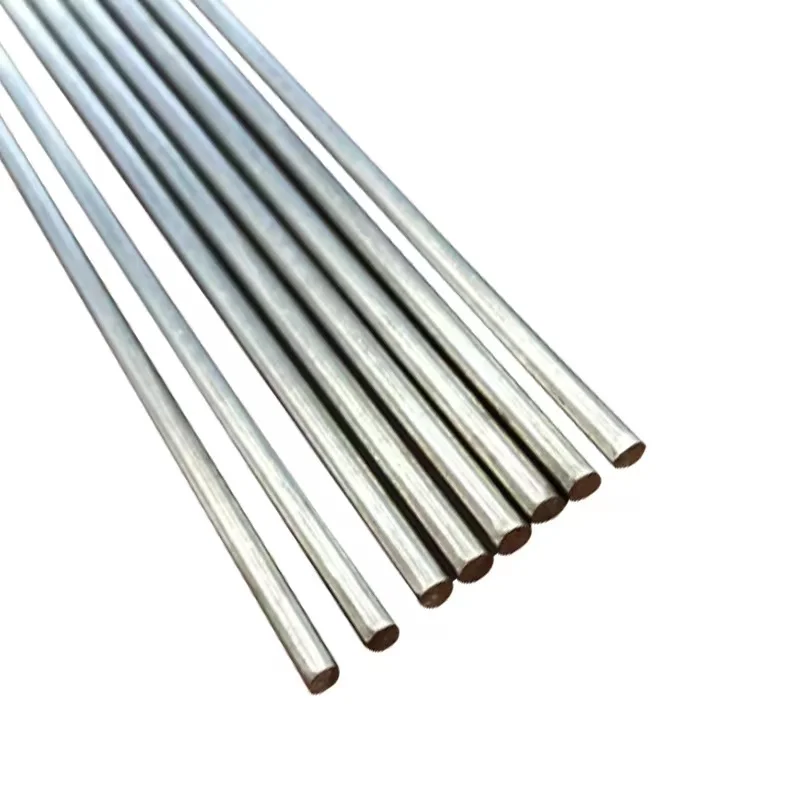

1. High-speed straightening and cutting machine is also called wire straightening machine,or wire cutting machine, mainly used for straightening and cutting off various metal wires, such as stainless steel wire, aluminum wire, cold wire drawing, steel wire and so on.
2. Adopting CNC length adjustment,compared to the traditional gun-type positioning cut, this paragraph is more accurate.

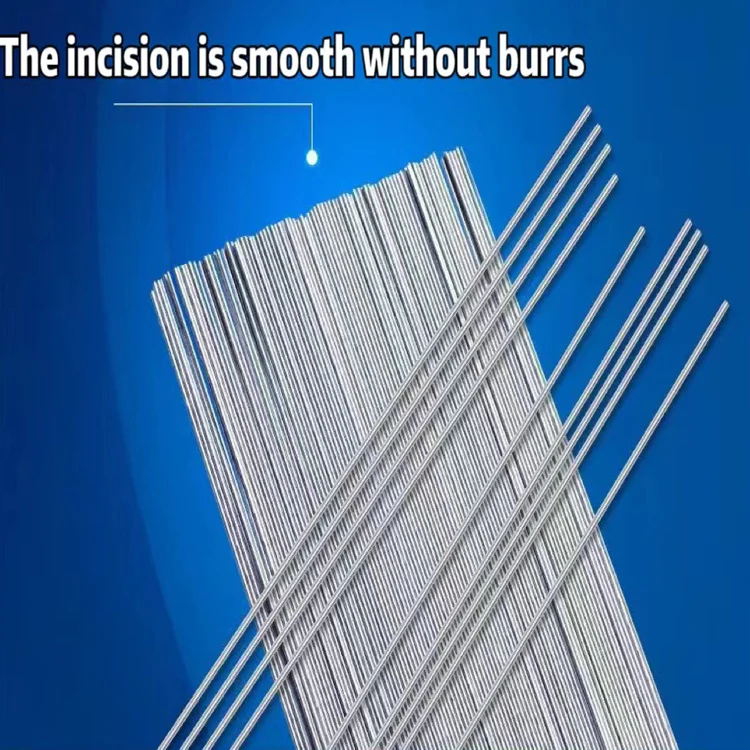

3. The servo motor is used for speed cutting and continuous automatic cutting operation, which solves the situation that the traditional straightening and cutting machine blocks the material when cutting. The incision is neat and the speed is super fast, which is more than 5 times of the traditional machine, achieving high quality and high efficiency.

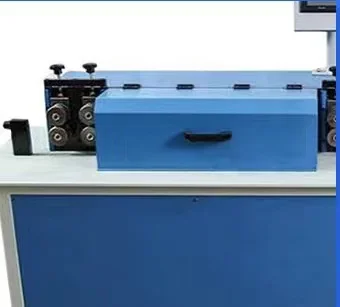

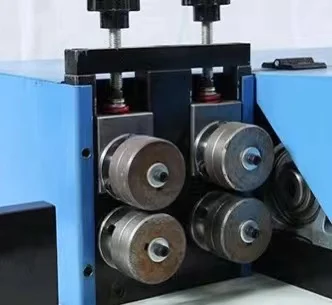

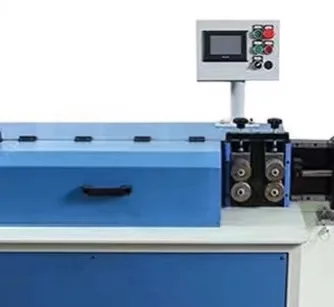

4. The straightening part is composed of a straightening wheel, a straightening pressing block, and a bearing block at both ends, which can complete the straightening work of the wires of various sizes, and has a fast peed and a good straightening effect.
2. Adopting CNC length adjustment,compared to the traditional gun-type positioning cut, this paragraph is more accurate.
3. The servo motor is used for speed cutting and continuous automatic cutting operation, which solves the situation that the traditional straightening and cutting machine blocks the material when cutting. The incision is neat and the speed is super fast, which is more than 5 times of the traditional machine, achieving high quality and high efficiency.
4. The straightening part is composed of a straightening wheel, a straightening pressing block, and a bearing block at both ends, which can complete the straightening work of the wires of various sizes, and has a fast peed and a good straightening effect.
Specification
Model | BOBO-2.5 | BOBO-5 | BOBO-7 | ||
Dia.of wire | 1.0-2.5mm | 3.0-5.0mm | 5.0-7.0mm | ||
Input Voltage | 3P 380V 50HZ | ||||
Application | All kinds of metal wires | ||||
Cut Length | Can set any length according to customers’ requests | ||||
Speed | 20-120 m/min | ||||
Output | 400 pcs/min | ||||
Inaccurate | ±0.3mm | ||||
Power | 5.5KW | 11.0KW | 15.0KW | ||
Dimension | 1500*800*1250 | 1860*885*1370 | 2300*900*1550 | ||
Weight | 300KG | 500KG | 700KG | ||
Packing and Shipping
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
About Us
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
