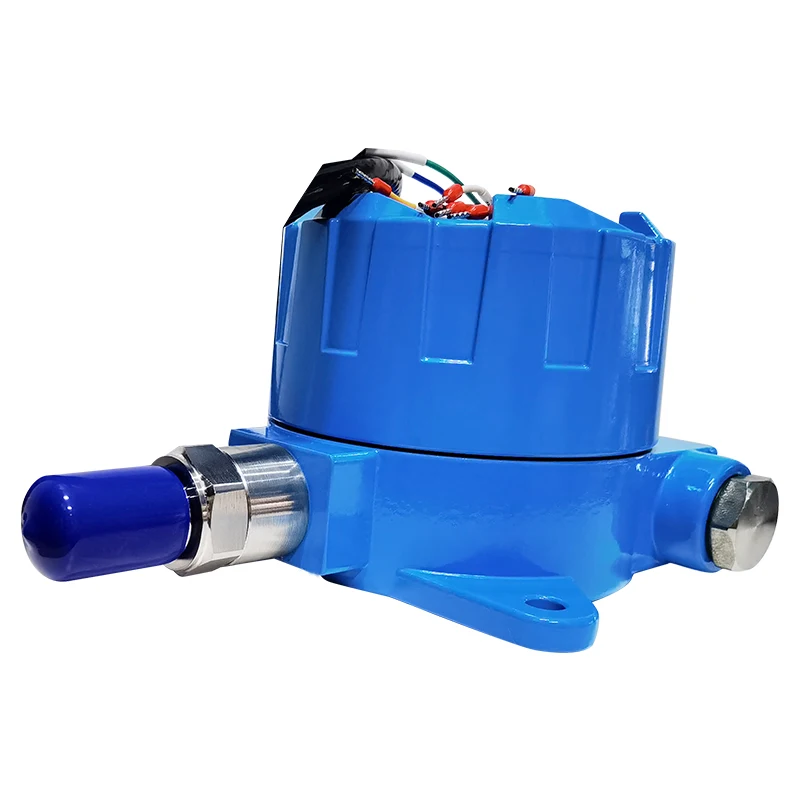

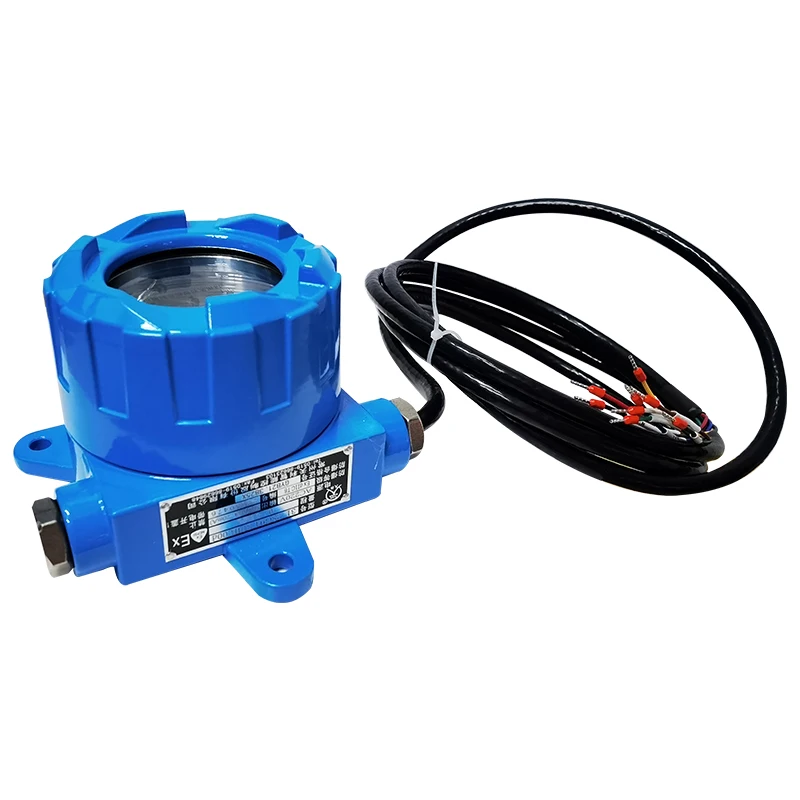

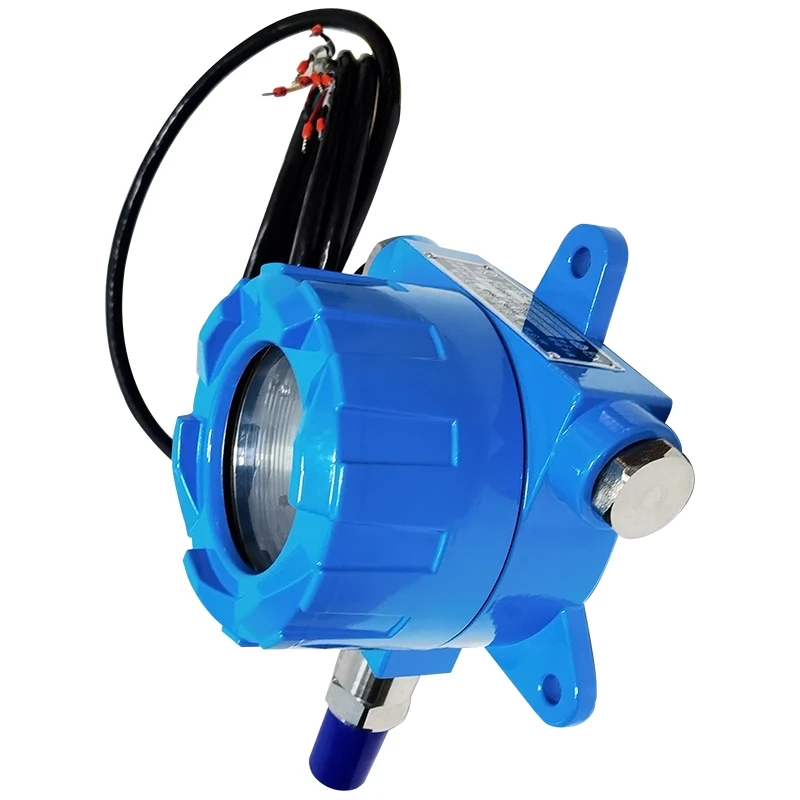

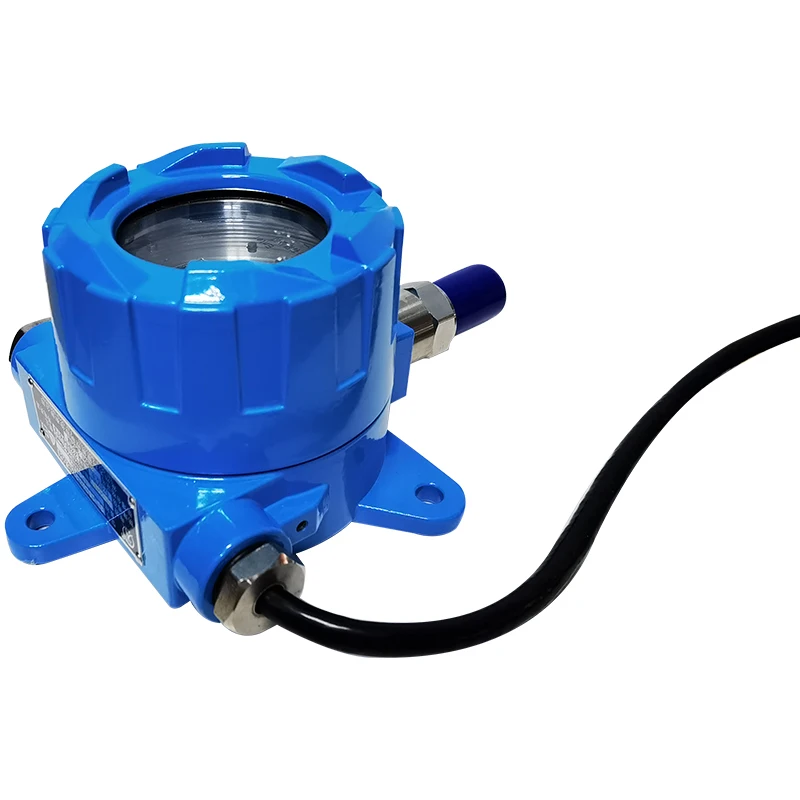

TXZC2 Интеллектуальный Регулятор давления с высокой стабильностью и бесконтактным типом 0,1 ~ 100 МПа точность 0.5% FS ex Водонепроницаемый регулятор давления
- Category: Pressure Switches >>>
- Supplier: Changzhou Tianli Intelligent Control Co. Ltd.
Share on (1600726768437):
Product Overview
Description
Product Description

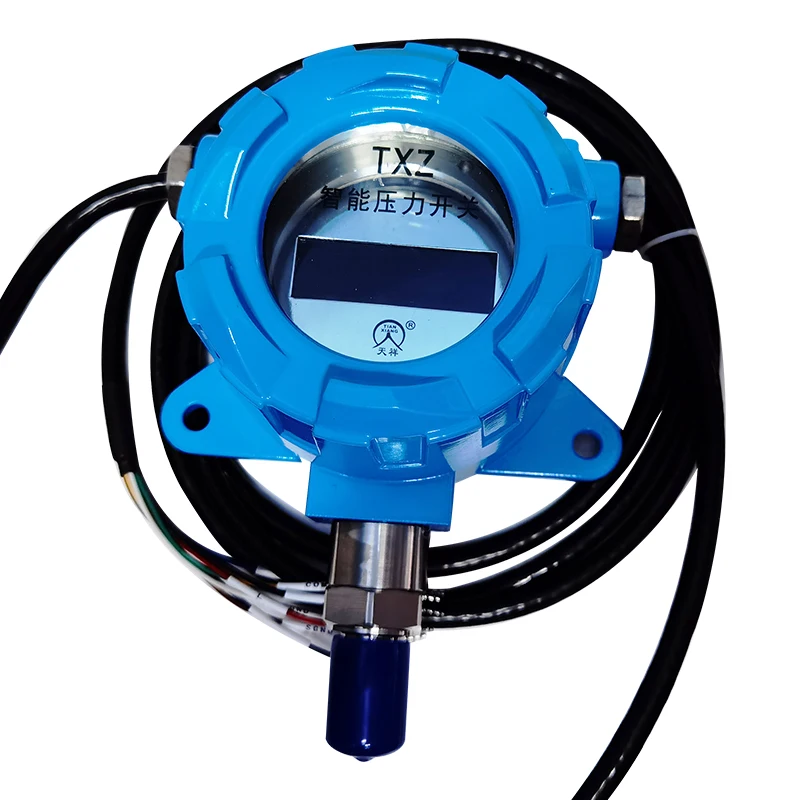

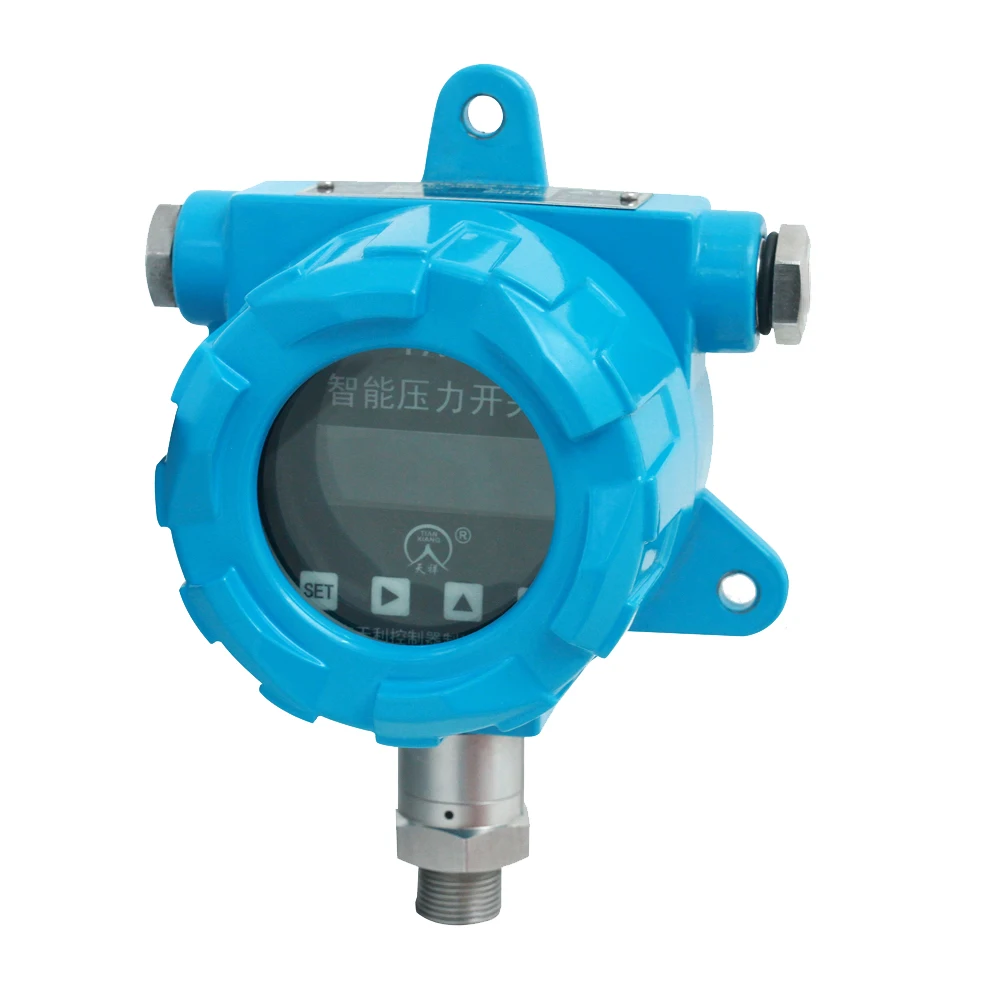

TXZC2 Intelligent Pressure Switch

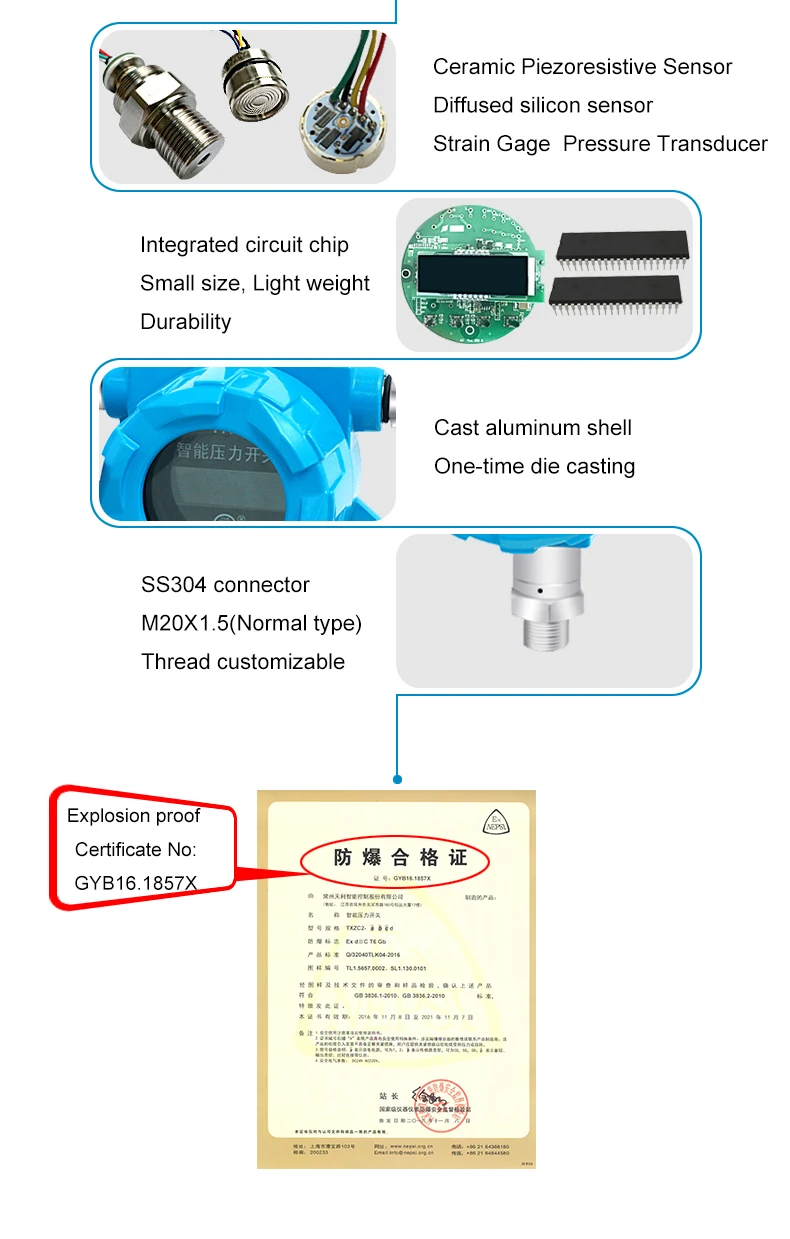

TXZ is intelligent type pressure switch with the German ceramic piezoresistive sensor technology, combined with high-precision industrial circuit elements gathered together with high stability and non-contact type.

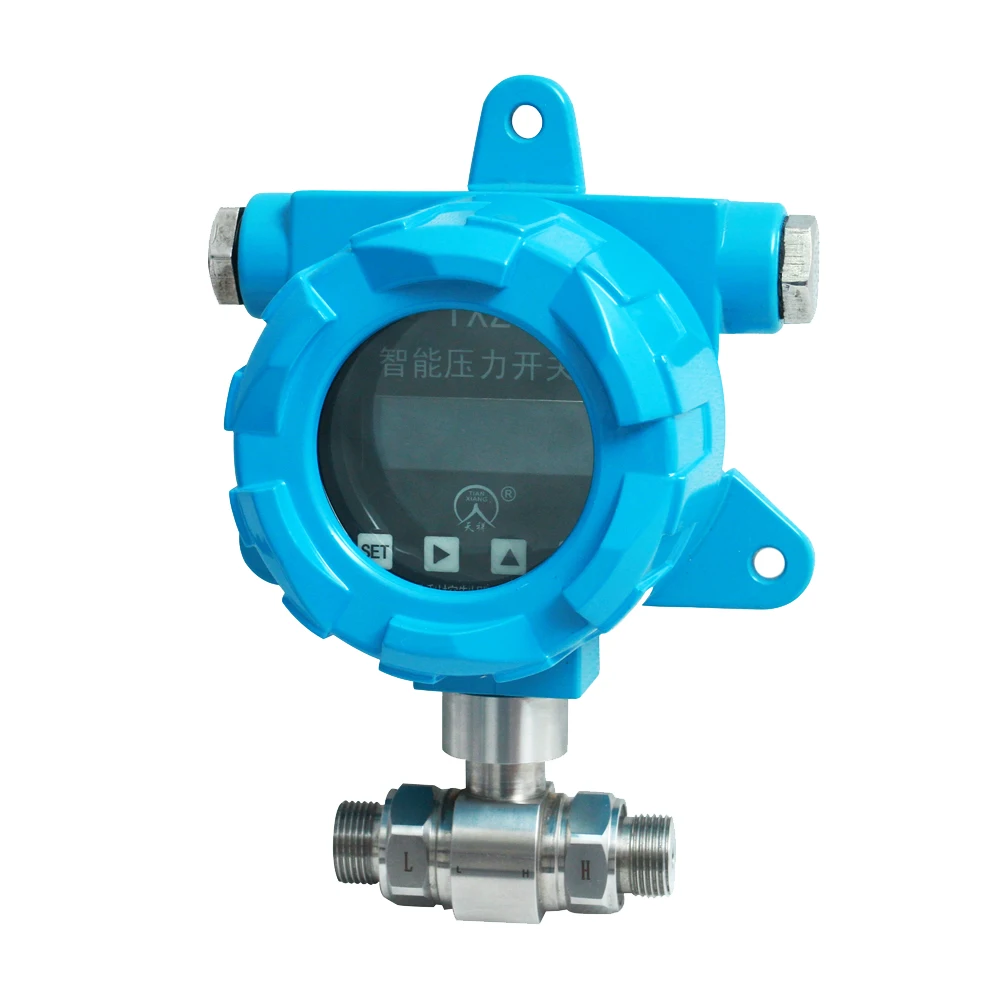

TXZC2 Intelligent Pressure Switch TXZC2 Intelligent differential pressure switch
Specification
Basic data | ||
Power | DC24V±5%/AC220V±5% | |
Range | -0.1-100MPa | |
Setting range | 20%FS-80%FS（best） | |
Overload | 180%FS | |
Display | 4 figures LCD | |
Accuracy | 0.5%FS | |
Repeatability error | ≤0.3%FS | |
Temperature drift | ≤0.1%FS | |
Enclosure protection class | IP65 | |
Output type | ||
Switch output | Type: SPST Switch output | |
Operating life: SPST≥100,000 times | ||
Contact rating:250V/2A max | ||
SPST :Action time:15ms,Release time：8ms | ||
Process connection | Stainless steel 304 M20×1.5(normal） | |
Environment Condition | ||
Medium Temp. | -25-80℃ | |
Environment Temp. | -25-80℃ | |
Selection table
TXZC2- XXXXX- XXXX- XXX 31 ABC DE FGH | ||||||||
A：Supply Power | ||||||||
Code | Supply Power | |||||||
1 | DC24V | |||||||
2 | AC220V | |||||||
B：Sensor Type | ||||||||
Code | Sensor Type | |||||||
SG | Diffusion silicon manometer pressure | |||||||
SD | Diffusion silicon differential pressure | |||||||
CG | Ceramic piezoresistive manometer pressure | |||||||
C：Range | ||||||||||
Code | Range | Code | Range | Code | Range | |||||
0 | 0-20KPa | 1 | 0-35KPa | 2 | 0-70KP | |||||
3 | 0-100KPa | 4 | 0-200KPa | 5 | 0-350KPa | |||||
6 | 0-700KPa | 7 | 0-1MPa | 8 | 0-2MPa | |||||
9 | 0-3.5MPa | 10 | 0-7MPa | 11 | 0-10MPa | |||||
12 | 0-20MPa | 13 | 0-25MPa | 14 | 0-30MPa | |||||
15 | 0-35MPa | 16 | 0-40MPa | 17 | 0-60MPa | |||||
18 | -0.1-2MPa | 19 | 0-18MPa | 20 | 0-6MPa | |||||
D：Logic Output | ||||||||||
Code | Logic Output | |||||||||
10 | One circuit PNP(DC24V,3A max) | |||||||||
11 | Two circuits PNP(DC24V,3A max) | |||||||||
12 | Three circuits PNP(DC24V,3A max) | |||||||||
30 | One circuit relay（SPDT,AC250V,3A max) | |||||||||
31 | Two circuits relay（SPDT,AC250V,3A max) | |||||||||
32 | Three circuits relay（SPDT,AC250V,3A max) | |||||||||
33 | Four circuits relay（SPDT,AC250V,3A max) | |||||||||
E：Output Type | ||||||||||
Code | Output Type | |||||||||
0 | Power output | |||||||||
4 | In-off signal | |||||||||
F:Analog Output | ||||||||||
Code | Analog Output | Code | Analog Output | |||||||
N | None | B | 4-20mA | |||||||
G:Process connection | ||||||||||
Code | Process connection | |||||||||
0 | M20×1.5 Male | |||||||||
1 | 1/2NPT Male | |||||||||
2 | 1/4NPT Male | |||||||||
3 | G1/2” Male | |||||||||
4 | G1/4” Male | |||||||||
H:Explosion-proof type | ||||||||||
d | Ex d IICT6 | |||||||||
0 | None | |||||||||
Note:if you choose 4-20mA,three circuits are not allowed. | ||||||||||
