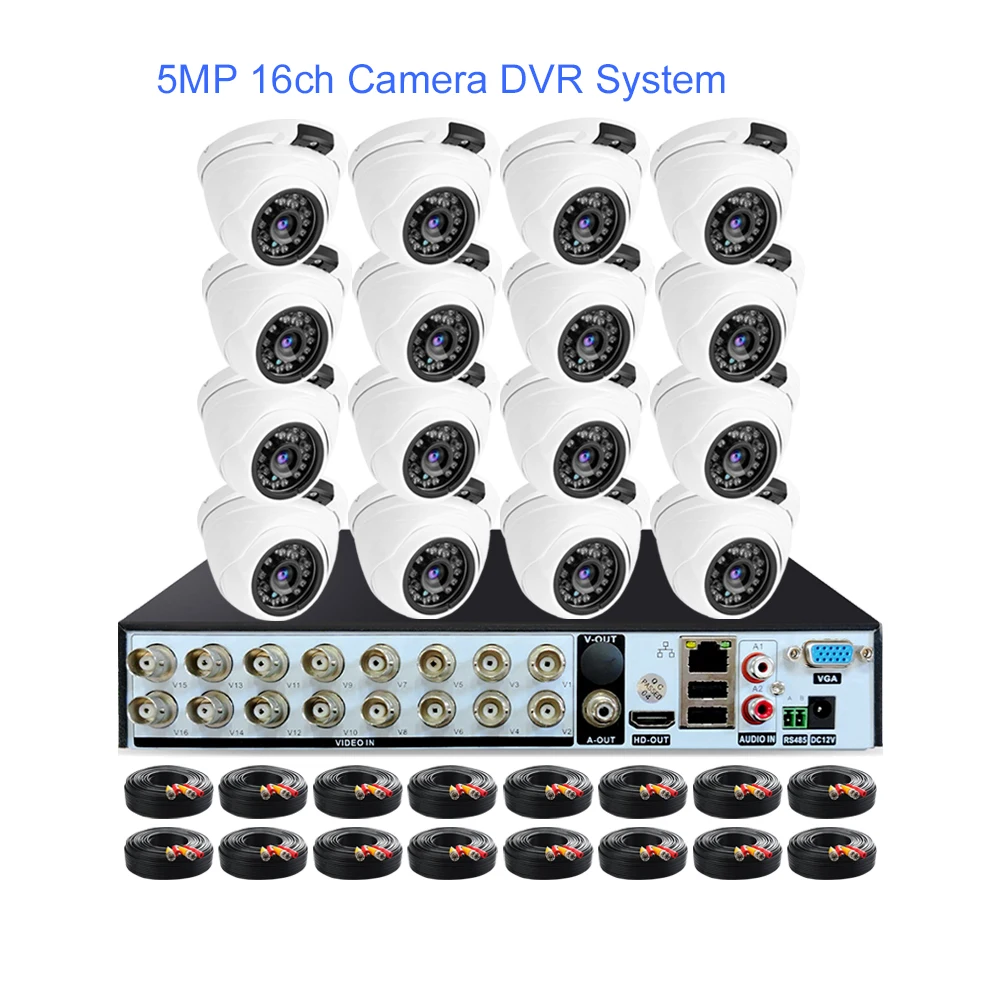

face detection 5MP 8MP 16ch 16 32 channel home surveillance security camera system 4K AHD DVR recorder CCTV camera analog 12 kit
- Category: Surveillance Systems >>>
- Supplier: Anhui Huarong Technology Co. Ltd.
Share on (1600729538554):
Product Overview
Description
face detection 5MP 8MP 16ch 16 32 channel home surveillance security camera system 4K AHD DVR recorder CCTV camera analog 12 kit
FAQ
What is DVR CCTV Security System?
A Digital Video Recorder (DVR) is a device that converts the signals from an analog camera into a viewable digital format that can be stored on a hard drive. It's a local storage option for closed-circuit television (CCTV) security systems.
Can DVR work with Wi-Fi?
No, you have to connect this directly to the router using an Ethernet cable. However, you can use wifi extenders with an embedded Ethernet port to get an access point closer to your DVR.

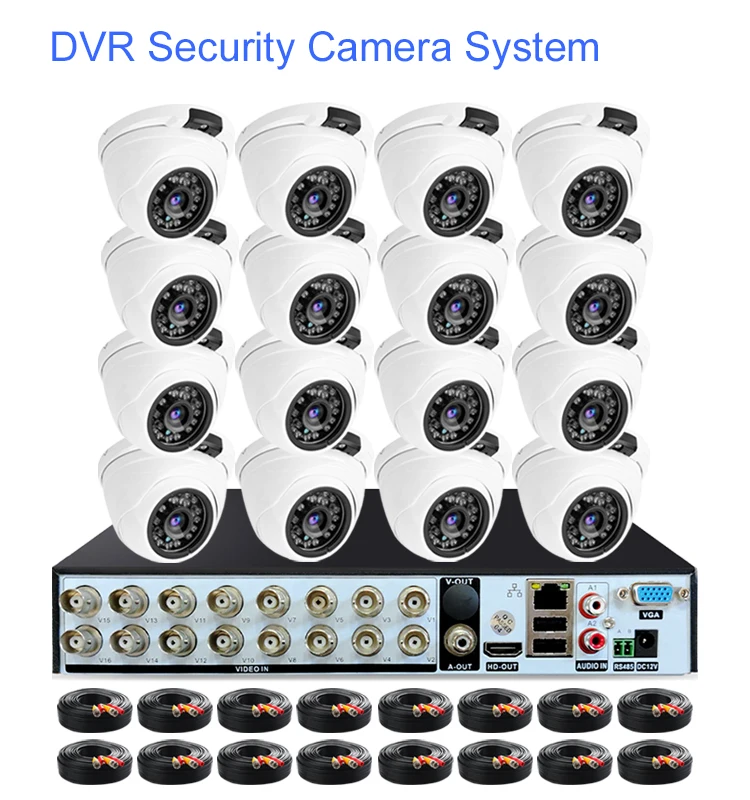

Benefits of a DVR Security Camera System
- Money-Saving. Go for a DVR security camera system and it can save you a large sum of money, if the budget is your primary concern.
- No worries about signal loss. The biggest advantage of a DVR security system is that it works on its own. The DVR system can give you constant video feeds without breaks to keep your property in absolute security.
- Easy to Use. Cameras do not need to be programmed or set up when connected to the DVR. It is a simple plug and play solution.
Product Description
DVR Features:
H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;

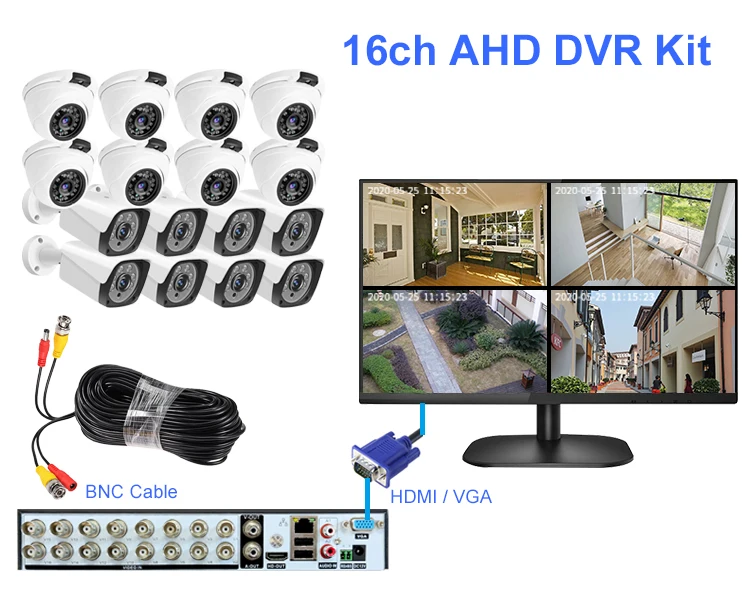

VGA, HDMI full HD output simultaneously; Support CVBS output;
Various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP), easy to monitor remotely;
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Human Detection, face detection (Optional);
DVR security camera system Data Sheet
DVR Recorder Specification Sheet | ||
Video | Compression | H.265 |
Preview | 1/4/8/9/16 | |
Monitor quality | VGA (1080P at most); HDMI (4K at most); CVBS | |
Preview ability | 16*5M-N@12fps (6 in 1)/16*4M-N@15fps (6 in 1)/16*1080P@15fps ( XVI), default 5M-N | |
Encode ability | 16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@15fps (XVI), default 5M-N | |
Decode ability | 8*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@8fps (XVI), default 5M-N | |
Motion detection | Support | |
Audio | Compression | G.711A |
Intercom | unsupported | |
Record & Playback | Recording mode | Manual>Alarm>Motion Detection>Timing |
Local payback | 16ch(analog input mode) | |
Search mode | Search by Time/Calendar/Event/Channel | |
Storage & Backup | Record storage | HDD, Network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |

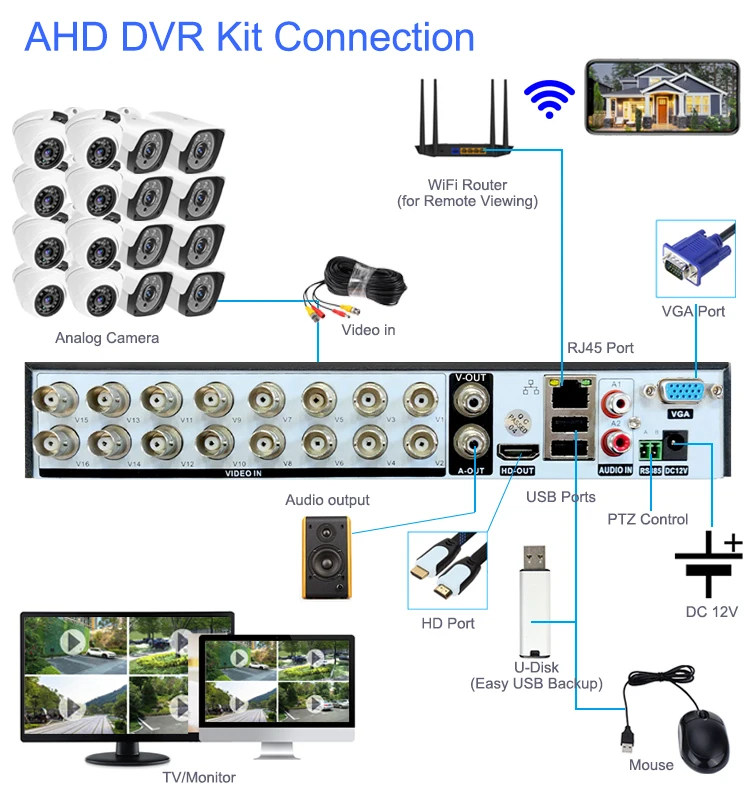

External | Video input | 16ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Audio I/O | 2 (Can be extended to 6ch) / 1 | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
PTZ control | RS485 support kinds of PTZ protocols | |
USB interface | 2*USB 2.0 ports | |
HDD | 1 SATA Interface | |
HDD Capacity | up to 14TB capacity | |
General | ONVIF | Support |
Power supply | DC 12V/2A | |
Power Consumption | < 15W(Without HDD) | |
Work environment | -10 °C to 55°C (14 °F to 131 °F); | |
Dimension | 255mm x 210mm x 40mm | |
AHD Camera Specification Sheet | ||
Camera | Image Sensor | 1/2.7" 5MP Megapixel Sensor |
Min. Illumination | Color 0.01Lux (F1.2), black and white 0.001 Lux (F1.2) | |
Shutter | 1/50(1/60) seconds to 1/10,000 seconds | |
Video Resolution | 2560 × 1920 | |
Signal System | PAL/NTSC | |
Lens | 3.6 mm (2.8mm/6mm/8mm optional) | |
Day & Night | Support IR-CUT, Adjustable (OSD Control) | |
Max. IR Range | 30 m / 100ft | |
IR LED Array | 6 PCS IR LEDs | |
General | Housing | Metal |
Power supply | DC 12V | |
Operating Conditions | -10 °C to 60°C (14 °F to 140 °F); | |
Waterproof grade | IP66 | |
Dimension | 68mm x 60mm x 100mm | |

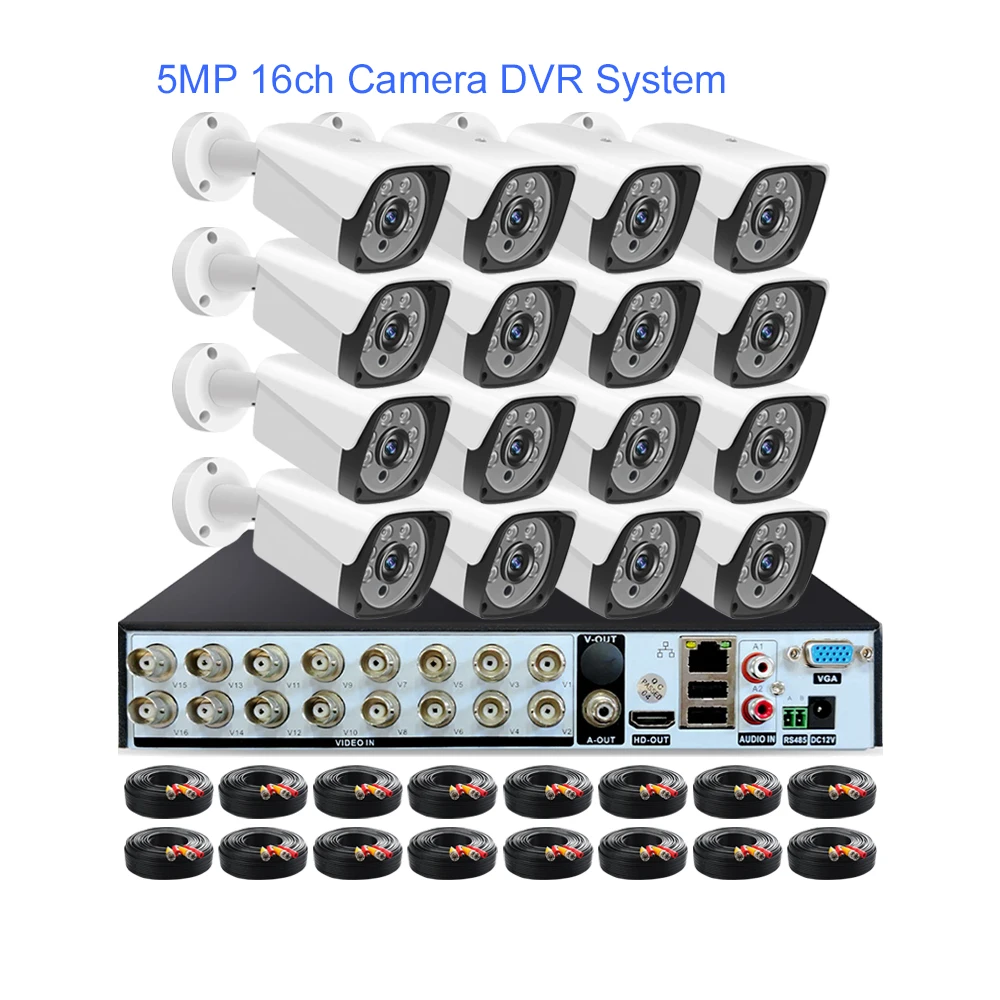

Camera Features:

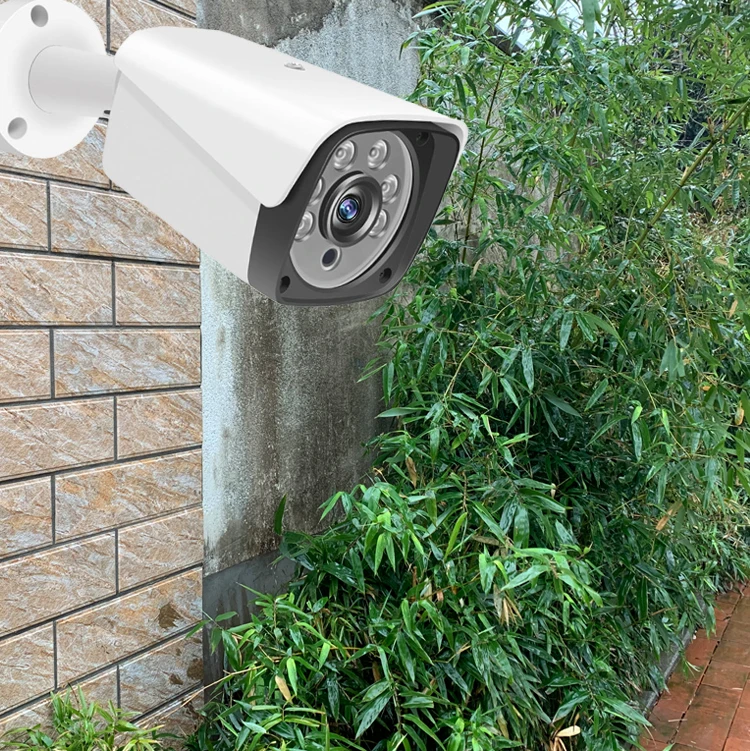

- Full HD 5MP AHD Security Camera;
- Auto IR-Cut for Clear Day and Night Vision;
- Infrared Night Vision;

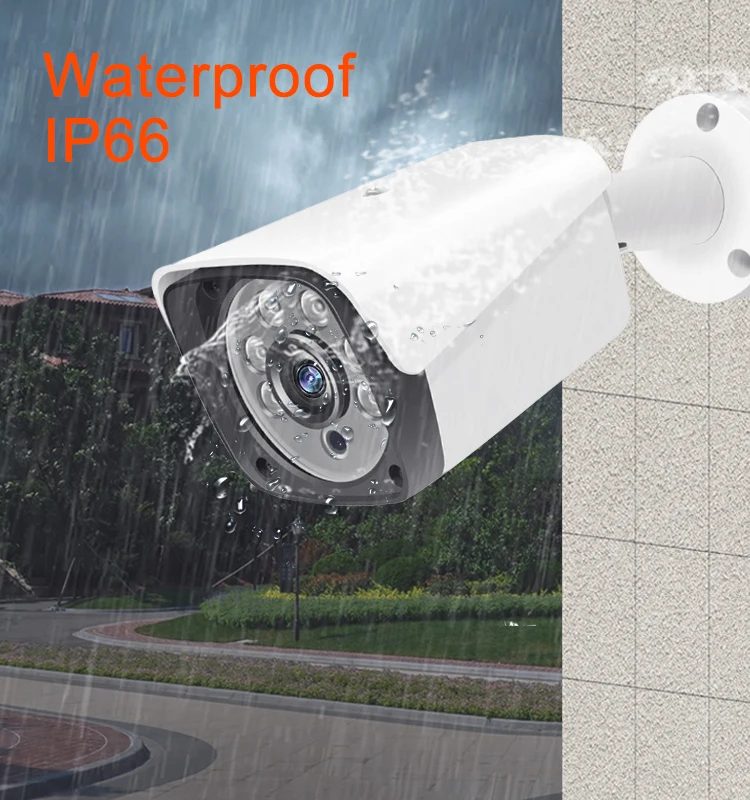

- Outdoor Camera IP66 Dust and Waterproof Rating.

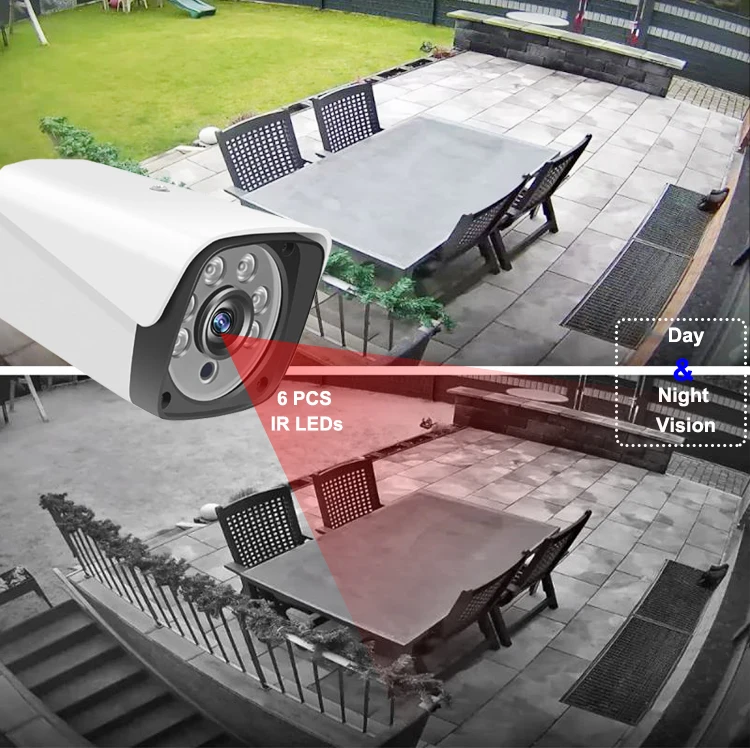

IR-Cut Filter; See More in the Dark
Built-in infrared LEDs also allows video capture in low-light environments, or even in complete darkness up to 25 meters (80 feet).

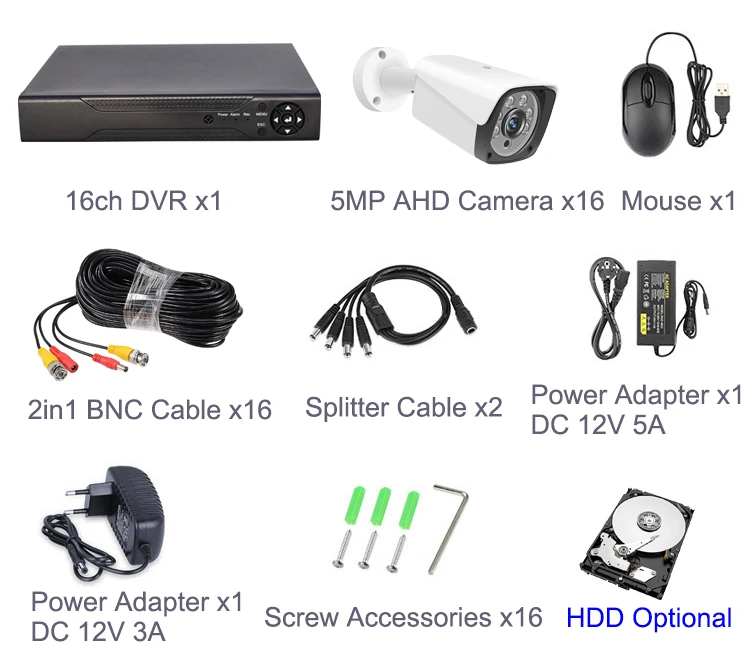

Packaging & Shipping

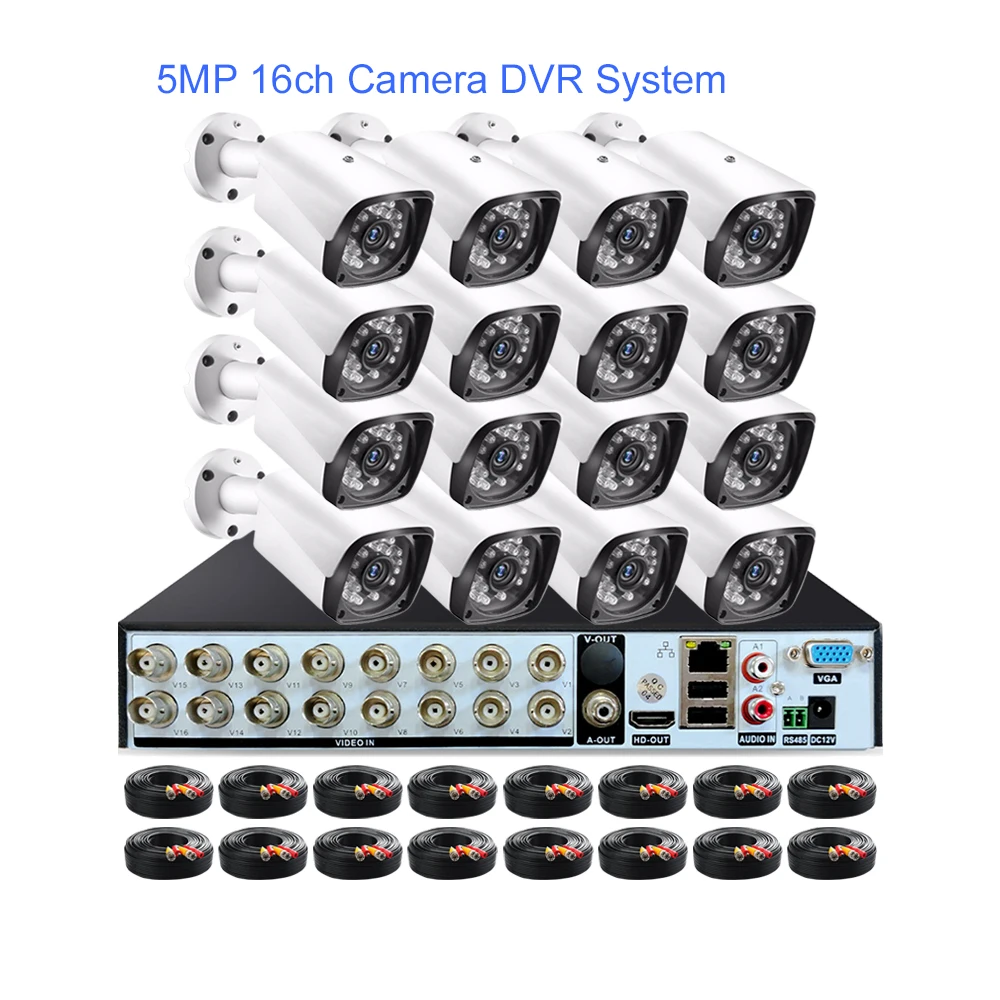

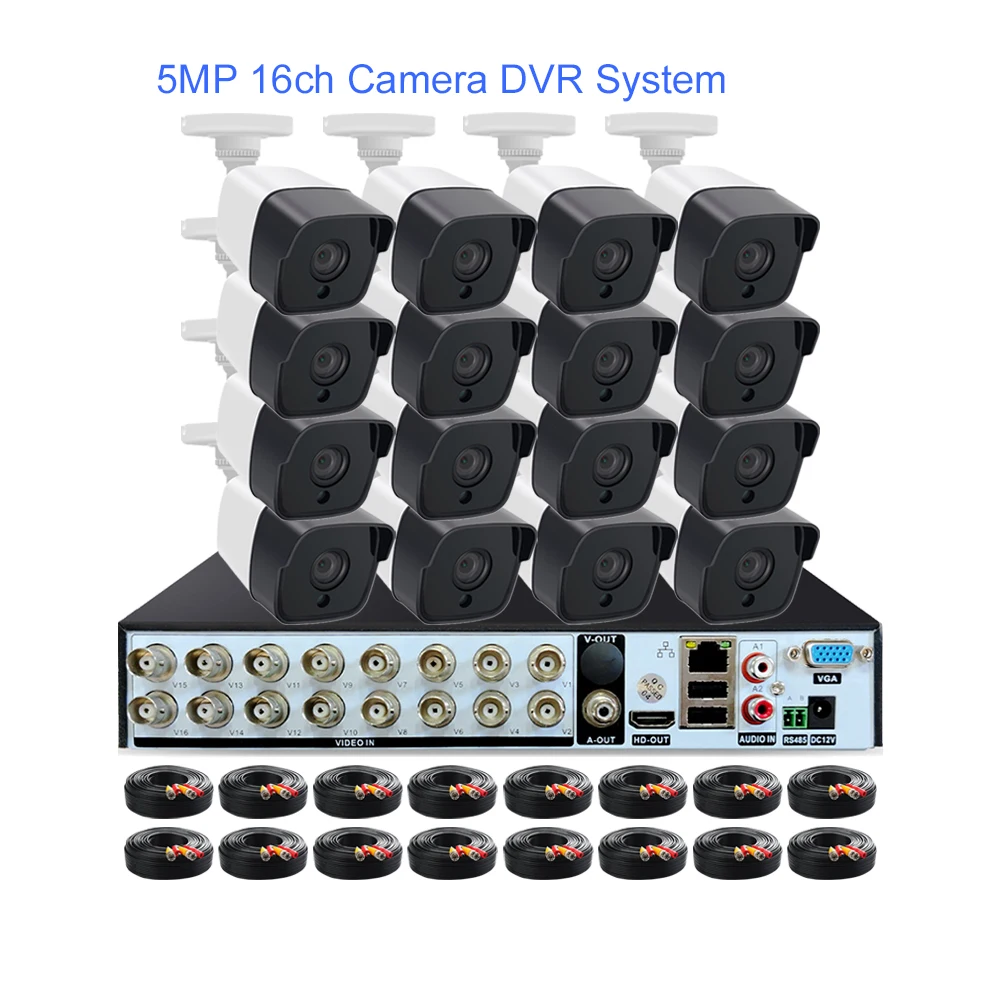

The DVR CCTV security AHD camera system 16 channel is well packed for international export
Delivery
Sample order will be ready for delivery within 7 working days.
Bulk order will be ready for delivery in 15 days or as negotiated.
