China Factory Supplier sale corundum mullite insulating brick for Glass kiln lining
- Category: >>>
- Supplier: Zhengzhou Zhenjin Refractory Material Co. Ltd.
Share on (1600729635593):
Product Overview
Description

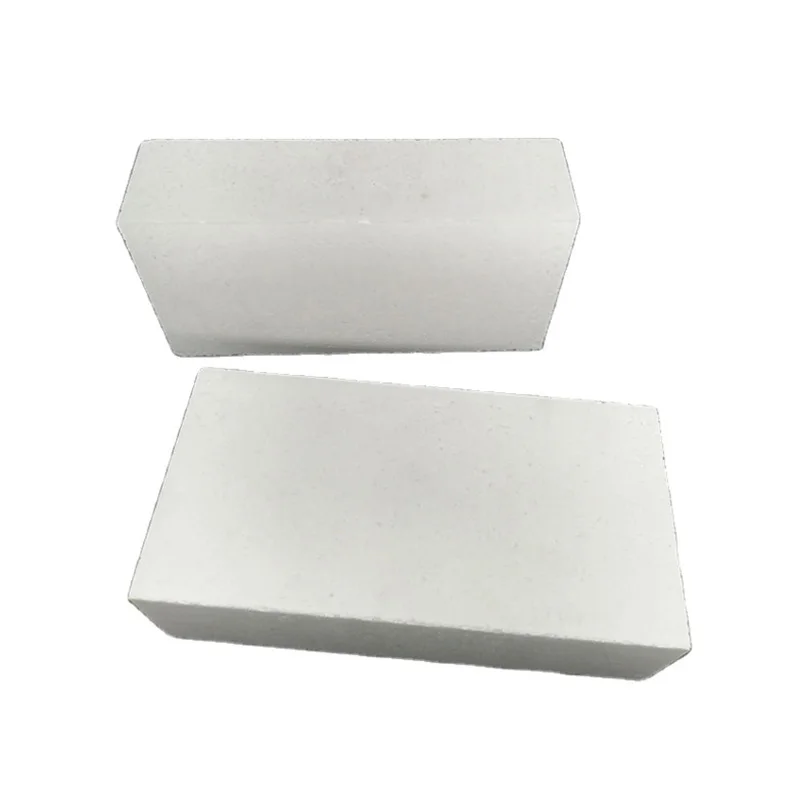

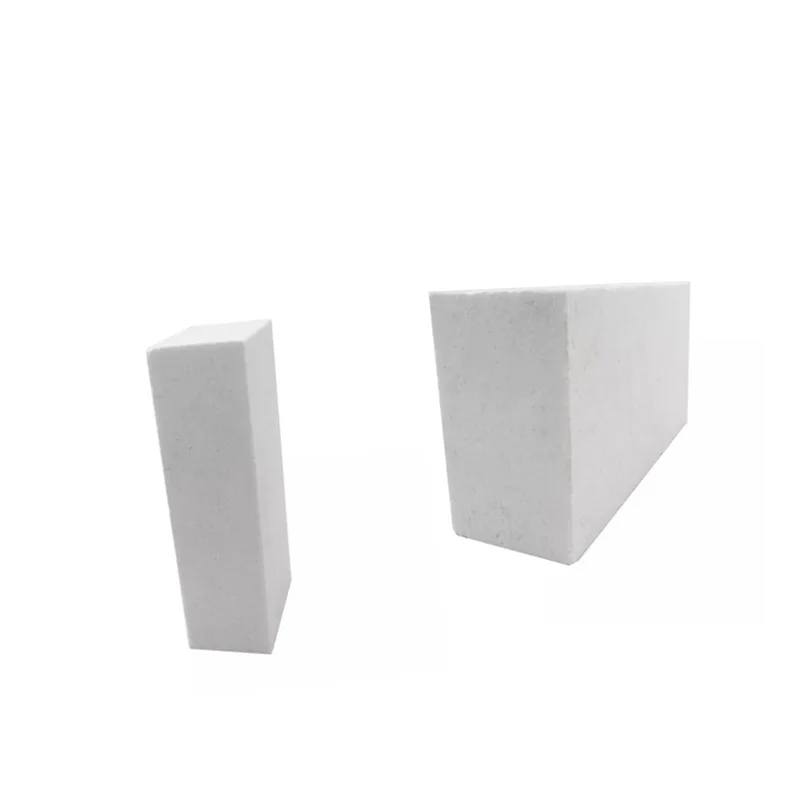

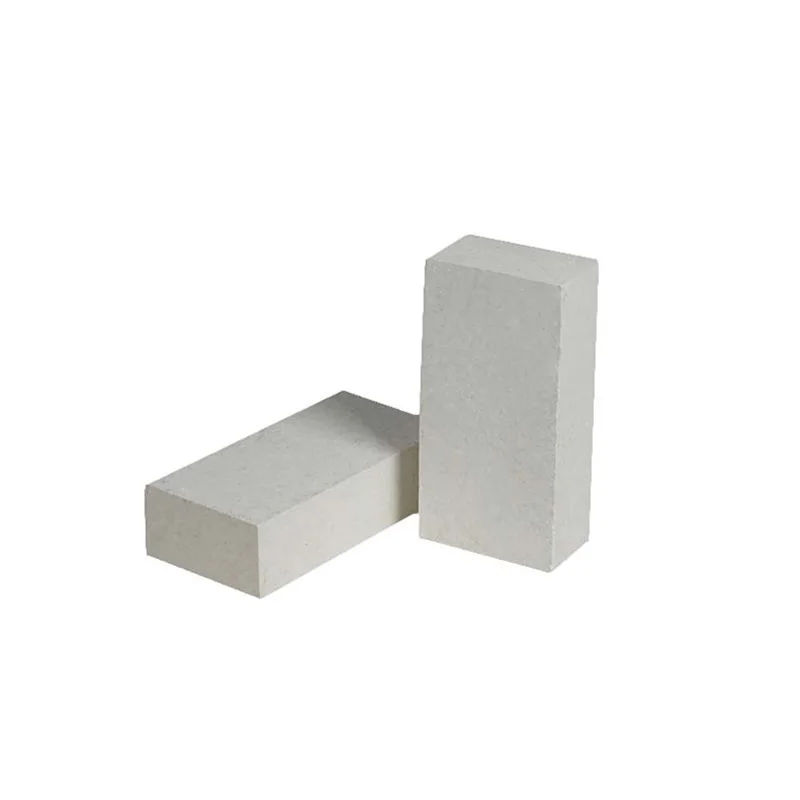

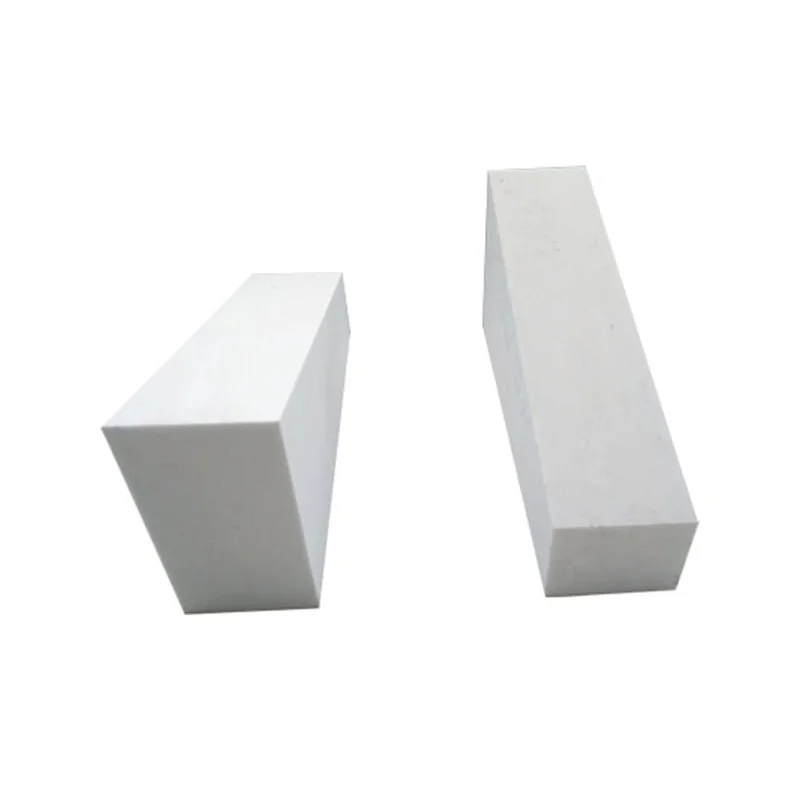

Introduction of corundum mullite insulating brick

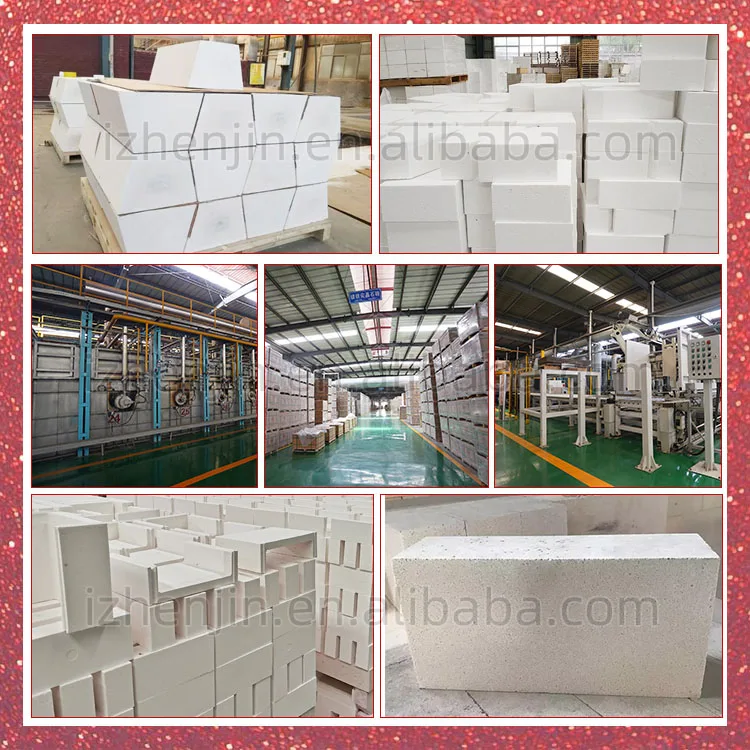

The corundum mullite insulating brick products use imported tabular corundum and high-purity fused corundum as the main raw materials, and adopt advanced superfine powder adding technology. After mixing, forming, drying, and firing at high temperature in shuttle kiln. When the corundum mullite brick is produced, a certain thickness of thermal insulation material is designed and produced on its non-working surface according to the conditions of use.
Refractory Corundum Mullite Brick adopts special production technology to combine two different materials into a whole. Under the premise of ensuring no fracture and keeping the thermal expansion rate close to the same, the corundum mullite brick has high temperature resistance, corrosion resistance, The effect of high strength and erosion resistance can effectively solve the problem that double-layer masonry of thermal insulation materials cannot be used in the lining of the rotary kiln.
Refractory Corundum Mullite Brick adopts special production technology to combine two different materials into a whole. Under the premise of ensuring no fracture and keeping the thermal expansion rate close to the same, the corundum mullite brick has high temperature resistance, corrosion resistance, The effect of high strength and erosion resistance can effectively solve the problem that double-layer masonry of thermal insulation materials cannot be used in the lining of the rotary kiln.

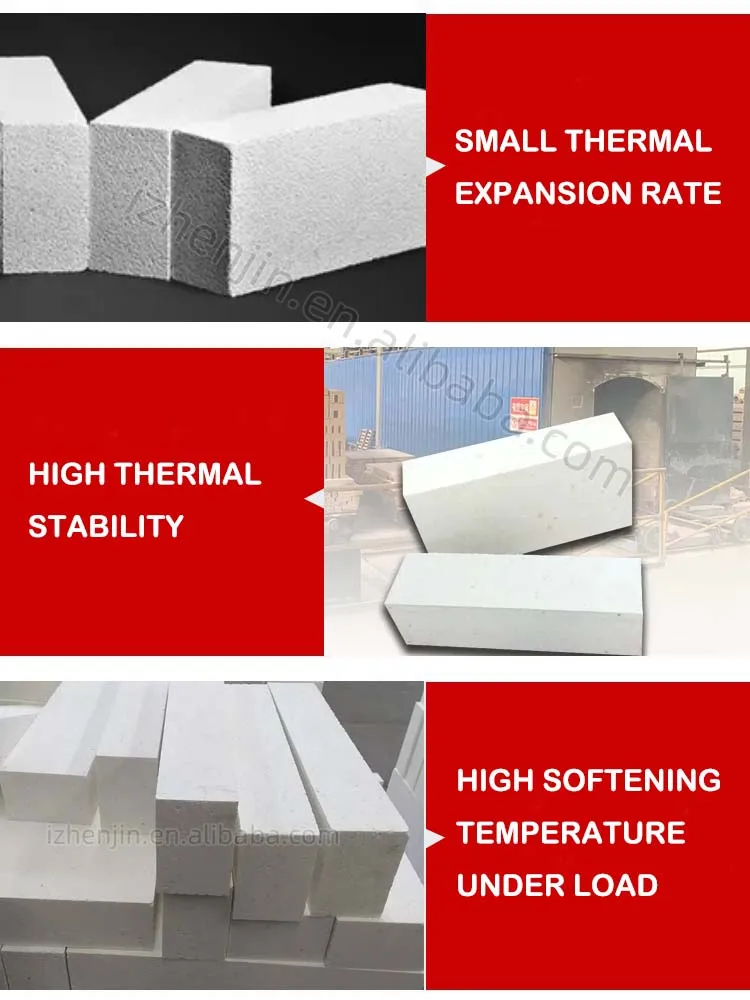

Advantage of corundum mullite insulating brick
1. Mullite Insulation Refractory Brick has the characteristics of high refractoriness and good thermal shock stability
2, high temperature strength, excellent corrosion resistance, strong slag resistance
3. With the characteristics of small expansion coefficient, low creep, and resistance to spalling, corundum mullite bricks are suitable for the use of high-temperature kilns under various conditions
2, high temperature strength, excellent corrosion resistance, strong slag resistance
3. With the characteristics of small expansion coefficient, low creep, and resistance to spalling, corundum mullite bricks are suitable for the use of high-temperature kilns under various conditions
Index of corundum mullite insulating brick
Index | Corundum mullite brick | High purity corundum brick | 99-corundum brick | 90-corundum brick |
Al2O3 % | ≥80 | ≥99.3 | ≥98.5 | ≥90 |
SiO2 % | ≤18.5 | ≤0.15 | ≤0.3 | ≤0.85 |
Fe2O3 % | ≤0.3 | ≤0.1 | ≤0.2 | ≤0.2 |
Bulk density g/cm3 | ≥2.9 | ≥3.25 | ≥3.25 | ≥3.1 |
Apparent porosity % | ≤18 | ≤18 | ≤18 | ≤18 |
Compressive strength Mpa | ≥120 | ≥100 | ≥100 | ≥120 |
degree of softening under load ℃ | ≥1700 | ≥1700 | ≥1700 | ≥1700 |
Reburn rate of change (1600℃*8h) ≤ % | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Thermal expansion coefficient 1300℃ | 8.1 | 8.1 | 8.1 | 8.1 |
Our products are exported to South Korea, Japan, the United States, Canada, Chile, Mongolia, Cambodia, Angola and other international markets. Our products have won the trust and praise of users for their stable performance, excellent quality and exquisite craftsmanship.

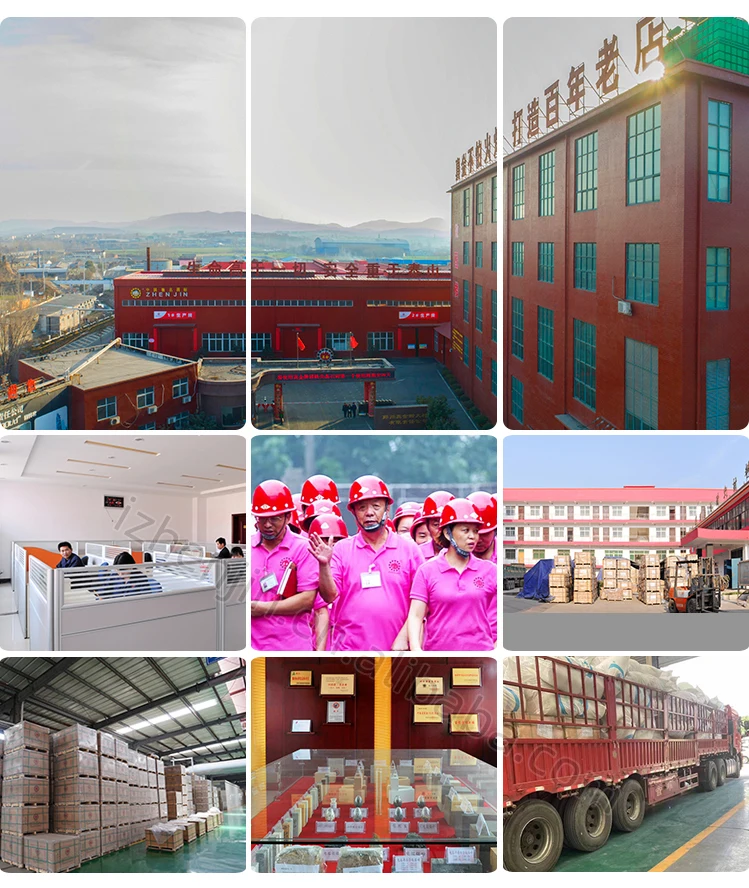

Zhengzhou Zhenjin refractory material CO., Ltd. was established in 1985 and is located in Xinmi City, Henan Province, a refractory production base in China. It covers an area of about 70,000 square meters. It is a company integrating R&D, production, sales,international trade and technical services. An integrated manufacturing enterprise. The company is committed to the provision,construction and installation of refractory products in the cement industry, glass industry, building materials industry,non-ferrous smelting and metallurgical industries and other personalized services.
Zhengzhou Zhenjin refractory material CO., Ltd. has long been focusing on the research and development and production of high-quality refractories. At the same time, it has also developed and produced magnesia-aluminum spinel bricks, magnesia-iron tip Refractory bricks such as spar bricks have successively created a number of safe use records in the cement industry.
The company's products are exported to Greece, South Korea, Japan, Canada, Chile, Mongolia, Cambodia and other international markets. The products have won the trust and praise of users for their stable performance, excellent quality and exquisite craftsmanship. Our company has always been adhering to the business policy of "customer interests first", aiming at international refractory production standards, integrating resources, and further enhancing the company's core competitiveness in the field of refractory
manufacturing.
manufacturing.

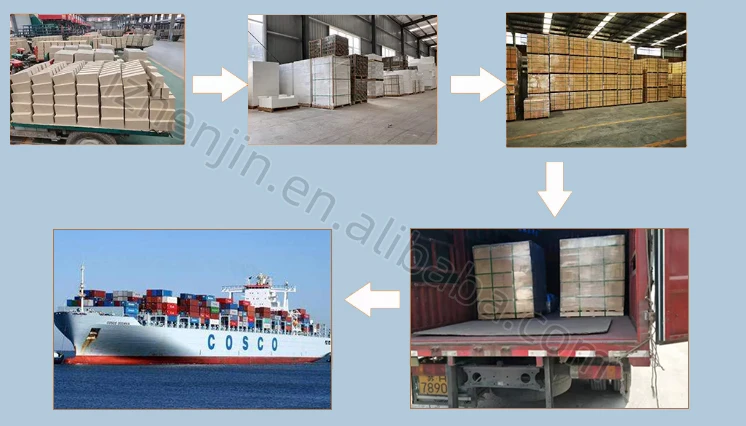

1,magnesium alumina spinel brick will be packed by Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film or according to customer's requirements.
2,We will deliver the goods on time, with guaranteed quality and quantity, in full accordance with the contract and customer requirements.
3,With superb technology, excellent product quality and service, Zhenjin has obtained your cooperation and support. Continuing to provide quality services is our unremitting pursuit.
2,We will deliver the goods on time, with guaranteed quality and quantity, in full accordance with the contract and customer requirements.
3,With superb technology, excellent product quality and service, Zhenjin has obtained your cooperation and support. Continuing to provide quality services is our unremitting pursuit.
Q1 : How can you control your quality?
A1 : For each production processing, ZhenJin have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2 : What is your lead time?
A2 : It usually needs about 15- 20 days after receiving the PO.
Q3 : Can we visit your company?
A3 : Yes, surely. You are very welcome to China and we will be honored to have a customer and friend.
Q4 : What is the warranty of your products?
A4 : Our products have at least 1 year warranty,if any quality problems,we will take responsibility of the cost of the shipment and the replacement.
Q5. What's your payment terms?
A5:We can accept 30% deposit, 70% balance before shipment for ordrs over $ 2000.
A1 : For each production processing, ZhenJin have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2 : What is your lead time?
A2 : It usually needs about 15- 20 days after receiving the PO.
Q3 : Can we visit your company?
A3 : Yes, surely. You are very welcome to China and we will be honored to have a customer and friend.
Q4 : What is the warranty of your products?
A4 : Our products have at least 1 year warranty,if any quality problems,we will take responsibility of the cost of the shipment and the replacement.
Q5. What's your payment terms?
A5:We can accept 30% deposit, 70% balance before shipment for ordrs over $ 2000.
