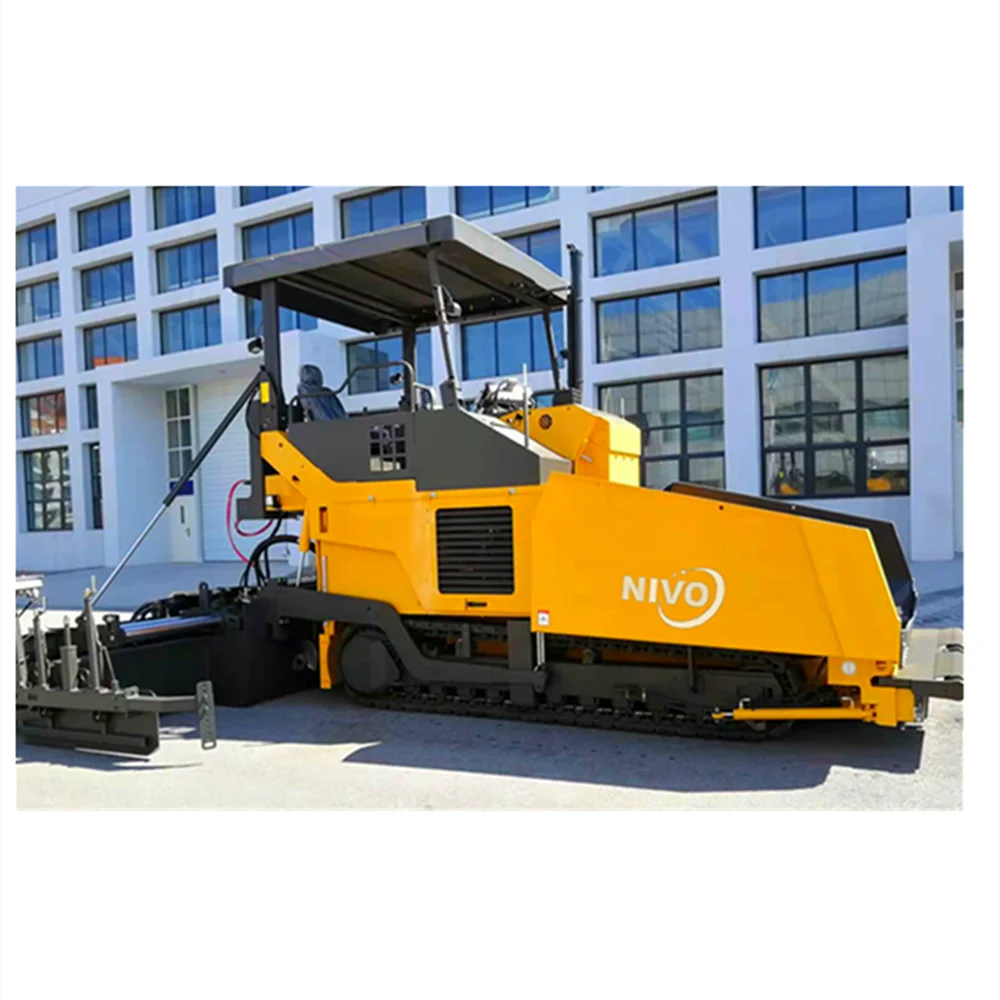

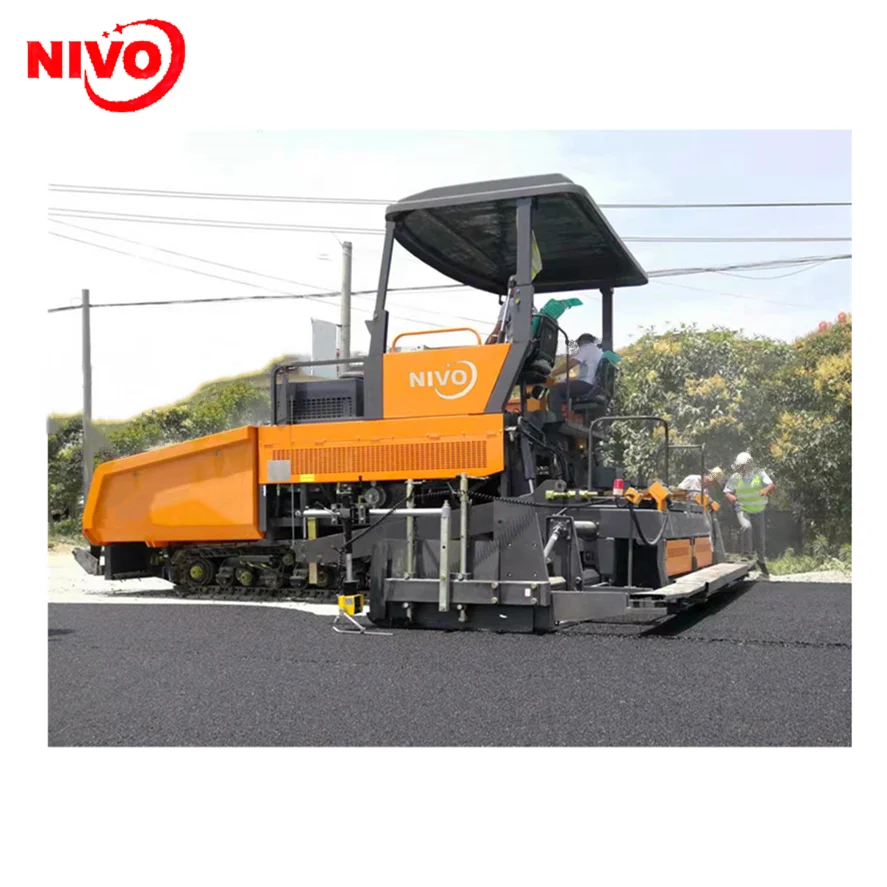

NIVO asphalt paver series 1.5m 4.5m 6m 9m 12.5m wheel Asphalt Pavement machine or wheel asphalt paver or parts
- Category: >>>
- Supplier: Nivo Machinery (jingjiang) Co. Ltd.
Share on (1600730293767):
Product Overview
Description
Product Description
Specification 2.5-12.5m paving width can be optional wheel/crawler, concrete paver...

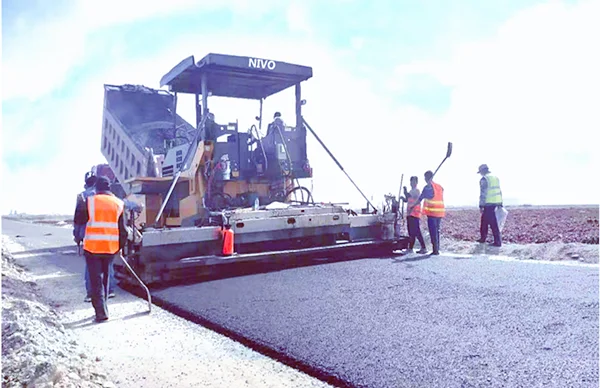

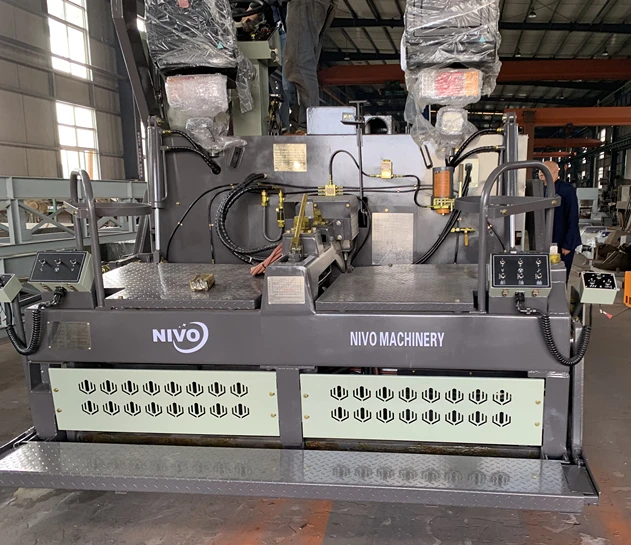

Suitable for paving highway, urban road, plaza, square and so on. It uses advanced double sets of hydraulic stretching screed and
auto level sensing device, so paving density and smoothness is high. The easily wearing parts use international advanced
anti-frunction material, the reliability of machine is improved.
auto level sensing device, so paving density and smoothness is high. The easily wearing parts use international advanced
anti-frunction material, the reliability of machine is improved.
Basic paving width | 2500mm |
Maximum width of paving | 4500mm |
Maximum thickness of paving | 250mm |
Minimum thickness of paving | 10mm |

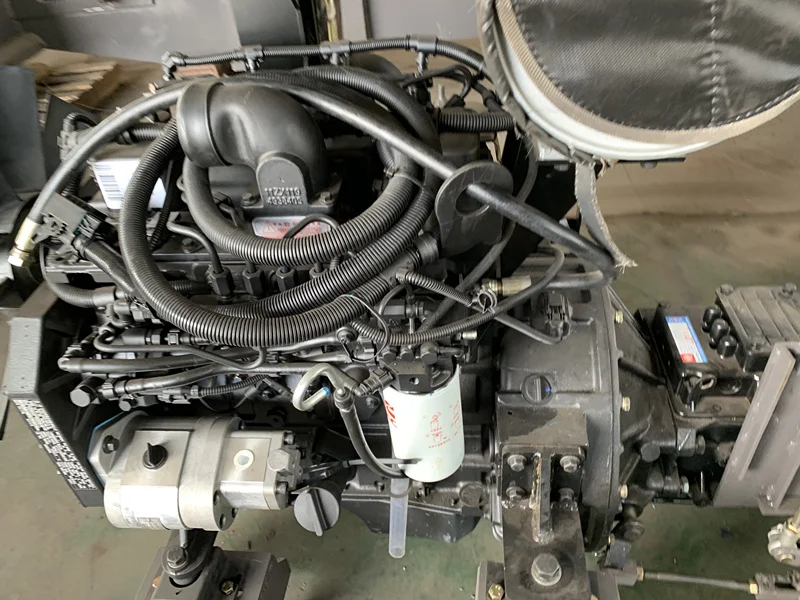

Engine Model | CUMMINS QSB3.9 |
Power | 60kW/2200r/min |
Diesel oil tank capacity | 143L |
Traveling speed | 2.29~16.74km/h |
Paving speed | 3.01~8.97m/min |
Planeness | 3mm/3m |
Maximum theoretic productivity | 220t/h |
Hopper capacity | 10t |
Mass | 14000kg |
Total weight | 11500kg |
Maximum climbing capacity | 20% |
Details Images

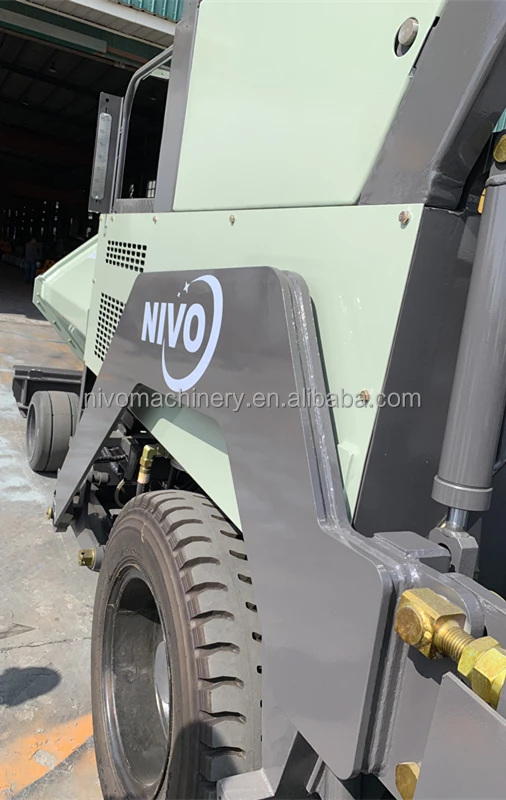

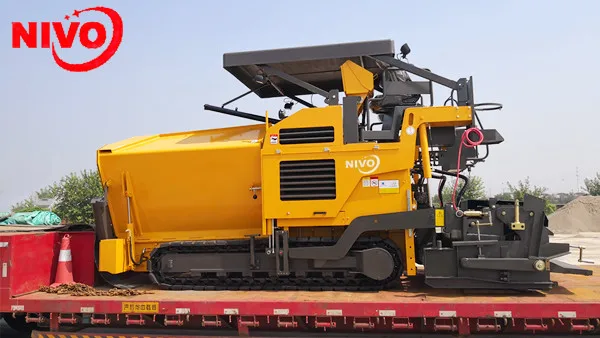

General color is orange, green is we special designed for customers can be optional
Wheel type is available

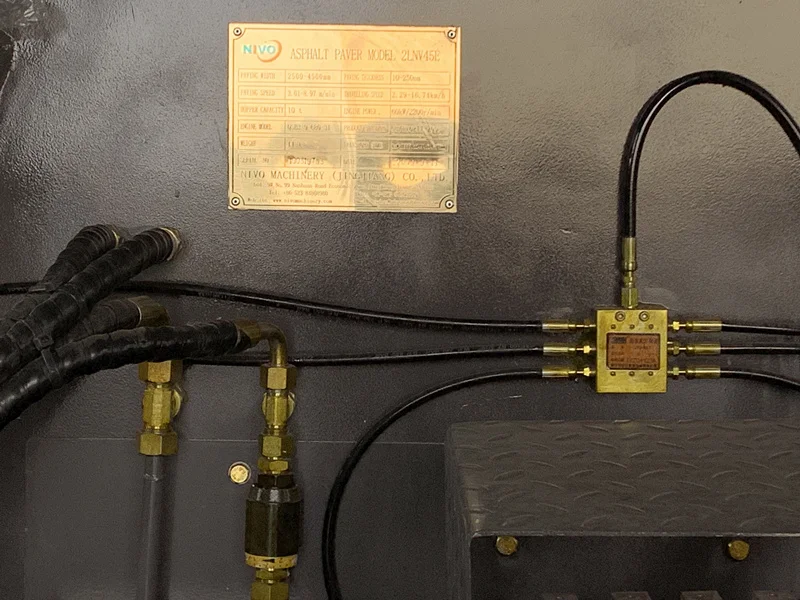

different spare parts
concrete paver can be optional

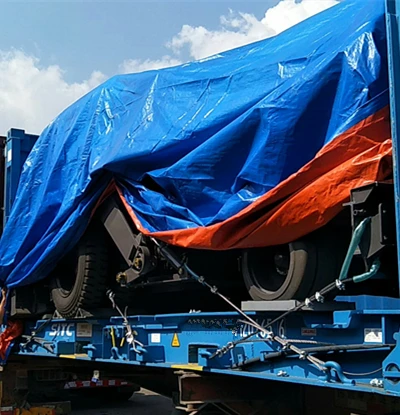

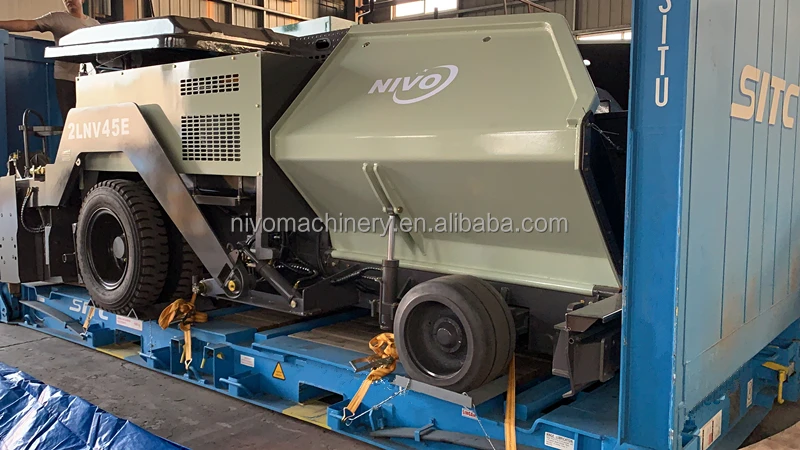

Packing & Delivery
Related Products
YNT1016H
NSP60
YNP9000
NE10
NE18
YVC68
Bulk Export

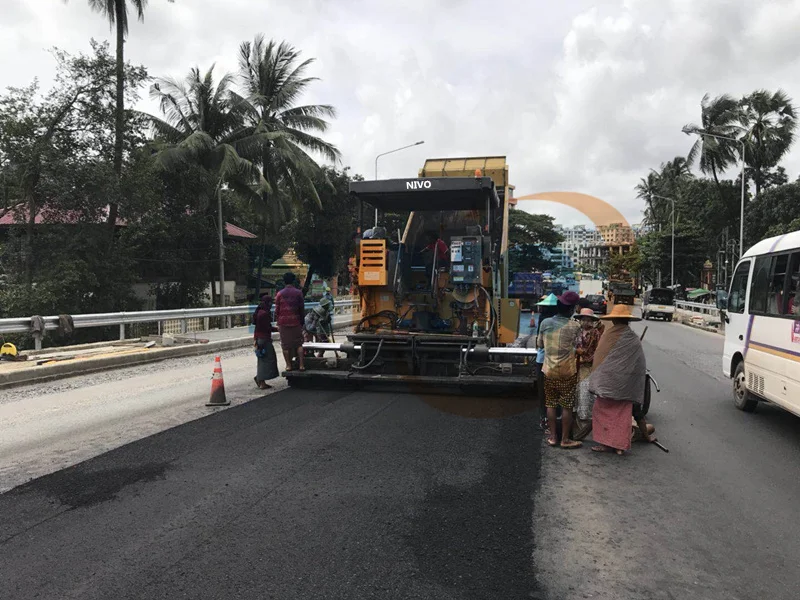

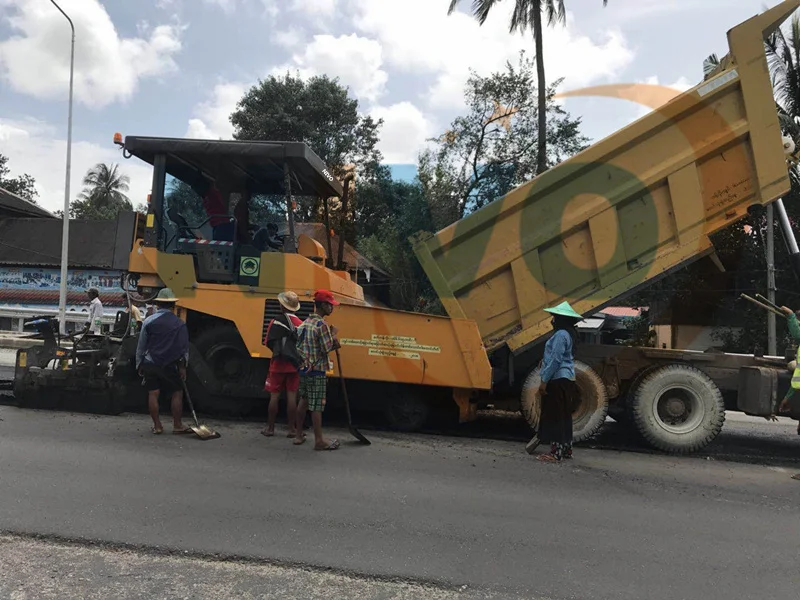

Delivery site

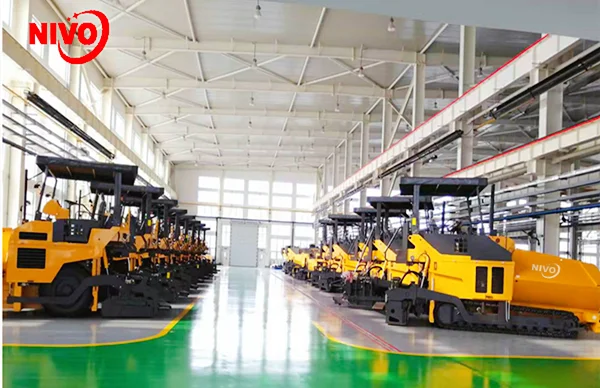

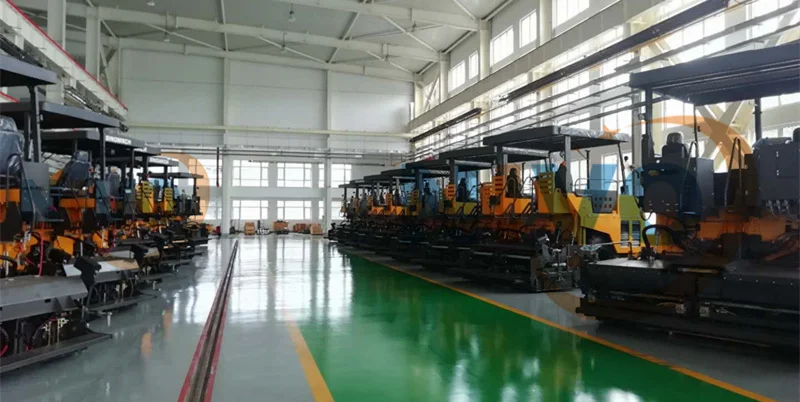

producing departments
Our Service
After-Sales Service details
Warranty
At NIVO,we provide 1year warranty for any machine of us. During the period of warranty, the defective part will be repaired or replaced free of charge, in case the defect of material or workmanship has occured with spare parts in normal operation at our discretion.Warranty
Spare parts
NIVO maintain an extensive and high quality spare parts inventory for every of our equipment. From the small bearing to the complex circuit board, world Equipment is committed to having all parts on hand to keep your project running. Welcome submit your spart parts request, list product name, model, equipment serial number, description of required parts.
Uptime Solutions
To expedite delivery time for our customers, booking of vessels are made way in advance; together with the production department to optimise resources with the extra hours involved in order to complete the production so as to be ahead of schedule.
Field Service
NIVO provides our customers with a single point of contact and accountability for product support from telephonic, e-mail and web-based inquiries to the dispatch of field engineers and technicians for on-site repairs.
Training
NIVO program adopts a competency-based training approach. Classroom teaching and hands-on practice-oriented training combine to enhance the learning of concepts and acquisition of technical skills. This will aid them in operating our machines, pick up, drill and upgrade their skills for proper operation, maintenance and breakdown repair.
NIVO maintain an extensive and high quality spare parts inventory for every of our equipment. From the small bearing to the complex circuit board, world Equipment is committed to having all parts on hand to keep your project running. Welcome submit your spart parts request, list product name, model, equipment serial number, description of required parts.
Uptime Solutions
To expedite delivery time for our customers, booking of vessels are made way in advance; together with the production department to optimise resources with the extra hours involved in order to complete the production so as to be ahead of schedule.
Field Service
NIVO provides our customers with a single point of contact and accountability for product support from telephonic, e-mail and web-based inquiries to the dispatch of field engineers and technicians for on-site repairs.
Training
NIVO program adopts a competency-based training approach. Classroom teaching and hands-on practice-oriented training combine to enhance the learning of concepts and acquisition of technical skills. This will aid them in operating our machines, pick up, drill and upgrade their skills for proper operation, maintenance and breakdown repair.
