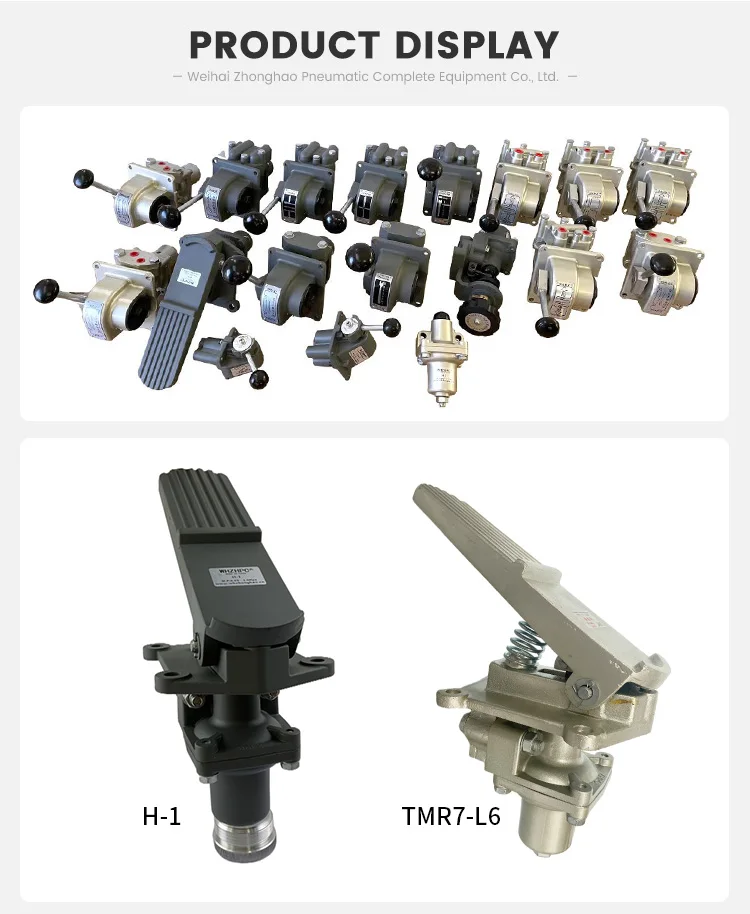

TMR7 L6 Pedal Regulator H 1 Foot Valve QF545 Throttle Controller P54692 0004 Factory
- Category: >>>
- Supplier: Weihai Zhonghao Pneumatic Hydraulic Co. Ltd.
Share on (1600731574772):
Product Overview
Description
Product Description
Product Features：

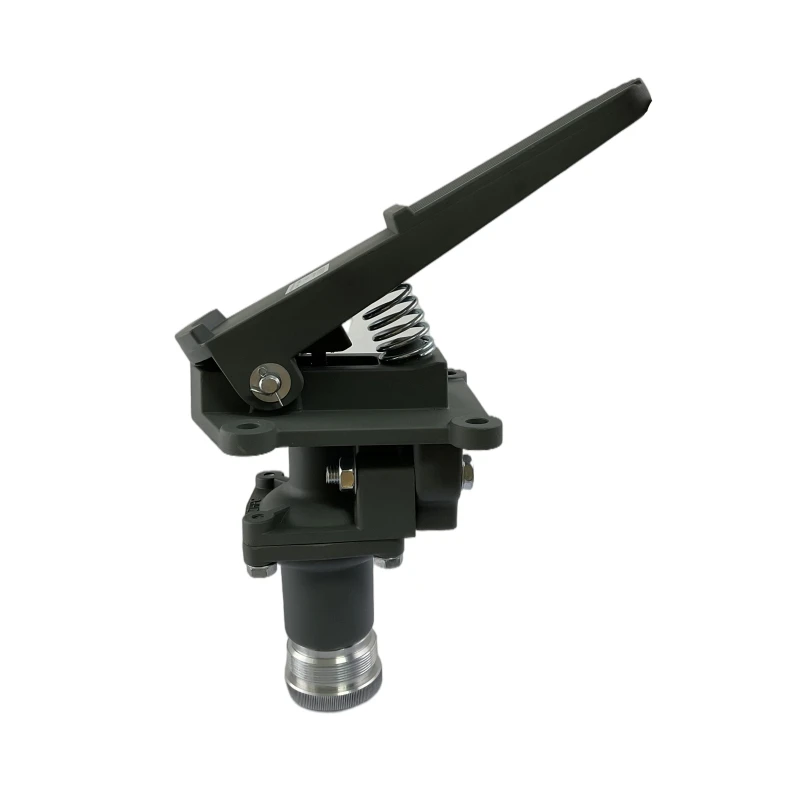

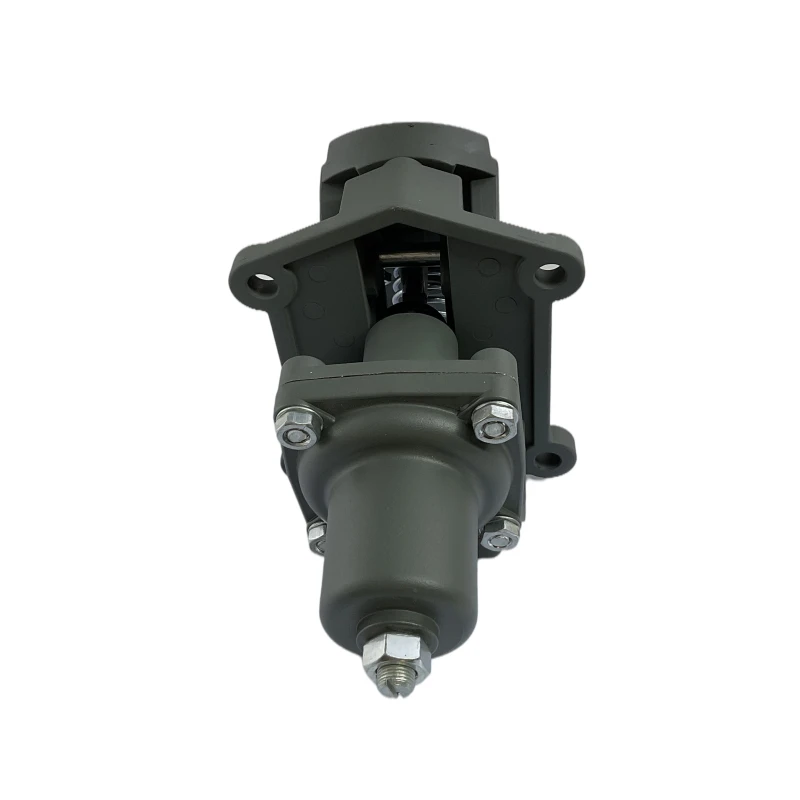

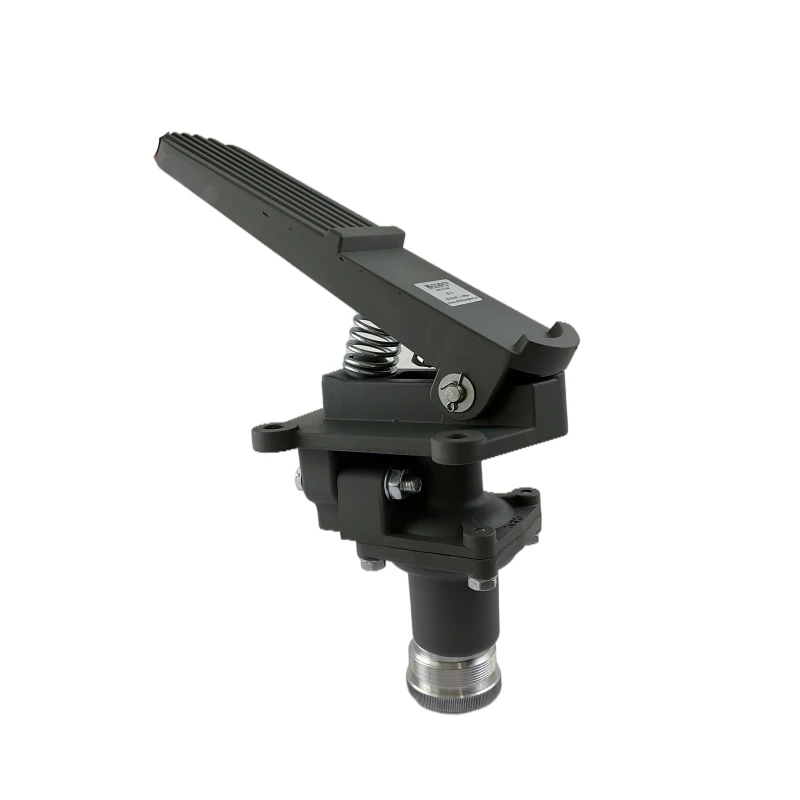

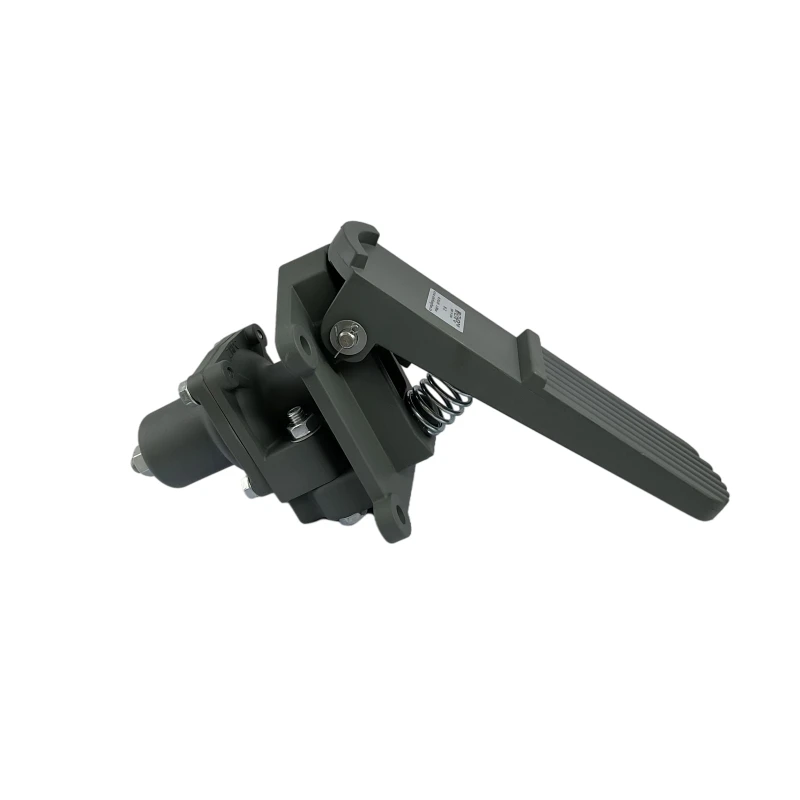

H-1 Control Air Pedal Actuated Valve
H-1-A QY402 QF545 IA100
Product Features.
The H-1 controlair valve is a pneumatic pressure-regulated, directional valve series. Operated manually, by foot, or mechanically, the valve controls the pressure and flow of air. It is possible to control these functions in a single air circuit.

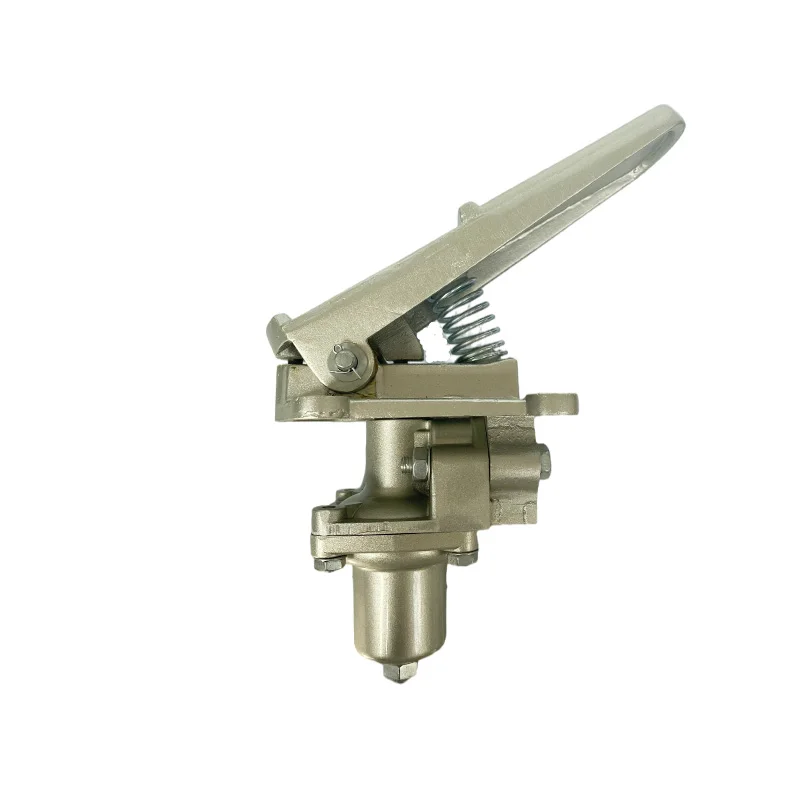

The H-1-A control air valve is a pedal-actuated, three-way pressure regulating valve designed for installations where the operator stands or where the valve section cannot be lower than the floor. Depressing the pedal increases the outlet pressure. Raising the pedal decreases outlet pressure. The pedal is automatically returned.
The valve is suitable for industrial control and any application where foot-operated pressure control is required. The deep port of the pipe connection is the input port and the shallow port is the output port, which provides a graded pressure proportional to the pedal's descent.

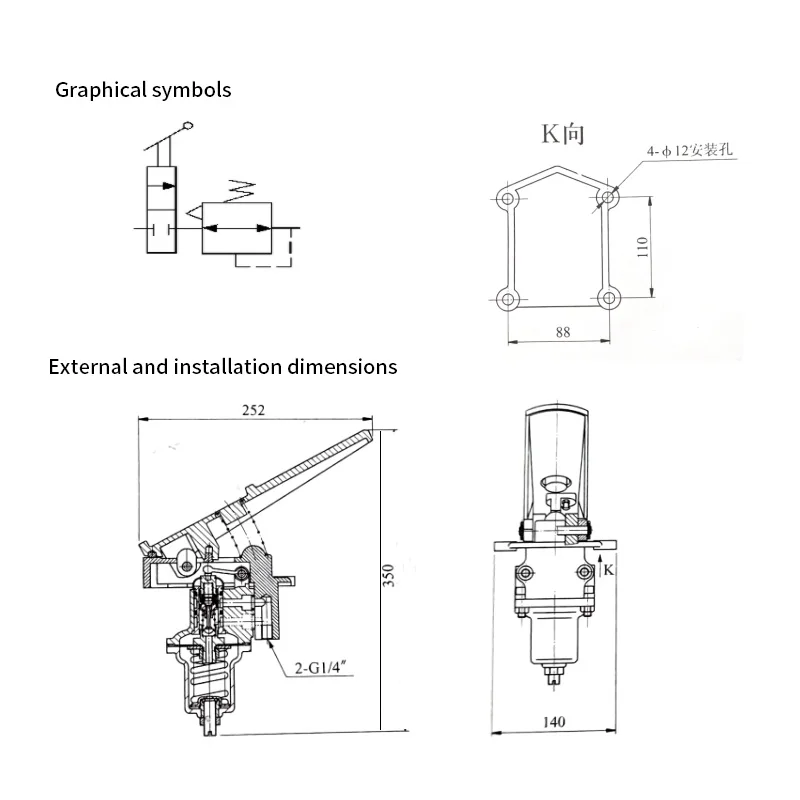

Nominal diameter (mm) | 6 | 8 | |
Pressure adjustment range (MPa) | 0-0.8 | 20 | |
Flow rate characteristics(MPa) | ≤0.05 | ||
Pressure characteristics(MPa) | ≤0.02 | ||
Operating temperature (℃) | -25～60（Note: -40℃ low temperature resistant products need special customization) | ||
Leakage(Nml/min) | ≤150 | ||
Threaded connection | NPT1/4 | ||
Details Images
Packing & Delivery
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-7 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive L/C,Western Union,D/P,D/A,T/T and etc
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-7 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive L/C,Western Union,D/P,D/A,T/T and etc

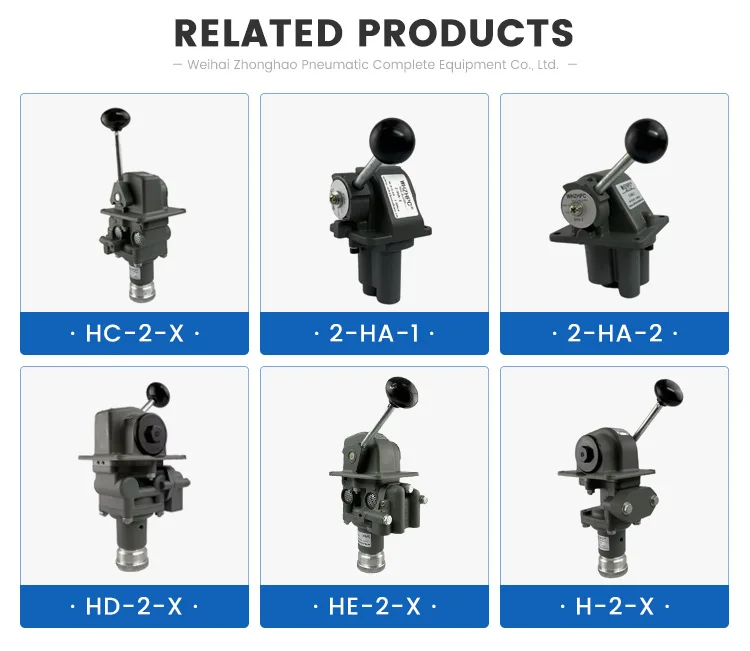

We Recommend
