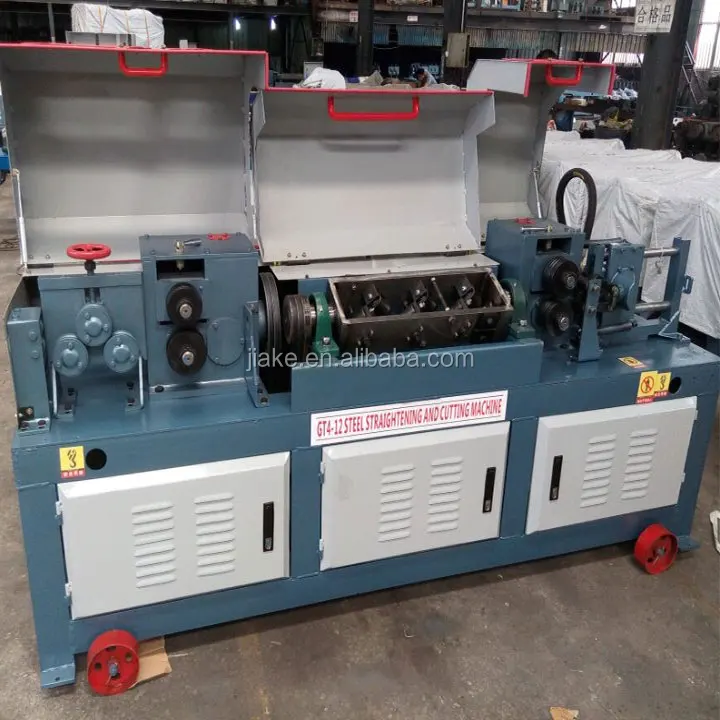

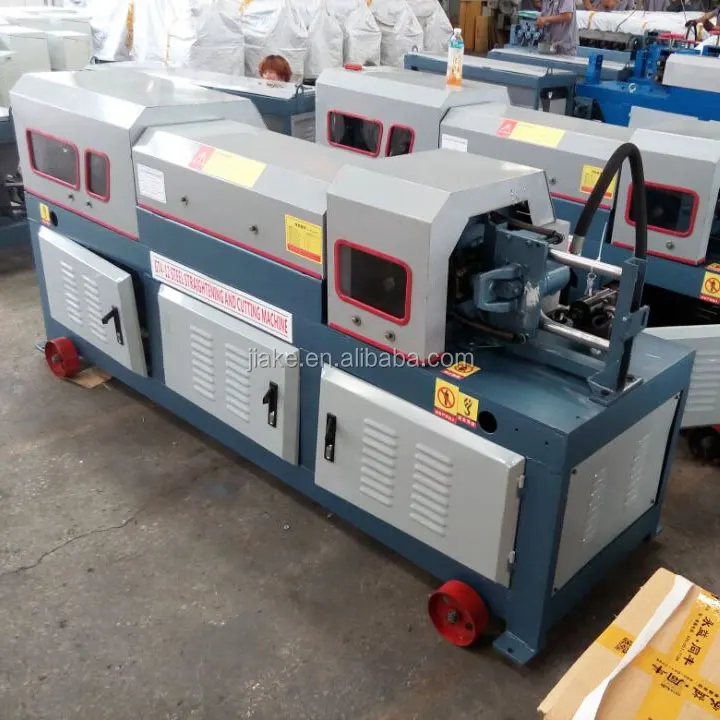

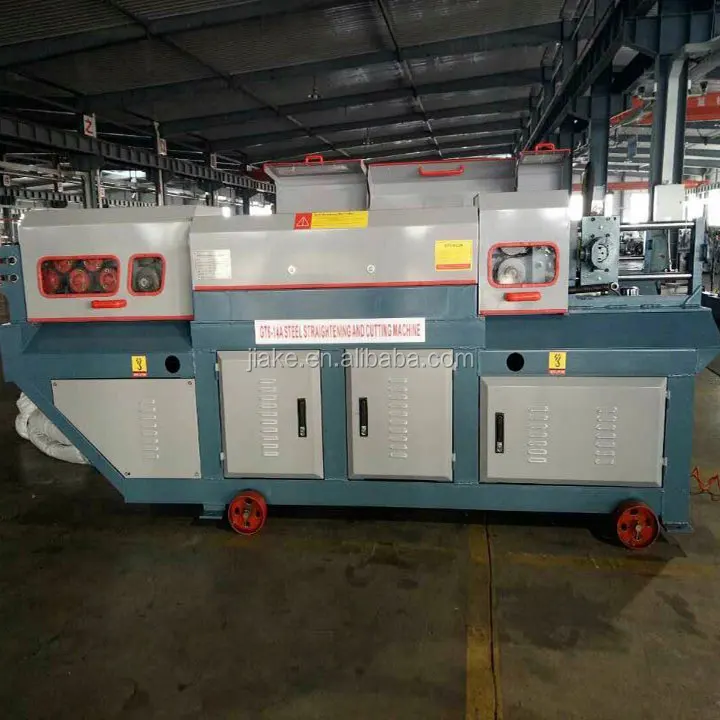

Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
China factory high precise automatic iron/steel wire straightening and cutting machine/equipment
- Category: Metal Straightening Machinery >>>
- Supplier: Hebei Jiake Welding Equipment Co. Ltd.
Share on (1600733240695):
Product Overview
Description
cnc plc control stranded wire straightening and cutting machine
This kind of machine has four specifications, and the diameter is from 1.5 to 12mm
The length could adjust according to customers demand. It used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
This machine has many advantages, such as neat cutting mouth, less error and good
functions.
Technical parameter
| Model | GT2-6 | GT4-12 | GT6-14 |
| Wire diameter(mm) | 2-6 | 4-12 | (round bar 14mm) |
| Cut length | 6000 | 500-12000 | 800-12000 |
| Cut error(mm) | ±1 | ±5 | ≤±1 |
| Straight accuracy(mm) | ≤±2 | ||
| Speed(m/min) | 35 | 45 | 55 |
| Straightening motor(kw) | 3 | 11 | 111KW-4P |
| Cutting motor(kw) | 0.75 | 4 | 4KW-4P |
| Overall dimension(m) | 1.7*0.4*0.8 | 2.3*0.8*1.1 | 2.1*0.8*1.1 |
Weight(kg) | 130 | 1000 | 1200 |
| Other Types also can be ordered,we accept OEM service! | |||
Main Product
GT2-6 Model wire straightening and cuting machine

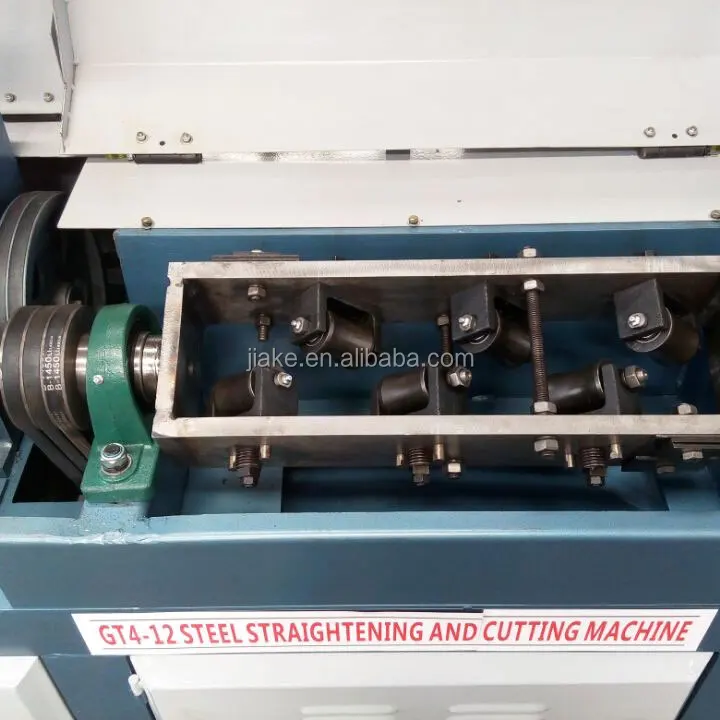

GT4-12 Model wire straightening and cuting machine
GT6-14 Model wire straightening and cuting machine
Click Here for More Informations!
Certifications
Company Information
Our Services
1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
