High speed automatic h beam intelligent welding workstation welding robot arm machine
- Category: >>>
- Supplier: Zhejiang Jinggong Integration Technology Co. Ltd
Share on (1600733304665):
Product Overview
Description

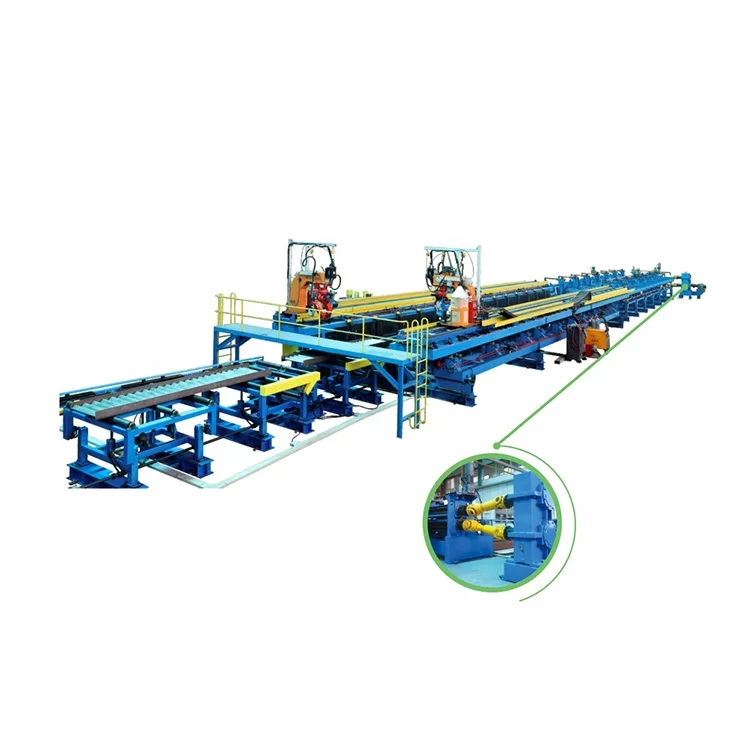

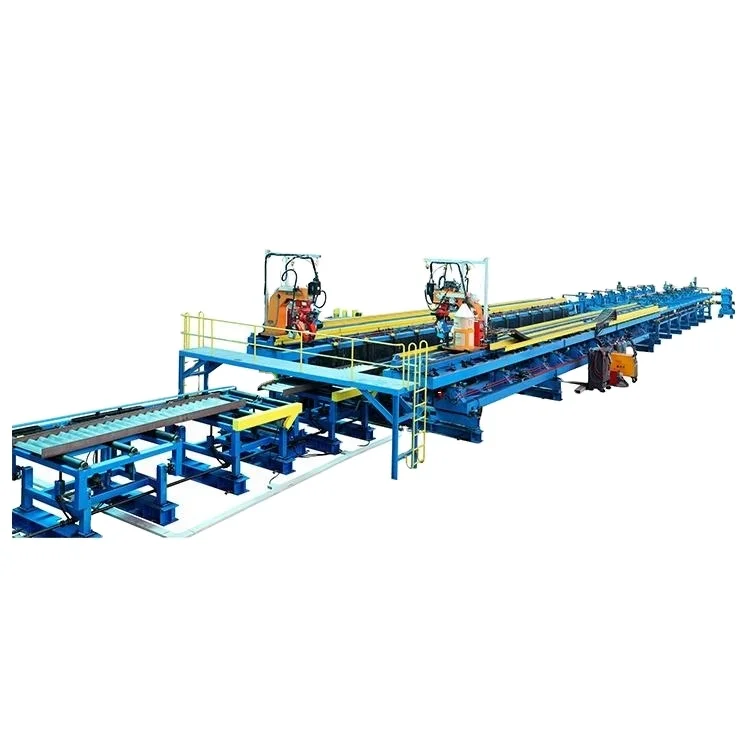

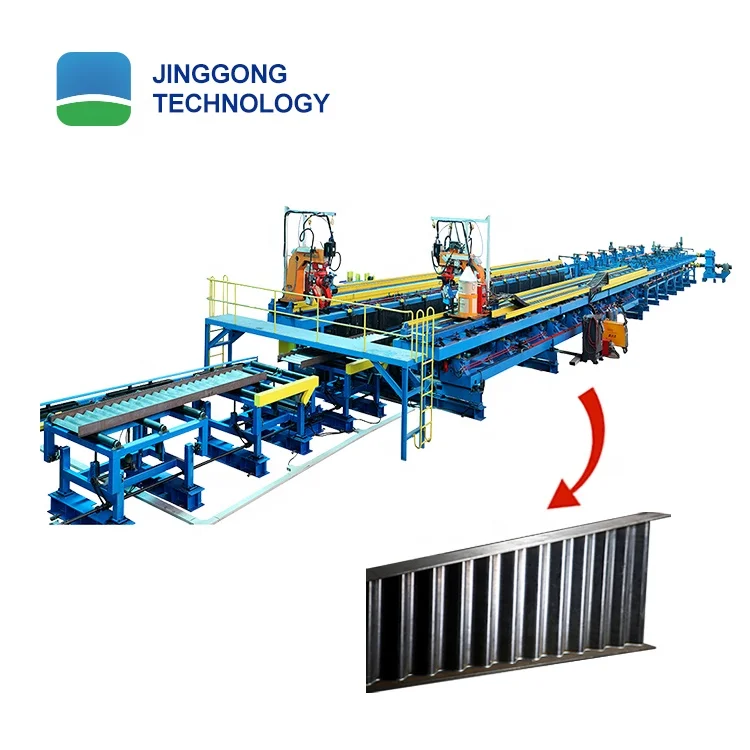

JBH CORRUGATED WEB H-BEAM WELDING LINE
The welding host of the JBH corrugated web H-beam welding production line is a robot/JBH15 corrugated web H-beam semiautomatic welding production line, and the welding host is a dedicated mechanical arm.The corrugated web H-beam produced by the production line is a new type of building material widely used in bridges, columns, single span, and multi span frame structures. The surface of its web plate is wavy, and compared with flat web H-beam, it can save 20% -60% of steel under the same strength. Especially in applications such as large-span and crane beams, it has a high cost-effectiveness (with a 1.5-meter corrugated belly Hbeam having a span of up to 40 meters), which meets the current energy-saving and consumption reduction requirements and is the future development trend.
Product Paramenters
Item | Corrugated web H-beam automatic robot welding machine |
Type No | JBH150 |
H beam length | 4-17m（four robots） 4-16m ( Manipulator) |
H beam height | 500-1500mm |
Corrugated web thickness | 2-6mm(≤235MPa), 2-4mm(≤345MPa) |
Flange thickness | 10-30mm |
Flange width | 150-500mm |
Welding mode | Simultaneous welding of four workstation |
Welding type | CO² welding |
Cutting type | Plasma cutting |
Scanning speed | ≥900mm/s |
Welding speed | ≥700mm/s |
Corrugate scanning | Laser full scanning or tracking scanning |
Control mode | Automatic control |
Complete line layout area size | 24000*6500*3500 |
Details Images
Recommended Products
Why Choose Us
Certifications
FAQ
1、Does one machine can only produce one size?
Not exactly, it depends on the machine.
2、Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3、How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4、What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken
parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the
problems, and we supply the technical support for the whole life of the equipment.
parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the
problems, and we supply the technical support for the whole life of the equipment.
5、Can you be responsible for transport?
Yes,please tell us the destination port or address. we have rich experience in transport.
6、You are trade company or factory?
We arManufacturer.
7、Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8、Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9、Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
