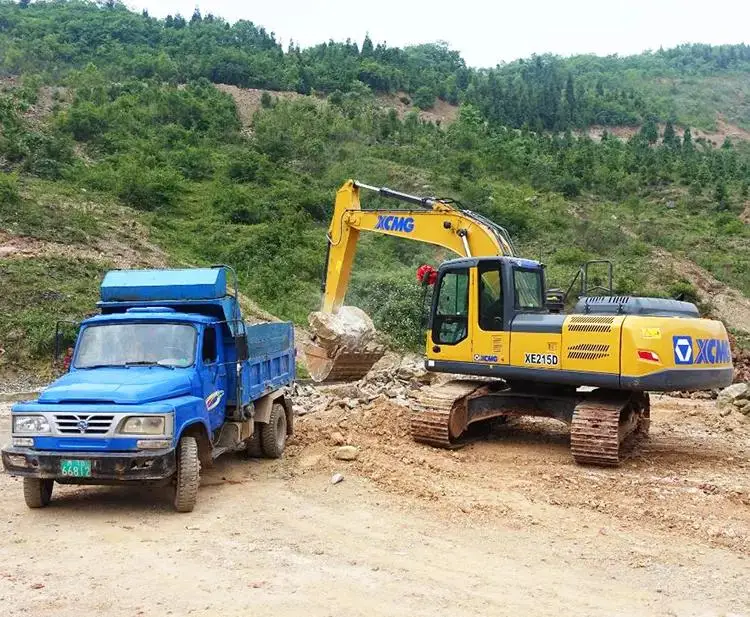

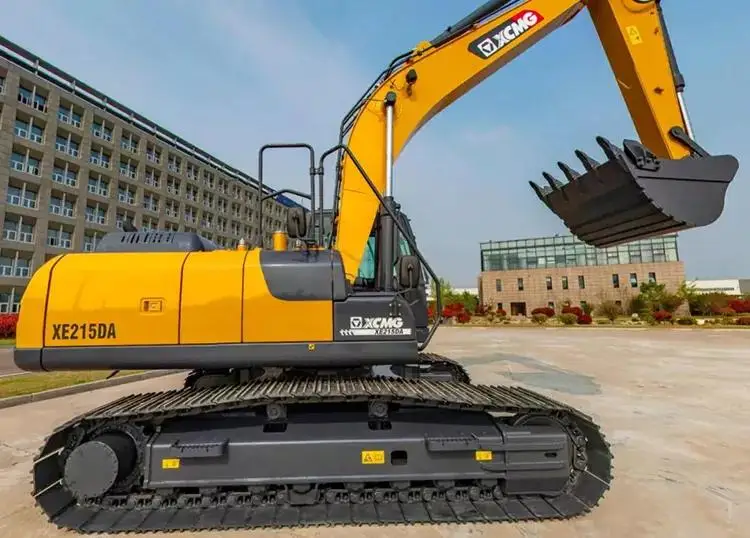

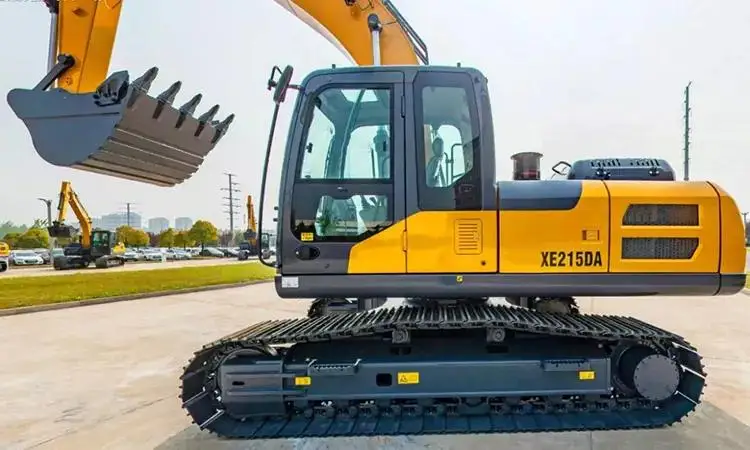

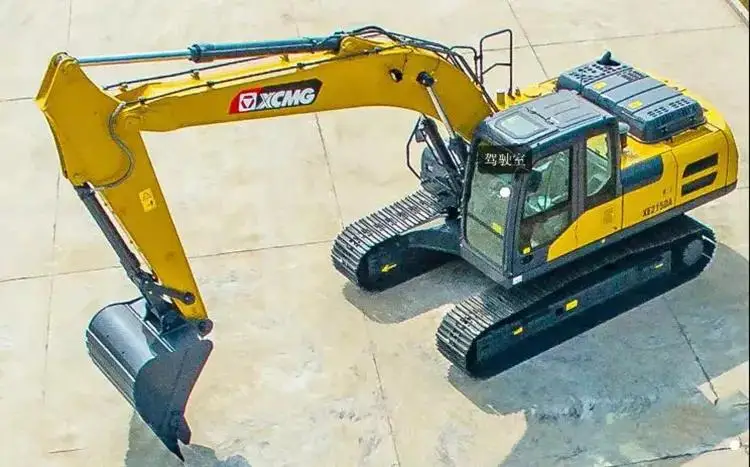

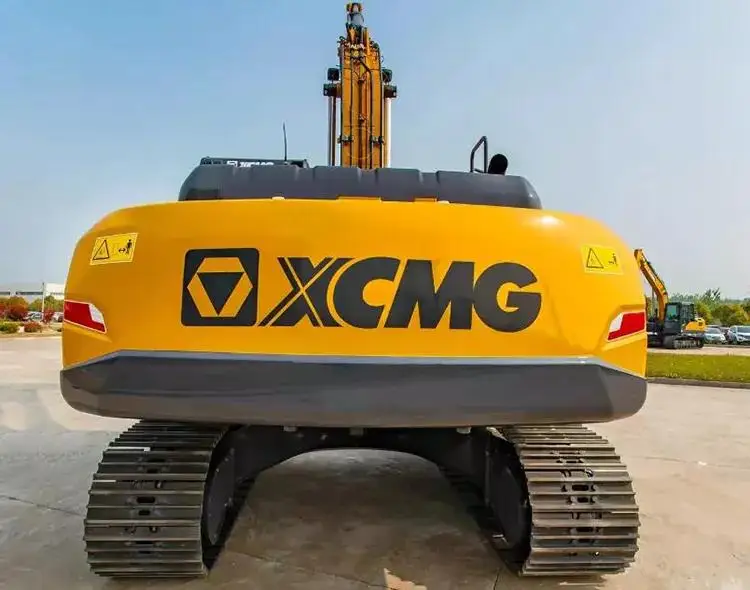

XCMG XE215DA Used Excavator Second Hand Mini Excavators Sale
XCMG excavator XE215DA is an upgraded model of the D series with a new generation of hydraulic system, which has the
characteristics of flexibility, good control performance, low fuel consumption, high construction efficiency, large digging force, and a wide range of applications. It can be equipped with multifunctional attachments to realize various operations such as crushing, shearing, cleaning, compaction, milling, pushing, pinching, grabbing, shoveling, loosening, hoisting and so on.
Advantages and highlights:
1.Offer Test Report of Professional Institute.

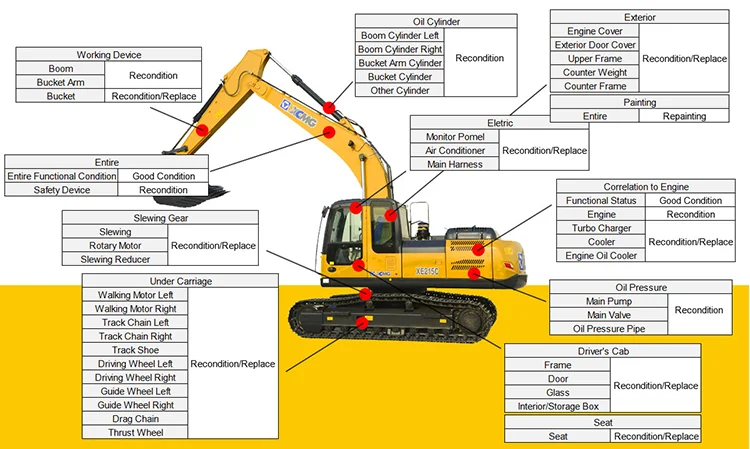

2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.

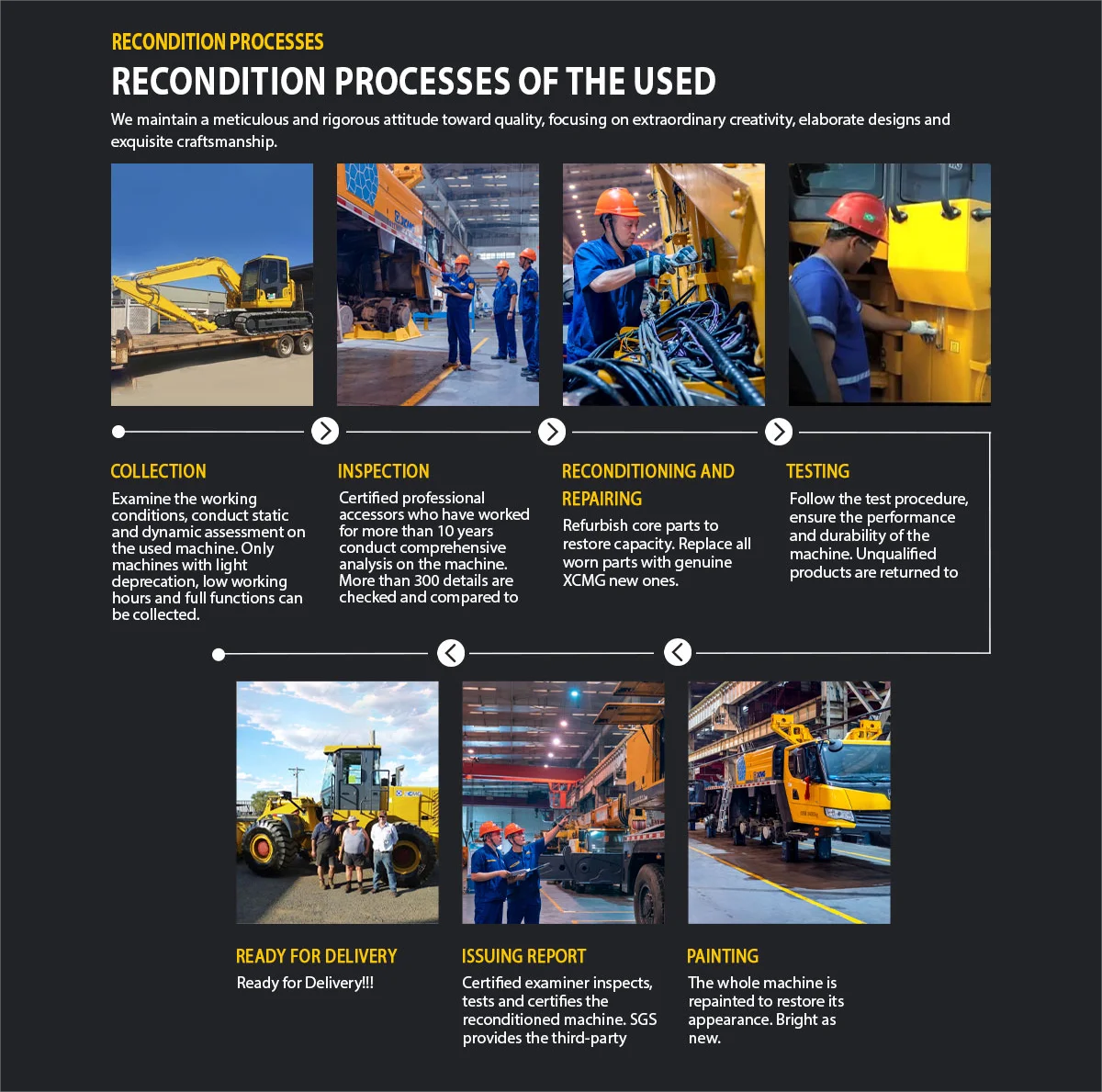

5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Specification
Sales model | Unit | XE215DA | ||
Operating weight | Kg | 21500 | ||
Bucket capacity | m³ | 1.05 | ||
Engine | Model | / | QSB7 | |
No. of cylinders | / | 6 | ||
Output power | kw/rpm | 135/2050 | ||
Maximum torque/speed | N.m/rpm | 740/900-1600 | ||
Displacement | L | 6.7 | ||
Main performance | Travel speed | km/h | 5.4/3.1 | |
Swing speed | r/min | 11.8 | ||
Gradeability | ° | ≤35 | ||
Ground pressure | kPa | 47.2 | ||
Bucket digging force | kN | 149 | ||
Arm digging force | kN | 111 | ||
Maximum traction | kN | 184 | ||
Hydraulic system | Rated flow of main pump | L/min | 2×216 | |
Main safety valve pressure | MPa | 34.3/37 | ||
Oil Capacity | Fuel tank capacity | L | 400 | |
Hydraulic tank capacity | L | 220 | ||
Engine oil capacity | L | 19.5 | ||
Appearance size | A Overall length | mm | 9625 | |
B Overall width | mm | 2990 | ||
C Overall height | mm | 3100 | ||
D Width of platform | mm | 2830 | ||
E Track length | mm | 4255 | ||
F Overall width of chassis | mm | 2990 | ||
G Track width | mm | 600 | ||
Working scope | A Max. digging height | mm | 9620 | |
B Max. dumping height | mm | 6780 | ||
C Max. digging depth | mm | 6680 | ||
F Max. digging radius | mm | 9940 | ||
G Min. swing radius | mm | 3530 | ||
Standard configuration | Length of boom | mm | 5680 | |
Length of arm | mm | 2910 | ||
Bucket capacity | m³ | 1.05 | ||
Optional configuration | Length of arm | m³ | 2400 | |
