Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network
Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network

Best High Rejection Low Insertion Loss Low VSWR 915MHz Cavity Filter Band Pass Filter for Helium Hotspot LoRa Network

Share on (1600734057789):


Price:$48.00 - $55.00

Quantity:


Product Overview

Description



Product Description

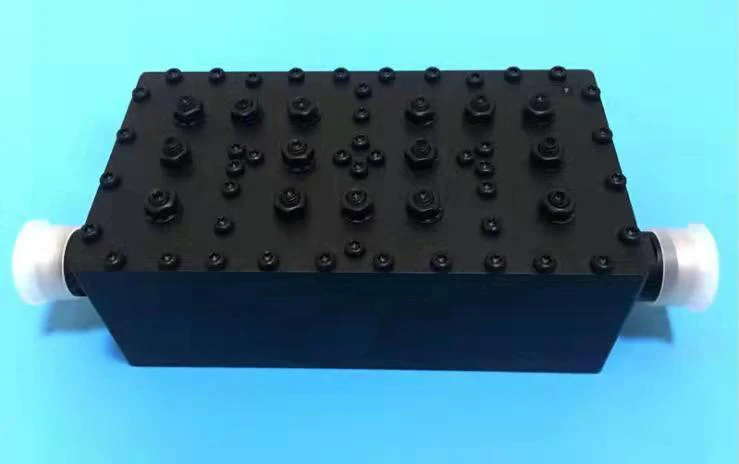

The 915MHz Cavity Filter operates from 880-915MHz with a 35MHz bandpass and used for Helium Hotspot Network.
This component has ultra-low insertion loss, VSWR and an optimized out-of-band suppression at 10MHz from a distance of side frequency. The 915MHz Cavity Filter features rugged aluminum construction and is for use indoors or outdoors with proper waterproof measures.
The 915MHz Cavity Filter adapts N-Female connetcors. Other connectors can be customized.

Features
* Provides surge/Lightning Protector/Arrestor (DC Short)
* 880-915MHz Full Band LoRa Applications
* Reduce Interference Outside the ISM Band and Improve RF Performance
* Ultra Low Insertion Loss (1.0dB nominal)
* Suitable for work in Helium network and 915MHz LoRa IOT network




Specification


Model Number
RF-CF-915
Operating Temperature
-30-+70℃
Place of Origin
GUANGDONG
Out-of-Band Rejection
>50dB
Transfer Function
Band Pass
Nominal Center Frequency
915MHZ
Insertion Loss
<2.0dB (TYPICAL 1.0dB)
Input Impedance
50Ω
VSWR
<1.3：1
