12~35V DC to 12V DC car power filter XY-9317
US $1.25-$1.47
10A 20A 30A Three phase EMI Filter 380V/520V Power Line Filter Motor RFI Filter
- Category: Filters old >>>
- Supplier: Shenzhen Yanbixin Technology Co. Ltd.
Share on (1600898468340):
Product Overview
Description
VR
1.YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.
3.We have a professional design team and testing instruments, and provide EMC testing for free.
4.The production workshop covers an area of 3,000 square meters, with large-scale production, favorable price, good service and fast delivery.
5.YBX provides free EMI filter samples and a half-year replacement and lifetime warranty.
2.Deeply cultivated in the EMI filter industry for 15 years, our products have obtained UL,CQC,CE,TUV,ROSH,ISO9001:2015 certification.
3.We have a professional design team and testing instruments, and provide EMC testing for free.
4.The production workshop covers an area of 3,000 square meters, with large-scale production, favorable price, good service and fast delivery.
5.YBX provides free EMI filter samples and a half-year replacement and lifetime warranty.

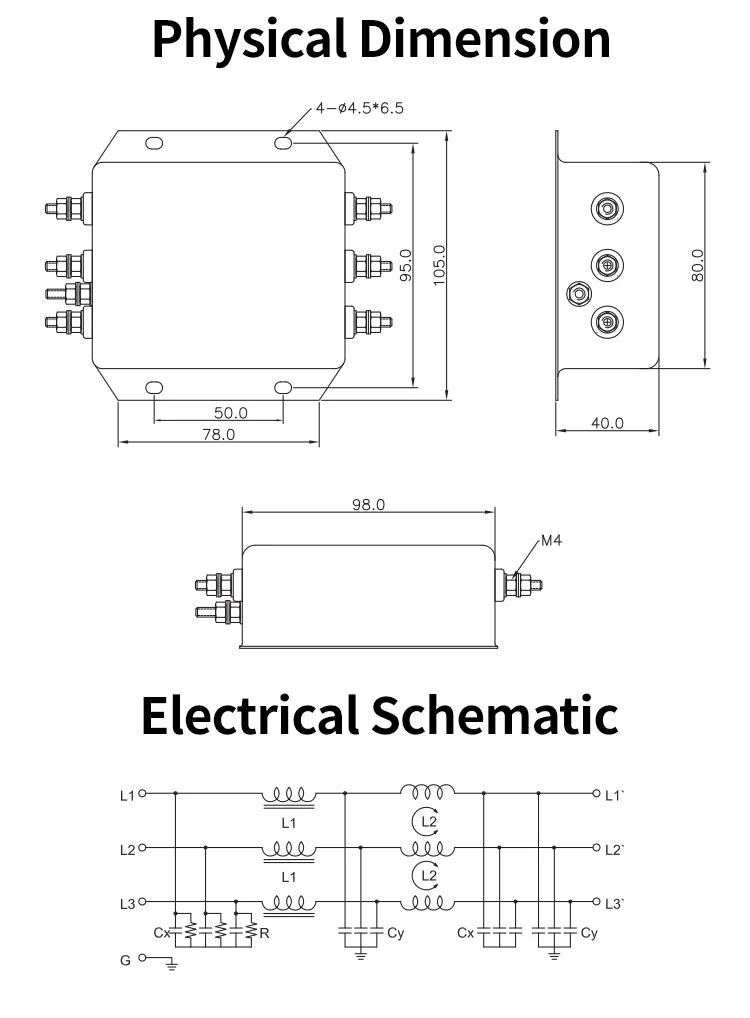

Product Paramenters
Product name | Three Phase EMI Filters | ||||||
Model | YX83G2-20A-S | ||||||
Transfer Function | Low Pass | ||||||
Package Type | Surface Mount | ||||||
Nominal Center Frequency | 10K-30MHZ | ||||||
Insertion Loss | 60~90dB | ||||||
Input Impedance | 50Ω | ||||||
Rated Voltage | 380V/520V | ||||||
Rated Current | 1A-30A | ||||||
Environmental Temperature | 40°C | ||||||
Temperature Range | 25 / 085 / 21 | ||||||
Operating Frequency | 50/60HZ | ||||||
Line to Line | 1450VDC | ||||||
Line to Ground | 2250VDC or 2000VAC | ||||||
Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max | ||||||
MOQ | 5pcs | ||||||
Rule of Nomination: | ||||||||||||
YX | 83 | G2 | — | 20A | — | S | ||||||
| | | | | | | | | | ||||||||
Three Phase | Circuit | Dimension | 10A :10 amps | Output connection | ||||||||
83:83 circuit | G2 | 20A :20 amps | S: M4 Screw | |||||||||
30A :30 amps | T: Terminal Block | |||||||||||
B: Copper bar | ||||||||||||
Our Advantages
Products Catergory
Company Profile
Shenzhen Yanbixin Technology Co., Ltd
Modern electronic products are in line with the miniaturization, high performance, high precision, high reliability, and high reactivity as the goal, so that the distribution density of circuit components is too high, the volume of the circuit is greatly reduced, but the more lightweight circuit becomes, there will be more components crowded in a small space, increasing the opportunity for interference, among which electromagnetic interference and noise is the most troubling. Electromagnetic interference has long been a blind spot in the design of electronic equipment and systems.
At YBX, we are at the forefront of EMI solutions. As electromagnetic specialists, we improve reliable solutions to reduce the complexity faced by our customers, YBX escorts your EMC testing
At YBX, we are at the forefront of EMI solutions. As electromagnetic specialists, we improve reliable solutions to reduce the complexity faced by our customers, YBX escorts your EMC testing
Shenzhen Yanbixin Technology Co., Ltd. was established in 2008, is a high-tech enterprise that integrates the production of electromagnetic compatibility (EMC) & power filter (EMI FILTER) products. Through the efforts of our staff for many years, our products have obtained cUL/UL, TUV, CQC, CE, CB, ENEC, ROHS, REACH and other certificates. We have also obtained the ISO9001:2015 quality system to ensure the quality of our products.
The company implements the "quality first, integrity-based" principle of doing things, and on the basis of communication and coordination, it does its best to meet the "technology, quality, price, delivery" needs of customers from all walks of life. We look forward to your support to witness our win-win situation.
The company's products have been widely used in many industries and fields; the company is based on professionalism, is keen on innovation, and has technical cooperation with well-known professional colleges in China! The company officially established a Dongguan production base in 2018 to automate large-scale production; and officially established a Dongguan laboratory to provide various customers with EMC technical rectification and services, and have successively solved many customers' technical problems.
Certifications
Exhibition
Custom praise
FAQ
Q1:What is your biggest advantage?
Q4:Can I go to see your factory or company?
Q4:You are always welcome to visit our factory.
Q5:Do your products have certification?
Q6:How about the after sale support?
A1:We have a professional filter R&D and production team, which has been focusing on filters for 15 years.
Q2:Can you do OEM?
A2:Yes, if your demand can reach the minimum order quantity of OEM.
Q2:Can you do OEM?
A2:Yes, if your demand can reach the minimum order quantity of OEM.
Q3:How long will your product be delivered?
A3:7-10 working days Delivery time for samples,15-25 working days Delivery time for samples for bulk product.
Q4:Can I go to see your factory or company?
Q4:You are always welcome to visit our factory.
Q5:Do your products have certification?
Q5:Yes, our products have ISO9001:2015, UL, CE, CB, TUV, ROHS certifications.
Q6:How about the after sale support?
A6:We supply three months free replacement,three years free maintenance, life-long maintenance.
