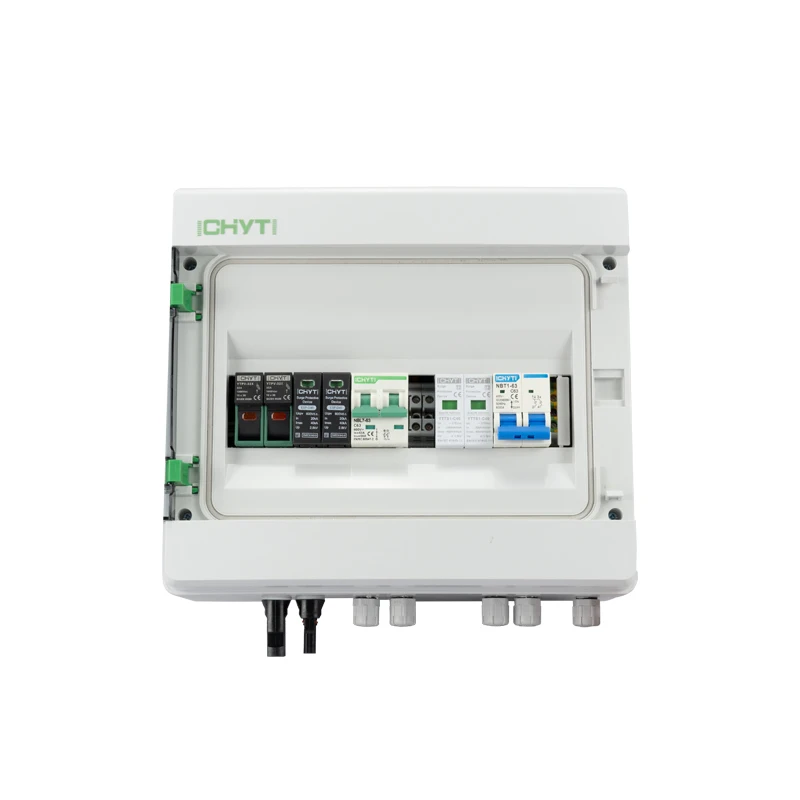

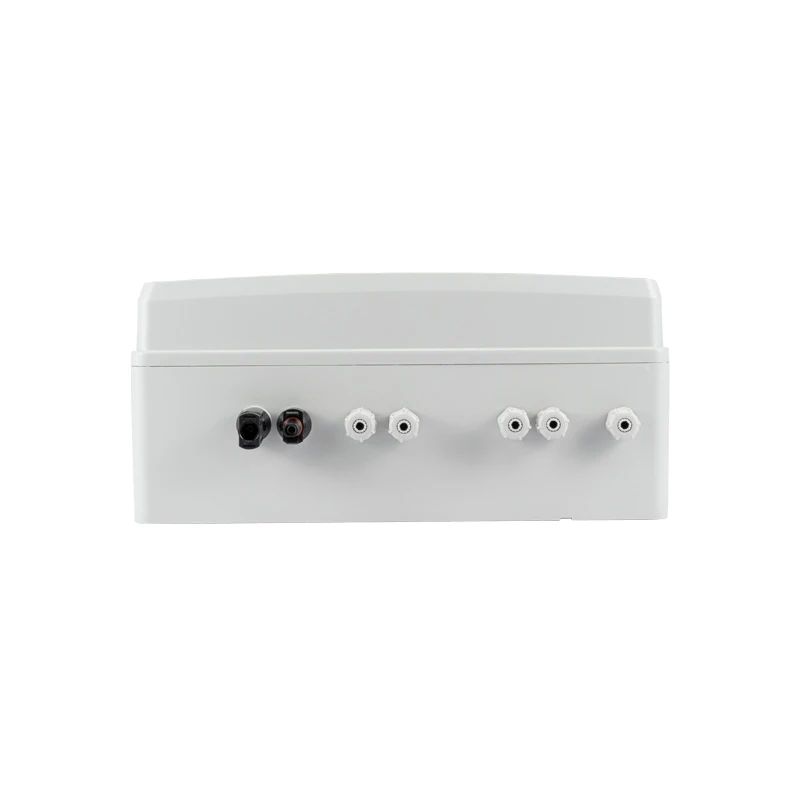

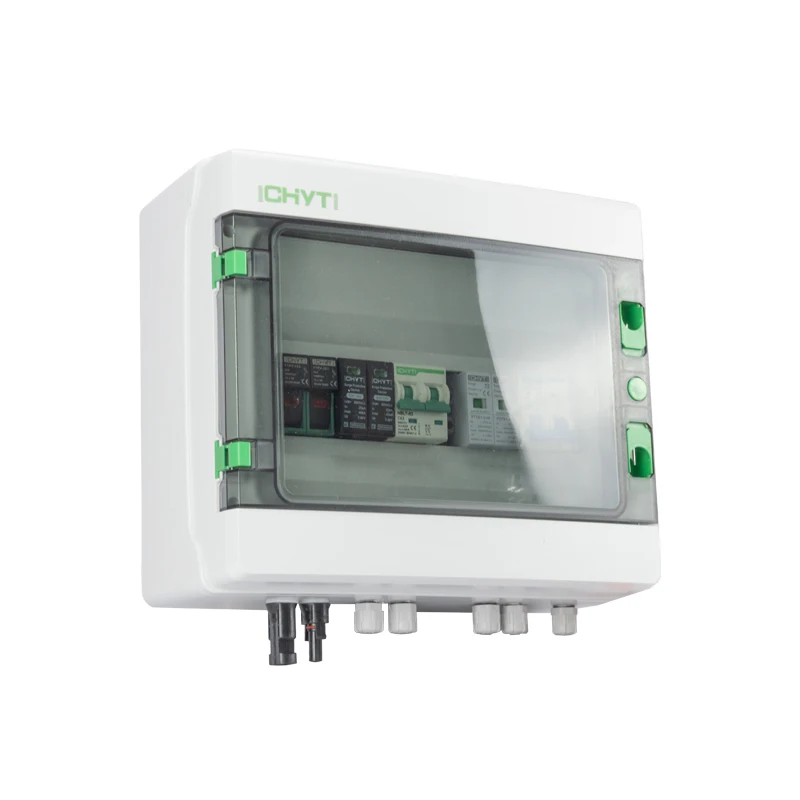

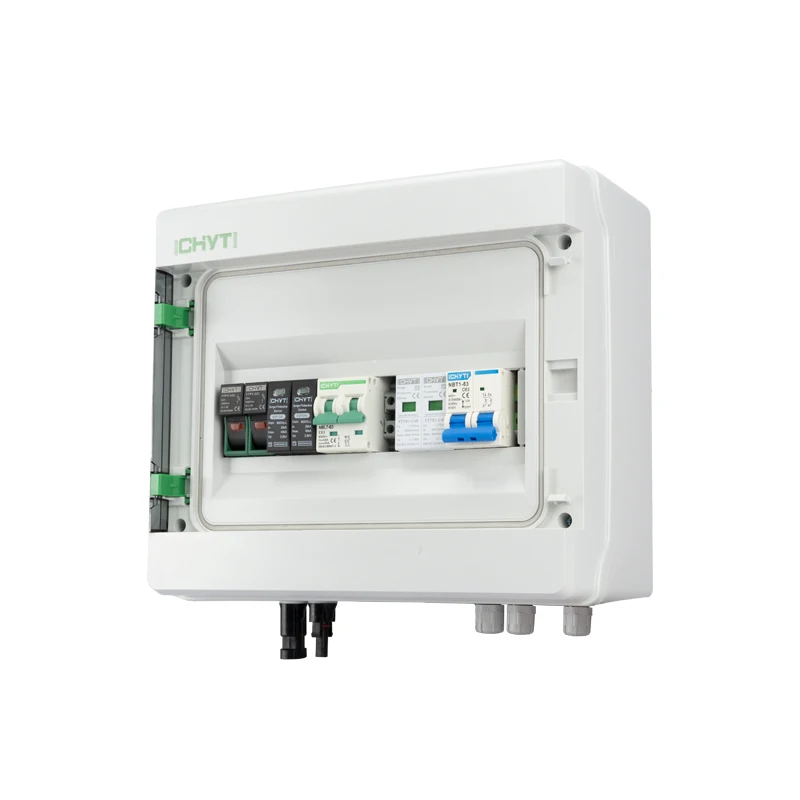

Waterproof Plastic Solar PV Array AC DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel
Waterproof Plastic Solar PV Array AC + DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel

Waterproof Plastic Solar PV Array AC DC 1 String Combiner Box Junction Box 1 Input 1Output For Solar Panel

Share on (1600734335644):


Price:$35.00 - $40.00

Quantity:


Product Overview

Description



VR


Product Description

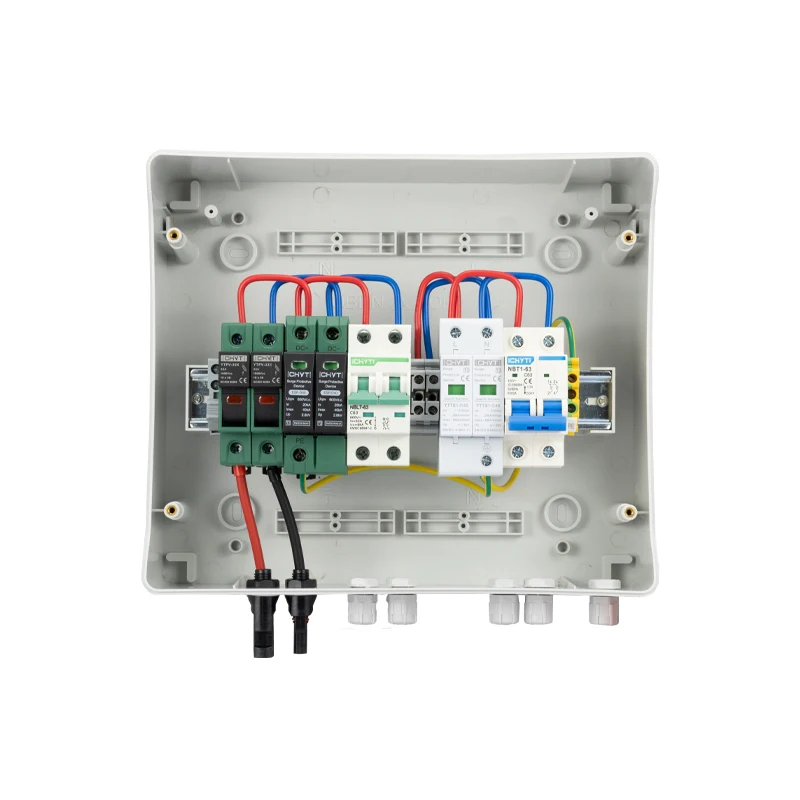

With DC 1000V fuse 15A 2 pcs
With DC 600V Surge Protection Device 2 pole 1 pcs
With DC 600V Circuit Breaker 2 pole 1pcs
With AC 275V Surge Protection Device 2 pole 1 pcs
With AC 400V Circuit Breaker 2 pole 1pcs
With Solar Connector 1 pair


Product introduction
YTPV1-1 combiner box is suitable for inverter( MAX input voltage DC 600V, 1PV input channel 1 output chanel, 1MPPT) , AC Part MAX current is 63A. DC+ AC box new design, small size, simple installation Provide users with a safe, brief, beautiful and applicable photovoltaic system products.


Product features
1.Very high impact resistance
2.Easy machining with normal tools
3.IP65
4.Wide operation temperature range
5.Fire Resistance
6.Non-conductive
7.Good resistance to chemical corrosion
8.Light weight
9.Excellent insulating properties
10.Cost-effective material for harsh environments


Product functions
1.Simplify the physical between solar panel and inverter
2.Fault current protection for each String
3.Fault alarm
4.Easy installation and maintenance


Specification


Solar PV DC Combiner Box
1 in 1 out



Rated voltage of photovoltaic system
DC 600V



Max input amp for each string
15A



Input strings
1



Number of output strings
1



Inverter
1.5-30kW
DC System




DC Fuse
1P 15A



DC MCB
2P 63A



DC SPD
2P 600V 20-40kA



DC SPD Max discharge current
40KA



AC System(Single Phase)
AC MCB
2P 63A



AC SPD
2P 275V 20-40kA
System




Protection grade
IP65



Solar connector
Optional



Box material
PVC



Installation method
Wall mounting type



Operating temperature
-25℃-+60℃



Installation: indoors/outdoors
Yes



Mechanical parameter




Widh*high*Depth(mm)
300*260*140


Details Images




Related Products






Company Profile



ZHEJIANG YATAI INTELLIGENT ELECTRIC CO.,LTD is a professional solar PV electric components manufacturer located in Yueqing City, China. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.






Packing & Delivery




FAQ


Q: why should you buy from us not from other suppliers?
A:The product specifications are complete, the variety is rich, and the company has more than ten years of production, research and development and sales experience. The company's team is young and energetic.
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 48hours.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.


If you have another questions, pls feel free to contact us.
