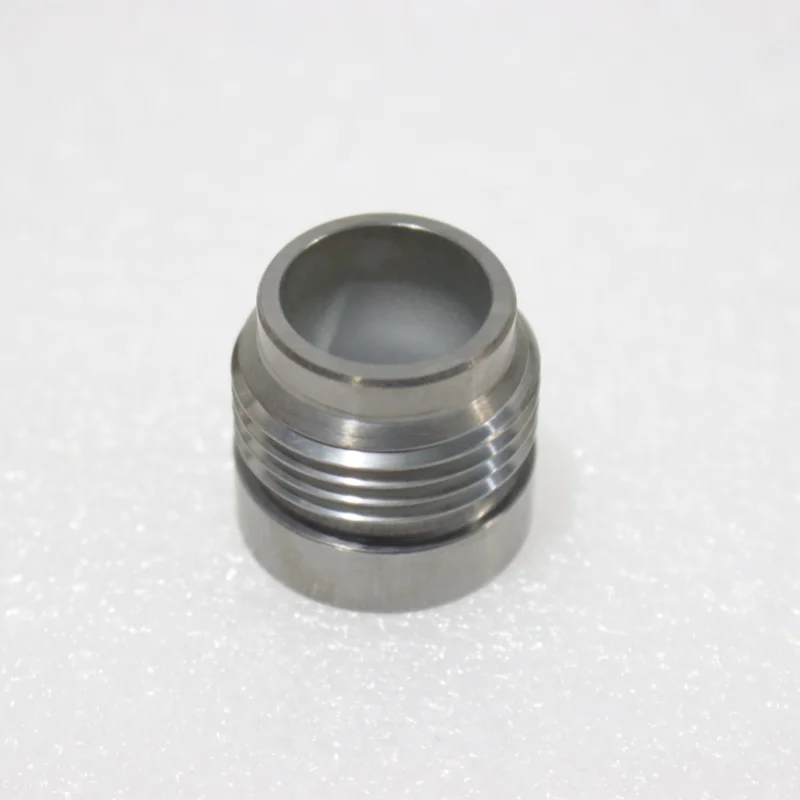

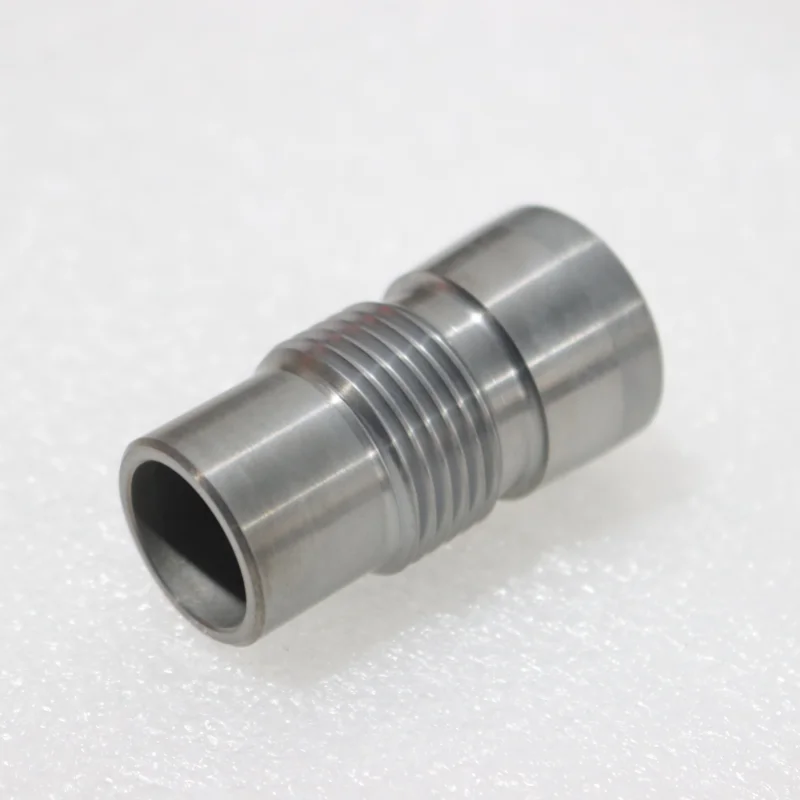

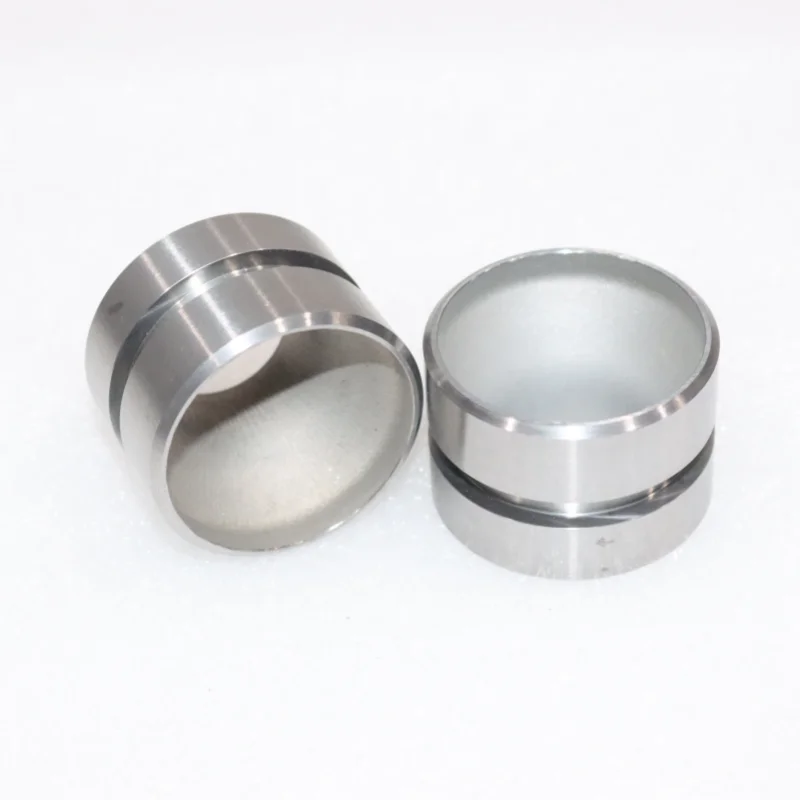

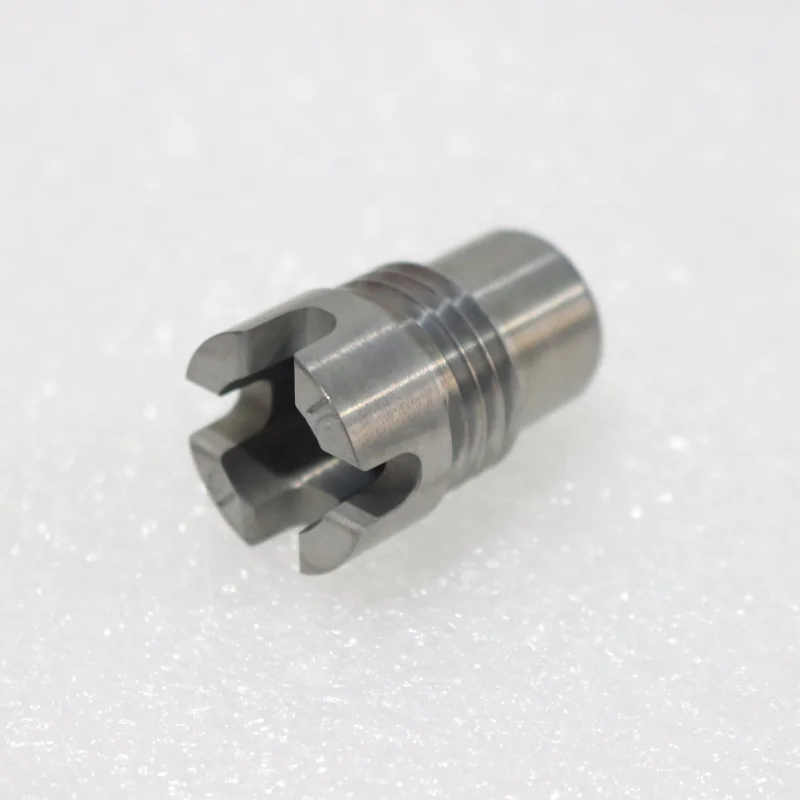

Tungsten Carbide Thread Nozzles of PDC Drilling Bit cross Groove Series
- Category: Cemented Carbide >>>
- Supplier: Zhuzhou Century Tool Ltd.
Share on (1600735035350):
Product Overview
Description
Product Overview
Cemented Carbide Nozzle/Sand Blasting Nozzle/Tungsten Carbide Nozzle/Drill Bit Nozzle/Mini Nozzle
Tungsten carbide is one of the most commonly used materials because it offers the best value when compared to other materials. Nozzles made form tungsten carbide are among the most rugged and durable and work well with most abrasives. Due to their wear-resistance and impact resistance, tungsten carbide nozzles are best used in harsh work site conditions.
FEATURES AT A GLANCE
1. Excellent abrasion resistance
2. High wear resistance
3. High fractural strength
4. High thermal conductivity
5. Small heat expansion co-efficient
2. High wear resistance
3. High fractural strength
4. High thermal conductivity
5. Small heat expansion co-efficient
PRODUCT SPECIFICATIONS
Grade | WC% | Co% | Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | Grain size (μm) |
YG06X | 94 | 6 | 14.8--15.1 | 2400 | 91.5 | 0.8-1.2 |
YG06A | 94 | 6 | 14.8--15.1 | 2150 | 92.5 | 0.6-0.8 |
YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
Grade | WC% | Ni% | Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | Grain size (μm) |
YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
