Solar Panels Manufacturing Machine 30 MW Production Line Automatic Reoo Professional Low Cost
- Category: >>>
- Supplier: Nantong Reoo Technology Co. Ltd.
Share on (1600736606355):
Product Overview
Description

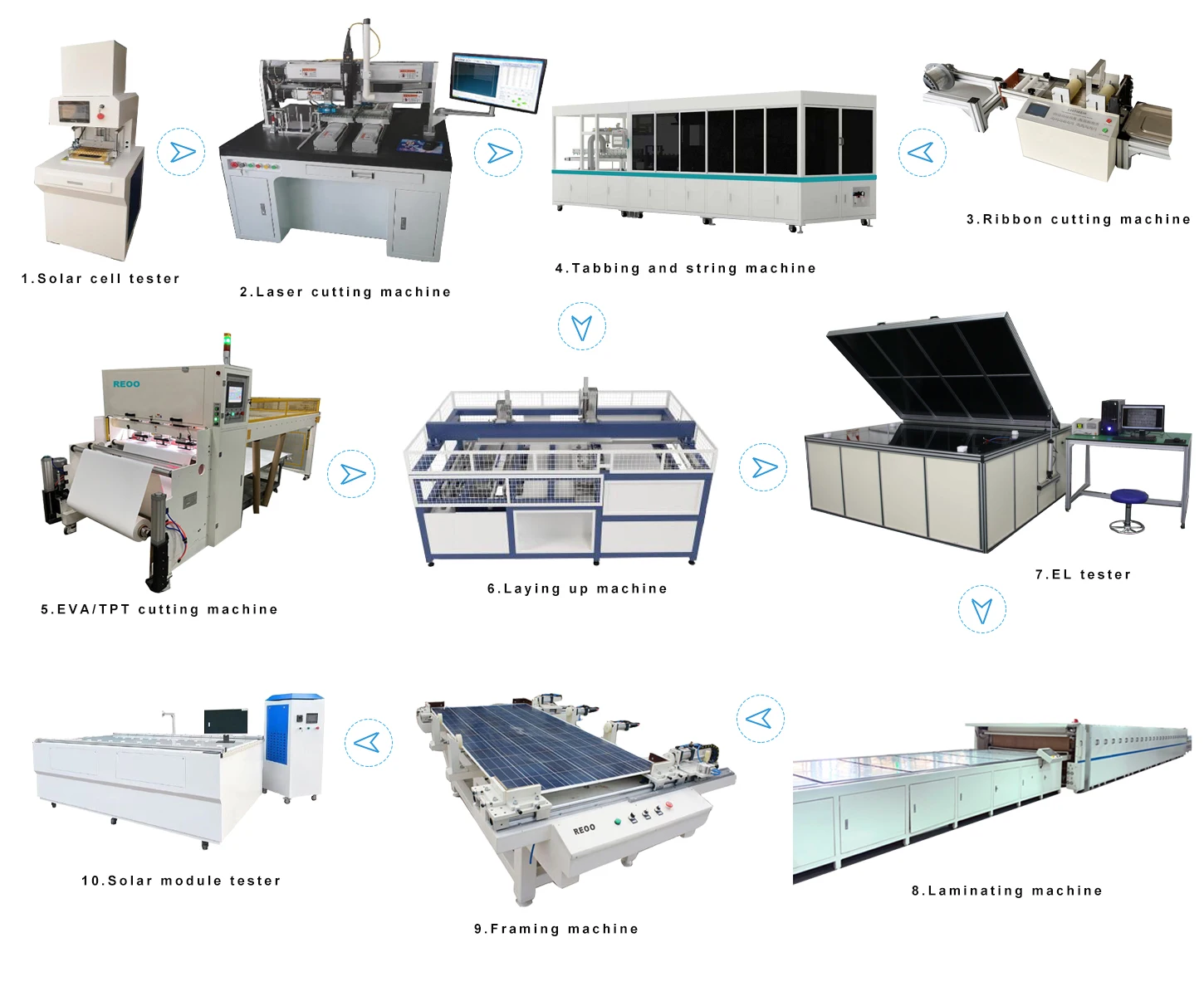

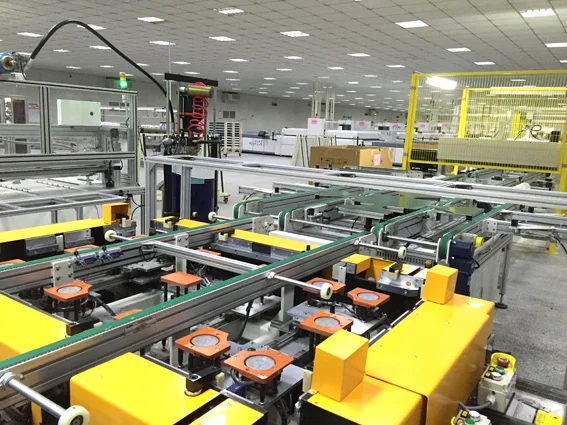

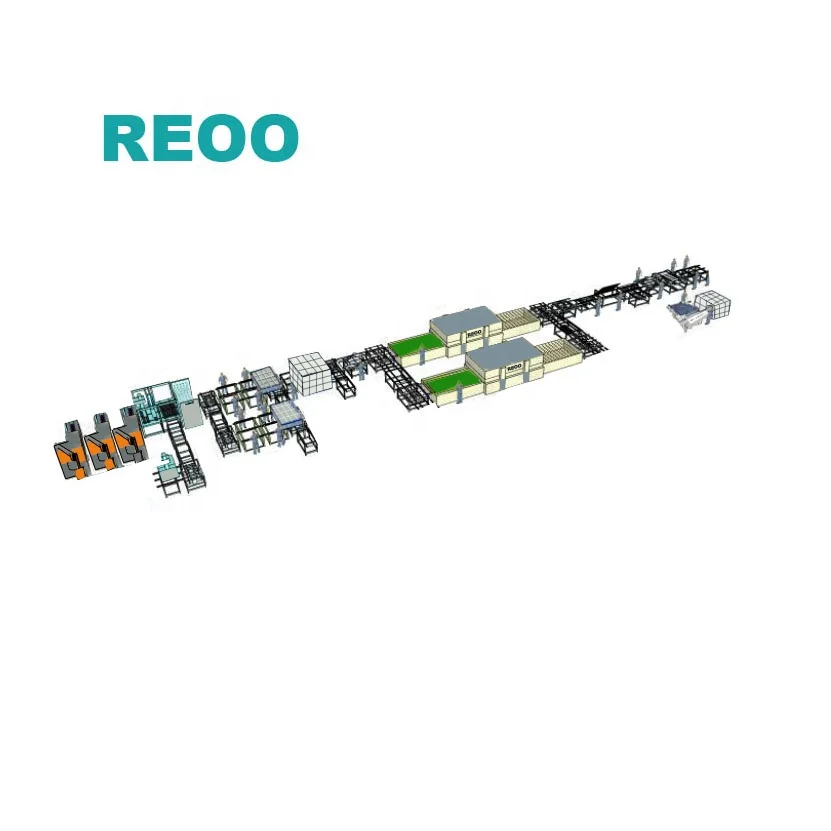

30MW Automatic solar panel production Line
This proposal shall cover design, lay out, raw material, installation and commission of assembling plant of solar panel on the turn-key basis. The capacity of the assembling plant is 30 MW/year, in consideration of 60% uptime and single shift of operation.
Company Information
REOO technology company is a leading manufacturer of solar panel machines in China.
Founded in 2005, it specializes in the design and production of solar panel production equipment and specializes in manufacturing and selling solar panels.
Our company's advantages: Tailored for customers of all kinds of equipment; Rich experience in overseas installation, commissioning and training; Rich experience in overseas equipment after-sales service.

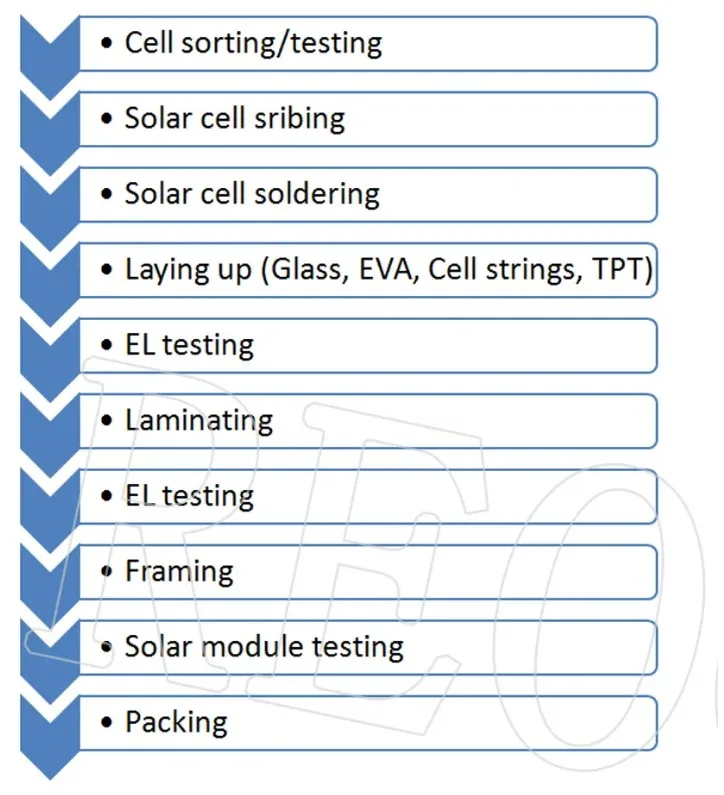

Overview
Product Description

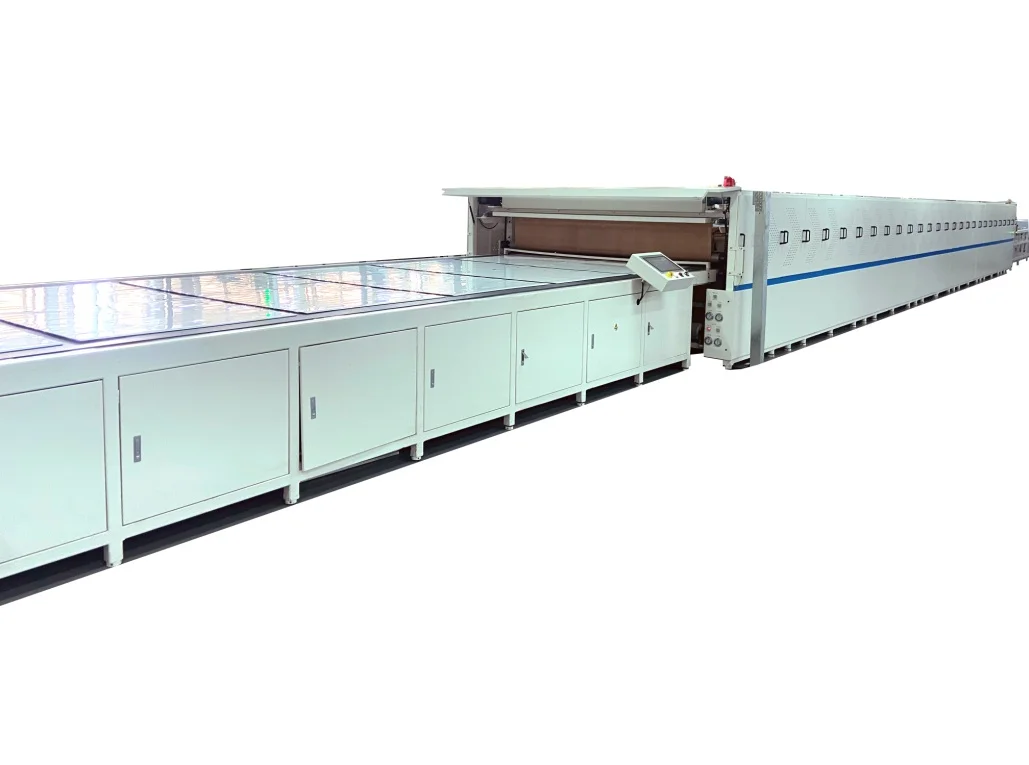

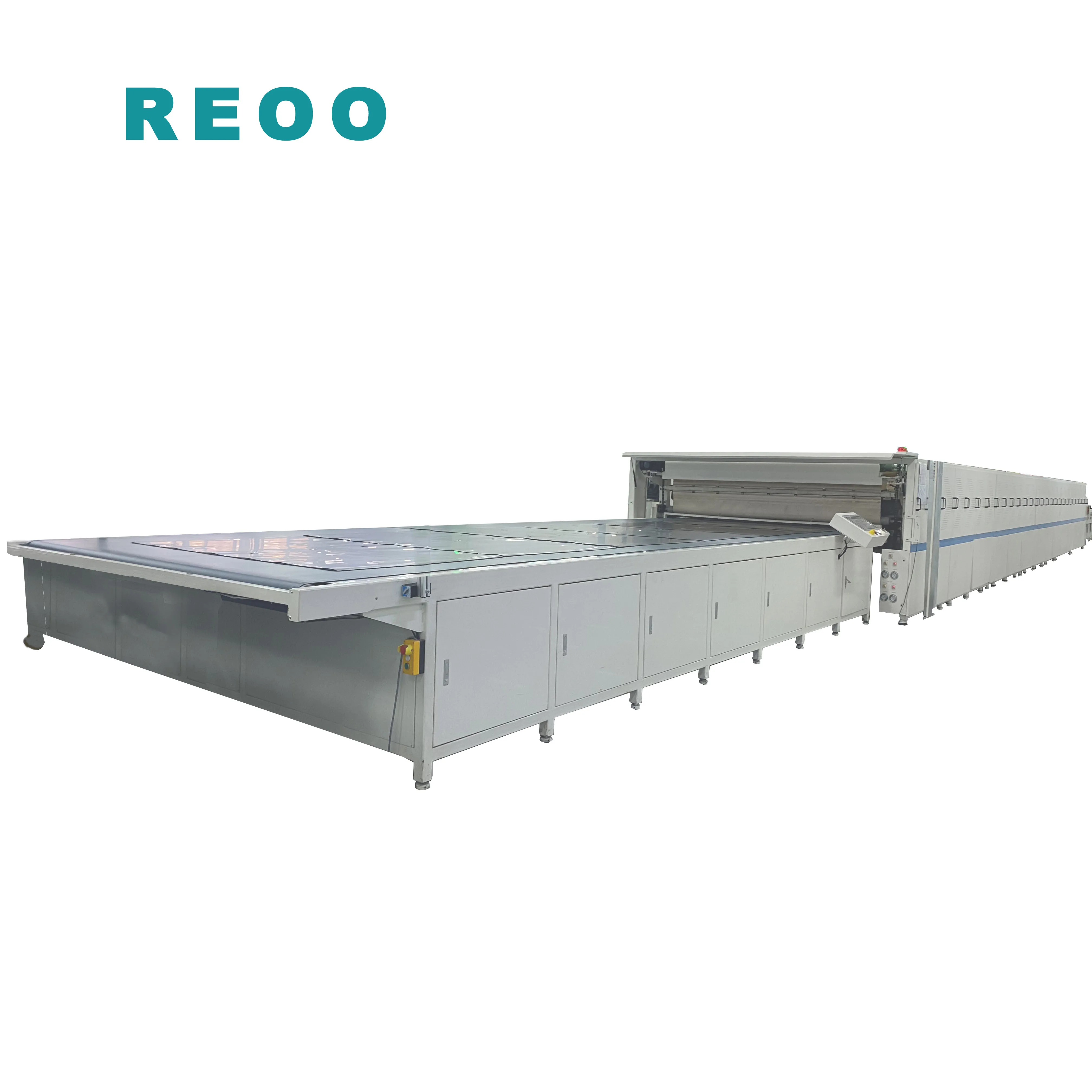

1. Laminating machine
Laminating area: 4500mm x 2300mm. Laminating height: 25mm
Total power consumption: 100 KW ( AC380V, 60 Hz, or according to customer's nee)
Air source: 0.6 - 1.0 MPa.
Operating mode: Manual / Automatic.
Control system : PLC ( Siemens). HIM system: Touch screen .
Heating mode: Oil Heating ( SD320 heat-conducting oil, capacity: 170 L, flow pressure:0.3 Mpa.), inculde: main heating and adjustable heating.
Temperature control: PID intelligent temperature contol system.
Temperature uniformity in working area: ≤ ±1.5 ℃
Temperature control accuracy:≤± 1 ℃.
Temperature control range: 30℃ - 180 ℃
Pumping rate: 70 L/s .Laminating time: 2 - 4 mins ( Excluding sollidification time )
Heating rate: 135℃ at room temperature with 50 to 60 minutes
Vacuum rate: 200 L / S, the limit vacuum 70 ~ 90 Pa, vacuum Time: 90 seconds
Silicone sheet size: 4200mm * 2600mm, 5mm thickness. It will be changed after 3000 times.
Lid opening: Straight from the hydraulic, the biggest opening height: 200 mm
Total weight: 16.8 T
Production capacity:
Conventional 550 Wp ( 2279 * 1134 mm ) Module, 4 pcs at the same time .
Production Capacity: 550 WP * 4 pcs/ cycle * 6 cycles/h*8hours*300days= 31.68 MWp/ year.

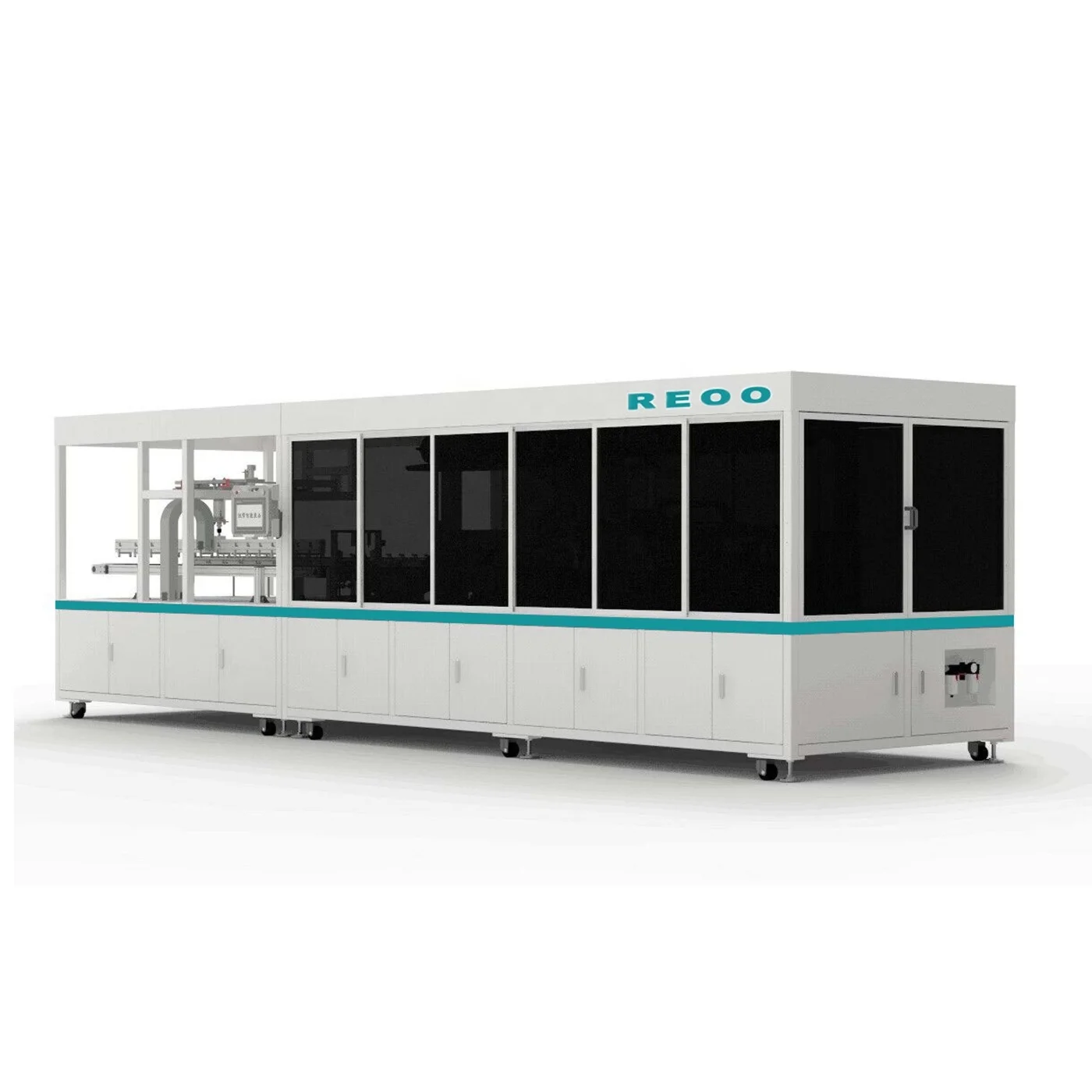

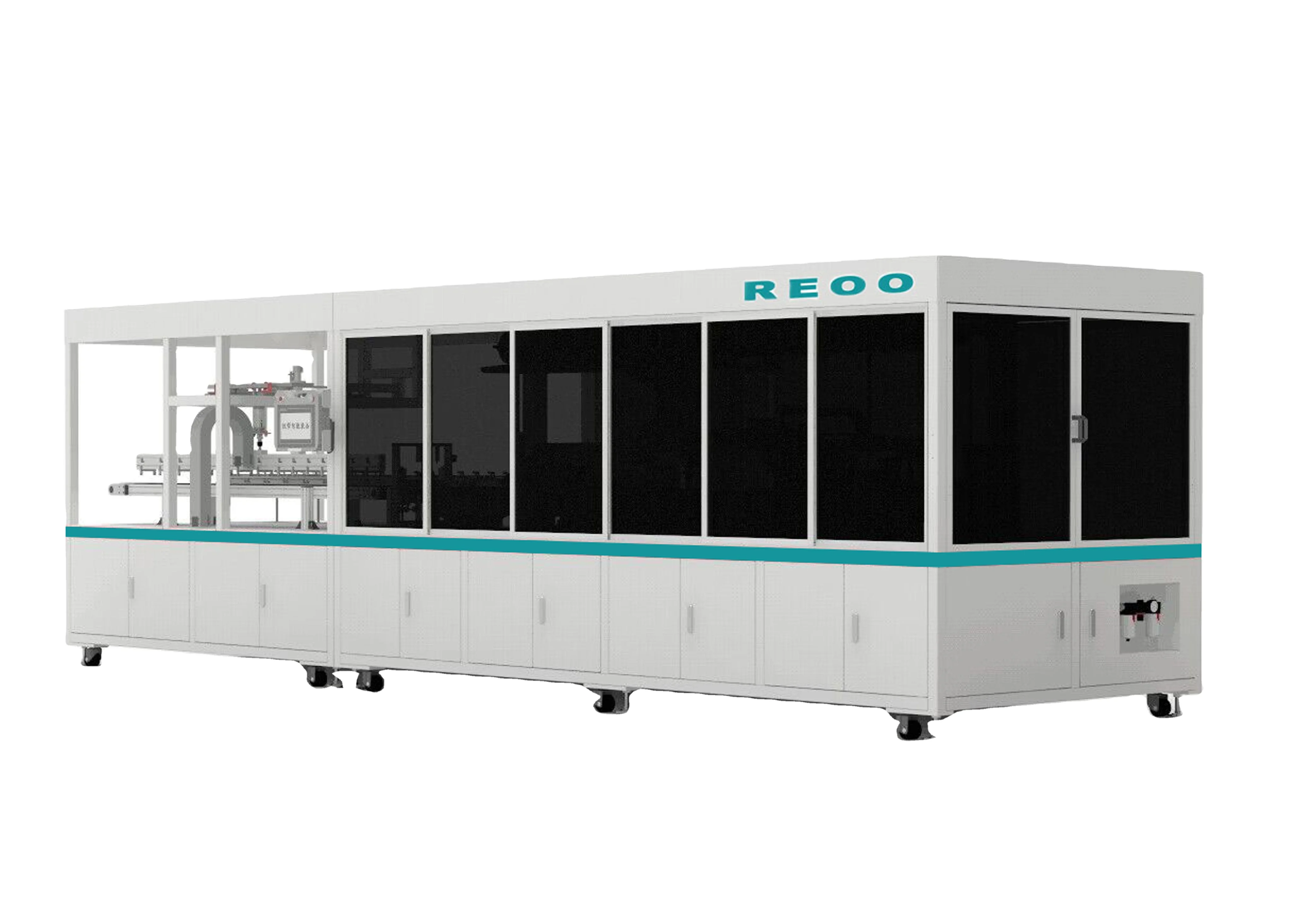

2. Tabbing and string machine
H2020E is a single track automatic tabbing and string for solar cells
Up to speed 1800 cells/hour.
High flexibility for 5BB/6BB/9BB/12BB solar cells .
The base solution is 3 type of cell of 210x 105mm, 182 x 91mm, 166x 166mm and others .
Works with different kind of cells including cut cells with width >30mm
The number of cells for string is settable from touch screen
Cell spacing is adjustable
Quick and simple operation & ribbon change
Low cost of spare parts and consumables
Soldering capacity | Max 2.7 seconds /pcs,Max1800 pcs /hour |
Cell‘s dimension | 30~166*210mm |
Cell busbar | 5BB/6BB/9BB/12BB/ |
Ribbon sizes | Width: 0.8~2.0mm,Thickness: 0.12~0.23mm . Ribbon size should be informed before order |
Breakage | ≤0.2%, On the basis of Grade A cells with good cutting, no cracks and damage |
Cell basket capacity | 4 x 100 PCS,4 Cell baskets to load up to a maximum 100pcs each,total 400pcs auto switch |
Operation control | PLC touch screen |
Soldering technology | IR light |
Soldering light life | ≥1000Hr |
Soldering temperature | Normal~400℃(adjustable) |
Input power | 3 phase/50~60Hz/380V/30A, Power cable >6mm2 |
Peak power | 18 KW |
Average power | 7 KW |
Compressed air | ≥ 0. 5 Mpa clean & dry air |
Compressed air consumption | Approx 200L/min |
Max.length of the string | 2050mm, Suitable for 12pcs 6 inch cells per string with 2mm cell spacing |
Operator interface | English |
Warranty | 12 Months |

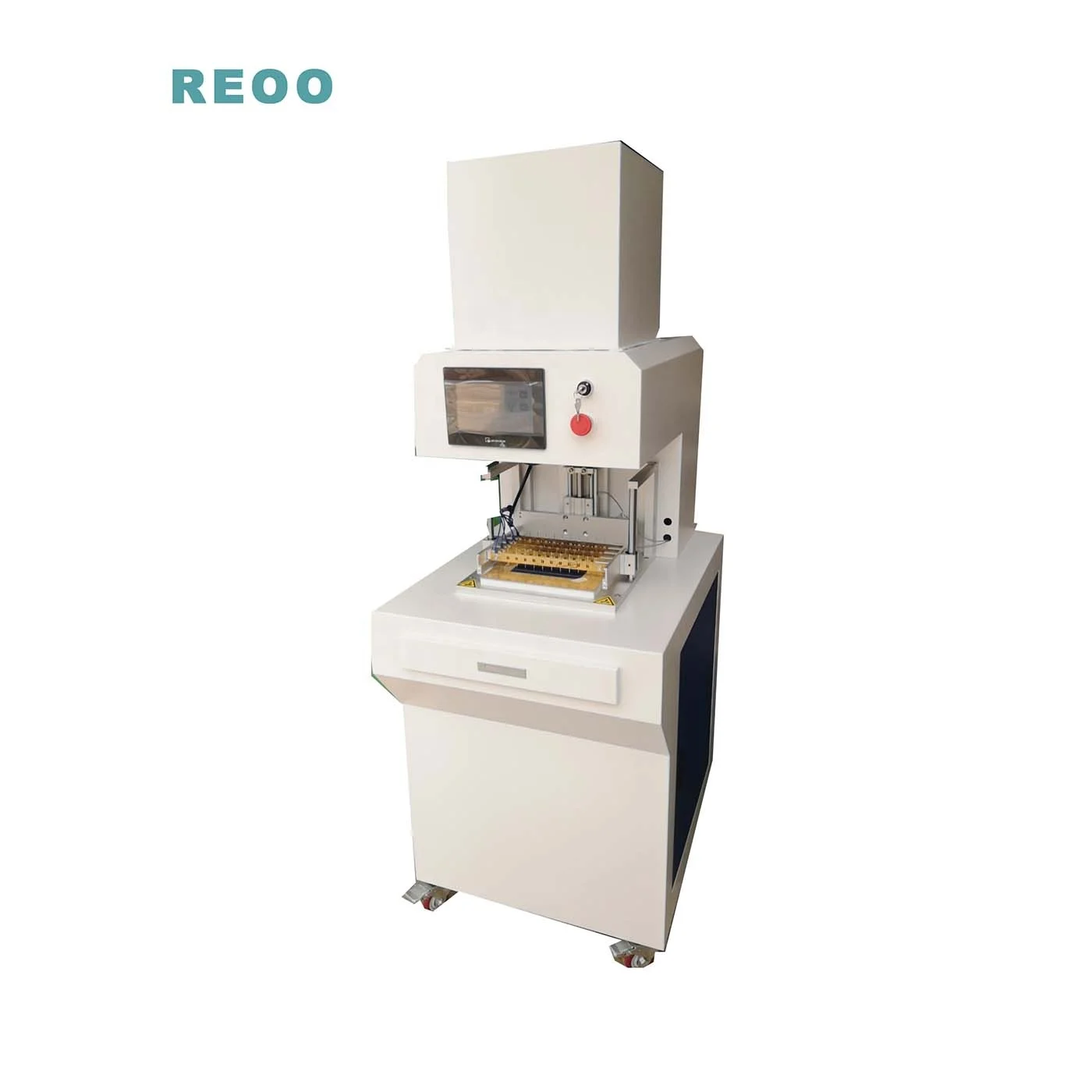

3. Solar cell tester more detail

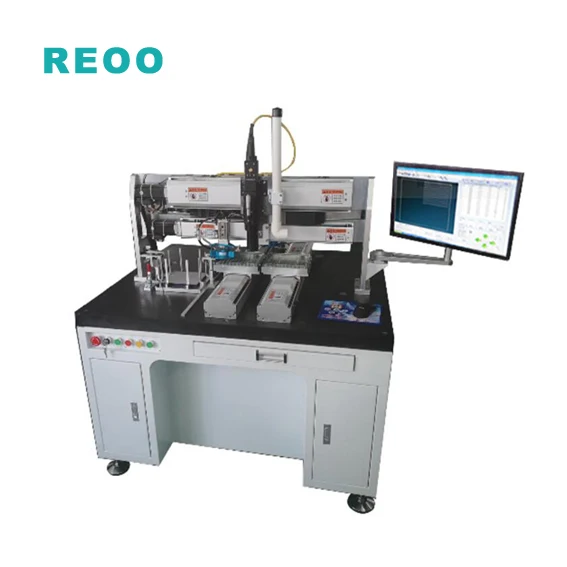

4. Laser cutting machine more detail

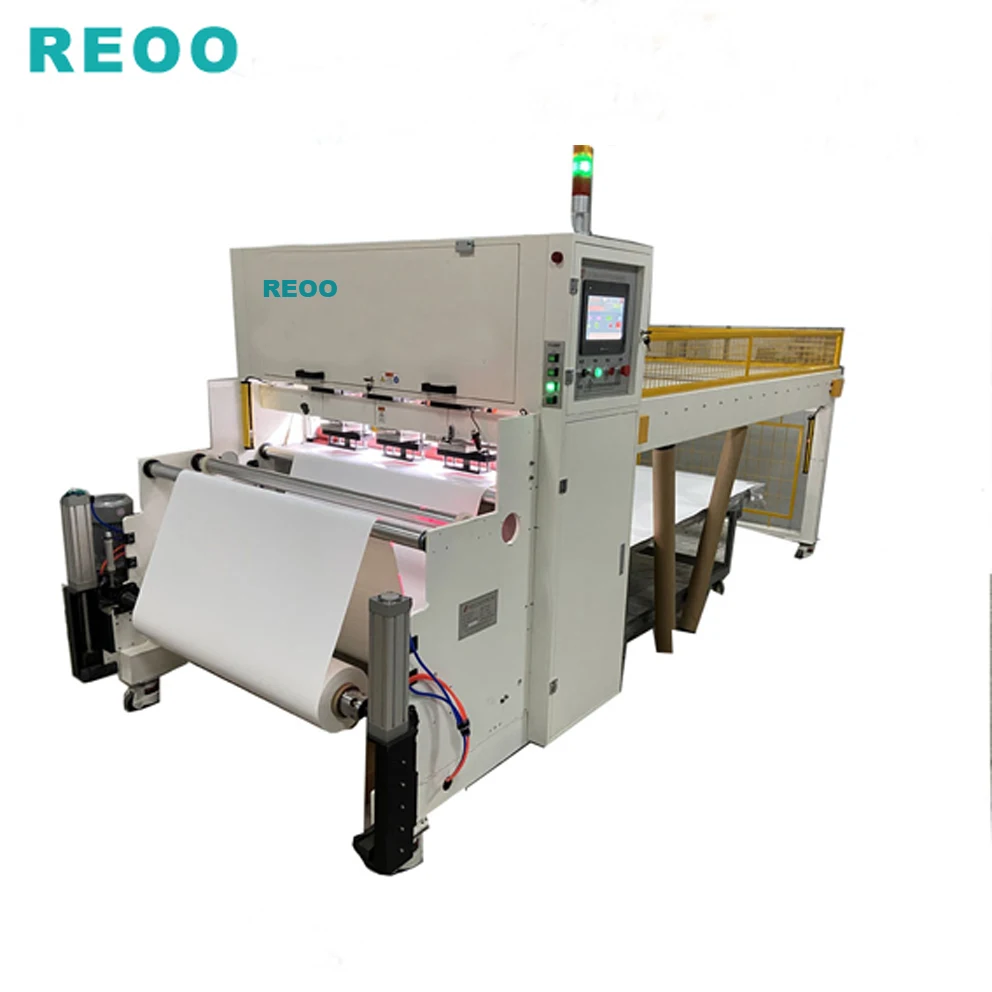

5. EVA/Backsheet cutting machine more detail

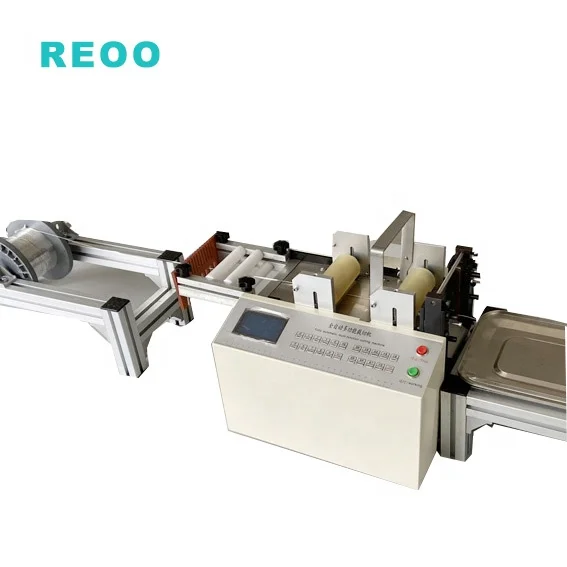

6. Ribbon cutting machine more detail

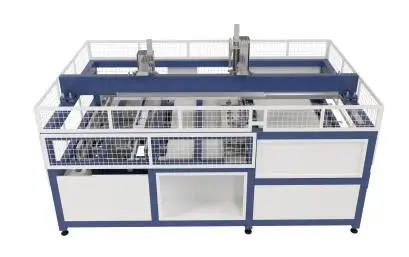

7. Laying up machine more detail

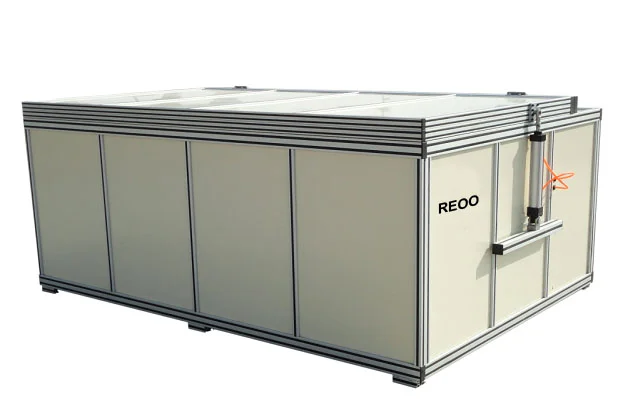

8. EL tester more detail

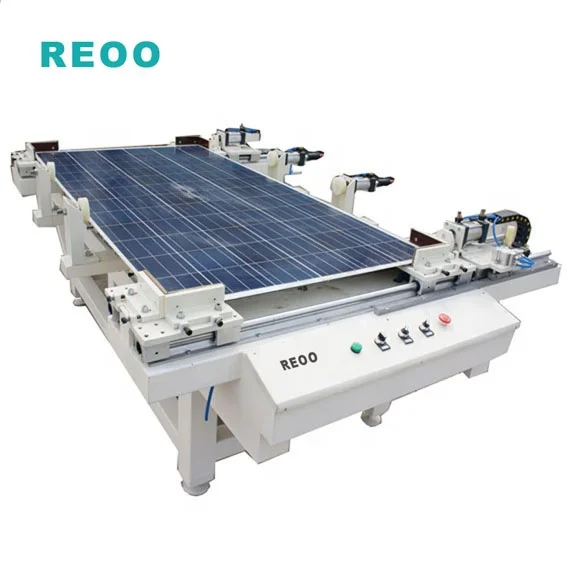

9. Framing machine more detail

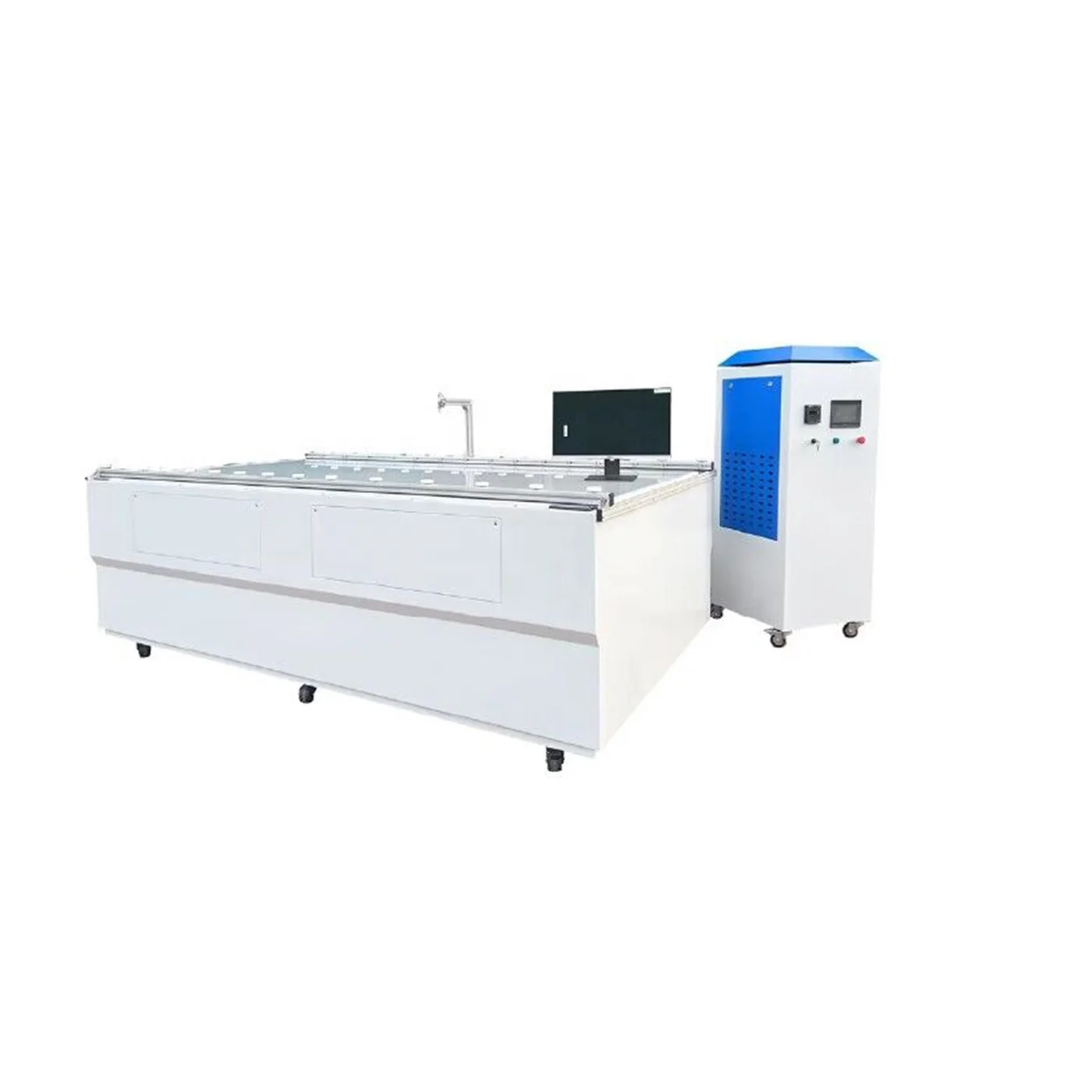

10. Solar module tester more detail
Our Services
Installing:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Packing:
All the equipment, tools, accessories and goods be suitably packed. All packages are liable to be opened for
customs examination and packing shall therefore be designed to facilitate opening and reacking thereafter.
Each package shall have the shipment information printed on it in bold letters.
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).

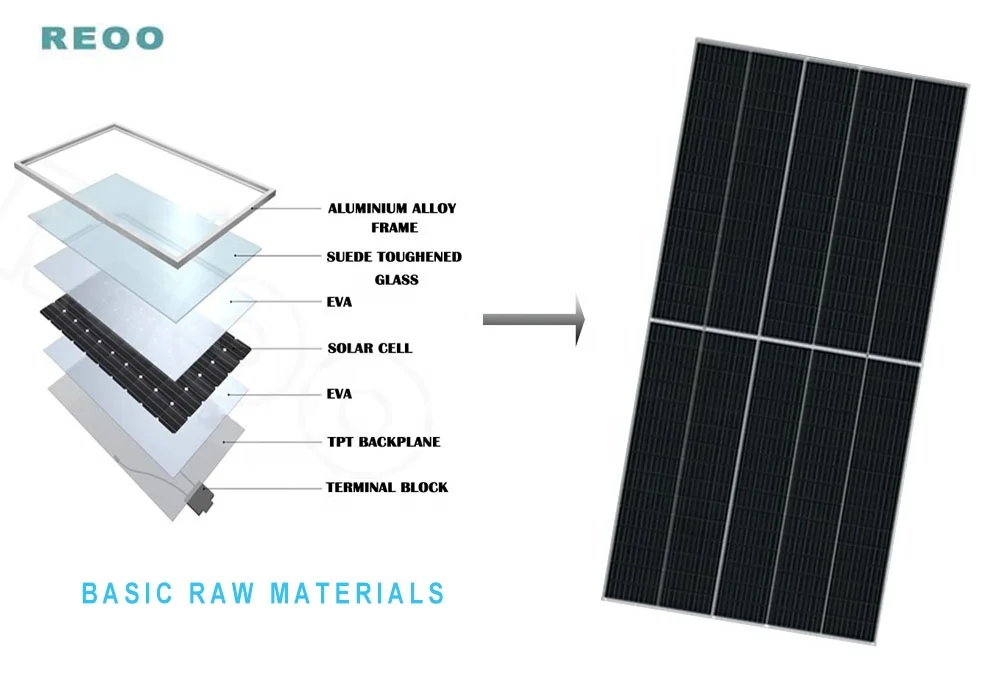

Raw material:
We supply all the material for production solar panel from China for trial production and formal production,buyers pay for the cost.
Our Clients
Packaging & Shipping
Contact with me
Lisa Xing
NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400
Mobile number: +86 187 5132 7183
Tel: +86 513 8410 5399
Fax: +86 513 8410 5505
What's App:+86 187 5132 7183
