iv curve tester solar panel testing machine iv curve tester
iv curve tester solar panel testing machine iv-curve-tester
iv curve tester solar panel testing machine iv-curve-tester
iv curve tester solar panel testing machine iv-curve-tester
iv curve tester solar panel testing machine iv-curve-tester
iv curve tester solar panel testing machine iv-curve-tester

iv curve tester solar panel testing machine iv curve tester

Share on (1601301509539):


Price:$8,000.00-10,000.00

Quantity:


Product Overview

Description



Product Description




Specification


Product Name

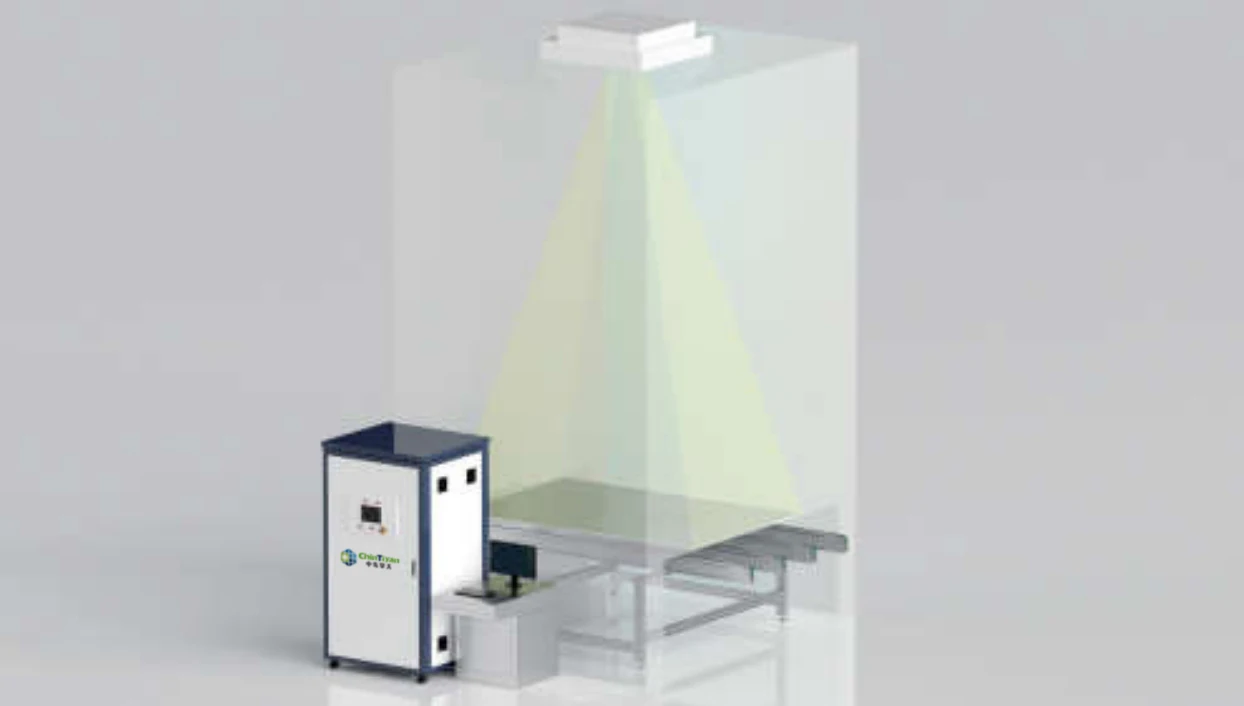

Solar Module Panel lV Tester for Photovoltaic Plate Production Line
Application
solar panel manufacturing complete plant machine
production index
Capacity
＜4s（15ms）
＜25s（100ms）
Maximum measurable area
2500mm×1500mm
Light direction
down light source
Feeding method
Manual/with assembly line
measurement standard
Solar simulator light source class
A+A+A+
Solar Simulator Rating Standard
IEC 60904-9
Calibration method
Standard components automatically calibrate light intensity once
spectral matching
0.875-1.125 (A+level)
Instability of illuminance
＜0.5% (A+level)
Inhomogeneity of illuminance
＜1% (A+level)
Spectral range
300-1200nm
flash time
15-150ms(customizable)
Irradiance range
200-1200W/m²
ISC 60 repeatability
＜0.3%
Light source life
≥6W times
Measuring range
Voltage: 0-200V (resolution 1mV)
Current: 0-20A (resolution 1mA)

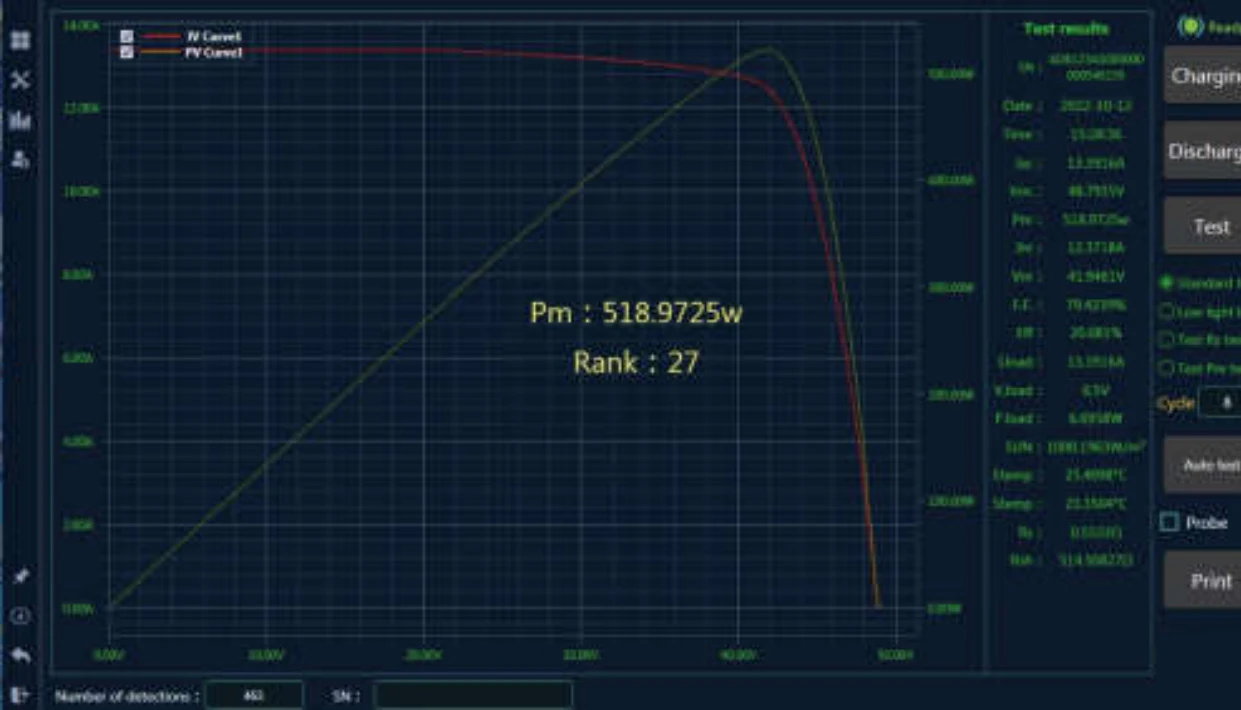

Test parameters
Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh
Electrical indicators
Measuring power
800W（Max）
Test wiring
Four-wire system
software function
Support bar code scanning gun trigger test, support test data saving, query, export, support voice broadcast of test results,
support pedal trigger, with automatic temperature compensation
working environment
Temperature: 25℃±10℃; relative humidity: ≤85%
power supply
AC220V/50Hz/20A
Equipment size
2800mm*1800mm*880mm
900mm*900mm*1800mm
900mm*650mm*950mm




Packing & Delivery




Wooden case




Company Profile






ChinTiyan New Energy(Hubei) Co., Ltd. is a high-tech company in new energy industry. Located in Jiangxia District, Wuhan City, now it has more than 90 employees, including more than 30 technical R&D personnel. The team has been studying in solar photovoltaic industry, and industry automation integration industry, mainly engaged in R&D, production, sales and service in photovoltaic and intelligent equipment for the new energy vehicle charging pile industry.


Certificate




Exhibition




FAQ


1. Who are we?
We are based in Hubei, China, start from 2022, sell to Domestic Market(40.00%), Mid East(15.00%), Africa(15.00%), Southeast Asia(10.00%), South Asia(10.00%), Eastern Asia(10.00%). There are total about 200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?

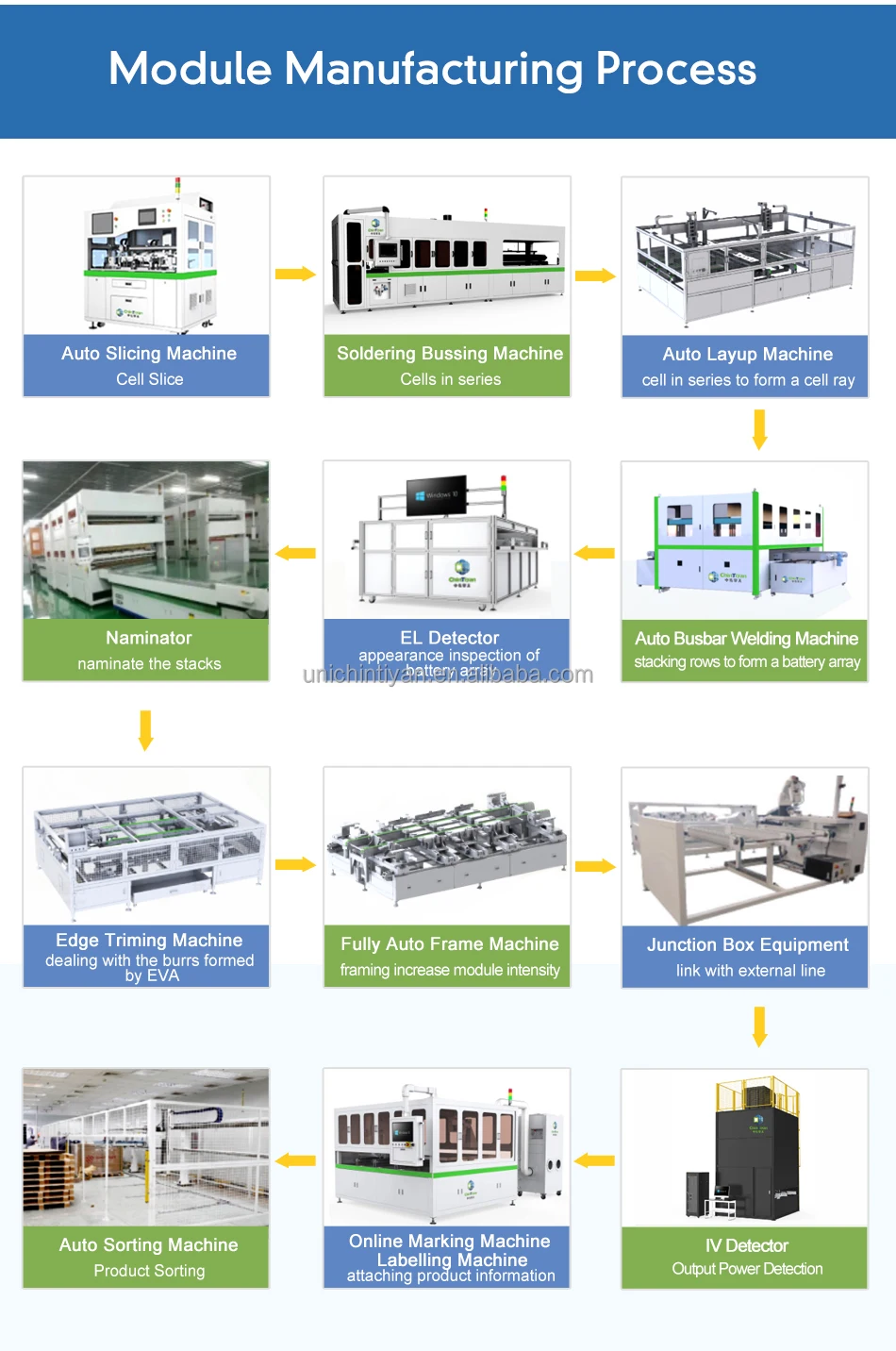

Automatic string welding machine, junction welding machine, scribing machine, IV tester, robot typesetting machine.

4. Why should you buy from us not from other suppliers?
ChinTiyan New Energy has more than 200 employees, including more than 60 research and development personnel, andhas been studying for many years in solar photovoltaic industry, mainly engaged in research and development, productionsales and service.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PavPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi ltalian.
