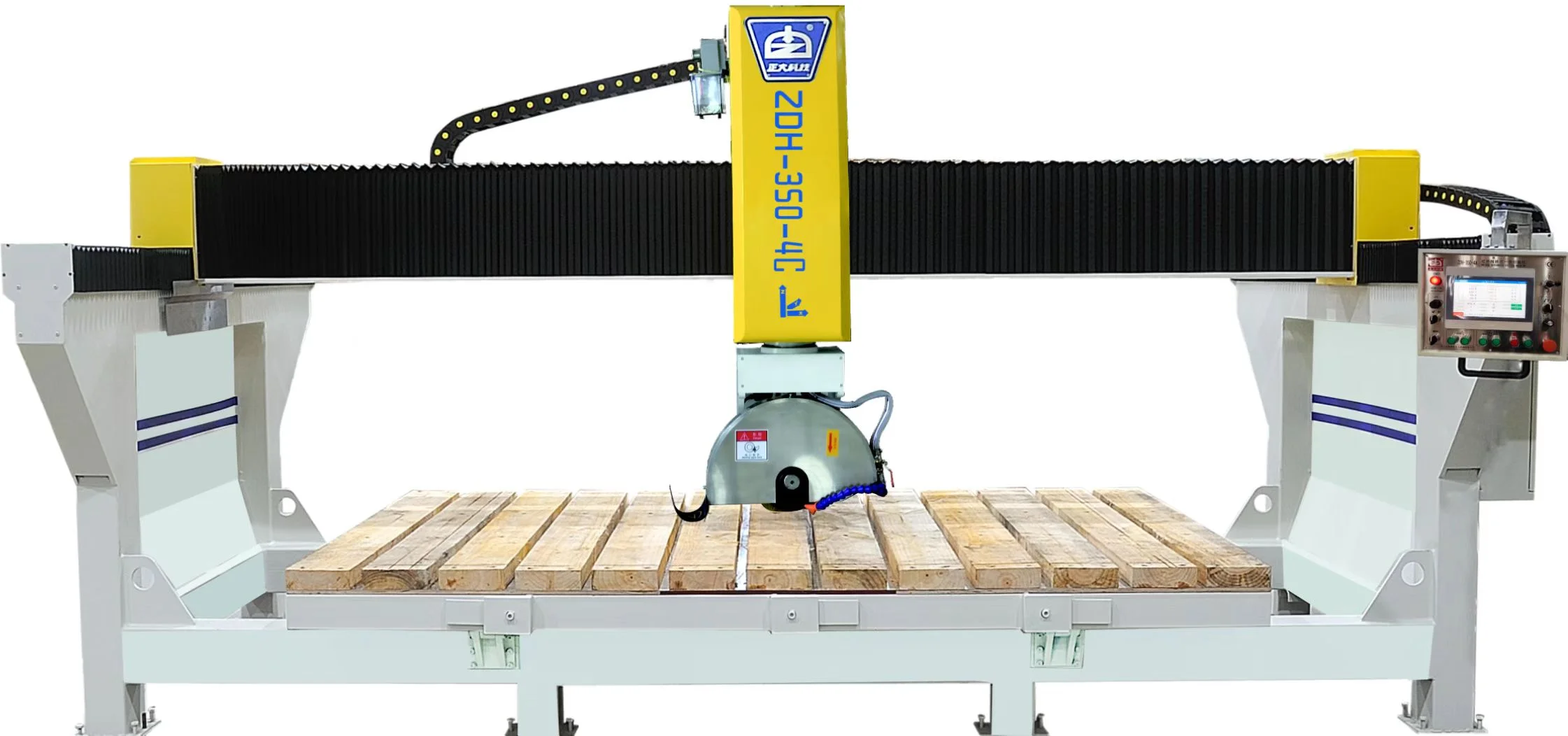

4 Axis Bridge saw rotate tilting heads porcelain slab stone cutting machine
- Category: >>>
- Supplier: Linhai Zhengda Machinery Co. Ltd.
Share on (1600736645219):
Product Overview
Description
Product Description
Product Application
Bridge saw with rotation tilt head for stone marble granite porcelain slab cutting machine
SPECIFICATIONS | ||||
Max. Processing dimension | mm | 3200*1900*50 | ||
Applicable saw blade | mm | 300-350 | ||
Main engine power | kw | 15 | ||
Total power | kw | 20.5 | ||
Outline dimension | mm | 5300*2800*2600 | ||
Weight | kw | 4000 | ||
Main Features
1. This machine use integrated structure,The bed is firm and stable,No need to disassemble,easy to install.
2. Main bean and side bean use linear guideway,High precision and flexibility
3. Machine head rotate 0 and 90 °and tilt 45°use hydraulic transmission,strong stability.
4. It has the advantages of small occupation area, simple operation, fast processing speed and high precision.
2. Main bean and side bean use linear guideway,High precision and flexibility
3. Machine head rotate 0 and 90 °and tilt 45°use hydraulic transmission,strong stability.
4. It has the advantages of small occupation area, simple operation, fast processing speed and high precision.
Detailed Images
Machine Parts

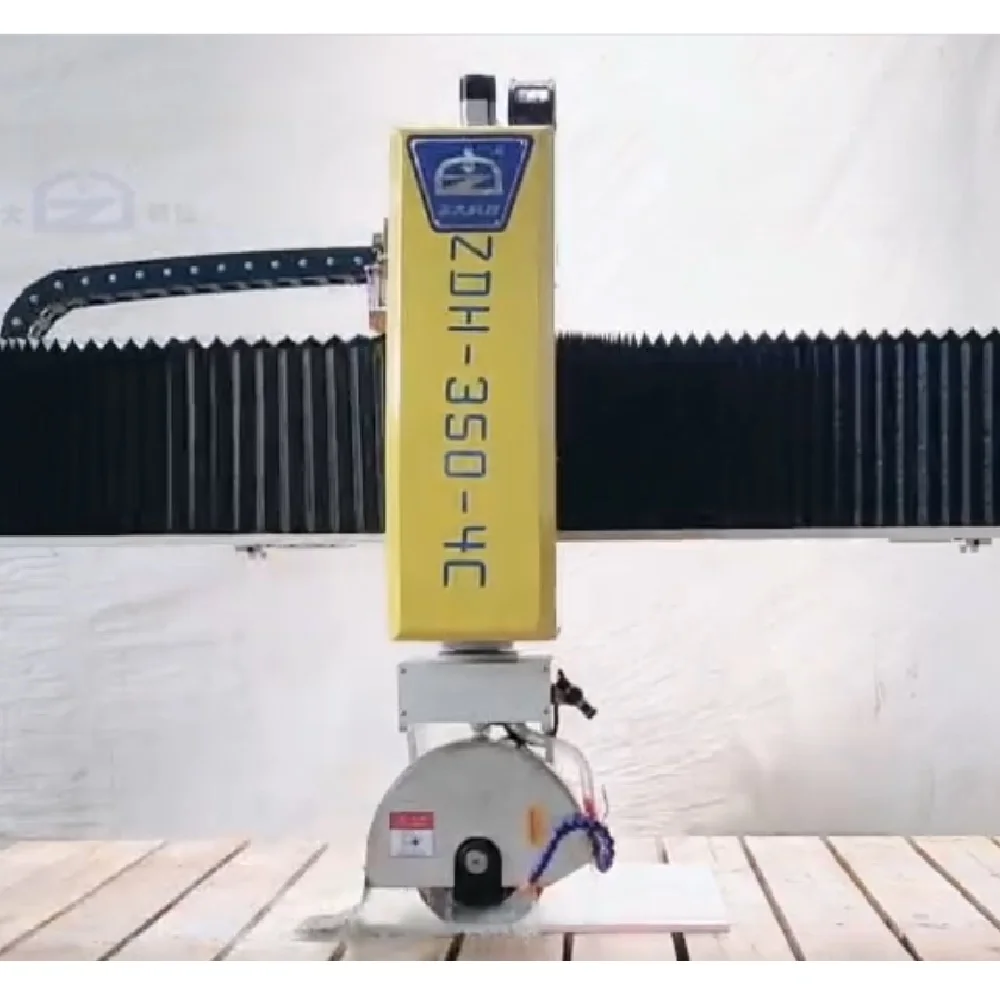

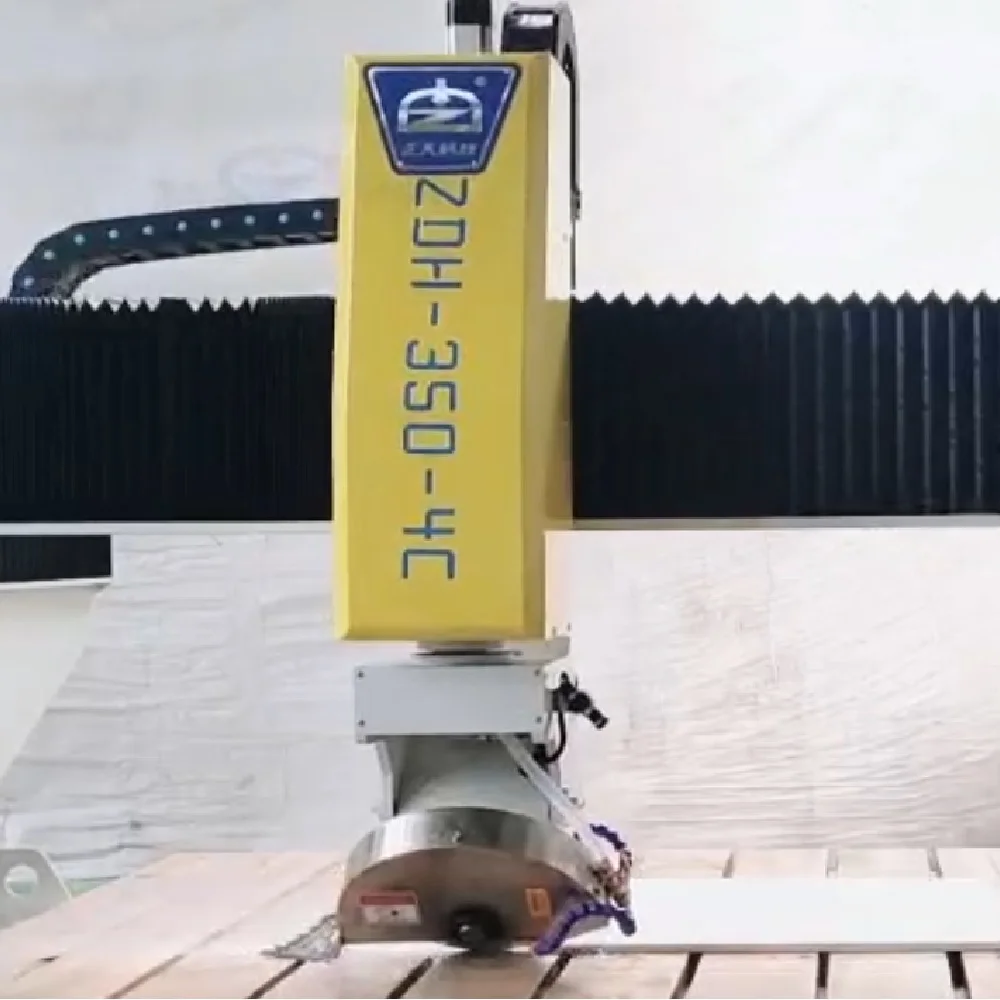

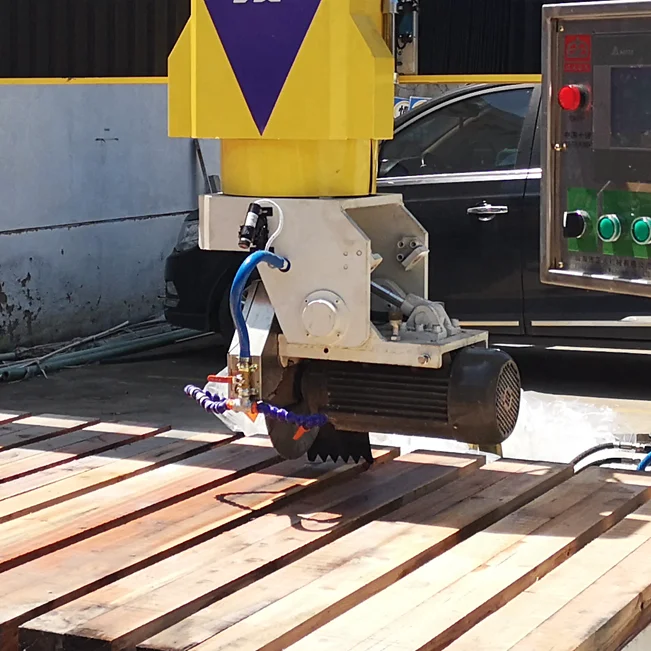

Machine head can rotate 90 degree
Main Features

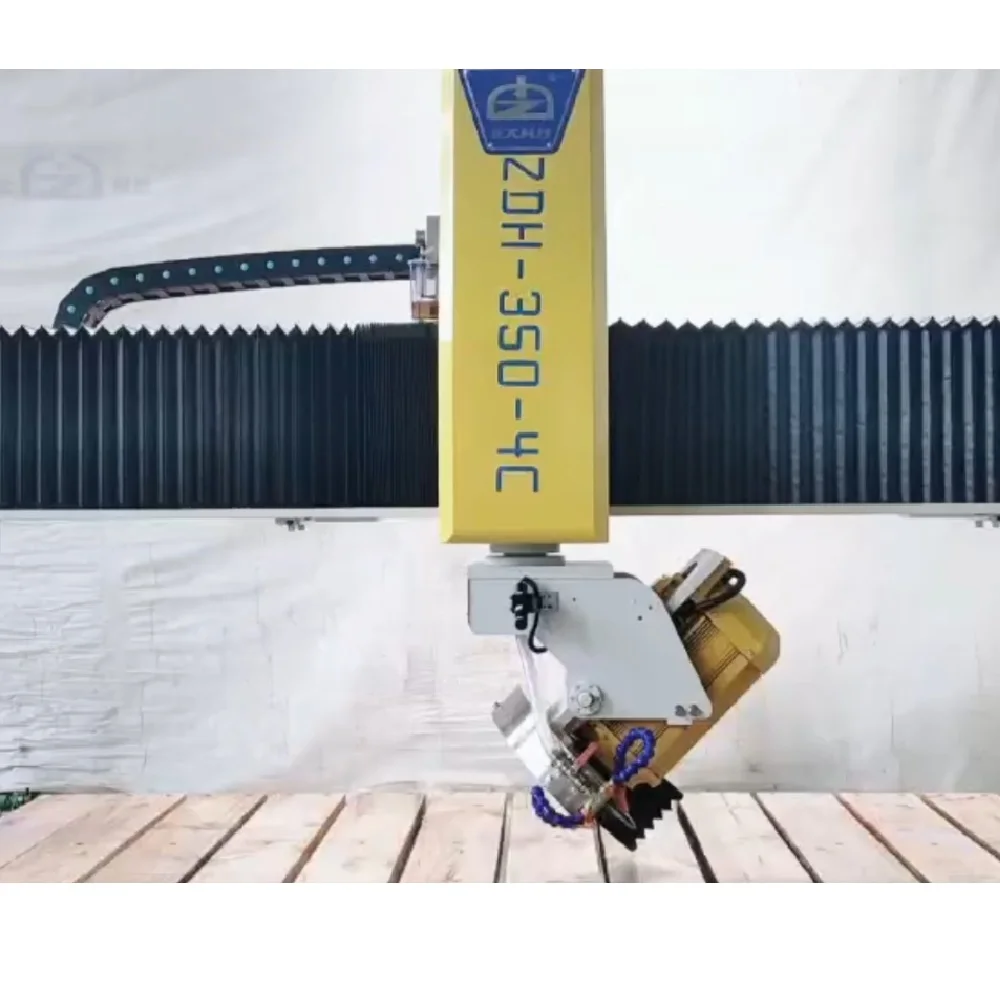

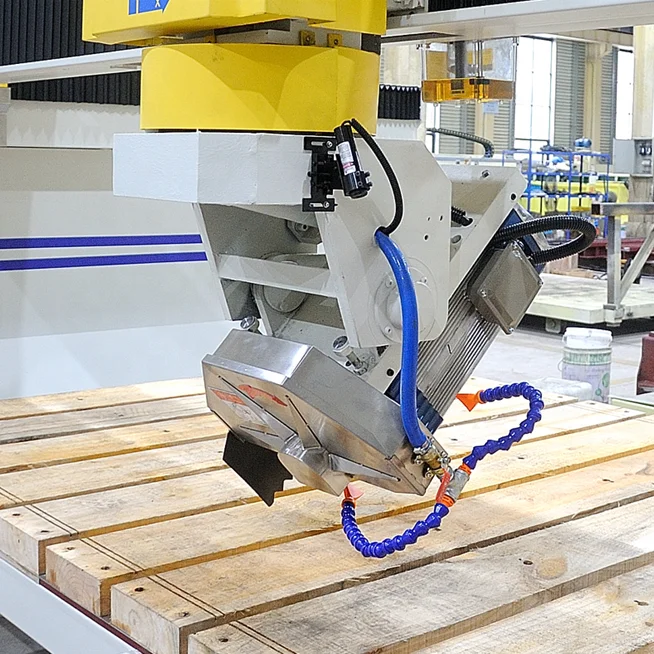

Machine head can tilt to 45 degree to do chamfer cutting
Machine Parts

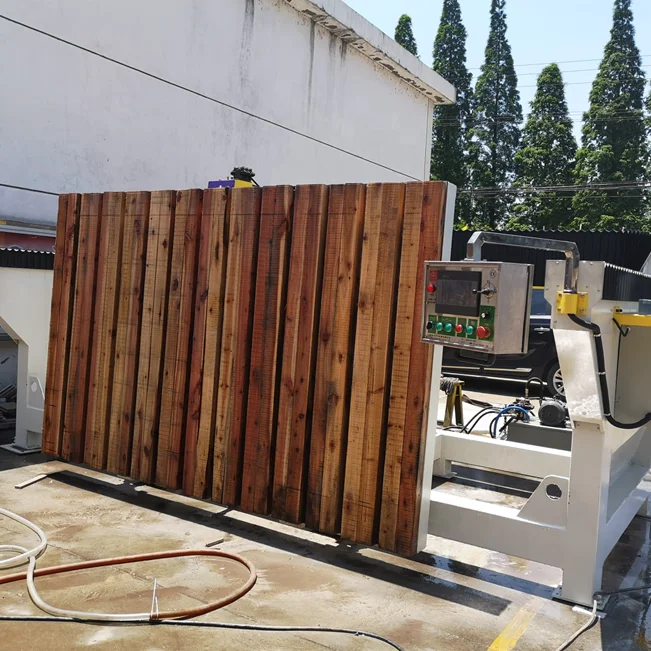

Worktable can tilt up to 85 degree to load slab
Main Features

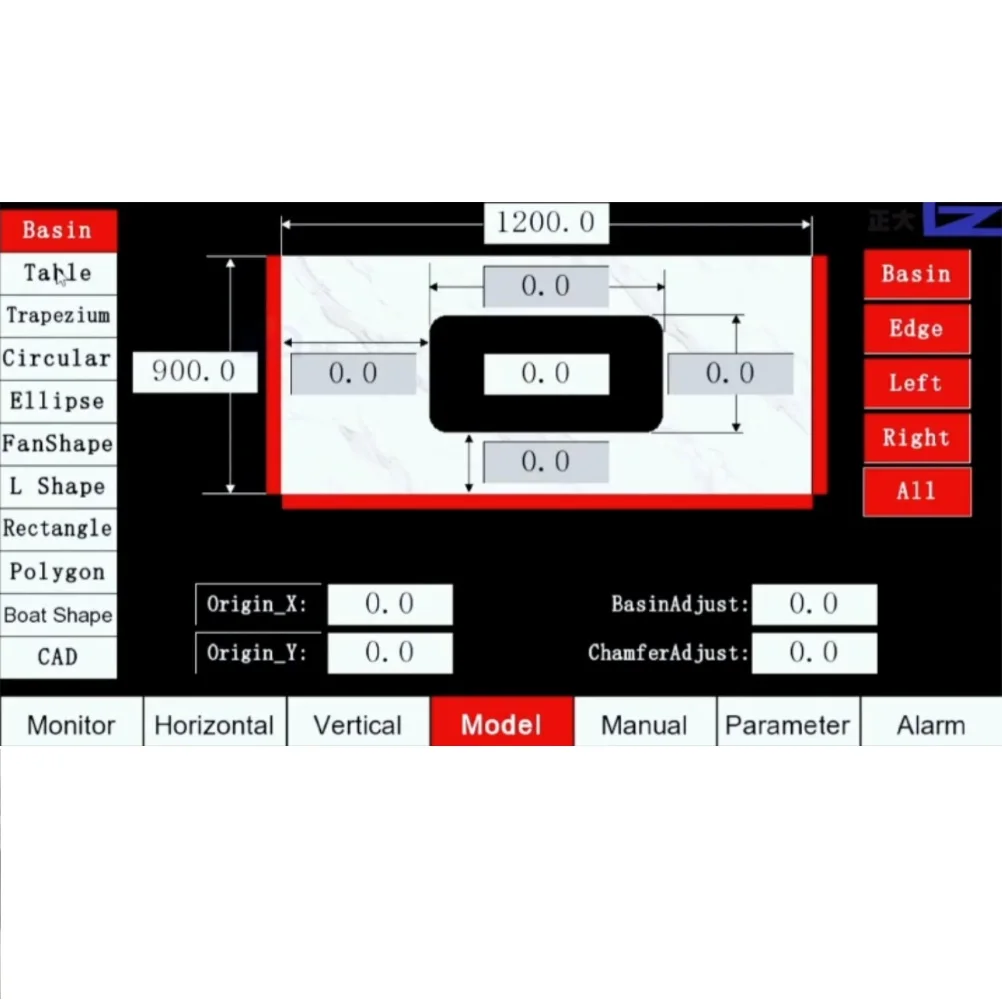

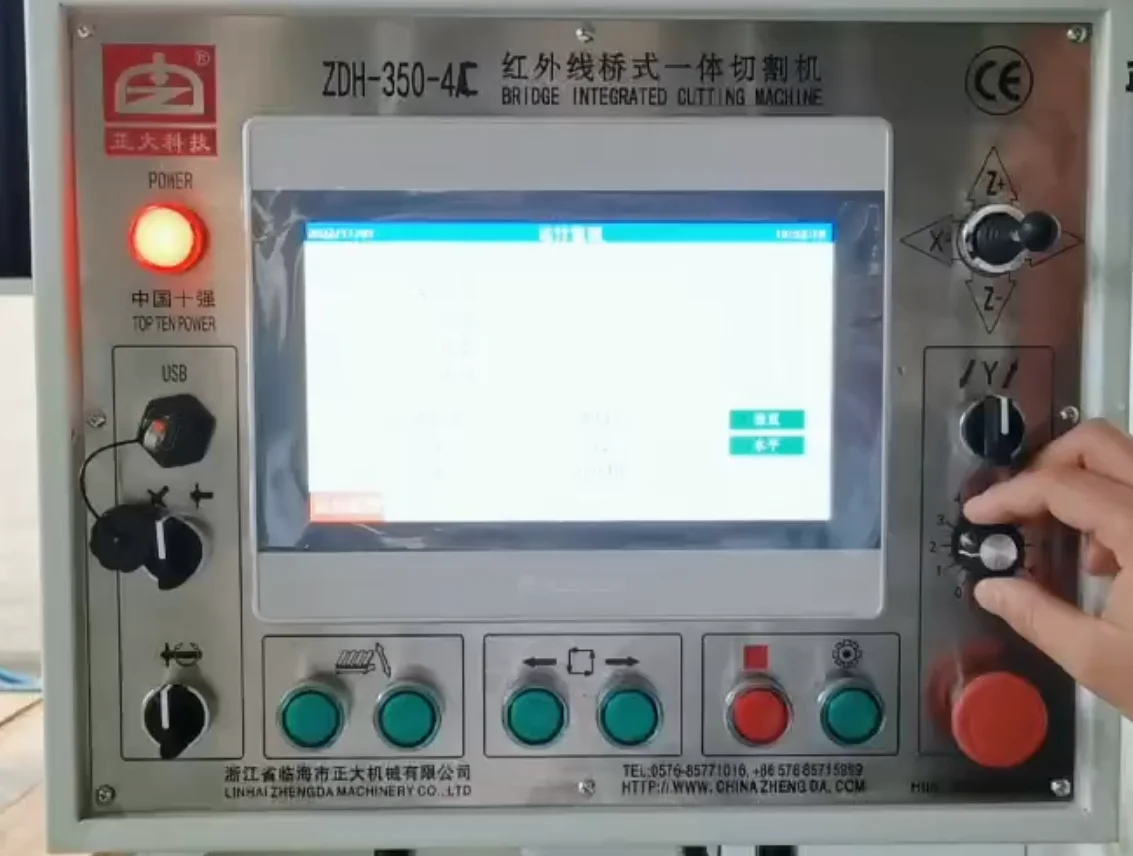

With PLC and Frequency motor to adjust cutting speed
Main function
This machine can do all the listed shapes,
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products

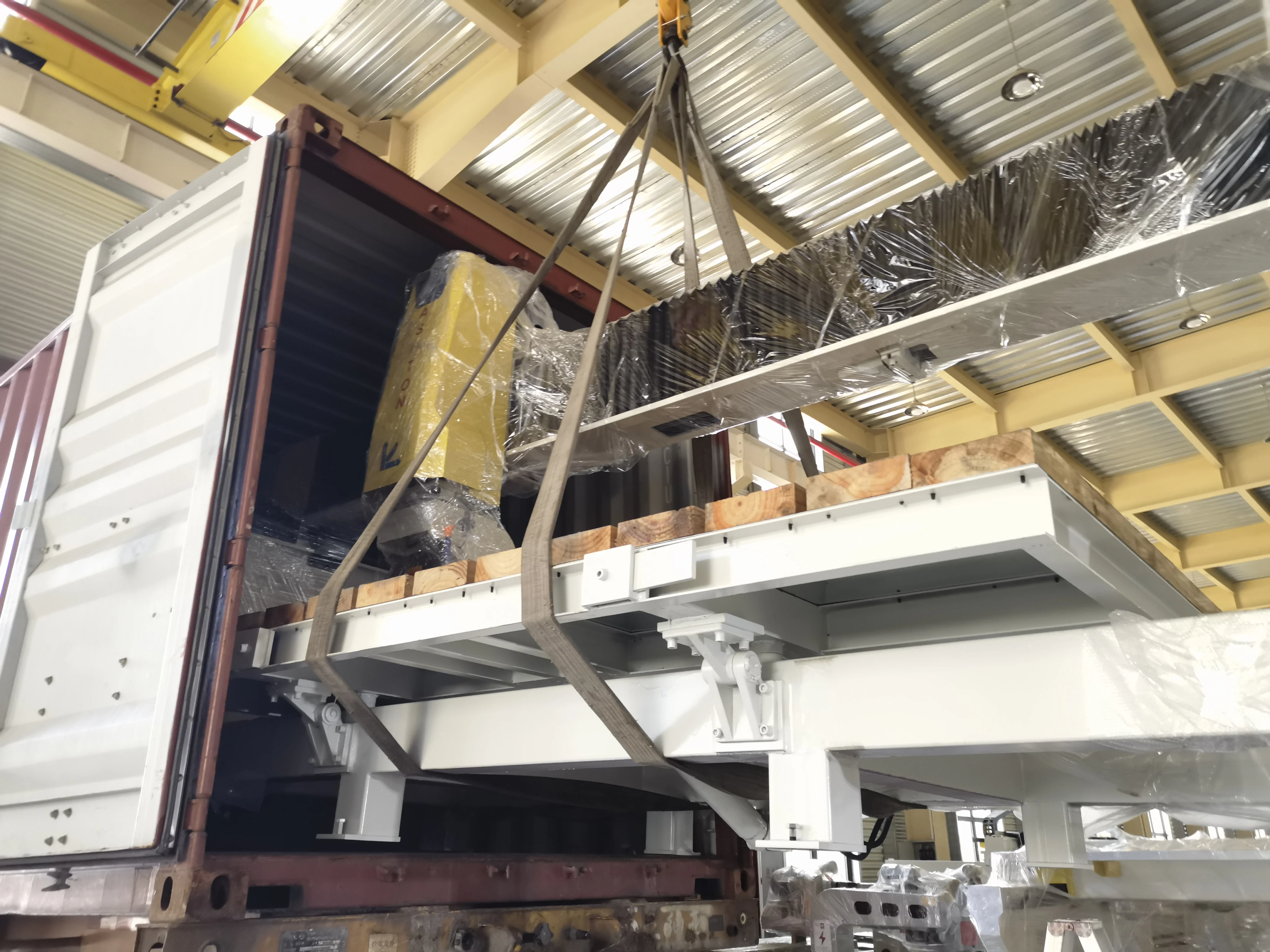

Packing & Delivery
one of 20GP container can be put into 1 of ZDH-350-4C
