G 80 Chains Cranes And Slings Adjustable Lifting Chain Sling With Master Link Double Leg For Legs 12 M Long 40 Ton
- Category: >>>
- Supplier: Zhejiang Sardis Hardware Manufacturing Co. Ltd.
Share on (1600737100720):
Product Overview
Description

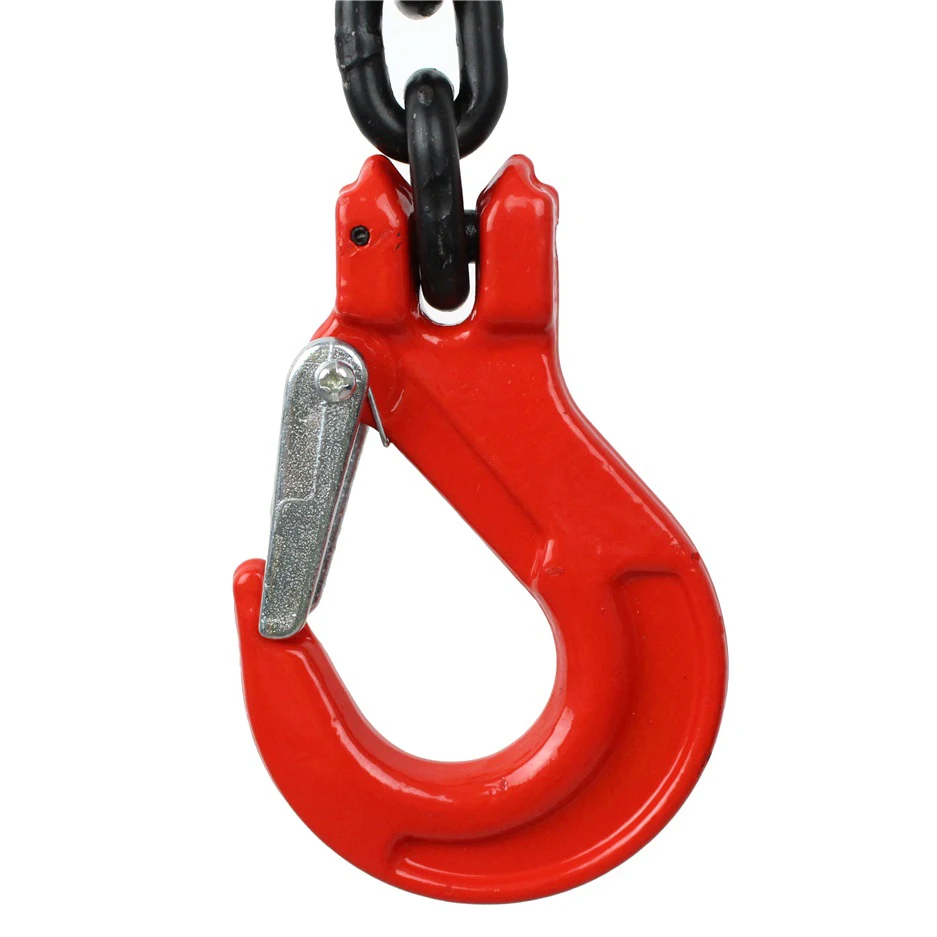

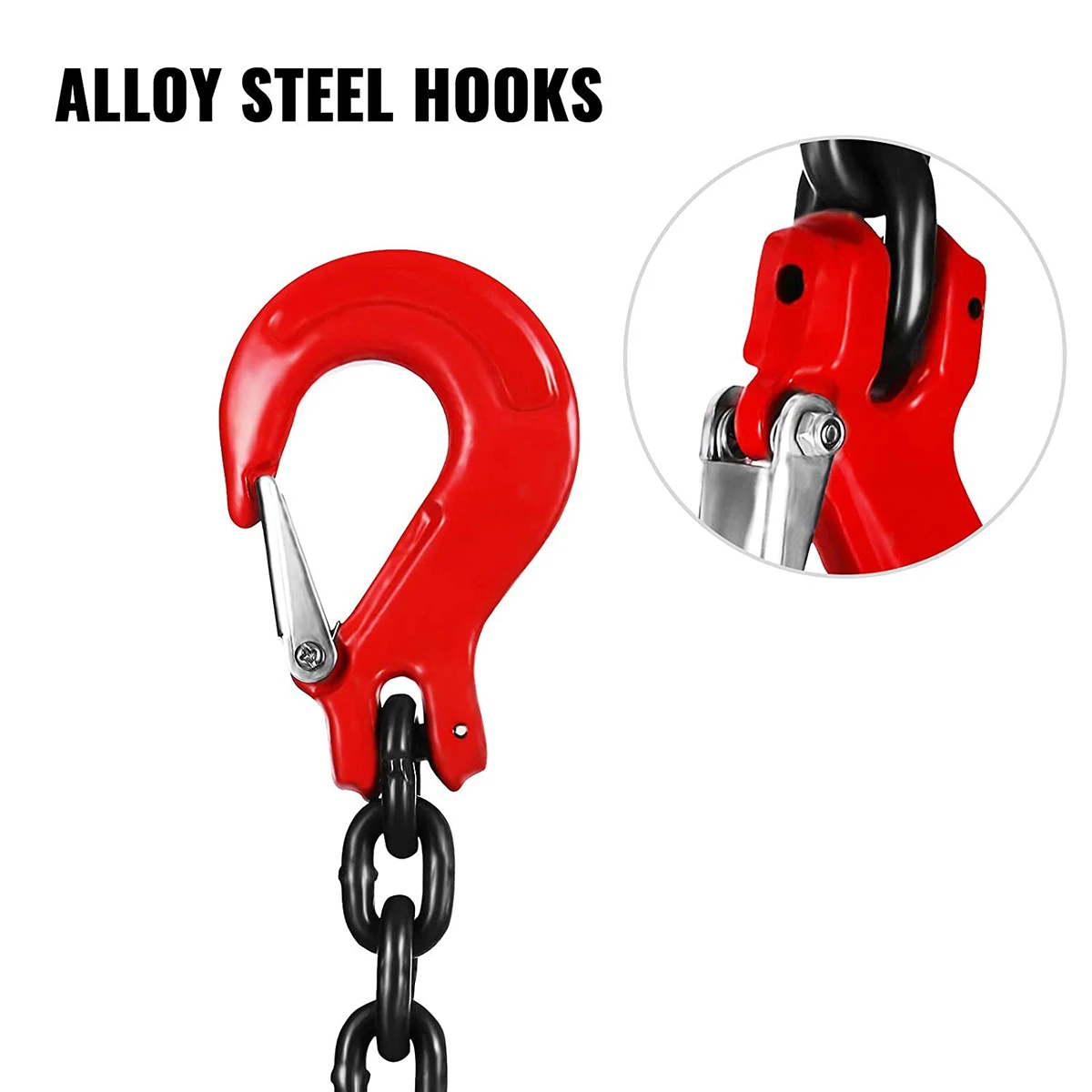

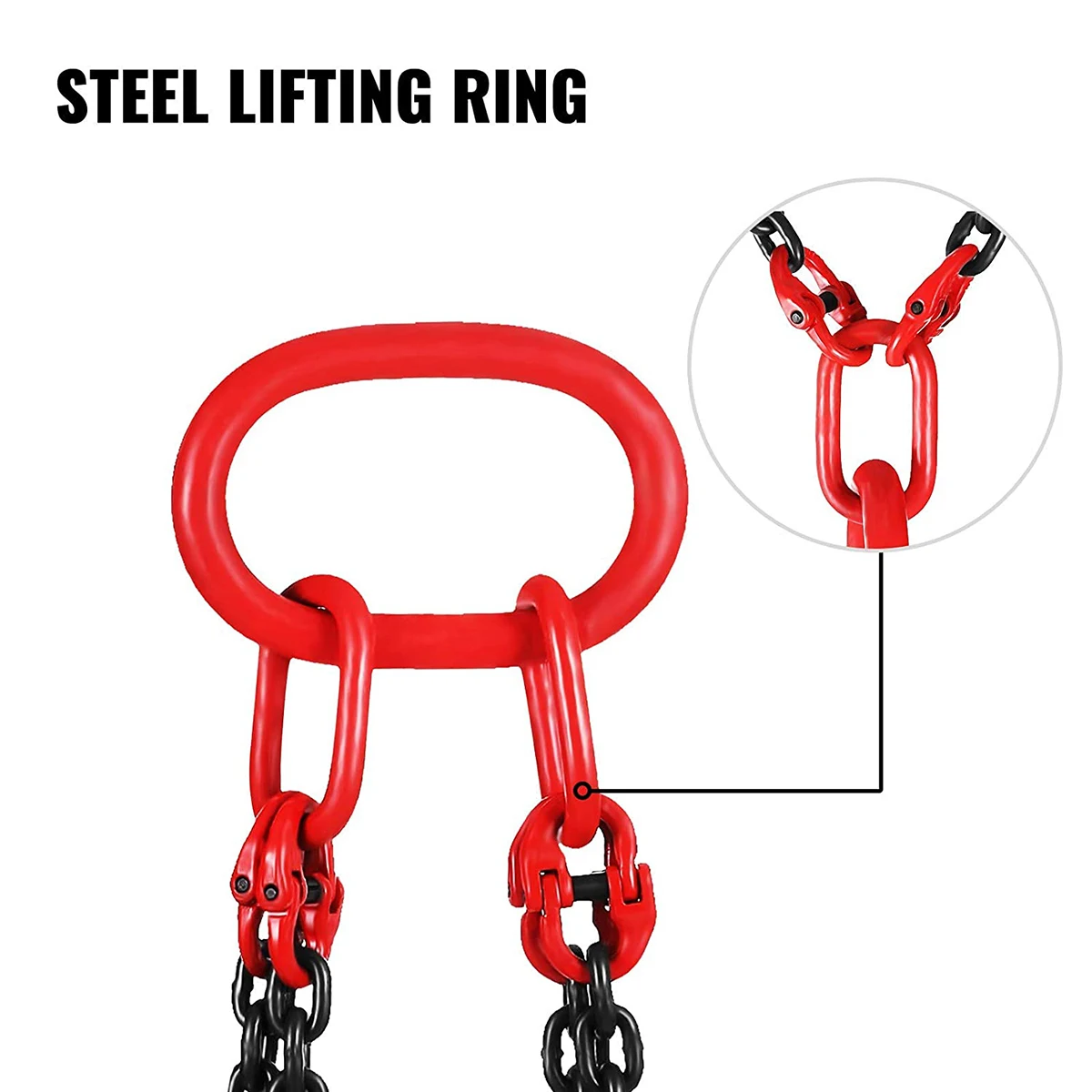

Rigging Hardware, More Than Thousands Variety. Including Connecting Link, Safety Hook, Eye Hook, Clevis Hook, Master Link, Master
Link Assembly, Etc.
1) Standerd: European Type, US Type, DIN Type, JIS Type.
2) Grade: G100 G80 G70 G43.
3) Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.
4) Surface :Powder Coated,Painted,Zinc,HDG.
5) Process:Froged,Qunenched and Tempered.
6) Specification:6MM 7/8MM 10MM 13MM 16MM 18/20MM 22MM 26MM 32MM.
7) Packing: The Size Of A Pallet Is 1.05*0.9*1M, And 60Ctns ,Sacks Or Two Orin Drums Per Pallet Or Wooden Case.
8) Speclal Specification And Marks Can Be Made According To Customer's
Requirement.
Link Assembly, Etc.
1) Standerd: European Type, US Type, DIN Type, JIS Type.
2) Grade: G100 G80 G70 G43.
3) Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.
4) Surface :Powder Coated,Painted,Zinc,HDG.
5) Process:Froged,Qunenched and Tempered.
6) Specification:6MM 7/8MM 10MM 13MM 16MM 18/20MM 22MM 26MM 32MM.
7) Packing: The Size Of A Pallet Is 1.05*0.9*1M, And 60Ctns ,Sacks Or Two Orin Drums Per Pallet Or Wooden Case.
8) Speclal Specification And Marks Can Be Made According To Customer's
Requirement.
G80 CHAIN | SINGLE LEG | 2 LEGS | 3-4 LEGS | CHOKER ENDLESS SLINGS | ||||
φ | 0°<β≤45° | 45°<β≤60° | 0°<β≤45° | 45°<β≤60° | ||||
mm | WLL kg | WLL kg | WLL kg | WLL kg | ||||
6 | 1120 | 1600 | 1120 | 2360 | 1700 | 1800 | ||
7 | 1500 | 2120 | 1500 | 3150 | 2240 | 2500 | ||
8 | 2000 | 2800 | 2000 | 4250 | 3000 | 3150 | ||
10 | 3150 | 4250 | 3150 | 6700 | 4750 | 5000 | ||
13 | 5300 | 7500 | 5300 | 11200 | 8000 | 8500 | ||
16 | 8000 | 11200 | 8000 | 17000 | 11800 | 12500 | ||
18 | 10000 | 14000 | 10000 | 21200 | 15000 | 16000 | ||
20 | 12500 | 17000 | 12500 | 26500 | 19000 | 20000 | ||
22 | 15000 | 21200 | 15000 | 31500 | 22400 | 23600 | ||
26 | 21200 | 30000 | 21200 | 45000 | 31500 | 33500 | ||
32 | 31500 | 15000 | 31500 | 67000 | 47500 | 50000 | ||
