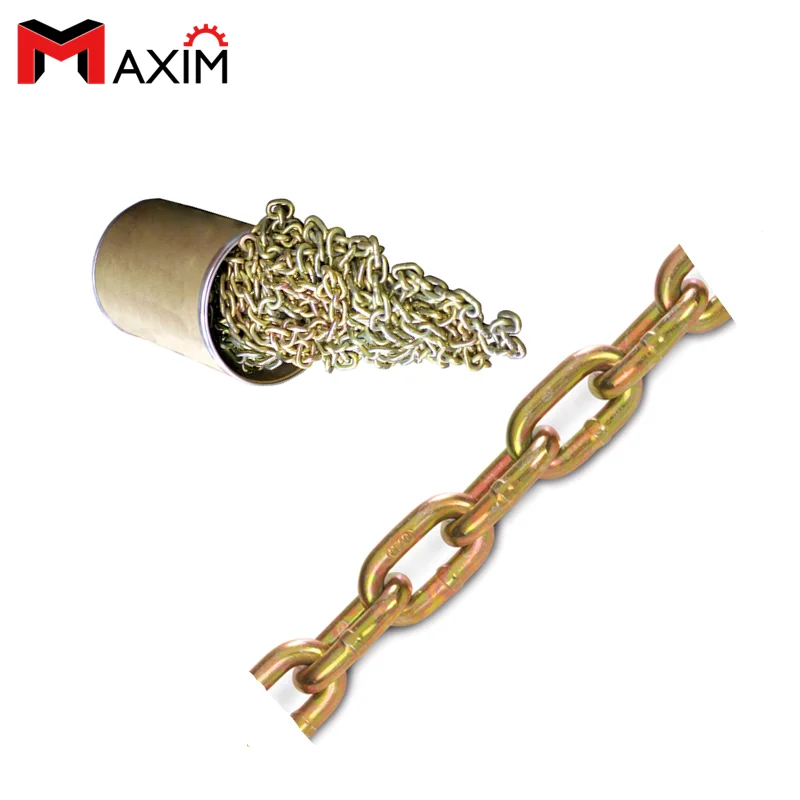

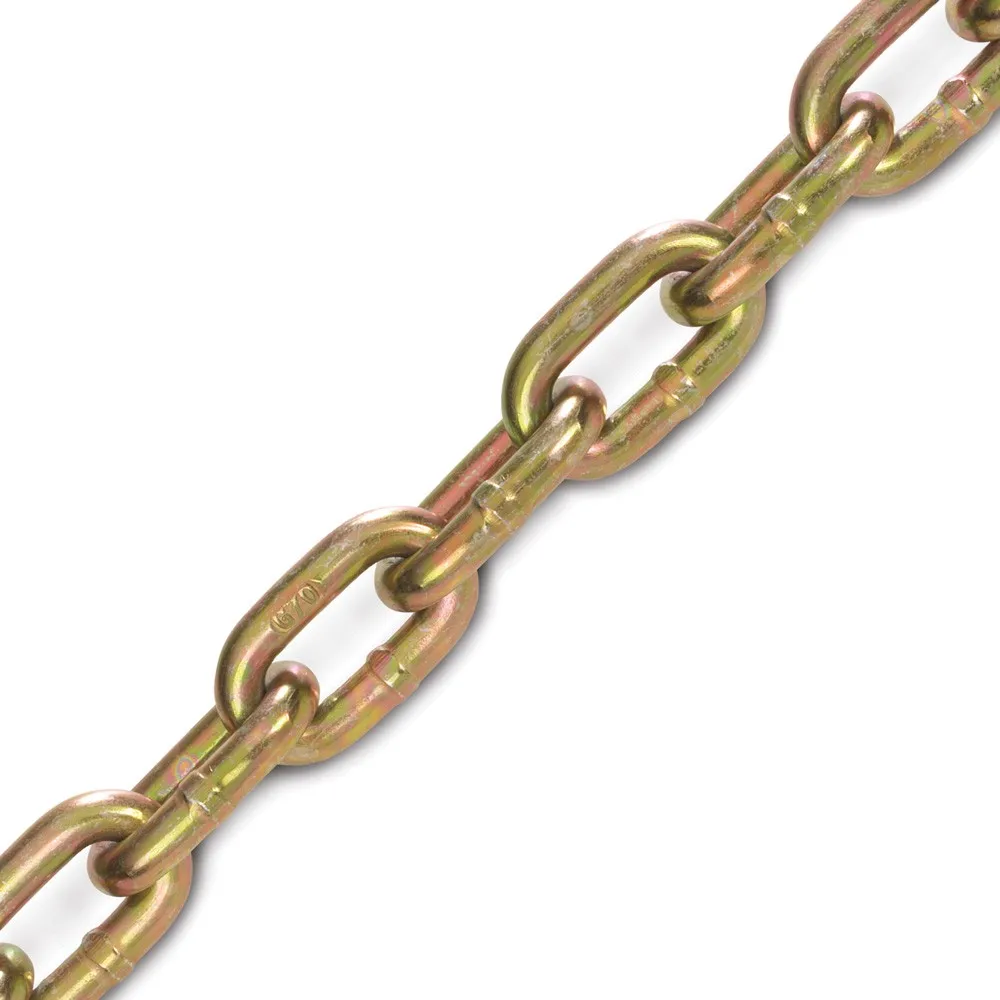

Welded Steel Long Link Hot Dip Galvanized Anchor Chain


Introduction:
Hot Dip galvanized  Chain is manufactured specifically for use in chain slings for lifting purposes. The chain is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption.
Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200n/mm2 (MPA) and is based on a 4:1 factor of safety.
Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500n/mm2 (MPA) which is 2.5 times the working load limit.
Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800n/mm2 (MPA). The minimum elongation before failure is 20%.

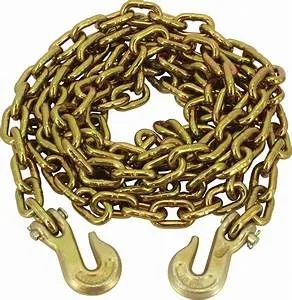

Equipped with a clevis grab hook on each end. Working load . Breaking strengh is all qualified. Can be assembling with grad hooks, sling hooks, master links, clevis pear links, load binders, webbings, shackles, connecting links and triangle and rings to package as one set.
Warning: Not for overhead lifting. W.L.L.. (Sold Per Foot)
Cut Chain is available.

Features:
Widely used in lifting conditions, sling conditions,trailer condition, marine conditions,container and port lashing conditions and logging conditions
Easier to be connected with shackles, chain links and rings, chain slings, hooks,pulleys,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working

Specifications:
Process: welding
Material: alloy steel
Safety factor: 4:1
Size: M1-M16 (other size can be customzied)
Finish: polished
Other size can be available.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
SPECIFICATION FOR Hot dip galvanzied chain
CODE
SIZE(MM)
W.L.L(T)
WEIGHT(KG/M)
MATV0214
7
1.5
1.1
MATV0215
8
2
1.5
MATV0216
10
3.15
2.2
MATV0217
13
5.3
3.8
MATV0218
16
8
5.8
MATV0219
20
12.5
9.1
MATV0220
22
15
11
MATV0221
26
21.2
15.3
MATV0222
32
31.5
23.2

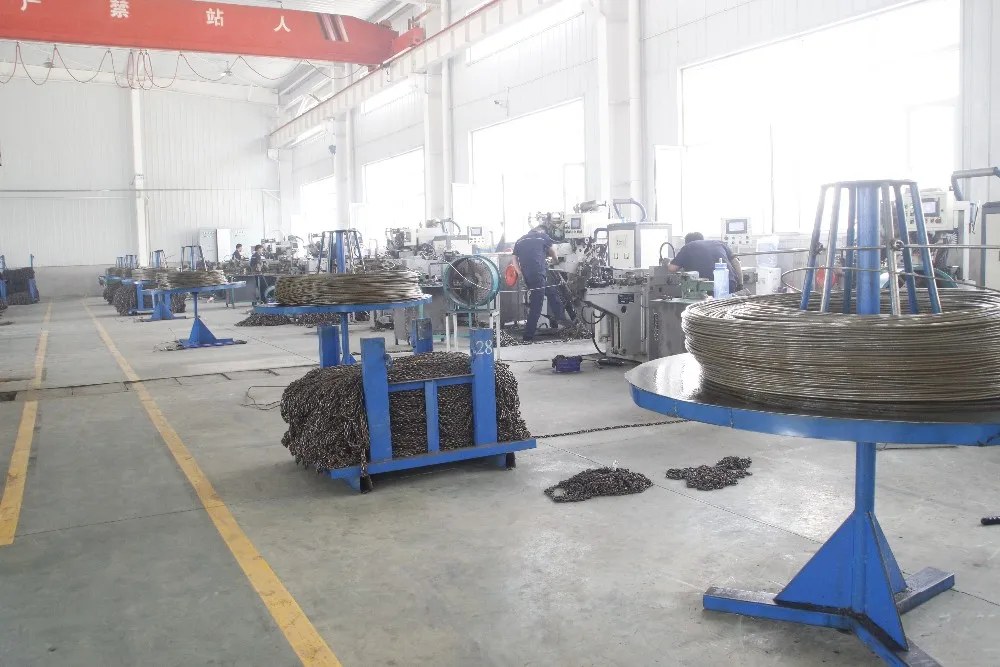

wire cutting

link connecting

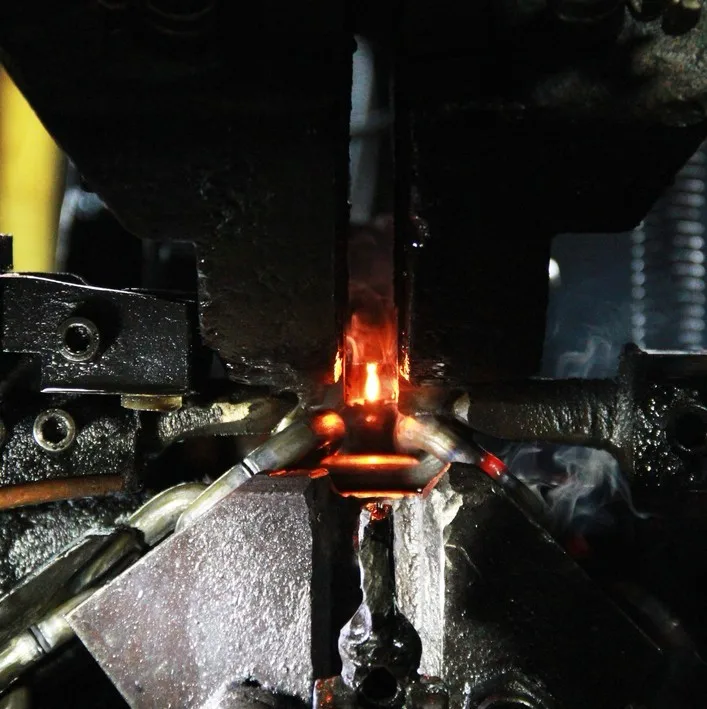

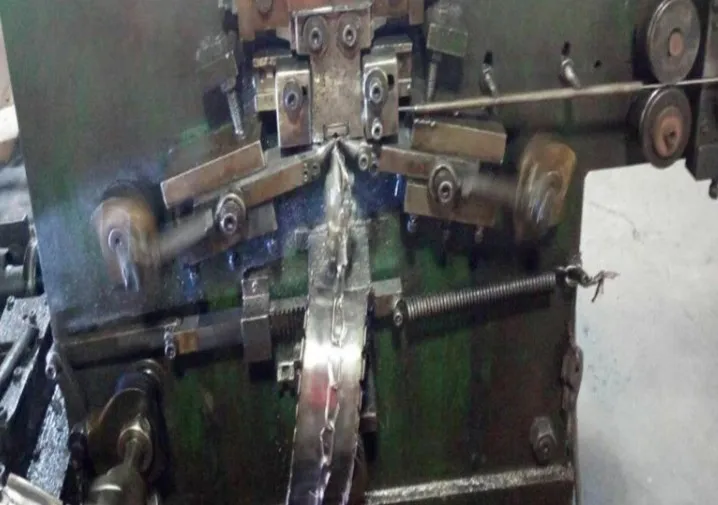

auto welded
perfect the shape

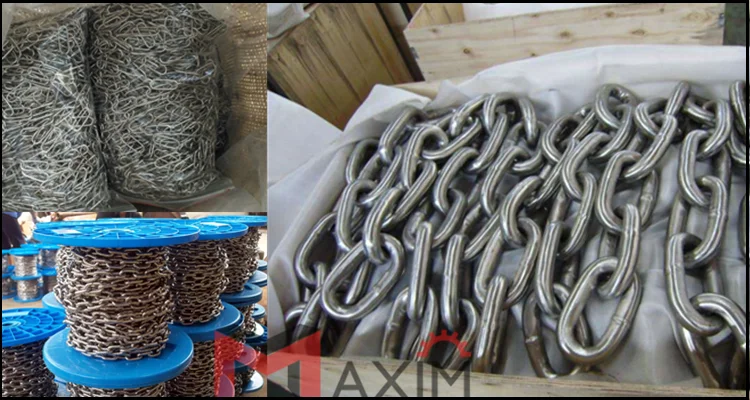

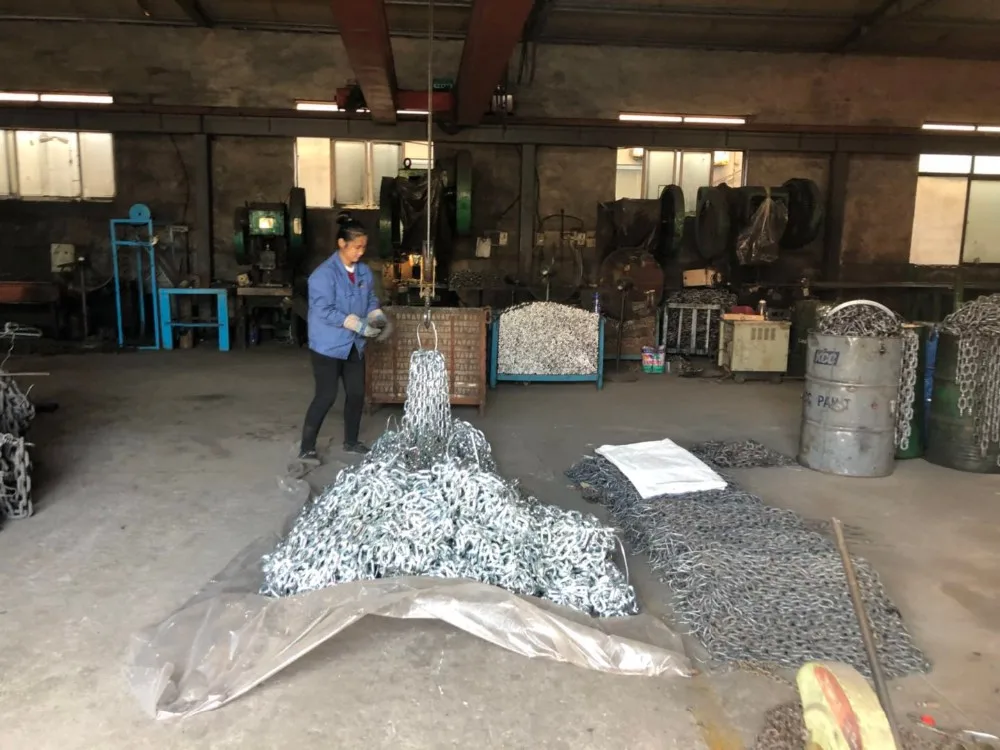

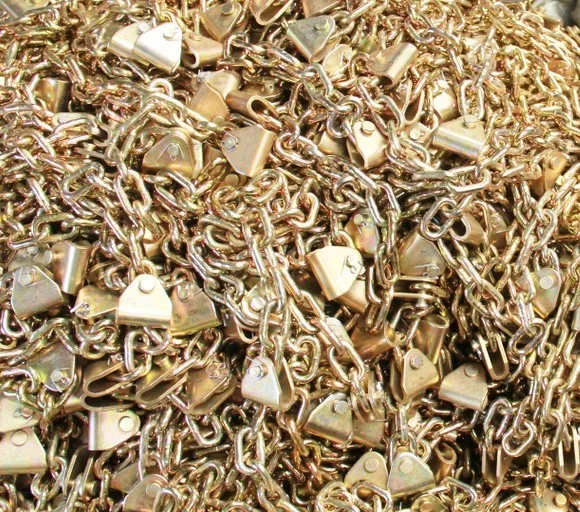

half-finished &finished chain bulk

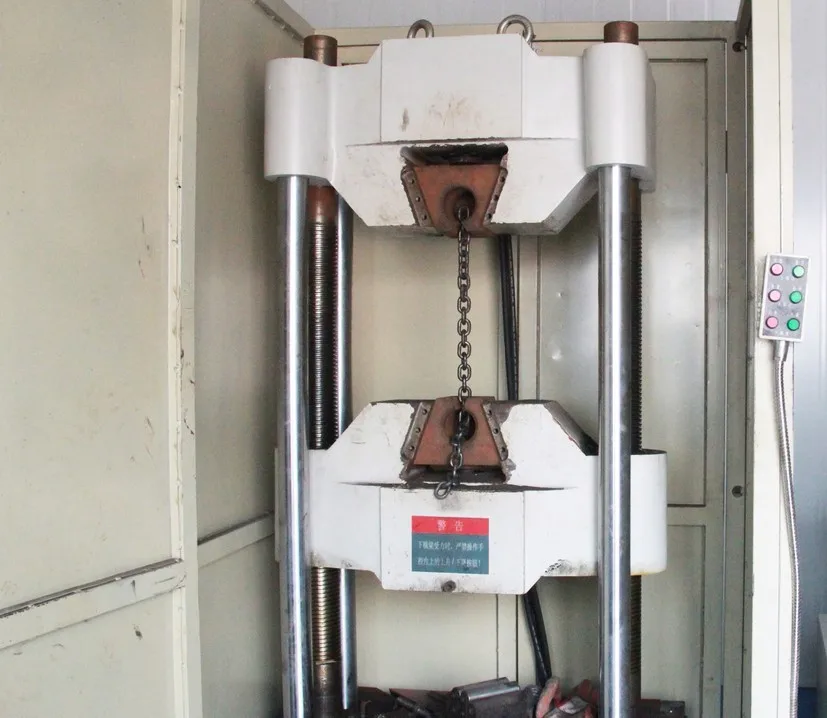

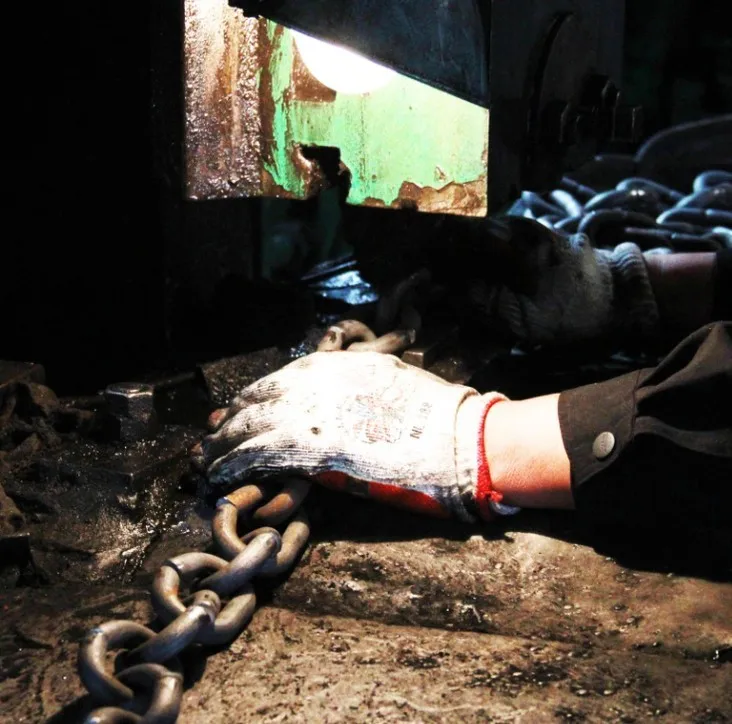

strength testing
Detailed Images

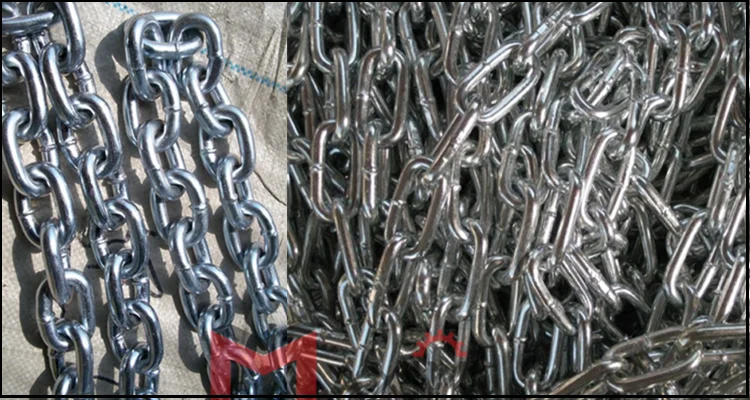

zinc plating or HDG or black all is available

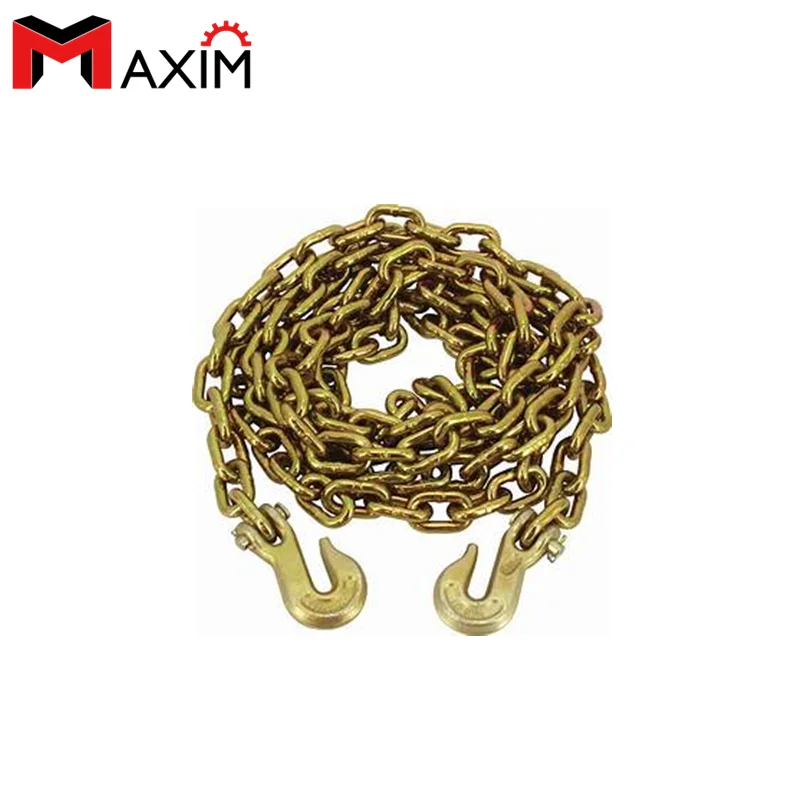

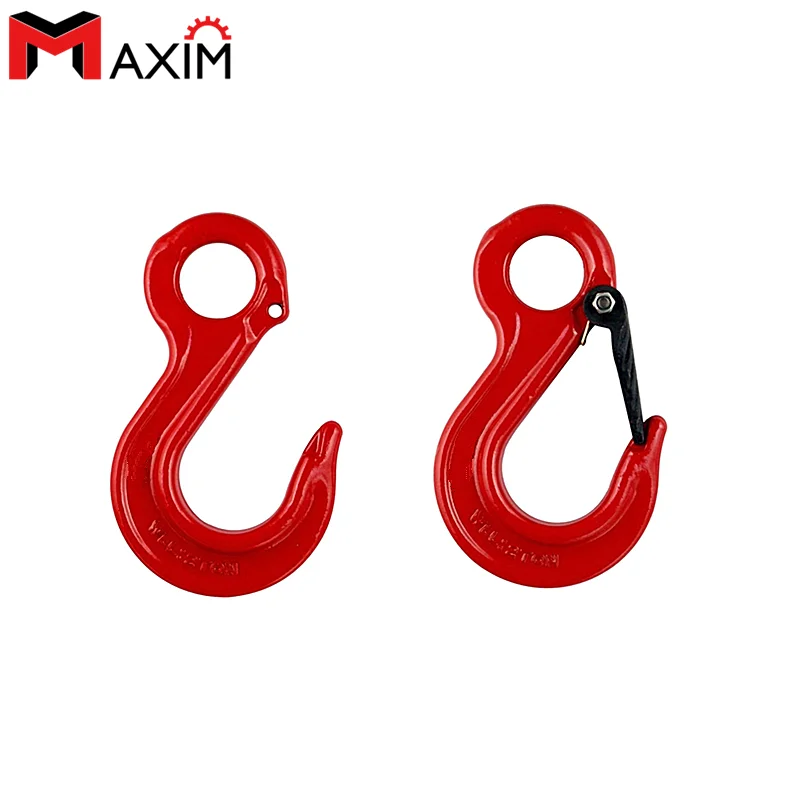

assembled  hooks

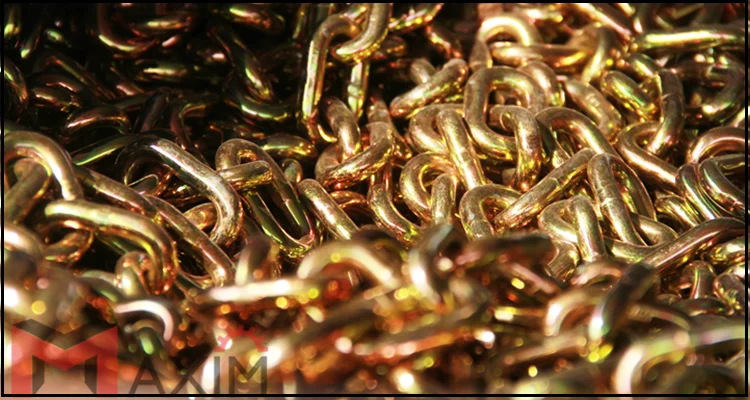

high tensile strength of the alloy  chain

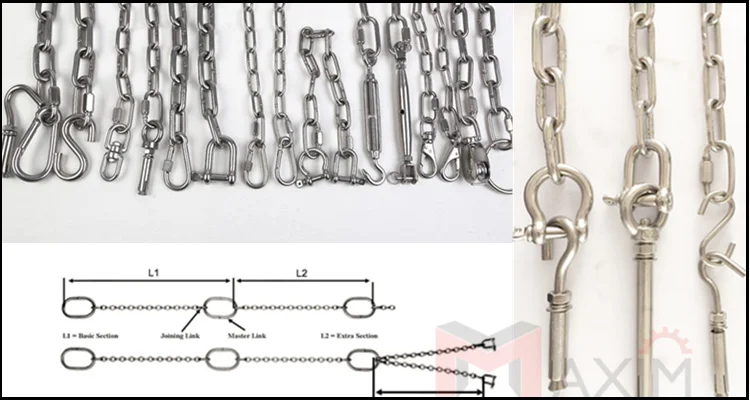

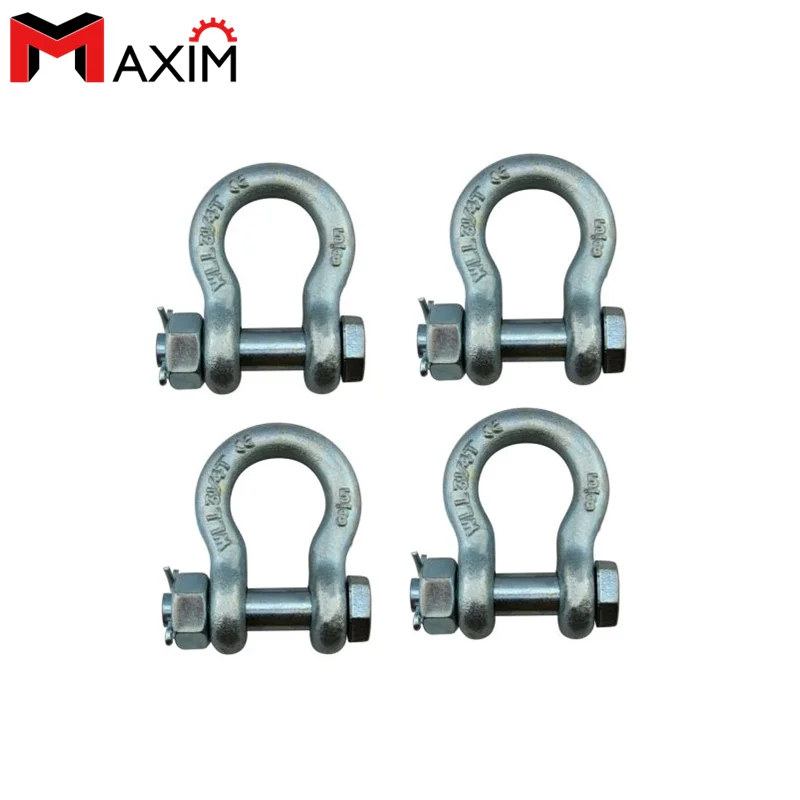

assembled with chain clamp /shackle/hooks/pear link



Related Products

YOU MAY ALSO LIKE:

FAQ

Typical questions asked about products:

- - Is the item durable?


    Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is steel, alloy steel.  Each parts were  forged overall.


- - Is this item easy to use?



  Dear customer, Yes, they are. Just welding it together with the machine or equipment basement, then connecting it with hooks, chains, wire rope fittings, shackles, webbing straps,pulley blocks to lifing.


- Can I just buy 1 set? As I only need one set for now.


   dear, MOQ of this products is 100pcs, if we have them in stock, that can ship 1 or small order for you.

Packing & Delivery

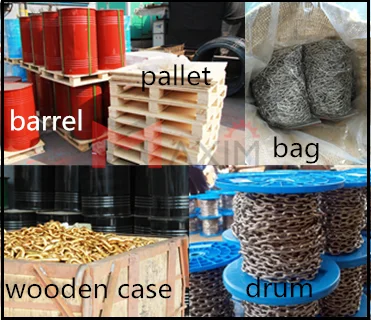

Packaging



Packaging Details
1hot dip galvanized chain with pallet
2.chain was packaged by barrel
3.can also packaged by wooden case/drum.
4.Packaged can be customized.

Shipment



Shipping Details


1.CIF price is also competitive through our old shipping agents.
2.Shipment to your door address is available.
3.15 days can be shipped in usual.
4.Ocean, air, train all is no problem.
Our Company

About US

Lifting Equipment,Trailer Equipment and Industrial Supplies, Qingdao Maxim International Import And Export Co.,ltd, has been servicing all industries including manufacturing industry,oil mining,port&road construction, marine, machinery,ocean projects,logistic,car&truck industry and other engineering requirements since 2003.Independently owned and operated the company has had substantial growth and has become one of the largest suppliers of industry equipment in China.

We are factory for rigging and trailer parts in past years, based on over 15 years' products experience and supplier resources in domestic markets, we found the best and high efficiency service way for customers gradually------one-stop service station,so Maxim International was borned. We are an "Industrial Warehouse", with all your requirements catered for and speedy deliveries to global customers.

Be honest, be sincere ,be your best consultant and supplier. Providing the most suitable Chinese products as you required.


*over 15 years production experience  *products exporting in the past 11years *24hours online service  *Qualified quality gurantee  *Acceptable price * stronger QC and sales team * very good relationship with other   old professional  lifting factories in lifting&trailer industry.
