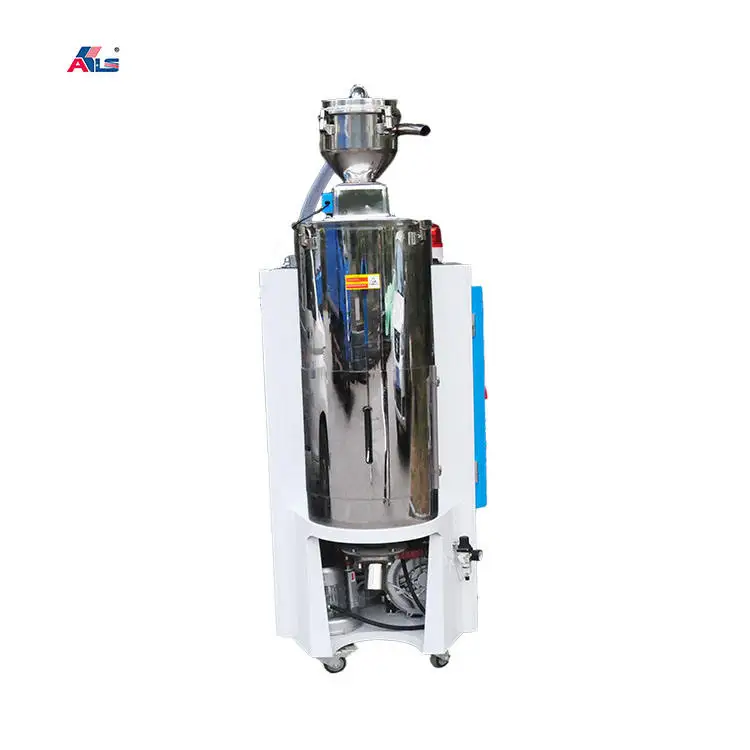

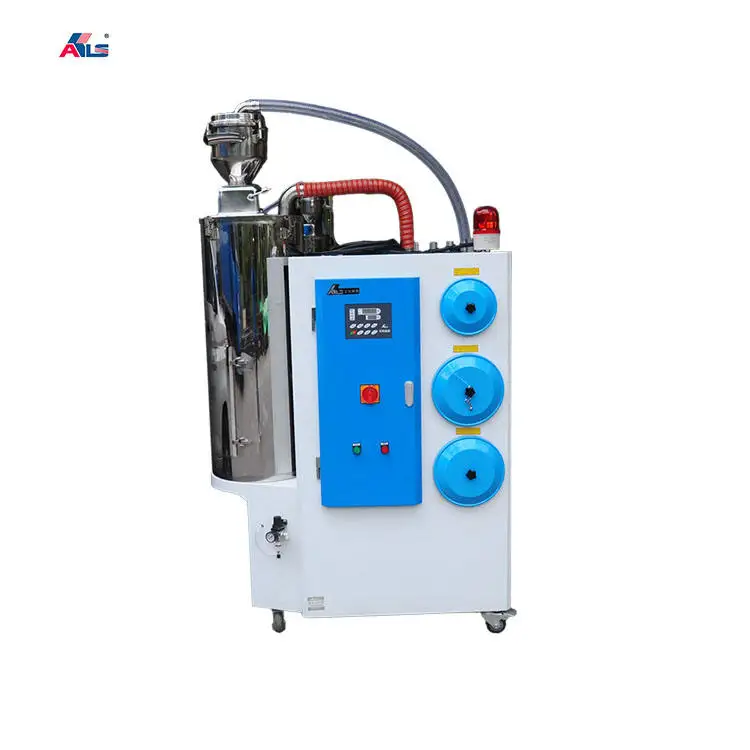

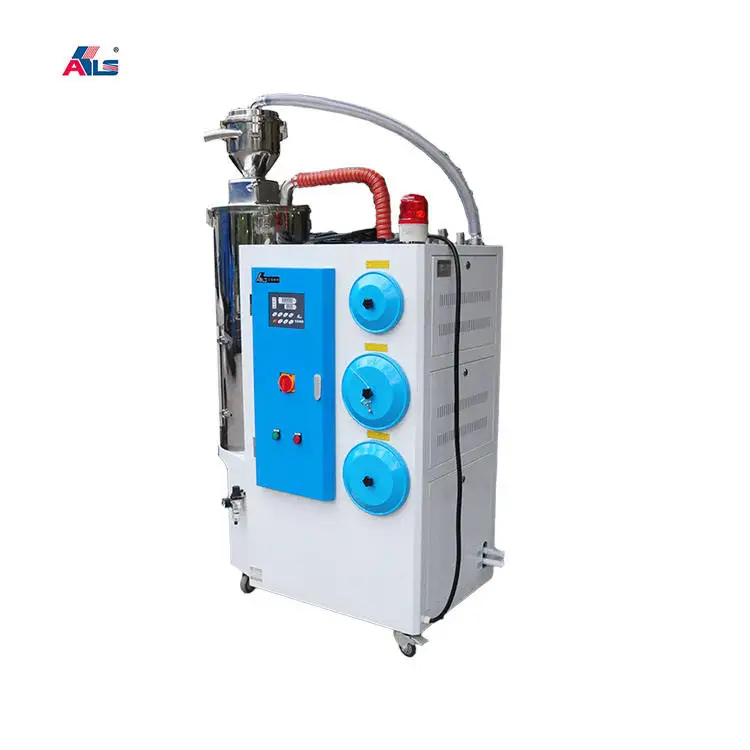

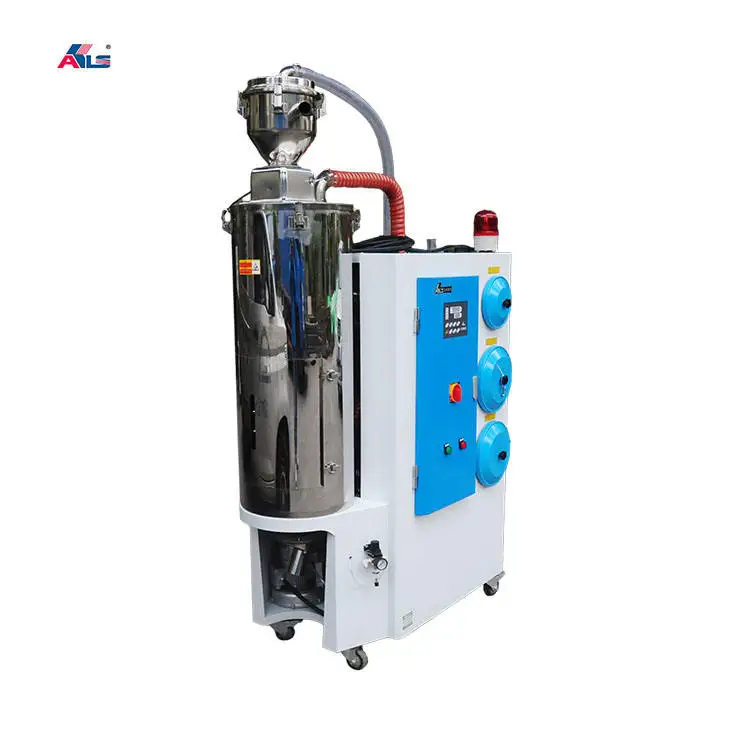

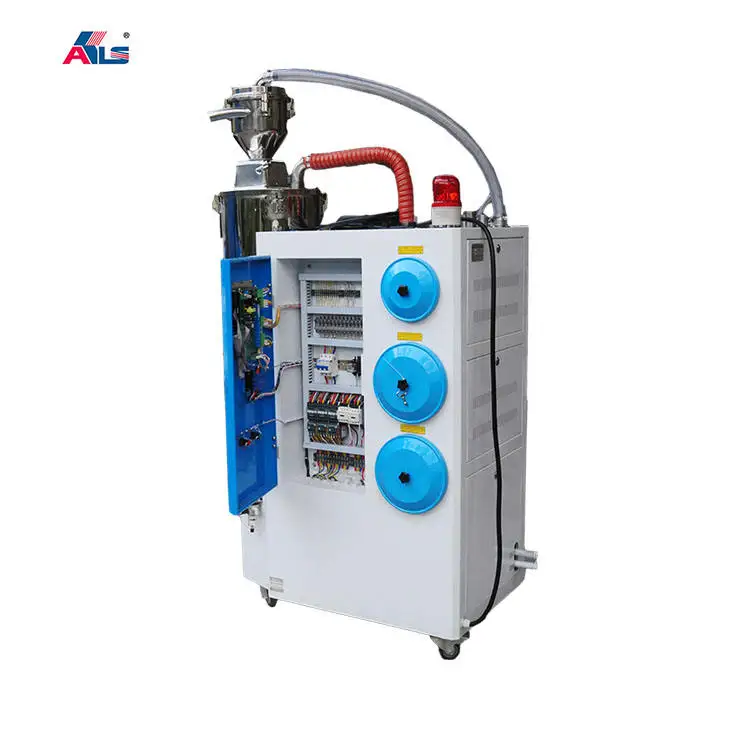

3 In 1 Compact Dryers Dehumidifier And Hot Air Hopper Dryer With Auto Loader
- Category: Plastic Raw Material Machinery >>>
- Supplier: Dongguan Excellence Technology Co. Ltd.
Share on (1600737320815):
Product Overview
Description
Video outgoing-inspection:Provided | Electric Heating Power(kW):13 kW |
Warranty of core components:1 Year | Core Components:Pump |
Weight (KG):650 KG | Place of Origin:China |
Hopper Capacity:300kg | Air Flow:300 M3/h |

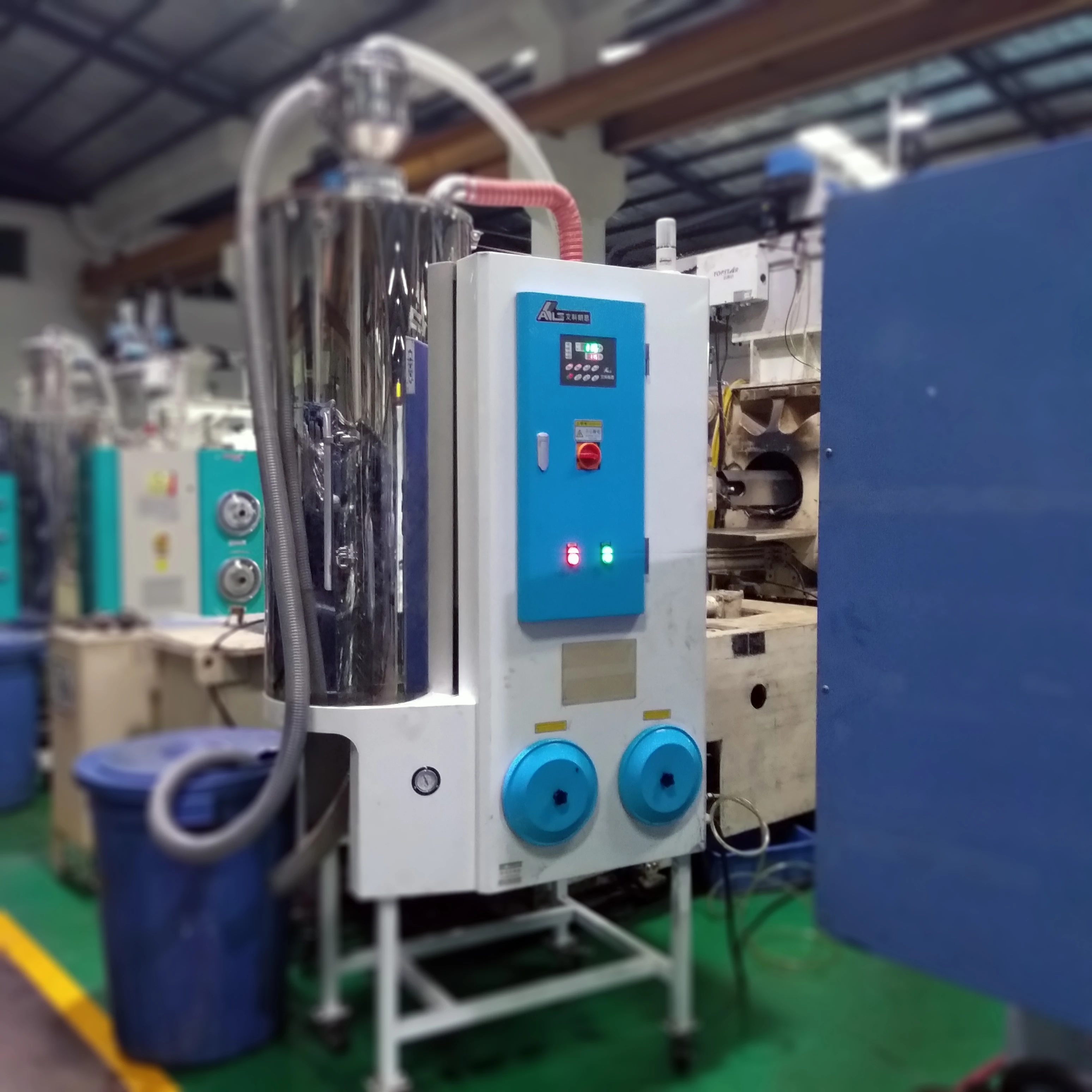

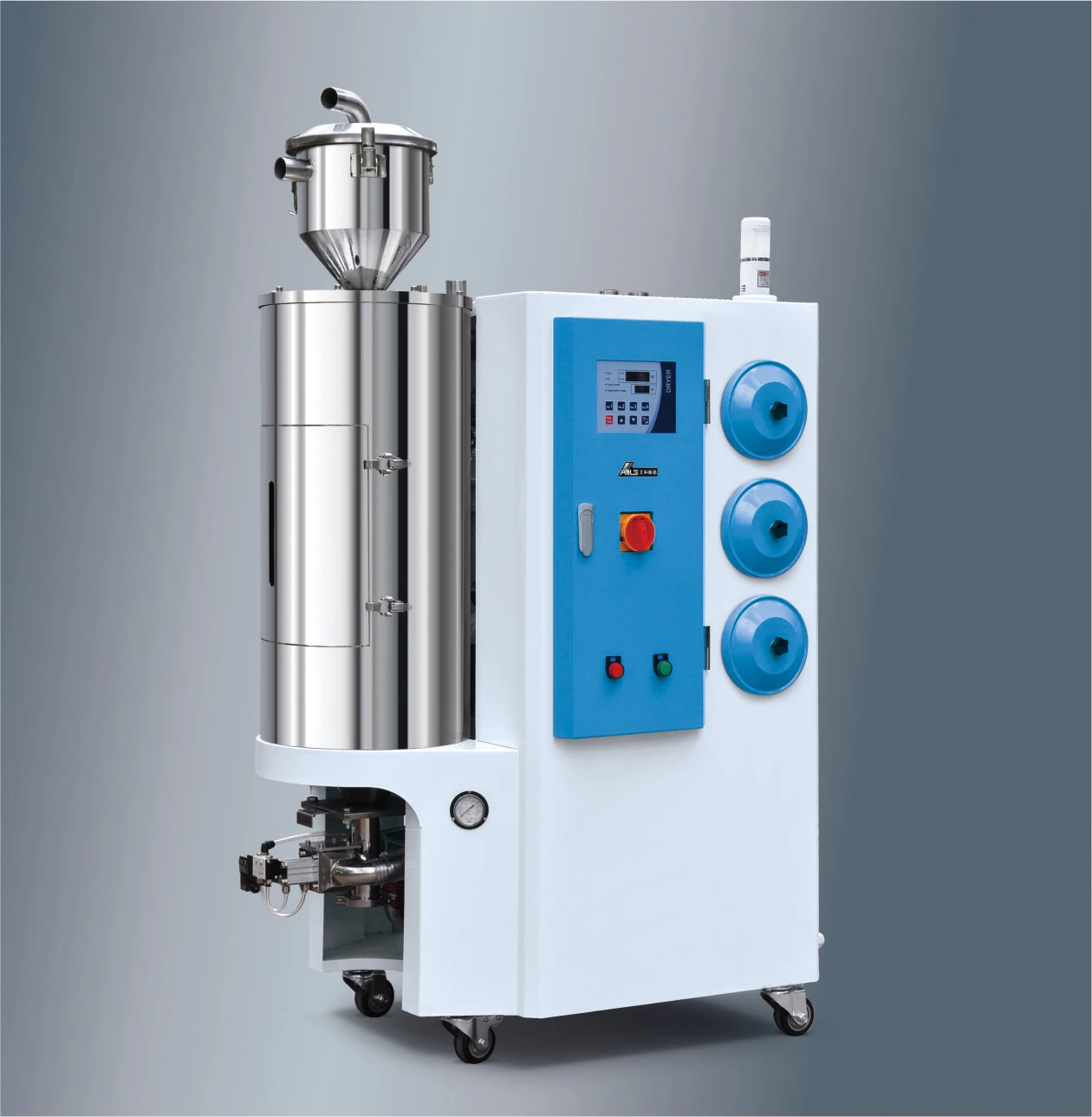

ACD Series ALL IN ONE Honeycomb Rotary Wheel Dehumidifying Dryer

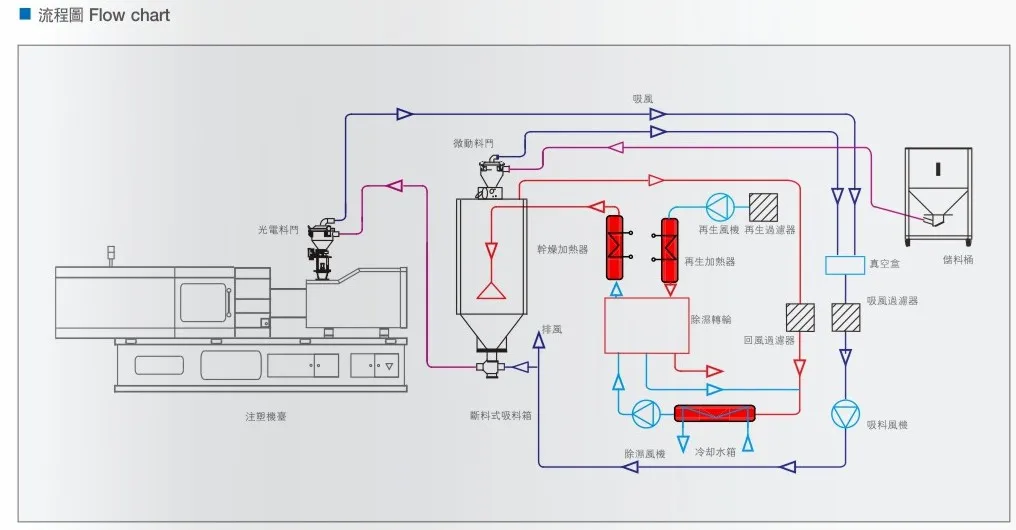

The ACD series “All-in-One”compact dryers combine drying, dehumidifying and conveying functions in a single unit. Mainly by the turn wheel regeneration desiccant system blow dry type stainless steel heat preservation material barrels, optical feed system with intelligent PID temperature control system and circuit control system.It’s widely used in all kinds of plastic raw materials, PC, PBT, LCP, PET, etc., can reach to -40 dew-point under ideal condition , this series of products applied the AD series honeycomb wheel dehumidifier collocation type with stainless steel
under European insulation dry material barrel.
All series USES the P.I.D temperature control system for the standard equipment, the other provides PLC control with LCD touch human-computer interface for the choose and buy, dew-point meter and automatic packing machine for matching.
under European insulation dry material barrel.
All series USES the P.I.D temperature control system for the standard equipment, the other provides PLC control with LCD touch human-computer interface for the choose and buy, dew-point meter and automatic packing machine for matching.
Model Feature
●Stable supply to 40℃below the dehumidification air dew point ,dew point stable.
●PID temperature controlling system ,low power consumption,high efficiency.
●Using no-contacting solid state relay control heating (distribution);
●All stainless steel feeding system;
●Closed circle back dehumidification system.
●Standard configuration is 3 injection molding of the raw material supply,the highest could e configured for 6.
●Simple operation layout could understand the condition of machine running,clearly.
●Intelligent Fault alarm and could make an appointment time, multiple protection devices.
Optional dew point meter could monitor the dew point at any time .
●PID temperature controlling system ,low power consumption,high efficiency.
●Using no-contacting solid state relay control heating (distribution);
●All stainless steel feeding system;
●Closed circle back dehumidification system.
●Standard configuration is 3 injection molding of the raw material supply,the highest could e configured for 6.
●Simple operation layout could understand the condition of machine running,clearly.
●Intelligent Fault alarm and could make an appointment time, multiple protection devices.
Optional dew point meter could monitor the dew point at any time .
Blower
Utilize high quality super power blower, provide stable powerful output as well as lower noise, ensure constant running and long life time.

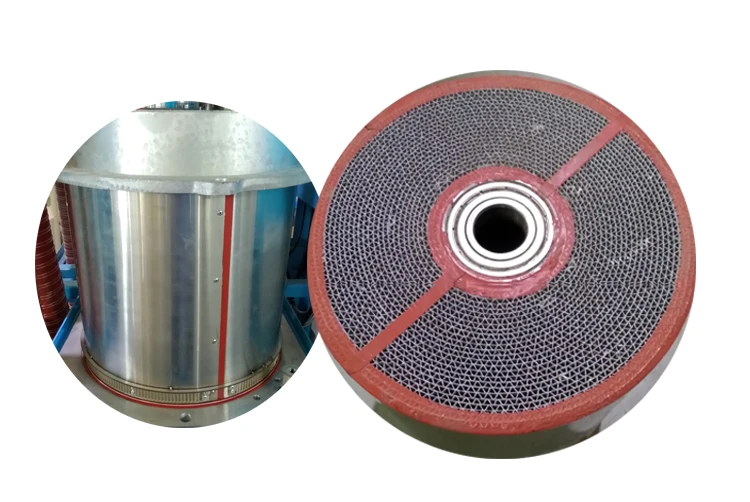

Honeycomb Wheel
The main body of the honeycomb wheel is composed of ceramic fibers and organic additives made of ceramic hive, and then molecular sieve and silicone as the basic material sintered by high temperature crystallization, so that the surface is hard and strongly adsorbed inside the hive, so it will not be like the general barrel or turntable molecules due to aging powder particles with dry ingested dry ingle stoic contamination plastic, and the life of the hive wheel can not be cleaned like ordinary easy to fill or often Wet backwind through the numerous small holes in the beehive wheel will be quickly absorbed by molecular sieve, so when it leaves the hive has been completely dehumidified and reached a very low dew point of the dry wind, regeneration and dehumidification principle similar and simultaneous, but the flow of regenerative wind opposite.

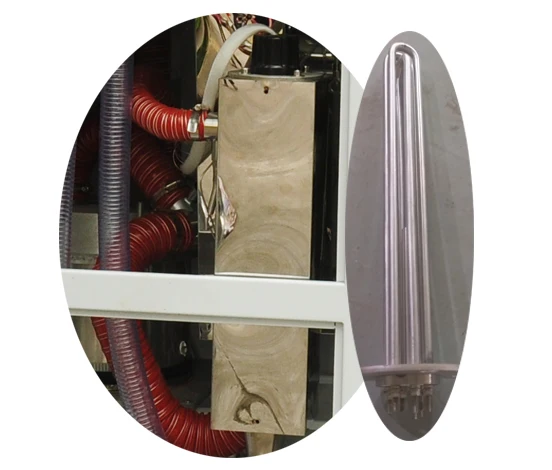

Heater

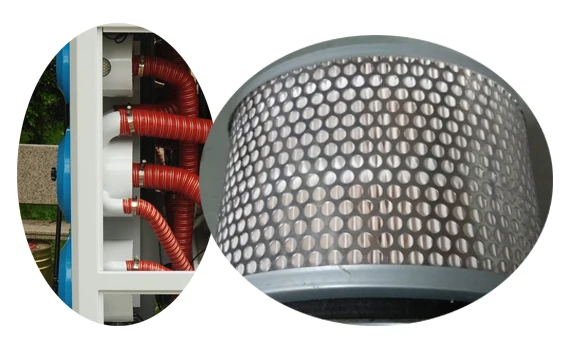

Air Filter
Equipped with three air filter, make sure clean of the air into the pellets.

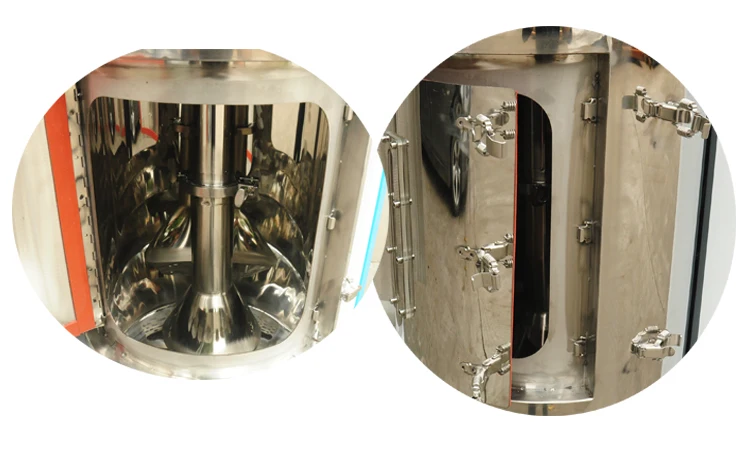

SS Hopper
Double layer stainless steel hopper with insulation foam, enhance the efficiency of heating and saving energy.
Through the clear invisible window, can observe the level of material in hopper.

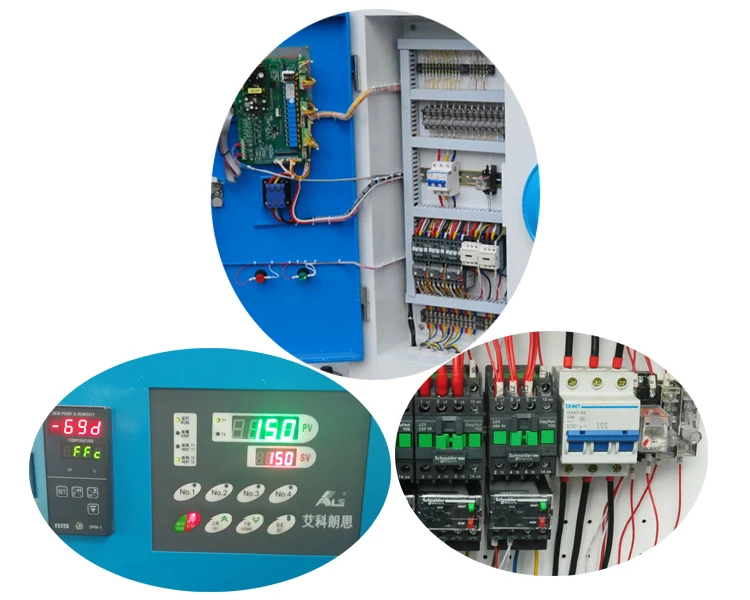

Electricity cabinet
Utilize international famous brand electrical and control accessories, such as Schneider,Omron, CHNT,etc, provide stable and reliable performance.
1、Q: Are you a factory or trade company?
A: We are factory established in 2006 with more than 50 staffs.
2、Q: What’s the MOQ？
A:Only 1 SET.
A:Only 1 SET.
3、Q: Do you accept OEM/ODM?
A: Yes, we accept OEM/ODM according customer’ s requirement.
4、Q:Do you inspect your product 100% before shipment?
A: We have strict quality system through the entire process of production, include in- process inspection and final inspection to make sure all products delivered to our customer are qualified.
5、Q:How long is the delivery time?
A: We have stocks for many models within 3 days for shipment. It depends on the models and quantities for those out of
stock, usually the lead time is 5-20 days.
stock, usually the lead time is 5-20 days.
6、Q: What’ s the payment terms？
A: When the amount is less than $1000, 100% in advance,and when more than $1000, 30% deposit,70% balance before shipment.
7、Q: How about the warranty?
A: We provide spare parts free within warranty of one year due to quality issues. Expired the warranty, we charge the cost price for replacement parts.
8、Q: And what’ s the after -sales service?
A: We provide video technical support and online support, as well as service on site available.
