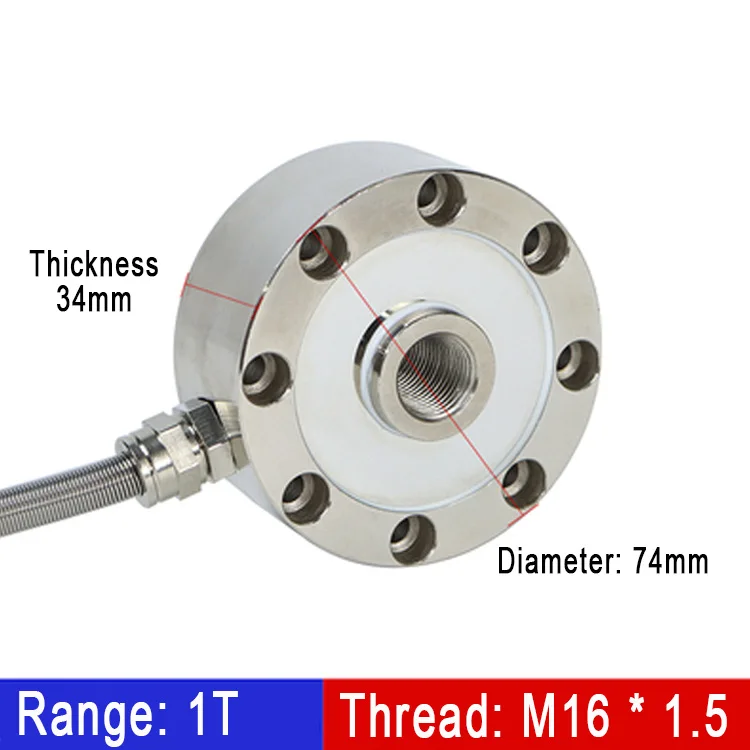

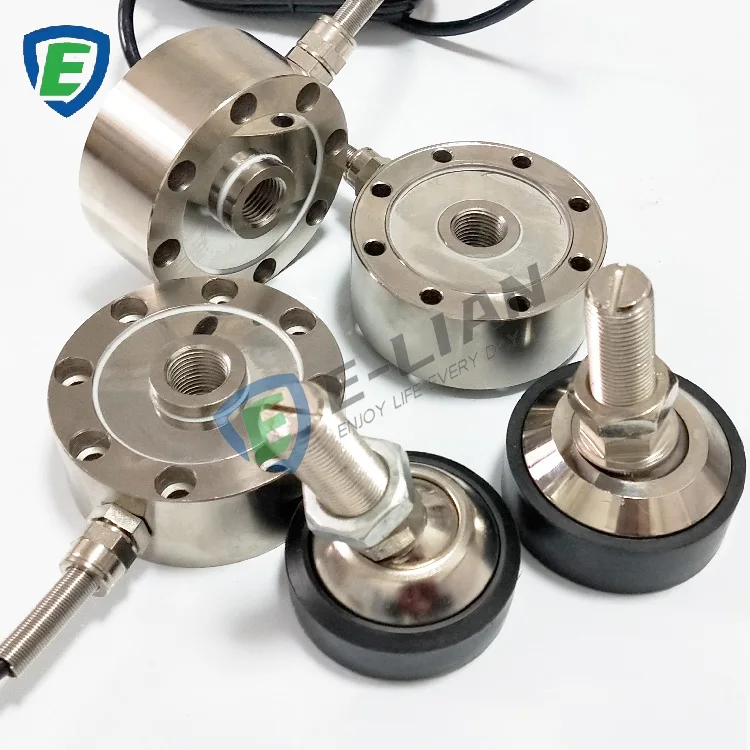

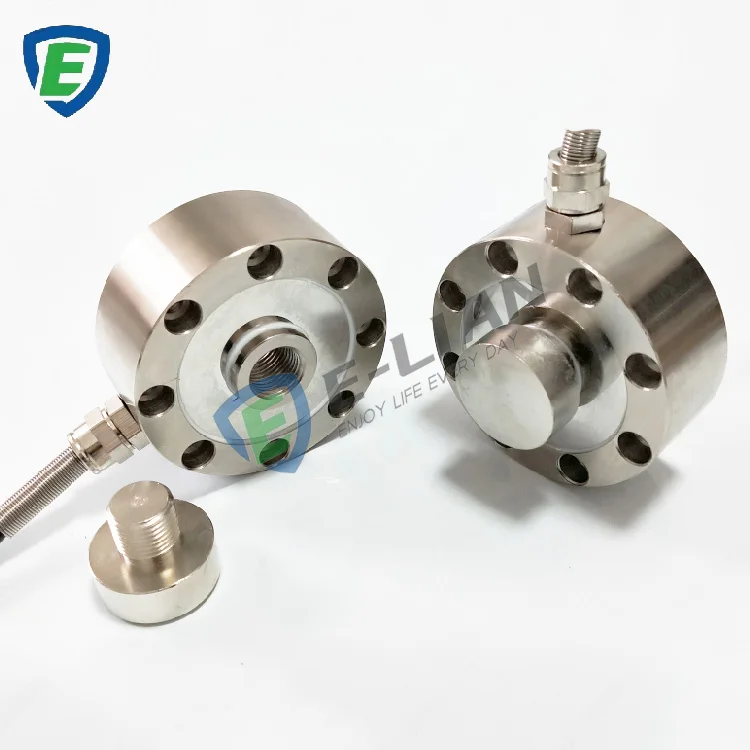

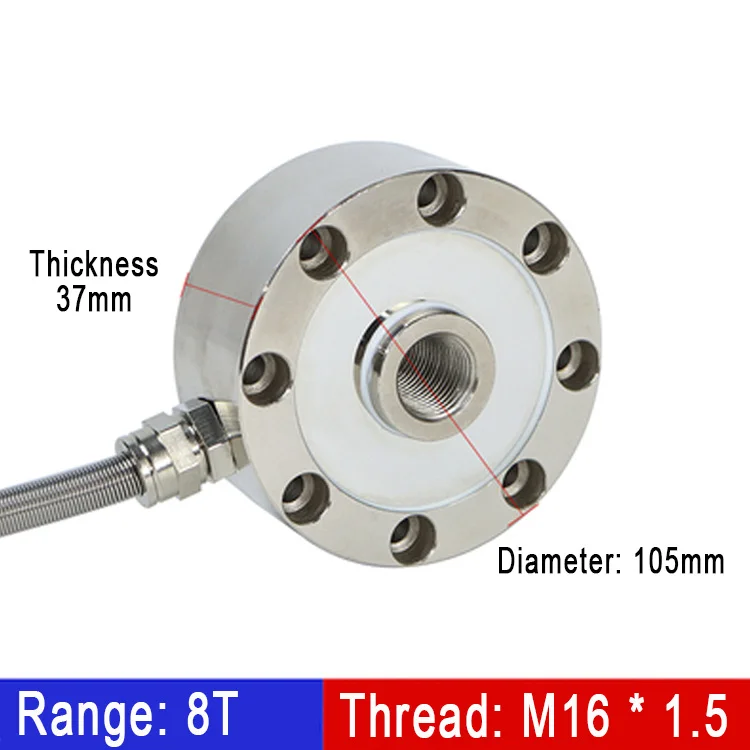

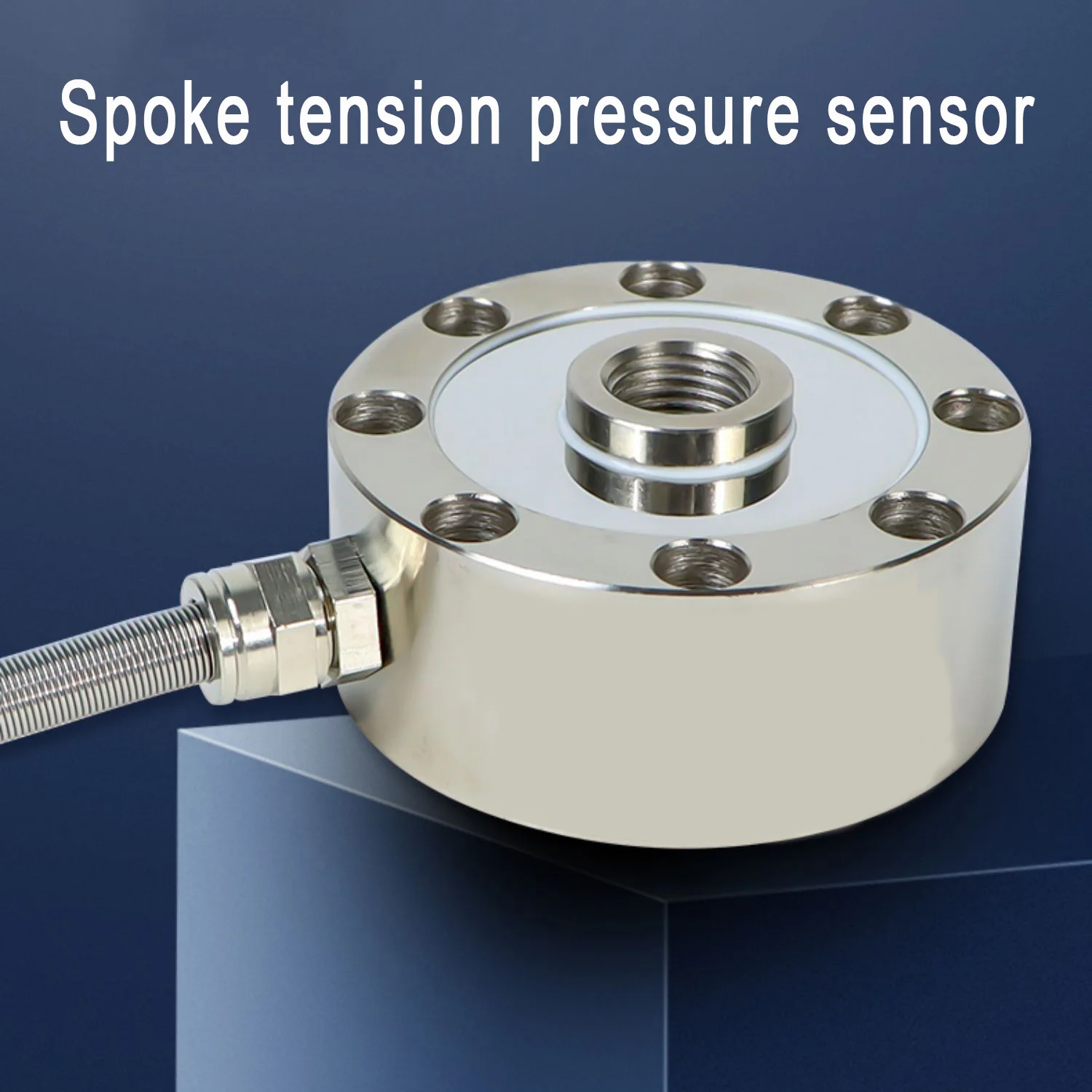

Industrial weighing donut compression spoke type load cell 1 ton 1000ton
- Category: Sensors >>>
- Supplier: Shaanxi Elian Technology Co. Ltd.
Share on (1600738865007):
Product Overview
Description
Product Description

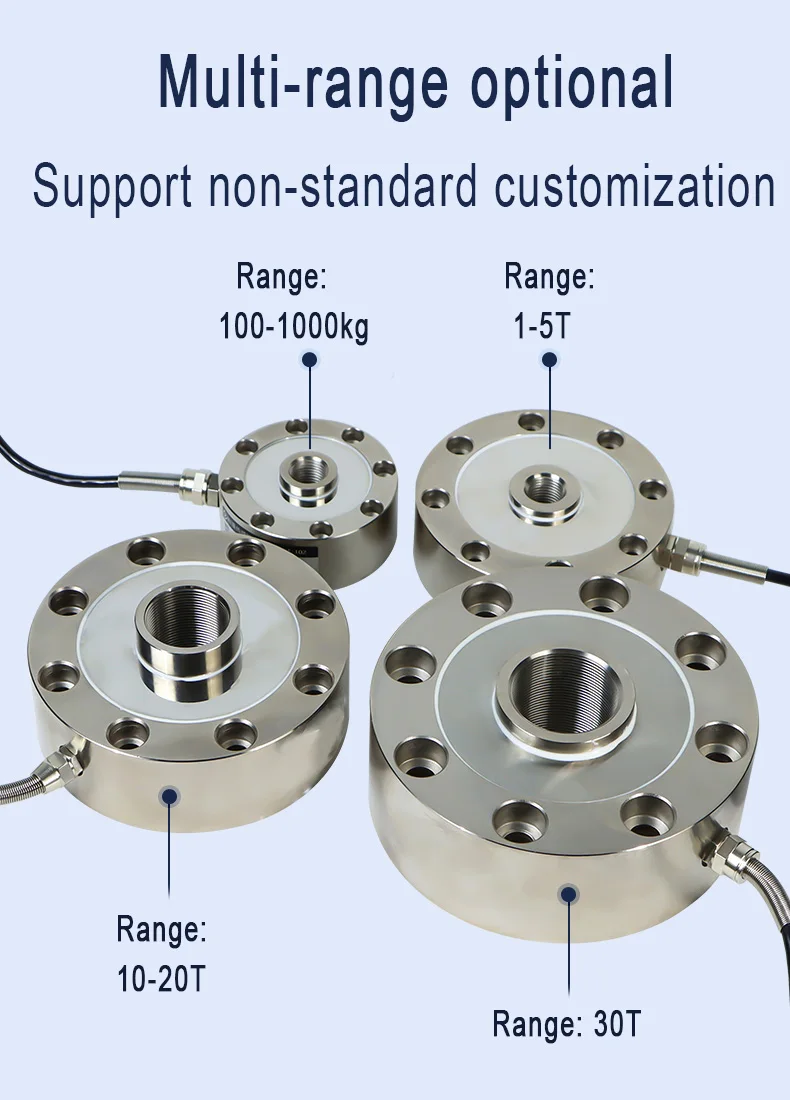

| range | 0 -1000T |
| Output sensitivity | 2.0 ± 10% mV/V |
| Zero point output | ± 1% F. S |
| Nonlinear | 0.05%F.S |
| lagging | 0.05%F.S |
| Repeatability | 0.03%F.S. |
| Creep (30 minutes) | 0.03%F.S |
| Temperature sensitivity drift | 0.03%F.S./10°C |
| Zero temperature drift | 0.03%F.S./10°C |
| Response frequency | 10kHz |

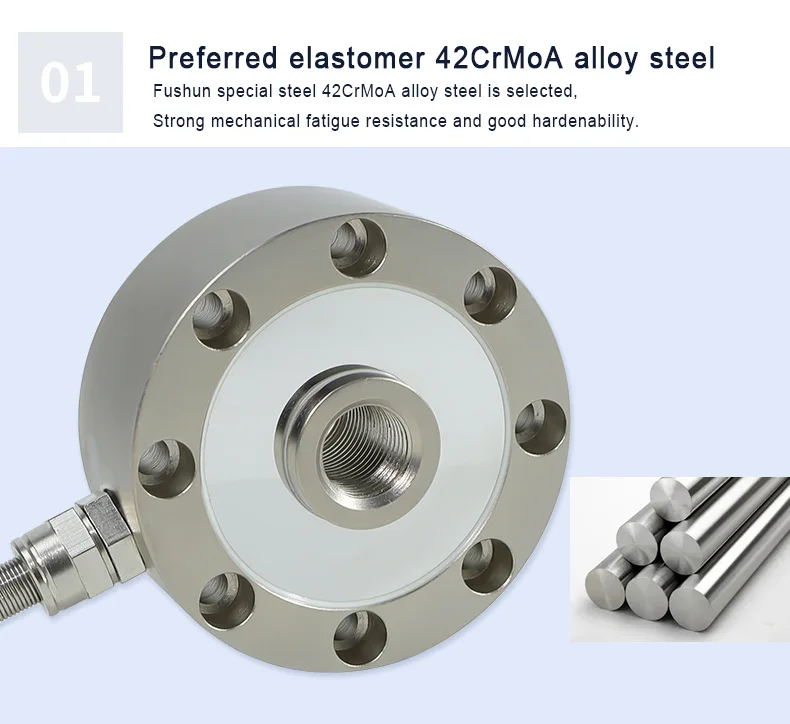

| texture of material | Alloy steel |
| impedance | 20-1000KG:700/1400Q1-30T:700Q 50-500T:1400Q |
| insulation resistance | >5000MQ/100VDC |
| Operating voltage | DC5-15V |
| Operating temperature range | -20-80°C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Cable specification | φ 5x3M |
| Cable ultimate tension | 10KG |
| TEDS optional |
Application
Packaging & Shipping
Why Choose Us
FAQ
Q:What information do I need to provide before placing an order?
A: The size, capacity and usage are necessary. Besides, we may need some other parameters.
Q:Can you design and customize products for me?
A: Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.
Q:How long is your warranty period?
A: Our warranty period is 12 months.
Q:I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?
A: We are delighted to meet you in China and really welcome you to communicate technical questions with us. If your coming could establish cooperative relationship, we are also delighted to pay travel expense for you..
Q: What are the applications of spoke type load cell?

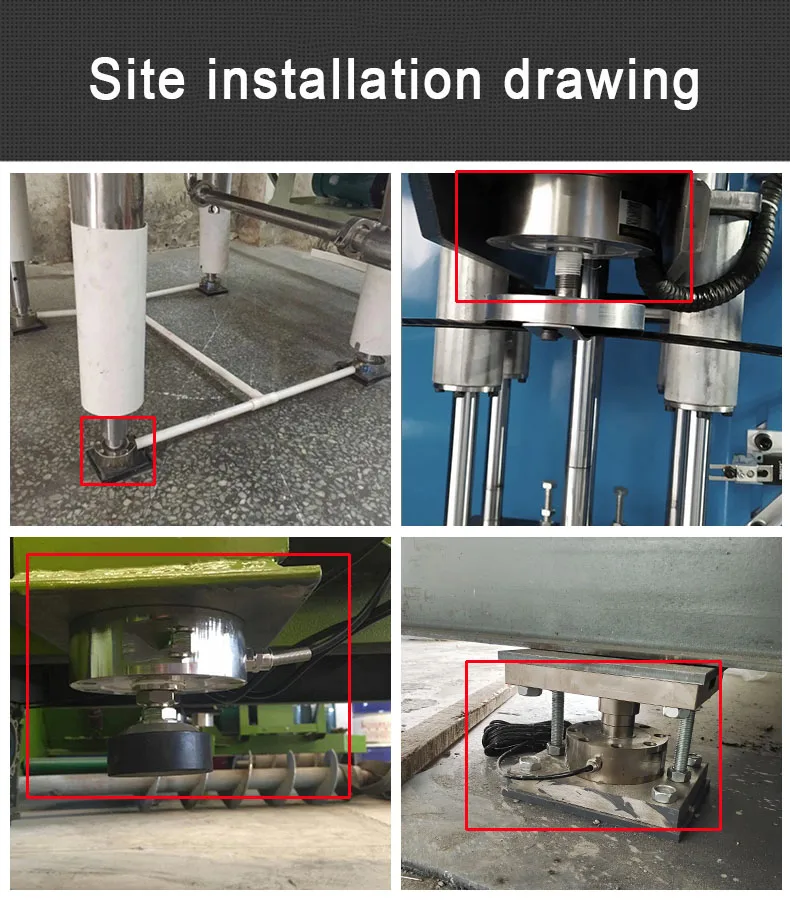

A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.
