Traffic Safety Eva Buckets Rolling Anti Crash Guardrail Road Roller Barrier
- Category: Traffic Barriers >>>
- Supplier: Qingdao Florescence Marine Supply Co. Ltd.
Share on (1600739865503):
Product Overview
Description
Product Description
What is Rolling Barrier?
Rolling Barrier redirects errant vehicle to the right direction by effectively absorbing the impact energy with rollers, upper and lower rails (the impact-energy is converted into rotational energy).
Our Safety Roller Crash Barrier, defined as a “semi rigid” safety barrier, demonstrated extremely high performance scores in three key rating areas:
* Structural Adequacy – the ability for the barrier to remain functional post a crash impact. This is a critical when considering the time to repair barriers after a crash event
* Occupant Risk – the ability to minimise impact injury to vehicle occupants
* Vehicle Trajectory Post Impact – the ability to keep a vehicle’s movement directed in the direction of original travel. The key being assessed is the redirection angle to minimise or eliminate the likelihood of an errant vehicle being driven into oncoming traffic lanes, or into pedestrians on the roadside, property or furniture
* Structural Adequacy – the ability for the barrier to remain functional post a crash impact. This is a critical when considering the time to repair barriers after a crash event
* Occupant Risk – the ability to minimise impact injury to vehicle occupants
* Vehicle Trajectory Post Impact – the ability to keep a vehicle’s movement directed in the direction of original travel. The key being assessed is the redirection angle to minimise or eliminate the likelihood of an errant vehicle being driven into oncoming traffic lanes, or into pedestrians on the roadside, property or furniture
Features
Key Features
* Easy installation and maintenance on curved road
* The high-elastic synthetic resin roller is hardly damaged by impact. (Cover: PE, Core: Urethane)
* Powder coating on rails with various colors is available upon request.
* Minimizes damage on motorists and vehicles with rollers and dual guardrails.
* The high-elastic synthetic resin roller is hardly damaged by impact. (Cover: PE, Core: Urethane)
* Powder coating on rails with various colors is available upon request.
* Minimizes damage on motorists and vehicles with rollers and dual guardrails.
Specification
Roller | H245xφ350mm,H500xφ350,request |
Post | φ140 x 2150 x 4.5mm φ140 x 2100 x 4.5mm |
Cross Beam | 100x80x4.0x5000/5600/6000/7000 |
Turning Circle | φ182xφ145x2.0mm |
Connecting rack | 84 x 70 x 4.0mm*L430mm |
U connecting frame | 380 x 70 x 6.0mm |
Casing | φ167x480x8.0 |
Terminal | 560*310*4.0 1300*230*2.0 |
Square buckle | 46x64x4.0mm |
Bolts&Nuts | M20x60/120/140mm |
Post spacing | 700 mm or 1000 mm or custom |
Material | EVA/Polyurethane for barrel,and Q235/Q345 for guardrail |
Operating temperature | -60ºC-70ºC(-76ºF~158ºF) |
Packing & Delivery
As clients need
Product Paramenters

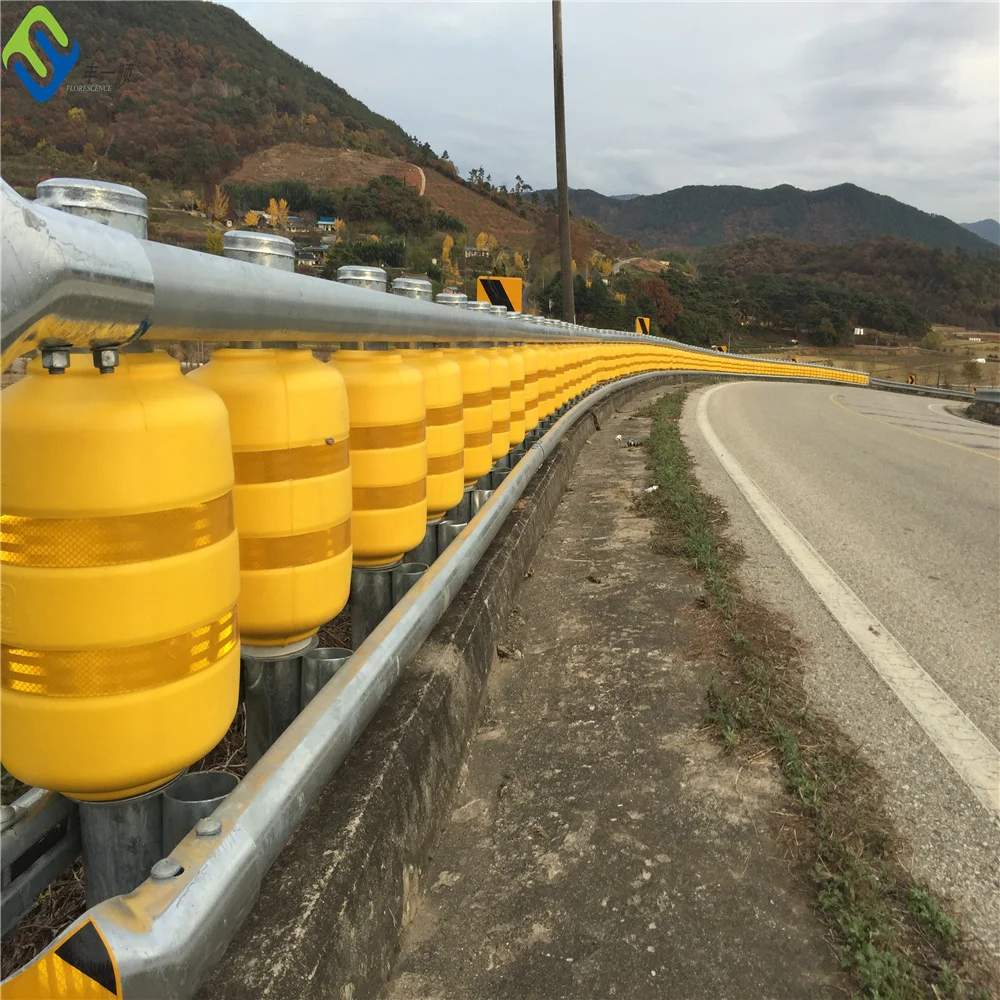

The roller system is best suited to installation at high risk sites on curves or at the entrances or exits to highways. It also
can be supplied with an end treatment. The representative said, “The key is in the absorbent material that reduces the impact forces.”

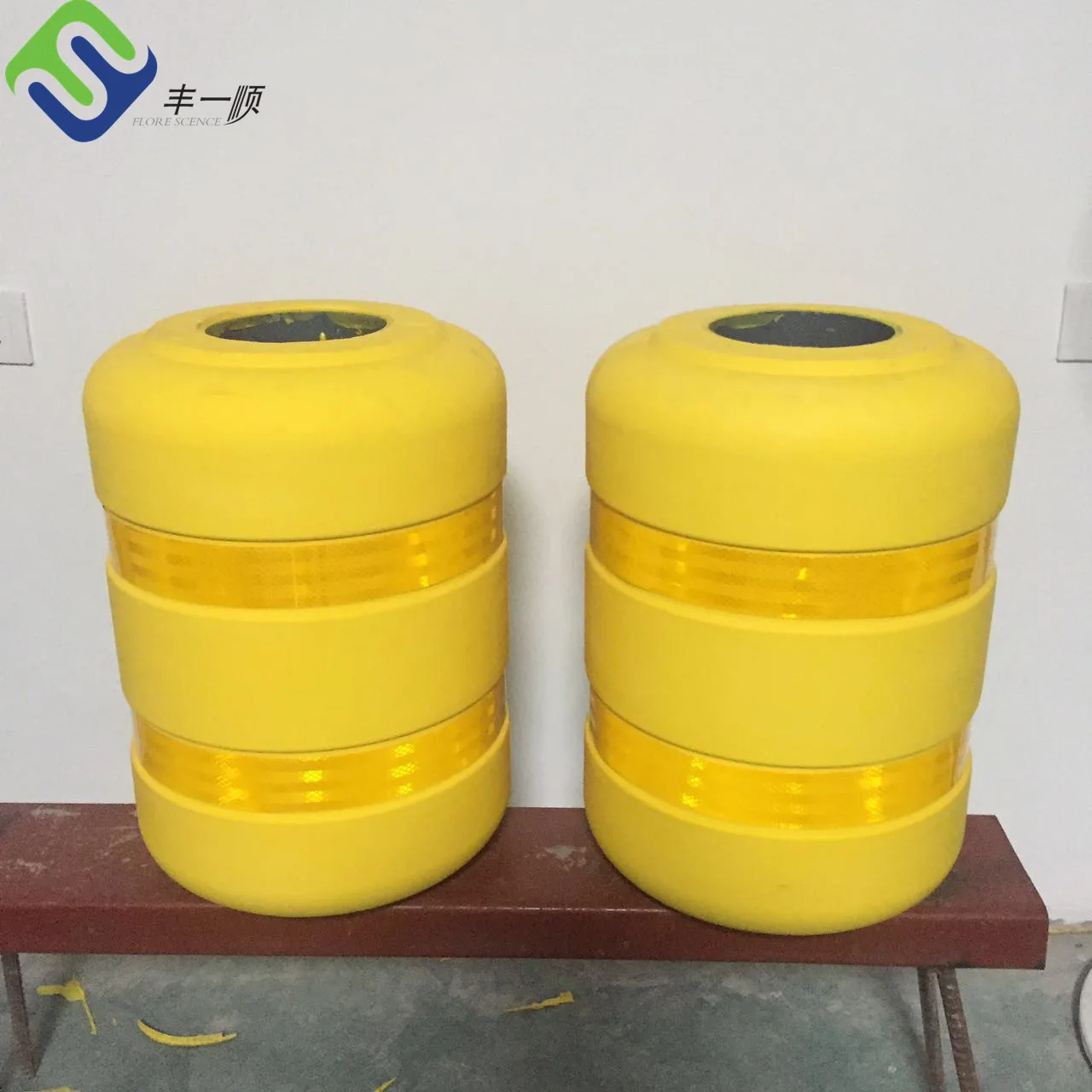

The rollers are made from an ethyl vinyl acetate (EVA) material that is highly shock absorbent, a key design feature. This
material is also said to be durable, long lasting and chemically resistant, while not suffering ageing due to UV exposure.
Following an impact with the roller barrier, the vehicle speed is reduced due to the impact absorbent properties of the rollers.
The system also deflects vehicles at a shallower angle while causing less damage than conventional barrier types.
can be supplied with an end treatment. The representative said, “The key is in the absorbent material that reduces the impact forces.”
The rollers are made from an ethyl vinyl acetate (EVA) material that is highly shock absorbent, a key design feature. This
material is also said to be durable, long lasting and chemically resistant, while not suffering ageing due to UV exposure.
Following an impact with the roller barrier, the vehicle speed is reduced due to the impact absorbent properties of the rollers.
The system also deflects vehicles at a shallower angle while causing less damage than conventional barrier types.
The standard colour choice for the rollers is yellow, although other options available from the firm include grey, red and green.
Other novel barrier products from the firm meanwhile include anti-glare screens that can be installed on highway curves as well asexit and entry ramps to prevent the lights from oncoming vehicles dazzling drivers. The firm is also testing a new metal screen system designed to cover over upright barrier posts and improve safety for fallen motorcycle riders.
Other novel barrier products from the firm meanwhile include anti-glare screens that can be installed on highway curves as well asexit and entry ramps to prevent the lights from oncoming vehicles dazzling drivers. The firm is also testing a new metal screen system designed to cover over upright barrier posts and improve safety for fallen motorcycle riders.
Company Profile
Qingdao Florescence Marine Supply Co., Ltd. is fully committed to promoting our customers development and exceeding our customers expectations in services quality. All the Florescence staff work carefully and treat people honestly. We expect to cooperate with more customers worldwide and create a better future together.
FAQ
1. who are we?
We are based in Shandong, China, start from 1992,sell to Southeast Asia(35.00%),South America(13.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Western Europe(5.00%),Central America(3.00%),Africa(2.00%),Domestic Market(2.00%),South Asia(2.00%),Southern Europe(2.00%),Oceania(2.00%),Northern Europe(2.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roller Barriers,Pneumatic Fender,Ship Launching Airbags,Marine Airbags,Dock Fender,Rubber Fender
4. why should you buy from us not from other suppliers?
1.Over 25 years extensive experience
2.Products are certificated by CCS, BV, ABS, etc.
3. Strict control of quality inspection and raw materials.
4.Possibilities for fast delivery from stock or with short lead times.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Portuguese,German,Arabic,French,Korean,Hindi,Italian
We are based in Shandong, China, start from 1992,sell to Southeast Asia(35.00%),South America(13.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Western Europe(5.00%),Central America(3.00%),Africa(2.00%),Domestic Market(2.00%),South Asia(2.00%),Southern Europe(2.00%),Oceania(2.00%),Northern Europe(2.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roller Barriers,Pneumatic Fender,Ship Launching Airbags,Marine Airbags,Dock Fender,Rubber Fender
4. why should you buy from us not from other suppliers?
1.Over 25 years extensive experience
2.Products are certificated by CCS, BV, ABS, etc.
3. Strict control of quality inspection and raw materials.
4.Possibilities for fast delivery from stock or with short lead times.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Portuguese,German,Arabic,French,Korean,Hindi,Italian
