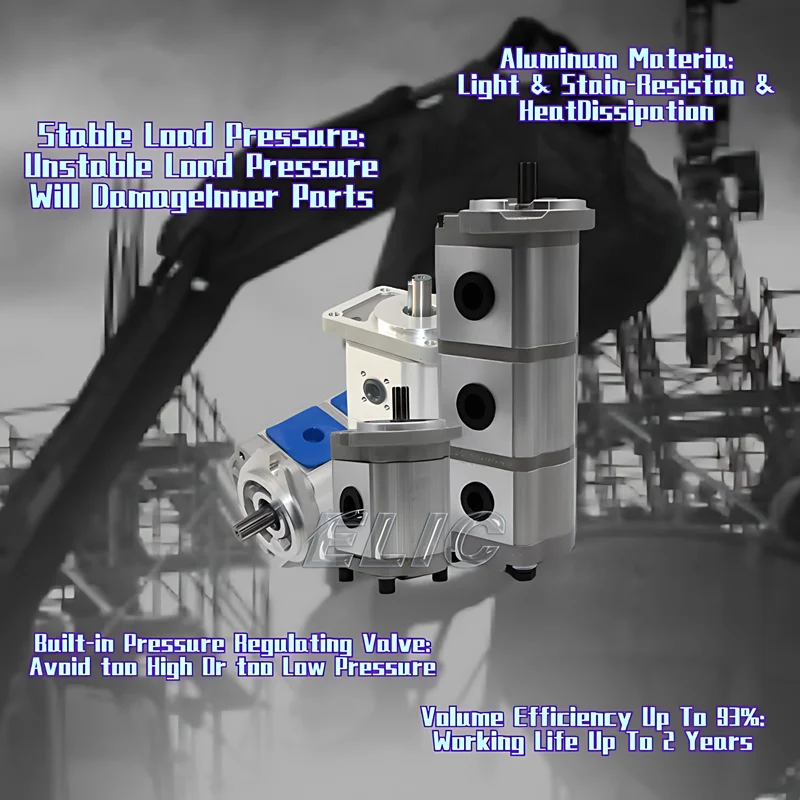

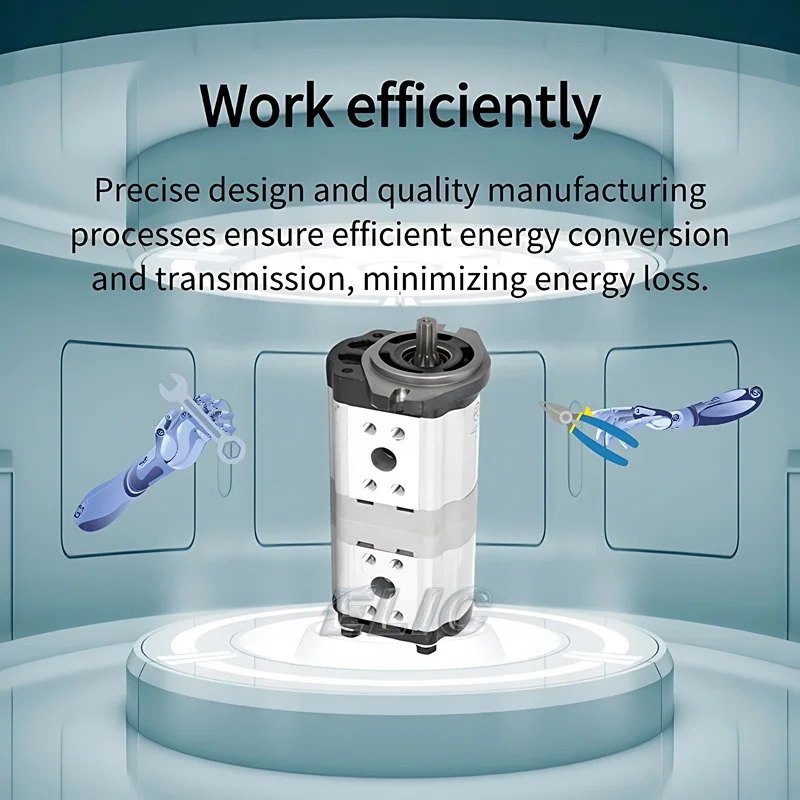

2024 New Products Mini Excavator Part Hydraulic Axial Pump WA200 1 A 705 51 20640 Triple Gear Oil Pump for KOMATSU Replacement
- Category: >>>
- Supplier: Guangzhou Sailfish Machinery&Equipment Co. Ltd.Guangzhou Ltd.
Share on (1600740066237):
Product Overview
Description
Product descriptions from the supplier
Featured Coupons, Money Saving Tips
Applicable brands and models
Available Pilot pump | Model |
For K3V/K5V series | K3V63,K7V63,K3V112,K7V125,K3V140,K5V160,K3SP36C，K3SP36B,K5V200 |
For ZX series | HPV091，HPV102,HPV116,HPV118,HPV145 |
For PC series | PC20/28,PC30/40,PC50,PC60-3,PC120-2 PC20/35MR,PC35,PC40MR,PC50UU,PC50MR,PC55/56 PC60-7,PC75UU-2,PC75,PC75UU-3,PC78,PC80-1PC78US-6,PC120-5,PC120-6,PC200-3-5,PC400-5PC510,D85,D65,D60,D60,WA100 |
For A8V/A10V series | A8V55 A8V080.A8V0107.A8V0140.A8V0160 A8V0200,A10VD43，A10VD43,A10VD43,CX55,SK60-8 |
For AP2D series | AP2D14,AP2D25,AP2D25,AP2D28,AP2D36 |
For E series | E200B,E306D,E312,E320,E330D E336D,E349D,E330C |
For PVD/PSVD series | K7SP36C，PVC80,PVC90,PVD-0B，PVD-1B,PVD-2B-36,PVD-2B-40,PVD-2B-50P,K3SP36B,PVK-2B-505PSVL-54CG,PSVD2-17E/19E/21E,PSVD2-27E |
For PSVL series | PSVL-54CG,PSVD2-17E/19E/21E,PSVD2-27E |

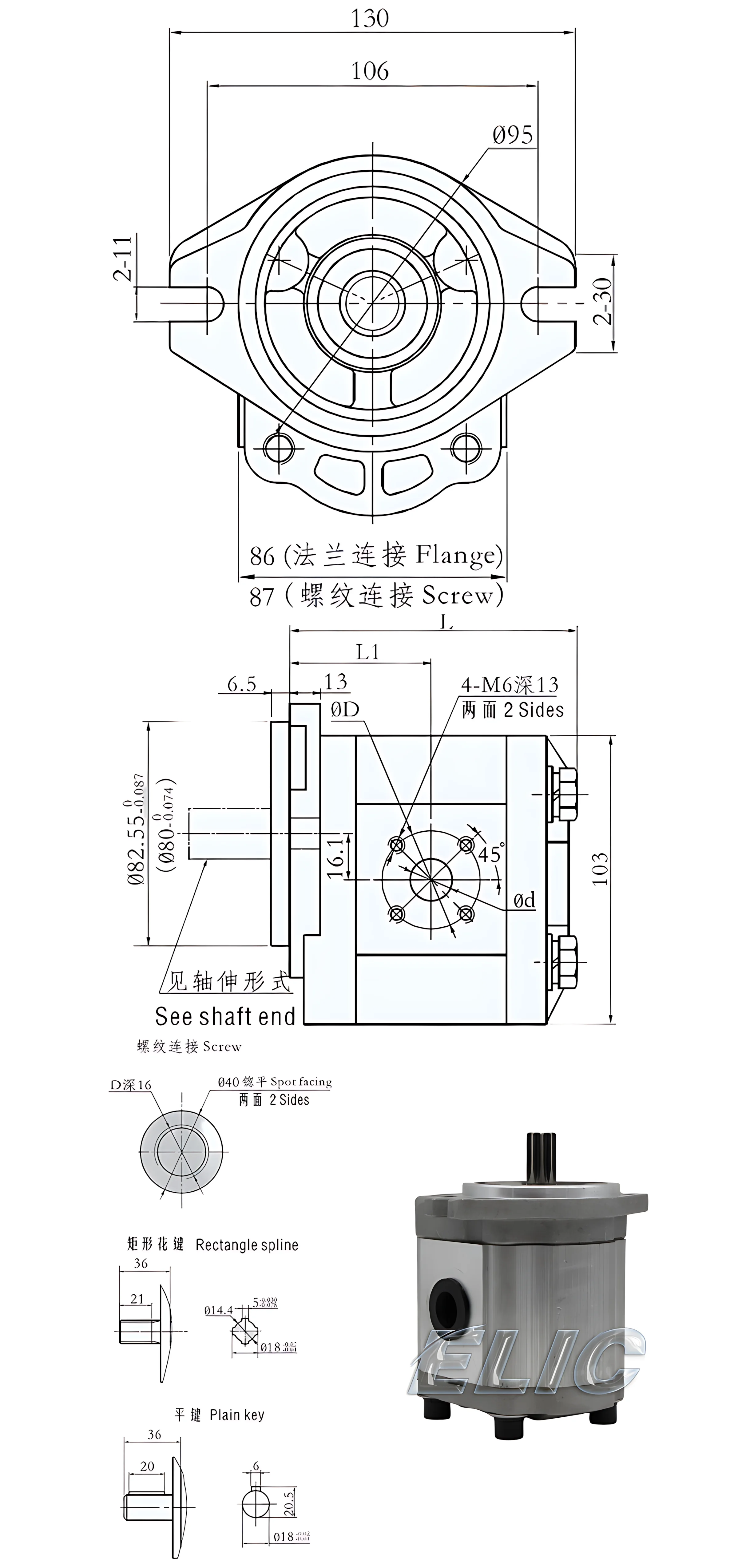

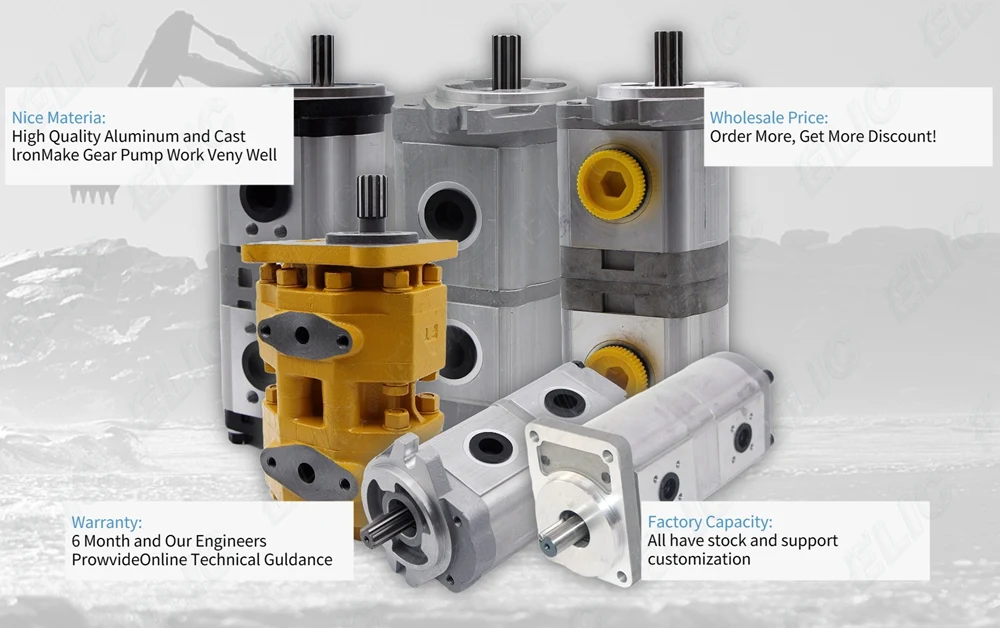

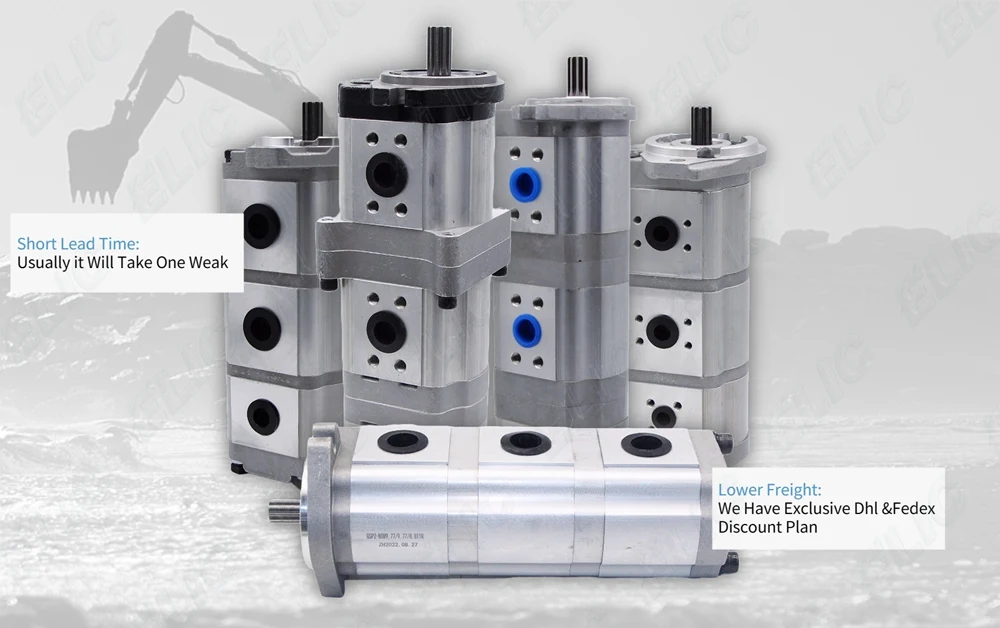

Details Images
SAE 花键参数 SAE Spec | ||||
齿数 Teeth | 9 | 10 | ||
径节 Diameter pitch | 16/32 | |||
压力角 Pressure Angle | 30° | |||
大径 Major Circle | ∅15.45 | ∅17.04 | ||
小径 Minor Circle | ∅12.28 | ∅13.86 | ||
型 号 Model | Nominal displacement(mL/r) | Pressure(Mpa ) | Speed (r/min ) | Volumetric efficiency （≥%） | Flange | Screw | L1 | L | Weight(kg ) |
CBT-F304 | 4 | 额 定 Rated：20 最高 Max：25 | 优选转速Optimum speed:1500~2500 转速范围Speed range:800~3000 | 90 | Inlet D=40 d=14 Outlet D=35 d=10 | Inlet=Inlet M22*1.5 Outlet M18*1.5 | 49 | 100 | 2.5 |
CBT-F306 | 6 | 51 | 103 | 2.6 | |||||
CBT-F308 | 8 | 52 | 106 | 2.7 | |||||
CBT-F310 | 10 | 91 | Inlet D=40 d=18 Outlet D=35 d=14 | 53.5 | 109 | 2.8 | |||
CBT-F312 | 12 | 55 | 112.5 | 2.9 | |||||
CBT-F314 | 14 | 57 | 115 | 3.0 | |||||
CBT-F316 | 16 | 92 | Inlet D=40 d=20 Outlet D=35 d=15 | 58 | 118 | 3.1 | |||
CBT-F318 | 18 | 59.5 | 121 | 3.2 | |||||
CBT-F320 | 20 | 61 | 124 | 3.3 | |||||
CBT-F322 | 22 | 63 | 128 | 3.4 |
SAE 花键参数 SAE Spec. | ||||
齿数 Teeth | 9 | 10 | ||
径节 Diameter pitch | 16/32 | |||
压力角 Pressure Angle | 30° | |||
大径 Major Circle | ∅15.45 | ∅17.04 | ||
小径 Minor Circle | ∅12.28 | ∅13.86 | ||

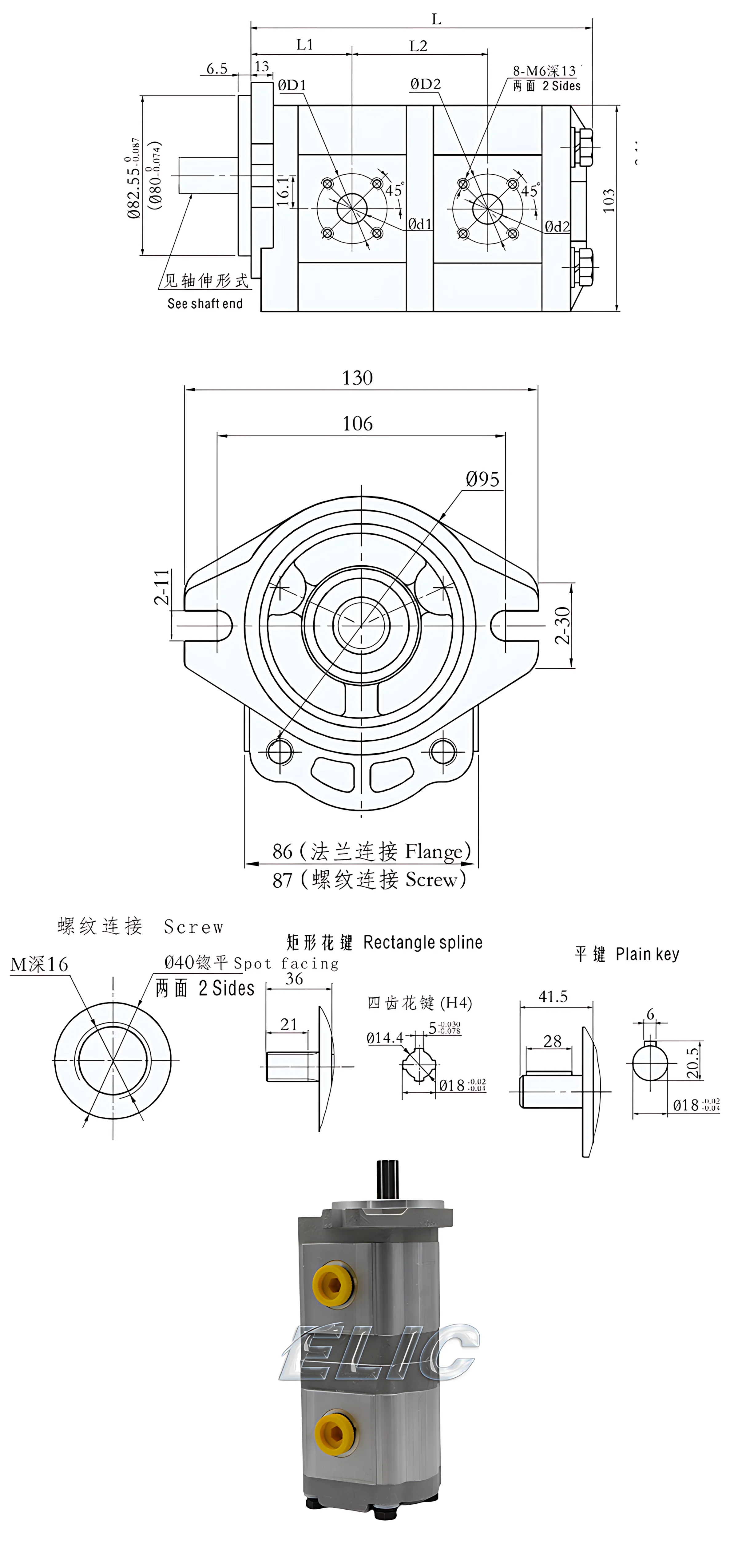

型 号 Model | Nominal displacement(mL/r) Fore pump/ hind pump | Pressure(Mpa)Fore pump/hind pump | Speed (r/min) | Flange | Flange | Screw | L1/L2 | L | Weight ( kg ) | |
CBTL-F308/F308 | 08/08 | Rated=20 Max=25 Rated=16 Max=20 | otimum speed=1500~2500 Speed range=800~3000 | lnlet D1/D2=40/40 Outlet D1/D2=35/35 | d1/d2=14/14 d1/d2=10/10 | lnlet=M22*1.5 Outlet=M1.8*1.5 | 52/119 | 173 | 4.5 | |
CBTL-F308/F306 | 10/06 | d1/d2=18/14 d1/d2=14/10 | 54/122 | 176 | 4.8 | |||||
CBTL-F308/F312 | 12/12 | d1/d2=18/18 d1/d2=14/14 | 55/129 | 186 | 5.3 | |||||
CBTL-F308/F316 | 16/16 | d1/d2=20/20 d1/d2=15/15 | 58/137 | 197 | 5.6 | |||||
CBTL-F308/F3 | 20/20 | Rated=16 Max=20 | d1/d2=14/14 d1/d2=10/10 | 61/146 | 208.5 | 6.1 | ||||
SAE 花键参数 SAE Spec.(∅) | ||
径节 Diameter pitch | 16/32 | |
齿数 Teeth | 9 | |
压力角 Pressure Angle | 30° | |
大径 Major Circle | ∅15.45 | |
小径 Minor Circle | ∅12.28 | |
平齿根 Flal leeth root | ||

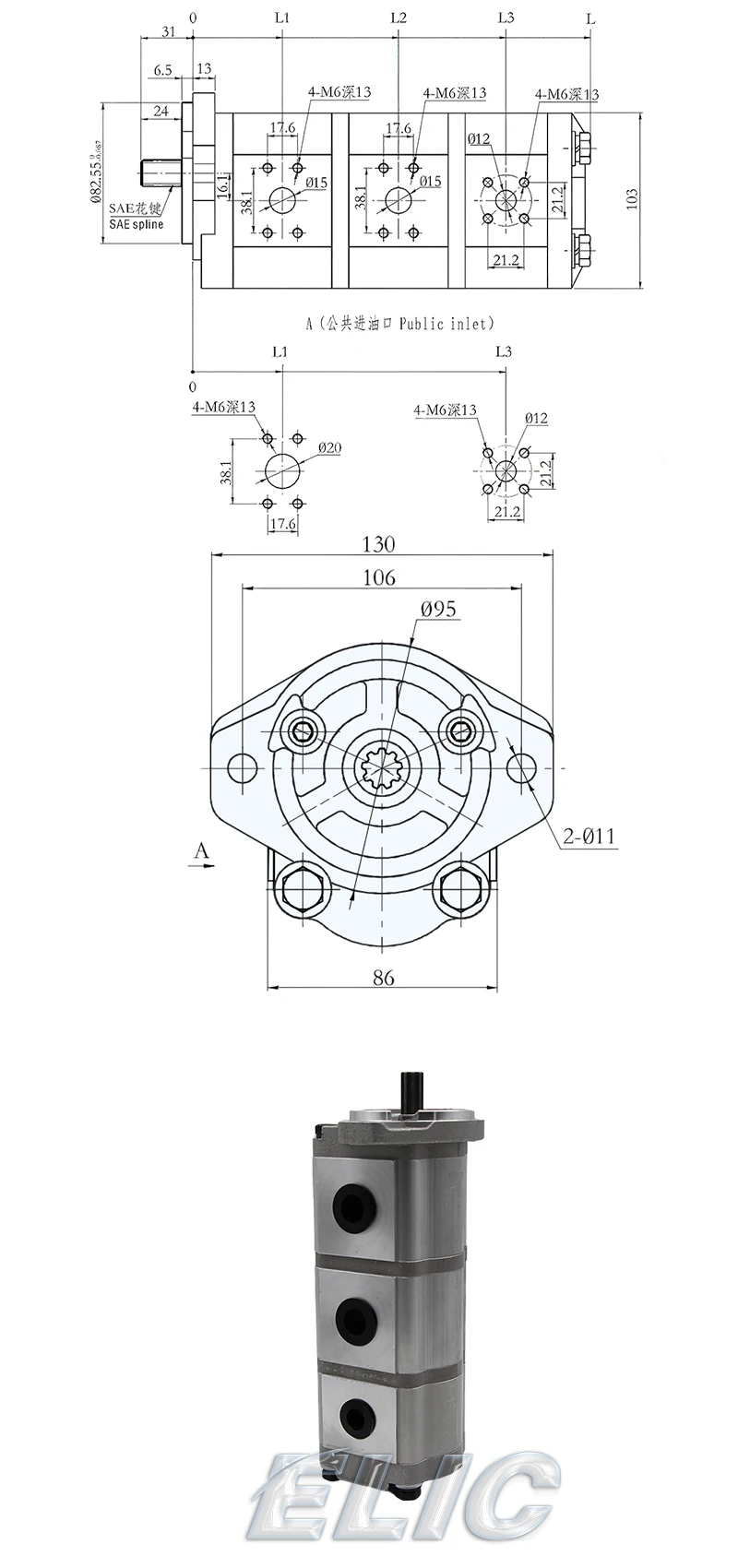

型 号 Model | Nominal displacement | Pressure(Mpa) | Speed (r/min ) | Volumetric efficiency （≥%） | L1 | L2 | L3 | L4 | Weight （kg ) |
CBTSLA-F309/F309/F303-AF∅ | 09/09/03 | Rated=20 Max=25 | Optimum speed=1500~2000 Speed range=800~2500 | 90 | 53 | 121 | 185 | 235 | 7.0 |
CBTSLA-F310/F310/F305-AF∅ | 10/10/05 | 53.5 | 123.5 | 189.5 | 241 | 7.5 | |||
CBTSLA-F312/F312/F303-AF∅ | 12/12/03 | 55.3 | 129 | 195 | 245 | 8.0 |
Gear pump Application Industry

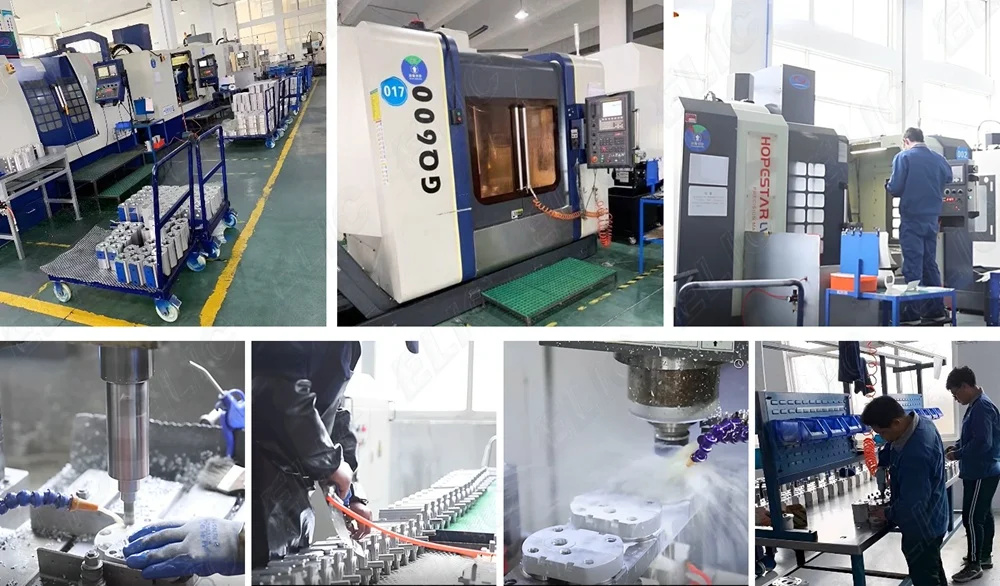

Company Profile
