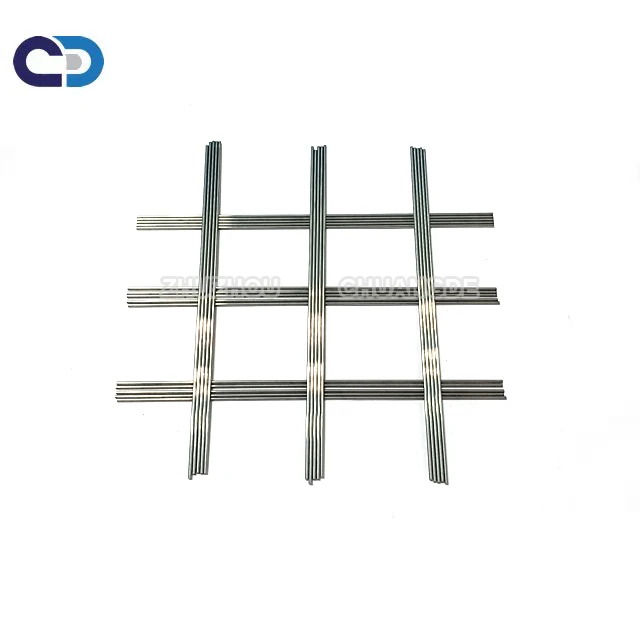

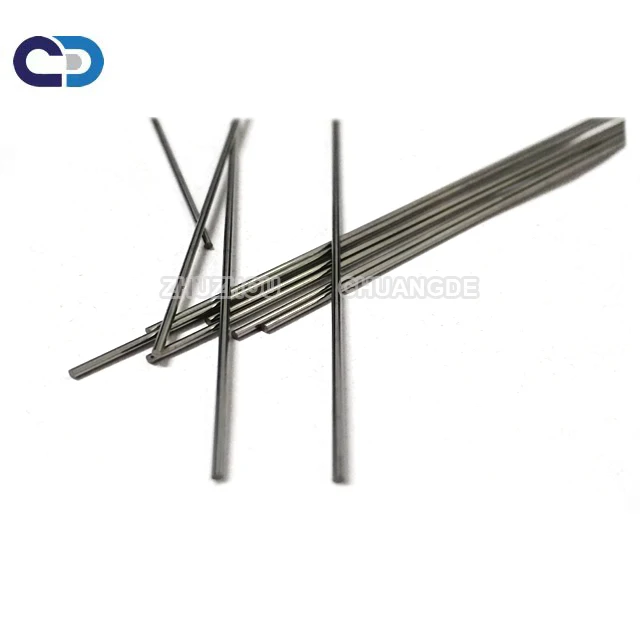

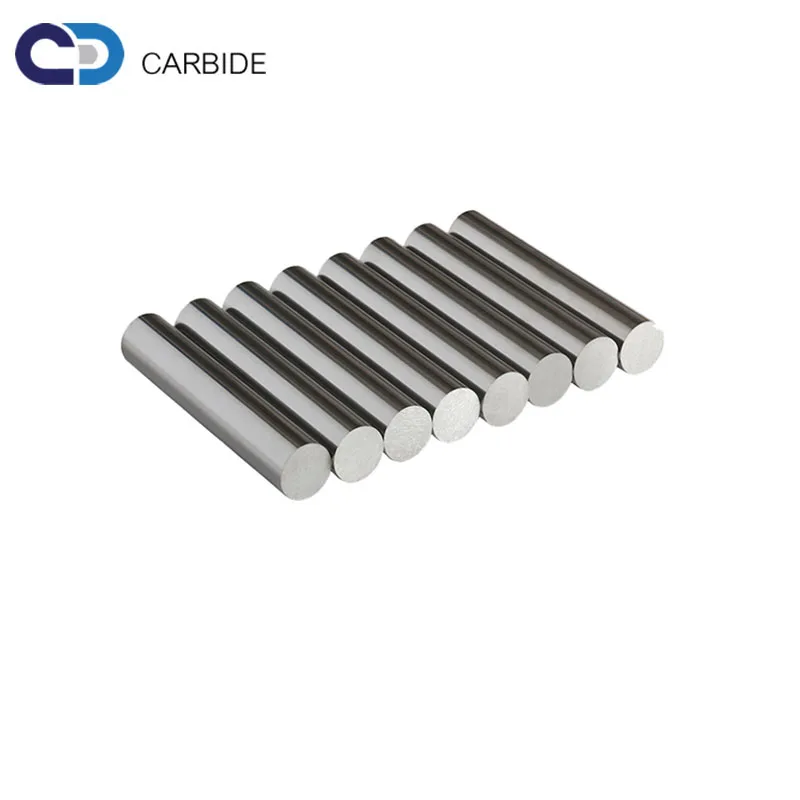

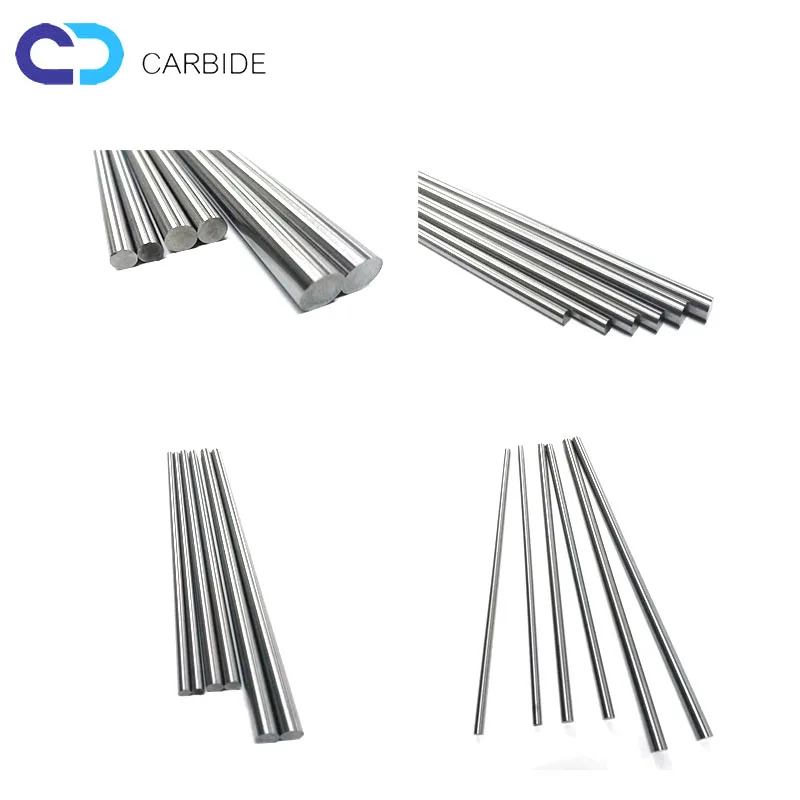

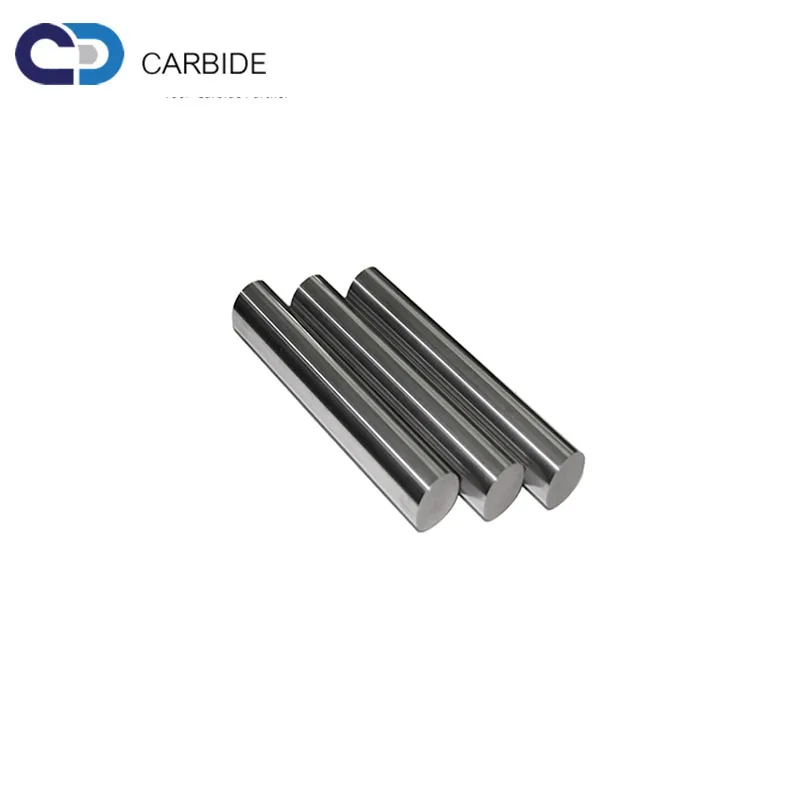

CD carbide High hardness YL10.2 Solid cemented carbide round blank bar tungsten rod
- Category: Cemented Carbide >>>
- Supplier: Zhuzhou Chuangde Cemented Carbide Co. Ltd.
Share on (1600743188331):
Product Overview
Description
Product Description
Cemented Carbide Tungsten Carbide Rods
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

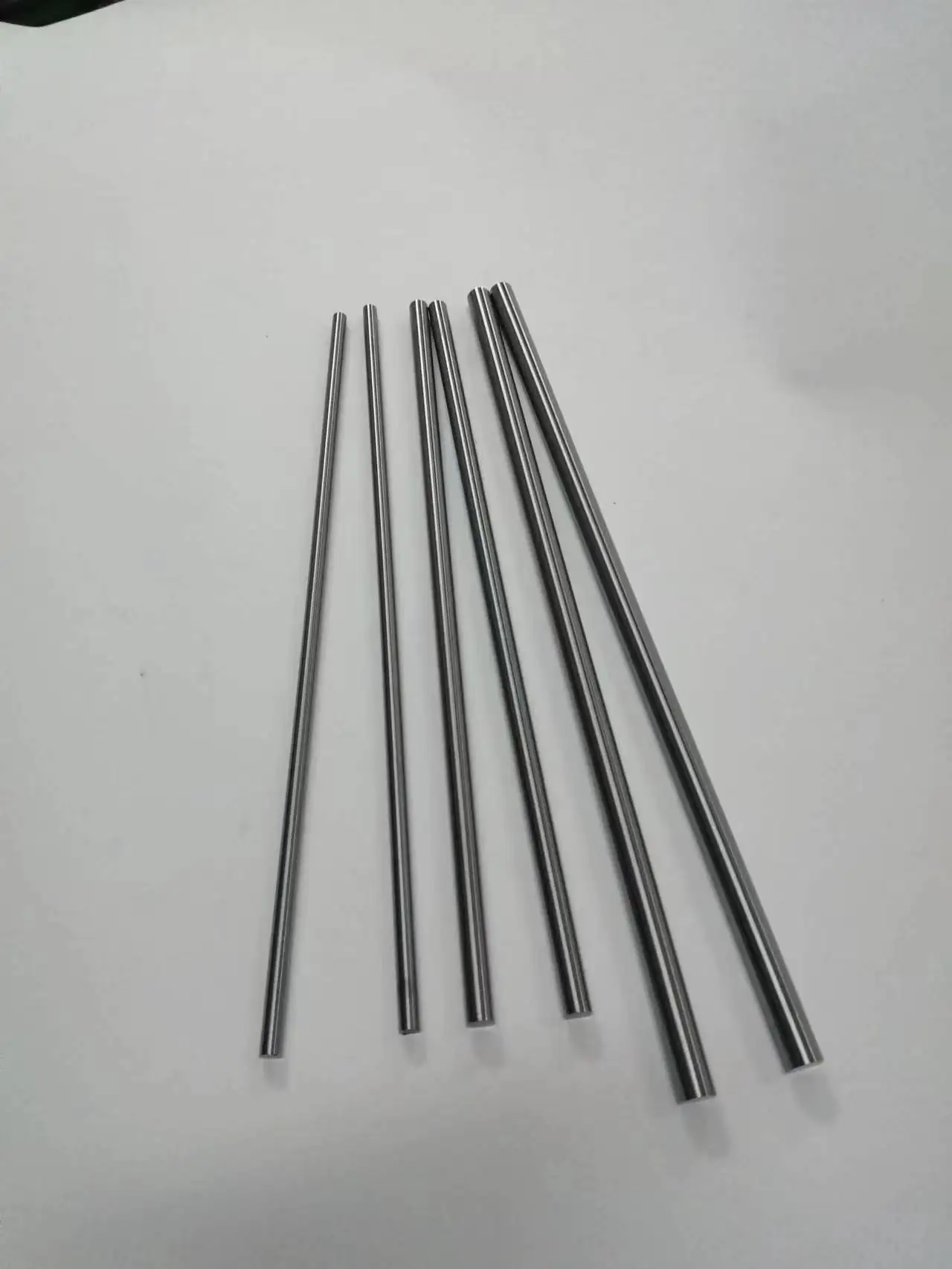

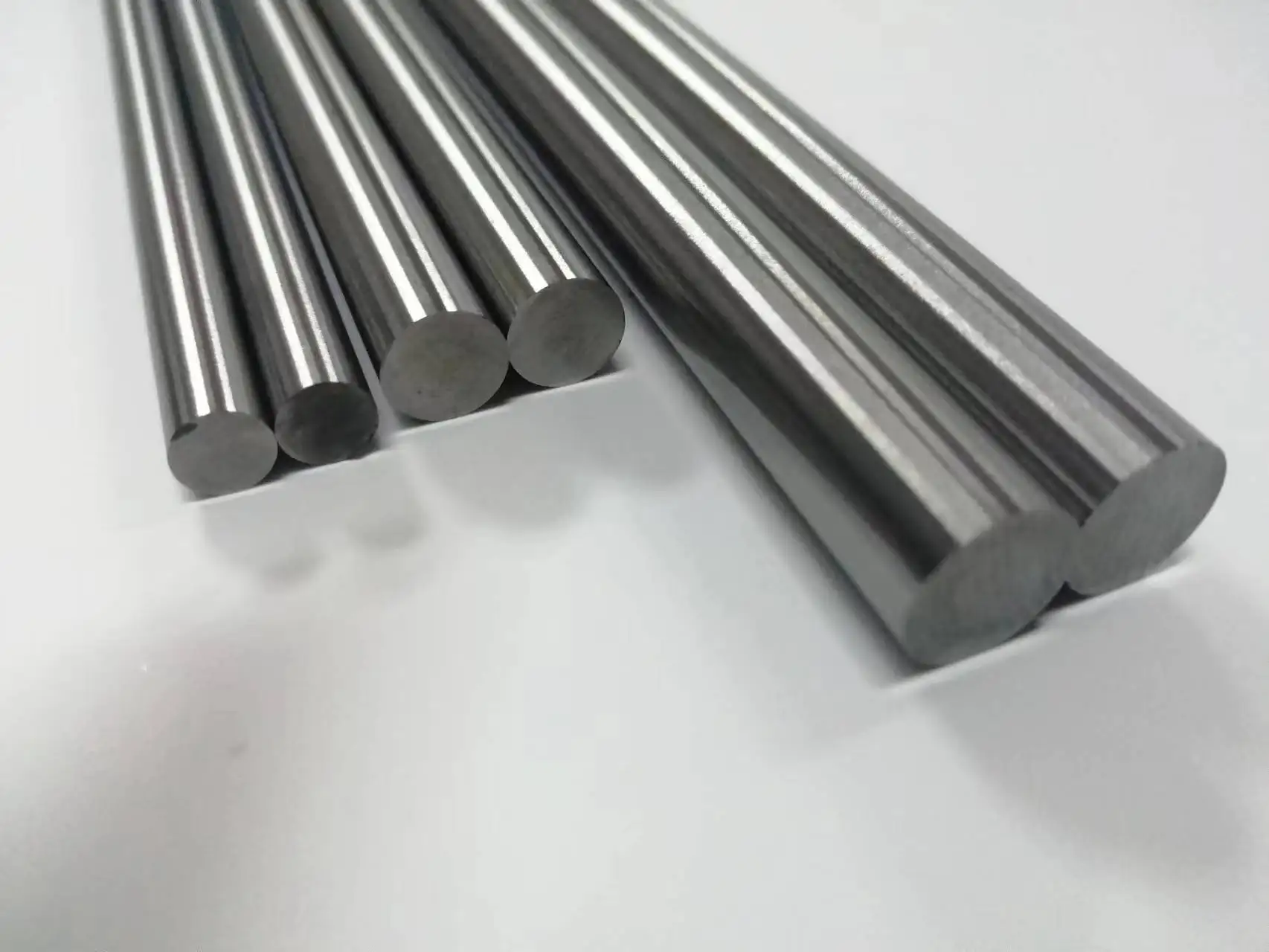

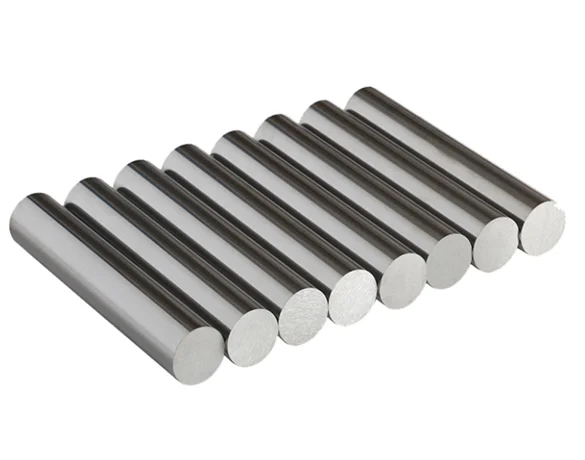

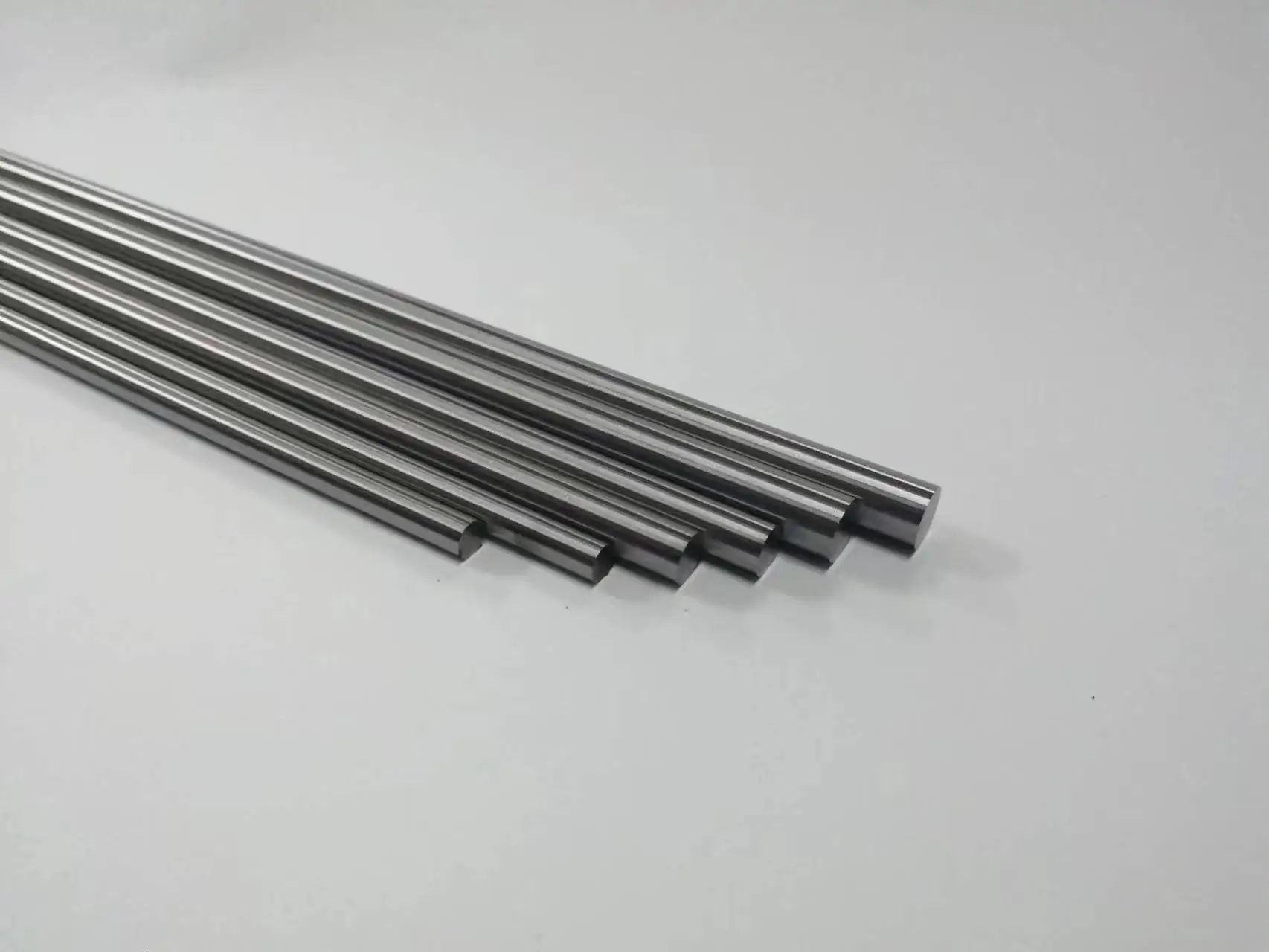

Product Show
Specification
Product Name | |
Material | WC+CO |
Diameter | 3mm to 30mm |
Length | standard 330mm/310mm or customized |
Surface | blank or ground |

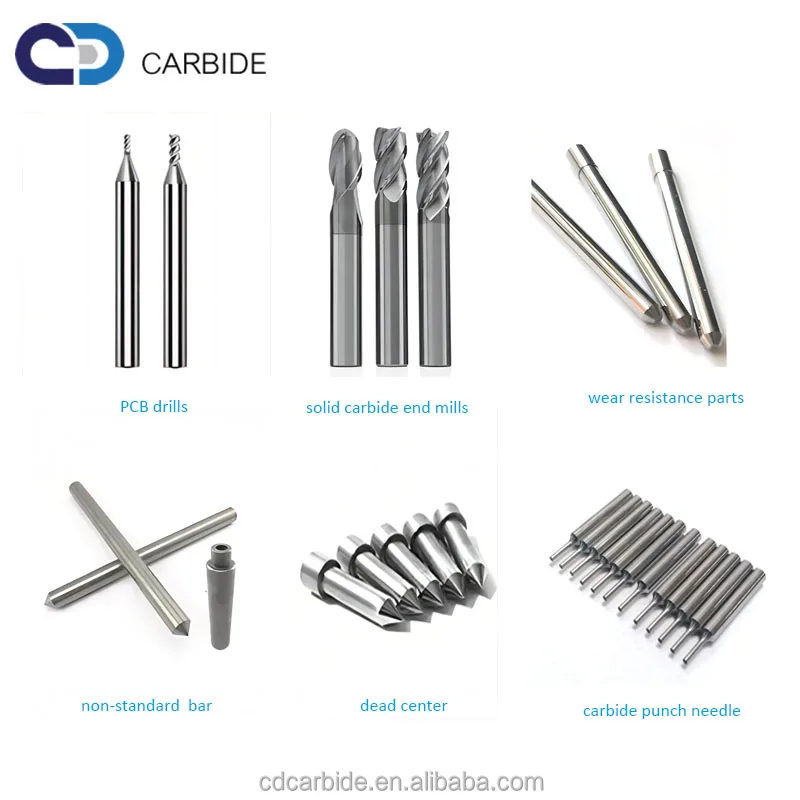

Application | for making cutting tools, for example end mills, dental burs, reamer etc. |
Product grades and applications
Tungsten carbide rods are mostly applied for end mill and drill with sub-micron grain grade YL10.2,for non-ferrous precision cutting and wood cutting with sub-micron grain grade YG6X,and for fibre,glass reinforced plastics,titanium alloys,hardened steel with ultra-fine grain grade YG8X,ect.
It maintains features as stable mechanical properties, easy to welding, high wear-resisting, etc.
All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, be of very high quality and excellent performances.
Grade | ISO | Grain size | Cobalt Content (wt-%) | Density g/cm3 | HARDNESS HRA | TRS (N/mm2) | APPLLICATION |
K10UF | K05-K10 | 0.6 | 6.0 | 14.8 | 94 | 3800 | Ultrafine grain size,with good wear resistant.higher wear resistant endmill and engraving tools are recommended.suitable for cutting PCB and plastic. |
CD6 | K10 | 1.0 | 6.0 | 14.95 | 92 | 3000 | Drilk endmill and burr are recommended.Especially suitable for cutting non-ferrous metal and graphite(coating is needed). |
K20UF | K20 | 0.7 | 8.0 | 14.6 | 92.5 | 3200 | For cutting of the aluminum specially . |
K40UF | K30 | 0.6 | 10 | 14.4 | 91.8 | 3000 | Drill and endmill are recommended. Suitable for cutting stainless steek heat resistant alloy and cast iron. |
CD15 | K40 | 1.5 | 15 | 14 | 87.6 | 4000 | Suitable for making punching of moulds、tools and anti -vibration boring bar etc. |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhuzhou Chuangde Cemented Carbide Co., Ltd located in Zhuzhou, Hunan, China . We provide a worldwide distribution network. As a medium-sized company we react fast and we are flexible to our customer requirements. Based on partnership, we supply suitable solutions for the respective needs.Our company was certified after ISO in 9001:2015. A comprehensive quality assurance system guarantees high-class standards of our products. Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Manufacturing Technique
FAQ
Q1: What is the Warranty for our products ?
---We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to
guarantee the lifetime of our products, which can satisfy every working condition. If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.
---We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to
guarantee the lifetime of our products, which can satisfy every working condition. If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.
Q2: Do you provide free samples?
---Yes, usually we provide free samples for testing under the condition of freight paid by customer..
---Yes, usually we provide free samples for testing under the condition of freight paid by customer..
Q3: What is your minimum order requirement?
--- We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
--- We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
Q4: What is the delivery time of your products?
--- It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.
--- It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.
Q5: Can you manufacture Special-shaped I products?
--- Yes, we can. We can produce both standard and special products. We can make them according to your drawings and samples.
--- Yes, we can. We can produce both standard and special products. We can make them according to your drawings and samples.
Q6: May I have my order working schedule ?
--- Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
--- Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
