Infitek 8 дюймовый цветной экран портативный спектрофотометр
- Category: Spectrometers >>>
- Supplier: Infitek Co. Ltd.
Share on (1600744400384):
Product Overview
Description

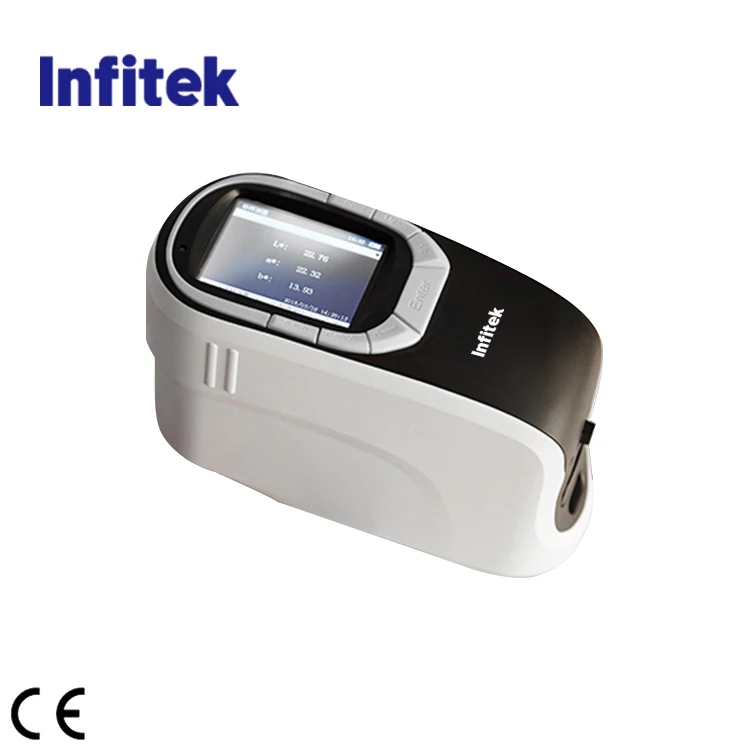

Infitek 8-inch color screen Portable Grating Spectrophotometer Color Spectrophotometer
Features
It is suitable for the color and gloss measurement of automotive interior parts, textiles, coil coatings, plastic products, road traffic representations, packaging and raw materials.
Features
1.Adopts 45/0 geometry (45 ring-shaped illumination, 0° viewing)
The innovative ring-shaped illumination system eliminates the direction dependence, regardless of changing the sample position; The tilt sample or the rotating instrument can achieve the high accuracy and the repeatability, will reduce the influence which the grain brings to the lowest.
The measurement on the surface of abrasive, textured and structured materials has brought great advantages.
2.Color QC software
Our spectrophotometer comes with free PC color QC software, which is applicable in various industries for management of color value.
It is used for store test result, generate test report and print test report after connect with printer.
3.Small and compact size, accurate and reliable measurement
SP-CLR600C spectrophotometer is a portable 45/0 geometry color measuring instrument;45/0 geometry is the most consistent with the visual perceptual color value, which can eliminate the specular light on the surface of the texture.
Specifications
Model | SP-CLR600C |
Optical Geometry | 45/0(45 ring-shaped illumination,0 observe degree) |
Measuring Aperture | φ11mm |
Light Source | LED |
Sensor | High sensitivity silicon photodiode |
Wavelength Range | 400-700nm |
Wavelength Interval | 10nm |
Repeatability | Light splitting reflectivity:standard deviation within 0.08% |
Color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum:0.05 | |
Inter-Instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
Observer Angle | 2°/ 10° |
Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35 |
Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB |
Other Colorimetric Index | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density |
Color Difference | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort |
Illuminant Life Span | 3 million measurements in 10 years |
Data Storage | 20000 test results |
Interface | USB |
Screen | 2.8-inch color screen |
Battery | Rechargeable, 10000 continuous tests, 7.4V/6000mAh |
Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Standard Accessory | AC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Management tutorial, data cable, black and white correction tube, portable bag |
Optional Accessory | Measurement area locator |
Dimension(L*W*H)) | 181*73*112mm |
Net Weight | About 0.8kg(excluding battery's weight) |
Certificates
Packaging & Shipping
About us
FAQ
Q: Are you a trading company or a manufacturer?
A: Based on independent manufacturing capability, we also integrate both domestic and international resources providing one-stop service for you all.
Q: How about quality of the goods?
A:
l All the running products comply with CE standards.
l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
l Timely reply to pre-sales enquiries
l Real-time update of manufacturing and shipment status
l Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
