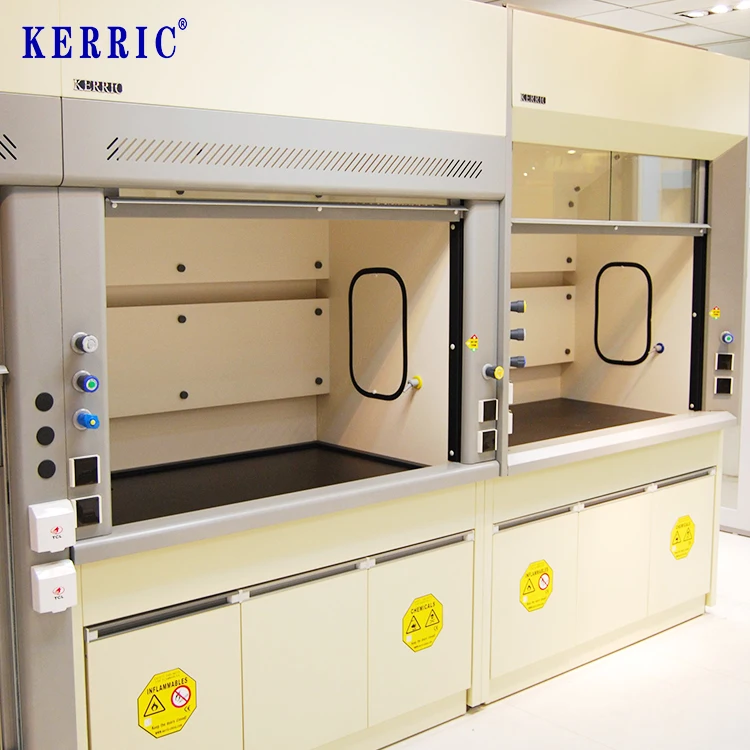

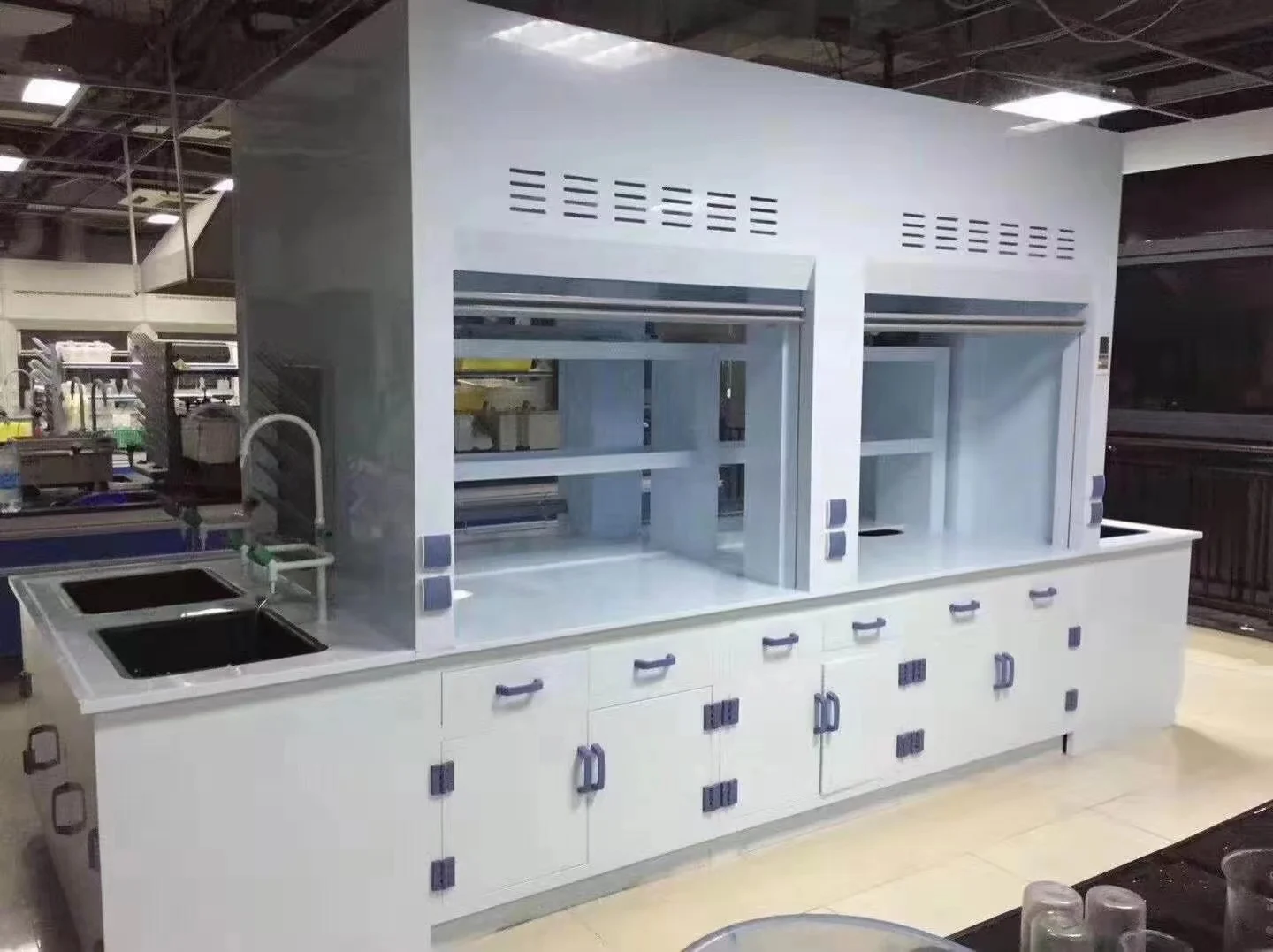

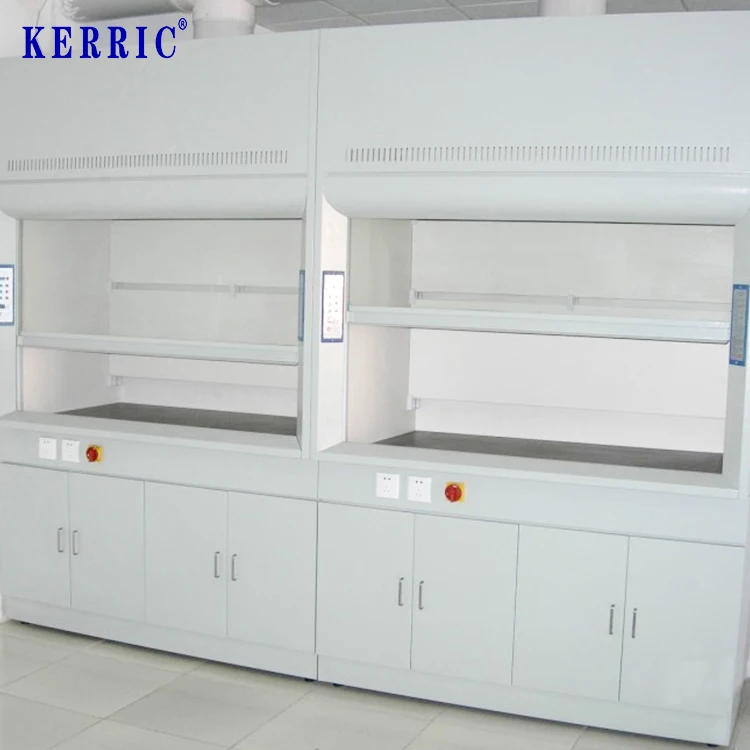

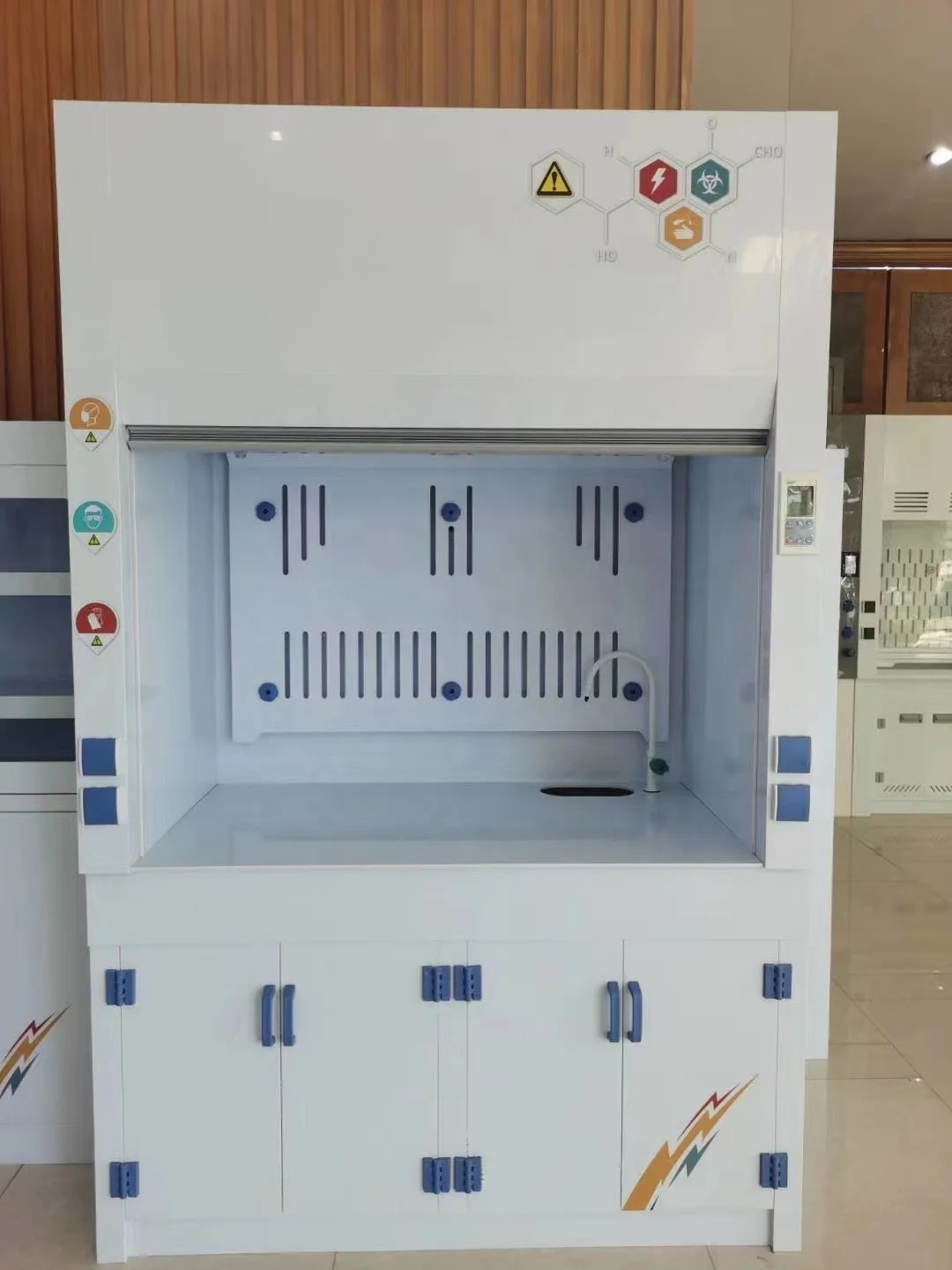

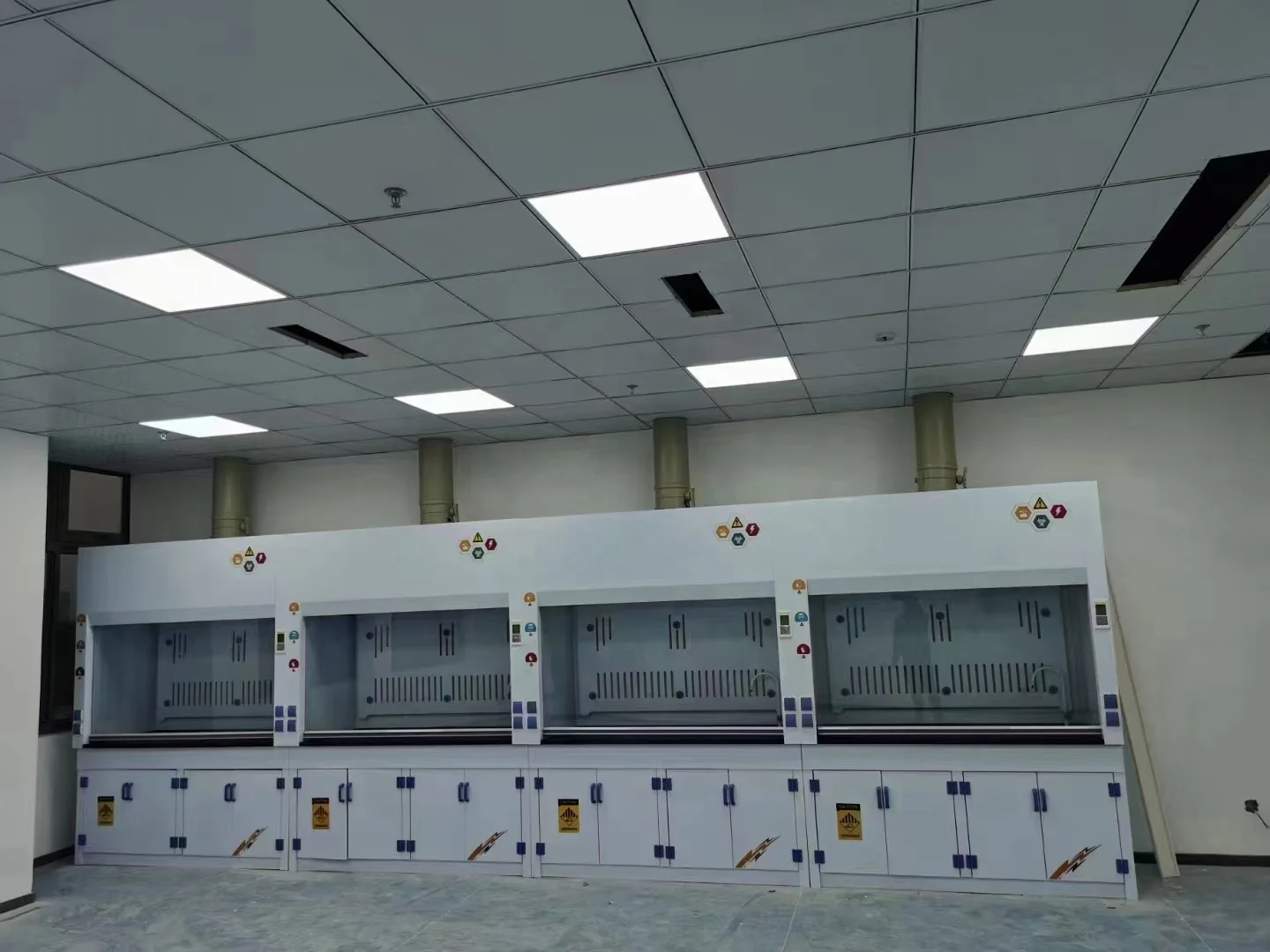

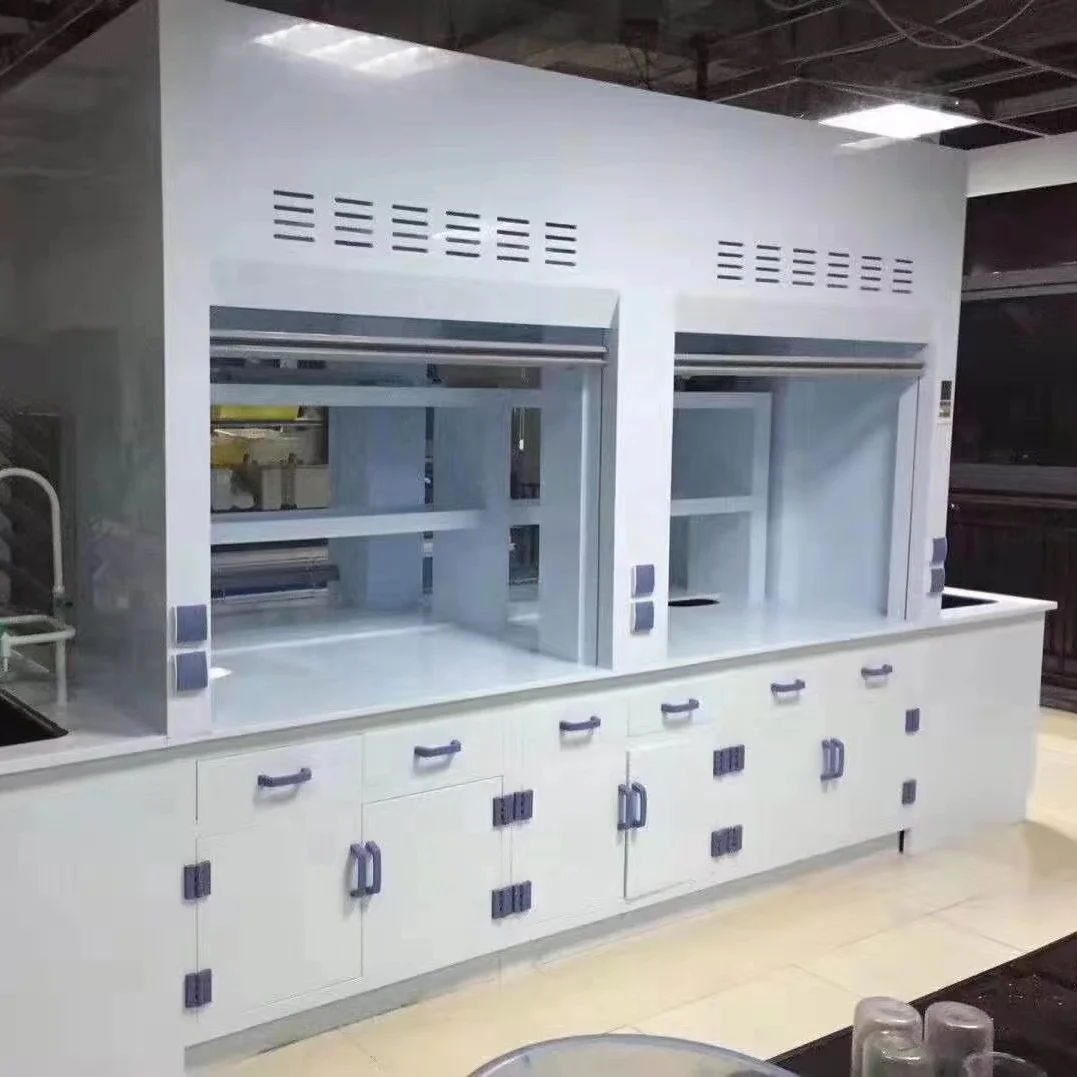

PP Chemistry Laboratory Fume Hood Lab Equipment price
- Category: >>>
- Supplier: Kerric Laboratory Equipment Marketing (foshan) Co. Ltd.
Share on (1600745396397):
Product Overview
Description
Product Description
| Shell: | 1.2mm thickness high quality cold-rolled steel with 0.5mm thickness of static epoxy resin power coated |
| Lining: | Chemical & Heat Resistant, Fire Retardant, Smooth Finish, Easily Cleanable Panels Made out of durable Phenolic integral work walls (5 mm thick). |
| Sash Opening: | Minimum: 50mm; Maximum: 700mm |
| Average face velocity: | 0.5m/s |
| Front Top Panel: | Easily openable hinged Top Panel for easy access to Flow Control Valve and Electrical Lighting fixtures for maintenance. |
| Work top: | Chemical resistant, splash & spillage proof dished 20mm ORNICES Ceramic Work top with built-in rounded edges rim on all four sides |
| Windows: | 5mm toughened |
| Window handle: | 1.5mm carbon steel |
| Illumination: | 30W fluorescent lamp group, at least 300LUX |
| Sink: | Imported PP pool |
| Faucet: | Use brass body laboratory faucet with international ceramic valve core featured slowly down water pressure. The surface is coated with epoxy resin powder |
| Exhaust duct: | Glass steel tube or PVC tube, corrosion resistance |
| Base: | 1.2mm thickness cold rolled steel sheet with 0.5mm thickness of epoxy resin powder finish |
| Socket: | 15amp switch with three sockets |
| Technical data: | Noise: ≤60dB(international): wind speed: three-section exhaust |
| Function: | Intelligent auto-delay protected device, to prolong life by evacuate etchant gas |
| Technical Specification | ||||||
NO. | Model Items | KTF—1200 | KTF—1500 | KTF—1800 | ||
1 | Size(W*D*Hmm) | 1200*900*2350 | 1500*900*2350 | 1800*900*2350 | ||
2 | Height of the worktop(mm) | 850 | ||||
3 | Sash Max Height(mm) | 740 | ||||
4 | Operation Area Height(mm) | 1150 | ||||
5 | Operation Area Depth(mm) | 680 | ||||
6 | Operation Area Width(mm) | 980 | 1280 | 1580 | ||
7 | Exhaust Air Rate(m3/h) | 1300 | 1700 | 2100 | ||
8 | Static pressure loss(Pa) | </70 | </90 | </120 | ||
9 | Exhaust Pipe Dia(mm) | φ250 | ||||
10 | Face Air Speed(m/s) | 0.5±10% | ||||
11 | Noise(dB) | </65dB | ||||
12 | Illumination(Lx) | 400LUX | ||||
13 | Input Power(V) | AC 380V/50Hz | ||||
14 | Socket Power(V) | AC 220V/50Hz | ||||
15 | Socket Corrent(A) | 13A | ||||
16 | Adaptive Motor Power(kw) | 0.18~11Kw | ||||
17 | Electric shock resistance | Patern I | ||||
18 |
| IP40 | ||||
19 | Rated insulation voltage(V) | 450VAC | ||||
20 | Rated impulse withstand voltage Uimp(V) | 6KV | ||||
21 | Net weight | 235 | ||||
