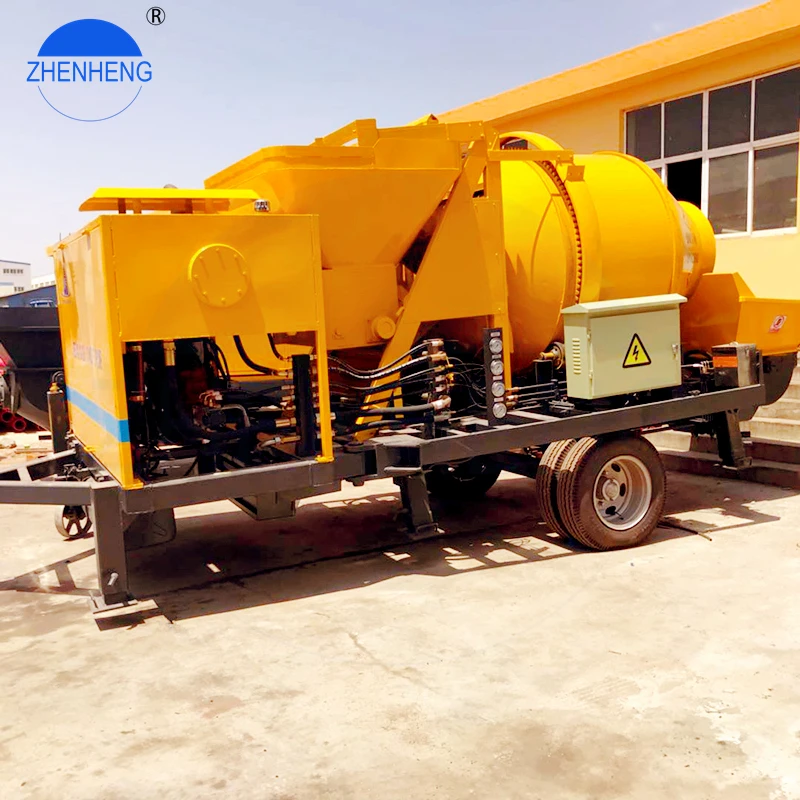

Trailer 40M3/H Reach Vertical 150M Mixture Concrete Mixer Pump Manufacture 40 M3 Diesel Mini Concrete Mixer Pump In Canada
- Category: Concrete Pumps >>>
- Supplier: Zhengzhou Zhenheng Construction Equipment Co. Ltd.
Share on (1600747747222):
Product Overview
Description
Products Description
Feature
1. Easy to move, strong and flexible
2. Stable and reliable, longer service life
3. Reliable and efficient, saving labor
4.Automatically add water
5. Fuel saving.
Feature
1. Advanced dual hydraulic system
2. Uniform and stable spraying
3. Long life of mortar piston
4. Reduce pumping resistance
5. Cleaning is safer and faster.
2. Uniform and stable spraying
3. Long life of mortar piston
4. Reduce pumping resistance
5. Cleaning is safer and faster.
Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump.
It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
Parameters
Performance Index | JBS40R |
Theoretical throughput | 40 m³/h |
Max. concrete pumping pressure | 10 Mpa |
Maximum conveying distance （vertical/horizontal） | 70/300m |
Diesel engine power | 84kw |
Fuel tank capacity | 370L |
Inside diameter of delivering pipe | Ф125 mm |
Max. Aggregate Size | 40mm |
Dimensions | 6,000*2,300*3,150 mm |
Weight | 6700kg |

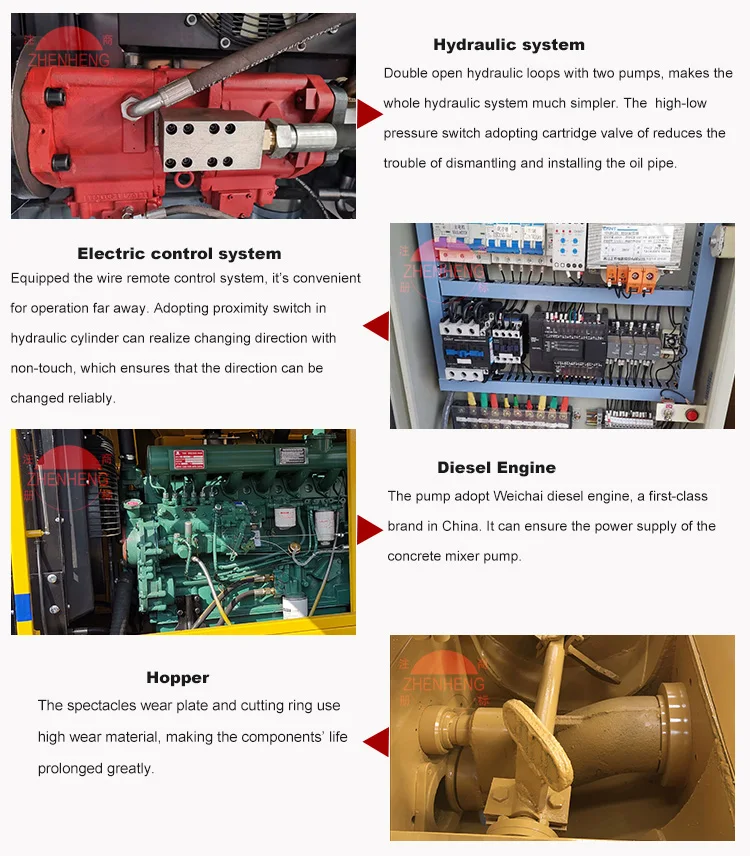

Detailed Images
Product packaging
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight.
Transactions
Company Profile
our team
Why Choose Us
FAQ
Q1: How to add material to concrete mixer pump?
A1: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
A1: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
Q2: How about your service of the concrete pump spare parts?
A2: We are dedicated to provide our clients concrete pumps spare parts with the highest quality,exact fitness and fast deliveries and services. Customers are guaranteed that once they submit the spare parts request or products name list to us , the requirement will be handled quickly and appropriately.Q3:How to choose a suitable concrete pump machine?
A3:we could choose suitable model Concrete Pump machine by the following requirements:
1. what is your expected pumping capacity per hour?
2.what is your horizontal distance and delivery height?
3.what is your max. gravel size?
3.what is your max. gravel size?
Q4: What's the payment you accept ?
A4: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C.
