zl50g wheel loader for sale in canada mini wheel loader 4 wheel drive small loader
- Category: Engineering & Construction Machinery >>>
- Supplier: Shandong Eagle Construction Machinery Co. Ltd.
Share on (1600749344083):
Product Overview
Description
Product Description
Product Description for Mini Wheel Loader

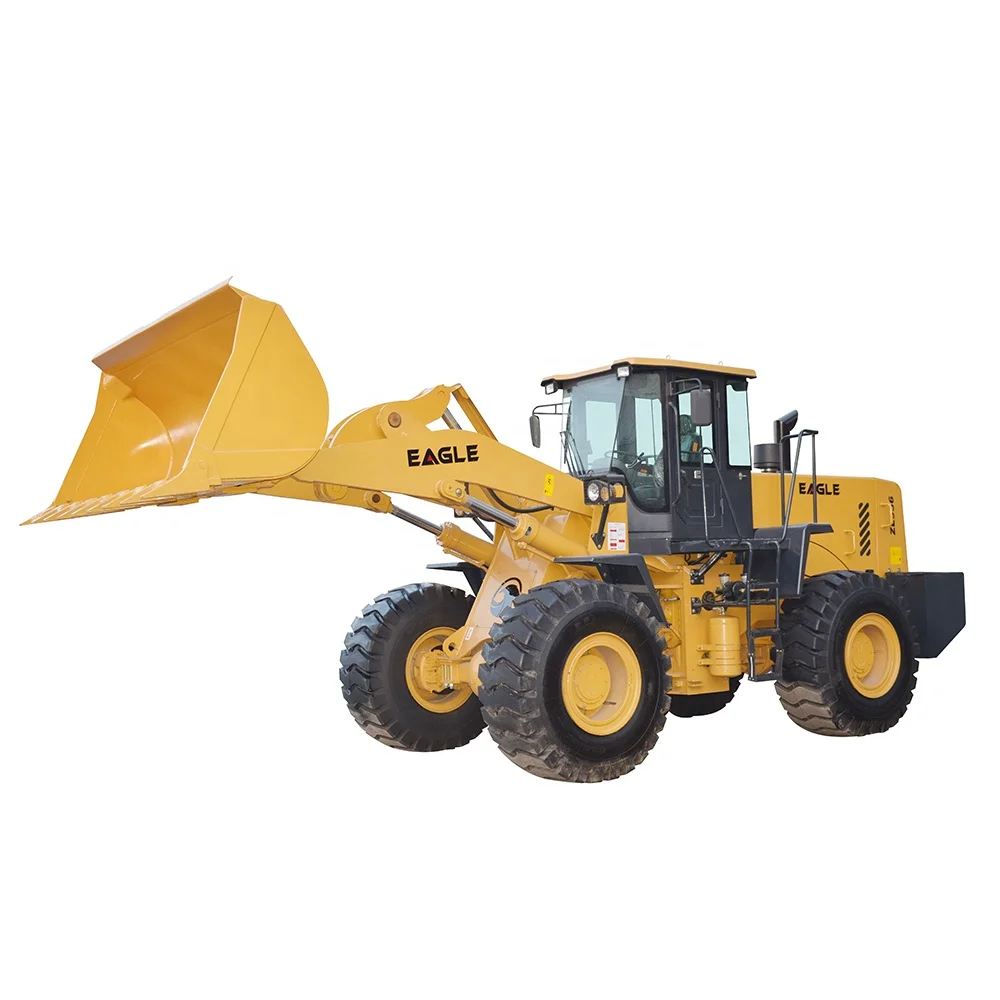

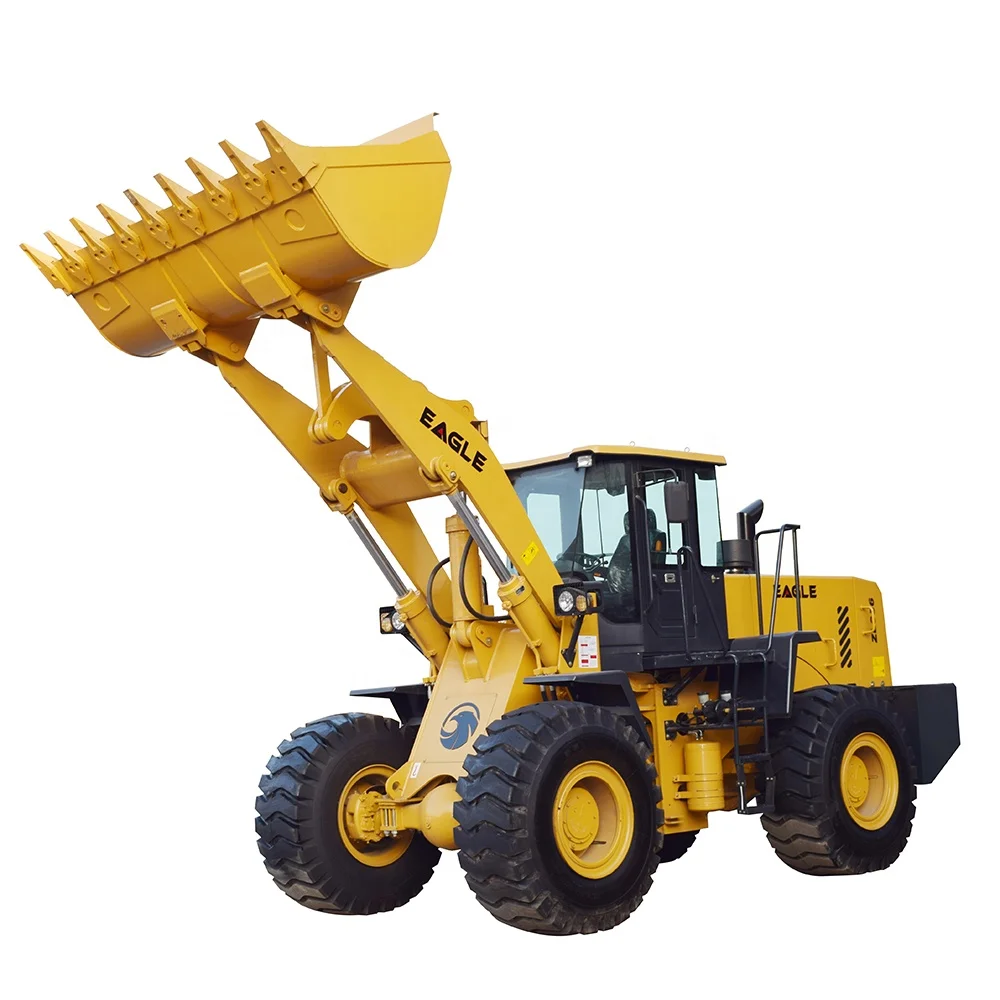

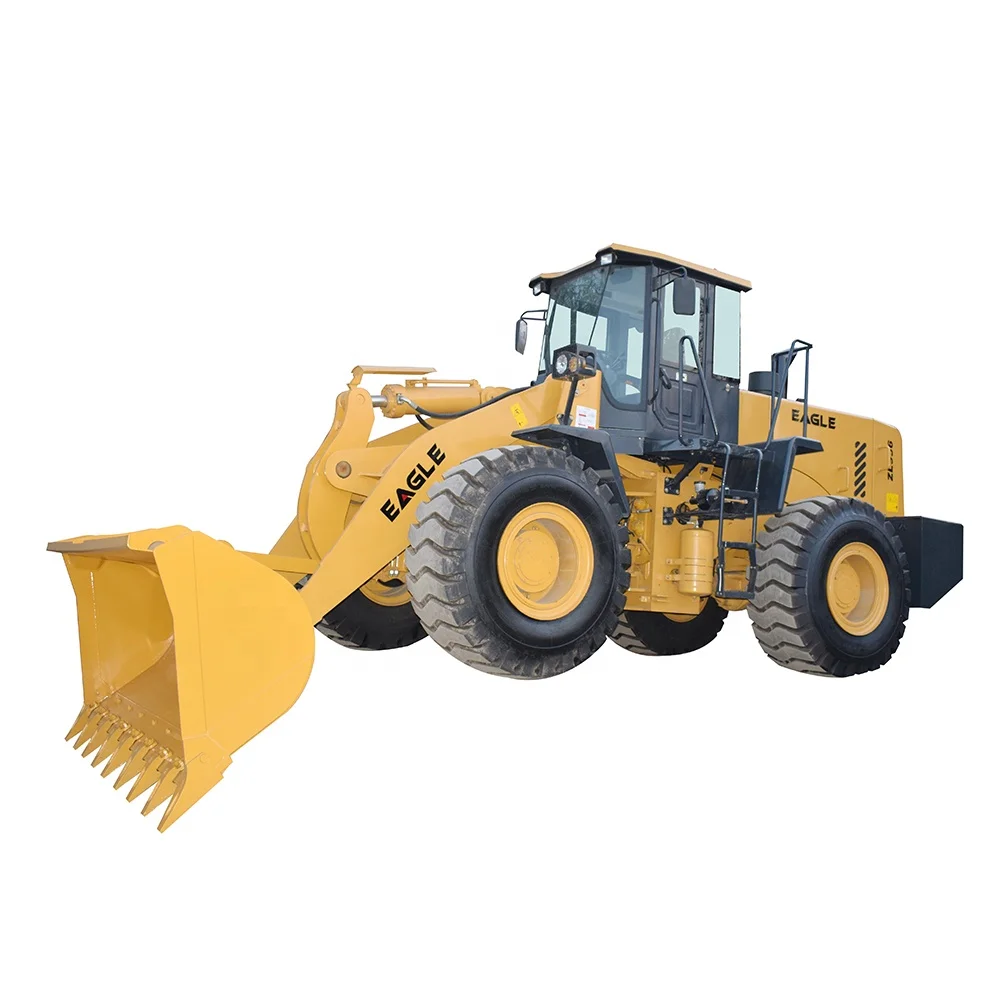

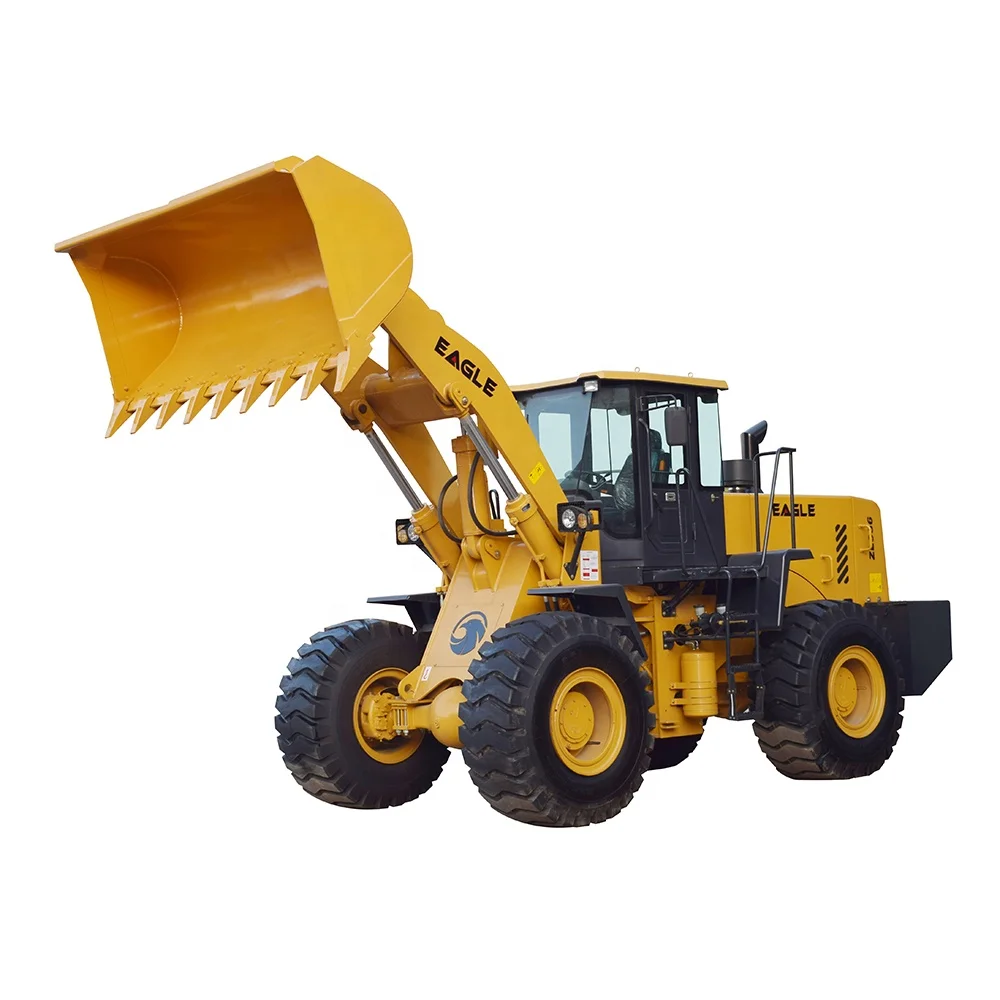

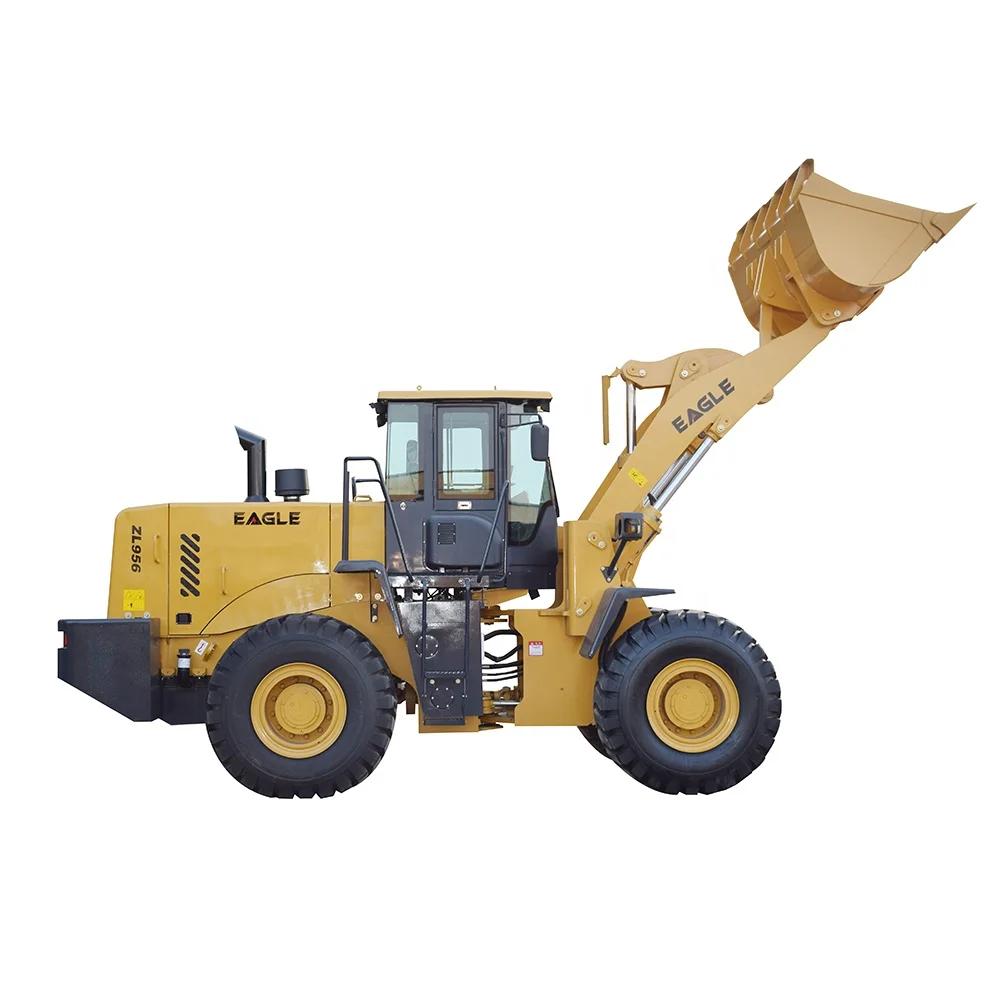

ZL956 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,
interchangeability of good, reliable, well-resourced parts.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,
interchangeability of good, reliable, well-resourced parts.
Specifications for ZL956 Mini Wheel Loader | ||||
Overall Performance | Rated Load | 5000 kg | ||
Operating Weight | 16500 kg | |||
Bucket Capacity | 3 m3 | |||
Bucket Width | 2930 mm | |||
Dumping Height | 3100 mm | |||
Dumping Reach | 1260 mm | |||
Max. Gradeability | 30% | |||
Dimensions | Wheelbase | 3200 mm | ||
Tread | 2230 mm | |||
Mini. Turning Radius | 6732 mm | |||
Mini. Ground Clearance | 450 mm | |||
Overall Size | 8050 x2930x3450 mm | |||
Engine Equipped | Brand | WEICHAI | ||
Model | WD10G220E23 | |||
Rated Power/Speed | 162 kW/ 2000 rpm | |||
Max. Torque/ Speed | 920 N.m /1600 rpm | |||
Borex Stroke | 126 x130 mm | |||
Displacement | 9.726 L | |||
Type | 6-Cylinder, 4-Stroke, In-line, Direct Injection, Water-cooled and Turbo-charged | |||
Emission Standard | EURO II, China State II | |||
Engine Optional | CUMMINS(6CTA8.3-C215 ) | 160 kW, EURO II, | ||
Transmission & Drive System | Torque Converter | YJ375 (Split Type) | ||
Gearbox Type | Fixed Shaft Power Shift | |||
Gear Shift | 4 Forward , 4 Reverse | |||
Max. Drive Speed | 38 km/h | |||
Drive Mode | 4 x4 | |||
Transmission Mode | Automatic Transmission | |||
Drive Axle | 50 Series Heavy Hub Reduction Axle | |||
Hydraulic System | Displacement of Work Dual Pump | 80 mL/r, 10 mL /r | ||
Displacement of Walk Pump | 40 mL/r | |||
Working Pump | 20 MPa | |||
Brake & Tyre | Service Brake | Air Over Hydraulic Disc Brake | ||
Parking Brake | Drum-type Shoe Brake | |||
Tyre Size | 23.5-25 | |||
Main Features
Main Features of ZL956Wheel Loader
2.Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, traffic ability and more traction;
4.Fully enclosed glass cab with adjustable and suspension seat can provide comfortable driving and wide view. Electric Fan is standard configuration. Air-conditioner is optional.
5.Using 23.5-25 tyres to increase the stability of whole machine and the service life of tyre.
6.Brake system adopts Air Over Hydraulic Disc Brake on 4 Wheels
7.This wheel loader adopts YJ375 split type torque converter, and the whole machine is fully hydraulic automatic transmission;
8.This compact wheel loader can be equipped with pilot control system (joystick control )to make it easy to operate and increase the hydraulic performance of the whole machine;
9.Power system adopts WEICHAI,WD10G220E23 , 162kW, Turbo-charged, Fuel-Efficient, environmentally friendly, 6-cylinder engine to make this wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10.This compact wheel loader could be equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.

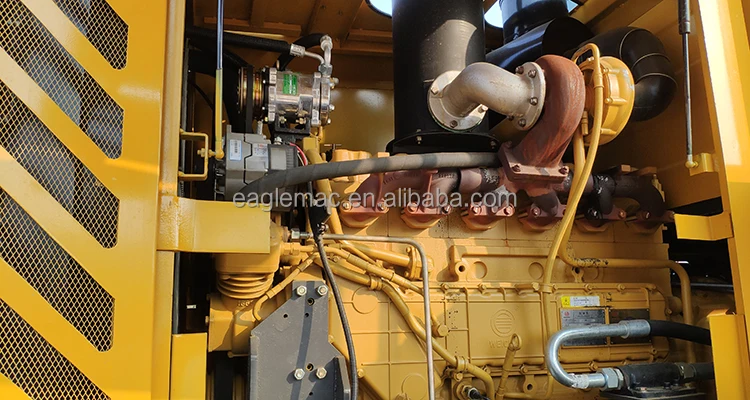

China Top Brand -WEICHAI , 162kW, Turbo-charged, Water-cooled Diesel Engine
This loader is driven by WEICHAI, 162kW, Turbo-charged, Fuel-Efficient, Water-cooled Diesel Engine, which makes this 5Ton wheel loader have strong power and high acceleration. Engine door is connected by two sets of hydraulic pole. Main Engine Brand Optional: DONGFENG CUMMINS

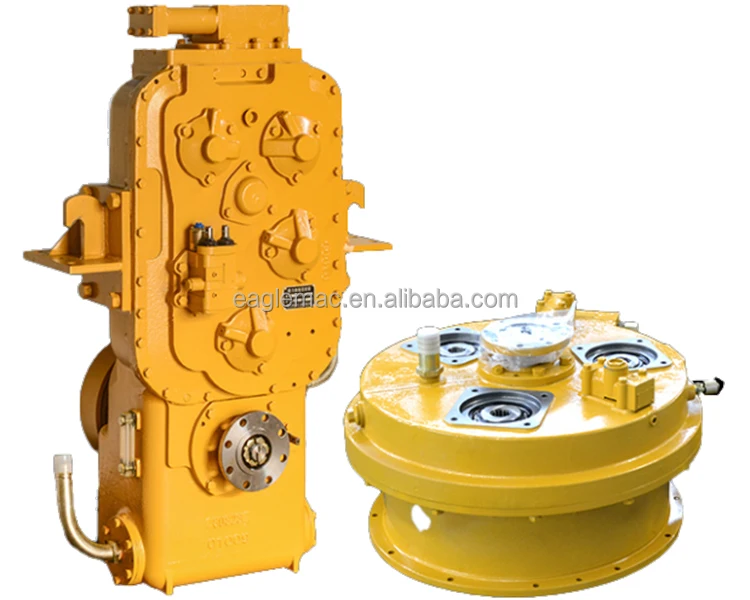

Split-Type YJ375 Torque Converter
The torque converter adopted is a kind of split- type torque converter, which is beneficial for the cooling of hydraulic oil and easy maintenance.

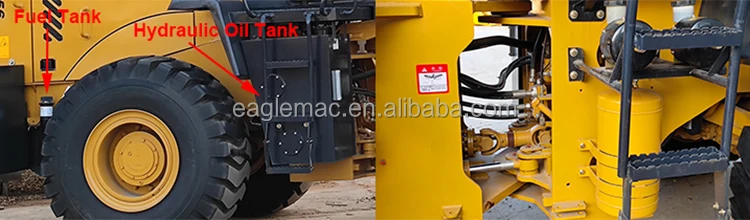

Hydraulic Oil Tank and Fuel Tank at the Same Side
Both the Fuel Tank and Hydraulic Oil Tank are situated at the right side of loader, while the Air Boost Pump and Air Storage Tank are located at the left side of the vehicle.

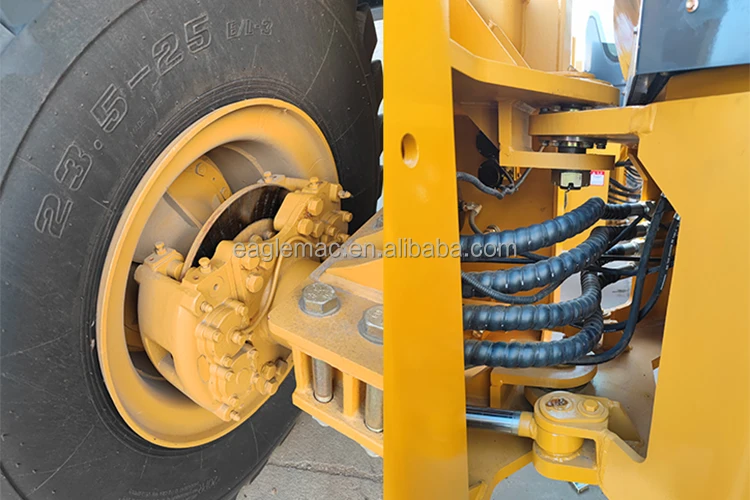

Articulated Structure and Double Brake Caliper
1.Articulated Structure make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site.
2. Double Brake Caliper ensure stable brake performance.

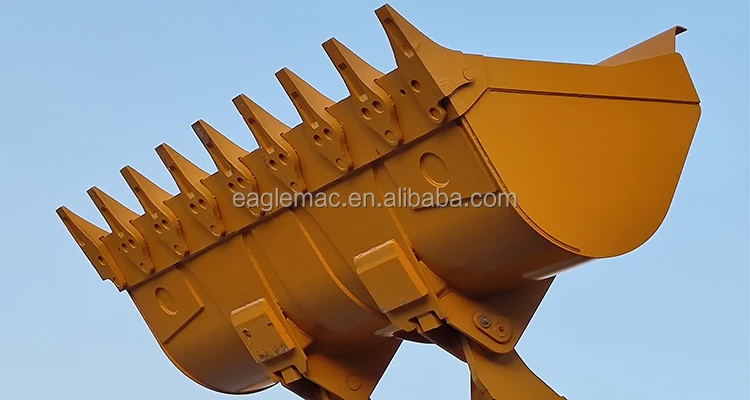

Deepened Bucket with Removable Fork and Scraper in the front
The width ,depth and span of bucket is 2930 mm ,750 mm and 1450 mm respectively.
The total volume of the bucket is about 3 m3 . The front of the bucket is equipped with
wear-resistant removable fork and scraper, which facilitate earth-moving operation in the construction site.
wear-resistant removable fork and scraper, which facilitate earth-moving operation in the construction site.

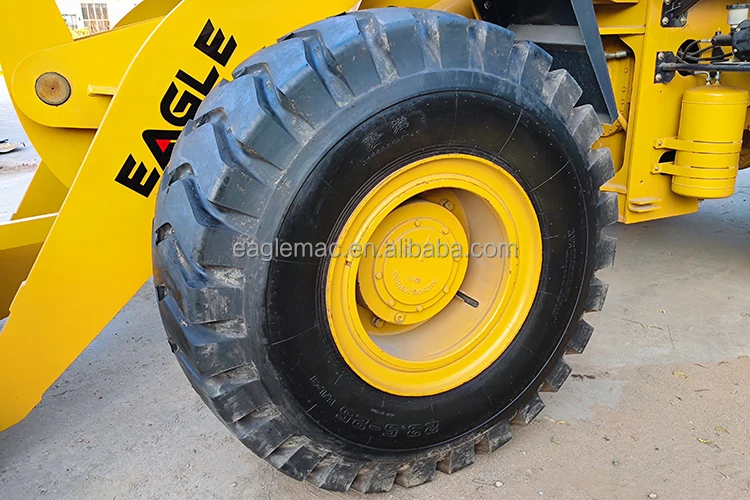

50 Series Reduction Axle fitted with Wide Engineering Tyre
The drive axle is kind of 50 Series Reduction Axle , while the drive mode is 4x4 . The loader is equipped with engineering type wide tyre. The Tyre model is 23.5-25-20 PR, and its width and diameter is 590 mm and Ø1610 mm respectively, which could ensure our loader work safe on muddy and bumpy road.

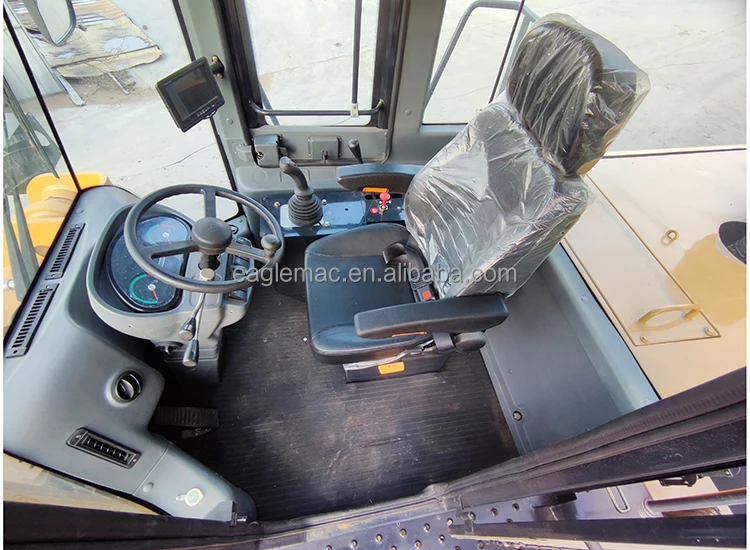

Deluxe Driver's Cab with Hydraulic Joystick, A/C and Ergonomic Seat
The transmission of this wheel loader is kind of automatic transmission. And the lifting and withdrawing of bucket is all controlled by the single handle type hydraulic joystick device. It is very convenient for user to operate. The ergonomic seat has the shock absorption function and is equipped with safety Belt. The portable fire extinguisher and safety hammer are also situated inside the cab.
During the driving backwards process, the back view camera will light up , the alarm lamp will flash and the buzzer will horn , which could improve driving safety. The air conditioner is also standard configuration.
During the driving backwards process, the back view camera will light up , the alarm lamp will flash and the buzzer will horn , which could improve driving safety. The air conditioner is also standard configuration.
Packing & Delivery

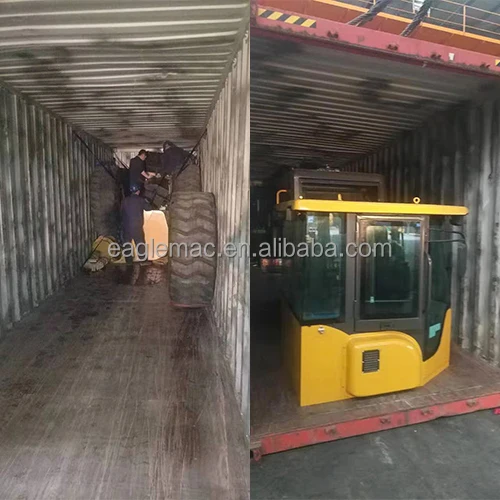

Container Loading Plan for ZL956 Wheel Loader
The front bucket, cab, drive axle and tyres all have to be dismantled. 1 Set inside 1x40HQ Container
Application Scene
Worldwide Sales, Marketing and Service Network
Worldwide Sales, Marketing and Service Network
During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.
Certifications
Exhibition
Why Choose Us
Shandong Eagle Construction Machinery Co.Ltd. Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years’ development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
We have been constantly improving and updating our products according to customer’s feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer’s trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.
