automated washing equipment with Over Glow Hi Gloss Lava Foam System

Share on (1600752426751):


Price:$23,000.00 - $25,000.00

Quantity:


Product Overview

Description






touchless automatic car wash machine


1. High pressure pre-wash for under chassis and wheels.


Car wash detail 1.jpg


2. Smart 360 rotate arm, Flush car body 360° with high pressure water,Spray the pre-soak with high-precision proportioning technology.





Car wash detail 21.jpg





3. Over Glow Hi-Gloss Application System for 360 with colorful LED light ( W360E super model )


 Car wash detail 41.jpg

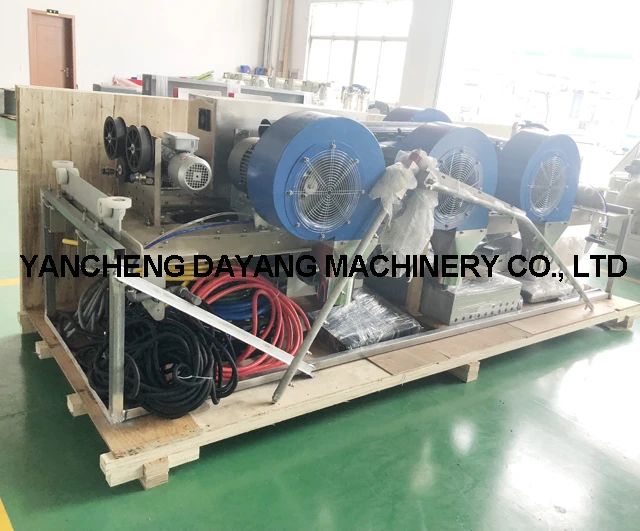

4. Unique embedded fast air drying system 3*5.5KW and 1*4KW





 Car wash detail 5.JPG


Specifications of automatic car wash machine:






























































































Main machine size



3500mm*1200mm*900mm



Rail length



7500mm



Min Mounting Dimensions ( L*W*H )



7600mm*3850mm*3350mm



Max car wash size ( length*width*height )



5900mm*2900mm*2050mm



Power Requirement



380V  50Hz/60Hz



Air switch



80A air switch



Total machine power



45KW



Water pump motor power



18.5Kw



Air fan motor power



20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters / h



Longitudinal motor power



0.37Kw stepless frequency control



Transversal motor power



0.75Kw servo drive system



Rotary motor power



0.75Kw servo drive system

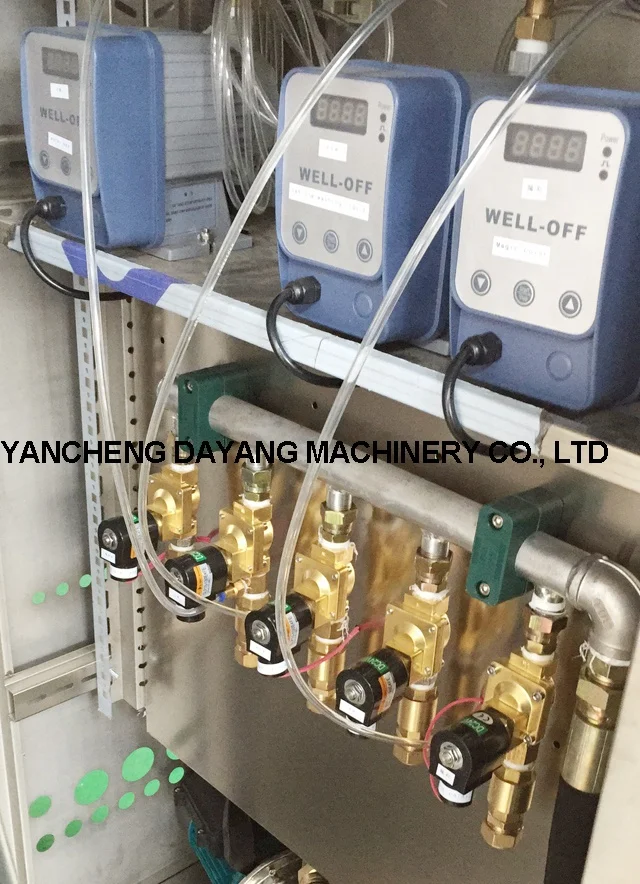

Chemical mixing system motor power



1.5KW

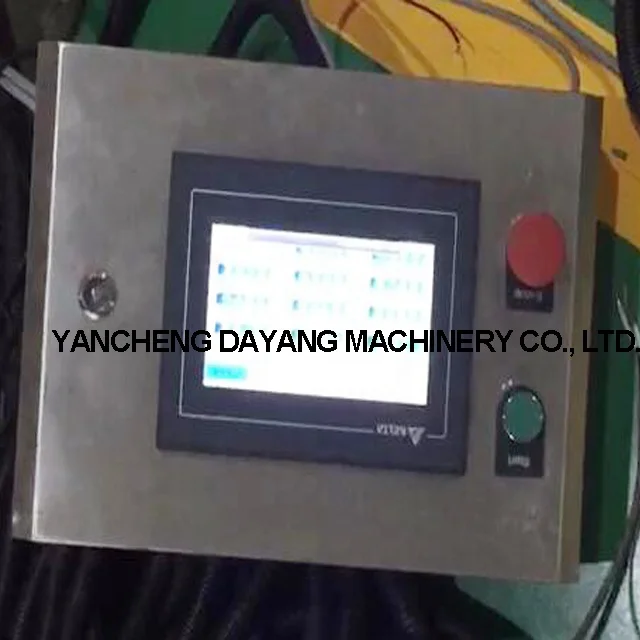

Central processor



Industrial PLC embedded central processor + dual-core system



Drive System



Servo drive system



Speed



360 wash 28 seconds, energy saving 60%



Pre-soak consumption



20~50ML/Car ( Depends on chemical proportioning )



Polish shampoo consumption



50~100ML/Car



Crystal wax consumption



20~40ML/Car



Water consumption



Standard wash 100L/car, Fine wash 150L/car



Electricity consumption



Standard wash 0.52 KW·H/car, Fine wash 1 kW·H/car




























FAQ


1. What's power supply required for running car washing machine ?



Automaticcar wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we have to customize motors from Siti factory.


2. How to make installation and after sale service?
If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your installation, training and after sale service.
If a distributor can’t be found in your region, we will send one technician to support you on installation and training, but the travelingexpense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer needto pay for technician salary USD100/day.


3. How to become a distributor ?

* We don't have special condition for a conventional distributor without exclusive right.
* If you want to apply for exclusive dealership in your country or region, the first step you need to purchase a demo machine to show customers there, and we need to make an agreement with a yearly MOQ.


4. What's the warranty of car washing machine ?

1years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break down, we will compensate new parts at free charge, but warranty doesn’t include courier expense.
