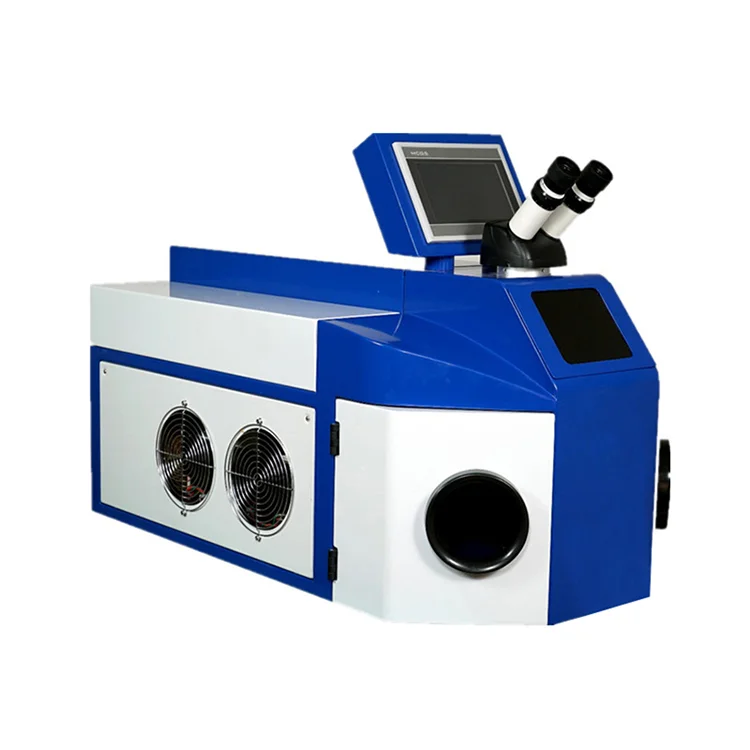

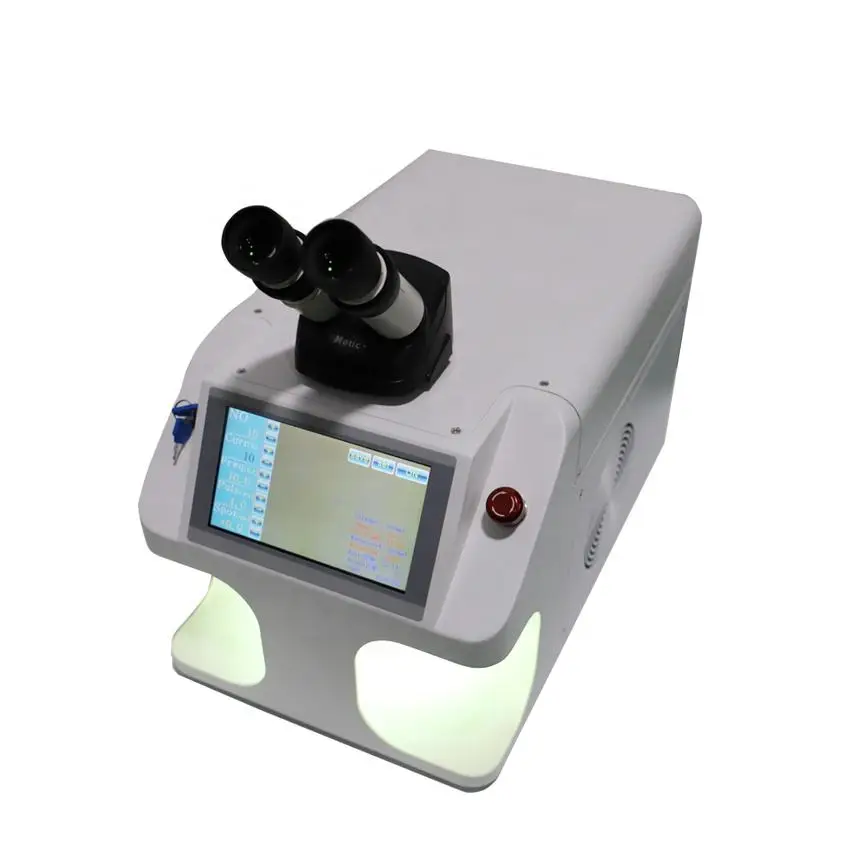

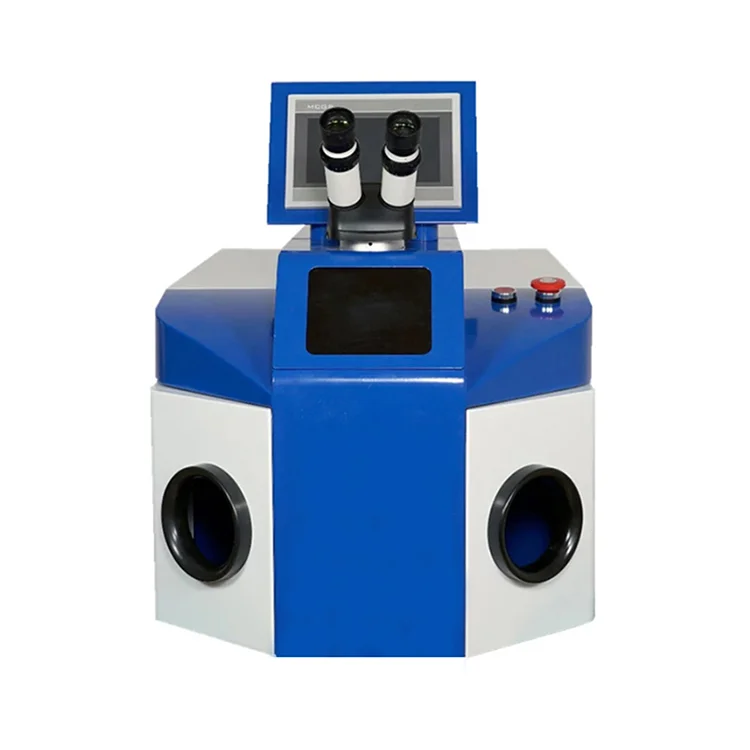

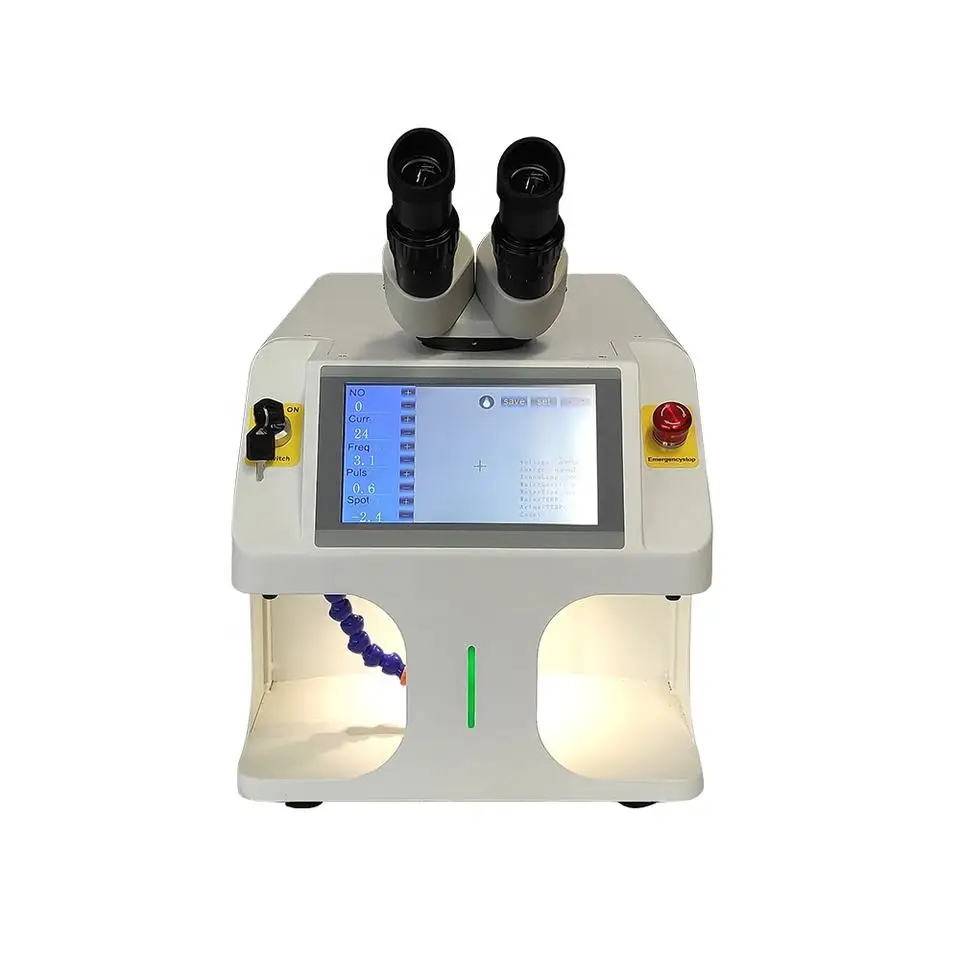

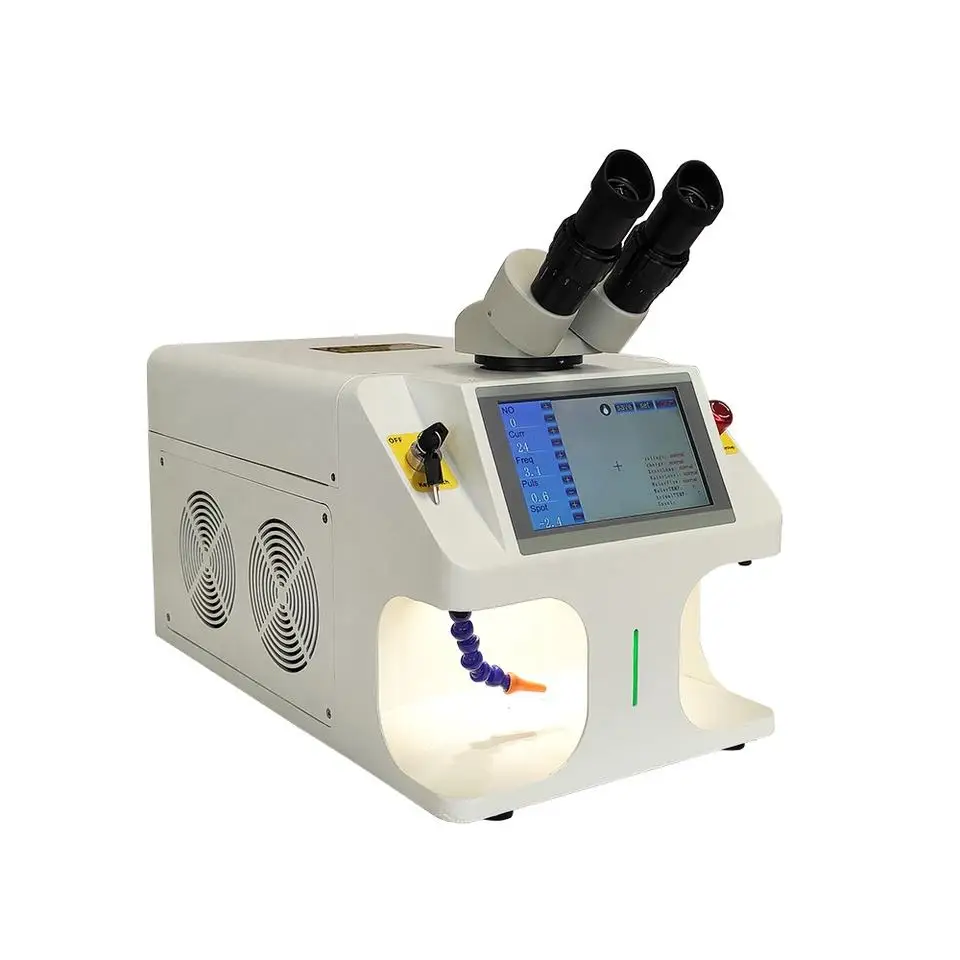

Hot Sale 200w Portable Laser Welding Machine Jewelry Laser Welder Machine Water Cooling System 0.1 20ms 0.6 3mm Ac220v/380v
- Category: >>>
- Supplier: Wuhan Huahai Century Laser Co. Ltd.
Share on (1600754242014):
Product Overview
Description
Jewelry Laser Welding Machine
(100W/150W/200W optional)
Introduction of Jewelry Laser Welding Machine:
This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
Application of Jewelry Laser Welding Machine:
Widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
Jewelry Laser Welding Machine
(Model:HB-SW 150W/200W)
Main Features
1.Energy, pulse width, frequency, spot size, etc. can be adjusted in a larger range to achieve a variety of
welding results. Parameters from the closed chamber control rod adjustment, simple and efficient;
2.Adopting imported ceramic condenser cavity, corrosion resistance, high temperature, high efficiency of
welding photoelectric conversion, life span of concentrating cavity (8-10 years), life of xenon lamp of the
laser spot machine are all more than 8 million times;
3.The use of the world's most advanced automatic shading system, eliminating the time in the work of the
eye irritation;
4.With 24-hour continuous working capacity, machine performance and stability;
5.humanized design, ergonomic, long hours of work is not fatigue; Main advantages: fast, high efficiency,
large depth, small deformation, heat affected zone is small, high quality welding, solder joint pollution-free,
high efficiency and environmental protection.
Technical Parameters of channel letter laser welding machine:
Model No. | HB-SW 100W | HB-SW 150W | HB-SW 200W |
Laser Source | Nd: YAG | ||
Laser Wavelength | 1064nm | ||
Rated Power | 100W | 150W | 200W |
Laser Energy | 40J | 60J | 80J |
Pulse Width | ≤20ms | ||
Pulse Frequency | ≤50Hz | ||
Beam Diameter | 0.1-3.0mm | ||
Power Supply | 220V±10% /50Hz | ||
Observing System | microscope | ||
Chamber Illumination | LED lamps | ||
Parameters Memorization | 10 groups | ||
Protection Alert | flow alert | ||
Language Display | Chinese/English | ||
Shield Gas Supply | One line | ||
Cooling System | water cooling | ||
Power Consumption | 4KW | 5KW | 6KW |
Welding Chamber Dimensions | 300mm*450mm*150mm(L*W*H) | ||
Machine Dimensions | 920mm*560mm*1220mm (L*W*H) | ||
Running Environment | 5℃-30℃, 5%-75% humidity | ||
Net Weight | 130kg(welder)+50kg(chiller) | ||
Product Description
Machine Structure
Details of Machine
1.Microscope
2.Display screen
3.Emergency button
4.Jewelry tray
5.Constant temperature Water Chiller
Constant temperature ,cool the machine and protect the lamp well.
Constant temperature ,cool the machine and protect the lamp well.
6.Wheel
You can move the machine freely
You can move the machine freely
7.Exhaust Fan
Exhaust the heat out of machine,Ensure long-time using
Exhaust the heat out of machine,Ensure long-time using
Sample Show
Packaging & Shipping
Welding Samples
Packing and Shipping
Terms and Conditions
1.24 months Guarantee
2.5~7 Days Lead Time
3.instruction Book,Training Video
4.24 hours Online Service
5.TT/Ali Trade Assurance Payment
6.shipping by Air,DHL,Sea
Company Information
Huahai Laser Certificates
Customer visiting
Company Picture
FAQ
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Before quotation, would you please let me know some items following?
1.What 's material of the products?
2.How about your expect working performance?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Send your inquiry details in the below and click "Send" to check the price for
100W 150W 200W laser welding machine for Jewelry !

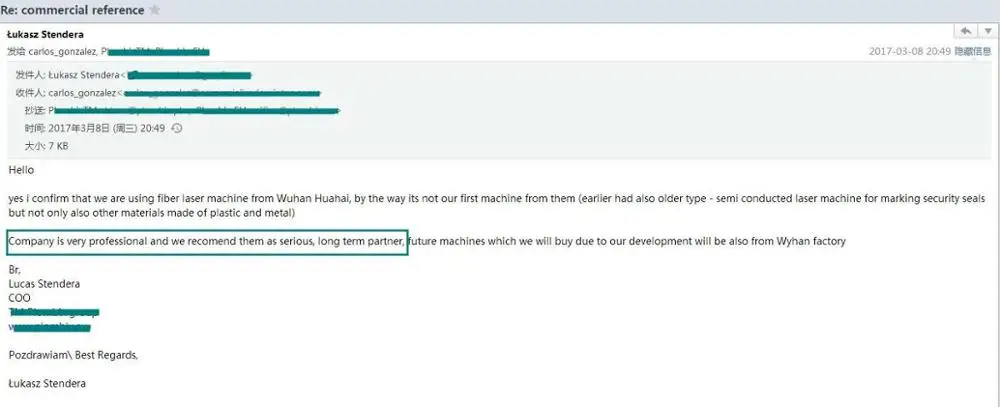

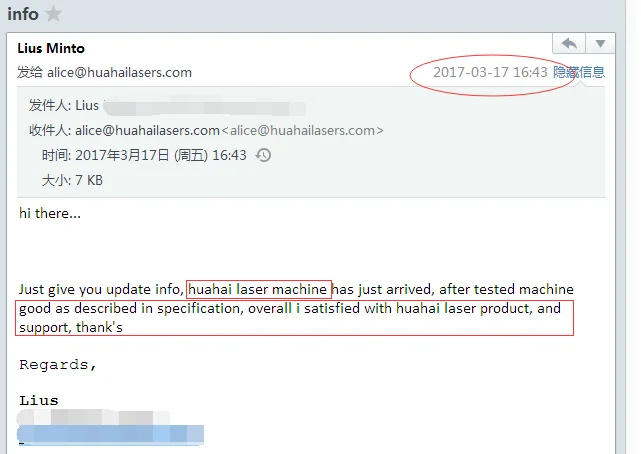

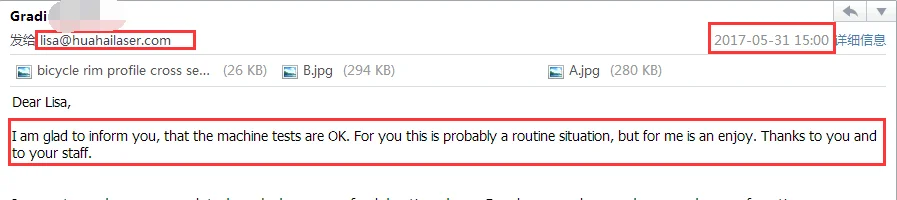

Buyer Feedback
