Оборудование для гидравлической железнодорожной дорожки, оборудование для тампинга, рельсовый переключатель, машина для тампинга на продажу
- Category: Railway Parts & Accessories >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (1600758457533):
Product Overview
Description
Product Paramenters

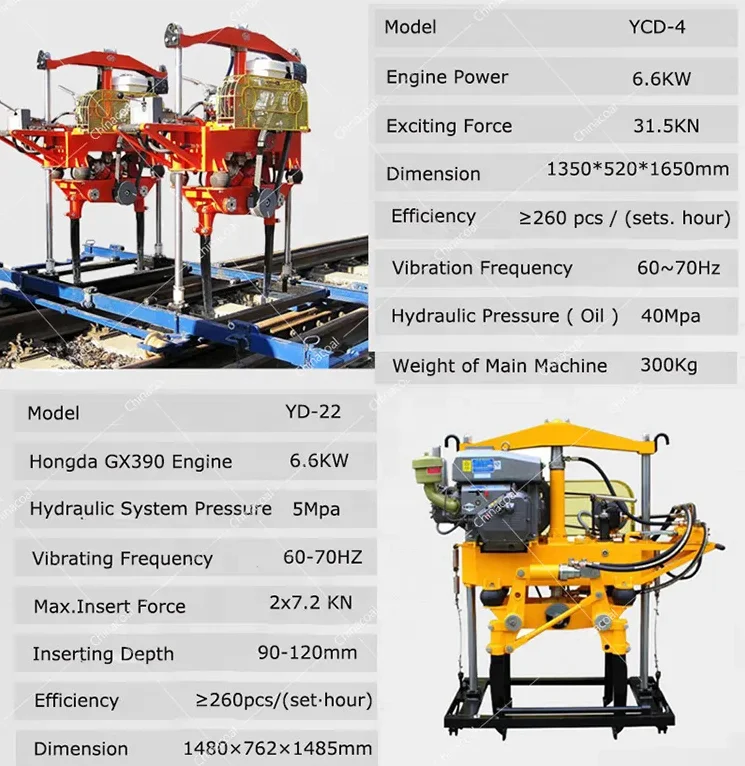

Parameters of Hydraulic Railway Track Machinery Rail Tamping Machines Rail Switch Tamping Machine For Sale
Motivation | ||
SF190 diesel engine power | 7KW;RPM:2300rpm | |
GX270 gasoline engine power | 6.6kw, RPM: 3600rpm | |
hydraulic system working pressure | 5 ~ 6Mpa | |
vibration frequency | 66.7hz | |
Excitation force | 22kN | |
maximum insertion force | 16kN | |
clip strength | 6.5kN*2 | |
depth of insertion | 110mm and 10mm (below the bottom surface of sleeper) | |
Production efficiency | ≥ 270 pieces / (Group hour) | |
Net weight | water cooled diesel engine: 455kg; | |
gasoline engine: 300kg | ||
Dimensions | water cooled diesel engine:1300*750* 1600mm; | |
Gasoline engine:1390*750* 1600mm | ||
Track gauge of running frame | 1435mm | |
Products Description
Introduction of Hydraulic Railway Track Machinery Rail Tamping Machines Rail Switch Tamping Machine For Sale
YD-22 rail tamping machine it can be used in the domestic I type and dish Tamping operation can be carried out on the track of type-I concrete sleeper, and also on various foreign concrete sleeper and steel sleeper lines.The technical performance is higher than that of the old tamping machine.This machine is suitable for tamping after large and medium repair of different types of rail and concrete sleeper.zmwm15
Details Images

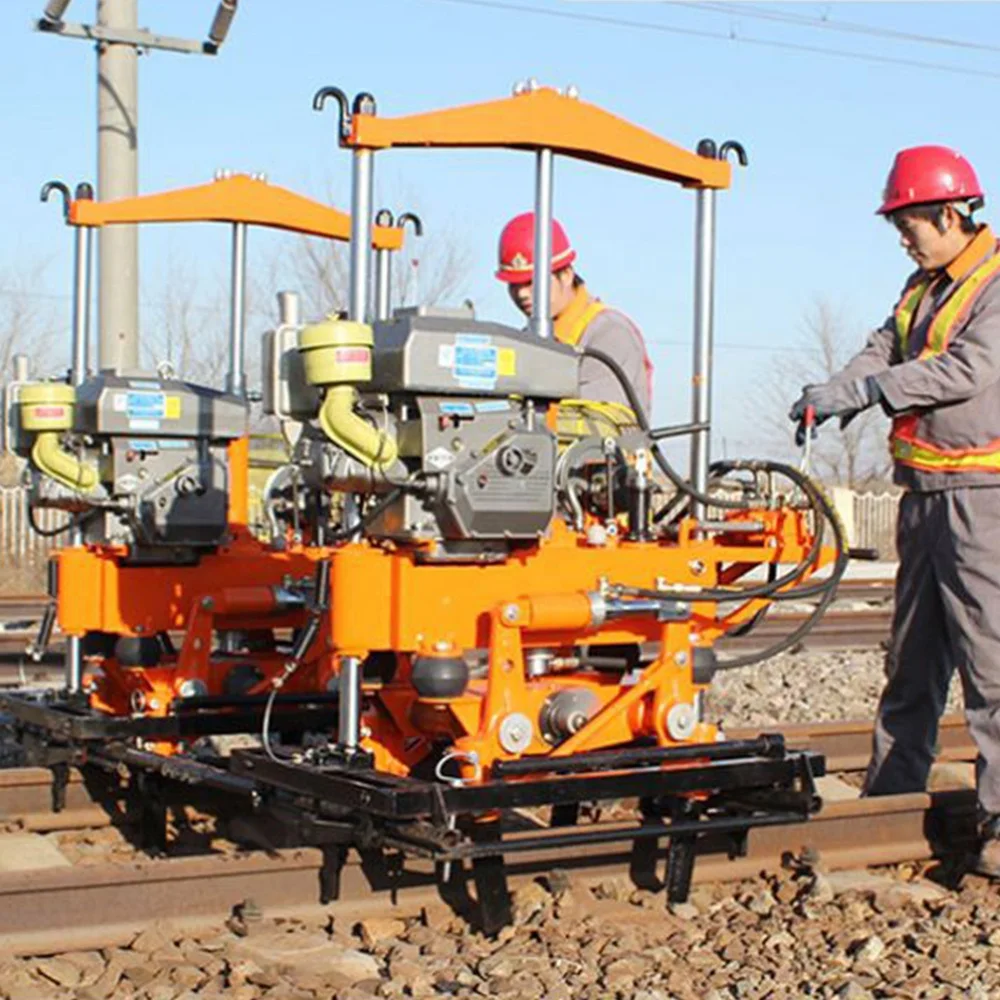

Photos of Hydraulic Railway Track Machinery Rail Tamping Machines Rail Switch Tamping Machine For Sale
