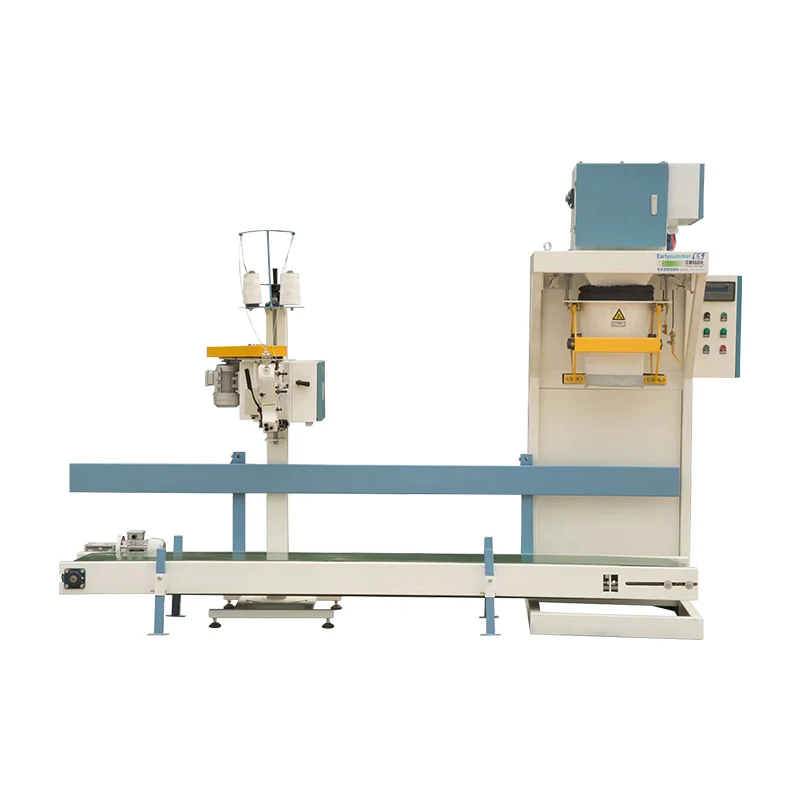

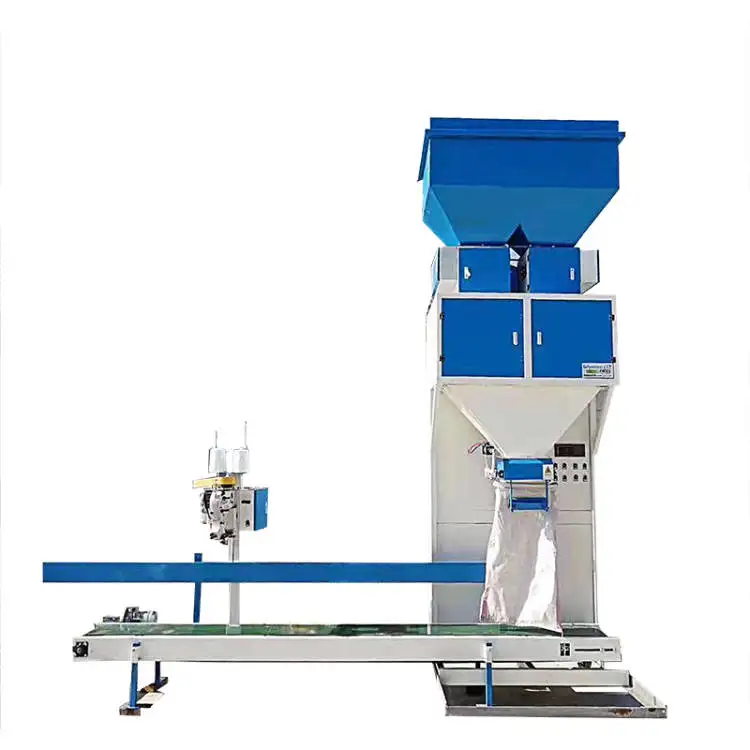

Semi Automatic 1000g Dry Coffee Powder Bag Filling Packing Machine / 1Kg Manual Auger Filler

Share on (1600758558013):


Price:$11,000.00 - $15,000.00

Quantity:


Product Overview

Description



Semi Automatic 1000g Dry Coffee Powder Bag Filling Packing Machine / 1Kg Manual Auger Filler


Product Description


Servo Motor Touch Screen Plc Powder Weighing Filling Machine Precision Powder Dispenser
Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk
powder, coffee powder, washing powder, solid drink, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavoring , enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling.




Measurement Range:
5-5000g (Need different Augers and Auger Funnels)
Measurement Method:
Auger Filler
Filled Error:
≤ ±1%
Entrance Height:
1600 mm
Entrance Diameter:
150 mm
Nozzle Ground Clearance:
860 mm
Filling Speed:
0-50 fills/min
Contact Materials:
Food Grade SUS304 Stainless Steel
HMI:
LCD Touch Screen
Control System:
PLC
Filling Motor:
Stepper Motor
Monitorable Hopper:
Yes
Easy Clean Hopper:
Optional
Hopper Volume:
50L
Fill Control:
Timer based / Sensor based
Dimensions:
800× 800×1960mm
Power:
AC Three-Phase 380V 50Hz 1.5Kw
Machine Weight:
200 kgs


* Voltage is optional from AC Three-Phase 380V, AC Three-Phase 220V, AC Single-Phase 220V.








Features:
1. Suitable for all kinds of bottles, cans and bags of quantitative filling. The containers is not restrict.
2. All stainless steel construction. And the contacted materials are 304 stainless steel.
3. The filling motor is stepper motor or imported servo motor, depending on the customer’s choice.
4. Photoelectric sensor control to fill materials, and pedal switch for filling is optional.
5. Feedback value is adjustable to meet a variety of requirements of precision.
6. The filling motor speed is adjustable to meet the requirements of various materials.
7. Alarm and automatic correcting error.
8. Filling weight is adjuatablt from 5 grams to 5000 grams. Please refer to the small-dose auger filling machine if your filling weight less than 5 grams.
9. Less land occupation.
10. Together with screw conveyor feeder to achieve automatic materials level control.

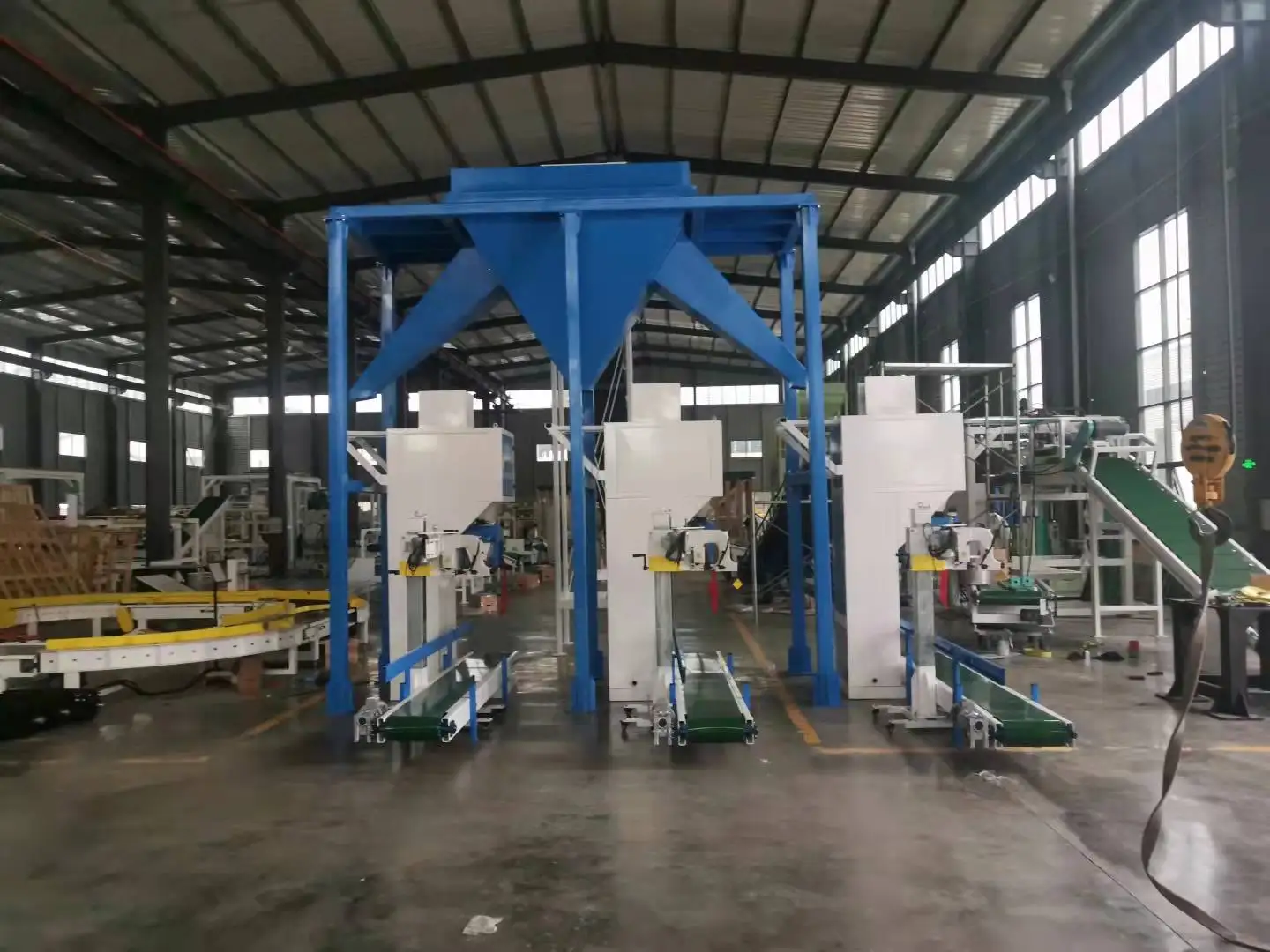

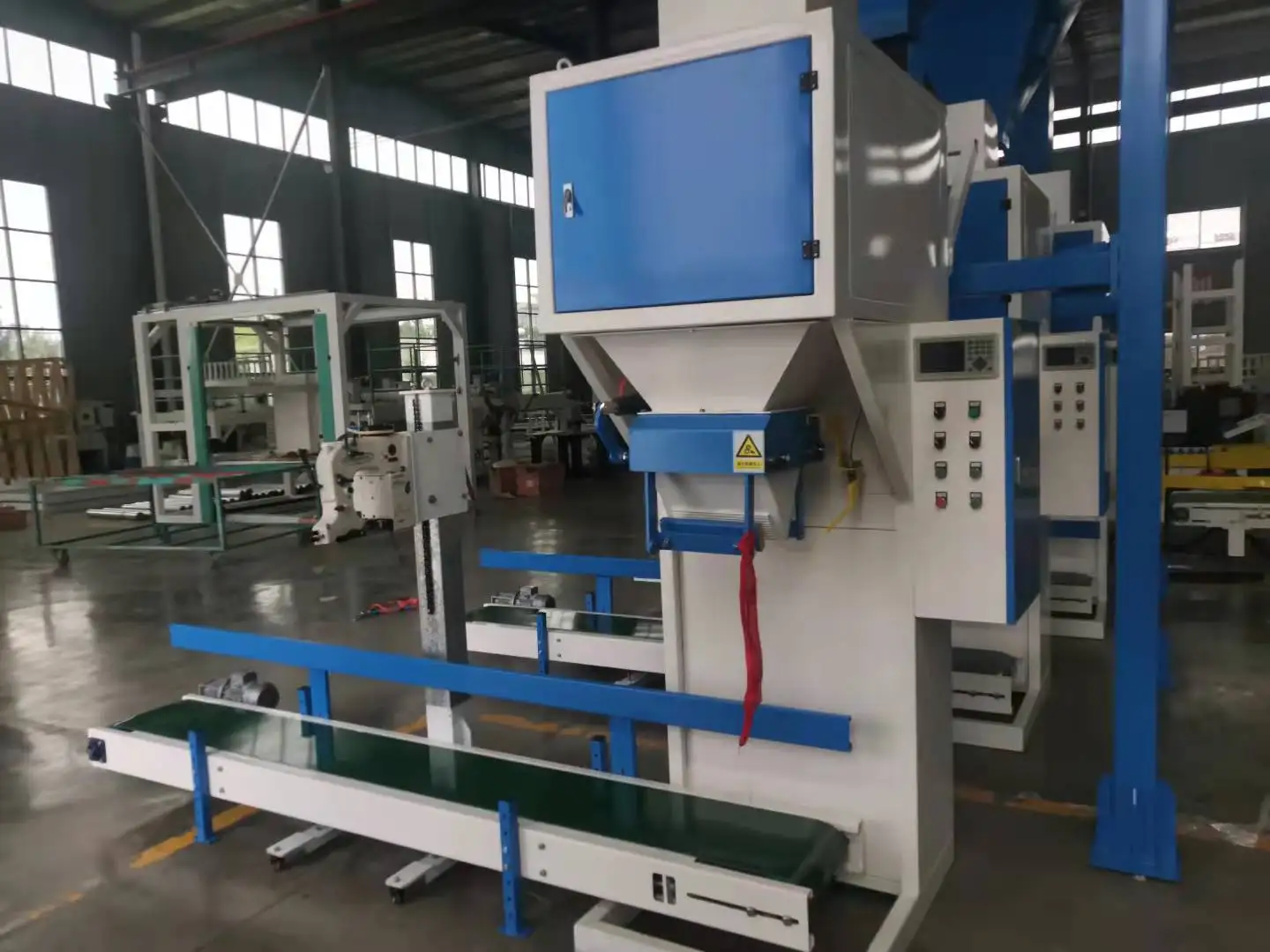

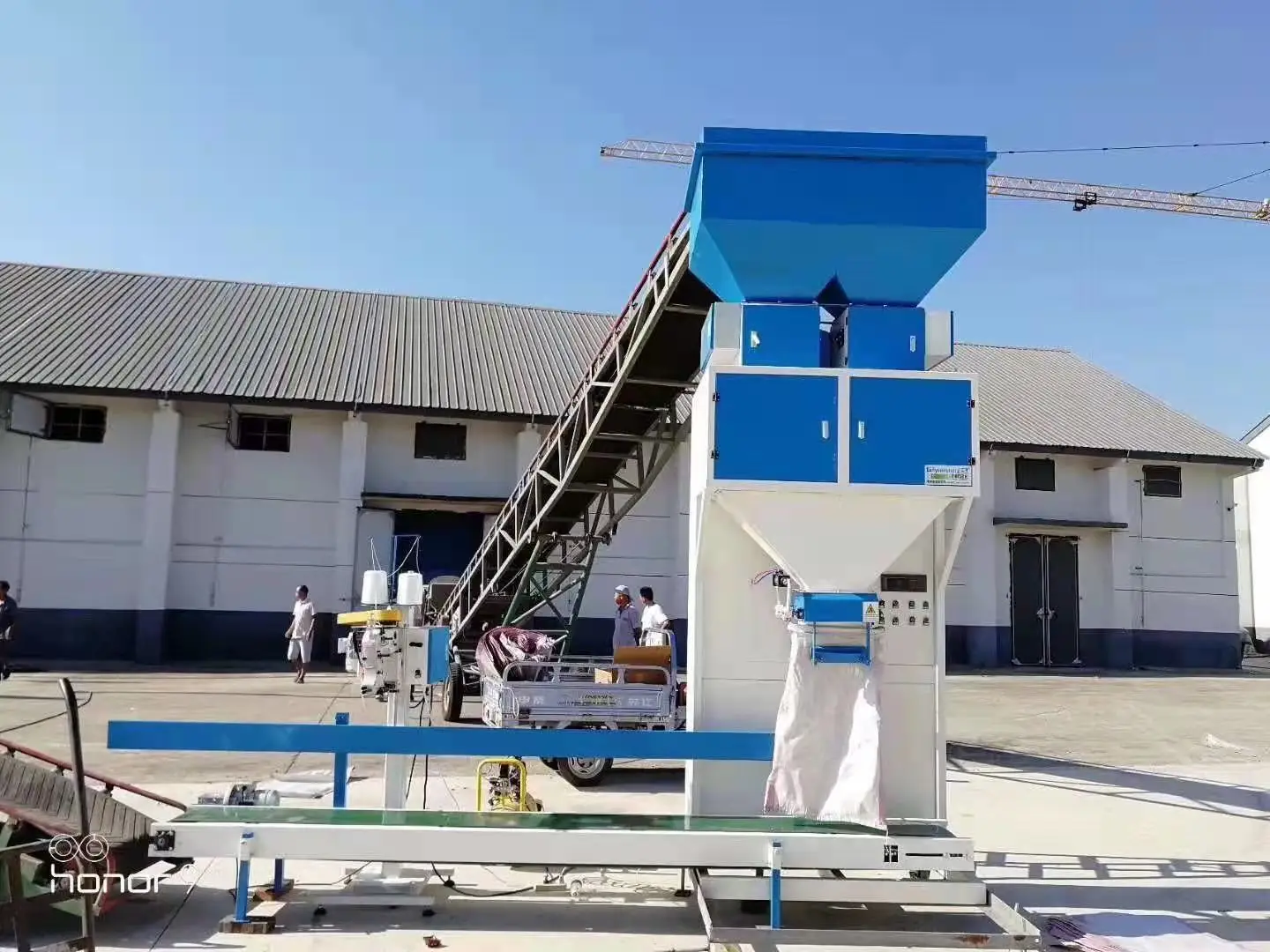

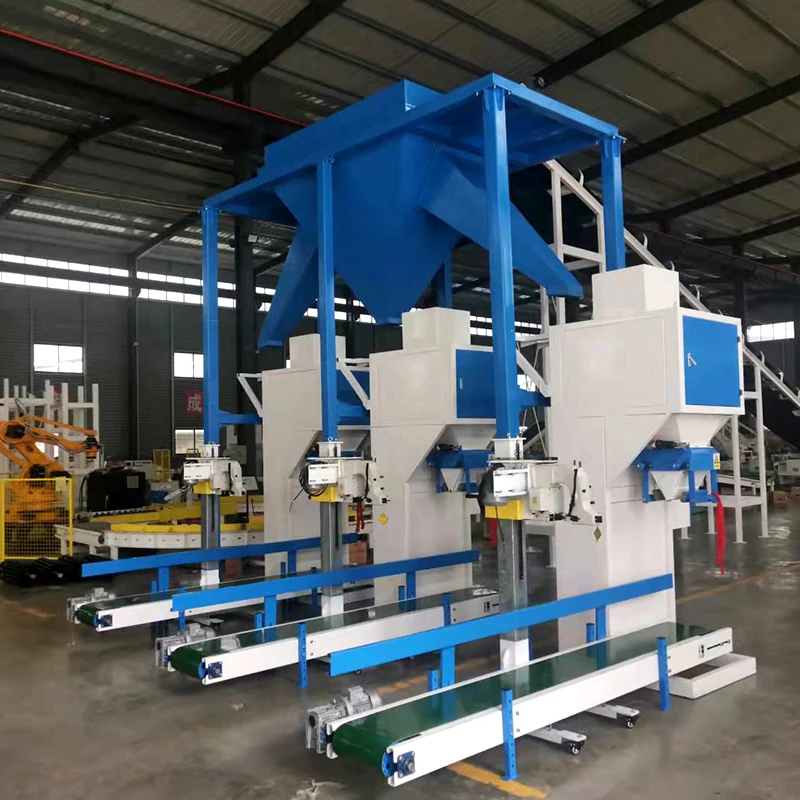

Details Images




Packing&Shipping


No.
Dimensions
Volume
Weight
Description
1
2100*700*1000mm
1.47CBM
260Kg
Packaging the Powder Filling Machine
2
880*950*1000mm
0.84CBM
130kg
Packaging the Hopper of Screw Feeder
3
2700*270*460mm
0.34CBM
70kg
Packaging the Conveyor of Screw Feeder


1. Manner of Packing: Covered by plastic film, packaging in export wooden cases in container.
2. Delivery Time: 7-10 working days after payment.

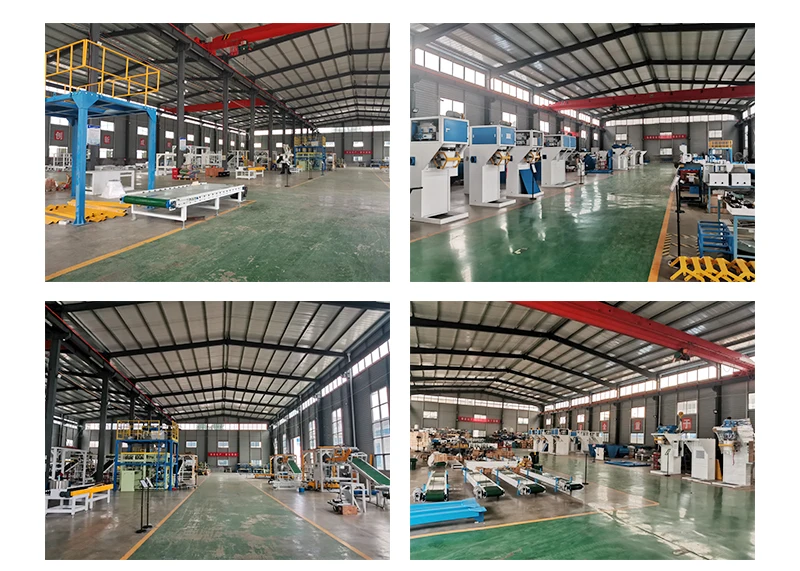

Company Information






FAQ


1.Q: Are you trading company or manufacturer ?
A: We are manufacturer since 2001.
As the same of most manufacturers, we first carry out domestic trade, and registered Alibaba (Chinese Trade) in 2005.

2.Q: What’s the guarantee of the machine?
A: We have 1 year’s guarantee of the machine
We would like to send you new one since we have one year warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it.
Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.

3.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

4.Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)

5.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
