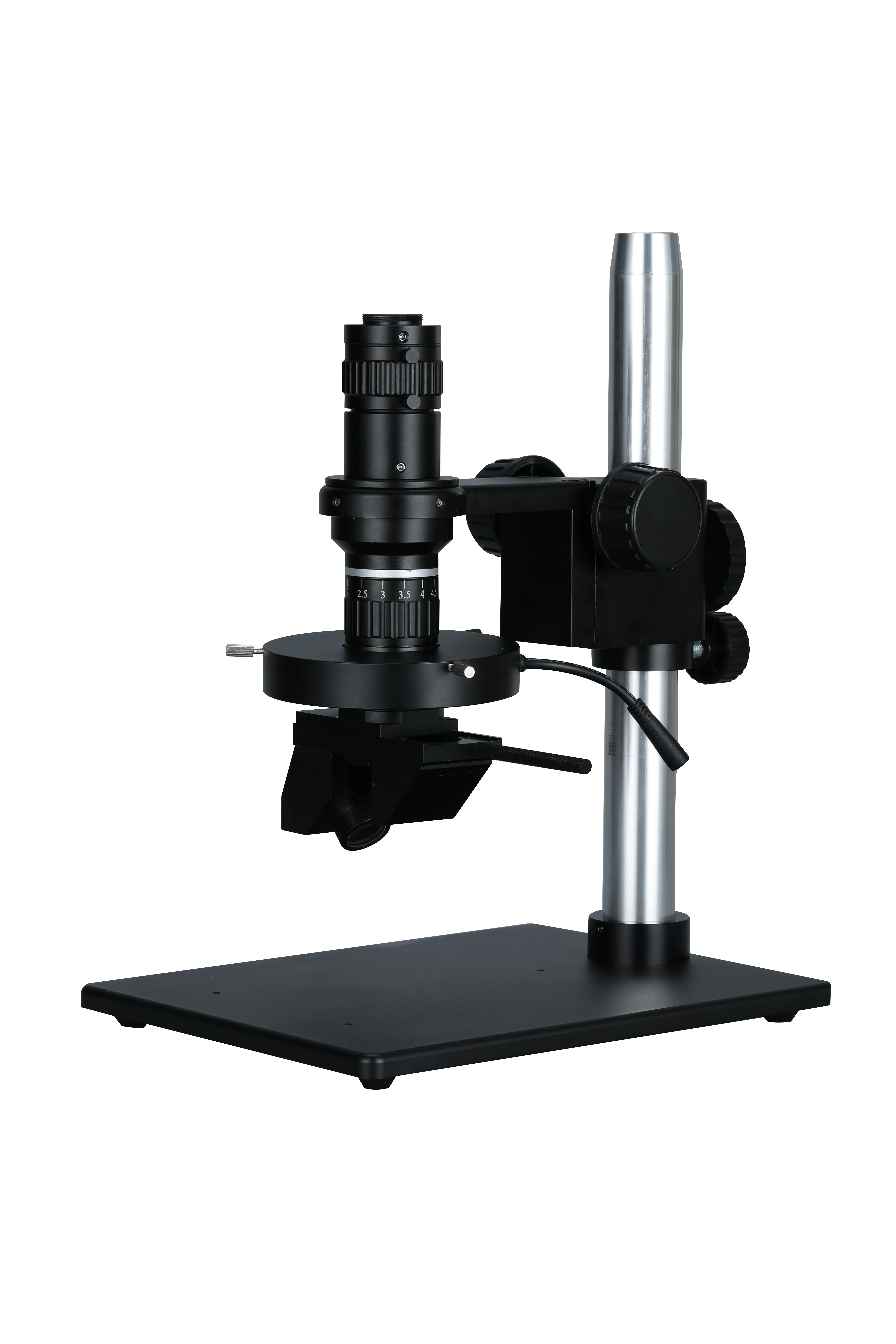

New arrival mobile phone repair microscope 28 240X magnification digital microscope with lcd screen
- Category: Test Instruments >>>
- Supplier: Ningbo Huaguang Precision Instrument Co. Ltd.
Share on (1600758769832):
Product Overview
Description
Products Description
TDM-6303DMP | ||||||
Warranty: | 3 years | Customized support: | OEM, ODM | |||
Place of Origin: | NingBo, China | Brand Name: | NBHG | |||
Model Number: | TDM-6303DMP | Theory: | Video Microscope | |||
Drawtube: | Monocular | Magnification: | 0.65X~5.0X | |||
Color: | black | Total Magnification | 28-240X(based on 15.6 inch monitor) | |||
Material: | Glass, ABS plastic, alloy, led | Output | High resolution HDMI output | |||
Camera: | Sony 1/2inches 3.0M CMOS Sensor | Working Distance | 86mm | |||
Resolution/Frame | 1920*1080 60fps | Light Source | LED Ring Light with 4 Zones Control | |||
Pixel Size | 3.75x3.75μm | Way of changing times | Manually changing times | |||
Save function | Take photo and video to U disk | Power Supply: | 100V~240V / 12V 1A (or 2A) | |||
Packaging & Delivery | ||
Selling Units: | Single item | |
Packaging Details | Polyfoam Protection + Strong Master Carton | |
Kraft paper box size | 45*41*47cm | |
Weight of 1sets in a case: | 12KG | |
Lead Time | Quantity(Pieces) 1 - 10 >10 Est. Time(days) 10 To be negotiated | |
Details Images

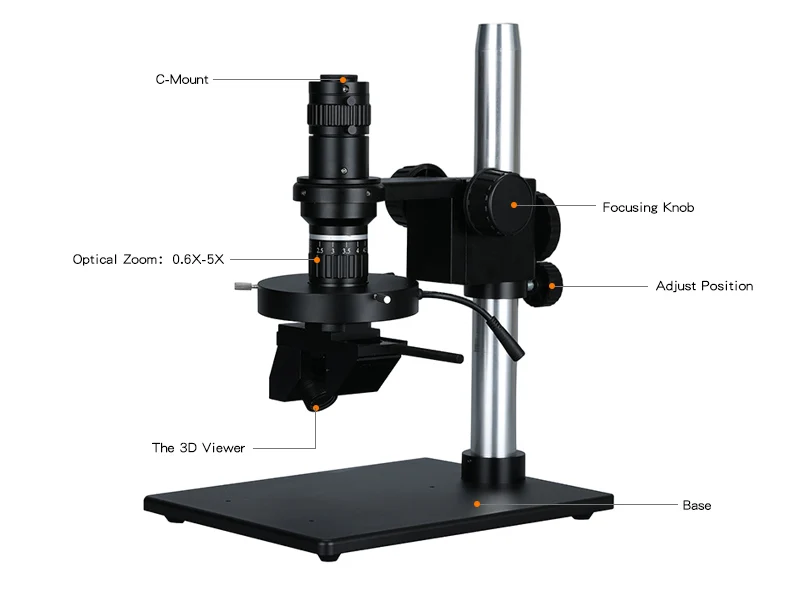

Objective

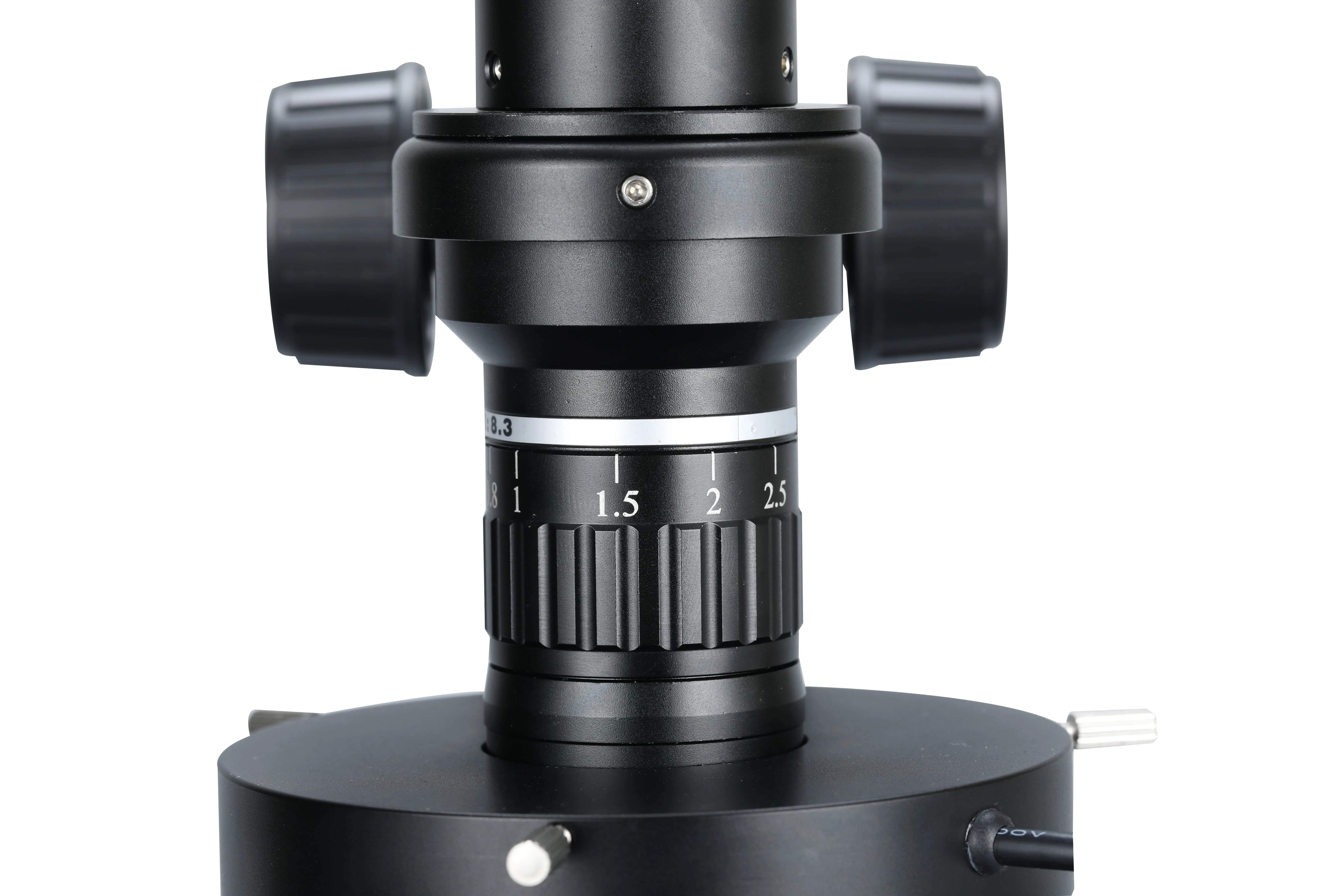

Infinity optical design with zoom lens 0.6X-5X
Zoom ratio:1:8.3
Working distance 110mm

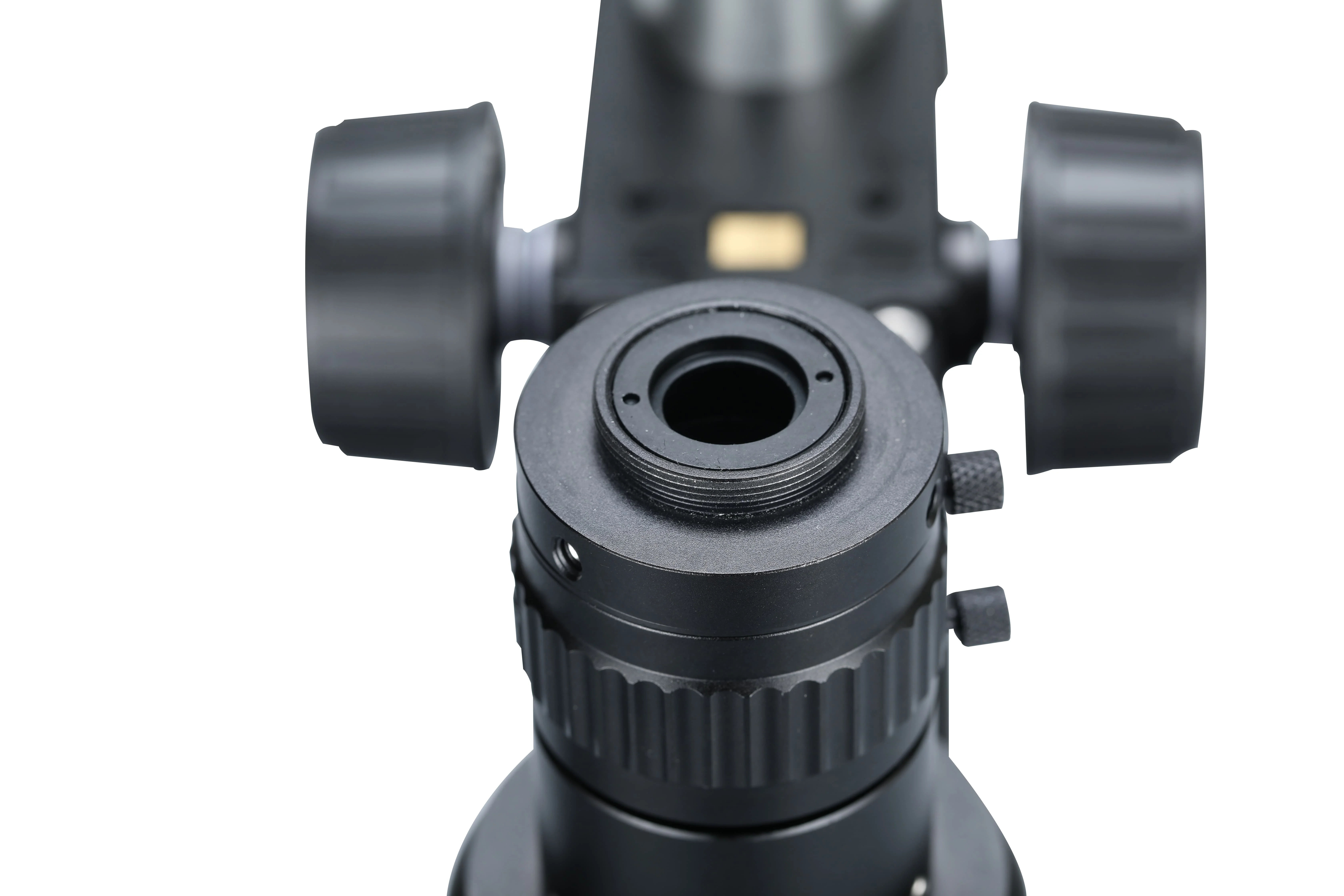

C-mount
Standard 0.5X C-mount. Optional 0.3X and 1X
Varuous filter can be used
Manual switchover

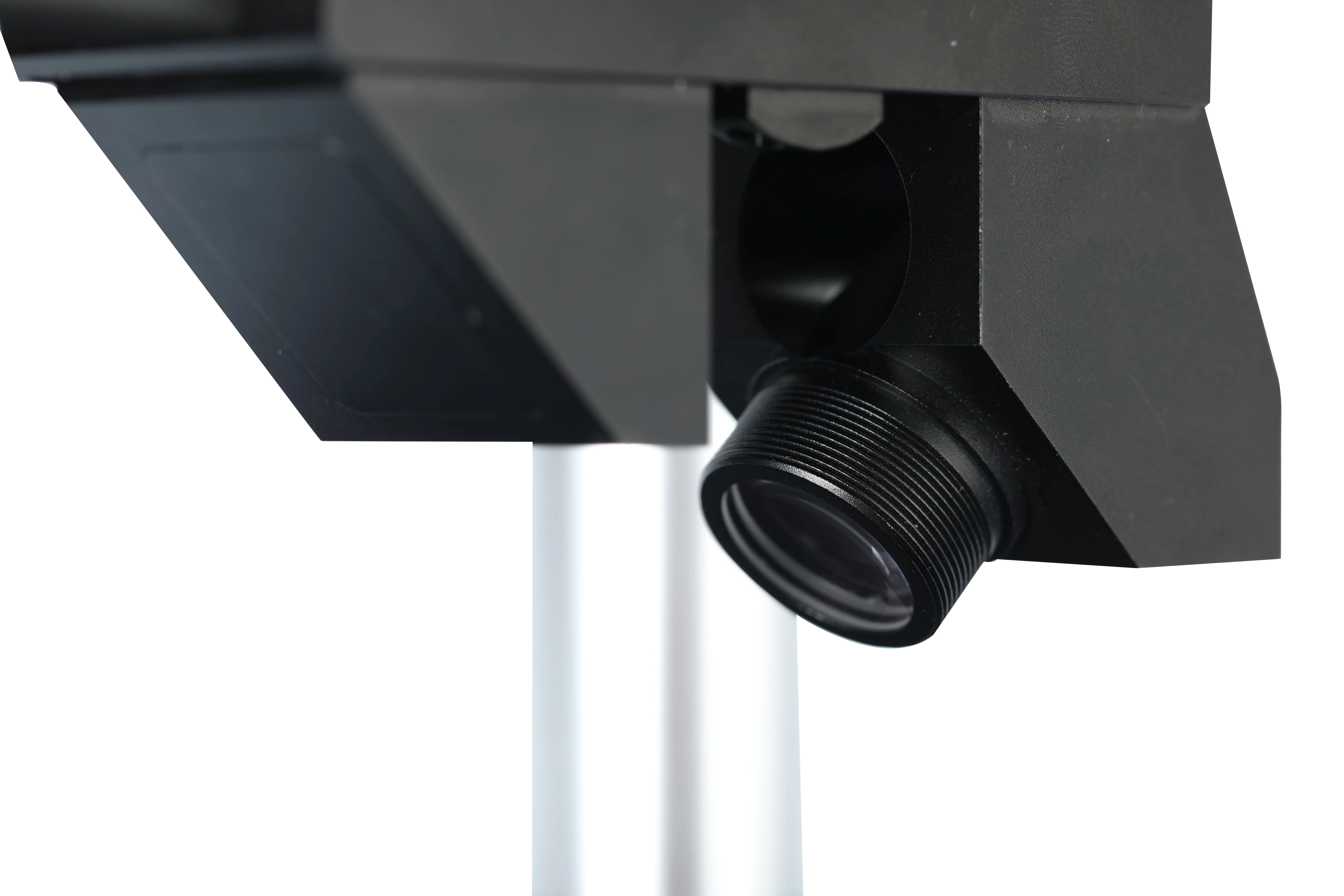

Manual switchover for 2D/3D
360 ° rotatable, Max.viewing angle 45°

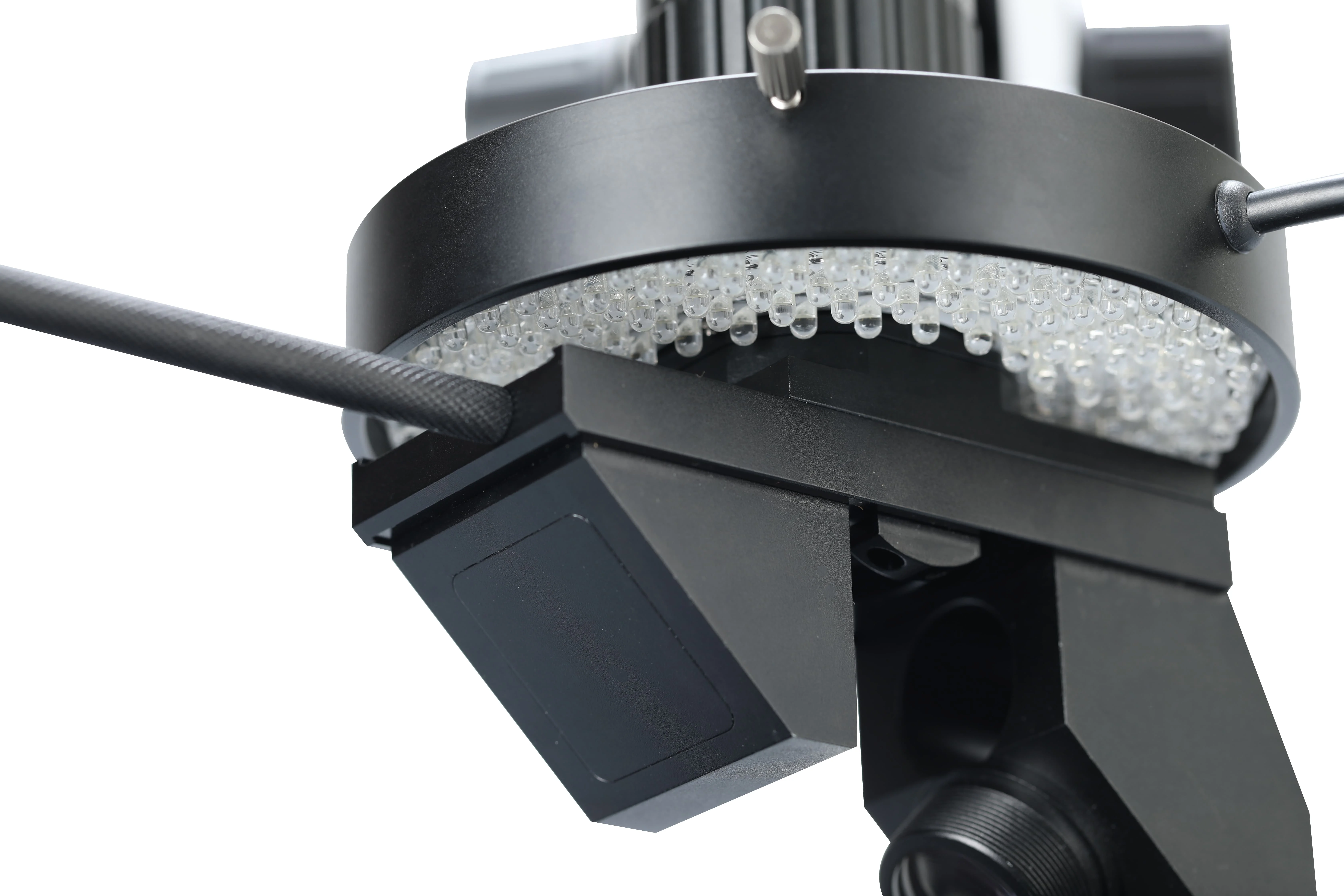

LED ring light with brightness adjustmenable in 4-zone

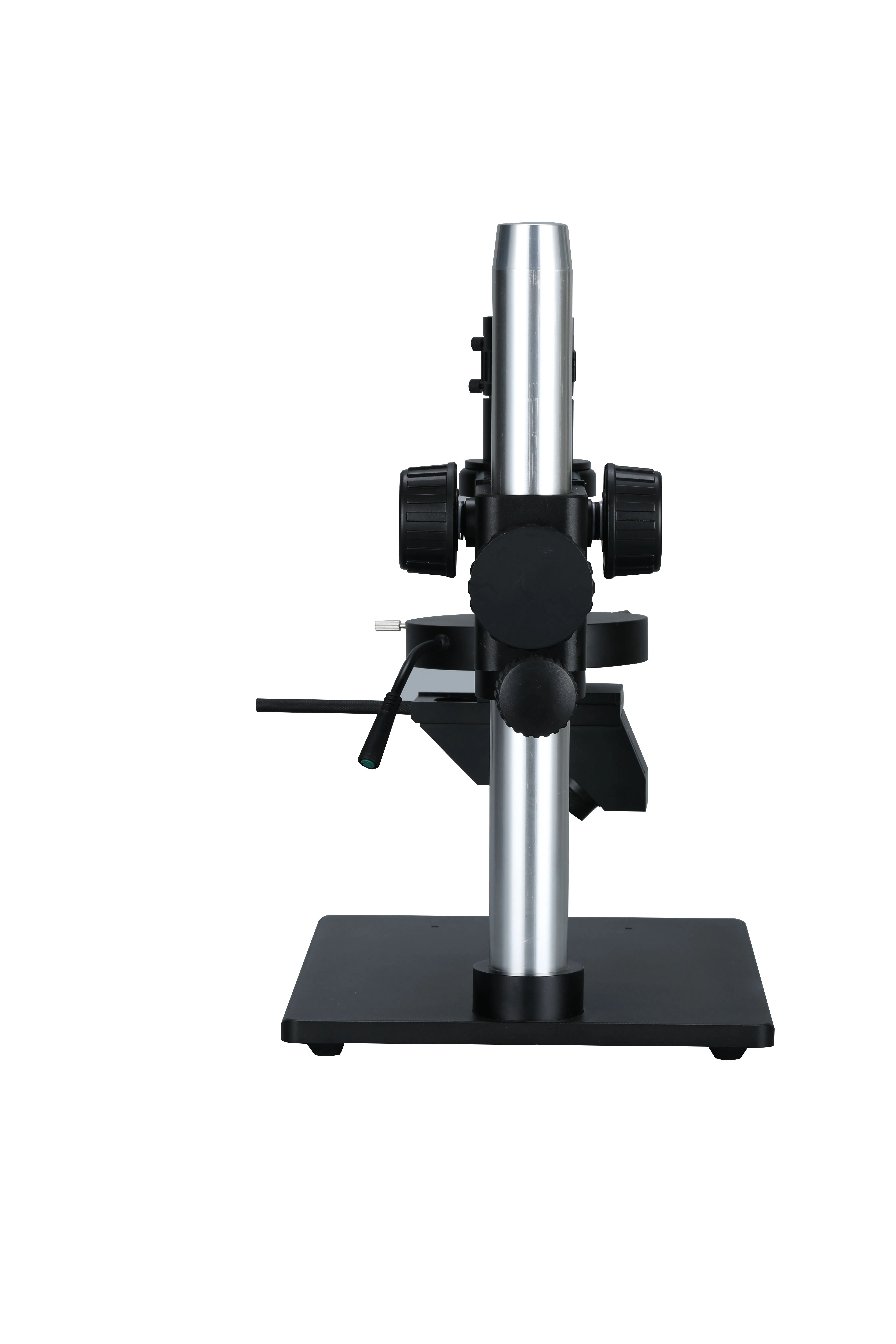

Stand

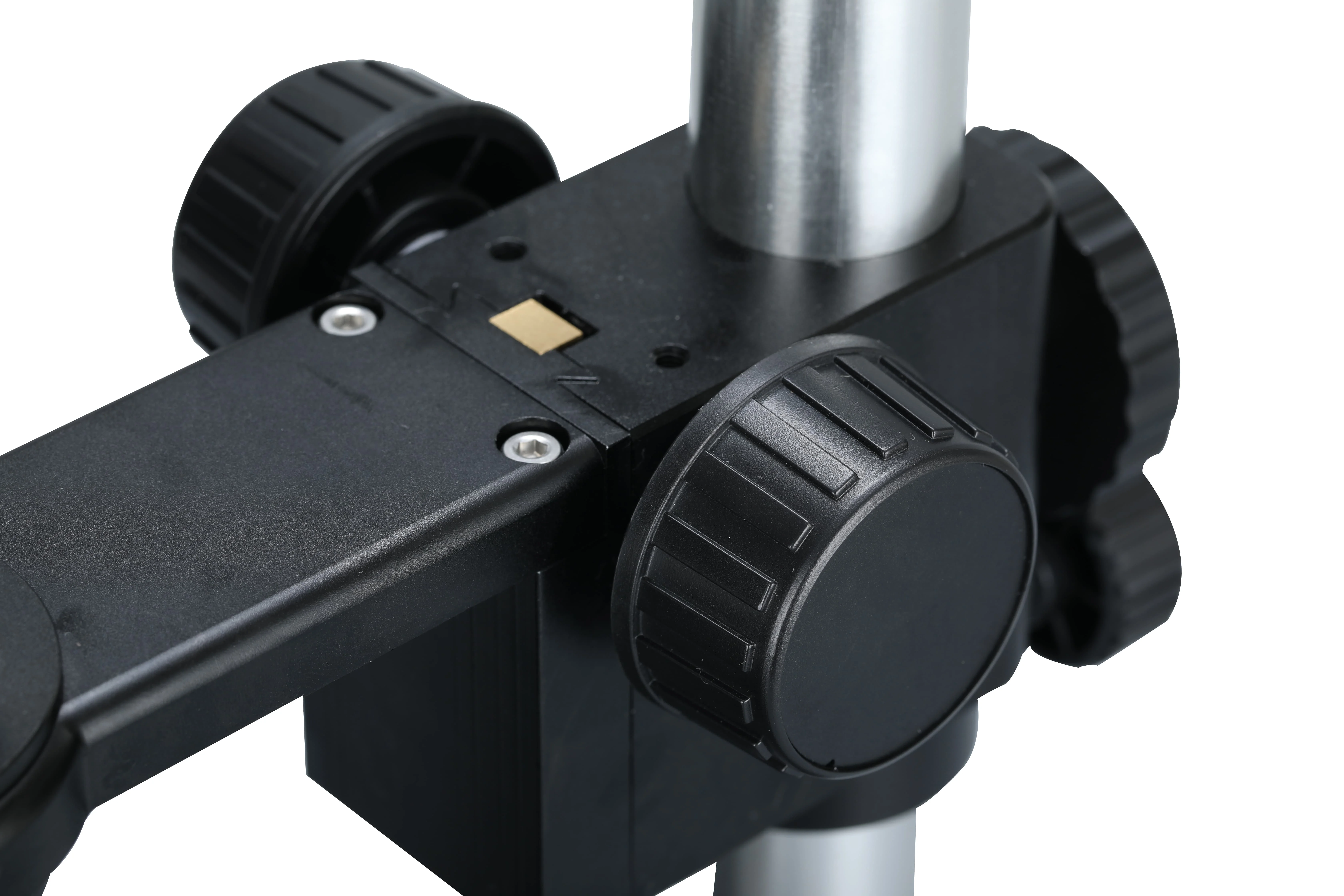

Round pillar stand with max moving distance 328mm, Pair of locking knobs

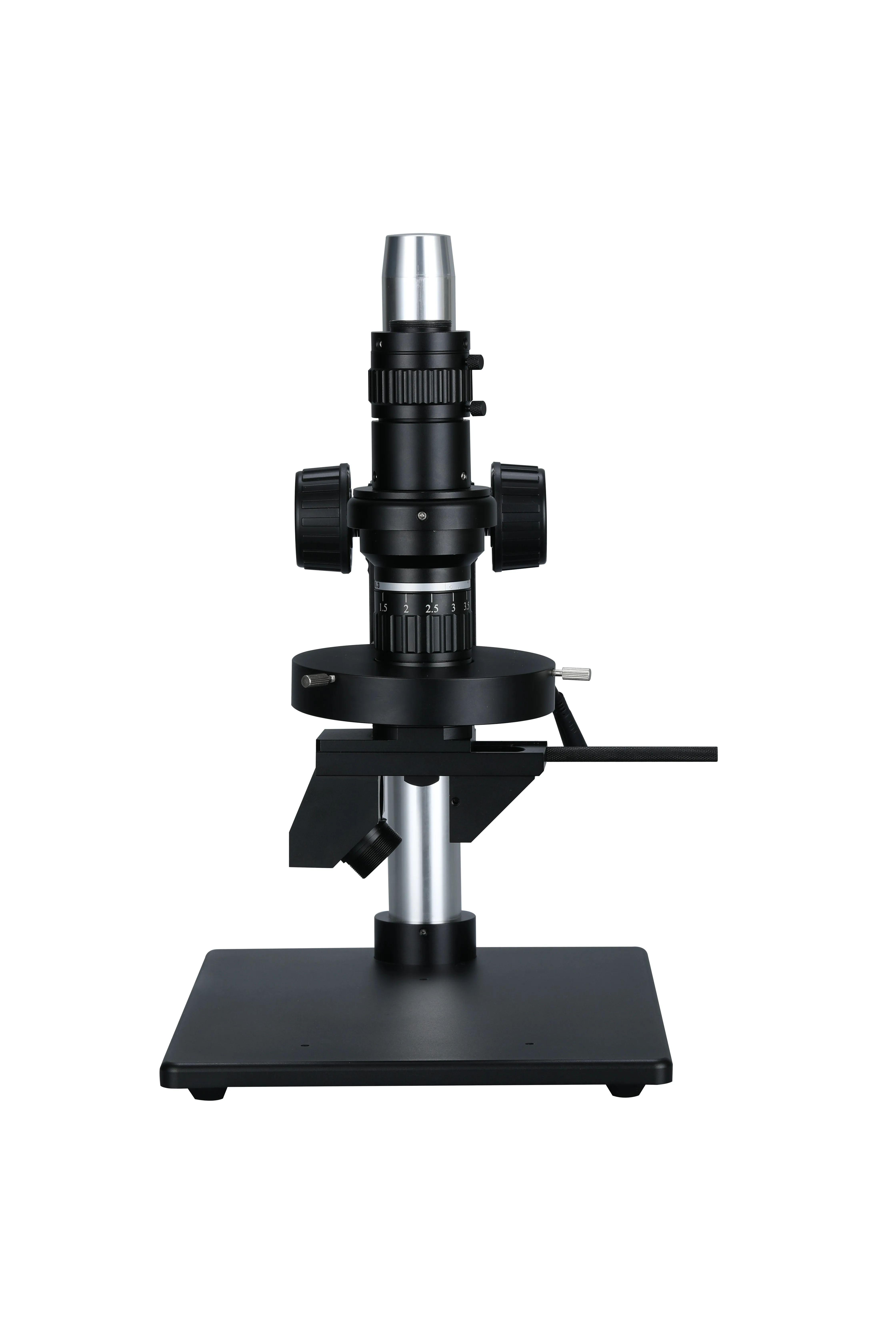

Product Show
