Product Overview
Description
Product Overview
Concrete Modular House
Concrete modular house is also called precast concrete house,belonging to concrete assembly building.It is a new type of
construction method with good energy saving and low construction cost.
It adopts reinforced concrete structure, which is prefabricated into unit modules in the factory through special equipment, and then directly transported to the site for assembly. The level of prefabrication is high, the size is accurate, the construction speed is fast, and 500 square meters can be built in one day, which greatly increases the construction speed
Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost,good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world

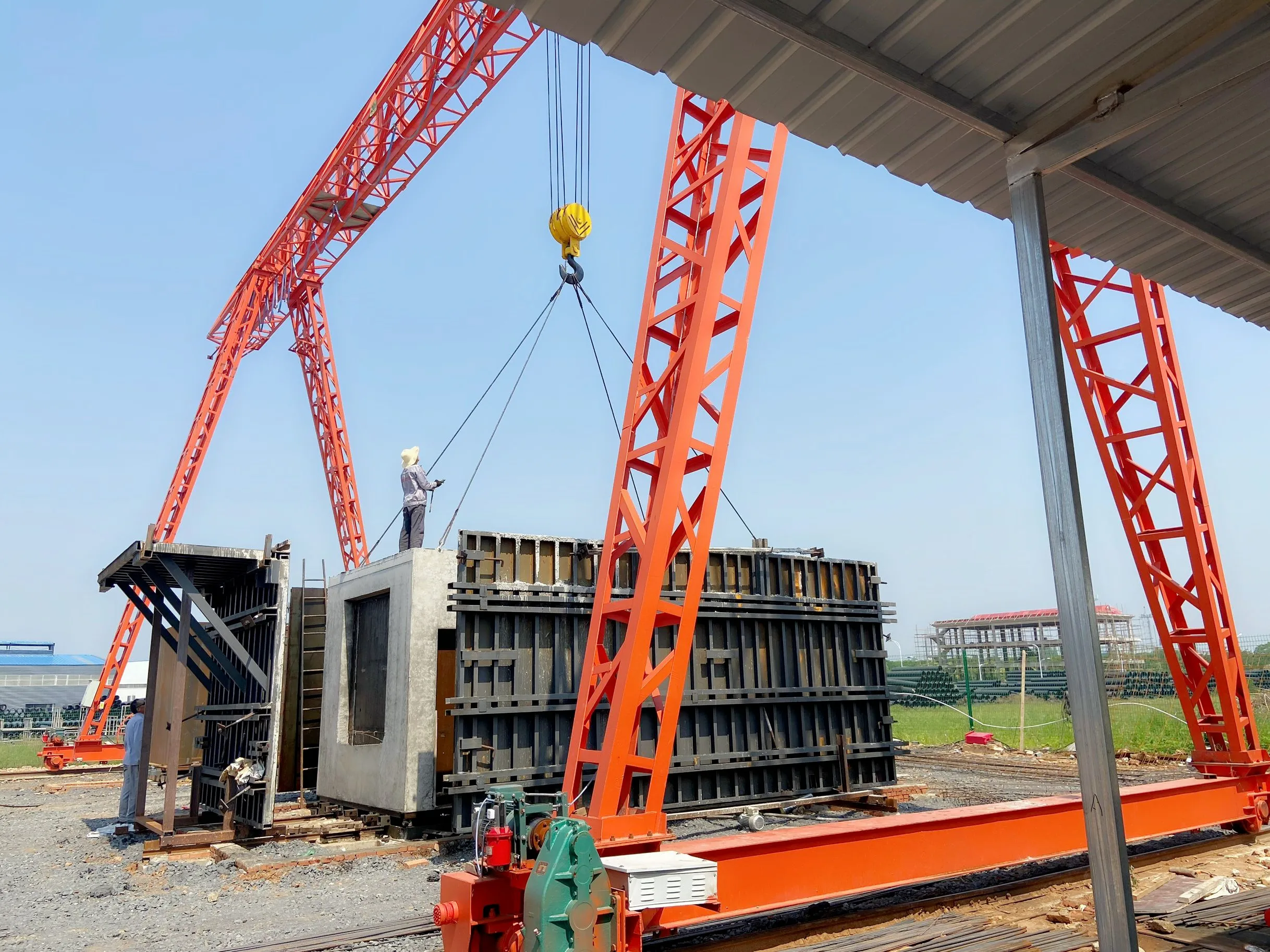

Equipment Line
How to produce?

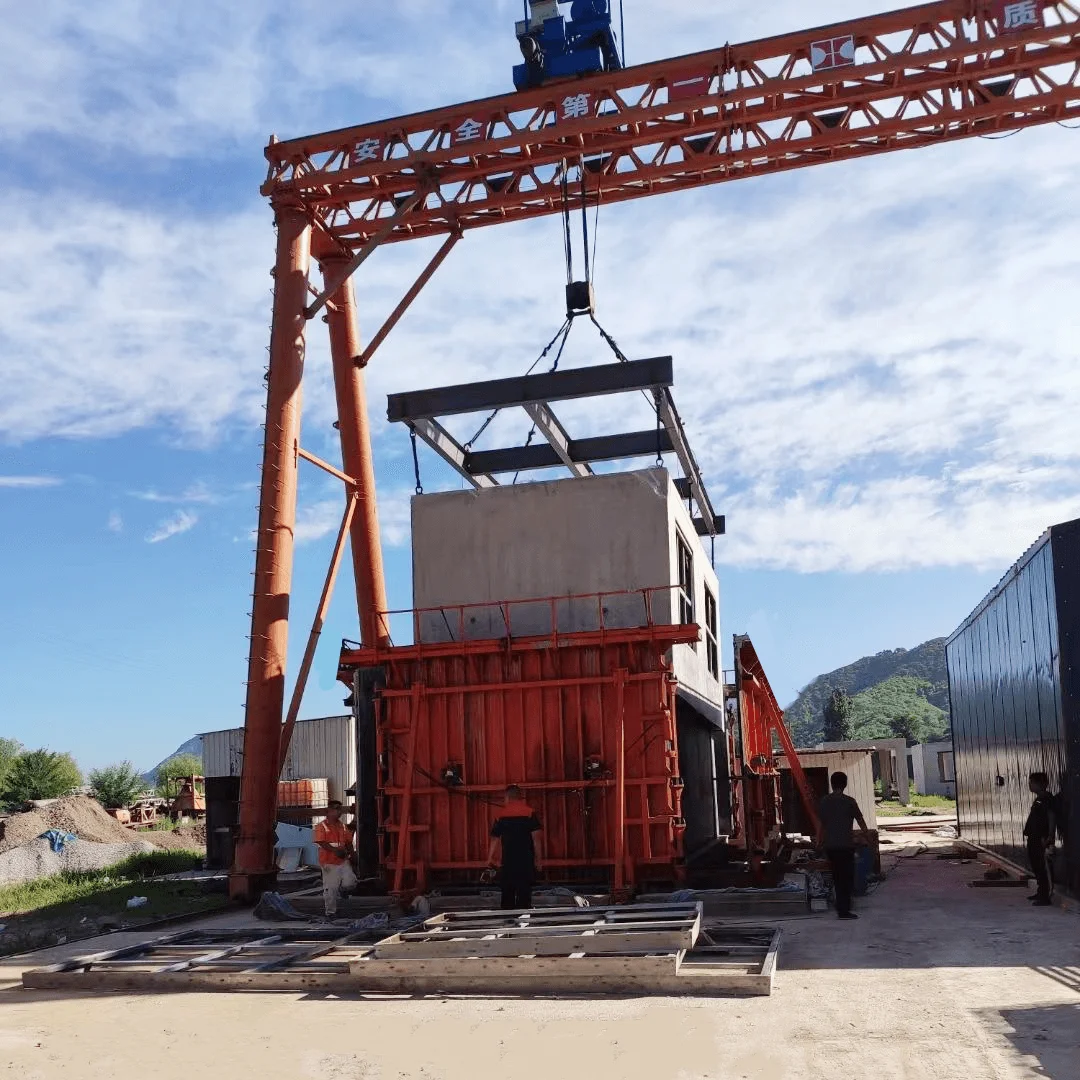

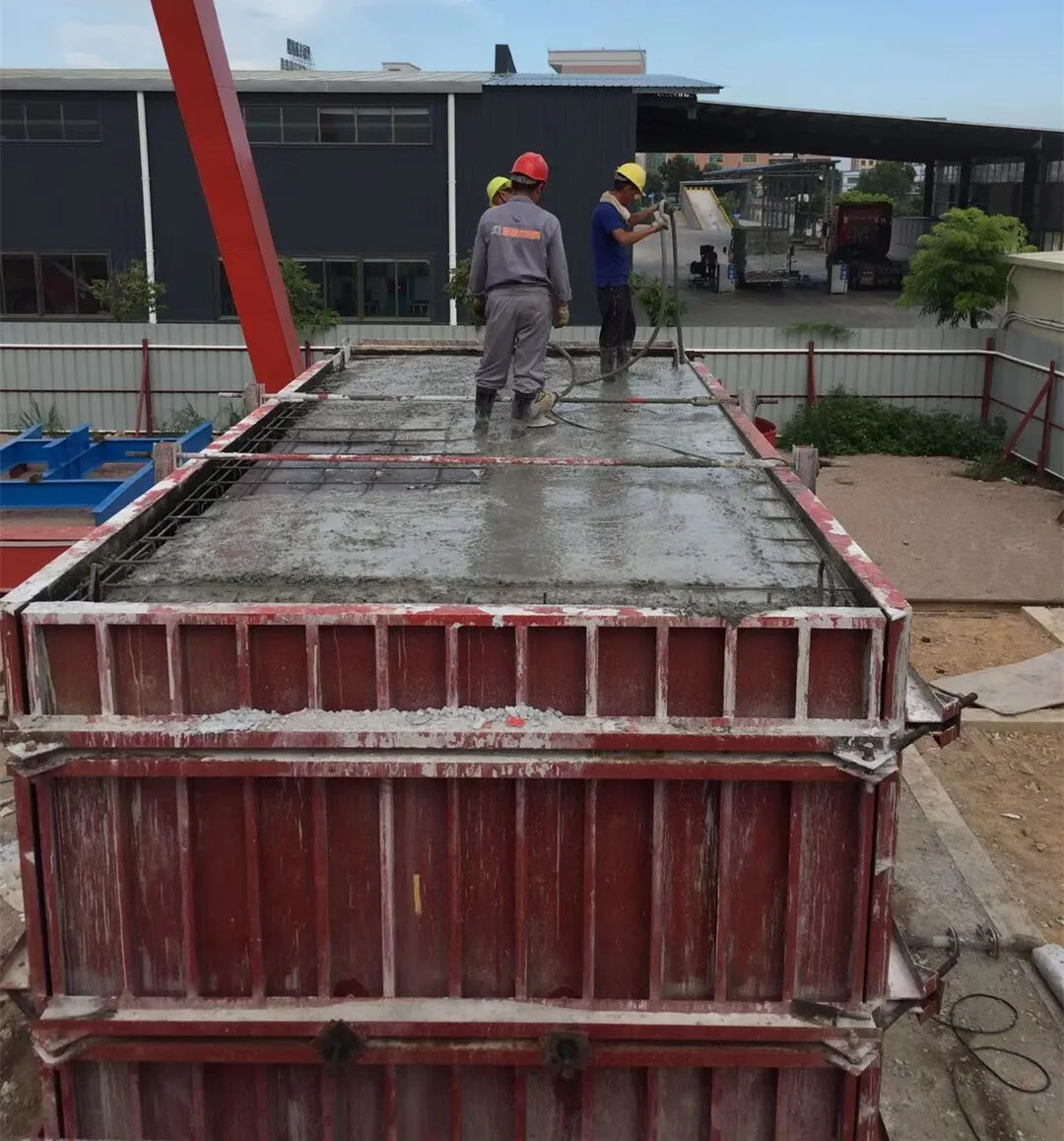

Single concrete unit produced with equipment
Different productivity, different machine combination
Scale | Configuration | Maximum Productivity |
Type Ⅰ ： Economical-type Equipment Group （For clients with insufficient budget | 1Set Modular House Forming Machine 1Set Modular House Steaming Machine A 1Set CNC Rebar Processing Machines Accessories And Tools | 30 Units Modular House/ Month (Above 300 Units / Year) |
Type Ⅱ ： Small-scale Productivity Equipment Group | 2Set Modular House Forming Machines 1Set Modular House Steaming Machine B 1Set CNC Rebar Processing Machine 1Set Concrete Mixer 1Set Batching Machine A 1Set Assembled Storage Tank A Other Parts For Concrete Equipment Accessories And Tools | 60 Units Modular House/ Month (Above 600 Units / Year) |
Type Ⅲ ： Middle-scale Productivity Equipment Group | 4Set Modular House Forming Machines 1Set Modular House Steaming Machine C 1Set CNC Rebar Processing Machine 1Set Concrete Mixer 1Set Batching Machine B 1Set Assembled Storage Tank B Other Parts For Concrete Equipment Accessories And Tools | 120 Units Modular House/ Month (Above 1200 Units / Year) |
Type Ⅳ ： Large-scale Productivity Equipment Group | 8Set House Forming Machine 2Set Modular House Steaming Machine C 2Set CNC Rebar Processing Machine 1Set Concrete Mixer 1Set Batching Machine B 1Set Assembled Storage Tank B Other Parts For Concrete Equipment Accessories And Tools | 240 Units Modular House/ Month (Above 2400 Units / Year) |

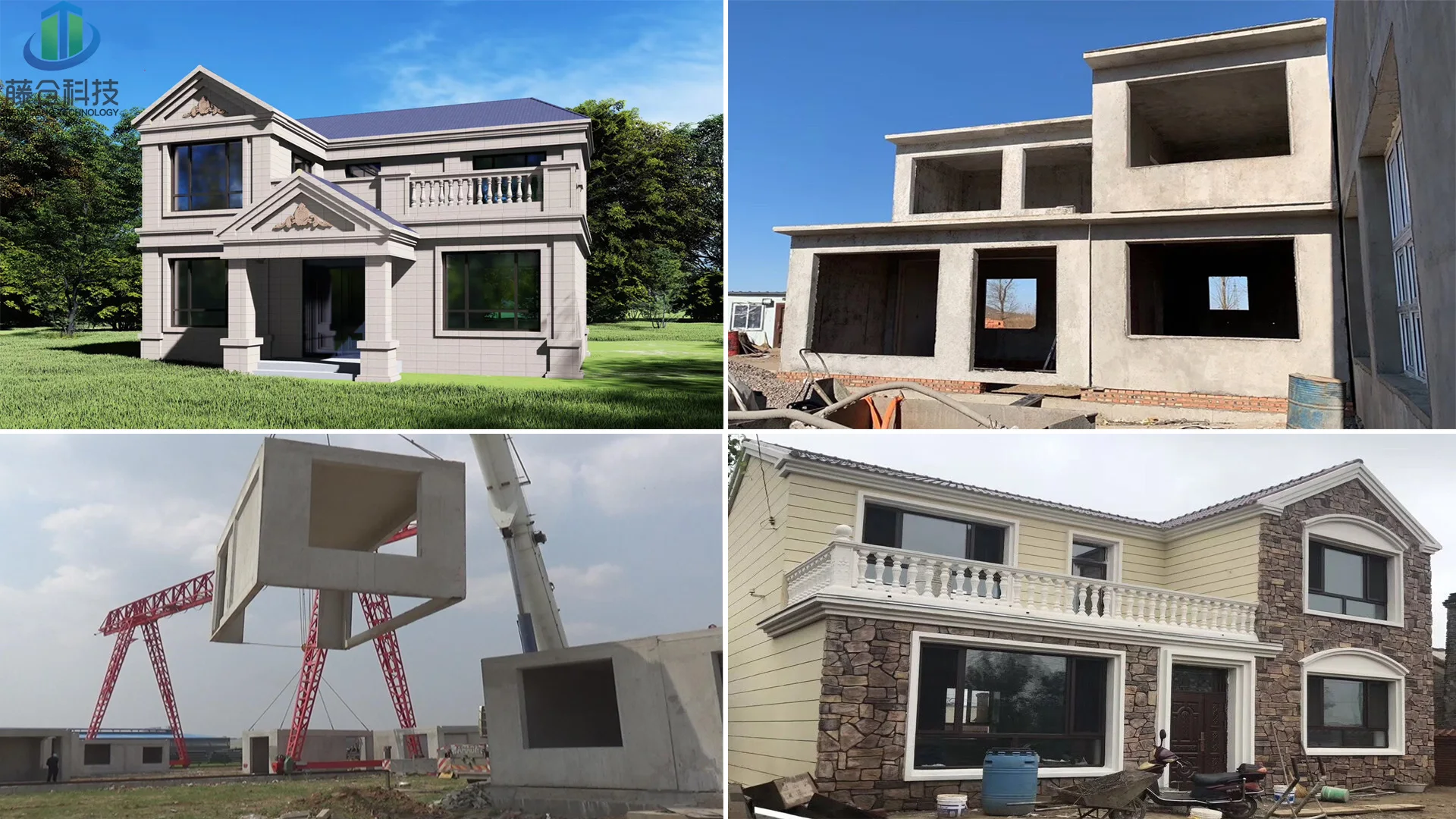

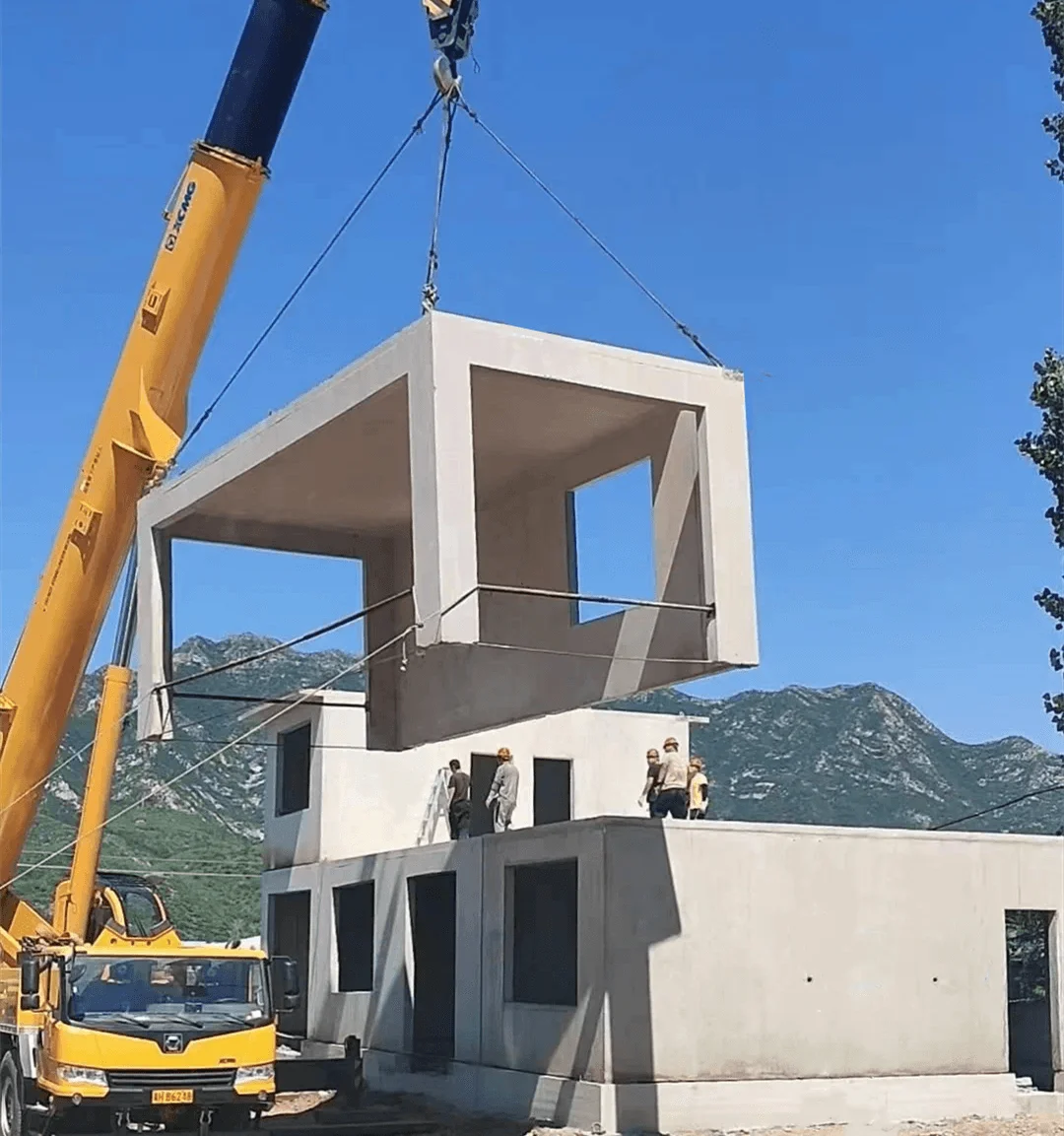

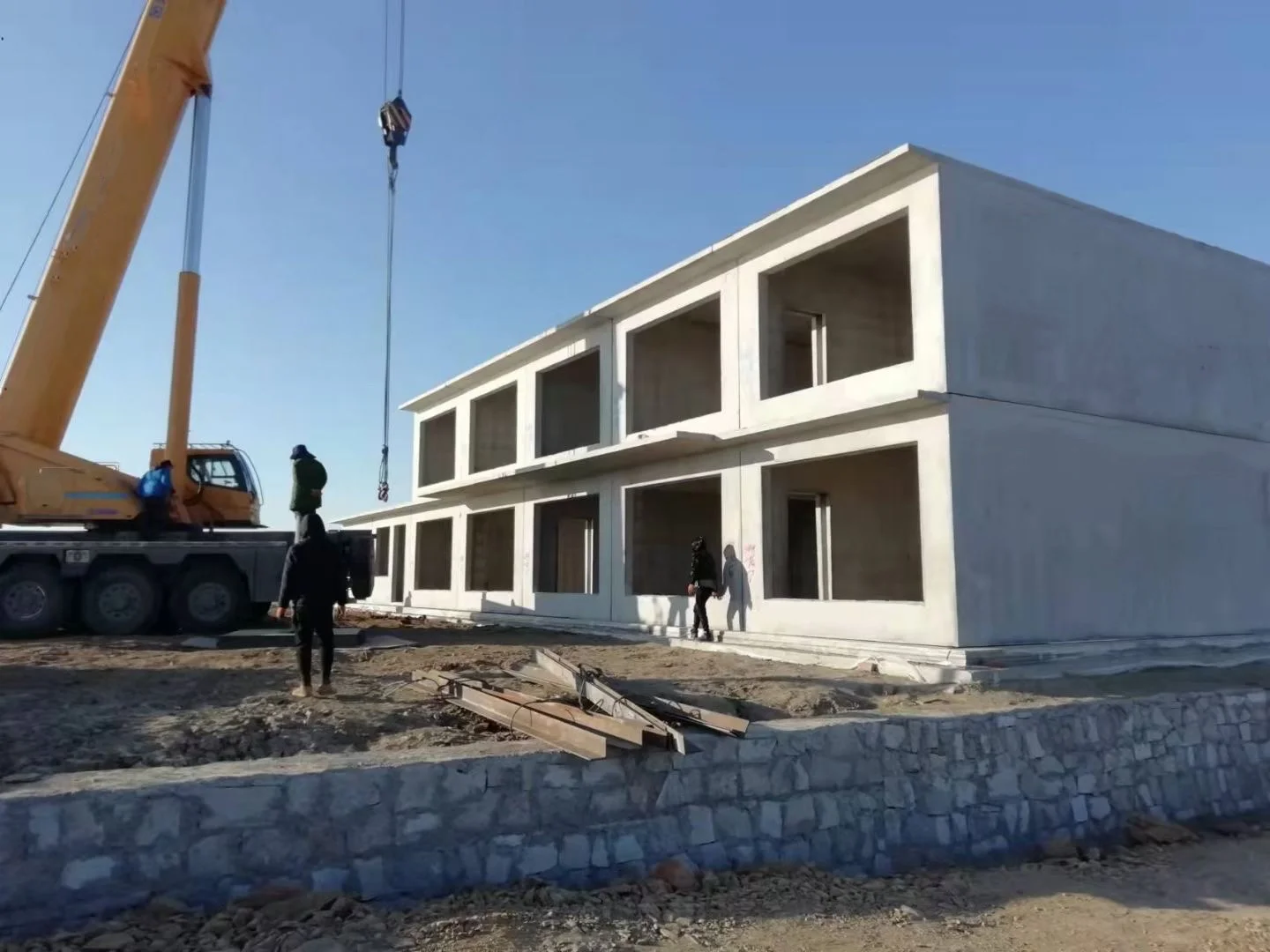

Successful Project
Project of 1 storey
Project of 2 storey
Project of 3 storey
Project of 4 storey
Project of 4 storey
Project of 5 storey
FAQ
Q1：What is the common size and floorage of each concrete module? What is the wall and roof thickness of the concrete modular ?
A1：the common sizes of one unit concrete module are: Width*Length: 3*6m, 3.3*6.3m , 3.3*6.6m, 3.5*7m, 3.6*6.3m ,3.6*6.6m, 3.6*7.2m. common height : 3m or 3.1m.
So the floor area of a common size concrete module is from 18 square meters to 28 square meters. The length of front eaves can be adjusted From 0 to 1.5m .
Q2：What's the production cost of producing 1 modular house?
A2：The cost of self-produced concrete is about 57.1USD / cubic meter (raw materials: cement, sand, stone, water). The cost of steel bars is 428.5USD / ton = 0.428USD / KG.
Take a 3.3 * 6.6 * 3 meter (about 22 square meters) module unit as an example
The amount of material is as follows: 8.5 cubic meters of concrete: 400 * 8.5 = 485.7USD
420KG Steel bar: 420 * 0.428= 180 USD
Water and Electricity costs: 42.85USD
Labor cost:71.43USD
The total cost of a modular unit (about 22 square meters) = 780USD
So the cost per square meter = 780 ÷ 22 = 35.45 USD per square meter
Q3：Do you provide a guarantee for your machines?
A3：We provide 1 years warranty for machines, and will also preapre free spare parts
Q4：What is your payment terms for the buyer?
A4：30% T / T deposit, 70% T / T balance before loading
