Гидравлический камнедробилка для экскаватора на 40 тонн, гидравлический камнедробилка для экскаватора имеет систему энергосбережения
- Category: Engineering & Construction Machinery >>>
- Supplier: Yantai Shijin Machinery Co. Ltd.
Share on (1600762653151):
Product Overview
Description
Products Description
We are the manufacturer. We can cut out the middleman for you. We can guarantee quality and delivery time.
Product Details

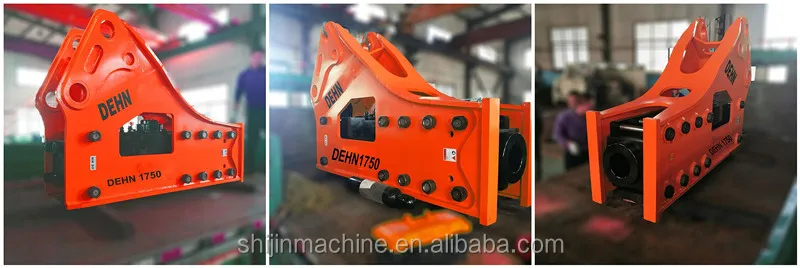

Side Type Breaker
1.Reducing total-length
2.More easier to handle the breaking objects
3. low maintenance.
2.More easier to handle the breaking objects
3. low maintenance.
Top Type Breaker
1.Easy-operating to achieve excavation work
2.Without side weight, reducing the rate of chisel breakage
3.longer total-length and heavier total-weight.
2.Without side weight, reducing the rate of chisel breakage
3.longer total-length and heavier total-weight.

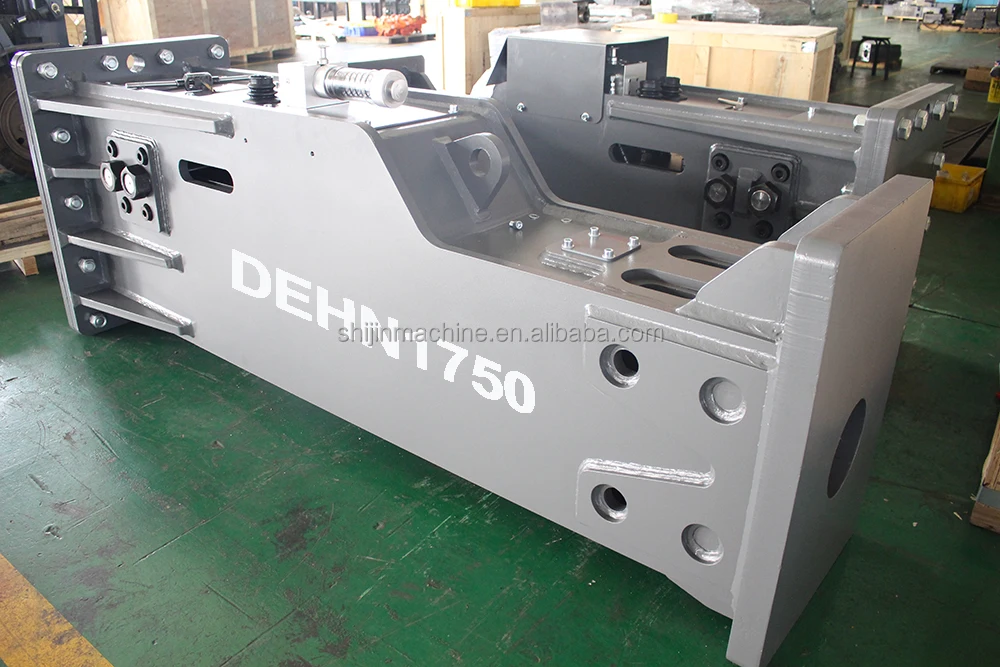

Silence Box Type Breaker
1.Low noise level
2.Full-closed bracket protects
main body from damage.
2.Full-closed bracket protects
main body from damage.
model | unit | DEHN1400 | DEHN1550 | DEHN1650 | DEHN1750 |
operation weight(side/top/box) | kg | 1774/2059/1866 | 2577/2745/2968 | 2751/3156/2916 | 3905/4075/3902 |
length(side/top/box) | mm | 2480/2866/2793 | 2776/3102/3075 | 2820/3285/3337 | 3184/3812/3723 |
working flow rate | liter/min | 120-180 | 180-240 | 200-260 | 200-260 |
oil relief pressure | kg/cm² | 210 | 230 | 240 | 240 |
working pressure | kg/cm² | 160-185 | 170-200 | 160-180 | 180-200 |
impact rate | bpm | 350-500 | 300-450 | 250-400 | 200-350 |
chisel diameter | mm | ¢140 | ¢155 | ¢165 | ¢175 |
oil pipe nominaldiameter | inch | 1 | 1 | 5/4 | 5/4 |
back head pressure | kg/cm² | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 |
Accumulator pressure | kg/cm² | 60 | 60 | 60 | 60 |
Applicable Excavator weight | ton | 18-26 | 27-36 | 30-40 | 35-40 |
Applicable Bucket | m³ | 0.9-1.2 | 1.0-1.4 | 1.6-2.2 | 1.6-2.2 |
Value Ass'y Position | internal | internal | internal | internal |
Structure
Features of DEHN-Hydraulic Hammer
More than 20 models can match 0.8-40 tons of excavators.
Patented body design
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools
More than 20 models can match 0.8-40 tons of excavators.
Patented body design
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools
Our Advantage
Related Series
Trade Show
The DEHN brand has obtained CE certification and 4 product patents since 2010. By using piston recoil energy, performance can be improved without additional hydraulic flow input. In addition to easy body design, DEHN hydraulic breakers can also achieve the best performance at low cost. Only 2 moving parts, the lowest maintenance and repair costs, and finally Make your investment worthwhile.

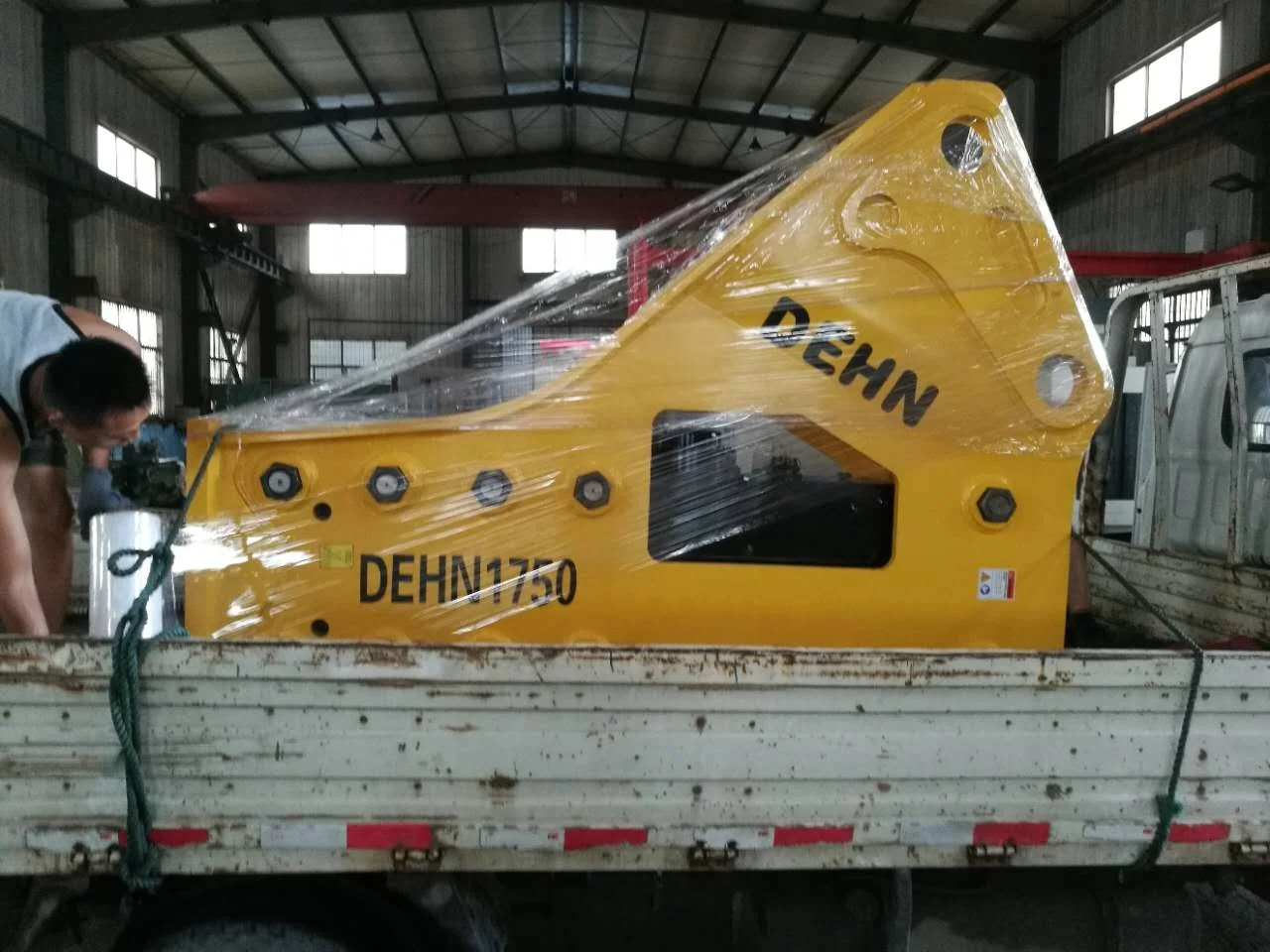

Packing and Shipping
Standard free spare parts
Two chisels, two hoses, one set of N2 charging kit with N2 bottle and pressure gauge, one tool box with maintenance tools and
operation manual as well.
operation manual as well.
Standard free spare parts

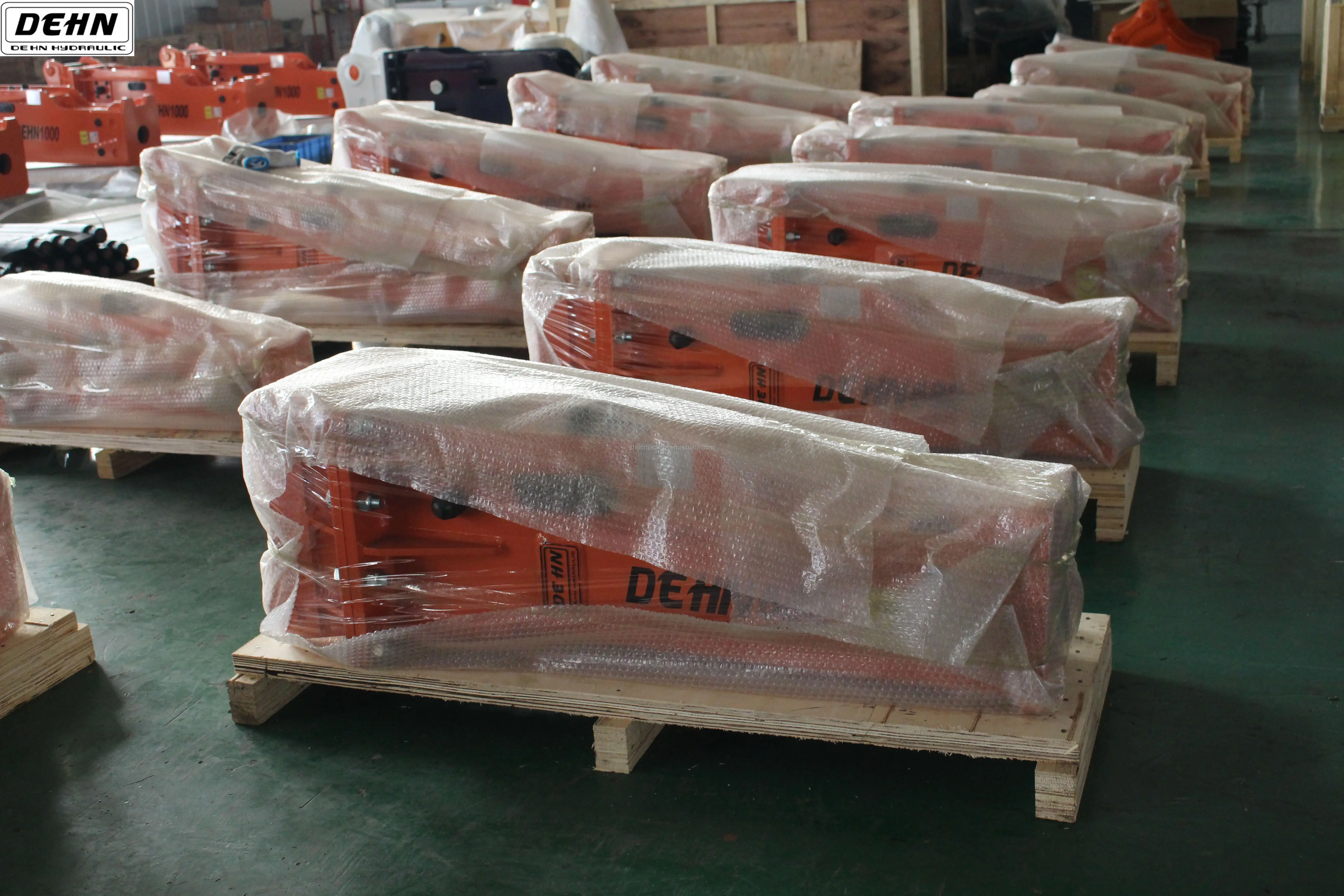

Double stretch film inside, sturdy packaging with tray to prevent water leakage in the container.
Non-fumigation wooden case
Standard export wooden case, double reinforcement inside. No need for fumigation, free from your concerns of Customs inspection
and quarantine.
and quarantine.
Mode of transport：deliver by sea/Air/multimodel transport/logistic or Express company is available
Port: QINGDAO/YANTAI
Port: QINGDAO/YANTAI
Our company is a company specializing in the production of hydraulic breakers, quick linkers, breaker drill rods, augers, excavator rippers and spare parts. Our drill rods are suitable for hydraulic breakers of various brands.
Certifications
FAQ
1.Is that the main body color customized?
Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided.
5. Which countries have you been exported recently?
Canada, Australia,Peru, Egypt, Brazil, Mexico, South Africa, etc.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we can give you best match products.
7. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided.
5. Which countries have you been exported recently?
Canada, Australia,Peru, Egypt, Brazil, Mexico, South Africa, etc.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we can give you best match products.
7. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
