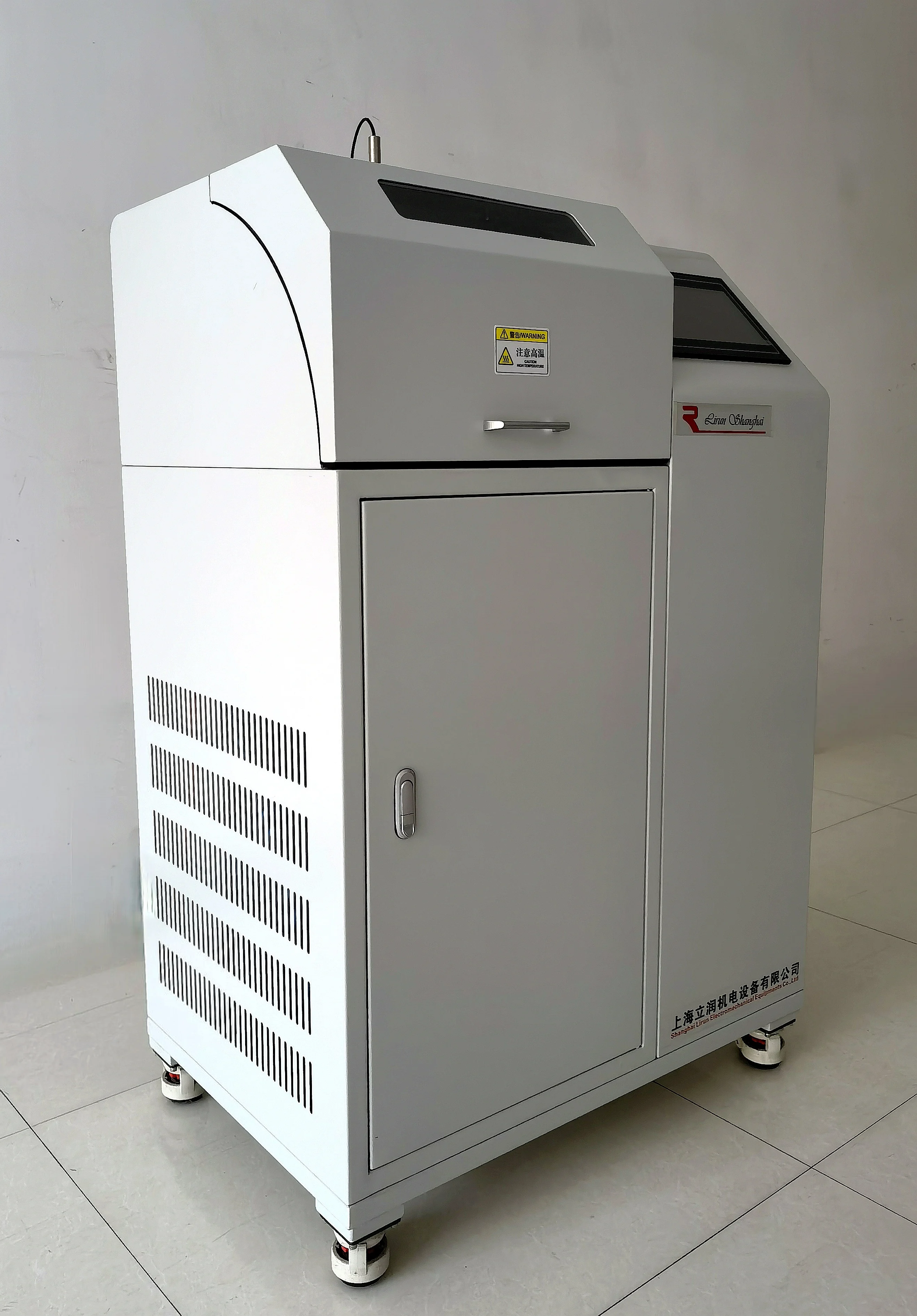

XRF lab sample makeup GRSF IV M Glass bead sample platinum F induction fusion melting furnace for sale (1600762980656)

Share on:


Price:$12,588.00 - $20,980.00
Price in USD:Details

Quantity:


Product Overview

Description









Product Description






Overview
Essential details


Model
GRSF-IV-M
Brand Name:
Lirun
Usage:
Melting Furnace
Usage:
Lab sample preparation
Place of Origin:
Shanghai, China
Application:
Various Ores and Oxides
Key Selling Points:
Main components from Japan ,German and England
Applicable Industries:
Manufacturing Plant, Lab Use, Precision
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Showroom Location:
None
Type:
Induction Furnace
Core Components:
Induction heater,PLC
Warranty:
1 years
Rated Current:
32A
Power (kW):
15KW
Voltage:
380V
Working Time:
24 hours continuously
Melting Chamber Atmosphere
Atmosphere
Crucible
4 Platinum
Type of Sample Prepared
Glass bead
Shaping mode
Forming in crucibles
Swinging Angle
of Crucible
0-40℃(Adjustable)
Rotation Speed
of Crucible
0-50 r /min
Max temperature:
1300 Degree
Temp Accuracy
±5℃
Melting Time:
8-10 min
Metal Capacity:
8-12 g
Vacuum Degree
/
Argon Pressure
/
Cooling Water
Pressure
0.15~0.2MPa
Cooling Water
Flow
25-30L/min
Dimension(L*W*H):
108cm*65cm*148cm
Weight (T):
0.15T


Product Details




Melting material
GRSF-IV-M only can melt Various ores and oxides.
Melting material
This is oxide powder.

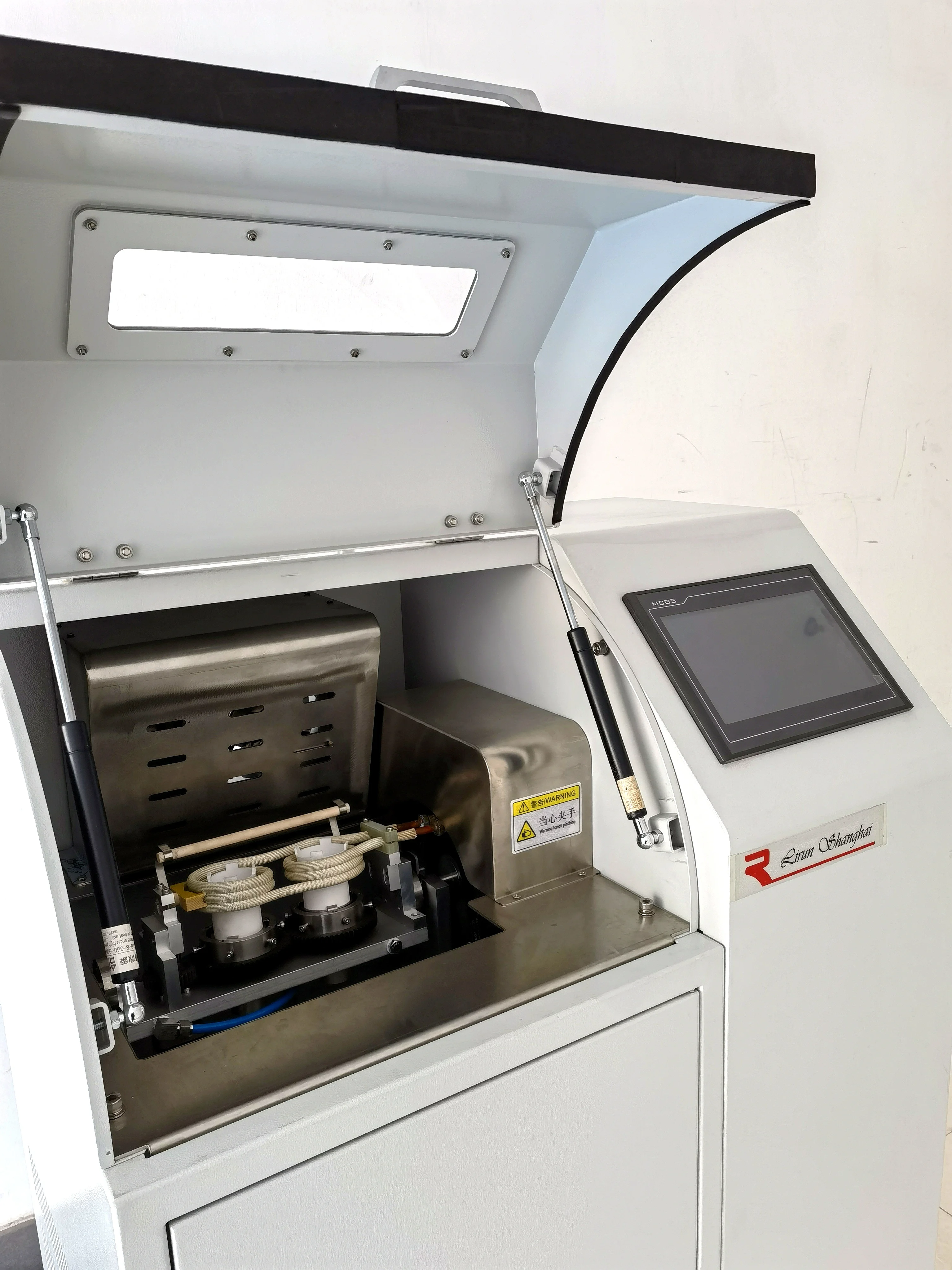

Real Time Monitoring

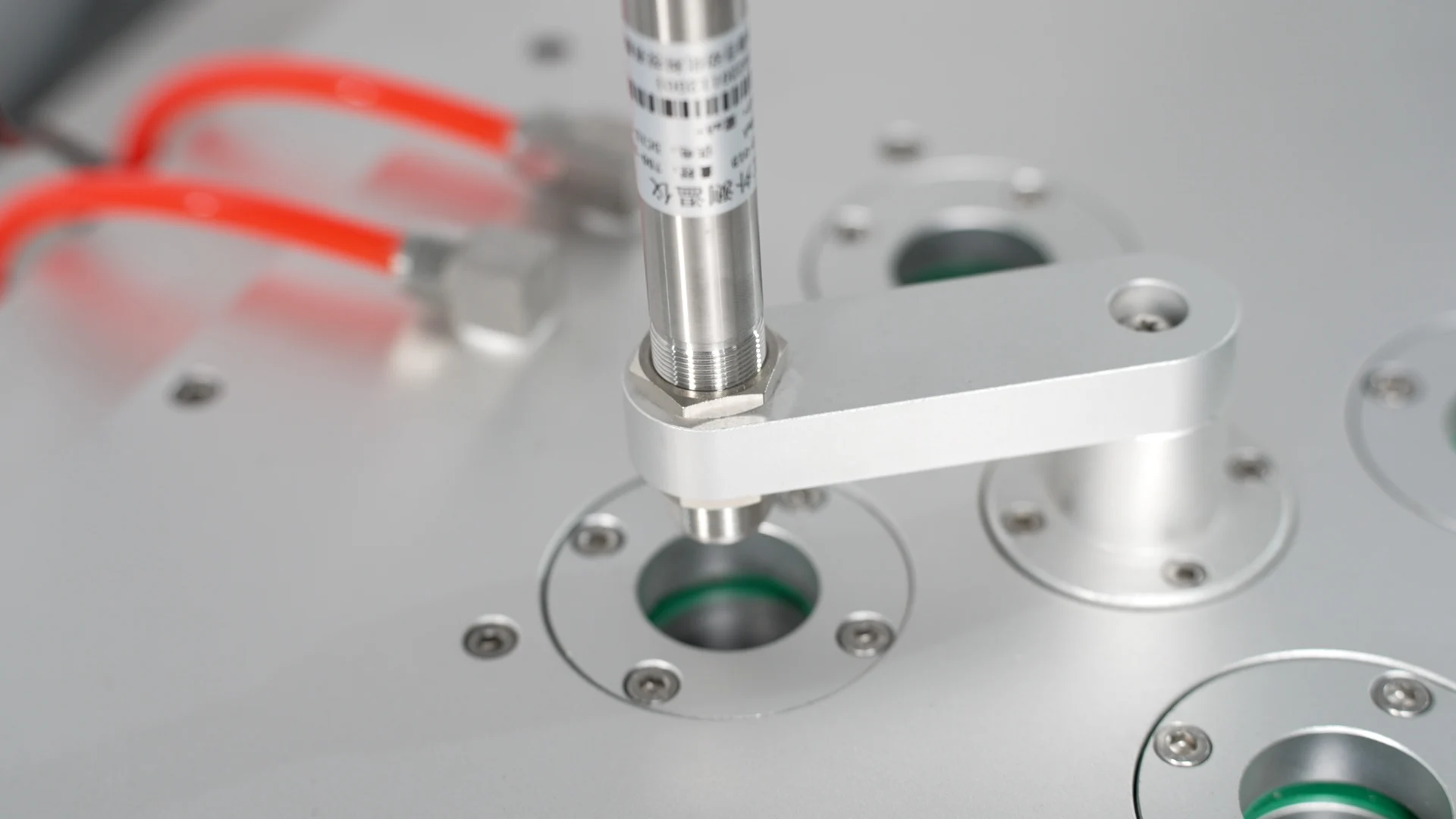

The whole sample melting process can be observed in real time through the four glass holes on the lid.  The lid is equipped with an infrared monitoring probe, the temperature in the crucible can be known without opening the lid.


Parameters
You may Adjust the parameters of the melting furnace according to the type of sample.

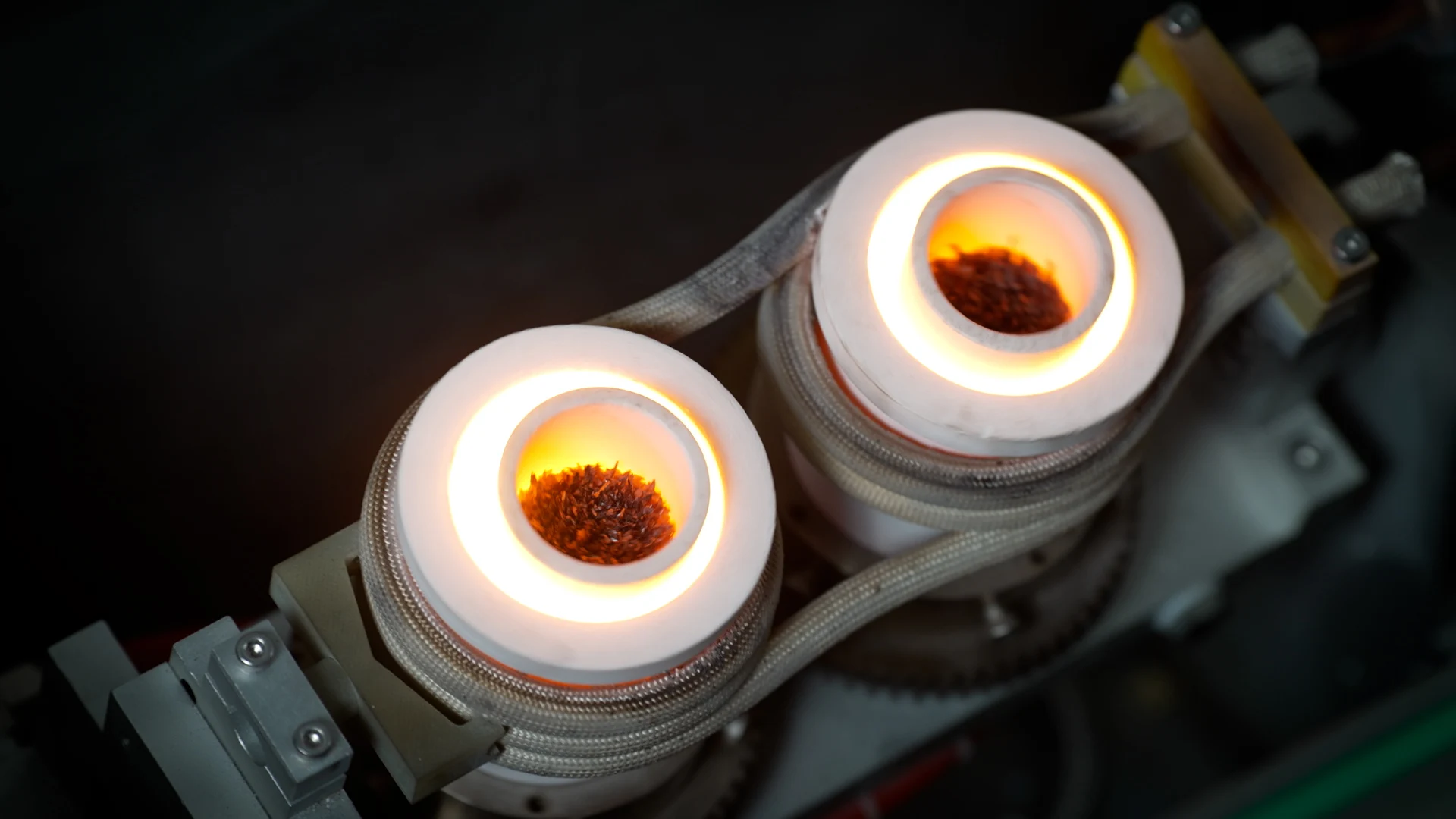

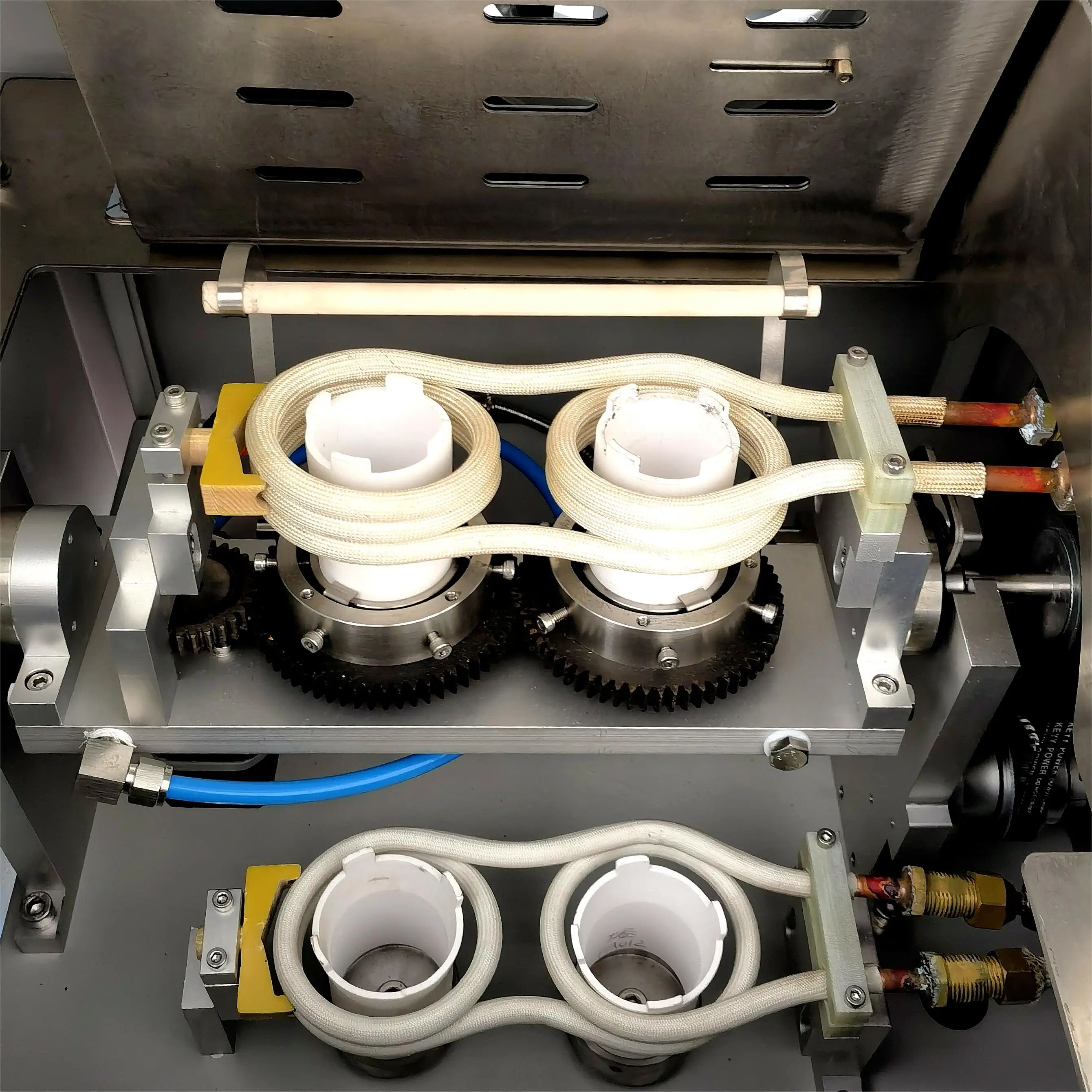

Crucible
There are four platinum crucible for melting ores and oxides


Sample Forming Method
The platinum crucible is used as the molten ores and oxides, and the sample forming method is Automatic pouring.

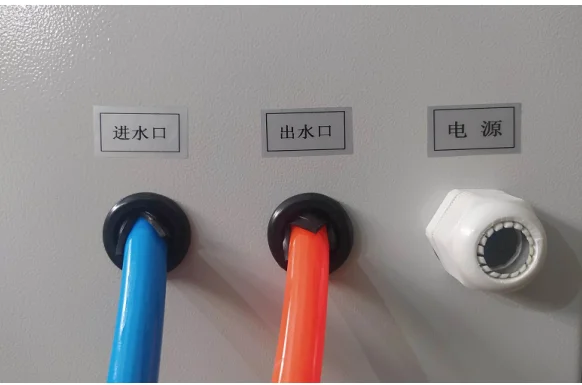

This is the inlet and outlet water pipe equipped with circulating cooling water.


Company Profile




VR


Our Advantages




1.Friendly operation :
Color LCD touch screen,Easy icon and menu navigation , simple installation

2.Good Accuracy:
Fully reproducible fusion methods, Temperature control accuracy to ±1℃

3.High productivity:
Simultaneous processing of up to 4 samples

4.Safety :
Noise free operation,Integrated safety shield


The Price Remarks:

1.The above equipment prices do not include platinum crucibles, which are calculated according to the international platinum gold price of the month of purchase. The buyer can Self purchase platinum crucible according to the drawing.

2.The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.

3.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.

4.Free providing with training and guidance on remote video installation, commissioning and operation .


Our Factory






Certifications




Packing & Delivery






FAQ




Q1:Are you manufacture?
A1:Yes,we are the original manufacturer of melting furnaces,which are used to prepare the laboratory sample . With our melting furnaces, people can prepare high-precision uniform samples for X-ray fluorescence spectrometry and Spark atomic emission spectrometry to ensure the analysis accuracy.

Q2:How long does your machine warranty last?
A2:One year warranty.

Q3:How is your machine quality?
A3:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.

Q4:Where are your factory located?
A4:We are located in Shanghai China.

Q5:What can we do if we have problem with your machine while using?
A5: Usually customers can use for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may provide us a video to describe what the problem is so that our engineer can judge and give you a solusion.Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty ,we'll provide you the parts at a reasonable costs. Everlasting  technical support is offered freely.
