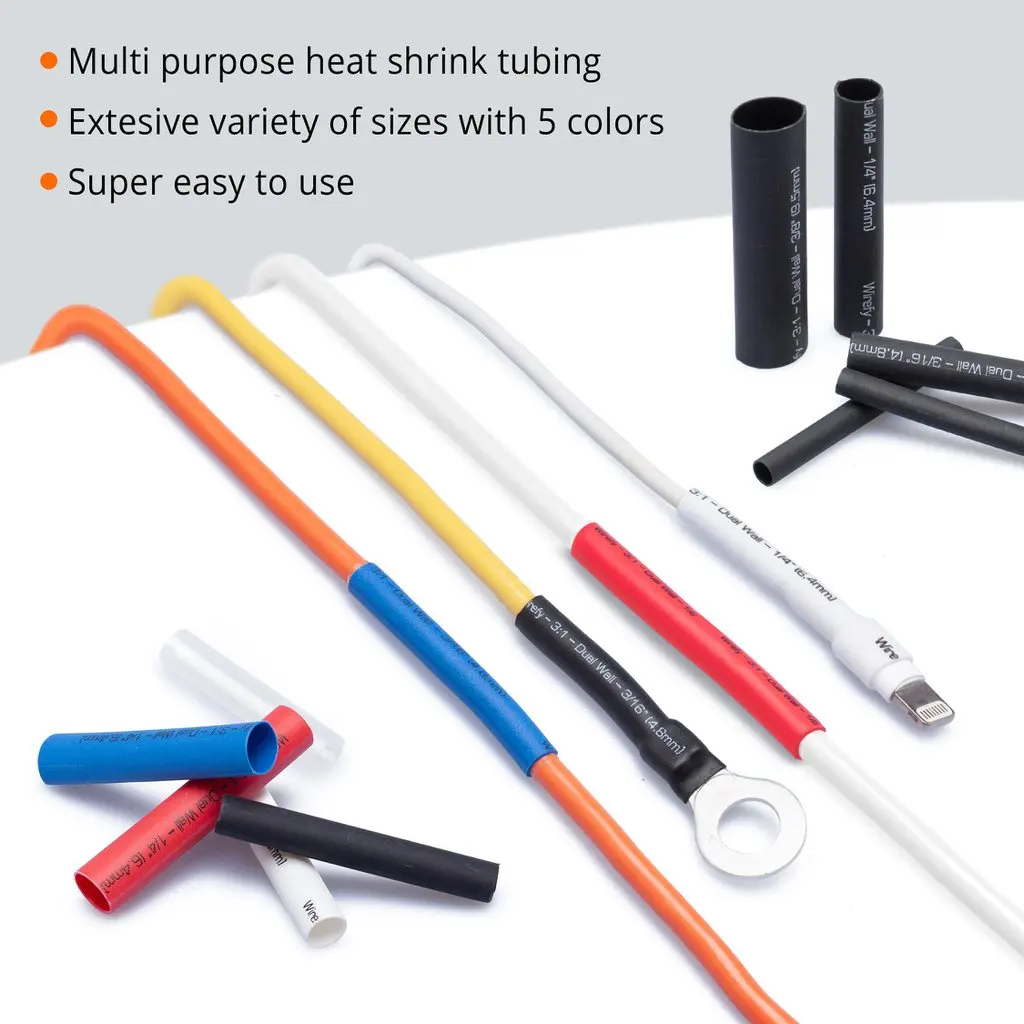

Термоусадочная трубка Deem для электрической изоляции, Высококачественная термоусадочная трубка, термоусадочная трубка
- Category: Insulation Materials & Elements >>>
- Supplier: Deem Electronic & Electric Material Co. Ltd.
Share on (1600764315923):
Product Overview
Description
Promotion
Technical Data
| Property | Test Method | Typical Data |
| Operating temperature | UL 224 | -55°C to + 125°C |
| Tensile strength | ASTM D 2671 | >14 MPa |
| Elongation at break | ASTM D 2671 | 400% |
| Longitudinal shrinkage | UL 224 | 0±5% |
| Eccentricity | ASTM D 2671 | <30% |
| Flammability | VW-1 | Pass |
| Dielectric strength | IEC 243 | >20 KV/mm |
| Volume resistance | IEC 93 | 10 14 Ω.cm |
| Copper stability | UL224 | Pass |
| Heat aging / Tensile strength / Ultimate elongation | 158°C/168h | Unaged / >12 MPa / > 350% |
Dimensions/2x
| Size | As Supplied (mm) | After Recovery (mm) | Standard length m/spool | ||
| DM-T125 Inch. (D) | Inside Diameter Min. (D) | Wall Thickness Nominal. (T) | Inside Diameter Max. (d) | Wall Thickness nominal. (t) | |
| Special Type | 0.5 | 0.15 | 0.2 | 0.22 | 200 |
| 0.6 | 0.15 | 0.3 | 0.22 | 200 | |
| 0.8 | 0.15 | 0.4 | 0.22 | 200 | |
| 3/64 | 1.2 | 0.18 | 0.6 | 0.3 | 200 |
| 1/16 | 1.6 | 0.18 | 0.8 | 0.33 | 200 |
| 3/32 | 2.4 | 0.25 | 1.2 | 0.36 | 200 |
| 1/8 | 3.2 | 0.25 | 1.6 | 0.44 | 200 |
| 3/16 | 4.8 | 0.25 | 2.4 | 0.55 | 200 |
| 1/4 | 6.4 | 0.25 | 3.2 | 0.55 | 200 |
| 3/8 | 9.5 | 0.3 | 4.8 | 0.55 | 100 |
| 1/2 | 12.7 | 0.35 | 6.4 | 0.65 | 100 |
| 5/8 | 16 | 0.35 | 8 | 0.69 | 100 |
| 3/4 | 19.1 | 0.40 | 9.5 | 0.89 | 100 |
| 1 | 25.4 | 0.45 | 12.7 | 0.9 | 50 |
| 1 1/4 | 32 | 0.45 | 16 | 0.9 | 50 |
| 1 1/2 | 38.1 | 0.50 | 19.1 | 1 | 50 |
| 2 | 50.8 | 0.50 | 25.4 | 1 | 25 |
| 3 | 76.2 | 0.55 | 38.1 | 1.2 | 25 |
| 4 | 100 | 0.55 | 50.8 | 1.3 | 25 |
| 5 | 120 | 0.55 | 63 | 1.4 | 25 |
| 6 | 150 | 0.55 | 75 | 1.4 | 25 |
| 7 | 180 | 0.55 | 90 | 1.4 | 25 |
| 8 | 210 | 0.55 | 105 | 1.4 | 25 |
| 9 | 230 | 0.55 | 115 | 1.4 | 25 |
| 10 | 250 | 0.55 | 125 | 1.4 | 25 |
Click here to get a free sample!
