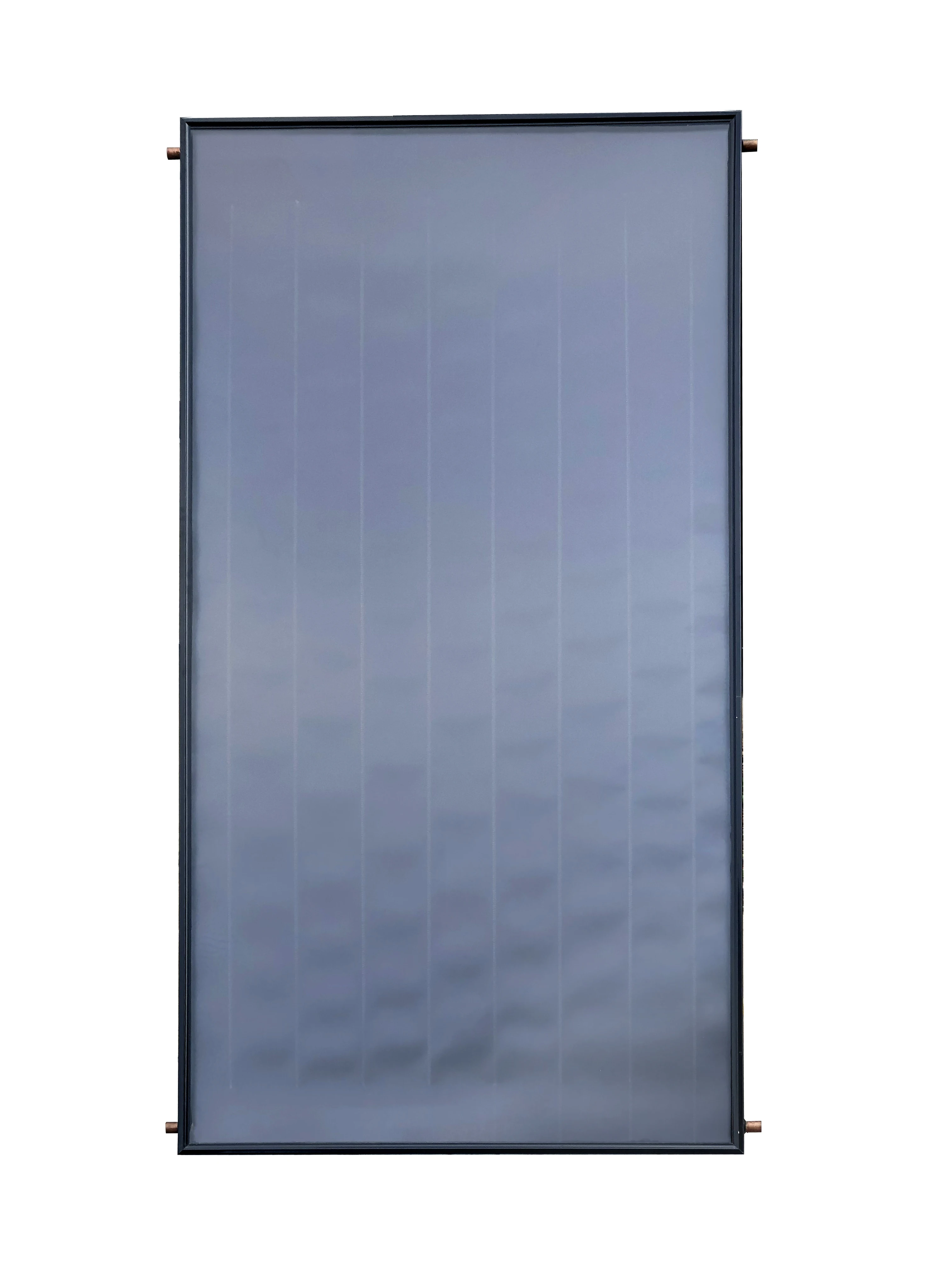

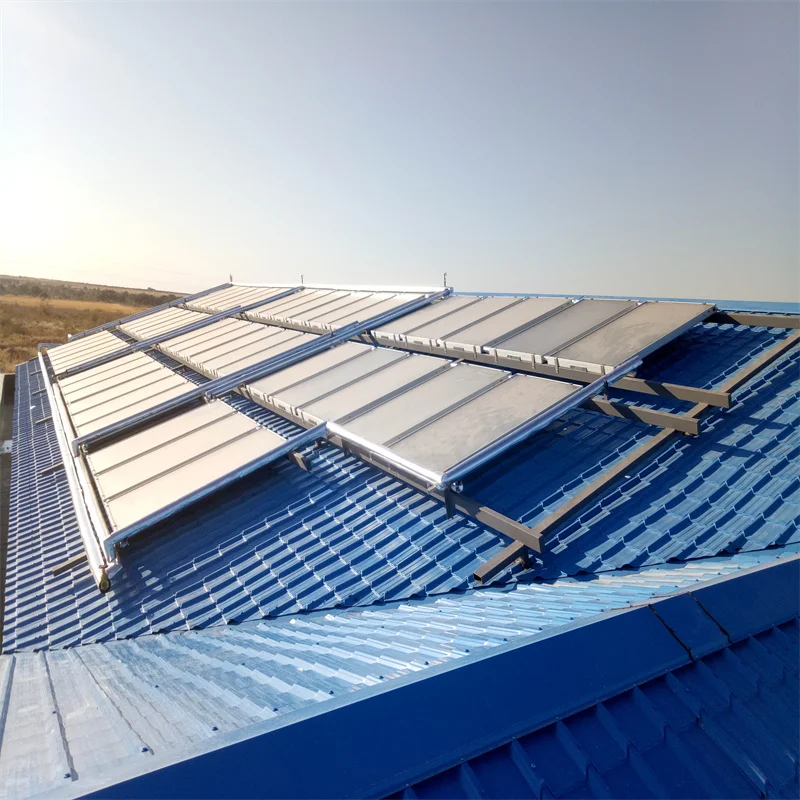

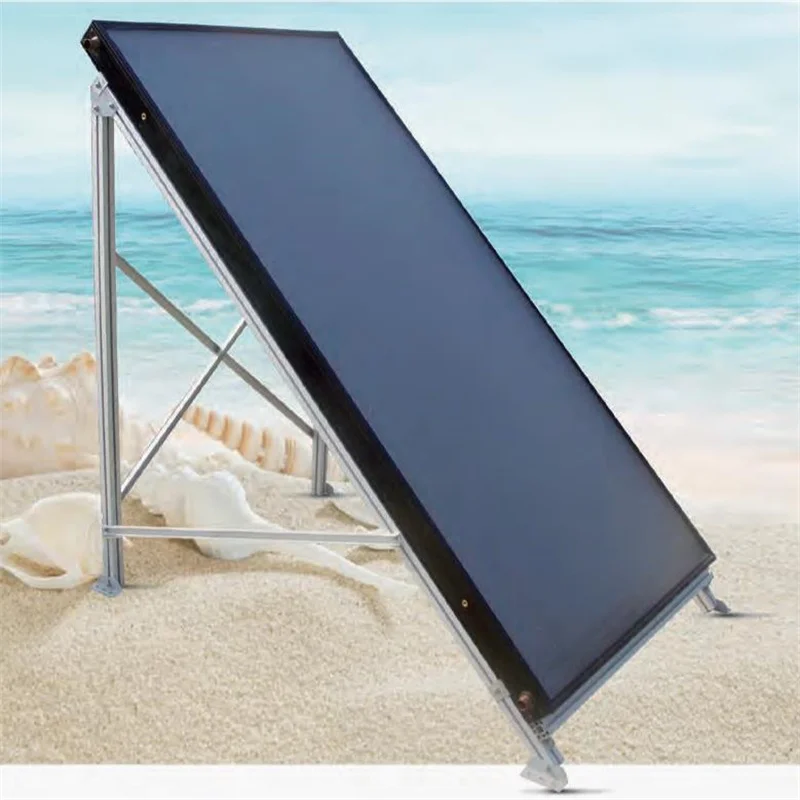

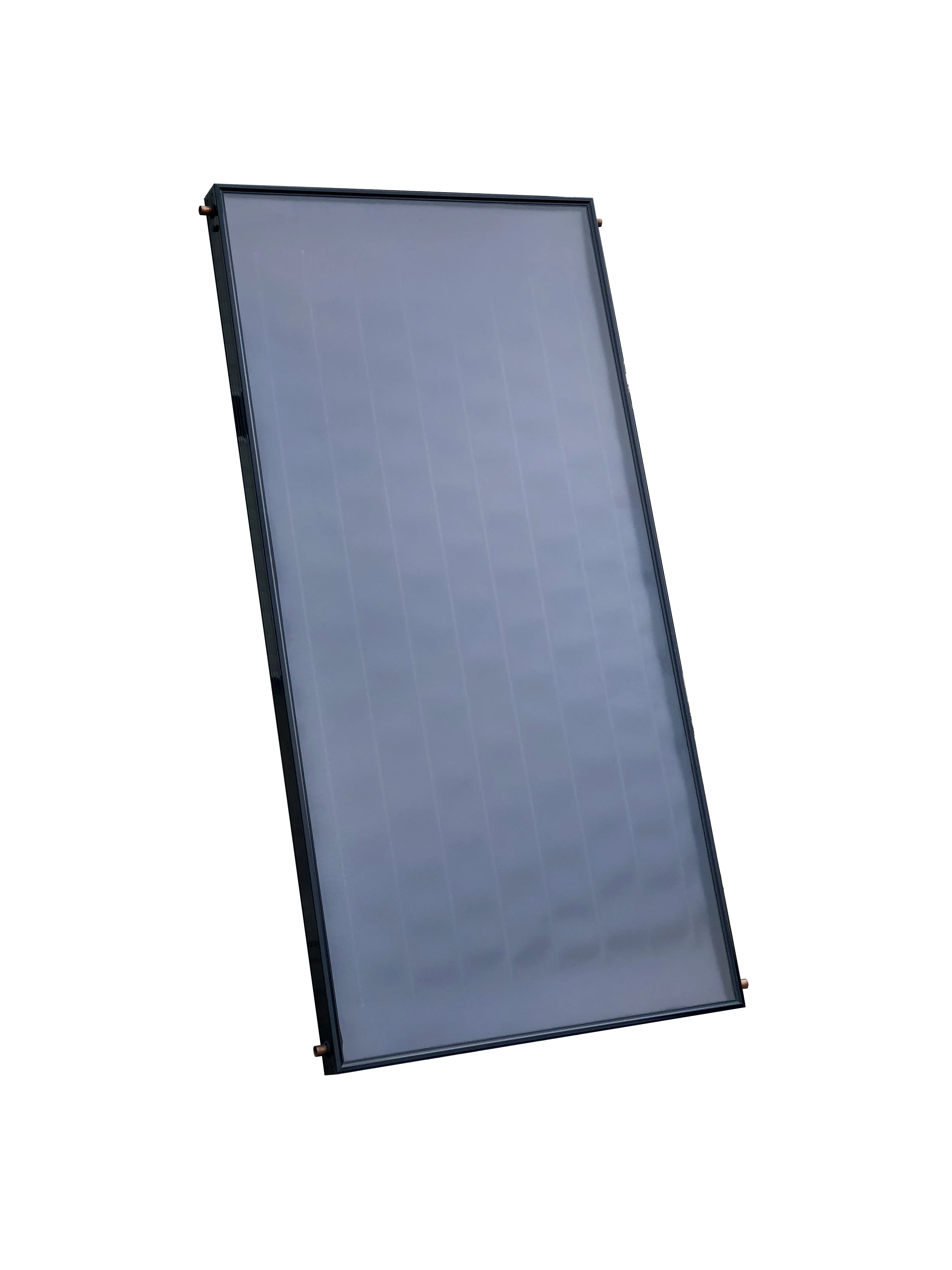

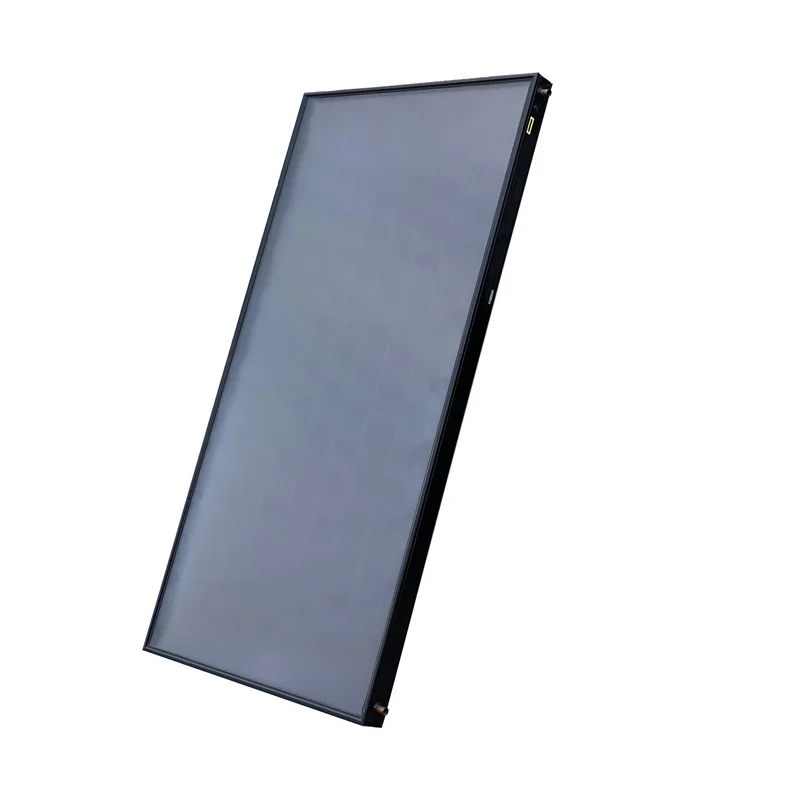

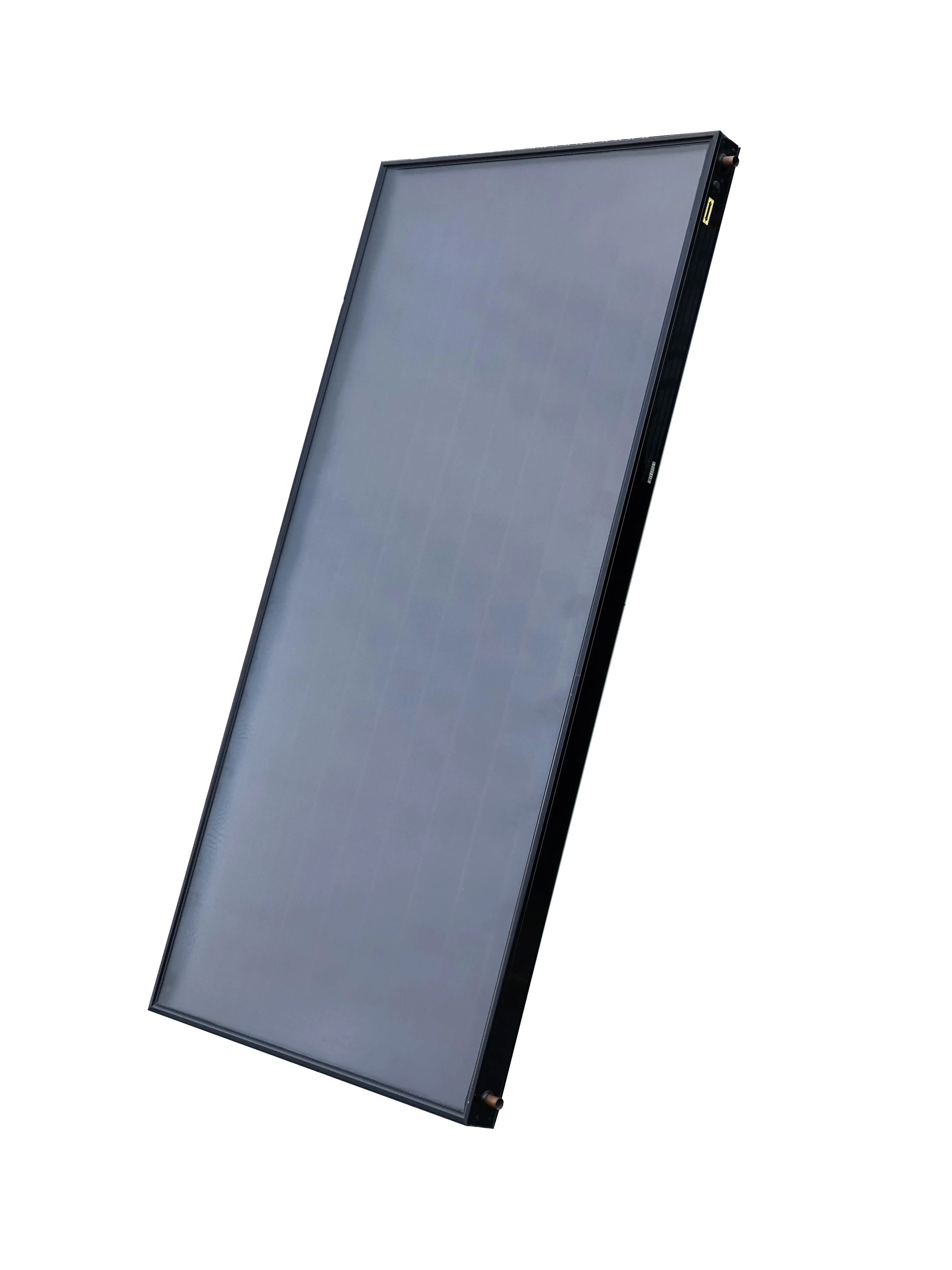

2.0 2.5 3.0 SQM High Performance Solar Flat Panel For Domestic Hot Water Solar Flat Plate For Commercial Hot Water
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1600764359014):
Product Overview
Description
Product Introduction
Working Principle:

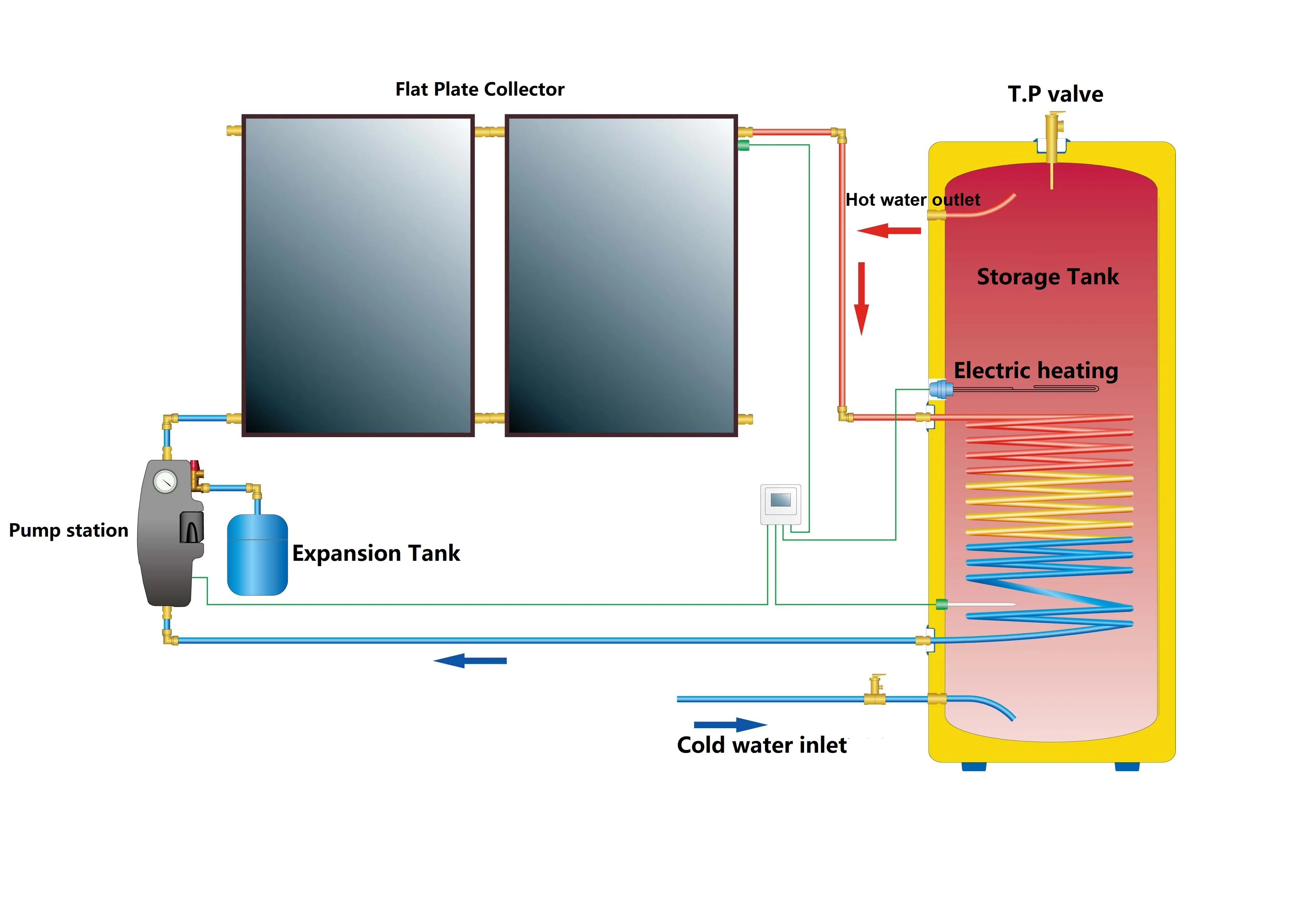

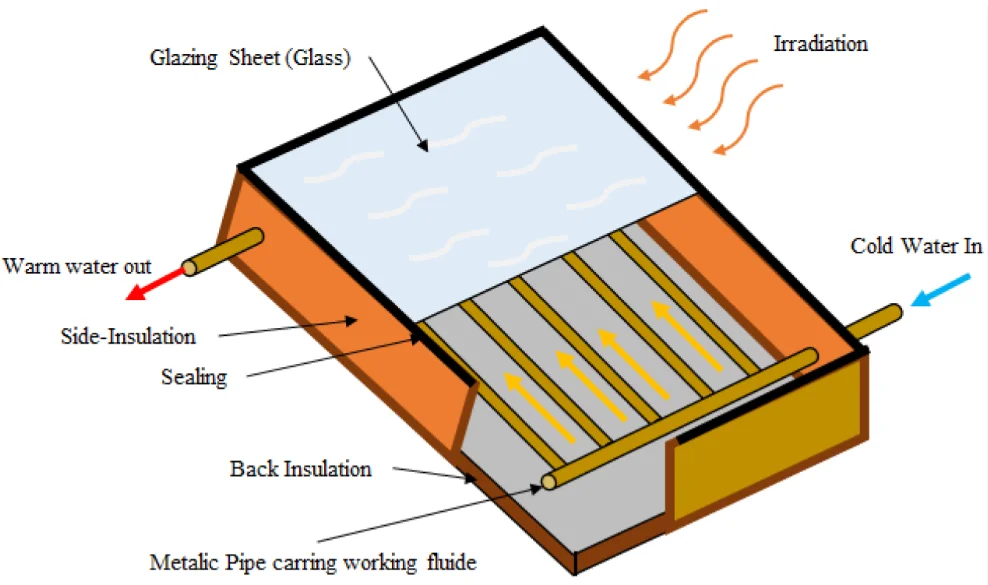

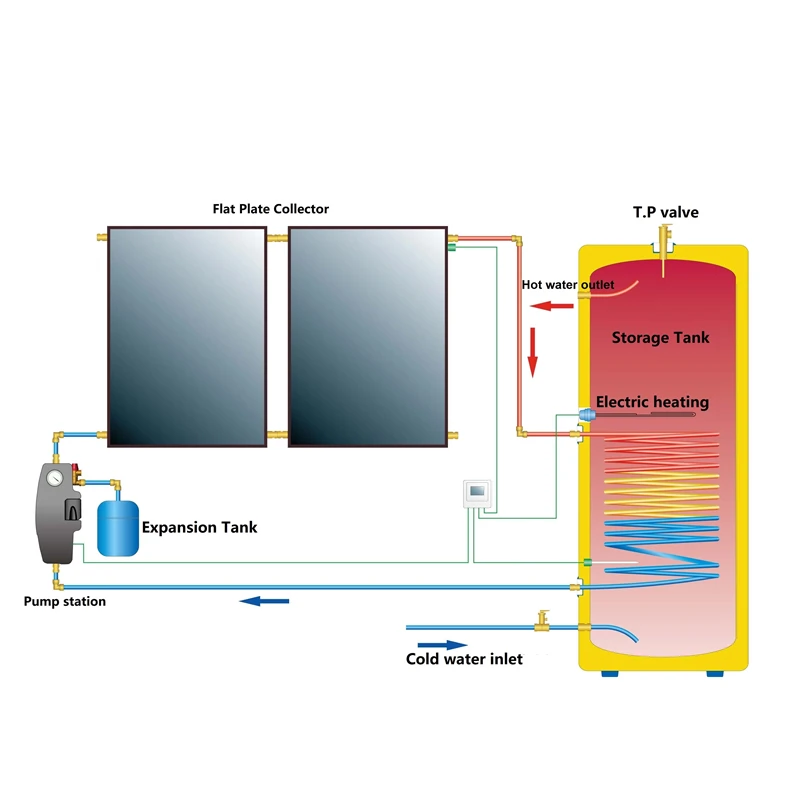

Flat plate solar collector is a device for absorbing solar radiation and transfer heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun, Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation material and other related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water.
Product Parameters
Model Number | FPC200P | FPC250P | FPC300P | ||
Dimension: | 2000*1000*80mm | 2000*1000*80mm | 2000*1000*80mm | ||
Aperture Area: | 1.85m² | 2.34m² | 2.83m² | ||
Certificate: | Solar Keymark | ||||
Warranty: | 5 years | ||||
Absorber: | Made of Aluminum, with black film and 0.4mm thickness | ||||
Cover Material: | Textured tempered glass, 3.25mm thickness | ||||
Head Pipe: | TP2 copper φ22*0.75mm | ||||
Flow Pipe: | TP2 copper φ10*0.5mm | ||||
Connector Size: | 22mm no thread or 3/4 inch male thread | ||||
Max. Operation Temparature: | 120℃ | ||||
Operating Fluid Pressure: | 0.6Mpa | ||||
Approved Installation Angle: | Min. 15° Max. 75° | ||||
Empty Weight: | 32KG | 40KG | 50KG | ||
20GP/40GP/40HC Loading Qty: | 112/224/272 | 91/182/218 | 81/162/196 | ||

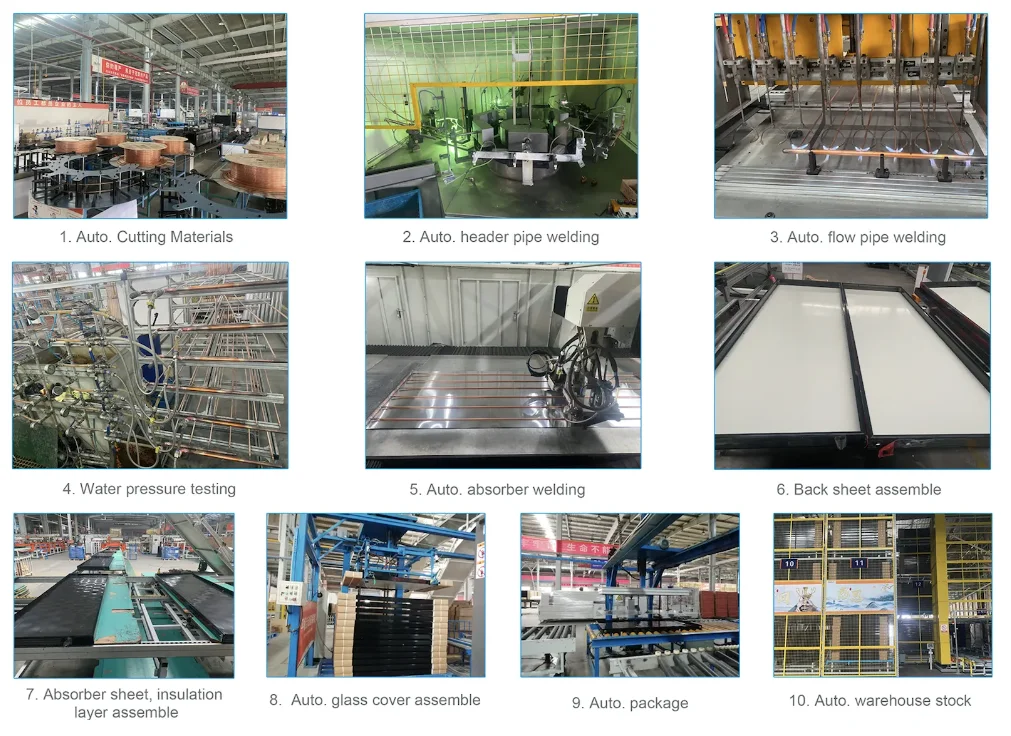

Production process

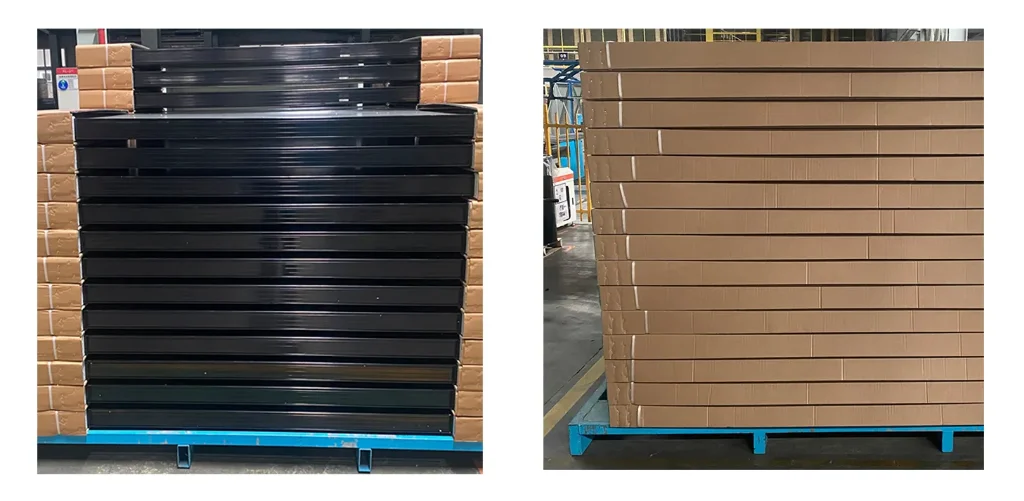

Product packaging
Single package Full package
LCL Packing
FCL Packing-single
FCL Packing - full
FAQ
1.Is your company a trading company or factory？
We have our own factory, welcome to visit our factory.
2.Can you do make with my brand?
Yes, OEM & ODM order are both welcome for container order.
3.What kind of payment term do you offer?
LCL order is 100% TT payment, container order is 30% TT deposit, 70% TT before loding. L/C and OA, etc.
4.What is your Delivery Time?
LCL order/Sample order:10 days. Full container order:20 days
5.What is your MOQ?
1 sets
6.How long is your warranty?
Five years warranty and long term technical support.
7.What is your Packing?
LCL order/Sample order in plywood case. Full container order in high quality export carton.
8.What is your FOB Port in China?
We accept FOB Lianyungang, Qingdao, Shanghai etc.
