Products Description

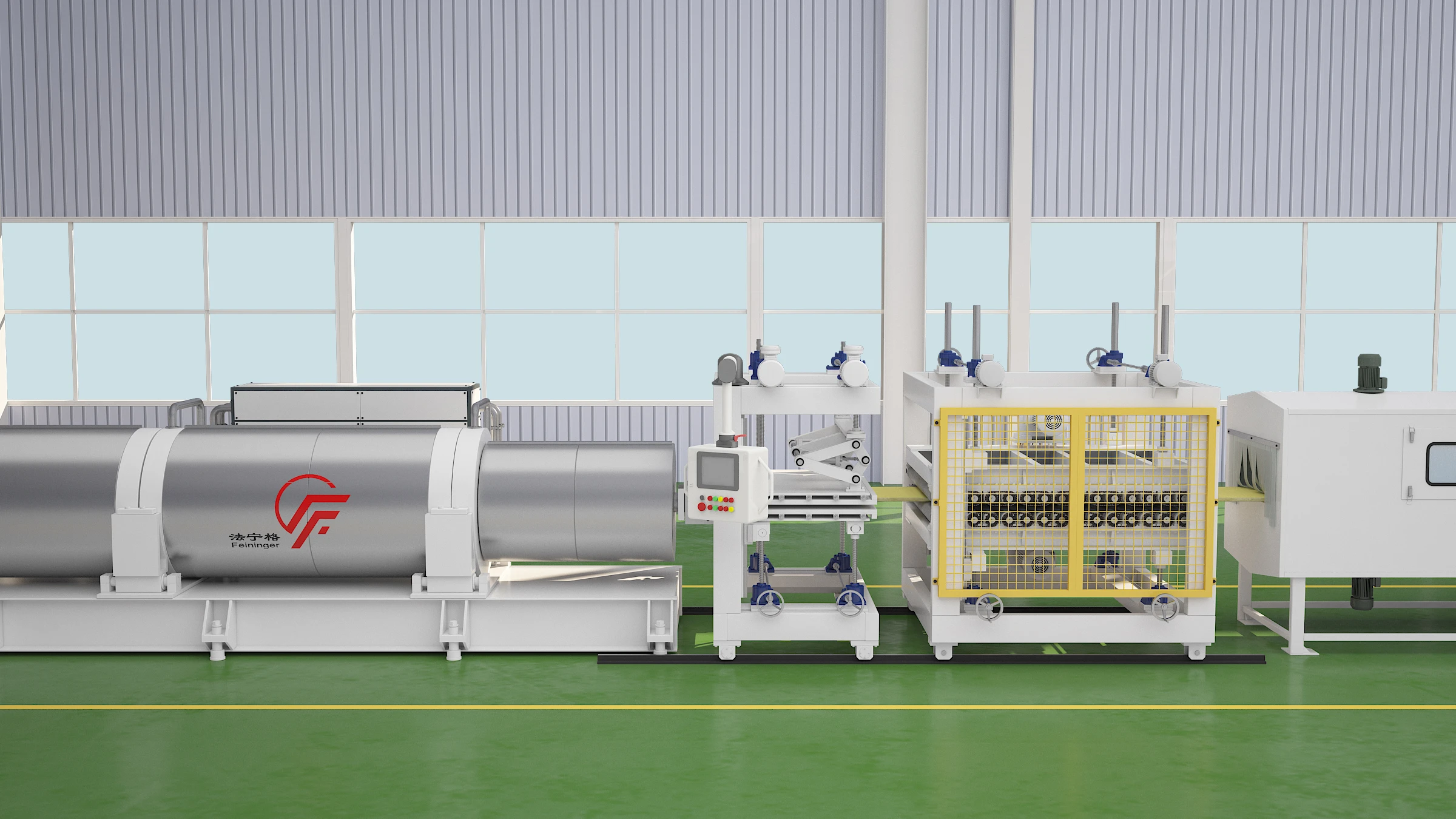

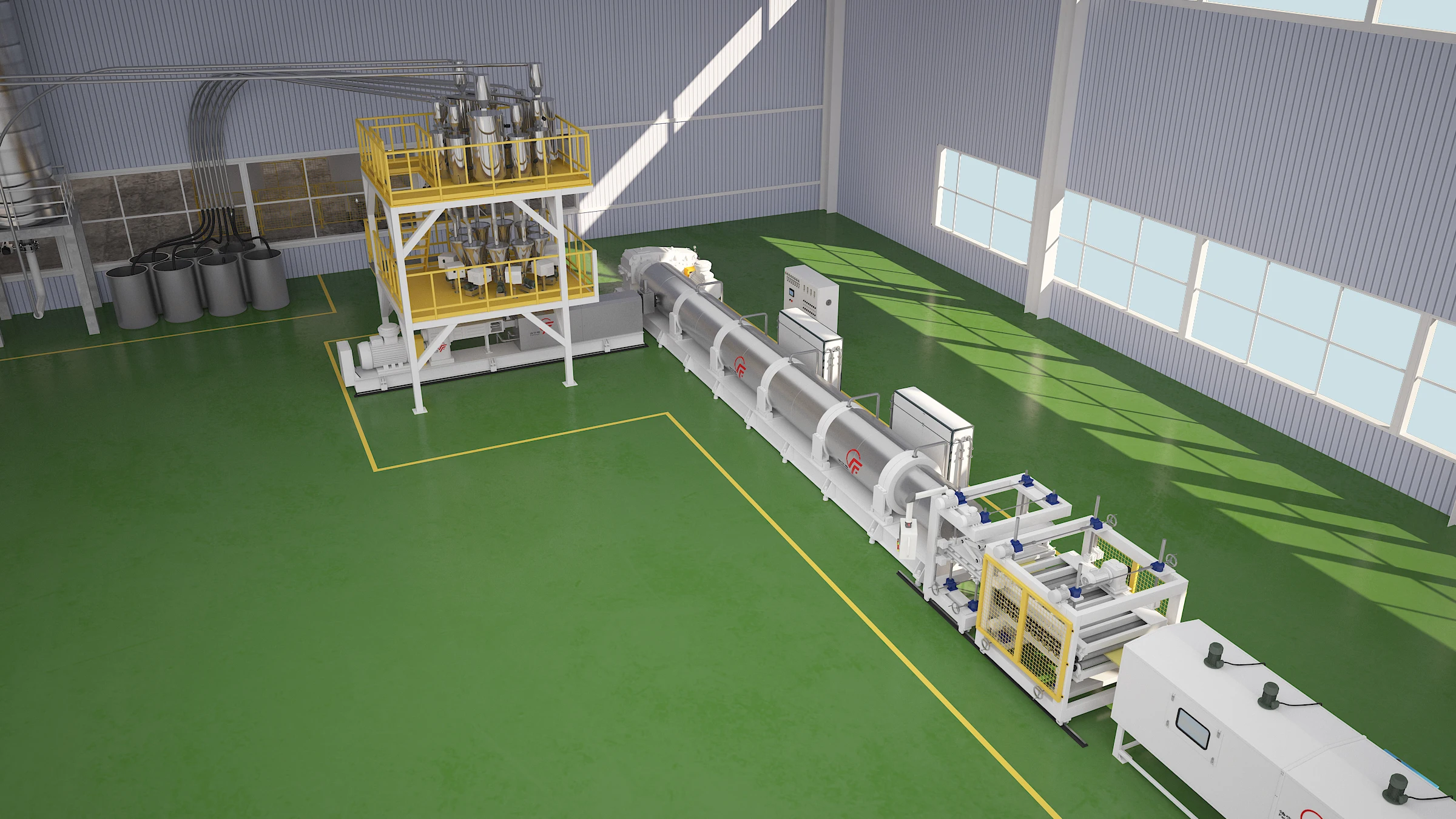

Feininger 100% CO2 Foaming  XPS Insulation Board Extrusion Line
XPS foam board production line produce XPS board that the polystyrene and foaming agent as raw material, a heat insulation board processed by high temperature extrusion molding. Right now the (HCFC) is main foaming agent in our country. However, Feininger only use CO2 as foaming agent to protect environment and human's health.


Specification


Model
Output
(kg/hr)
Product Width
(mm)
Foaming Agent
Size
Weight
(Tons)
FS120/150C
280-450



600, 900, 1200
,


CO2, Ethanol, HFC,...
40x10x4
18
FS150/200C
350-450
45x12x4
22
FS75T/200C
400-600
45x10x4
22
FS85T/250C
600-800
65x18x5
40
FS95T/300C
800-1000
60x15x5
35
FS110T/400C
1400-2000
100x20x5
60


Optional Equipment


1.  Automatic Feeding Machine
2.  Surface Grooving Machine
3.  Surface Milling Machine
4.  Edge Trimming Machine (SL, TG, RC)
5.  Milling Machine
6.  Embossing Machine

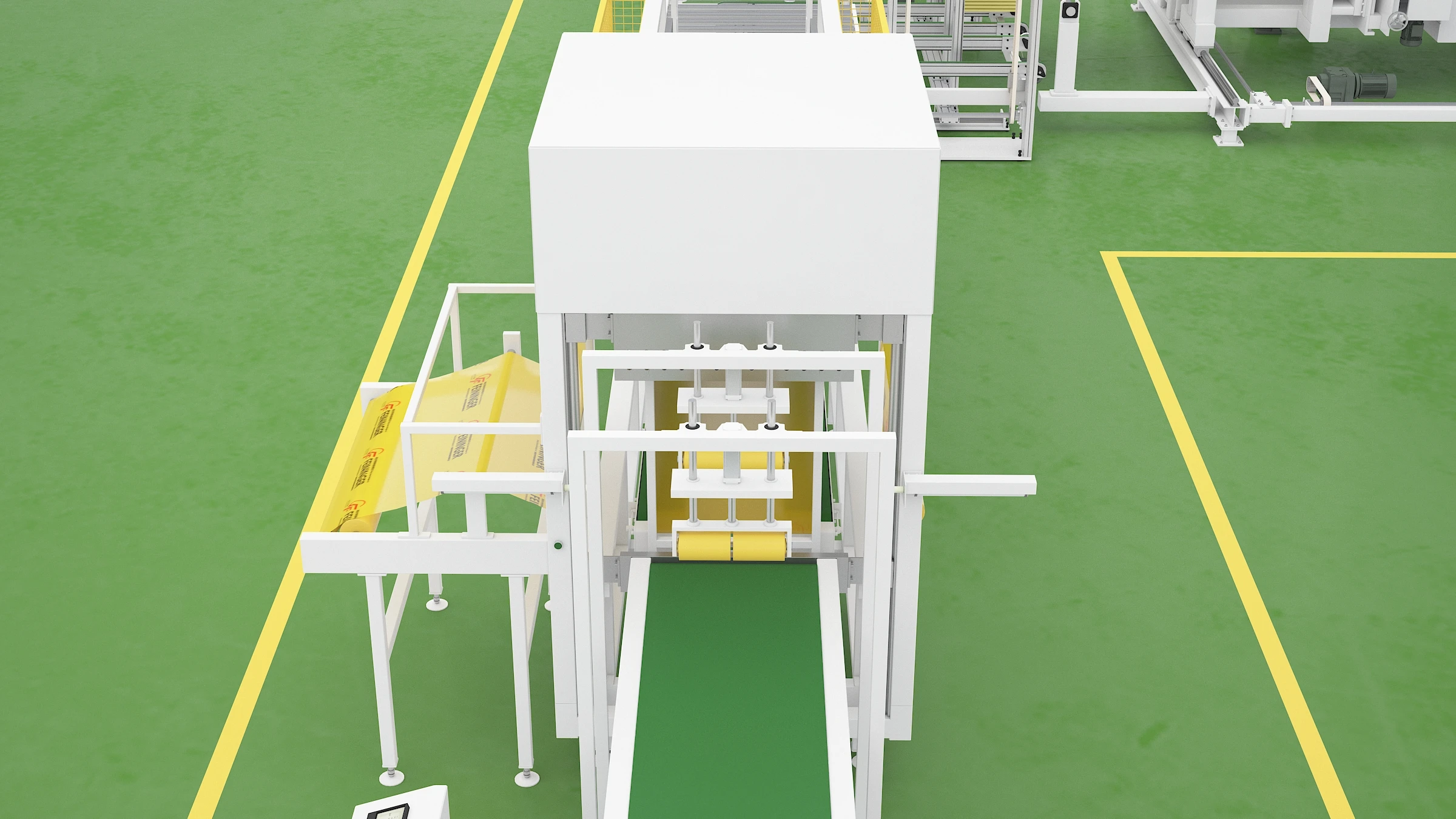

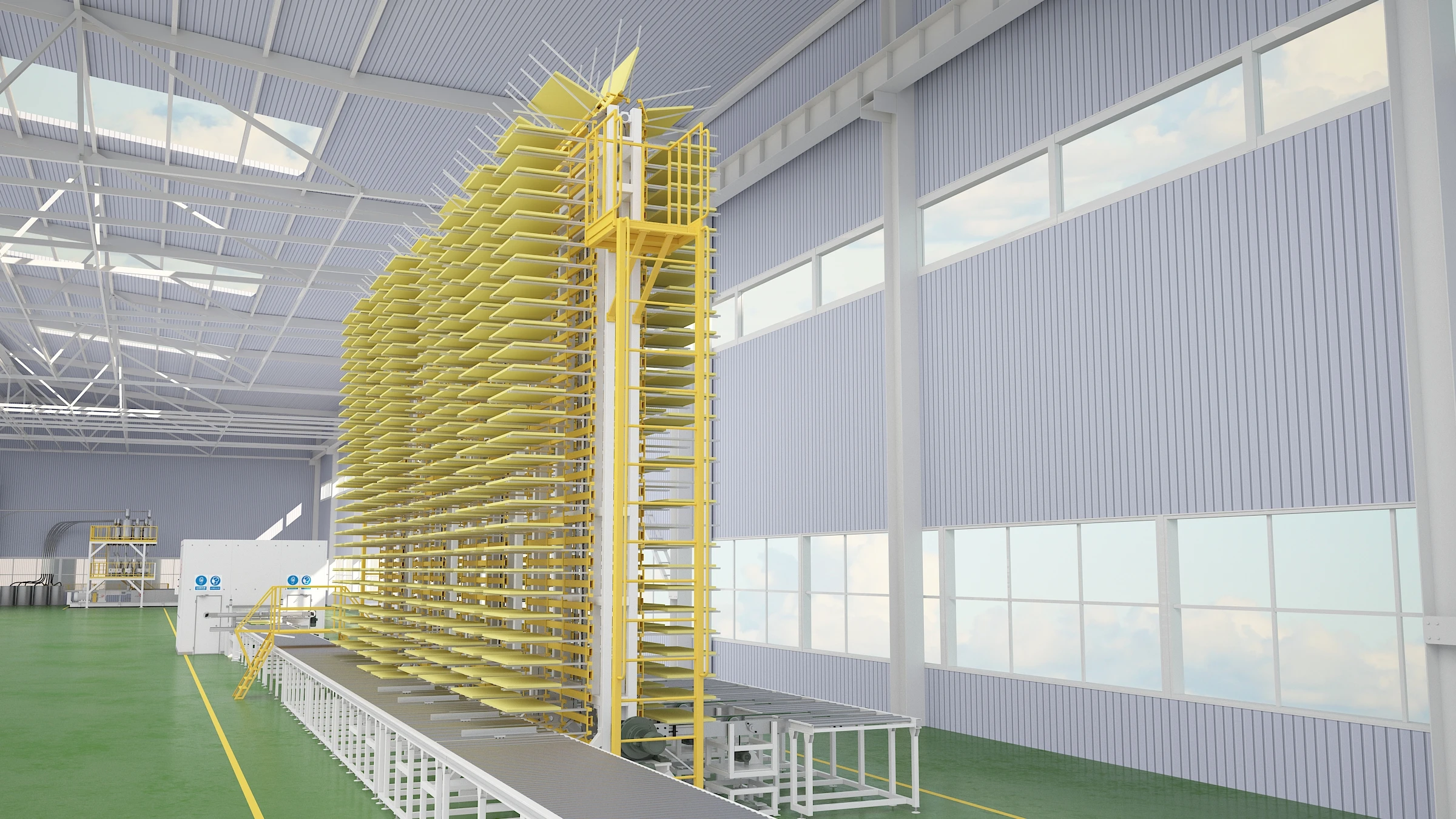

7.  Auto stacker
8.  Slice Cutting Machine
9.  Powder Recycling & Granulating Unit (High Capacity5-6ton/day)
10. Margin Recycle Machine
11. 90C Cutting Machine

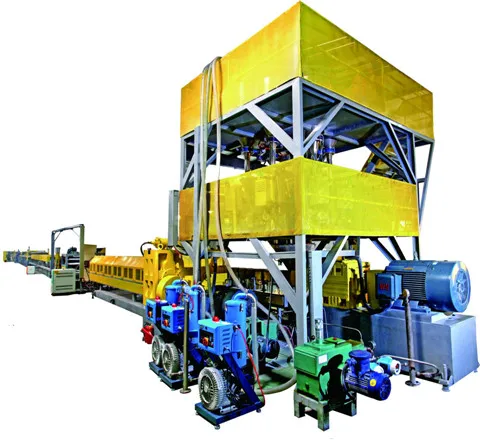

Basic Configuration

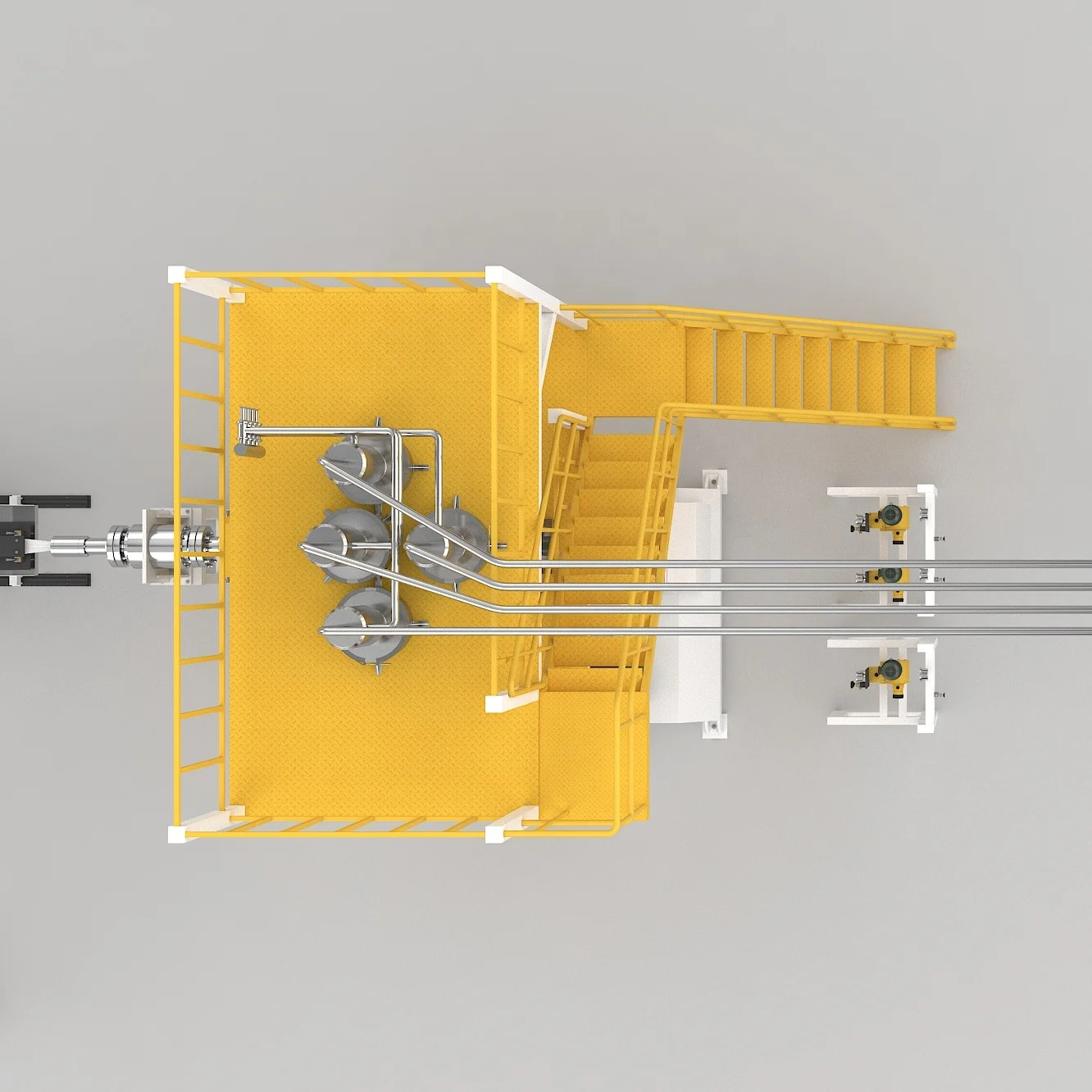

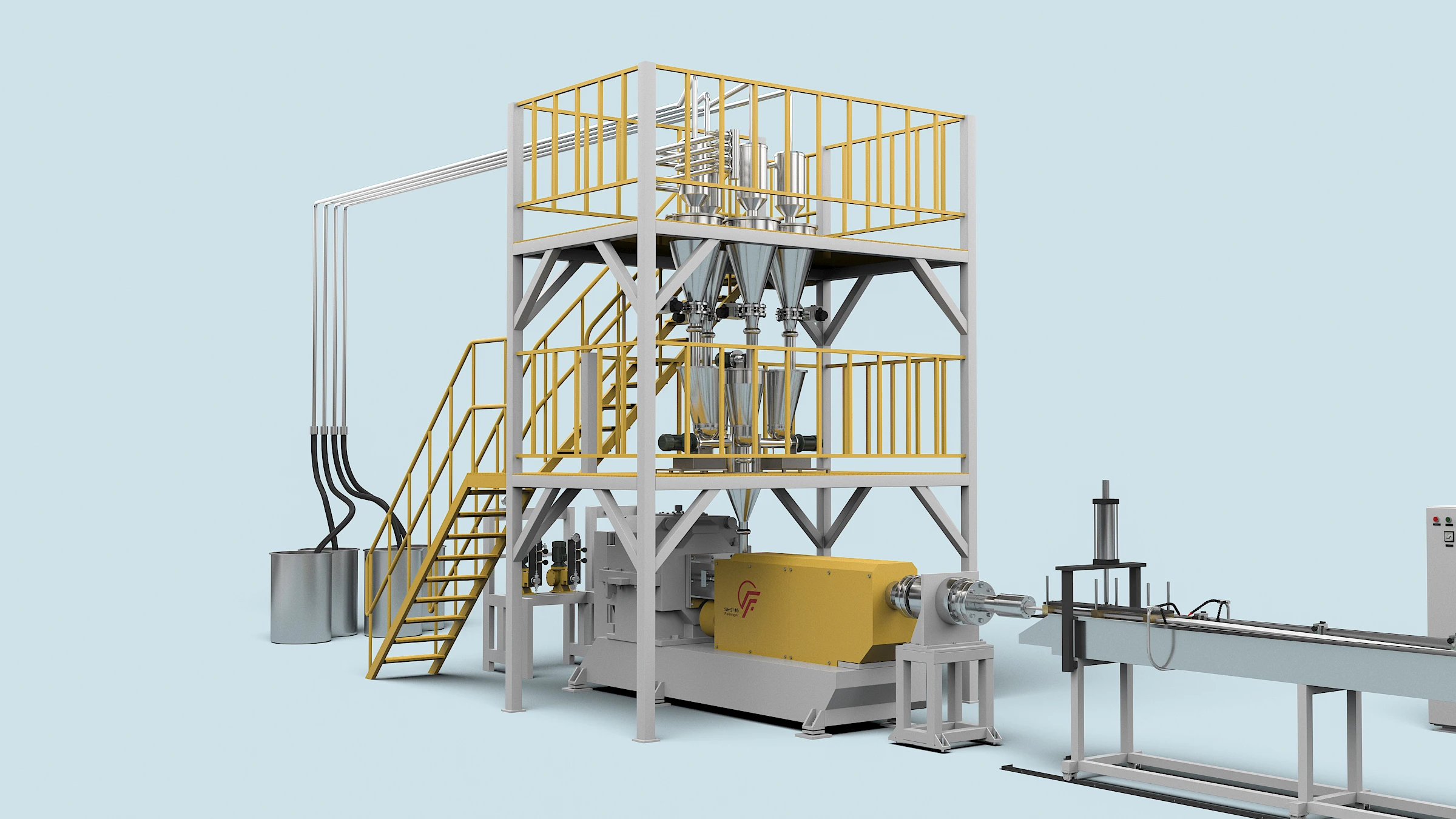

1.  Mixing and Feeding System

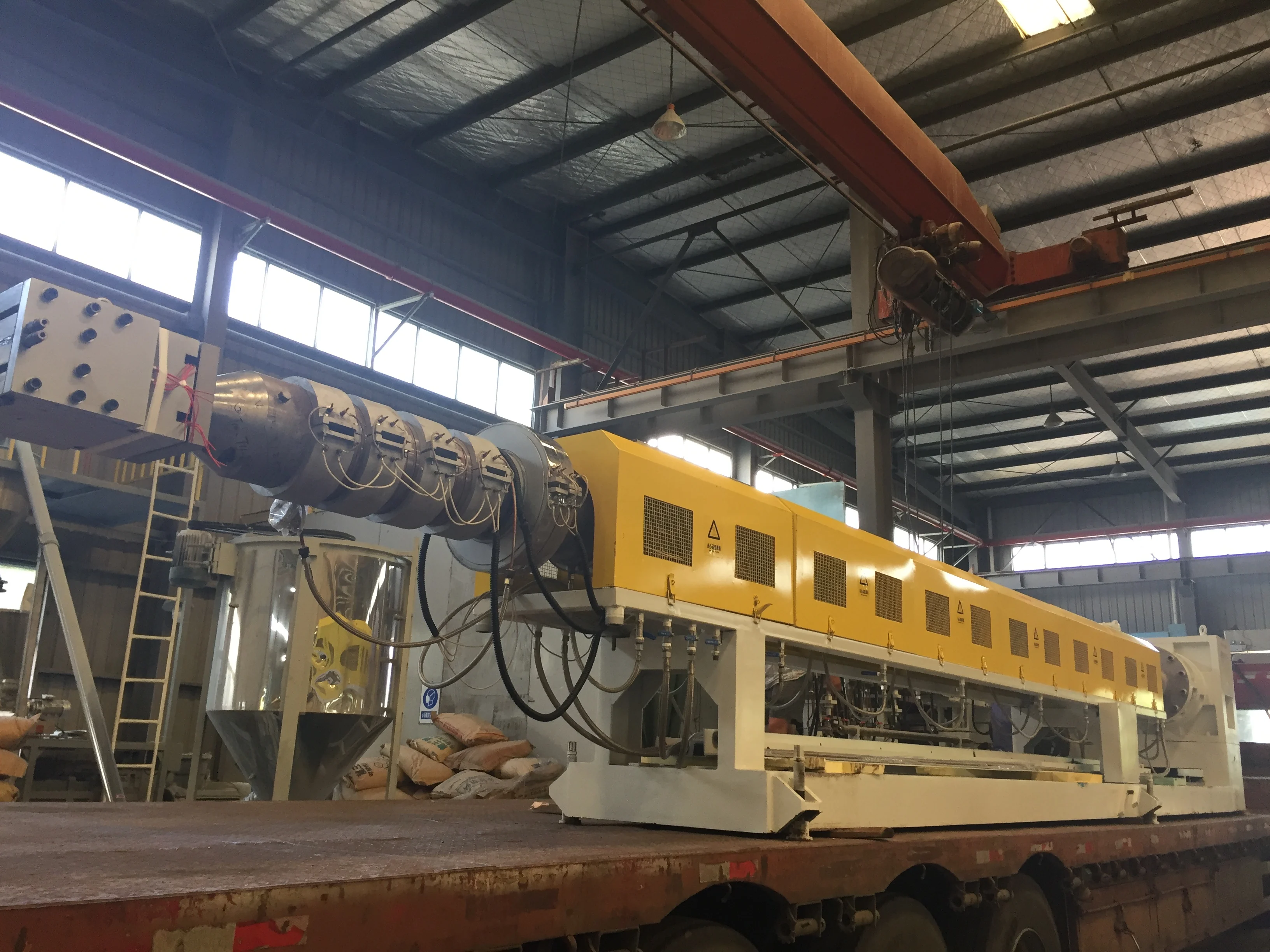

2.  Primary Extruder (¢120 Single Screw )
3.  Metering System (Special for CO2 Technology or others)
4.  Hydraulic screen Exchanger
5.  Touch Screen Controller
6.  Secondary Extruder(¢150Single Screw)
7.  Static Mixer
8.  Slot Die (Temperature control is necessary)
9.  Calibrator
10. First Haul off System

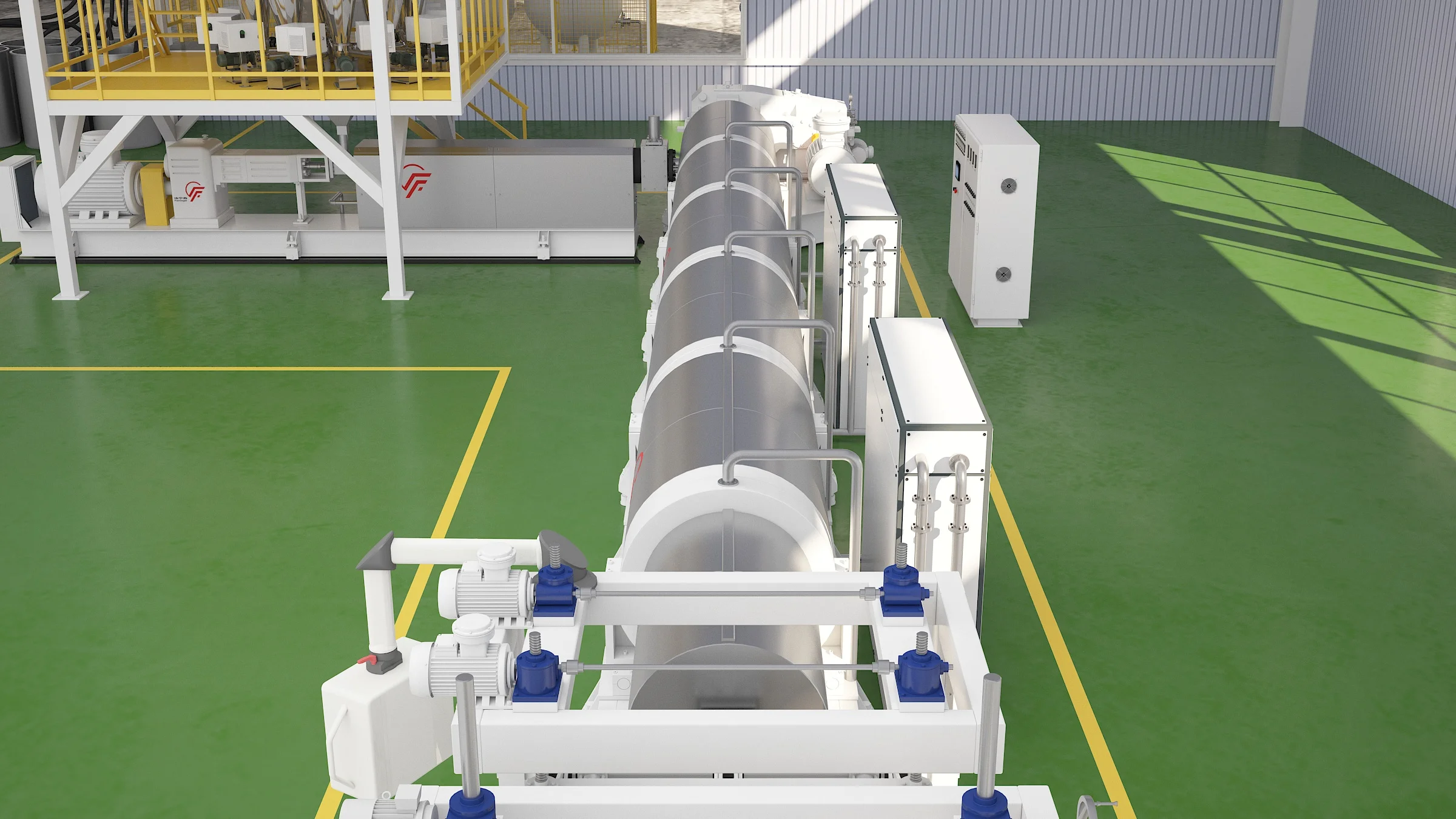

11. Cooling Roller

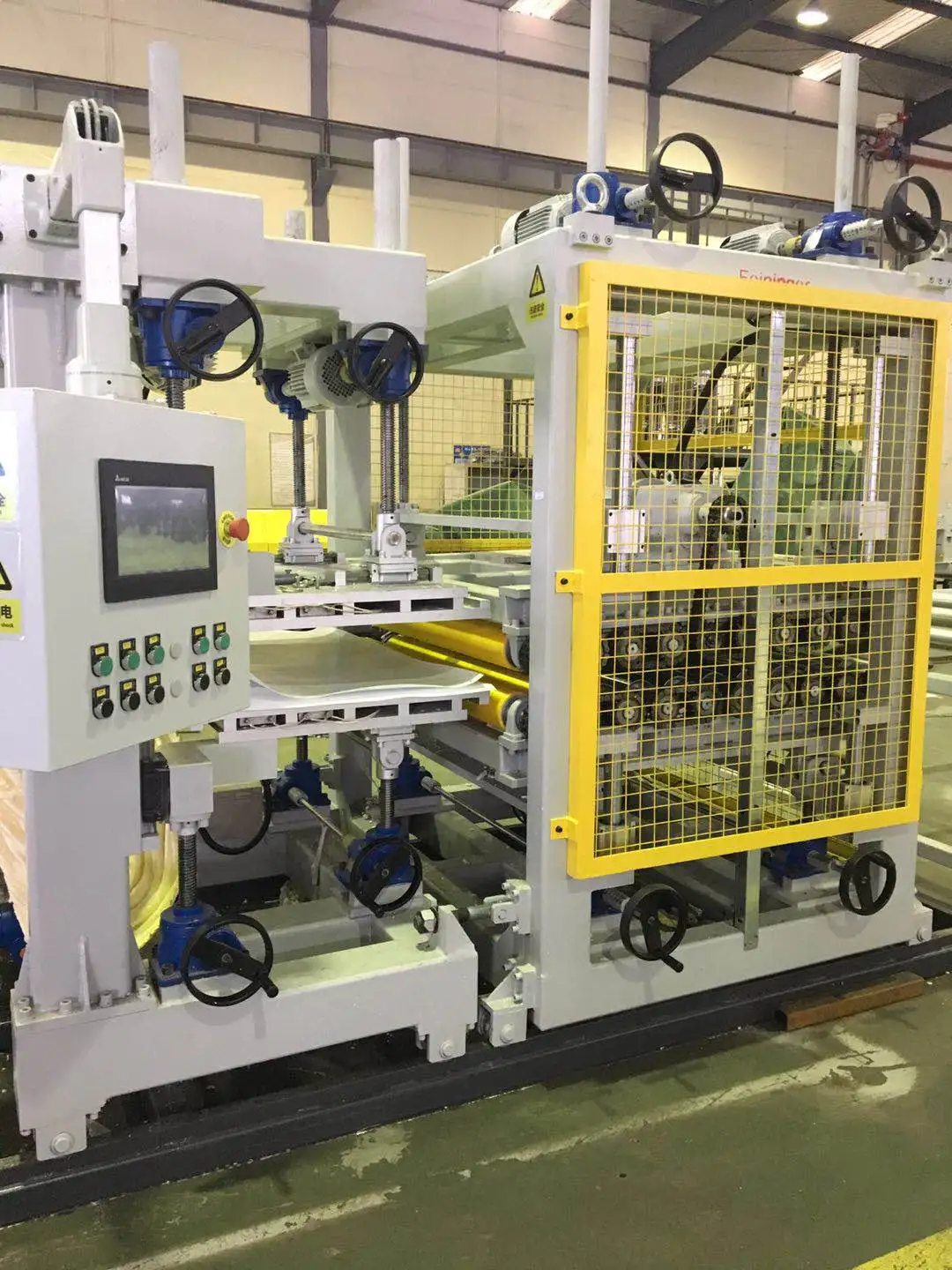

12. Width Cutting Machine
13. Second Haul Off system
14. Cross Cutting Machine


Our Advantages




Most Advanced CO2 Foaming Technology. 100% Non-Freon production. High compressive XPS foam insulation board production.
Multiple capacity options. Customized services. Feininger's XPS extrusion line can be equipped with a variety of other optional configurations.

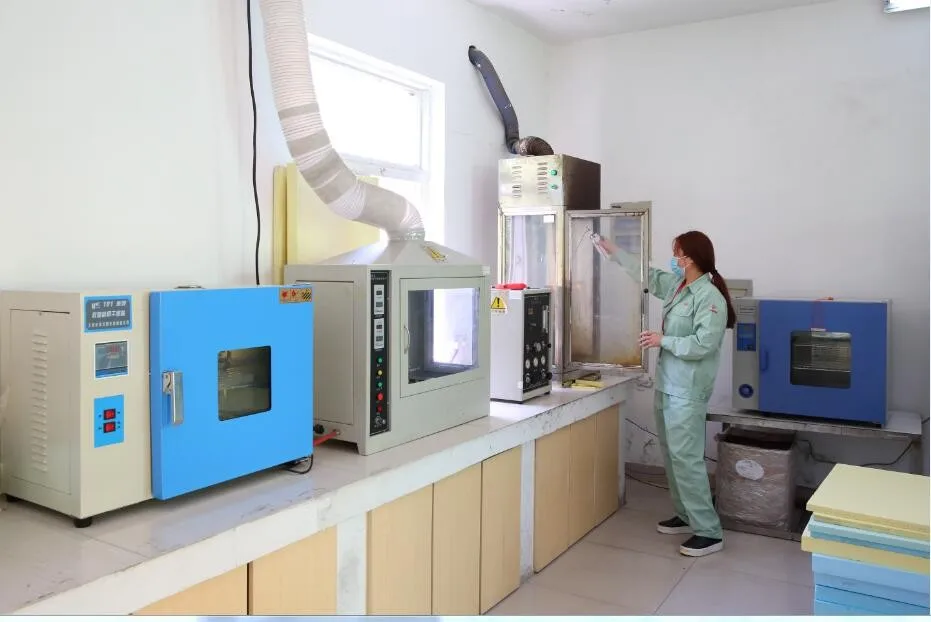

The enterprise laboratory & International research institute work together. They always committed to R & D.




Excellent after-sales team with the expert for XPS extruded board both in China and abroad. 24h online service.
Demonstration Unit of World Environmental Protection Organization, Chairman unit of China XPS Association. Developed and manufactured the first batch of extruded polystyrene foam line in China.
Several international certificates and technical patents.

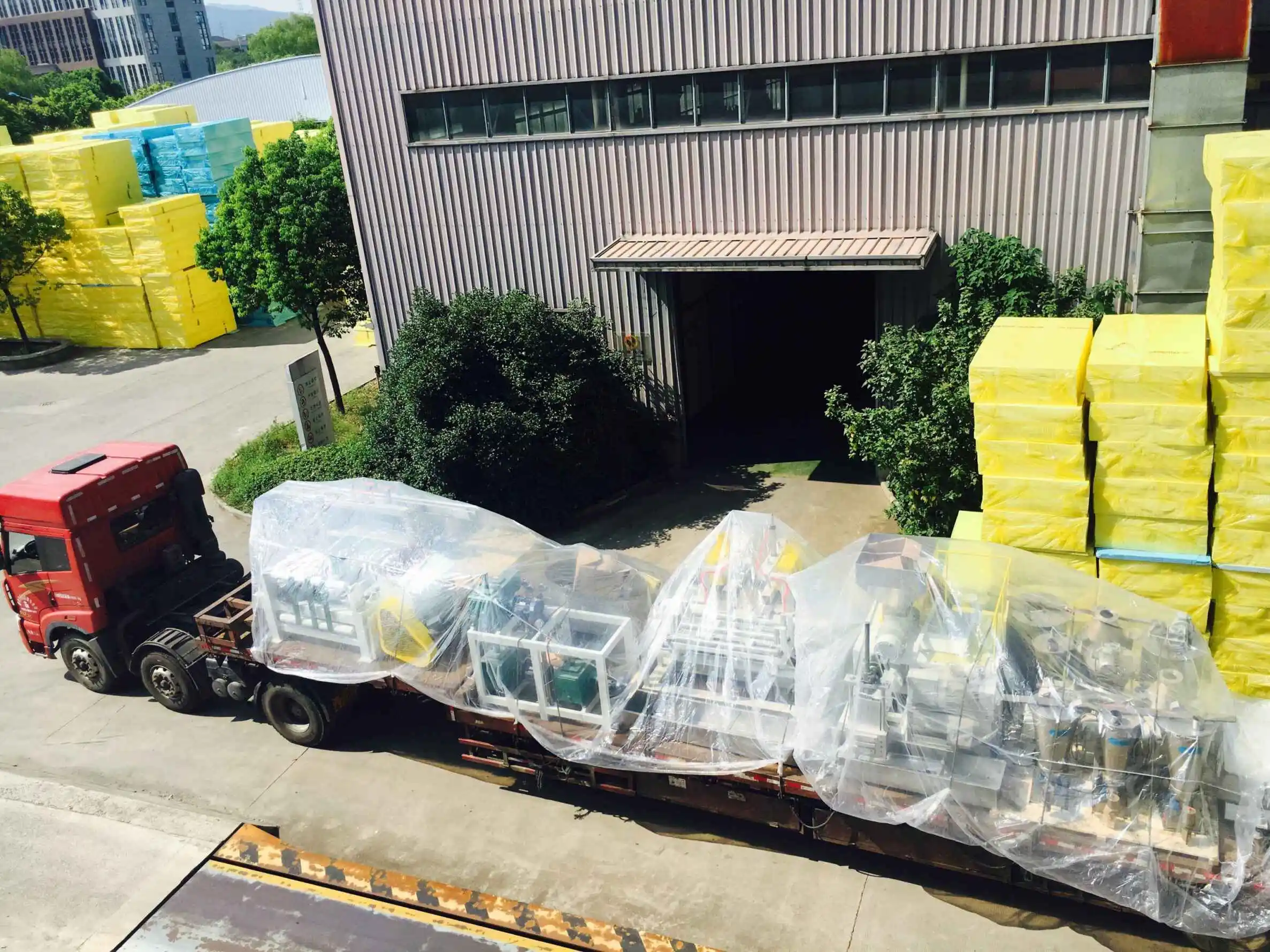

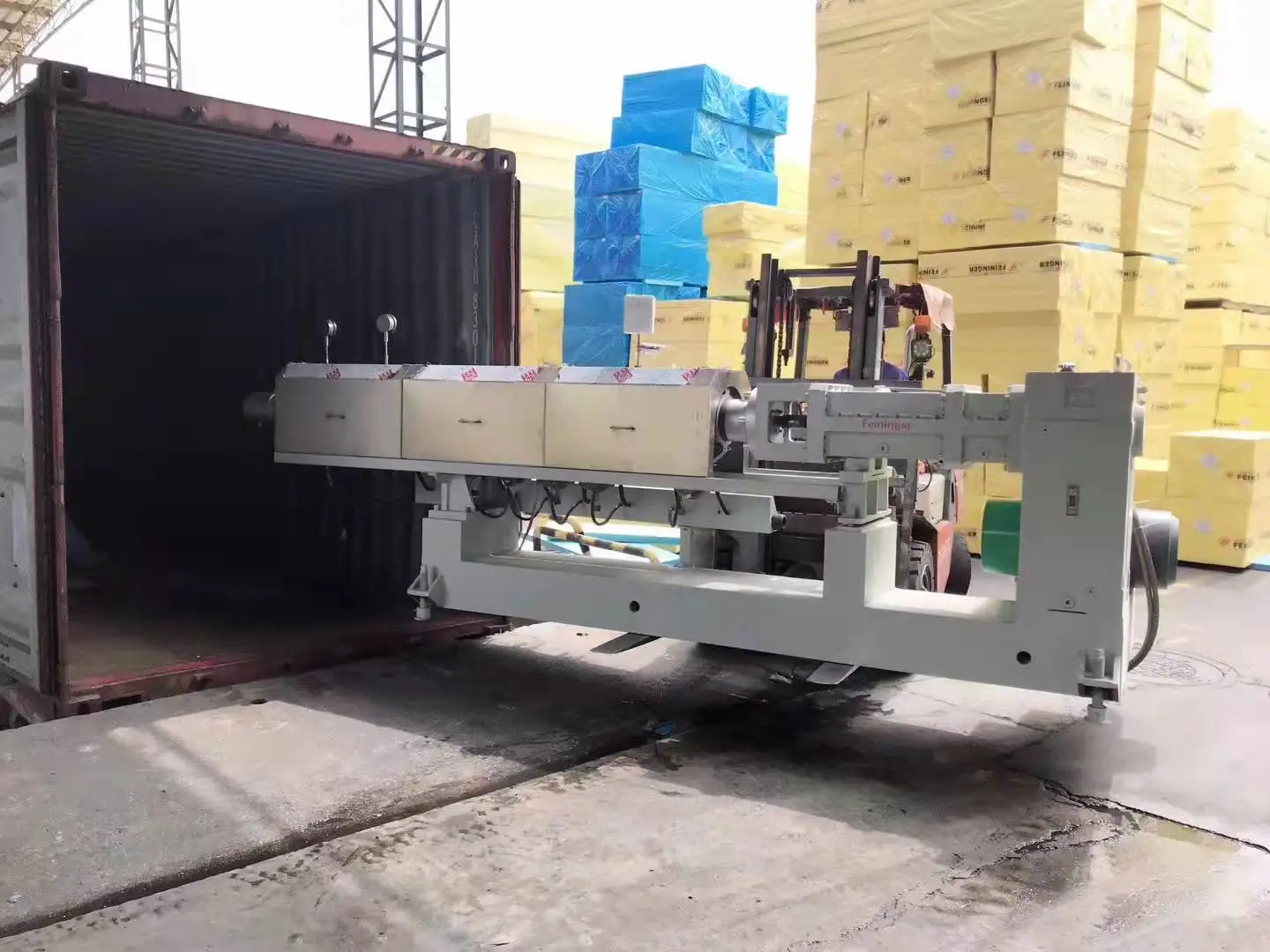

Packing




Certifications




Factory Strength
